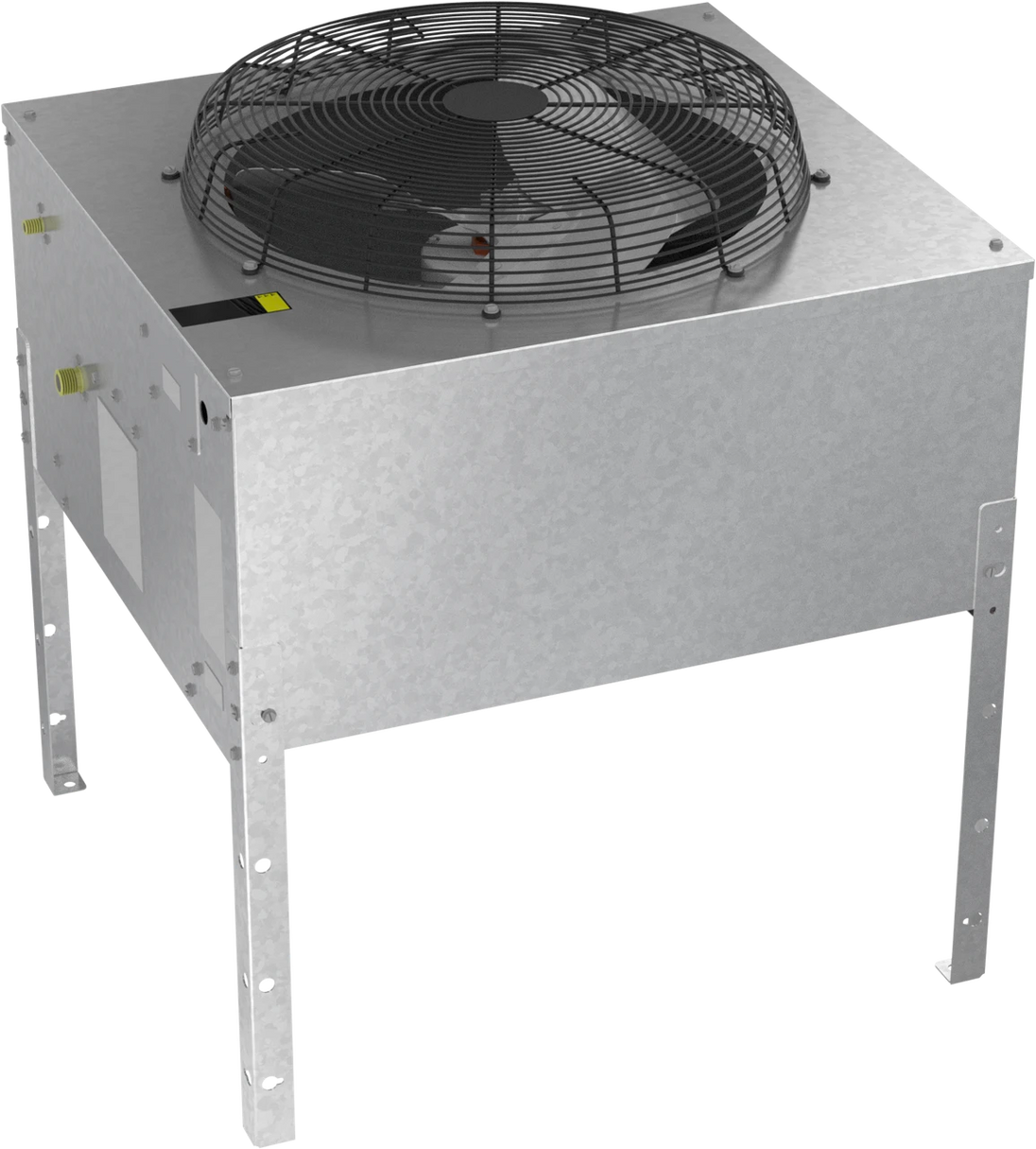

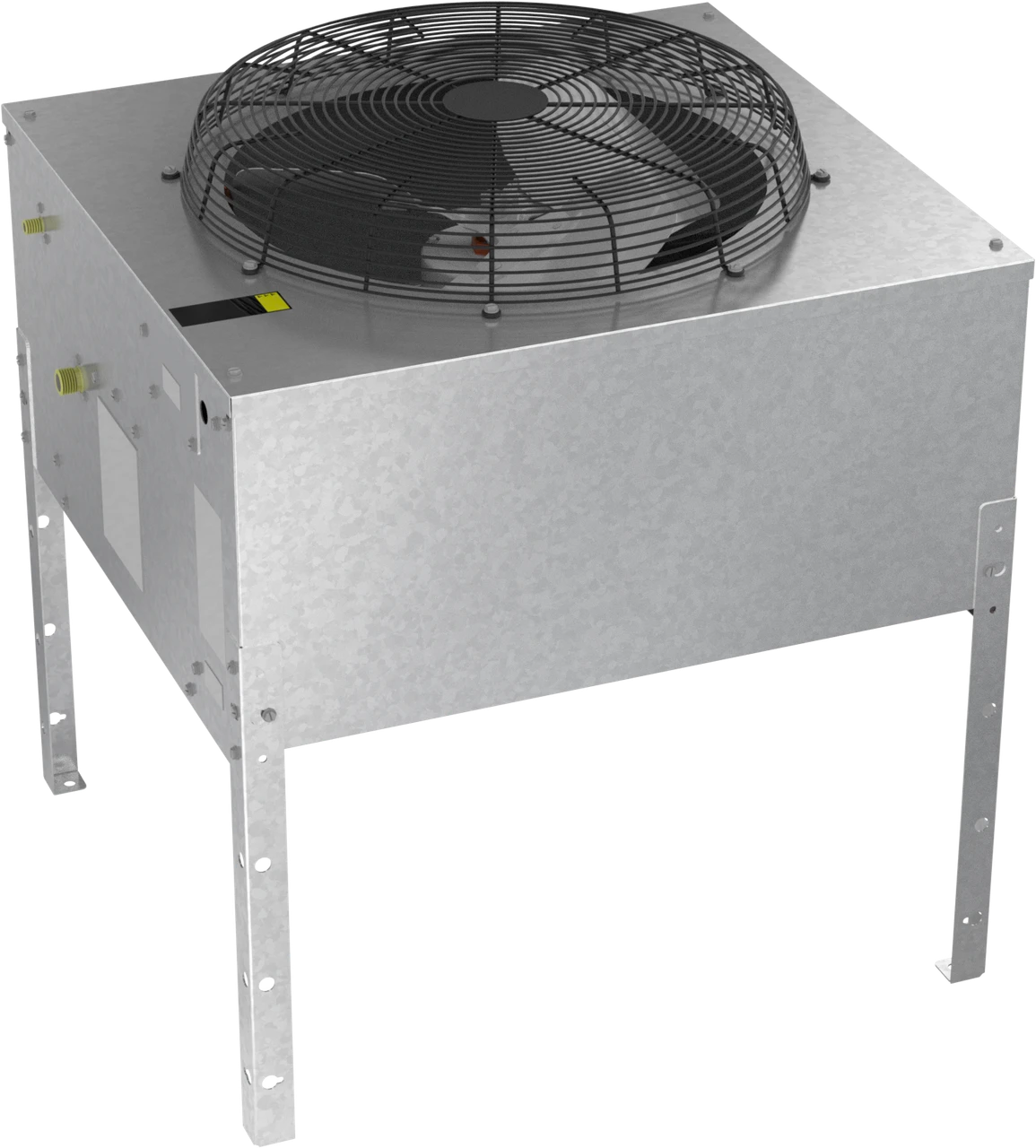

Ice-O-Matic RC106G49 remote condenser for GEM and MFI R49 ice machines, left angle view

Product Description

The Ice-O-Matic RC106G49 is a remote condenser sized for the R449 GEM0956R49, GEM1306R49, MFI1256R49, and MFI1506R49 heads, moving the heat-rejection side of the system outdoors or into a mechanical room.

Same Compatibility as the RC106C49

Ice-O-Matic lists the RC106G49 against the identical GEM0956R49, GEM1306R49, MFI1256R49, and MFI1506R49 head lineup as the RC106C49, sharing dimensions, electrical rating, and refrigerant type. The G and C model codes reflect Ice-O-Matic's parallel condenser part numbering rather than a functional difference for the dealer.

208-230V Single-Phase in a 29 x 31 x 34.5 Inch Footprint

Running on a 208-230V/50-60Hz/1-phase circuit matches the electrical requirement of the R449 GEM and MFI heads it serves. Its 29 x 31 x 34.5 inch (W x D x H) footprint is sized for a curb mount or a wall bracket rather than open floor space.

Ordered With a Matching RL49 Lineset

Ice-O-Matic sells the RC106G49 as a separate line item from the refrigerant lineset that connects it to the ice machine head, offering RL49-25, RL49-40, and RL49-75 precharged kits for 25, 40, and 75 foot runs. The run length between the head and the condenser location determines which lineset to order alongside this unit.

Specifications

Model RC106G49
Type Remote Condenser
Compatible Heads GEM0956R49, GEM1306R49, MFI1256R49, MFI1506R49
Exterior Dimensions 29 x 31 x 34.5 Inch (W x D x H)
Electrical 208-230V/50-60Hz/1-Phase
Refrigerant R449
Compatible Linesets RL49-25, RL49-40, RL49-75
Shipping Weight 91 lb

Warranty

Ice-O-Matic covers RCA remote condensers under the same terms as the CIM series: 3 years parts and labor, with 5 years parts on evaporators and compressors.
