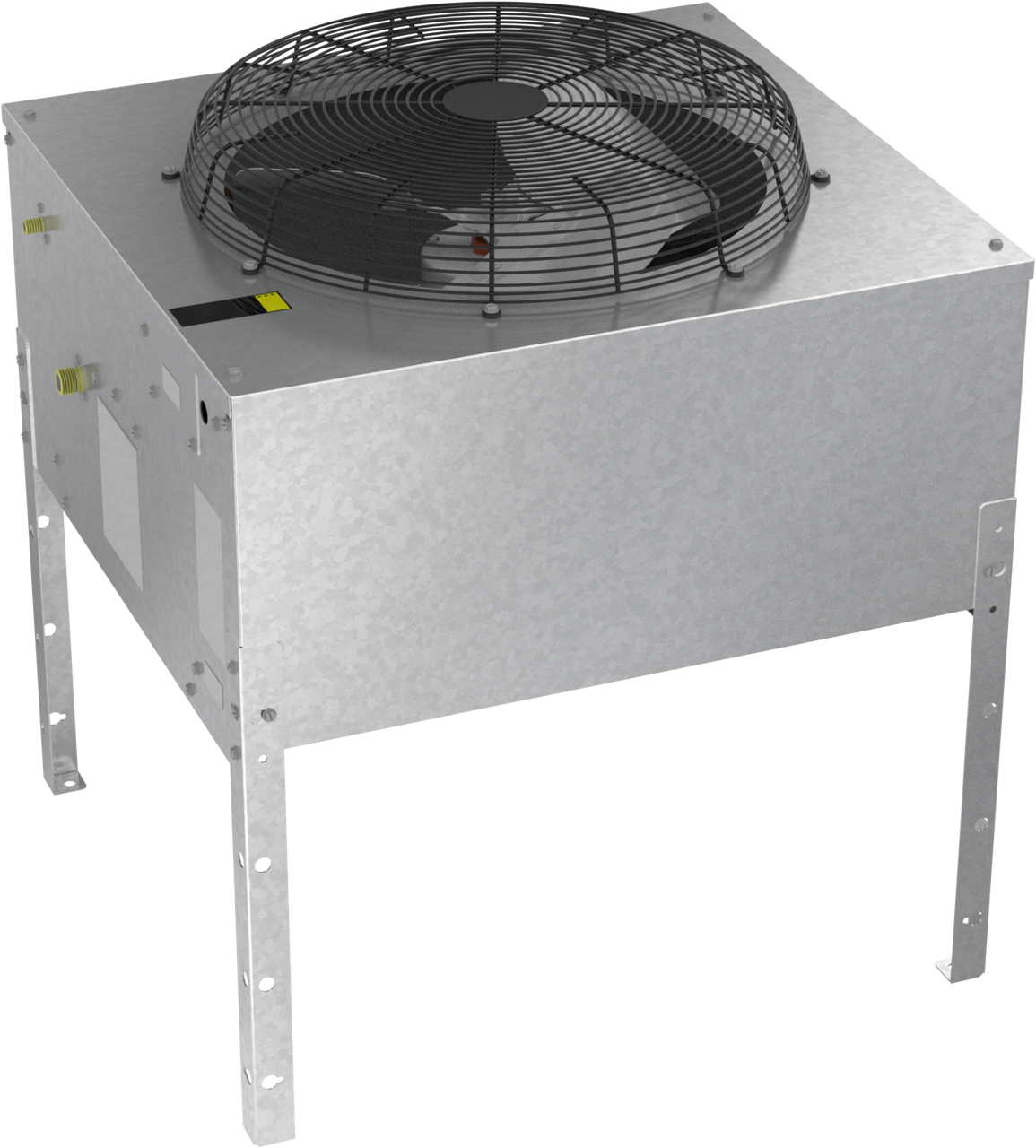

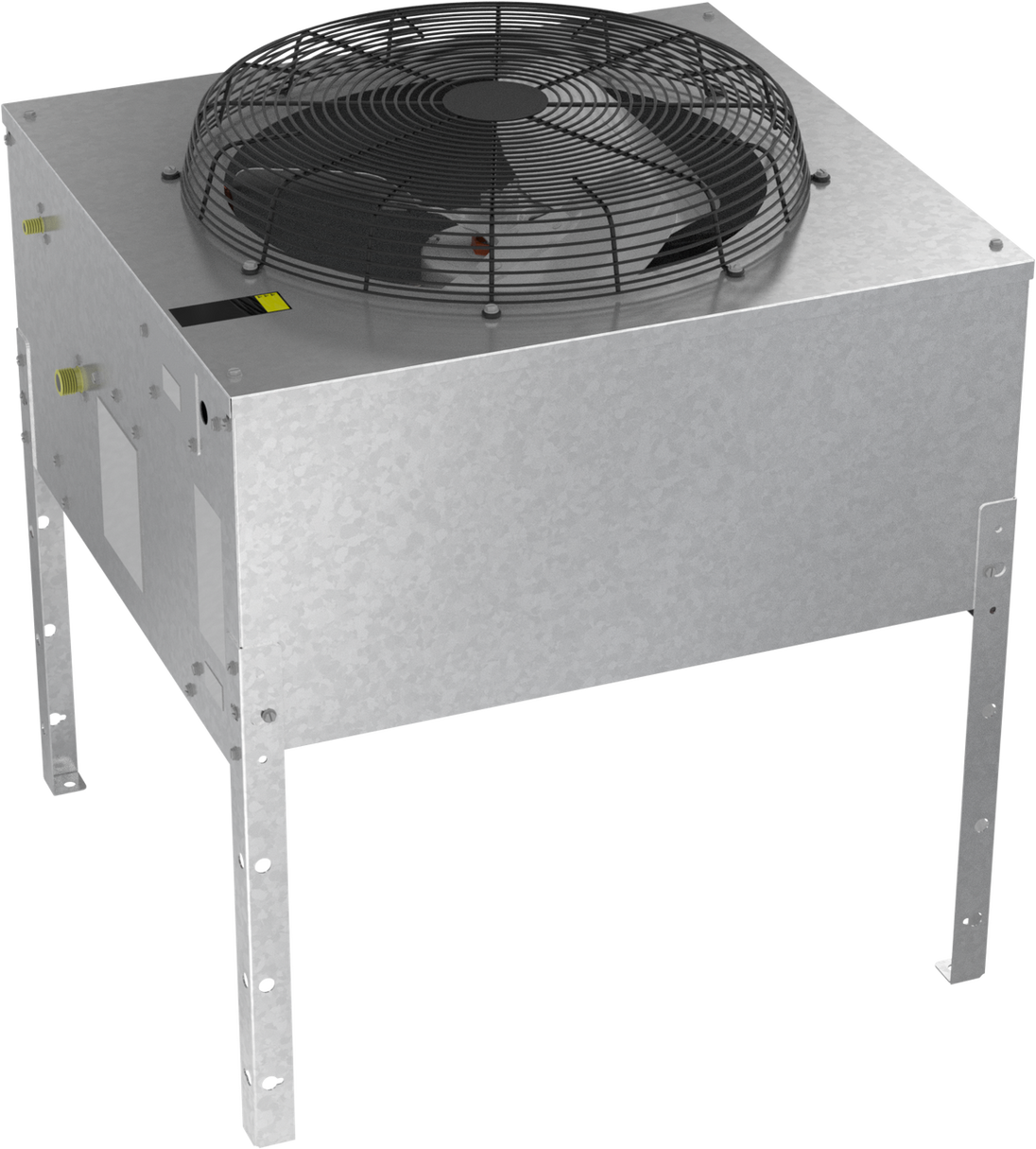

Ice-O-Matic RC106C49 remote condenser for CIM0636R49 ice machines, left angle view

Product Description

The Ice-O-Matic RC106C49 is a remote condenser sized for the R449 CIM0636R49 head, moving the heat-rejection side of the system outdoors or into a mechanical room.

Matched to the CIM0636R49 Cube Head

Ice-O-Matic lists the RC106C49 specifically against CIM0636R49 models, the R449 remote-cooled variant of the CIM0636 cube head. It shares its footprint and electrical rating with the RC106C40 and RC106G series condensers, but is not interchangeable with those R404-refrigerant units.

208-230V Single-Phase in a 29 x 31 x 34.5 Inch Footprint

Running on a 208-230V/50-60Hz/1-phase circuit matches the electrical requirement of the CIM0636R49 head it serves. Its 29 x 31 x 34.5 inch (W x D x H) footprint is sized for a curb mount or a wall bracket rather than open floor space.

Ordered With a Matching RL49 Lineset

Ice-O-Matic sells the RC106C49 as a separate line item from the refrigerant lineset that connects it to the ice machine head, offering RL49-25, RL49-40, and RL49-75 precharged kits for 25, 40, and 75 foot runs. The run length between the head and the condenser location determines which lineset to order alongside this unit.

Specifications

Model RC106C49
Type Remote Condenser
Compatible Heads CIM0636R49
Exterior Dimensions 29 x 31 x 34.5 Inch (W x D x H)
Electrical 208-230V/50-60Hz/1-Phase
Refrigerant R449
Compatible Linesets RL49-25, RL49-40, RL49-75
Shipping Weight 91 lb

Warranty

Ice-O-Matic covers RCA remote condensers under the same terms as the CIM series: 3 years parts and labor, with 5 years parts on evaporators and compressors.
