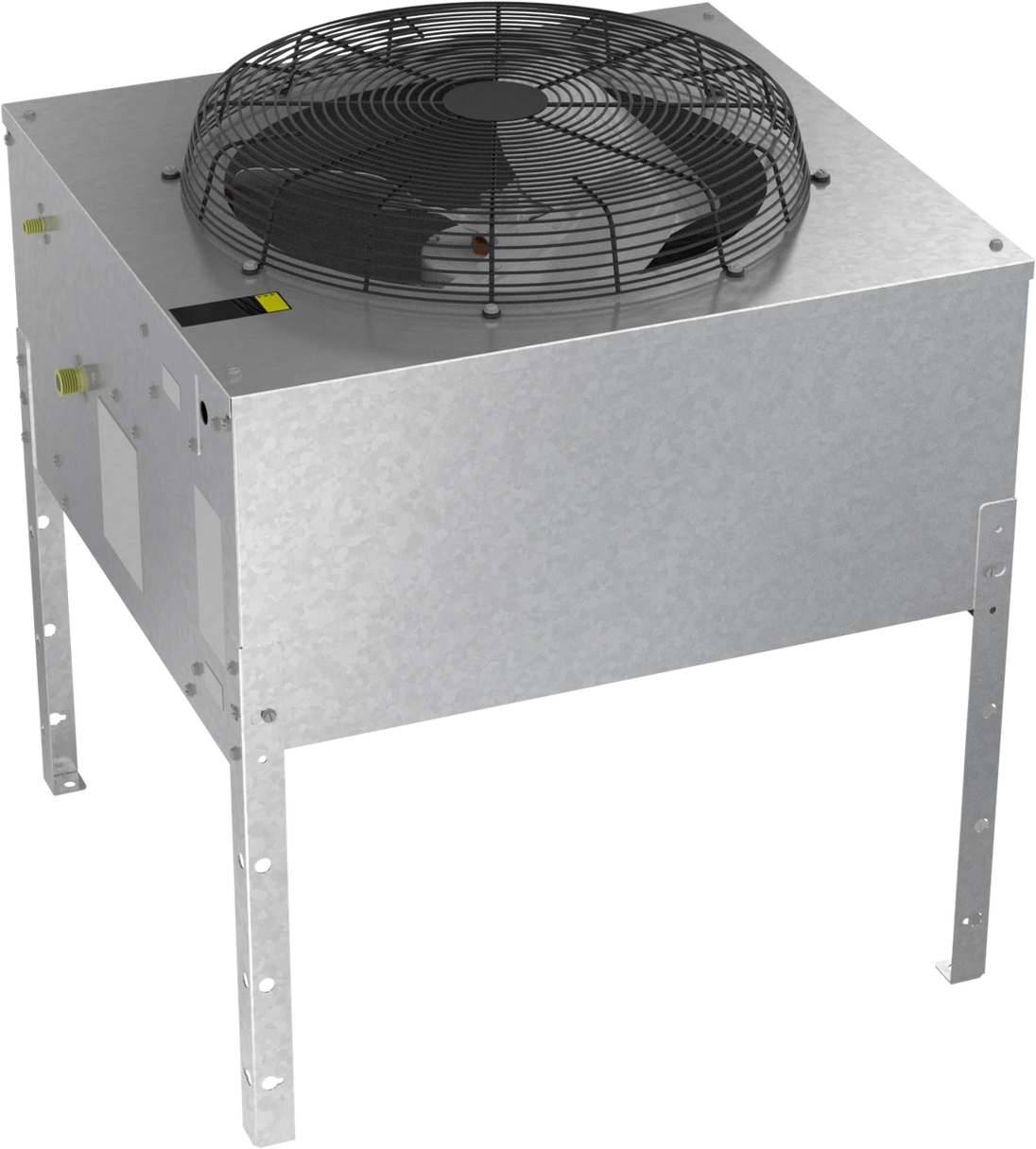

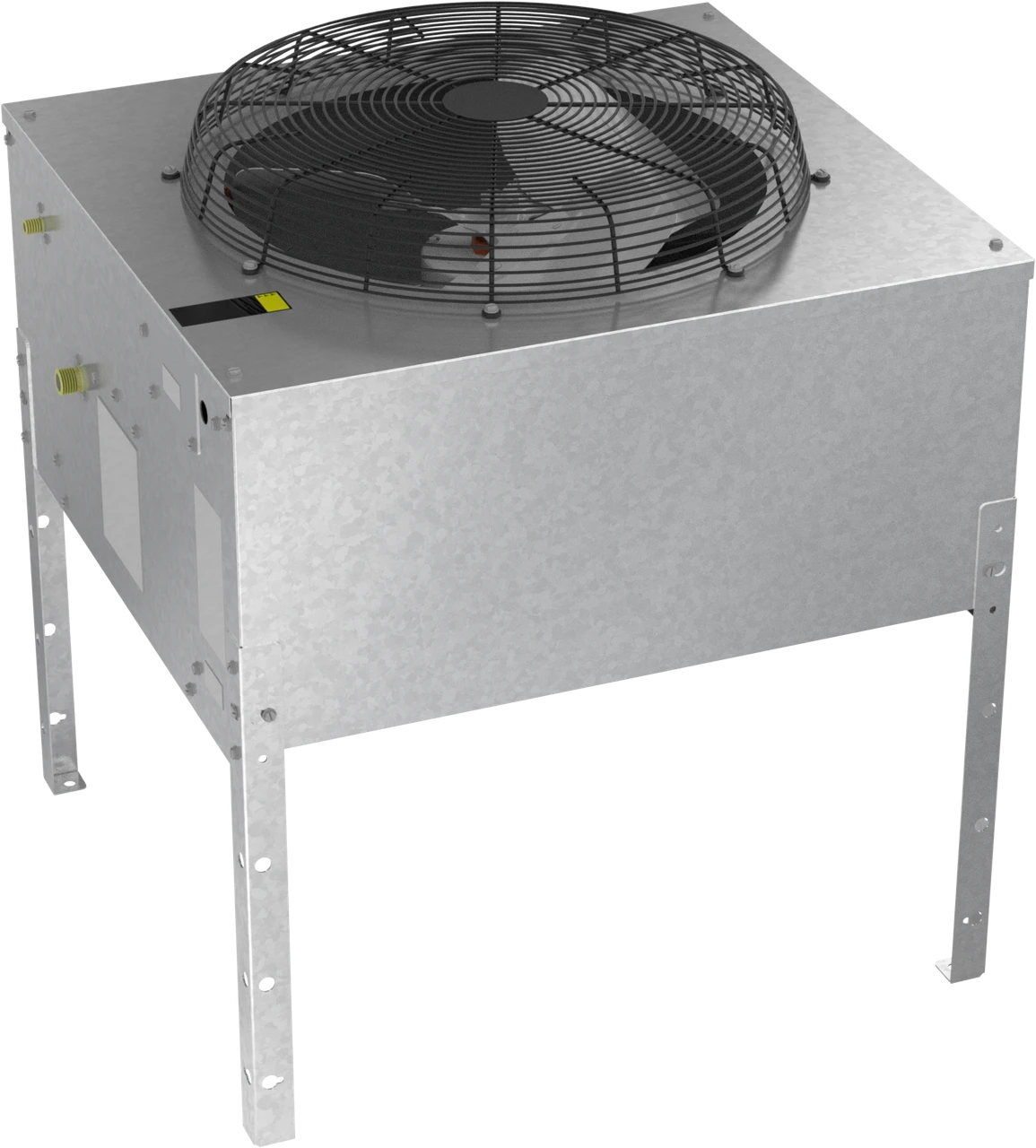

Ice-O-Matic RC106C40 remote condenser for GEM and MFI R404 ice machines, left angle view

Product Description

The Ice-O-Matic RC106C40 is a remote condenser sized for the R404 GEM0956R, GEM1306R, MFI1256R, and MFI1506R heads, moving the heat-rejection side of the system outdoors or into a mechanical room.

One Condenser Across Four R404 Heads

Ice-O-Matic pairs the RC106C40 with GEM0956R and GEM1306R pearl-ice heads alongside MFI1256R and MFI1506R flake-ice heads, all built on R404 refrigerant. It draws more current than the smaller RC100 series condensers, reflecting the larger production capacity of the heads it serves.

208-230V Single-Phase in a 29 x 31 x 34.5 Inch Footprint

Running on a 208-230V/50-60Hz/1-phase circuit, the RC106C40 steps up from the 115V RC100 series to handle the heavier heat-rejection load of the 1000 lb-plus GEM and MFI heads it serves. Its 29 x 31 x 34.5 inch (W x D x H) footprint is unchanged from the RC100 series, so mounting hardware and curb layouts carry over.

Ordered With a Matching RL404 Lineset

Ice-O-Matic sells the RC106C40 as a separate line item from the refrigerant lineset that connects it to the ice machine head, offering RL404-25, RL404-40, and RL404-75 kits for 25, 40, and 75 foot runs. The run length between the head and the condenser location determines which lineset to order alongside this unit.

Specifications

Model RC106C40
Type Remote Condenser
Compatible Heads GEM0956R, GEM1306R, MFI1256R, MFI1506R (R404)
Exterior Dimensions 29 x 31 x 34.5 Inch (W x D x H)
Electrical 208-230V/50-60Hz/1-Phase
Refrigerant R404
Compatible Linesets RL404-25, RL404-40, RL404-75
Shipping Weight 91 lb

Warranty

Ice-O-Matic covers RCA remote condensers under the same terms as the CIM series: 3 years parts and labor, with 5 years parts on evaporators and compressors.
