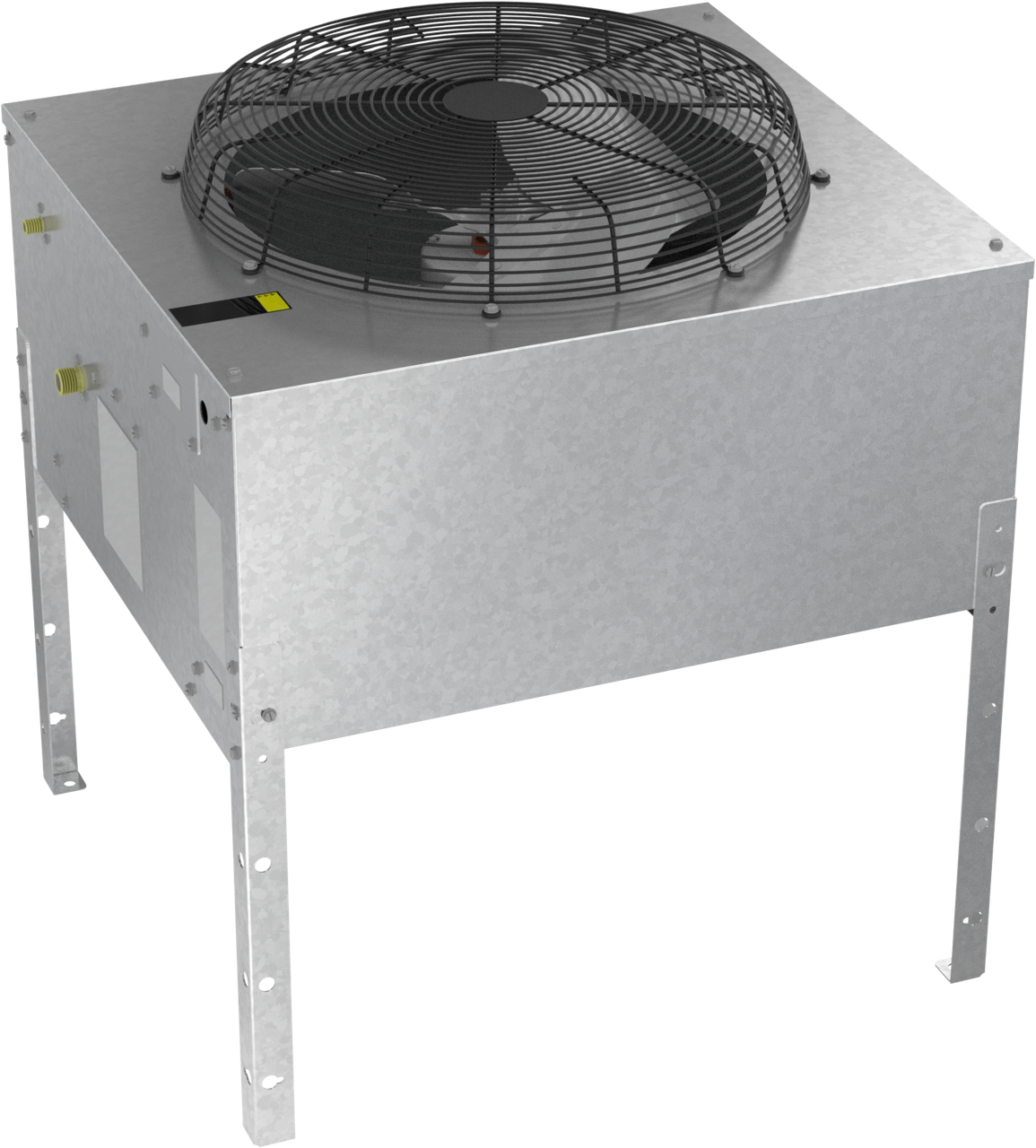

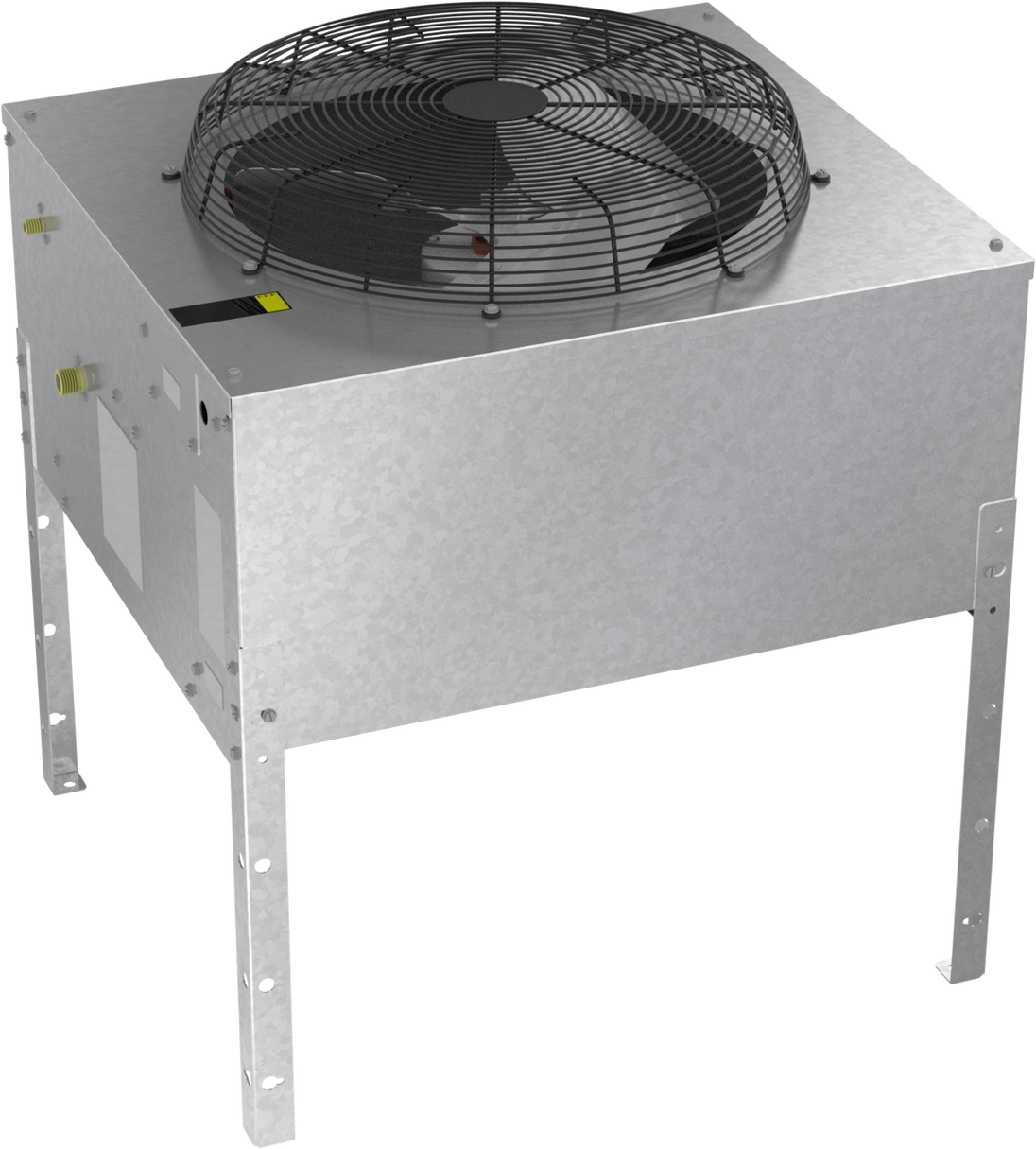

Ice-O-Matic RC100G49 remote condenser for GEM and MFI R49 ice machines, left angle view

Product Description

The Ice-O-Matic RC100G49 is a remote condenser sized for the R449 GEM0956R49, GEM1306R49, MFI1256R49, and MFI1506R49 heads, moving the heat-rejection side of the system outdoors or into a mechanical room.

One Condenser Across Four R449 Heads

Ice-O-Matic pairs the RC100G49 with GEM0956R49 and GEM1306R49 pearl-ice heads alongside MFI1256R49 and MFI1506R49 flake-ice heads, all built on R449 refrigerant. Sharing one condenser across the pearl and flake families at this production tier simplifies parts stocking for dealers who carry both lines.

115V Single-Phase in a 29 x 31 x 34.5 Inch Footprint

Running on a standard 115V/60Hz/1-phase circuit keeps the electrical requirement the same as the ice machine head it serves, simplifying the rooftop or mechanical-room circuit plan. Its 29 x 31 x 34.5 inch (W x D x H) footprint is sized for a curb mount or a wall bracket rather than open floor space.

Ordered With a Matching RL49 Lineset

Ice-O-Matic sells the RC100G49 as a separate line item from the refrigerant lineset that connects it to the ice machine head, offering RL49-25, RL49-40, and RL49-75 precharged kits for 25, 40, and 75 foot runs. The run length between the head and the condenser location determines which lineset to order alongside this unit.

Specifications

Model RC100G49
Type Remote Condenser
Compatible Heads GEM0956R49, GEM1306R49, MFI1256R49, MFI1506R49
Exterior Dimensions 29 x 31 x 34.5 Inch (W x D x H)
Electrical 115V/60Hz/1-Phase
Refrigerant R449
Compatible Linesets RL49-25, RL49-40, RL49-75
Shipping Weight 91 lb

Warranty

Ice-O-Matic covers RCA remote condensers under the same terms as the CIM series: 3 years parts and labor, with 5 years parts on evaporators and compressors.
