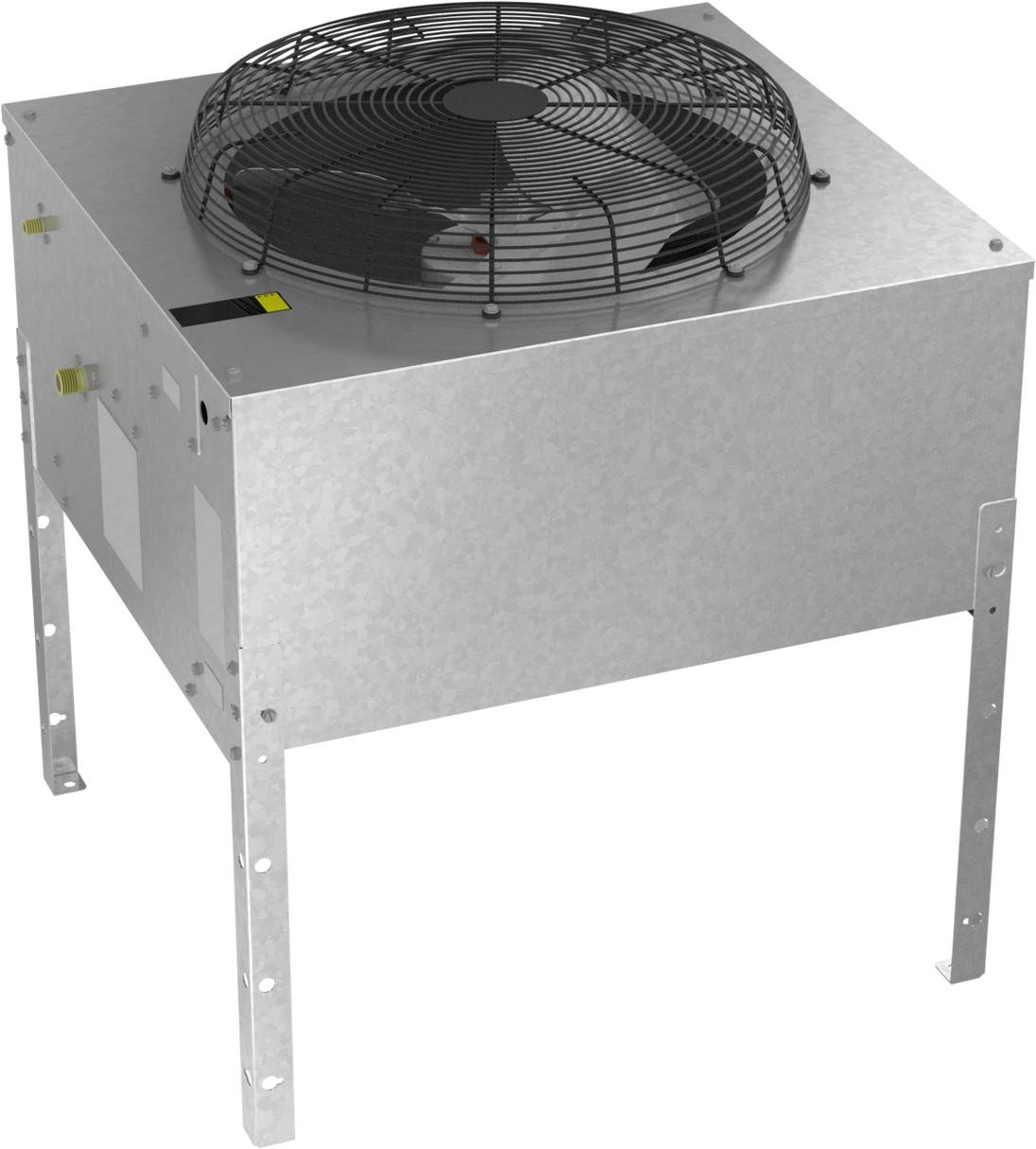

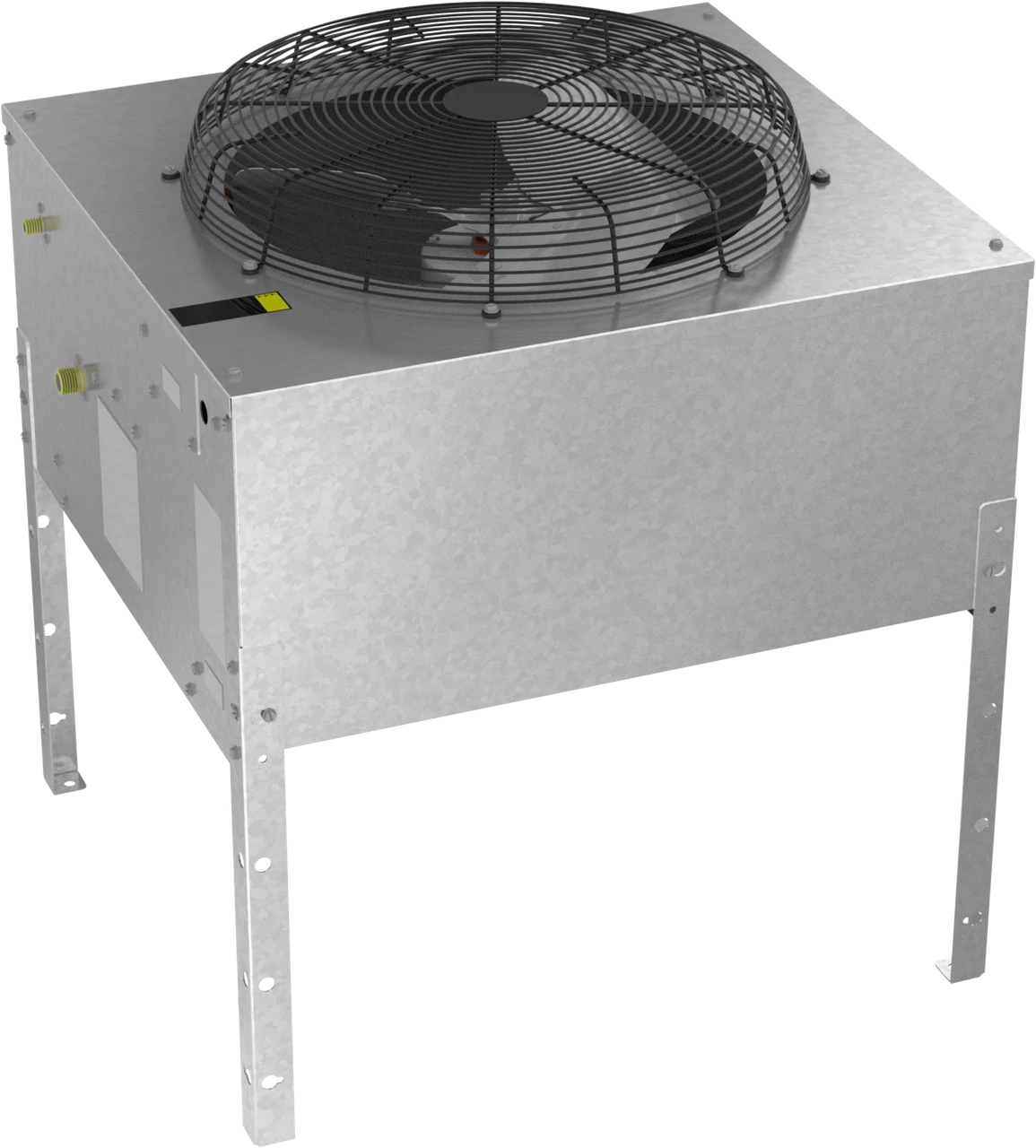

Ice-O-Matic RC100G40 remote condenser for GEM0650R and MFI0800R ice machines, left angle view

Product Description

The Ice-O-Matic RC100G40 is a remote condenser sized for the R404 GEM0650R and MFI0800R heads, moving the heat-rejection side of the system outdoors or into a mechanical room.

Shared Across the GEM Pearl and MFI Flake Lines

Ice-O-Matic pairs the RC100G40 with both the GEM0650R pearl-ice head and the MFI0800R flake-ice head, the entry-level remote-cooled units in each series built on R404 refrigerant. Sharing one condenser across two ice-type families simplifies parts stocking for dealers who carry both product lines.

115V Single-Phase in a 29 x 31 x 34.5 Inch Footprint

Running on a standard 115V/60Hz/1-phase circuit keeps the electrical requirement the same as the ice machine head it serves, simplifying the rooftop or mechanical-room circuit plan. Its 29 x 31 x 34.5 inch (W x D x H) footprint is sized for a curb mount or a wall bracket rather than open floor space.

Ordered With a Matching RL404 Lineset

Ice-O-Matic sells the RC100G40 as a separate line item from the refrigerant lineset that connects it to the ice machine head, offering RL404-25, RL404-40, and RL404-75 kits for 25, 40, and 75 foot runs. The run length between the head and the condenser location determines which lineset to order alongside this unit.

Specifications

Model RC100G40
Type Remote Condenser
Compatible Heads GEM0650R, MFI0800R
Exterior Dimensions 29 x 31 x 34.5 Inch (W x D x H)
Electrical 115V/60Hz/1-Phase
Refrigerant R404
Compatible Linesets RL404-25, RL404-40, RL404-75
Shipping Weight 90 lb

Warranty

Ice-O-Matic covers RCA remote condensers under the same terms as the CIM series: 3 years parts and labor, with 5 years parts on evaporators and compressors.
