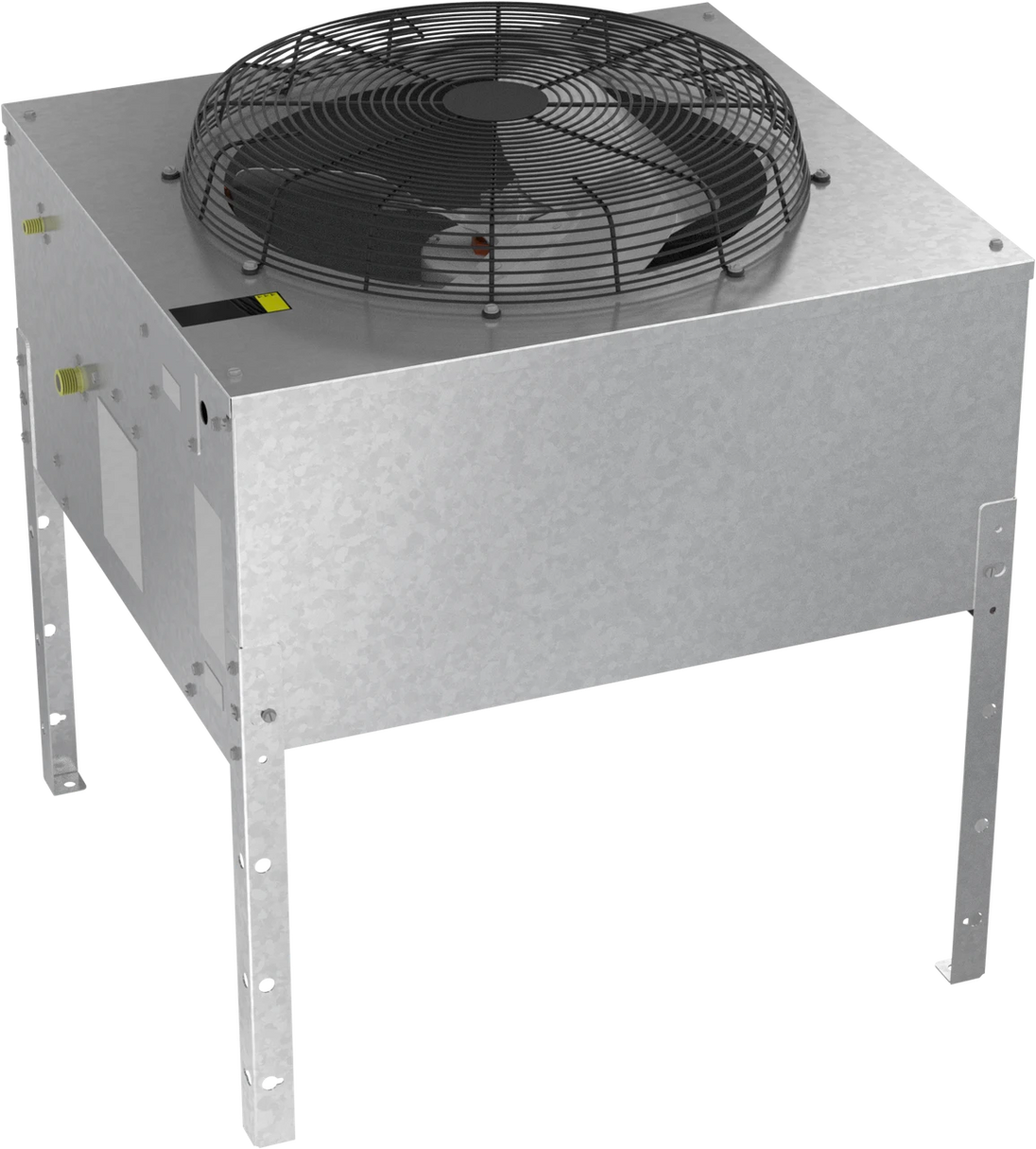

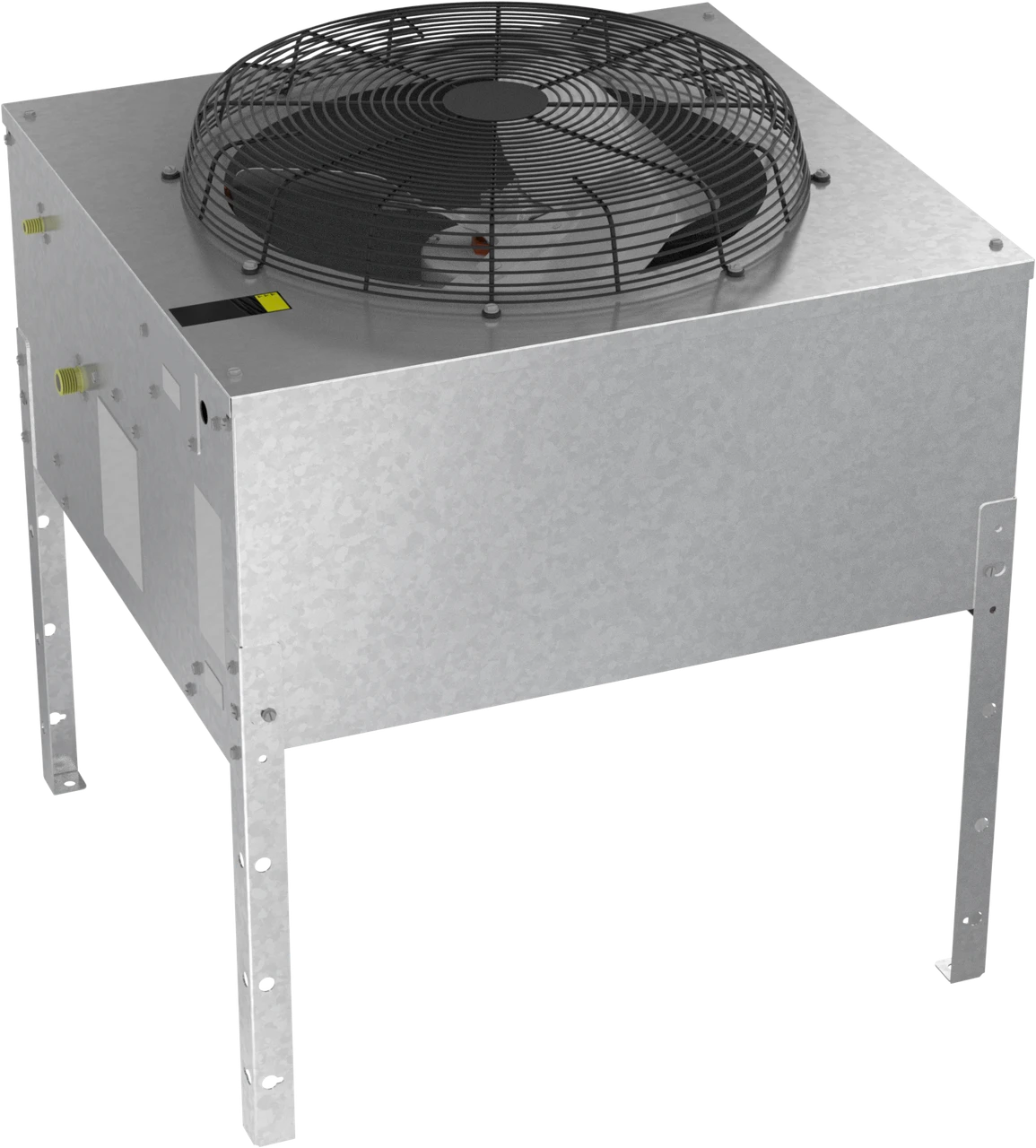

Ice-O-Matic RC100C49 remote condenser for CIM0530R49 ice machines, left angle view

Product Description

The Ice-O-Matic RC100C49 is a remote condenser sized for the R449 CIM0530R49 head, moving the heat-rejection side of the system outdoors or into a mechanical room.

Matched to the R449 CIM0530R49 Head

Ice-O-Matic lists the RC100C49 specifically against CIM0530R49 models, the R449 refrigerant variant of the CIM0530 remote-cooled head. It replaces the RC100C40, which serves the same physical head built on R404 refrigerant instead, so the two condensers are not interchangeable across refrigerant types.

115V Single-Phase in a 29 x 31 x 34.5 Inch Footprint

Running on a standard 115V/60Hz/1-phase circuit keeps the electrical requirement the same as the ice machine head it serves, simplifying the rooftop or mechanical-room circuit plan. Its 29 x 31 x 34.5 inch (W x D x H) footprint matches the RC100C40 it supersedes, so an existing curb mount or wall bracket carries over.

Ordered With a Matching RL49 Lineset

Ice-O-Matic sells the RC100C49 as a separate line item from the refrigerant lineset that connects it to the ice machine head, offering RL49-25, RL49-40, and RL49-75 precharged kits for 25, 40, and 75 foot runs. The run length between the head and the condenser location determines which lineset to order alongside this unit.

Specifications

Model RC100C49
Type Remote Condenser
Compatible Heads CIM0530R49 (R449, remote-cooled)
Exterior Dimensions 29 x 31 x 34.5 Inch (W x D x H)
Electrical 115V/60Hz/1-Phase
Refrigerant R449
Compatible Linesets RL49-25, RL49-40, RL49-75
Shipping Weight 91 lb

Warranty

Ice-O-Matic covers RCA remote condensers under the same terms as the CIM series: 3 years parts and labor, with 5 years parts on evaporators and compressors.
