Product Description

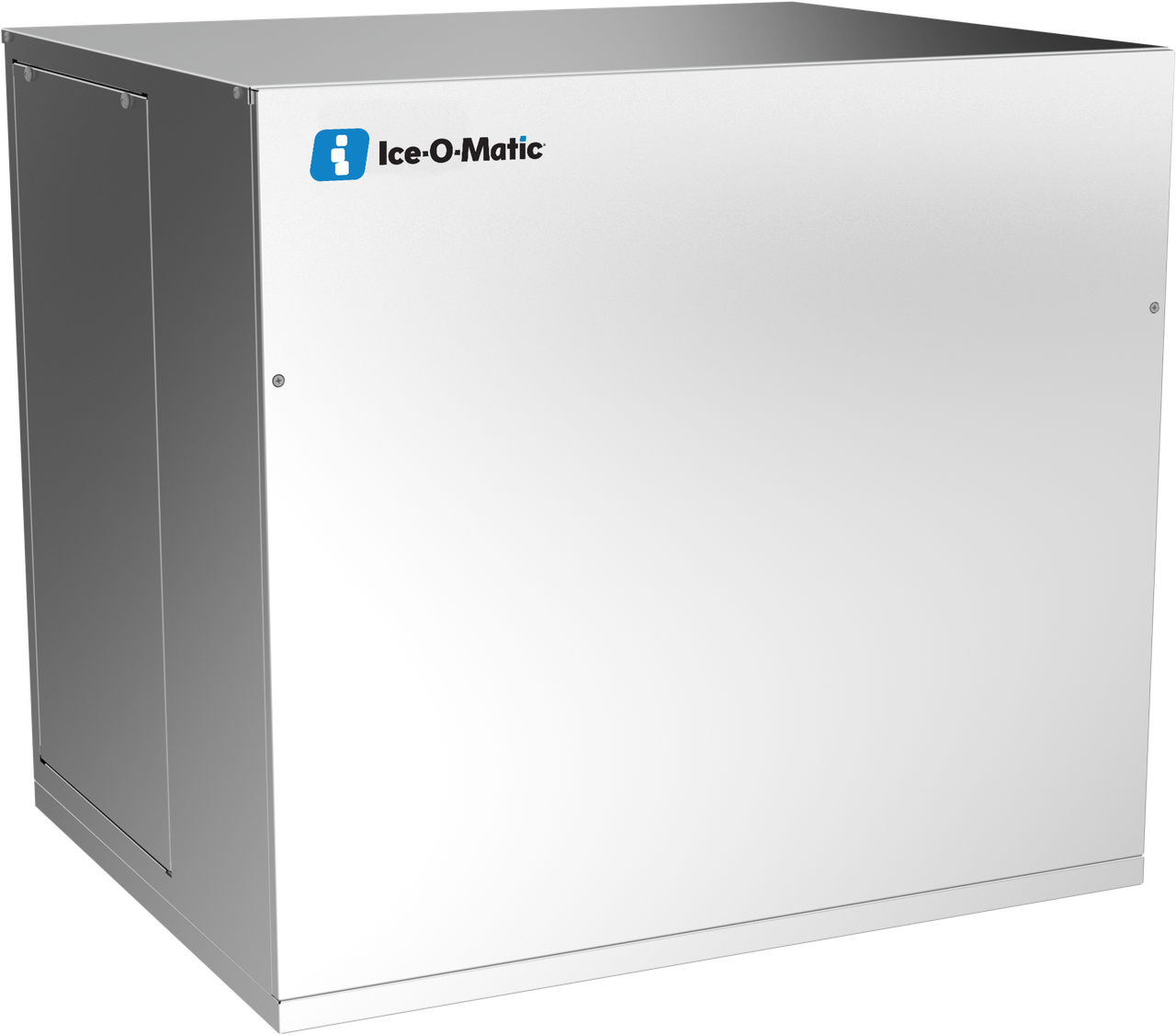

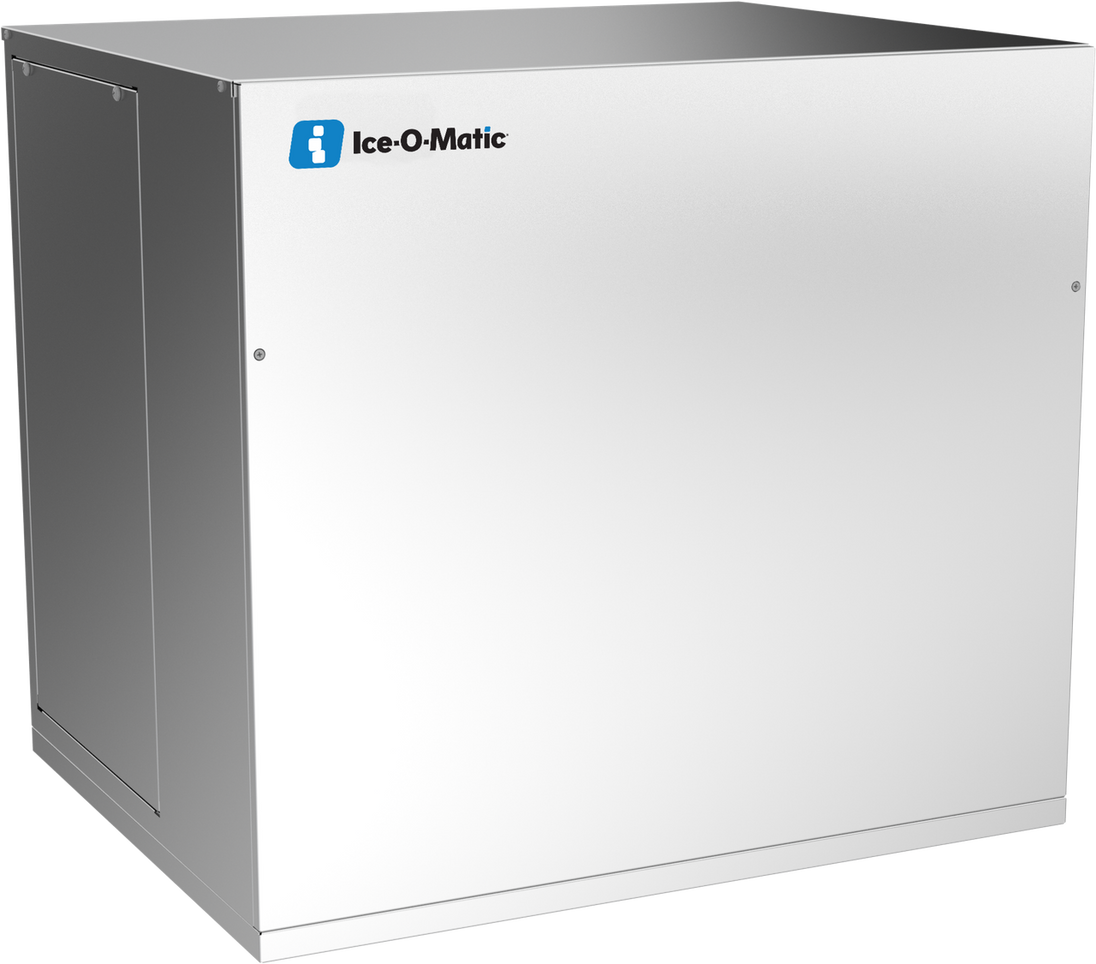

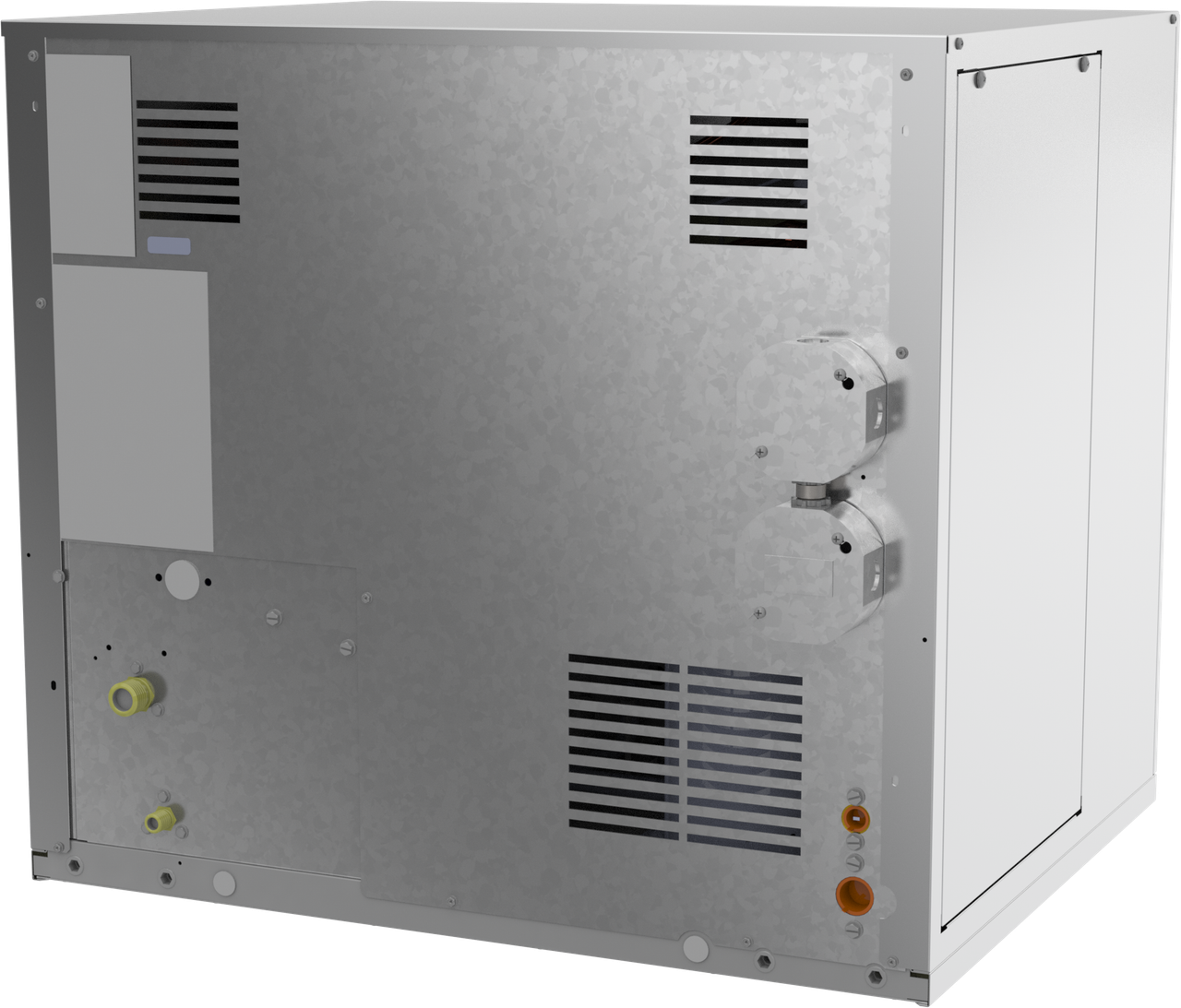

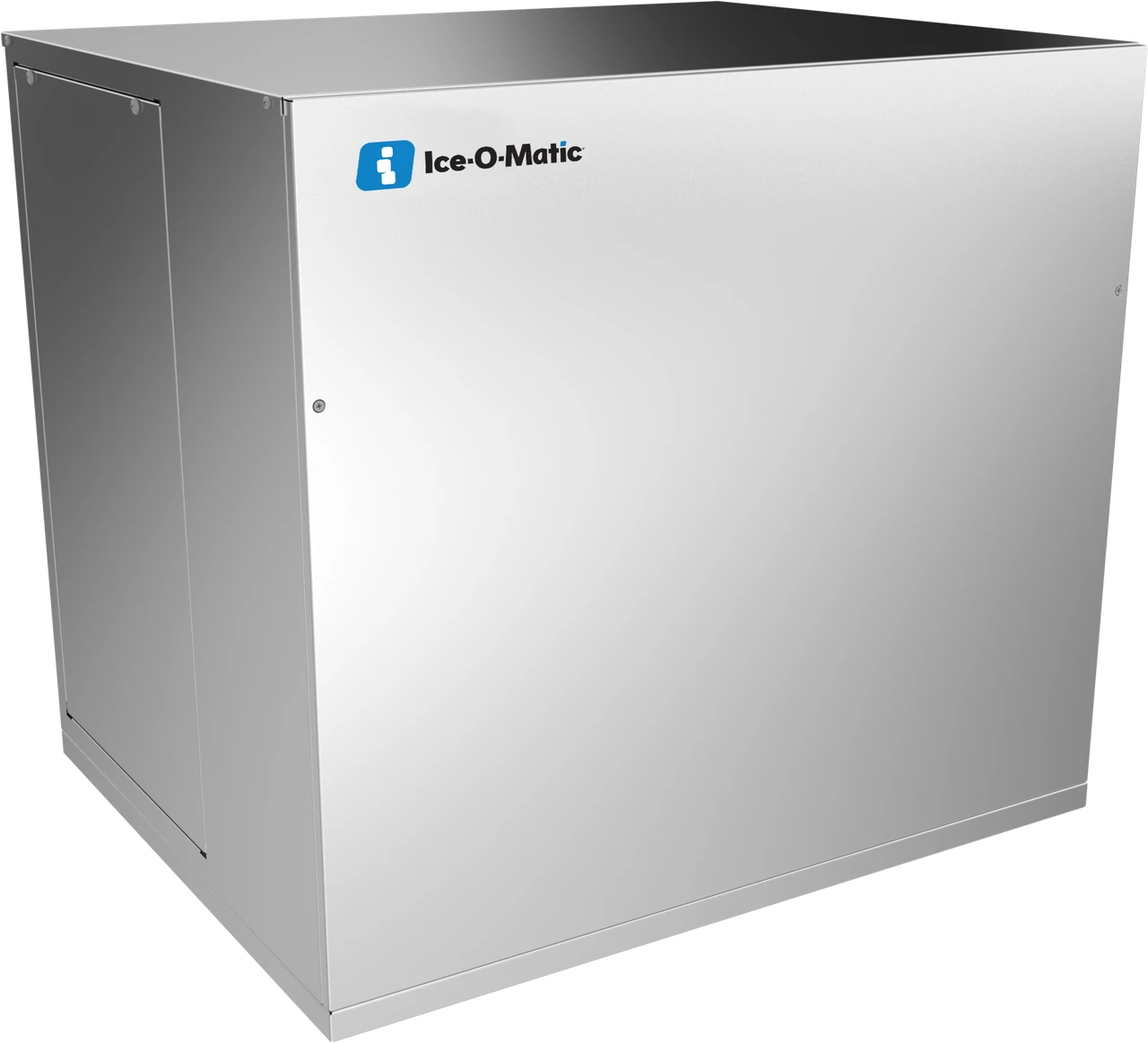

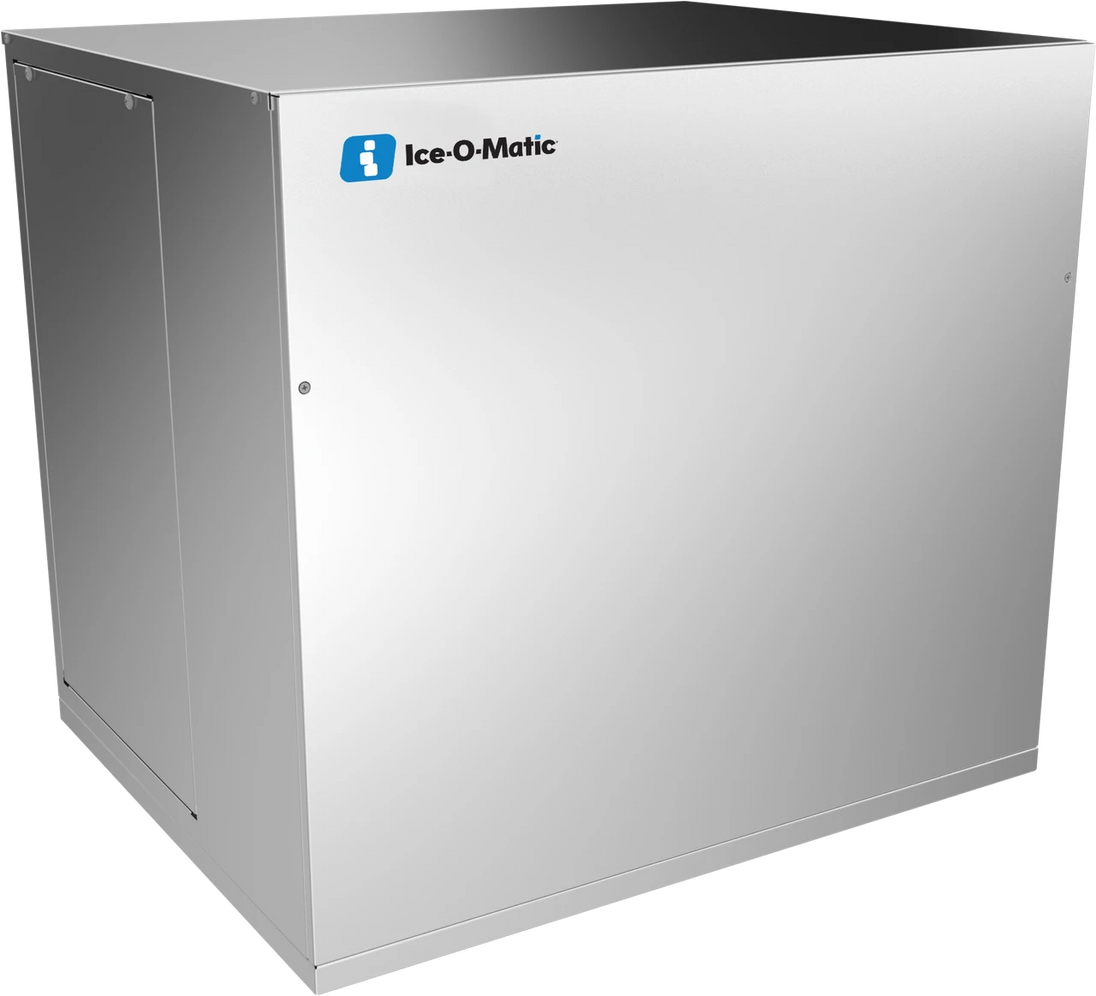

The Ice-O-Matic MFI2306R49 is a self-contained flake ice machine producing 2100-2200 lb of ice per 24 hours on a 208-230V/60Hz/1-phase circuit, with heat rejection sent to a remote condenser.

A Wider 30 Inch Cabinet for High-Volume Flake

Where the MFI0500 through MFI1506 families share a 21 inch cabinet, the MFI2306R49 moves to a 30 x 24 x 27 inch (W x D x H) footprint to house the larger production hardware needed for output above 2000 lb per day, more than 700 lb ahead of the top 21 inch model, the MFI1506R49.

Paired With the RC306C49 Remote Condenser

Ice-O-Matic pairs the MFI2306R49 with the RC306C49 remote condenser, sold separately, along with an RL49 lineset sized to the run length between the head and the condenser location. The RC306 series is a larger condenser than the RC106 series used on the smaller MFI1256R49 and MFI1506R49, reflecting the added heat-rejection load.

R449A Refrigerant With an IFQ2-XL Filter

Running on R449A refrigerant, the MFI2306R49 steps up to the IFQ2-XL filter system, sized above the IFQ2 used on the smaller MFI1506R49 to match this model's higher water throughput.

Specifications

Model MFI2306R49
Ice Type Flake Ice
Capacity 2100-2200 lb/24hr
Exterior Dimensions 30 x 24 x 27 Inch (W x D x H)
Electrical 208-230V/60Hz/1-Phase
Refrigerant R449A
Condenser Remote (pairs with RC306C49)
Filter System IFQ2-XL
Shipping Weight 227 lb

Warranty

Ice-O-Matic publishes 3 years parts and labor on the MFI series, with 5 years parts coverage on the compressor.
