Product Description

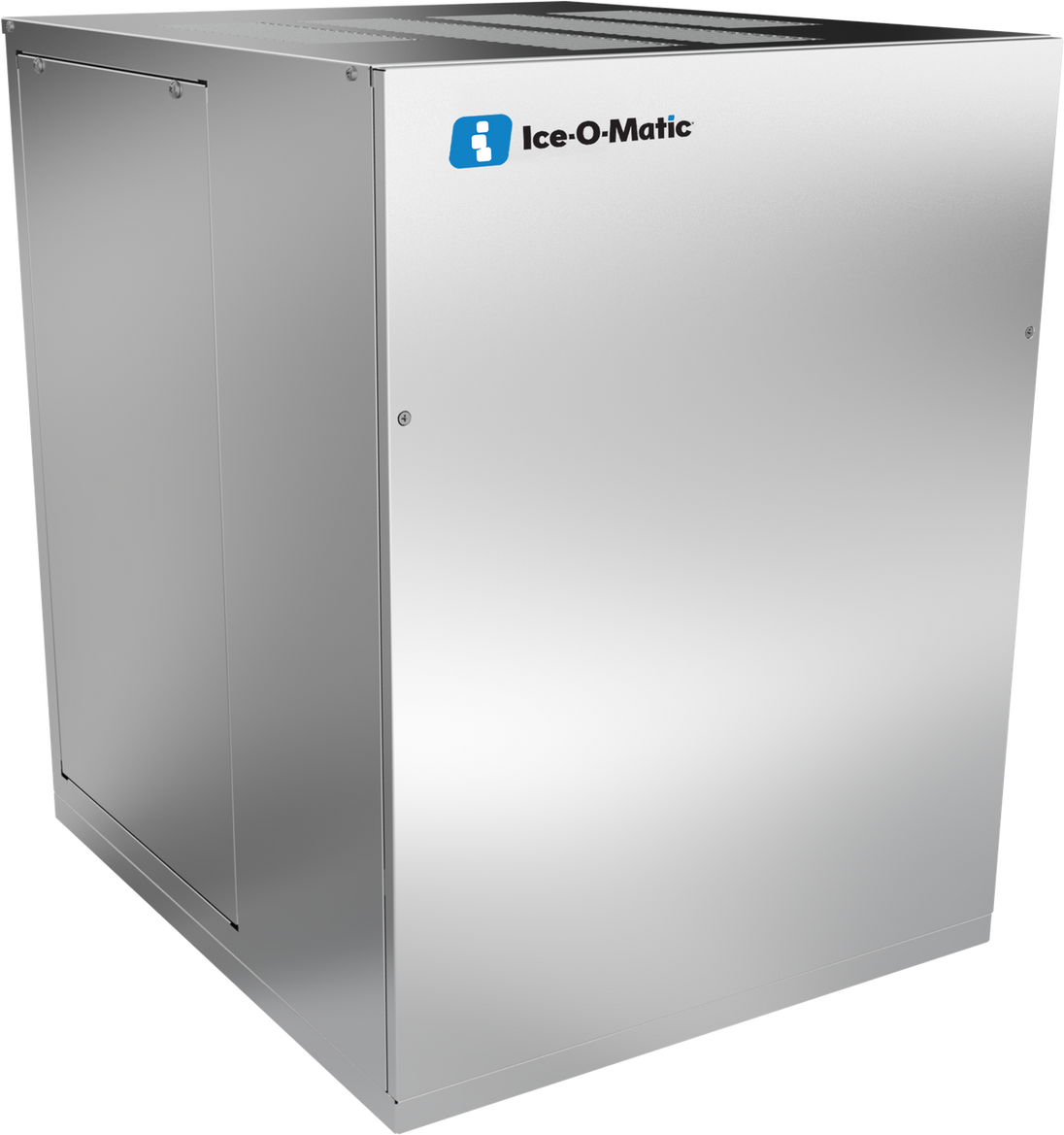

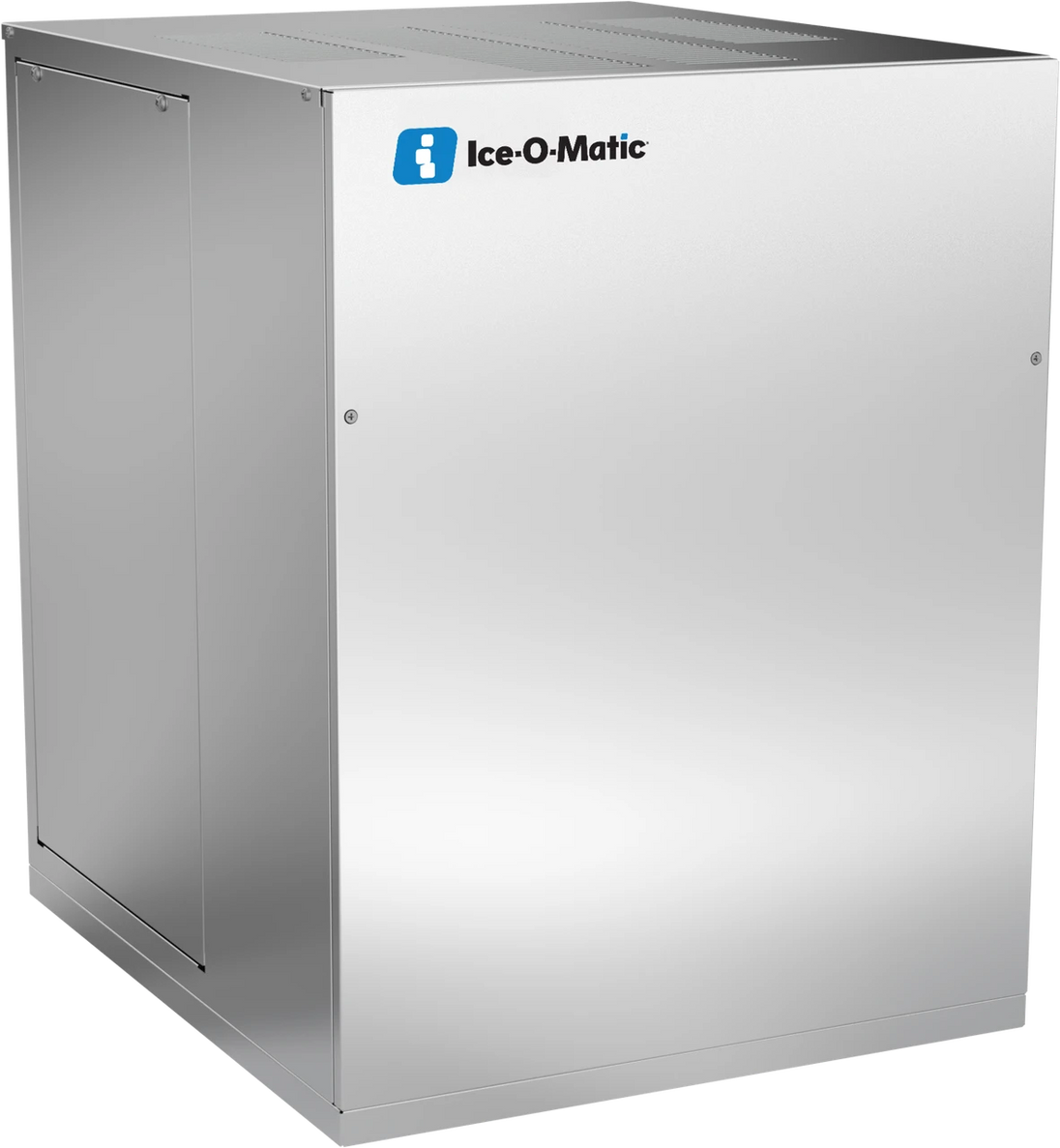

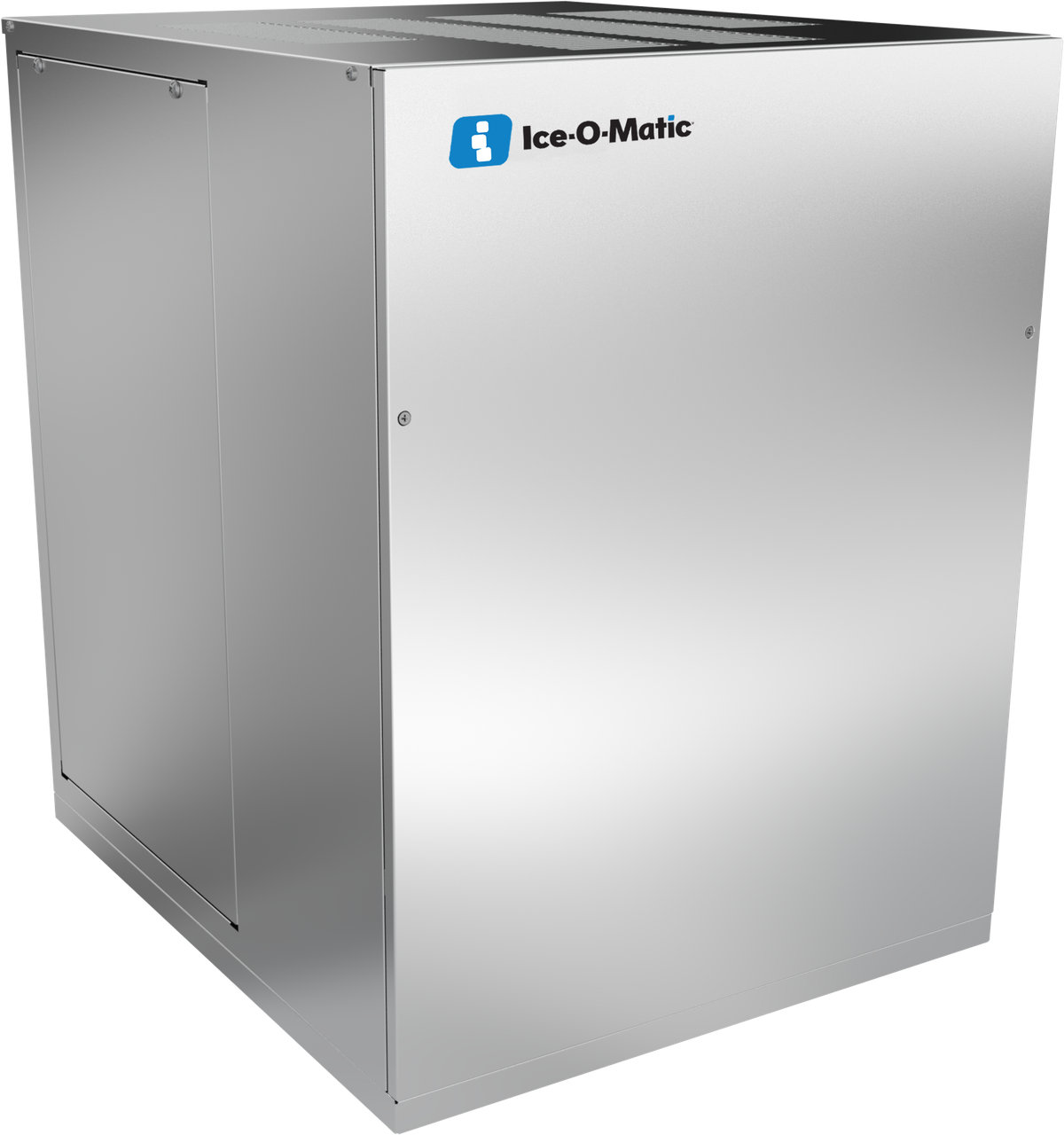

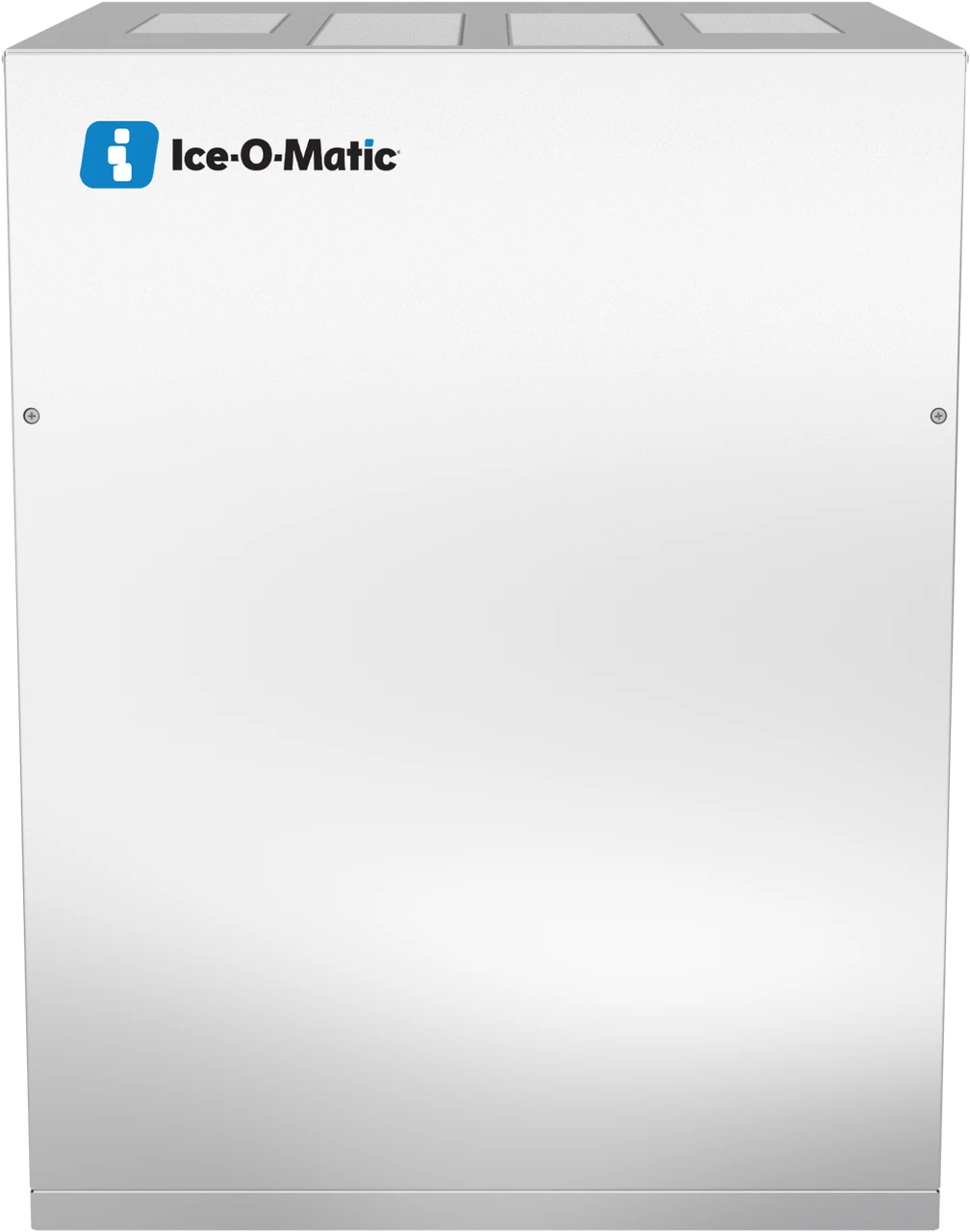

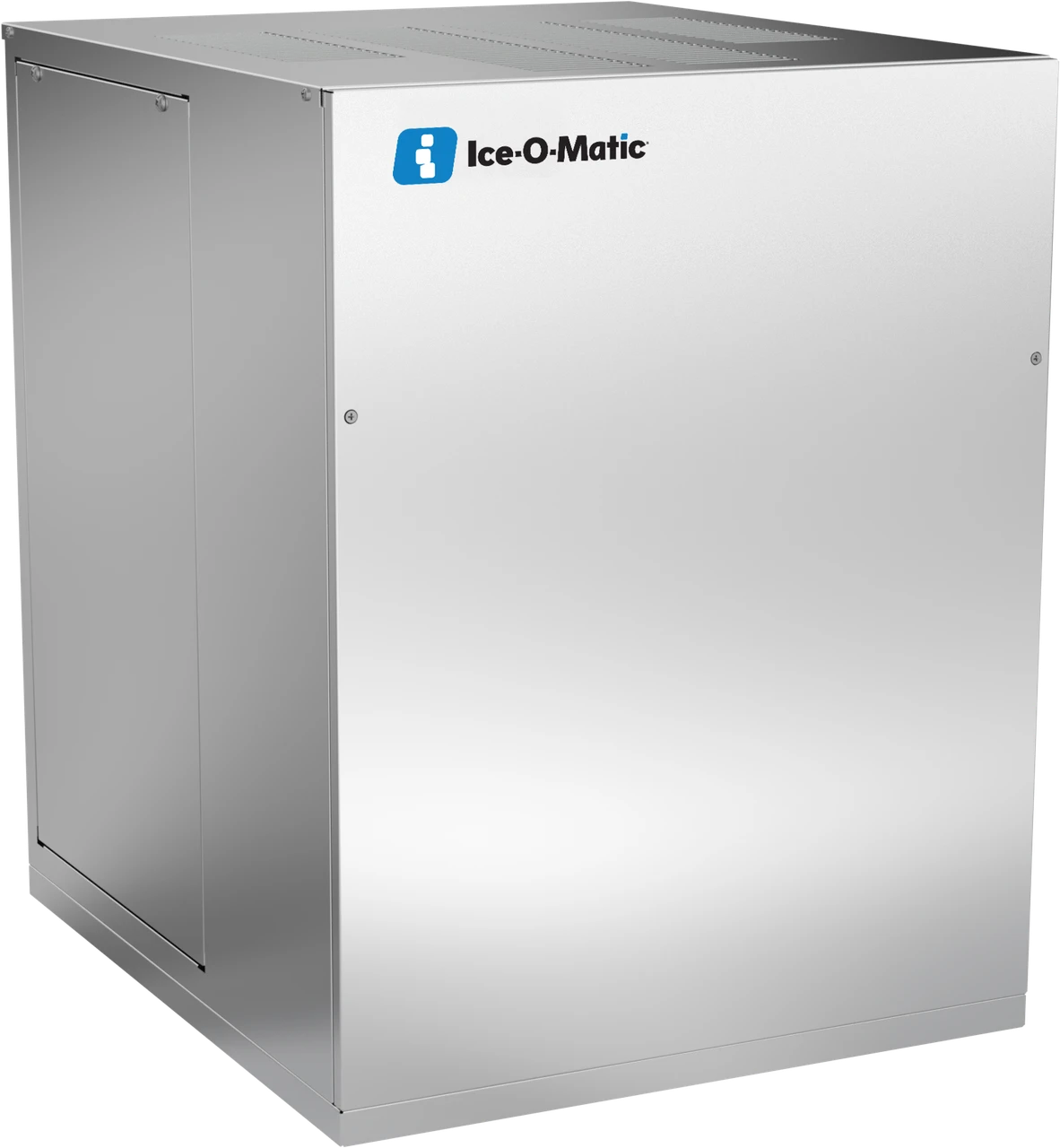

The Ice-O-Matic HEM1306A90 is a 21 inch air-cooled modular Quartz ice machine head that produces 1,000 to 1,100 lb of harder, slower-melting nugget-style ice per 24 hours, the highest output offered in the 21 inch HEM cabinet.

Top of the 21 Inch HEM Cabinet

The HEM1306A90 is the largest producer built into the 21 in W x 24 in D x 27 in H head shared by the HEM0450, HEM0650, and HEM0956 models. It is the highest-capacity air-cooled HEM offered before the line steps up to the remote-cooled HEM2006R49 in a wider cabinet.

Air Cooling Against the Remote-Cooled HEM1306R49

The HEM1306A90 rejects heat directly into the kitchen air on a 208-230V/60Hz/1-phase circuit, avoiding the line-set run the remote-cooled HEM1306R49 needs, and produces more daily ice than that unit, 1,000-1,100 lb versus 900-1,000 lb.

Quartz Ice at the Top of the Tier

The HEM1306A90 runs on R290A and produces less output than the equivalent-tier GEM1306A90, rated 1,300 to 1,400 lb, reflecting the harder Quartz formulation. Both share load-monitored gearboxes and water-sensor shutoff.

Specifications

Model HEM1306A90
Ice Type Quartz Ice (harder, slower-melting nugget-style)
Capacity 1000-1100 lb/24hr
Exterior Dimensions 21 in W x 24 in D x 27 in H
Electrical 208-230V/60Hz/1-phase
Refrigerant R290A
Condenser Air Cooled
Shipping Weight 219 lb

Warranty

Ice-O-Matic publishes 3 years parts and labor on the GEM series, with 5 years parts coverage on the compressor.
