Product Description

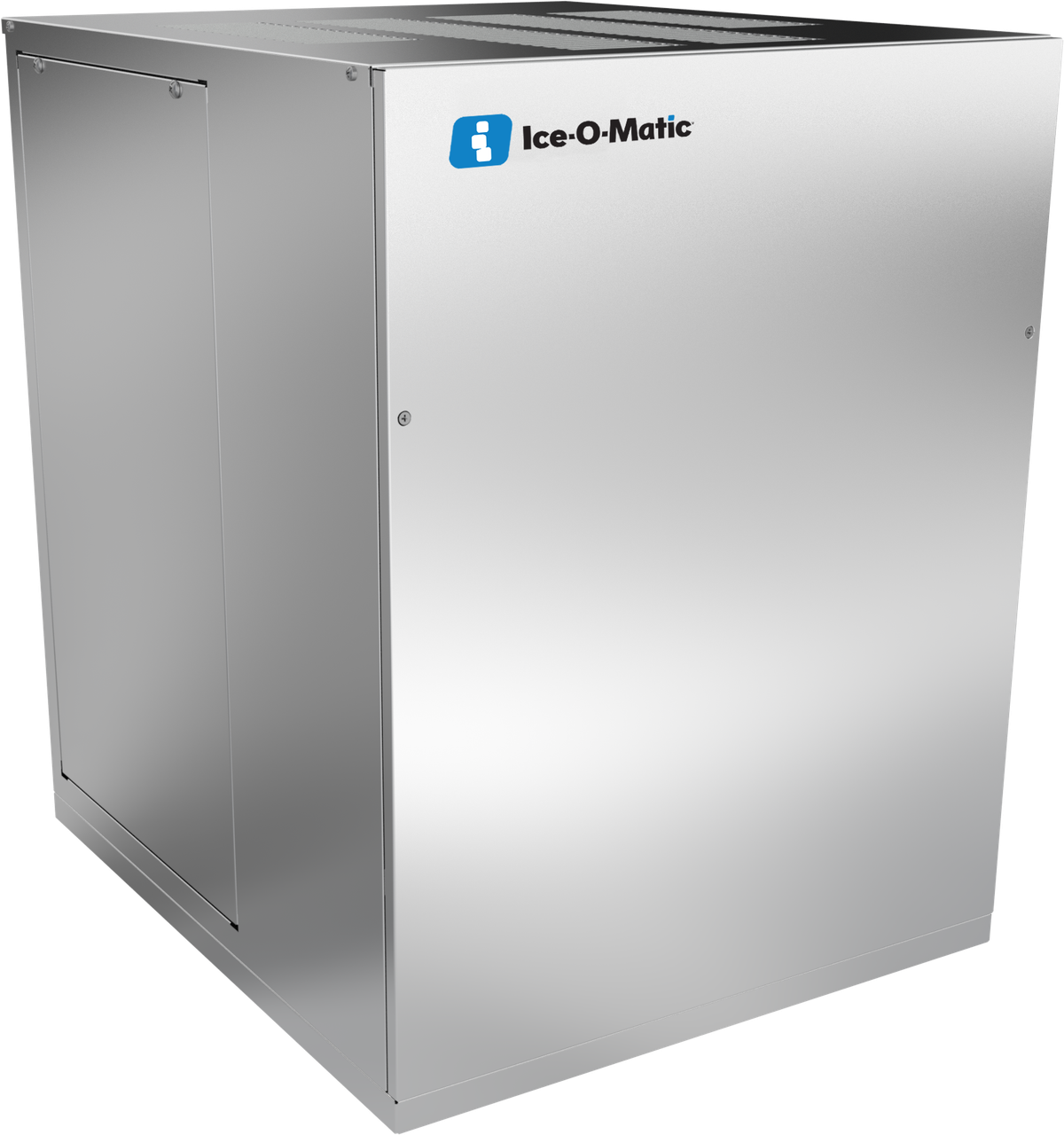

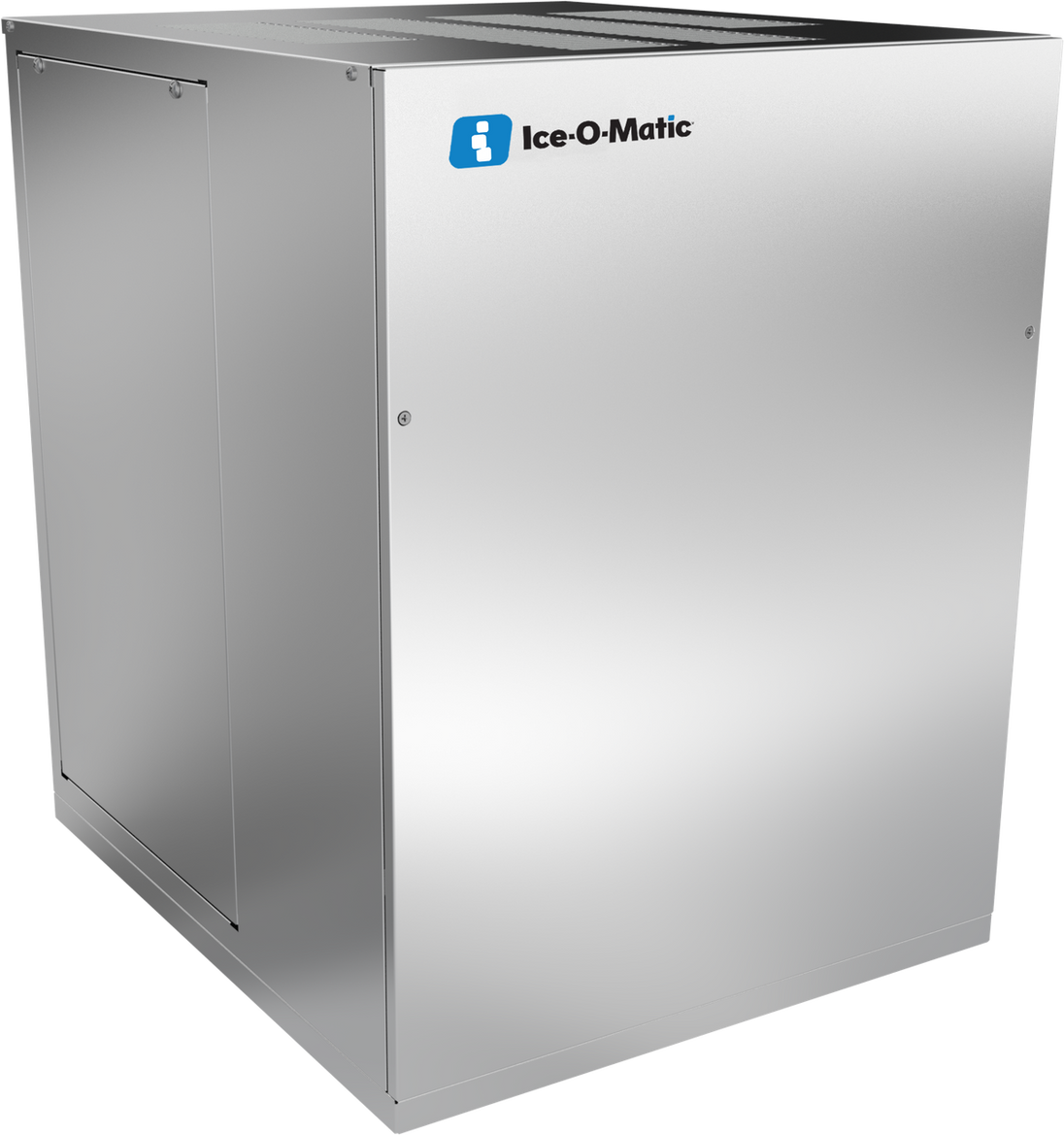

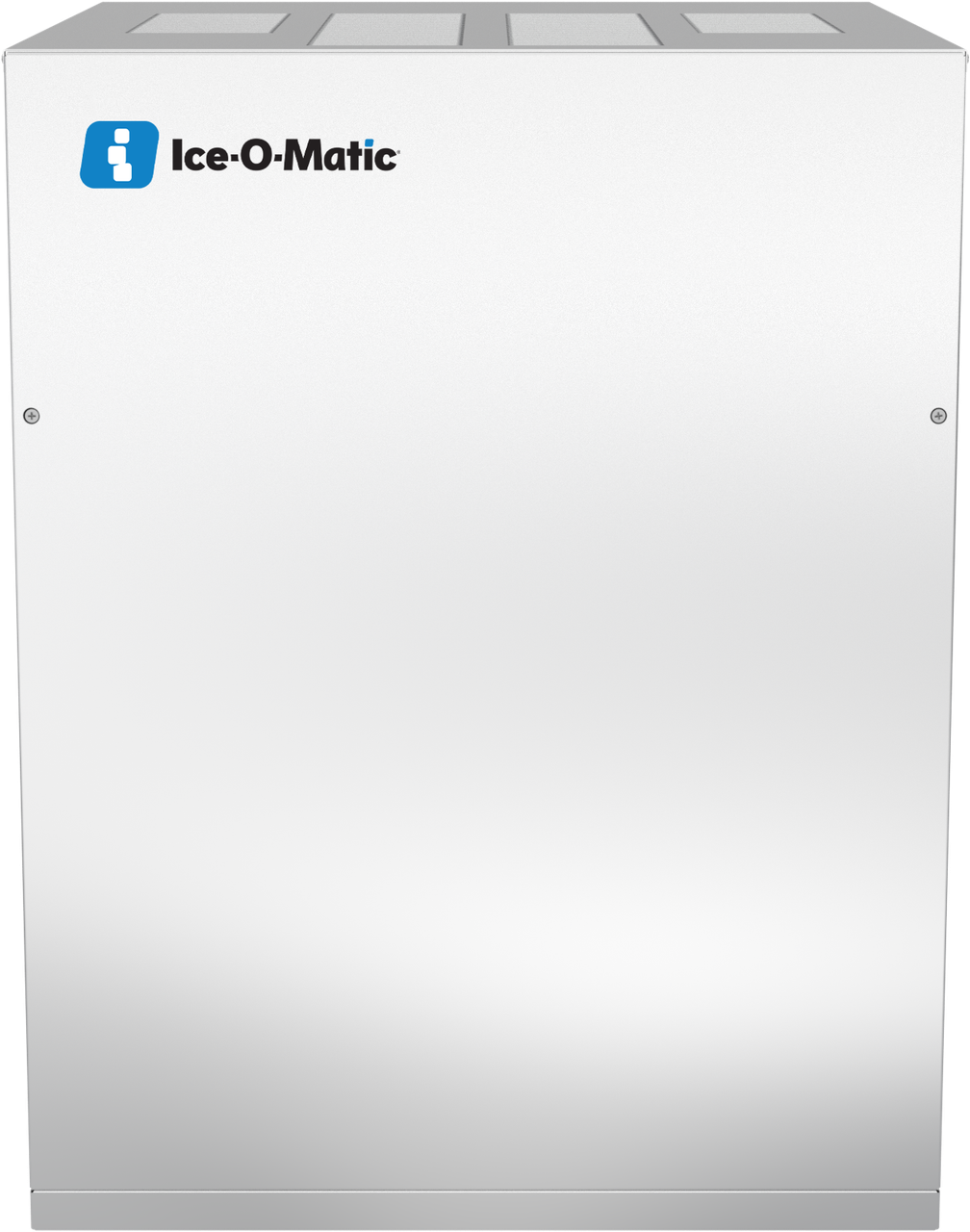

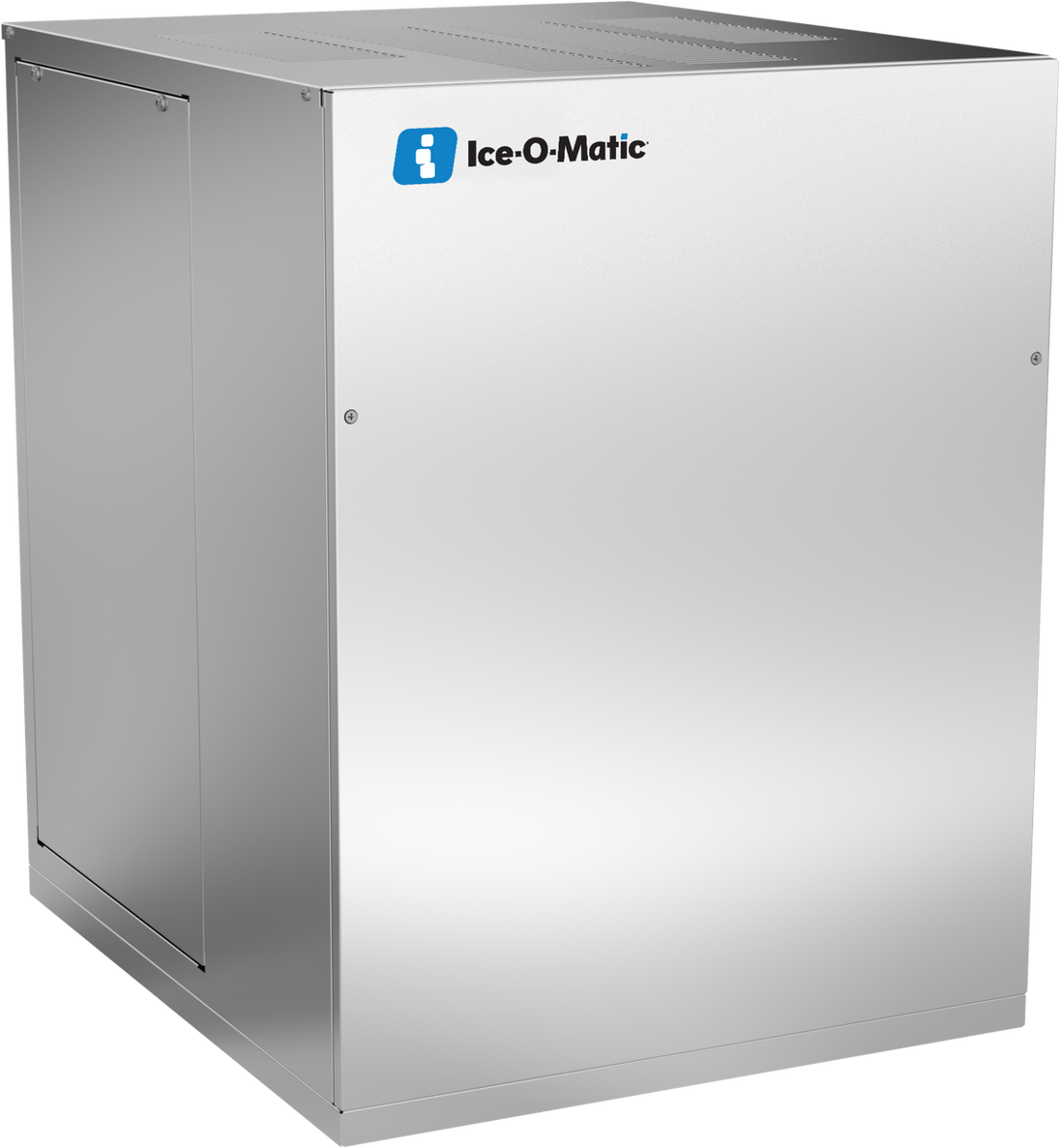

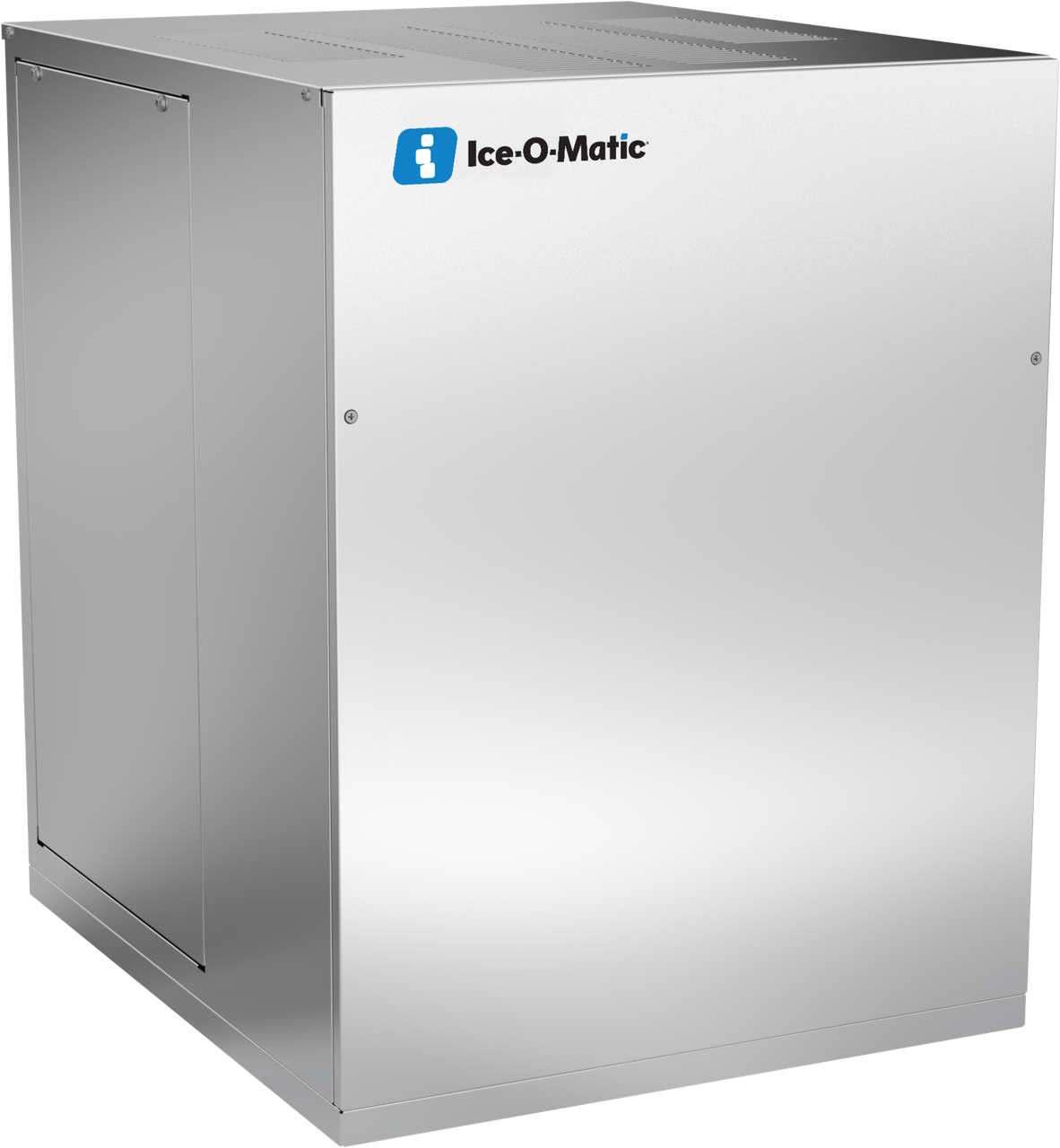

The Ice-O-Matic HEM0956A90 is a 21 inch air-cooled modular Quartz ice machine head that produces 800 to 900 lb of harder, slower-melting nugget-style ice per 24 hours.

Mid-Tier Output in the Same 21 Inch Footprint

The HEM0956A90 pushes 800 to 900 lb per day out of the same 21 in W x 24 in D x 27 in H cabinet as the smaller HEM0450A90 and HEM0650A90, so the added output does not cost any extra floor space.

Air Cooling Steps Up to 208-230V

Like the equivalent GEM0956A90, the HEM0956A90 requires a 208-230V/60Hz/1-phase circuit rather than the 115V used on the smaller HEM0450A90 and HEM0650A90, reflecting the larger compressor at this output. It still needs no condenser water hookup, unlike the water-cooled HEM0956W90 or remote-cooled HEM0956R49.

Quartz Ice at a Lower Output Than the Equivalent GEM

The HEM0956A90 produces 800 to 900 lb per day versus the 900 to 1,000 lb of the equivalent-tier GEM0956A90, reflecting the harder Quartz formulation's different production rate. Both run on R290A refrigerant.

Specifications

Model HEM0956A90
Ice Type Quartz Ice (harder, slower-melting nugget-style)
Capacity 800-900 lb/24hr
Exterior Dimensions 21 in W x 24 in D x 27 in H
Electrical 208-230V/60Hz/1-phase
Refrigerant R290A
Condenser Air Cooled
Shipping Weight 189 lb

Warranty

Ice-O-Matic publishes 3 years parts and labor on the GEM series, with 5 years parts coverage on the compressor.
