Product Description

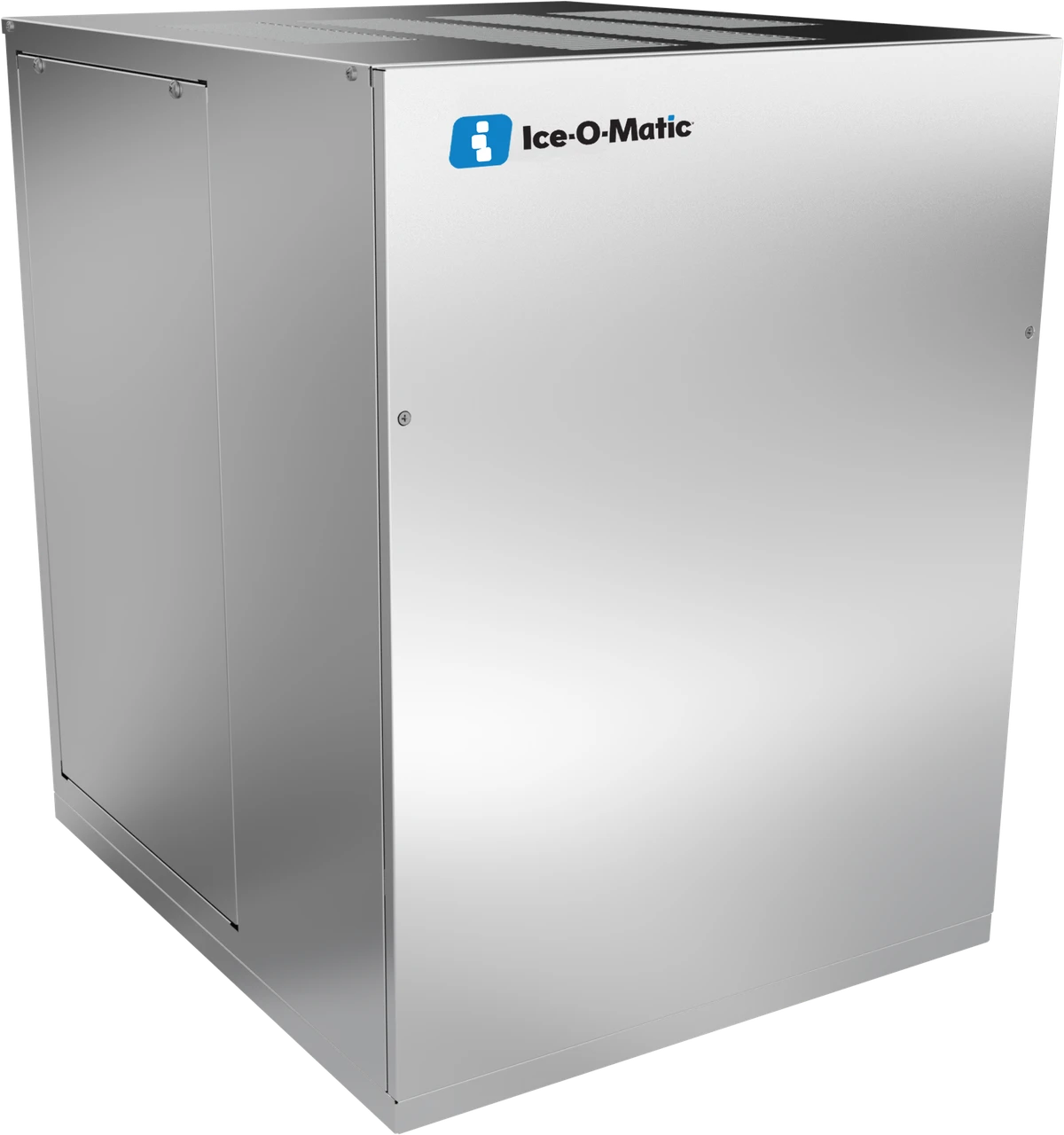

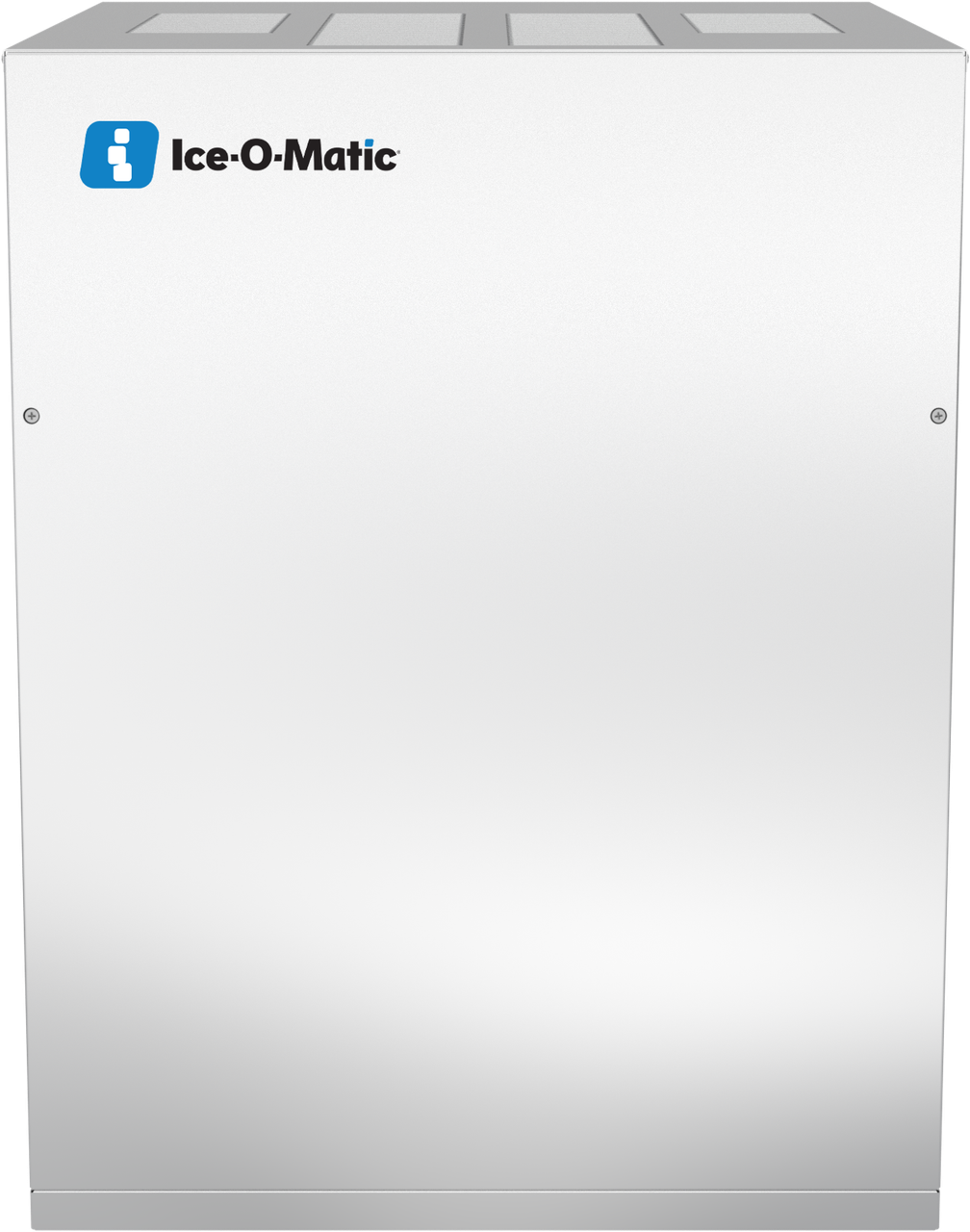

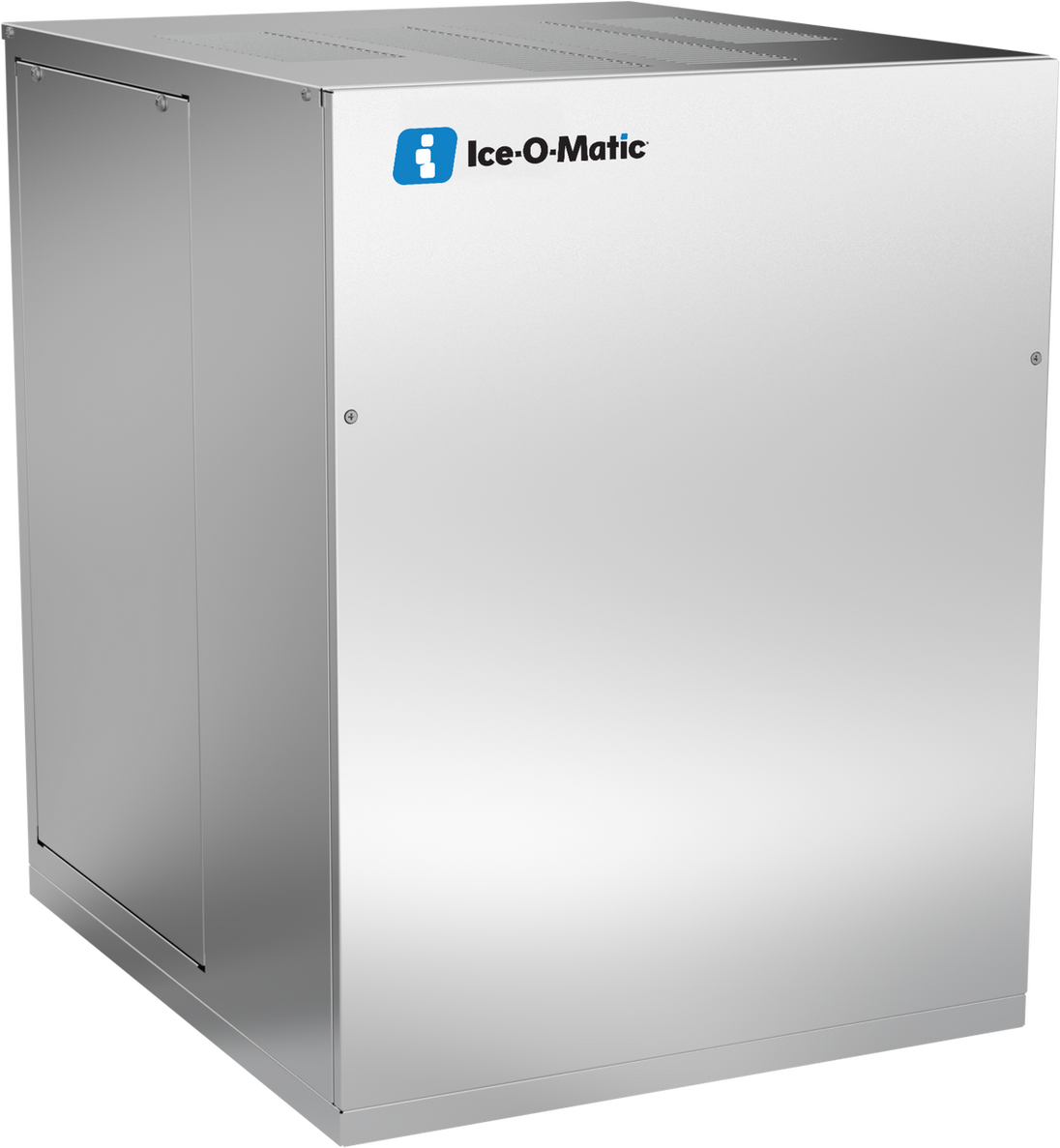

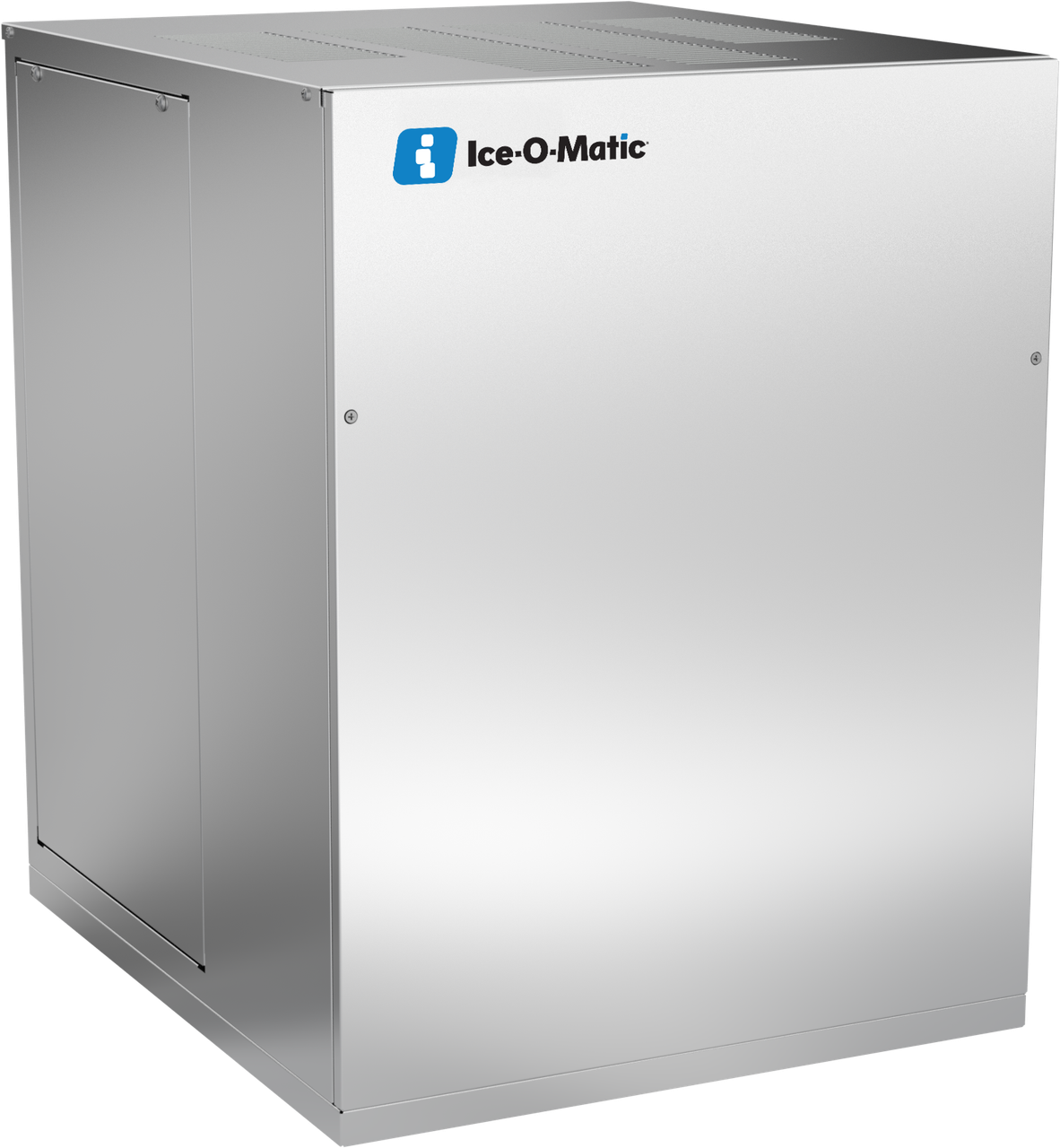

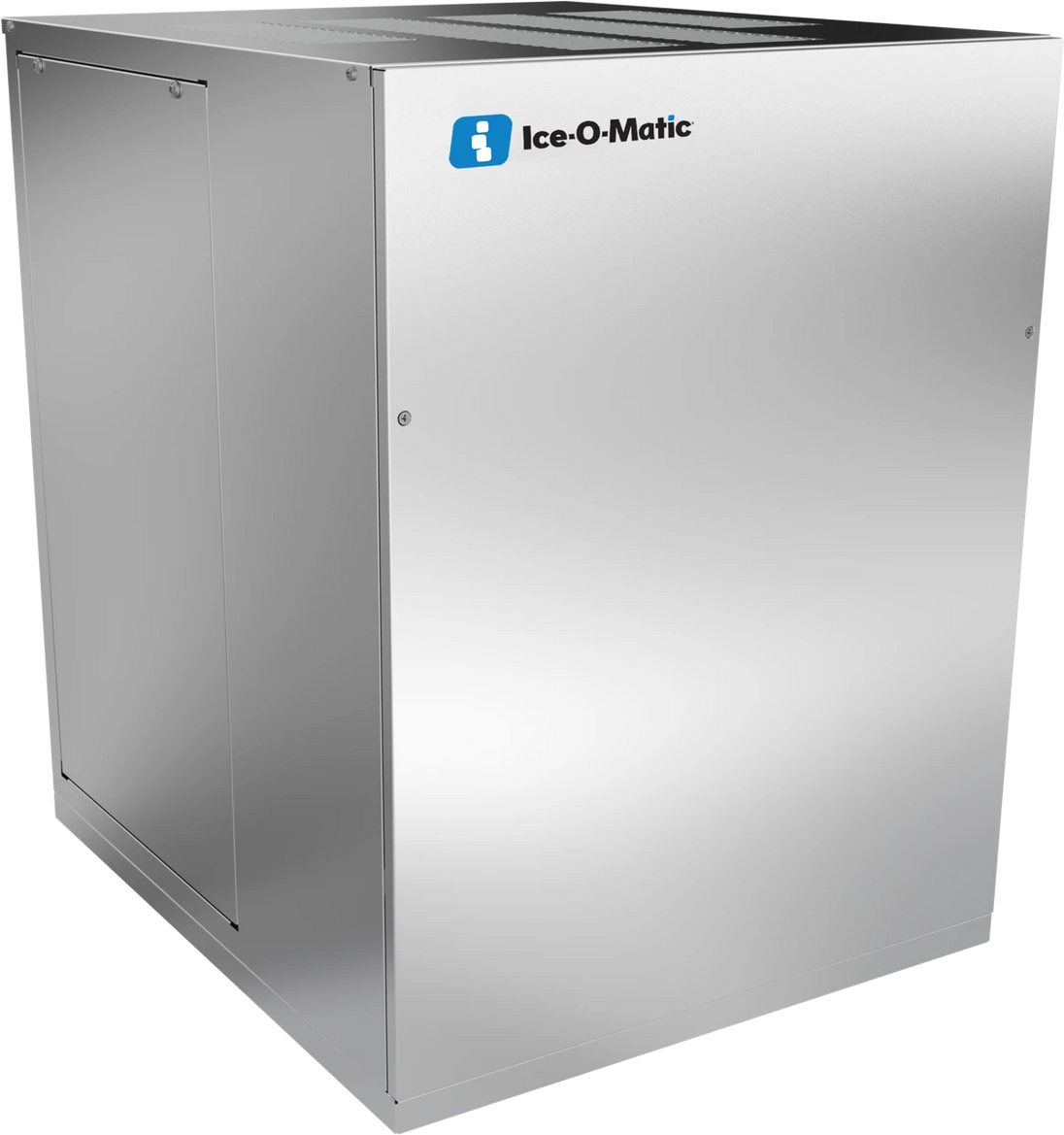

The Ice-O-Matic HEM0650A90 is a 21 inch air-cooled modular Quartz ice machine head that produces 600 to 700 lb of harder, slower-melting nugget-style ice per 24 hours.

Air Cooling Without a Water or Line-Set Hookup

The HEM0650A90 rejects condenser heat into the kitchen air, avoiding the condenser water line the HEM0650W90 needs and the refrigerant line-set run the remote-cooled HEM0650R49 needs. It runs on a standard 115V/60Hz/1-phase circuit.

Three Cooling Options in the Same 650 Tier

Like its GEM counterpart, the HEM650 tier is offered air-cooled (this unit), water-cooled (HEM0650W90), and remote-cooled (HEM0650R49). All share the 21 in W x 24 in D x 27 in H cabinet, so the decision comes down to ambient heat load and utility access on site.

Quartz Ice Versus the Equivalent GEM0650A90

The HEM0650A90 produces a harder Quartz nugget for better dispensing and a slower melt rate than the softer Pearl ice made by the GEM0650A90, at a slightly lower output, 600 to 700 lb versus 700 to 800 lb, reflecting the different ice formulation. Both run on R290A refrigerant.

Specifications

Model HEM0650A90
Ice Type Quartz Ice (harder, slower-melting nugget-style)
Capacity 600-700 lb/24hr
Exterior Dimensions 21 in W x 24 in D x 27 in H
Electrical 115V/60Hz/1-phase
Refrigerant R290A
Condenser Air Cooled
Shipping Weight 176 lb

Warranty

Ice-O-Matic publishes 3 years parts and labor on the GEM series, with 5 years parts coverage on the compressor.
