Product Description

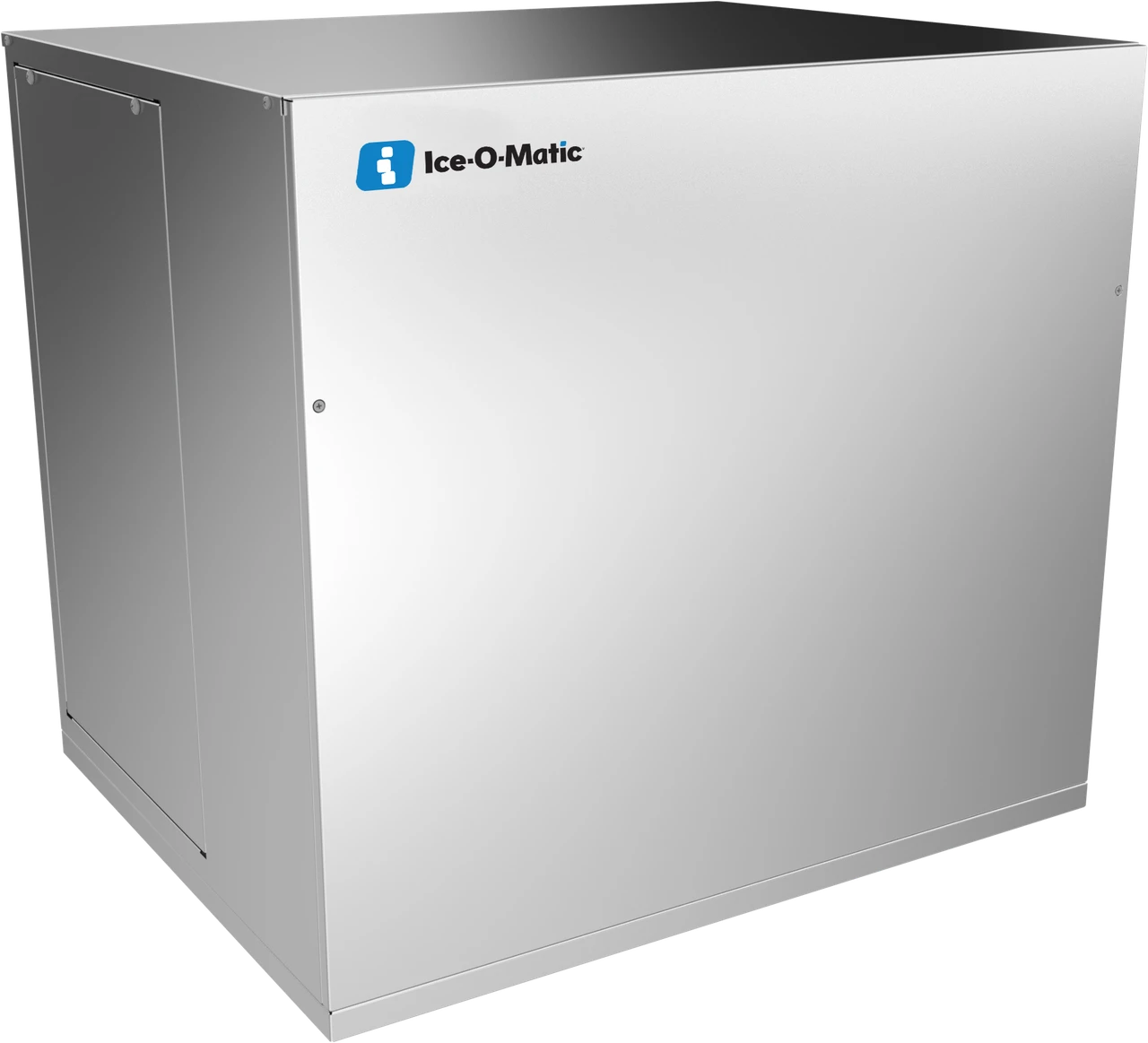

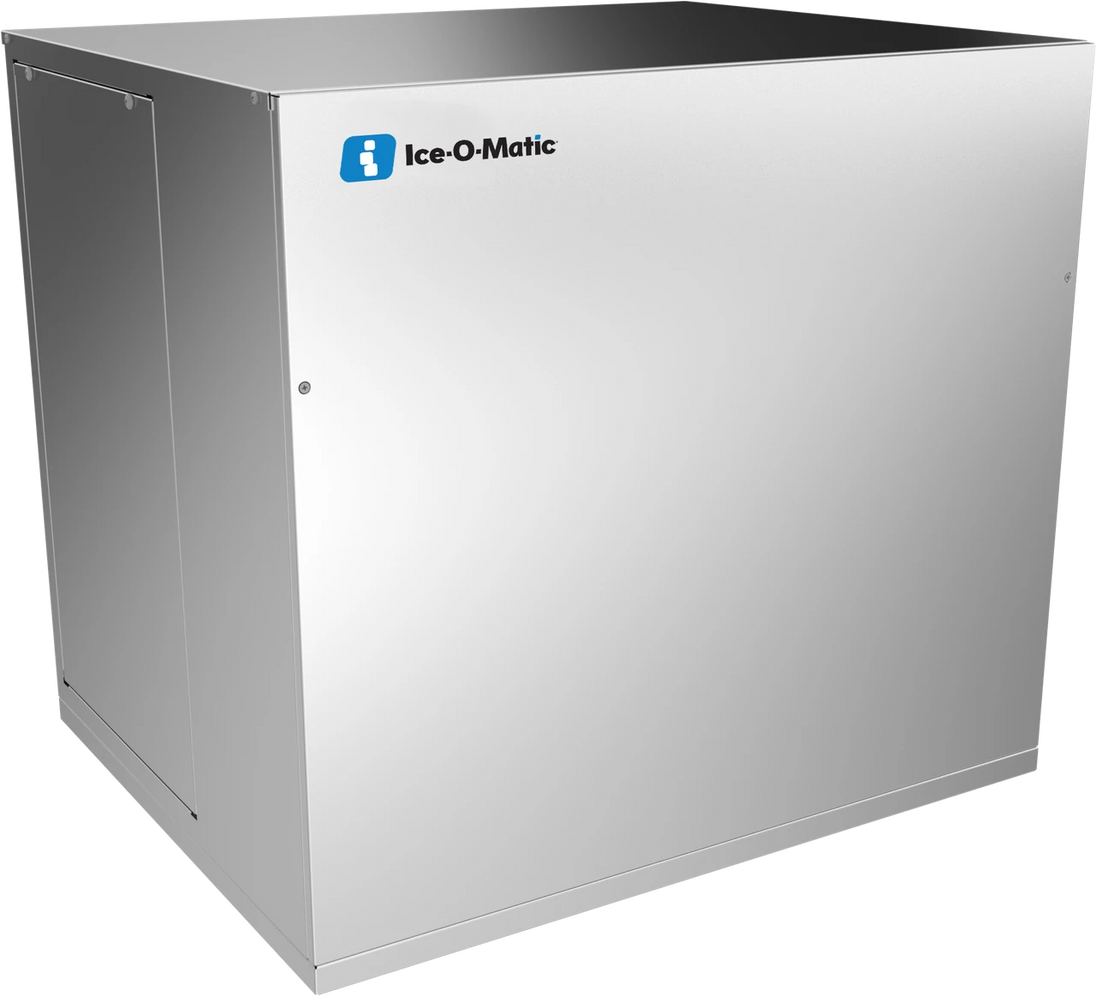

The Ice-O-Matic GEM2006W is a 30 inch water-cooled modular Pearl ice machine head that produces 2,200 to 2,300 lb of soft, chewable nugget-style ice per 24 hours, the highest output in the GEM Pearl line.

The Top of the GEM Pearl Line

At 2,200 to 2,300 lb per day, the GEM2006W outproduces every other model in the lineup, including its own remote-cooled sibling the GEM2006R49 at 1,700 to 1,800 lb, in the same 30 in W x 24 in D x 27 in H cabinet. Water cooling is what unlocks the additional output at this size.

R404A Instead of the Line's R290 or R449

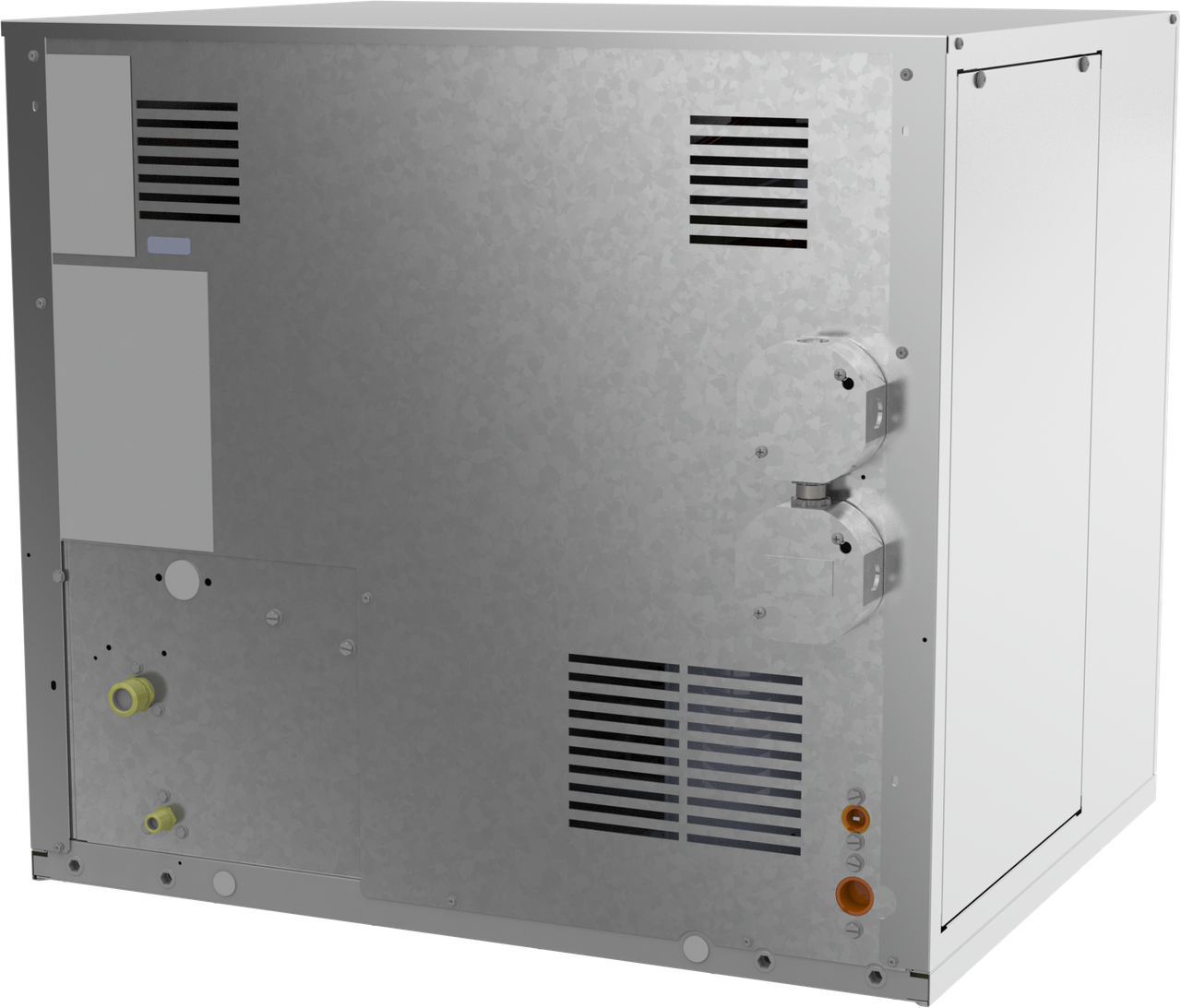

Unlike the R290A used through the smaller GEM tiers or the R449A used in the GEM2006R49, the GEM2006W runs on R404A, an HFC refrigerant suited to its water-cooled circuit at this larger output. It requires a condenser water supply and drain the remote-cooled GEM2006R49 does not.

IFQ2-XL Filtration for the Highest Water Flow

The GEM2006W uses the IFQ2-XL filter, the same largest filter size used across the GEM line's top tier, sized to the highest water flow the line reaches. It runs on a 208-230V/60Hz/1-phase circuit.

Specifications

Model GEM2006W
Ice Type Pearl Ice (soft, chewable nugget-style)
Capacity 2200-2300 lb/24hr
Exterior Dimensions 30 in W x 24 in D x 27 in H
Electrical 208-230V/60Hz/1-phase
Refrigerant R404A
Condenser Water Cooled
Filter System IFQ2-XL
Shipping Weight 316 lb

Warranty

Ice-O-Matic publishes 3 years parts and labor on the GEM series, with 5 years parts coverage on the compressor.
