Product Description

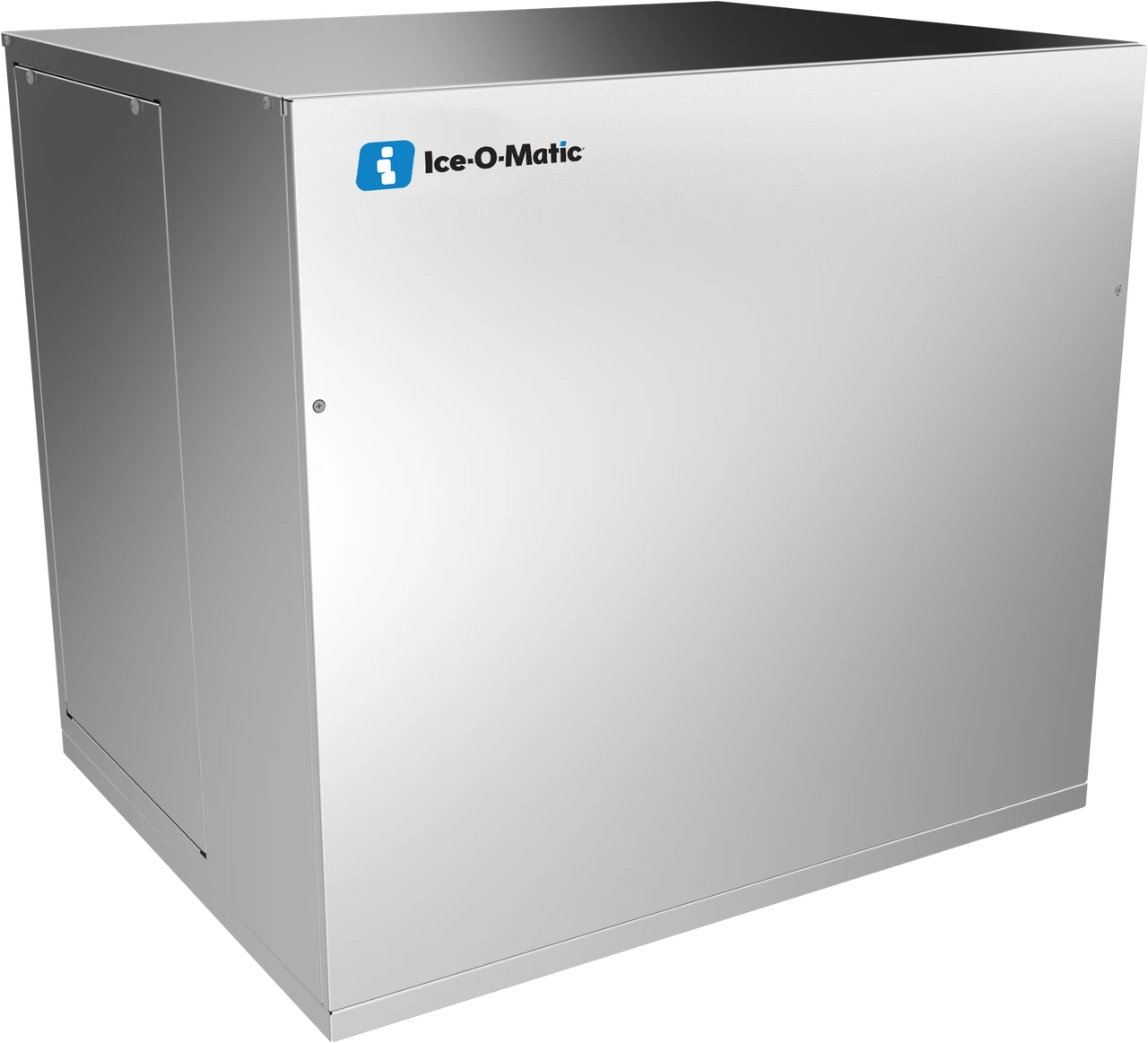

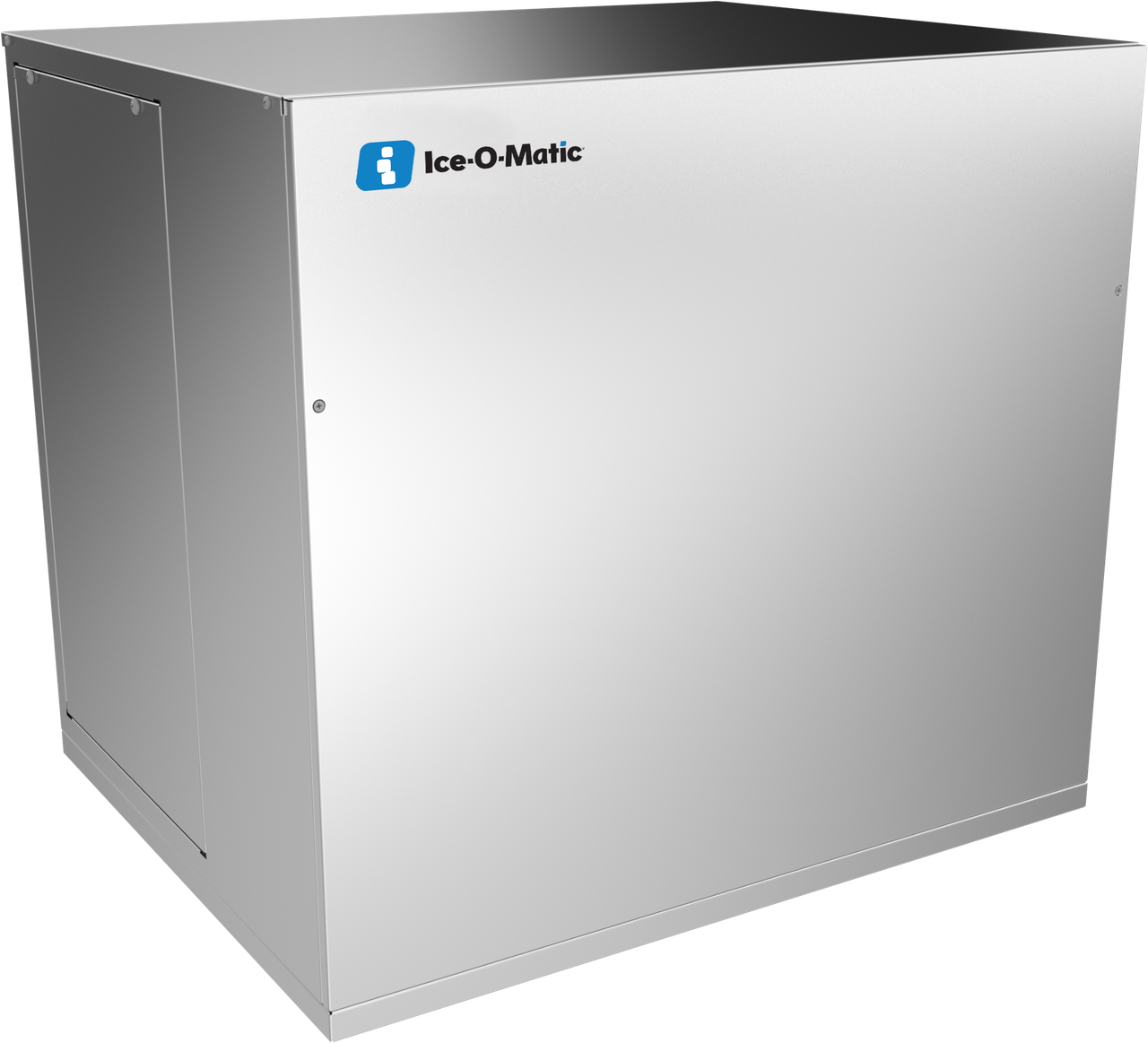

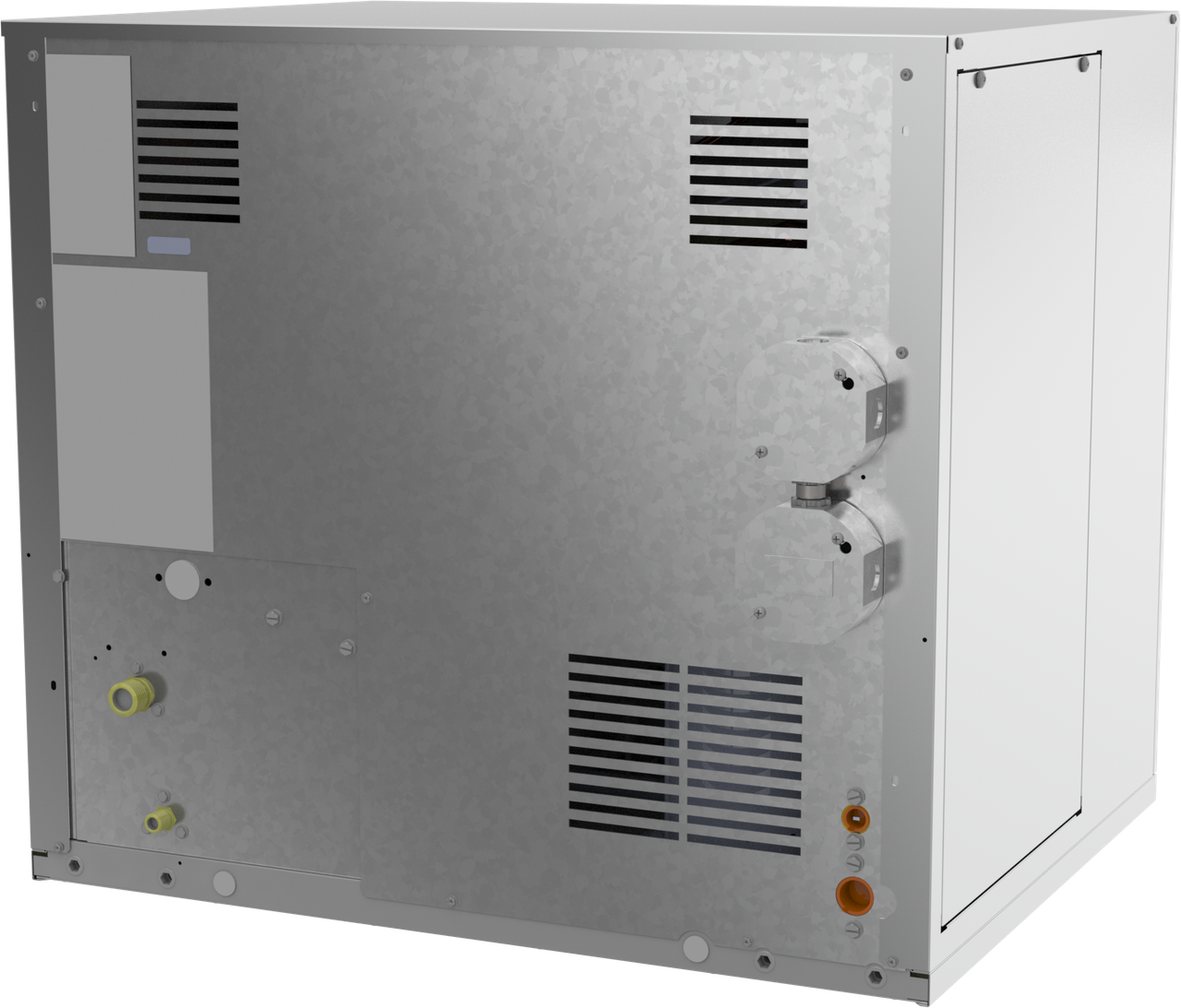

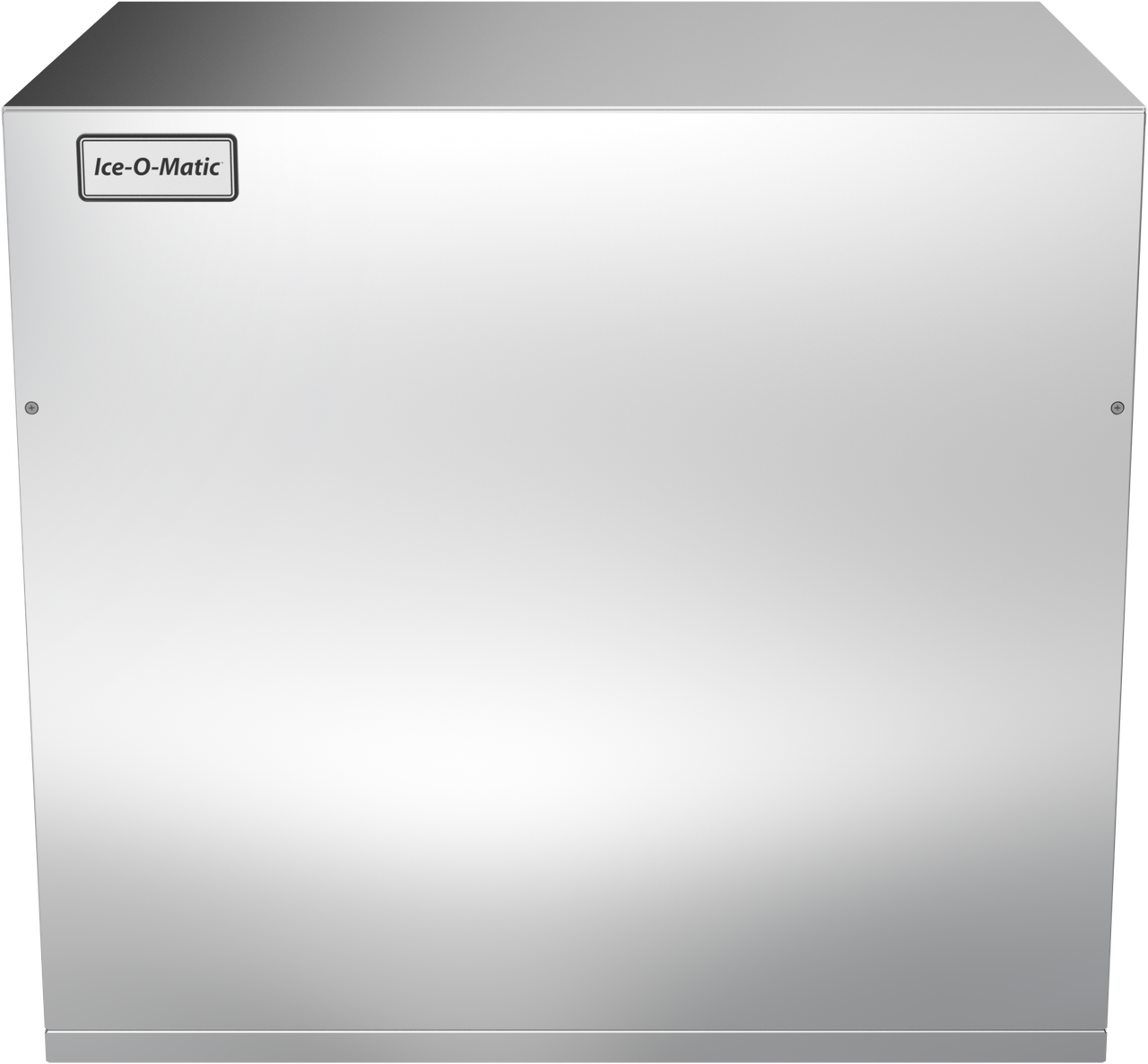

The Ice-O-Matic GEM2006R49 is a 30 inch remote-cooled modular Pearl ice machine head that produces 1,700 to 1,800 lb of soft, chewable nugget-style ice per 24 hours.

The Wide-Cabinet Step Up From the 21 Inch GEM Line

The GEM2006R49 moves into a 30 in W x 24 in D x 27 in H cabinet, wider than the 21 inch heads used through the GEM1306 tier, to reach 1,700 to 1,800 lb of daily output. Operators outgrowing the 1,300-1,400 lb ceiling of the GEM1306A90 step up to this cabinet size rather than staging multiple 21 inch heads.

Remote Condensing for High-Output Installs

At this production level the GEM2006R49 is offered remote-cooled, moving compressor heat and noise to an outdoor condenser rather than adding that load to the kitchen. Its water-cooled sibling, the GEM2006W, instead uses a condenser water line and reaches an even higher 2,200-2,300 lb output in the same cabinet.

R449A Refrigerant and IFQ2-XL Filtration

The GEM2006R49 runs on R449A and uses the IFQ2-XL filter, the largest filter sizing in the GEM line, matched to the higher water flow this output requires. It runs on a 208-230V/60Hz/1-phase circuit.

Specifications

Model GEM2006R49
Ice Type Pearl Ice (soft, chewable nugget-style)
Capacity 1700-1800 lb/24hr
Exterior Dimensions 30 in W x 24 in D x 27 in H
Electrical 208-230V/60Hz/1-phase
Refrigerant R449A
Condenser Remote
Filter System IFQ2-XL
Shipping Weight 306 lb

Warranty

Ice-O-Matic publishes 3 years parts and labor on the GEM series, with 5 years parts coverage on the compressor.
