Product Description

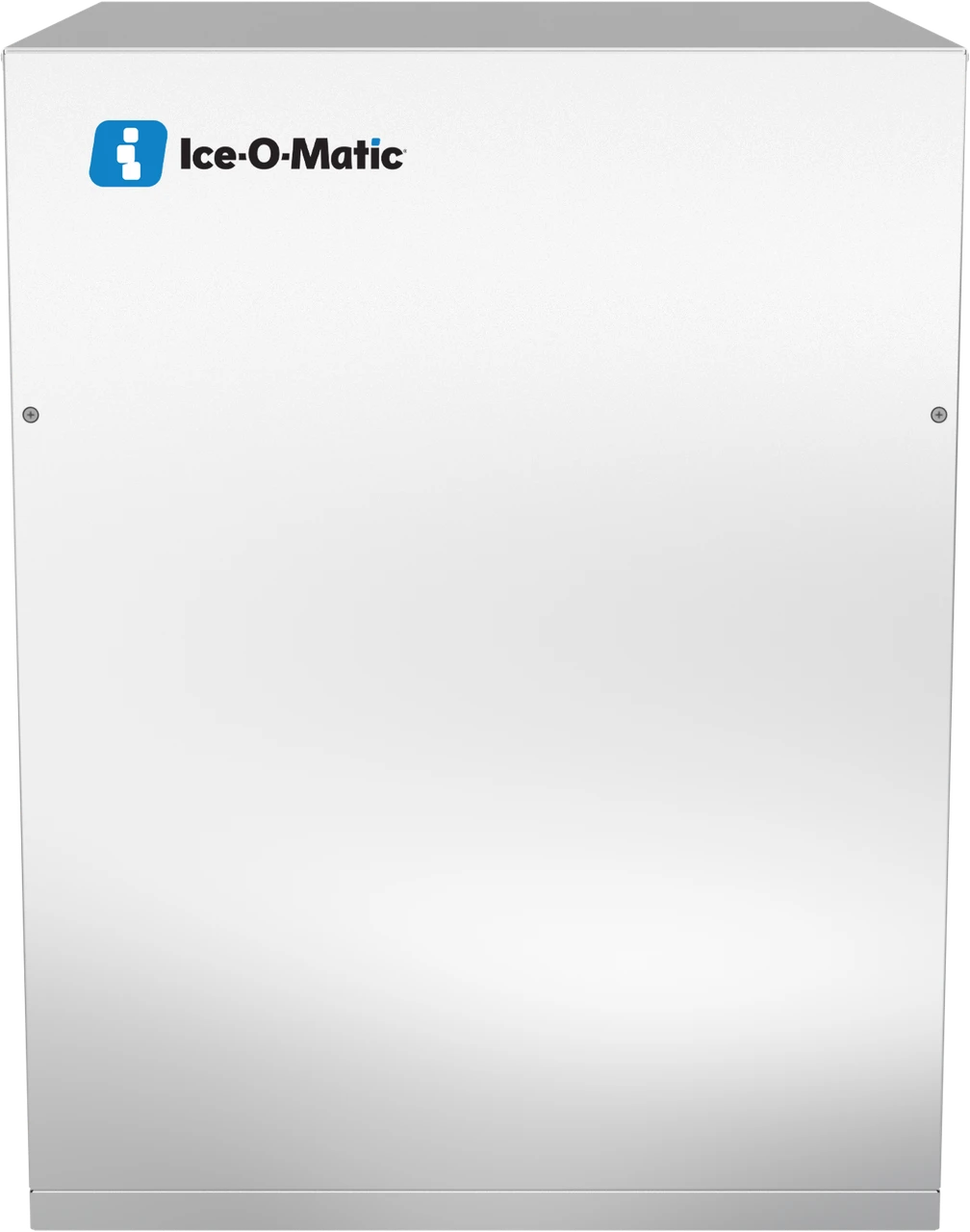

The Ice-O-Matic GEM1306R49 is a 21 inch remote-cooled modular Pearl ice machine head that produces 1,200 to 1,300 lb of soft, chewable nugget-style ice per 24 hours, pairing with the RC106G49 remote condenser.

Remote Condensing at the Top of the 21 Inch Cabinet

The GEM1306R49 pairs with the RC106G49 outdoor remote condenser, the same unit used on the smaller GEM0956R49, moving compressor heat and noise out of the kitchen at the highest output the 21 inch GEM cabinet offers.

Slightly Below the Air-Cooled GEM1306A90

The GEM1306R49 is rated at 1,200 to 1,300 lb per day, just under the 1,300 to 1,400 lb of the air-cooled GEM1306A90 in the same 21 in W x 24 in D x 27 in H cabinet. The trade for the modestly lower ceiling is a kitchen free of the compressor's heat and noise.

R449A Refrigerant and IFQ2 Filtration

The GEM1306R49 runs on R449A for its remote line-set run and shares the IFQ2 filter used on the air-cooled GEM1306A90. Both electrical requirement, 208-230V/60Hz/1-phase, and gearbox load monitoring match the rest of the GEM line.

Specifications

Model GEM1306R49
Ice Type Pearl Ice (soft, chewable nugget-style)
Capacity 1200-1300 lb/24hr
Exterior Dimensions 21 in W x 24 in D x 27 in H
Electrical 208-230V/60Hz/1-phase
Refrigerant R449A
Condenser Remote (pairs with RC106G49)
Filter System IFQ2
Shipping Weight 215 lb

Warranty

Ice-O-Matic publishes 3 years parts and labor on the GEM series, with 5 years parts coverage on the compressor.
