Product Description

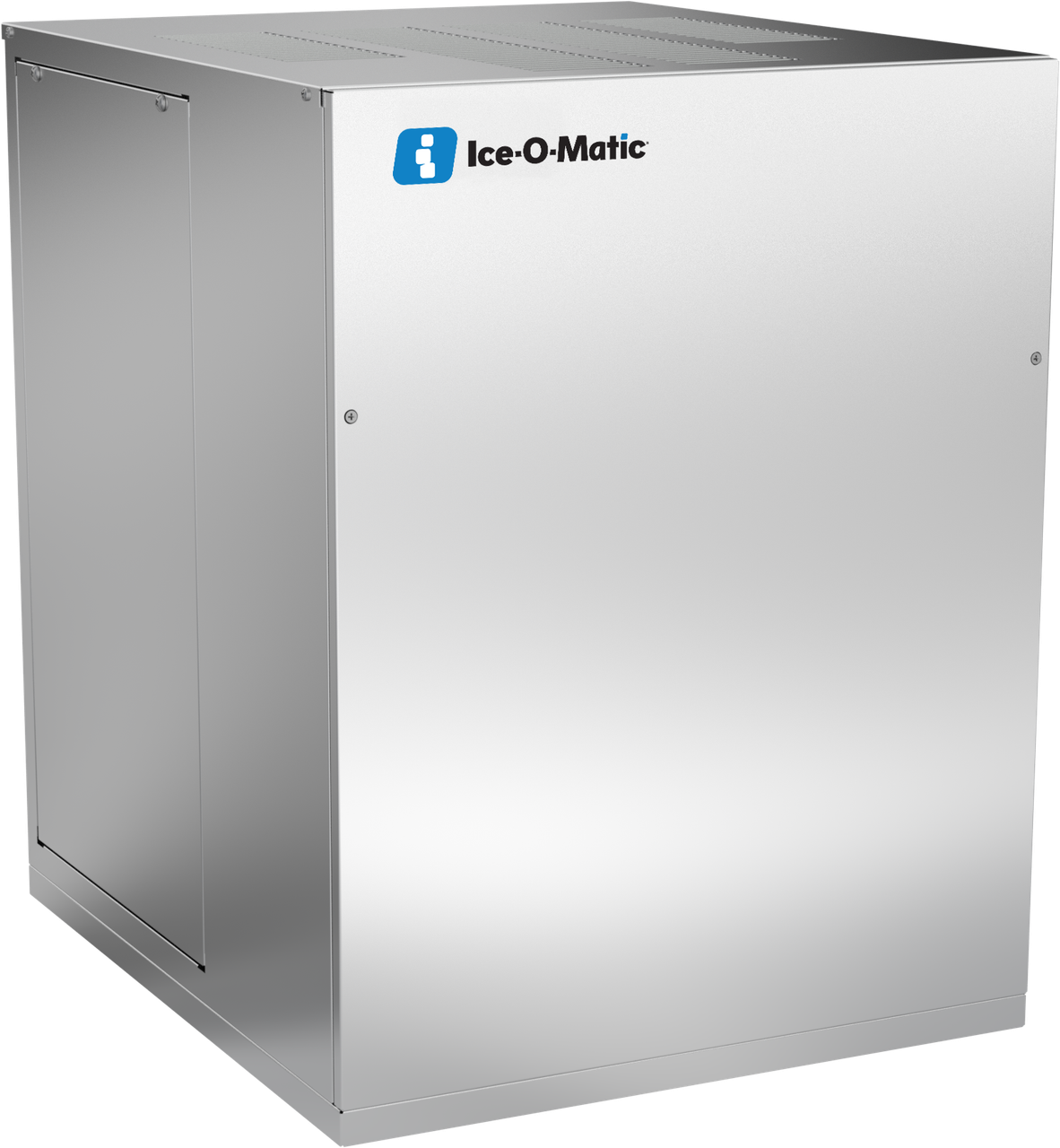

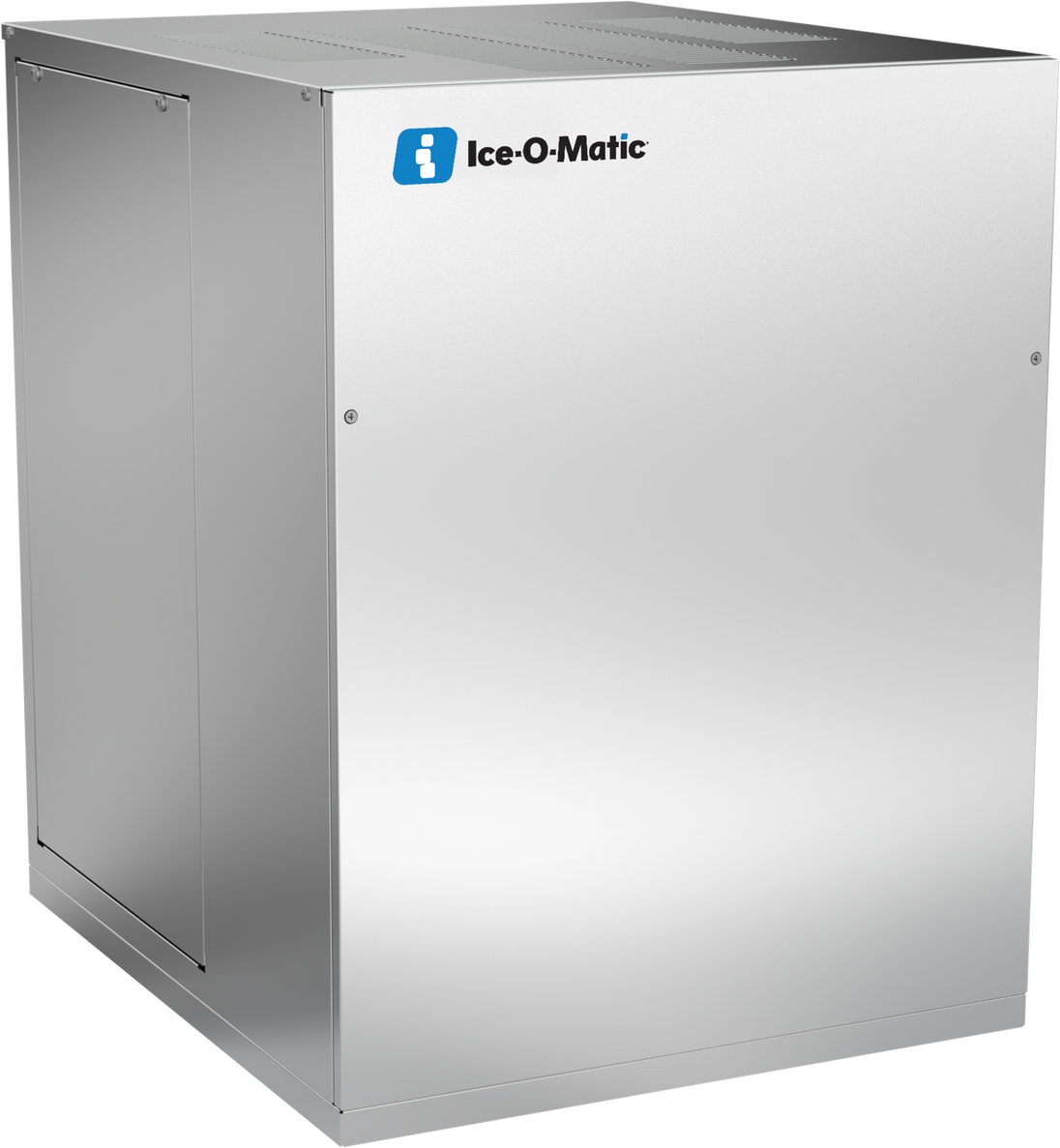

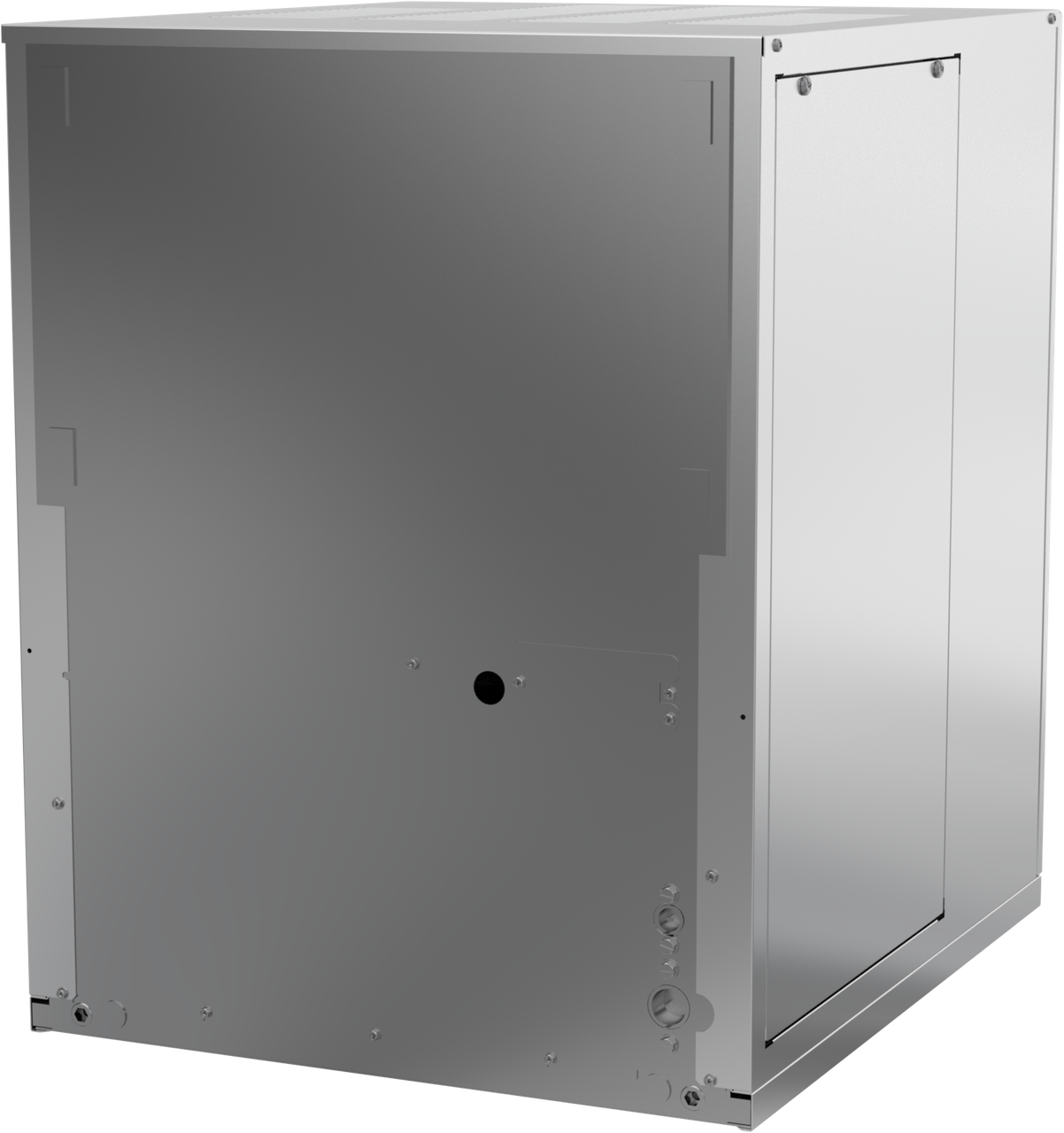

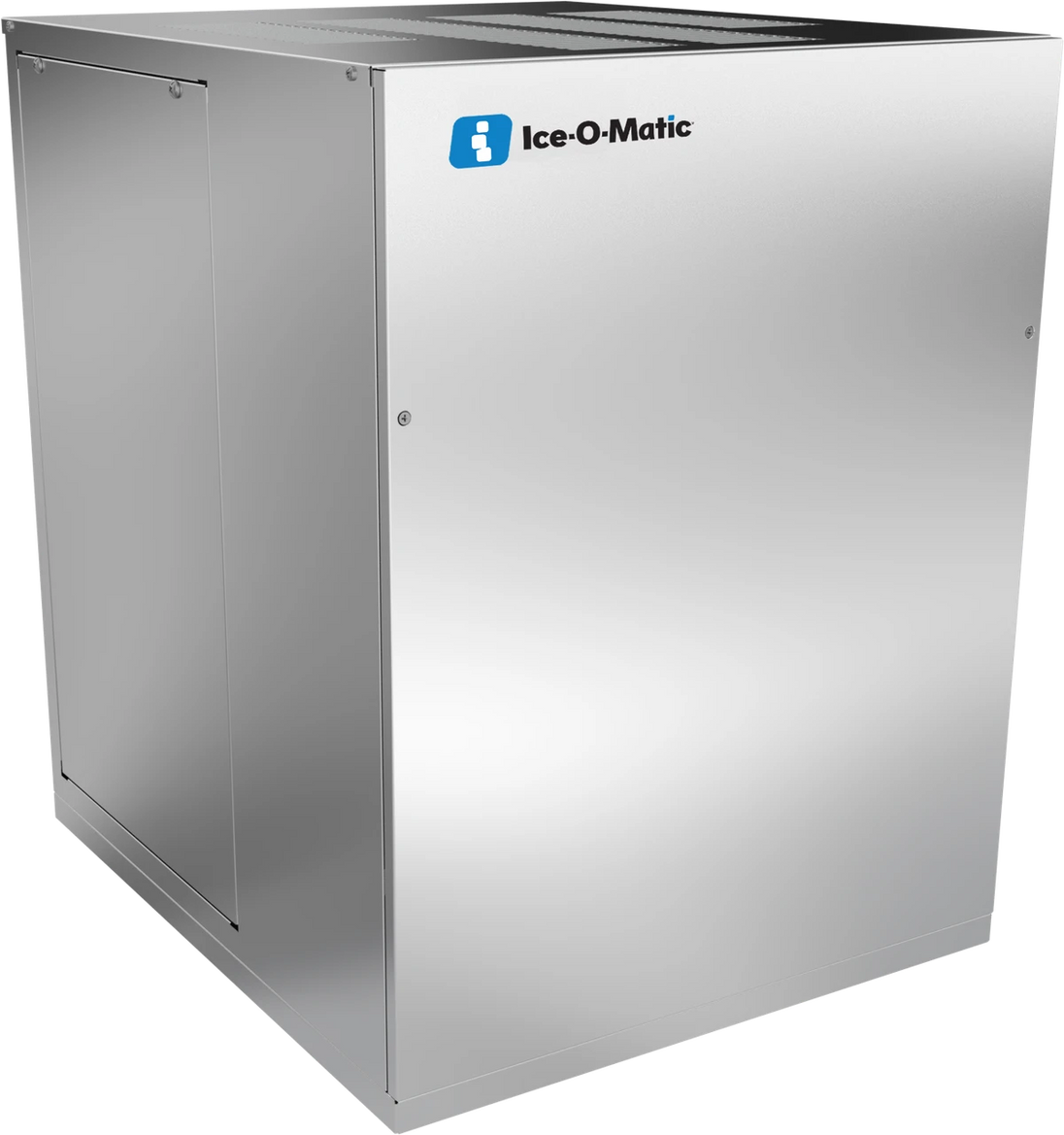

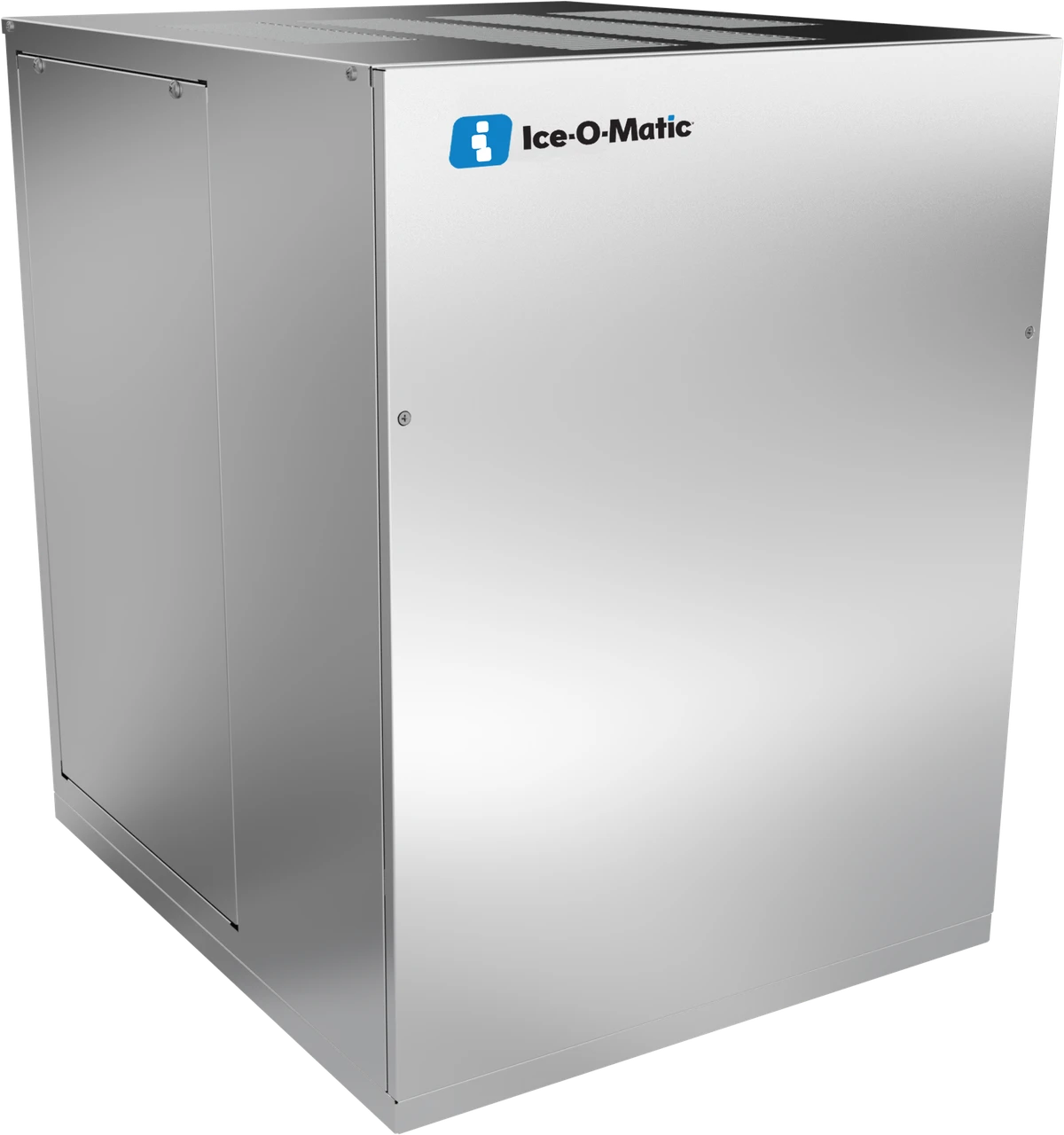

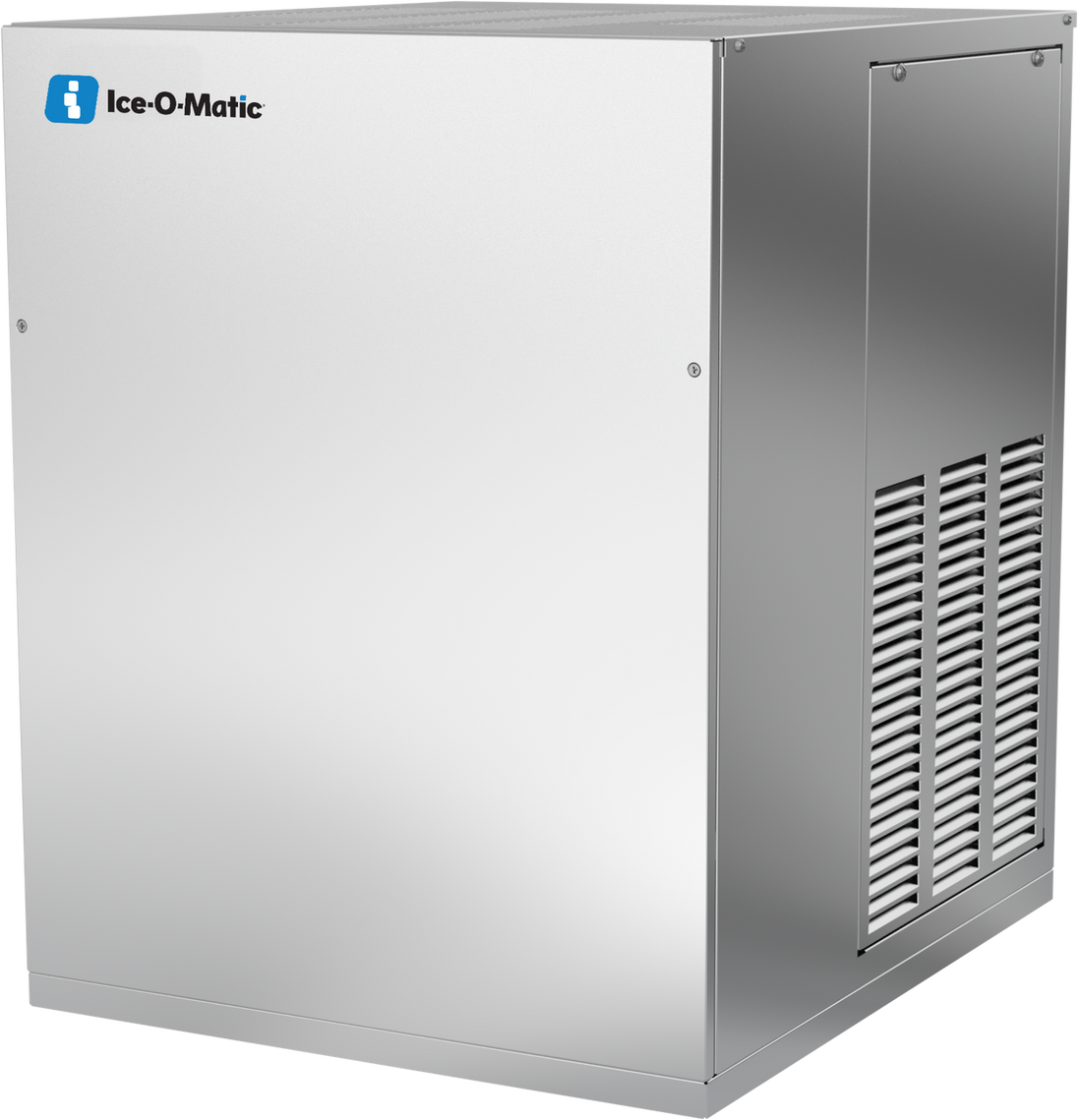

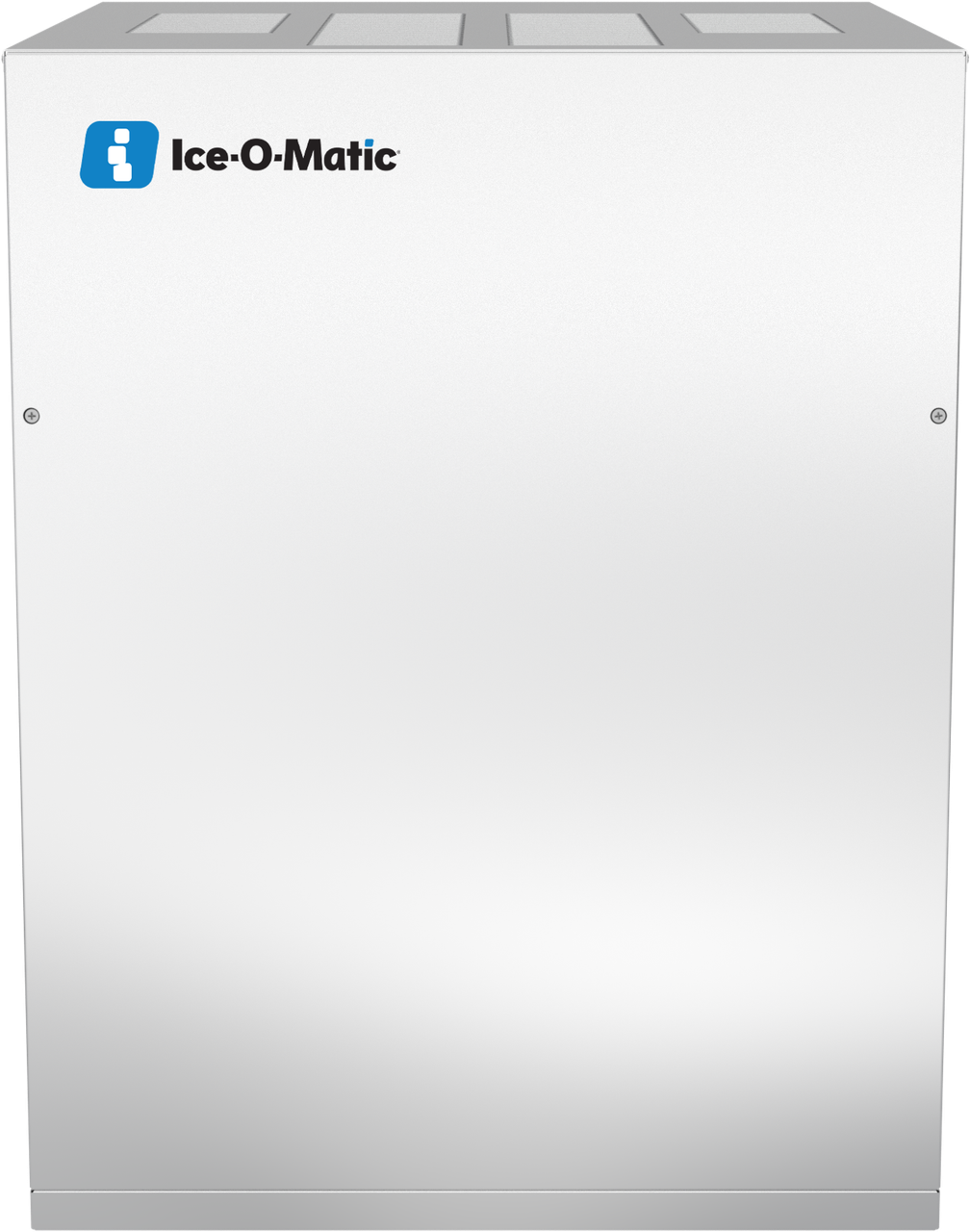

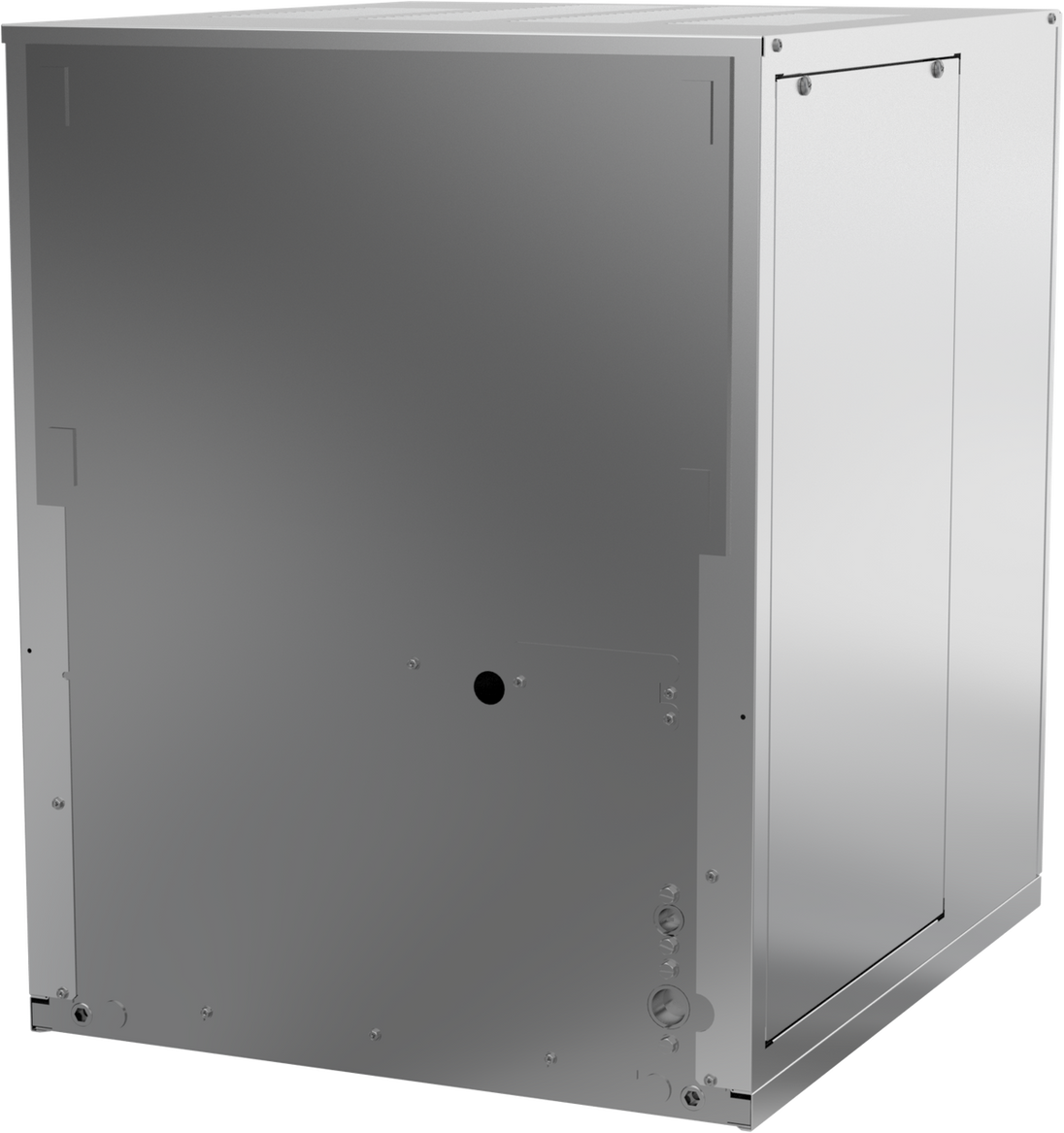

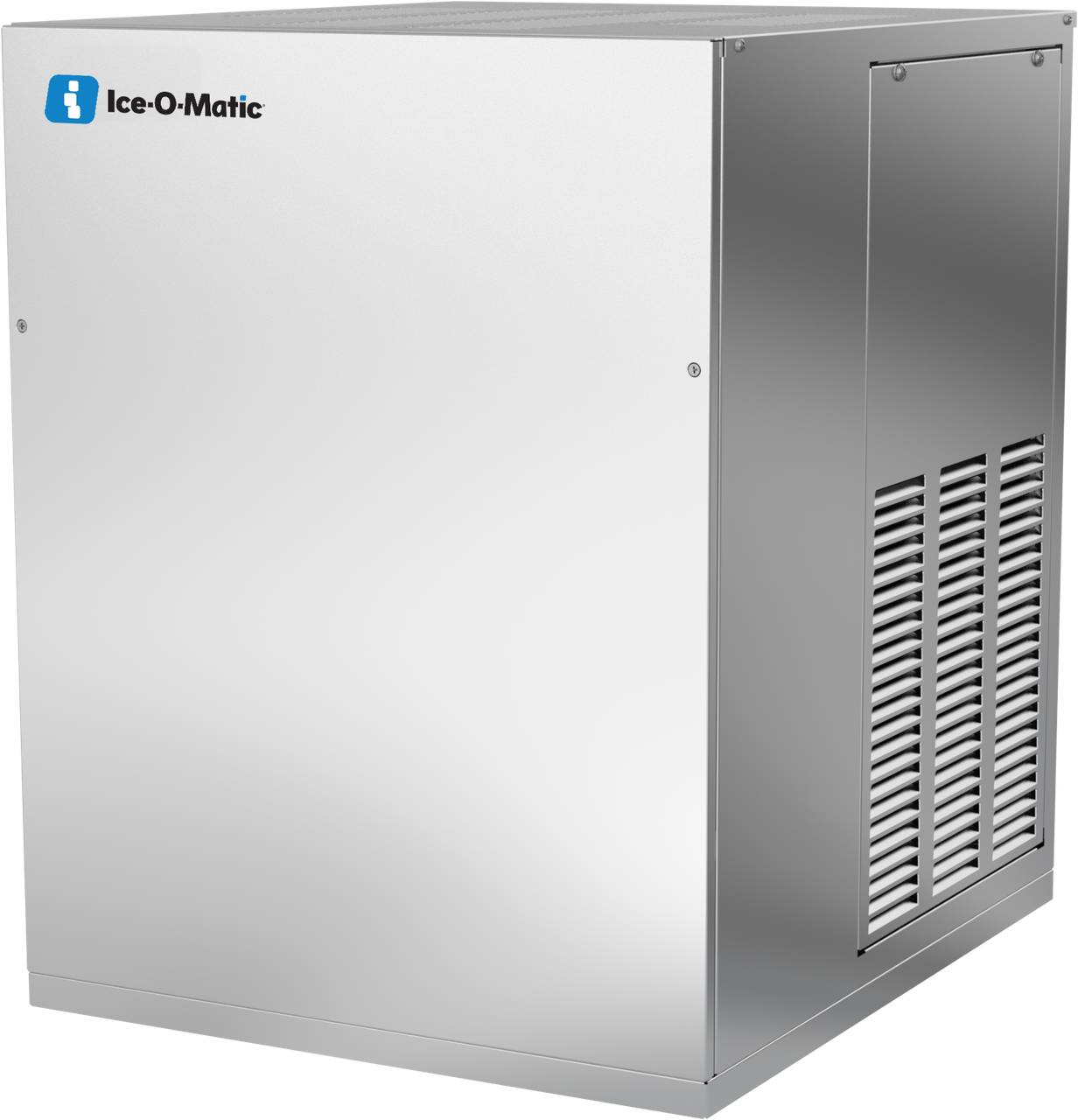

The Ice-O-Matic GEM1306A90 is a 21 inch air-cooled modular Pearl ice machine head that produces 1,300 to 1,400 lb of soft, chewable nugget-style ice per 24 hours, the highest output the 21 inch GEM cabinet reaches before stepping up to the 30 inch GEM2006 line.

Top of the 21 Inch Cabinet

The GEM1306A90 is the largest producer still built into the compact 21 in W x 24 in D x 27 in H head shared by the GEM0450, GEM0650, and GEM0956 models. Operators needing more than roughly 1,400 lb per day move up to the wider 30 inch GEM2006 cabinet instead.

Air Cooling Against the Remote-Cooled GEM1306R49

The GEM1306A90 rejects heat directly into the kitchen air on a 208-230V/60Hz/1-phase circuit, avoiding the refrigerant line-set run the remote-cooled GEM1306R49 needs for its outdoor condenser. It produces slightly more daily ice than the GEM1306R49, 1,300-1,400 lb versus 1,200-1,300 lb, since air cooling in this tier carries a small output advantage over the remote configuration.

R290 Refrigerant and IFQ2 Filtration

The GEM1306A90 runs on R290A and steps up to the IFQ2 filter, a size above the IFQ1-XL used on the GEM0956A90, matched to the higher water flow at this output. It carries the same load-monitored gearbox and water-sensor shutoff used throughout the GEM line.

Specifications

Model GEM1306A90
Ice Type Pearl Ice (soft, chewable nugget-style)
Capacity 1300-1400 lb/24hr
Exterior Dimensions 21 in W x 24 in D x 27 in H
Electrical 208-230V/60Hz/1-phase
Refrigerant R290A
Condenser Air Cooled
Filter System IFQ2
Shipping Weight 219 lb

Warranty

Ice-O-Matic publishes 3 years parts and labor on the GEM series, with 5 years parts coverage on the compressor.
