Product Description

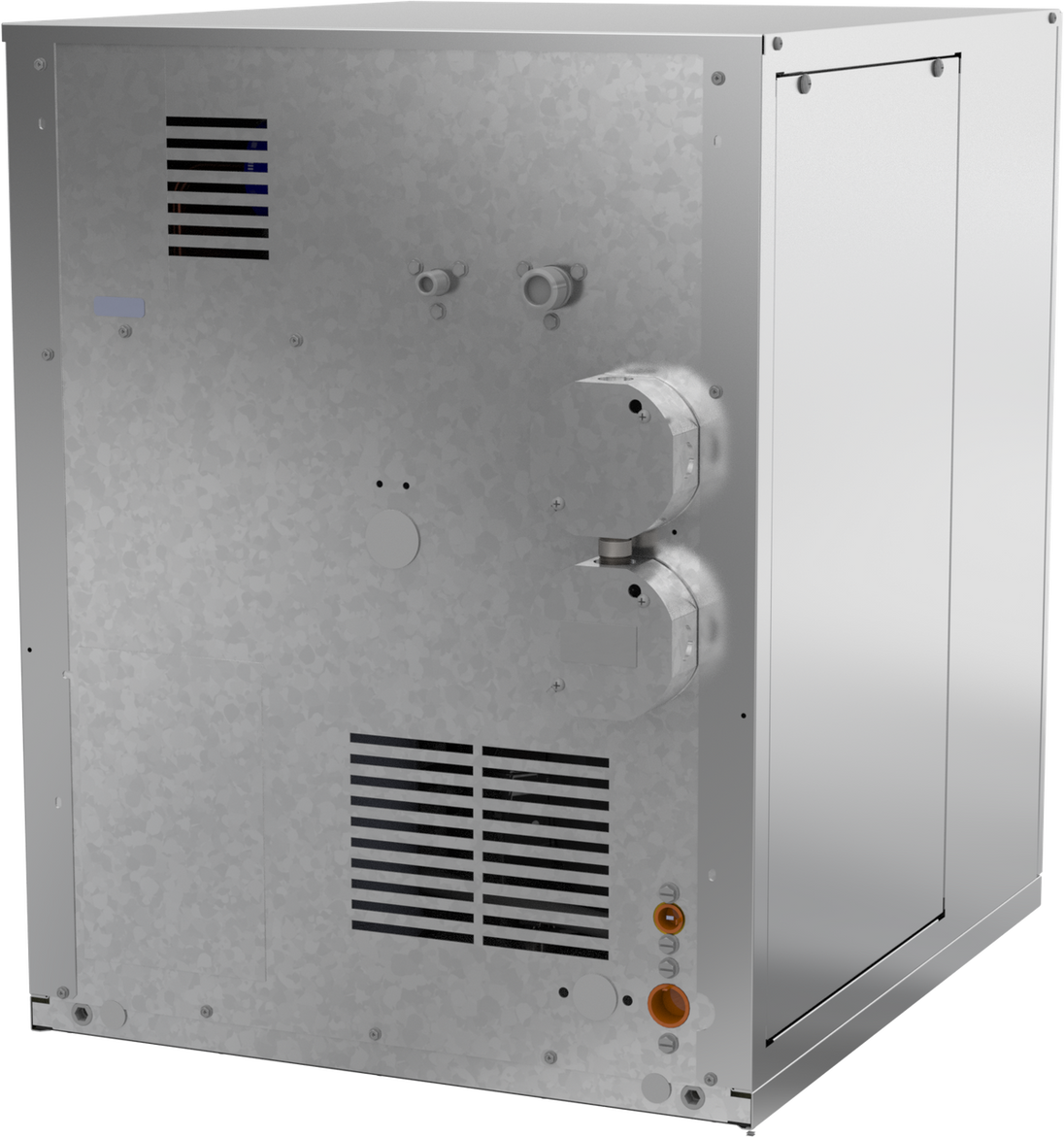

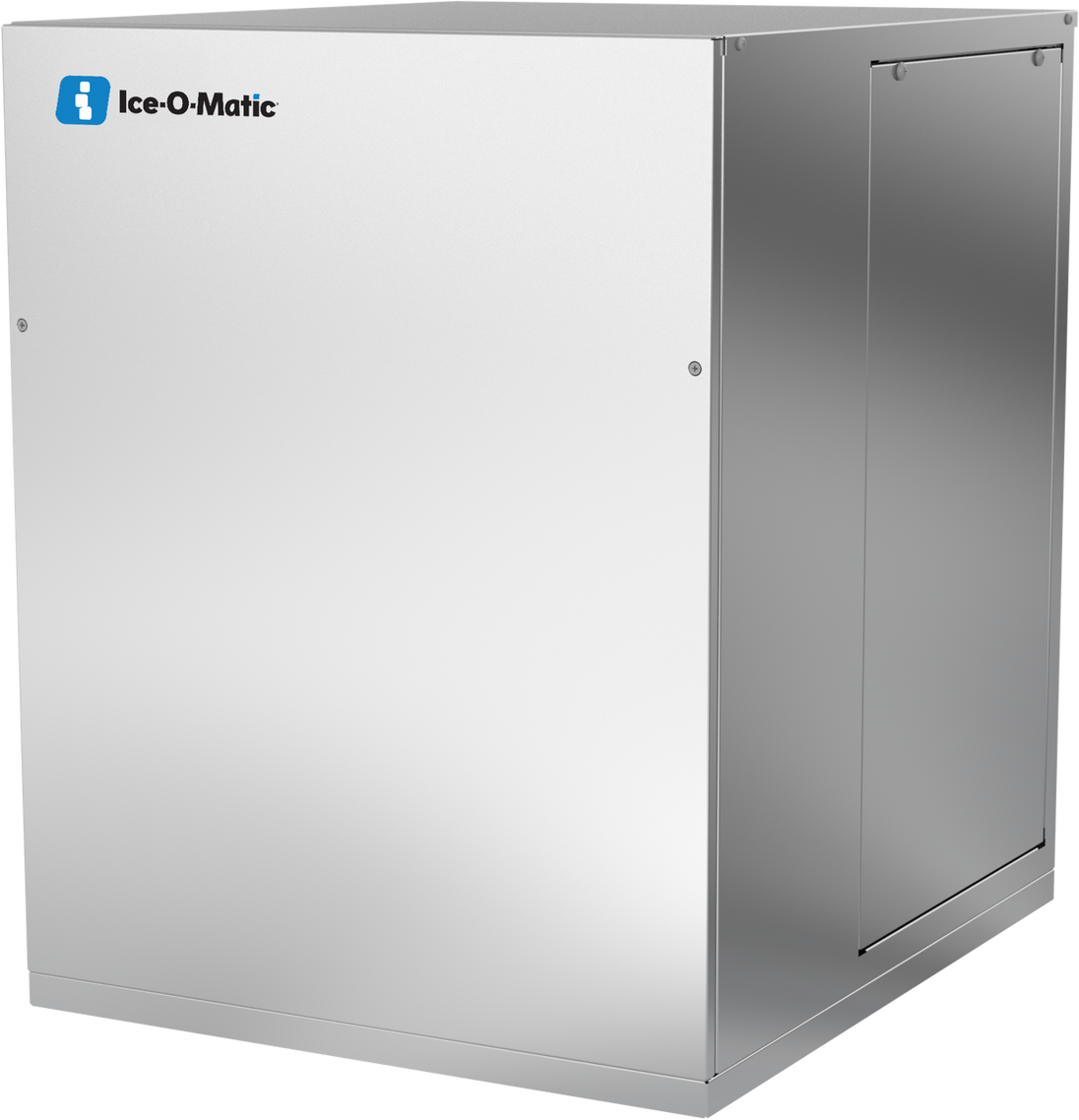

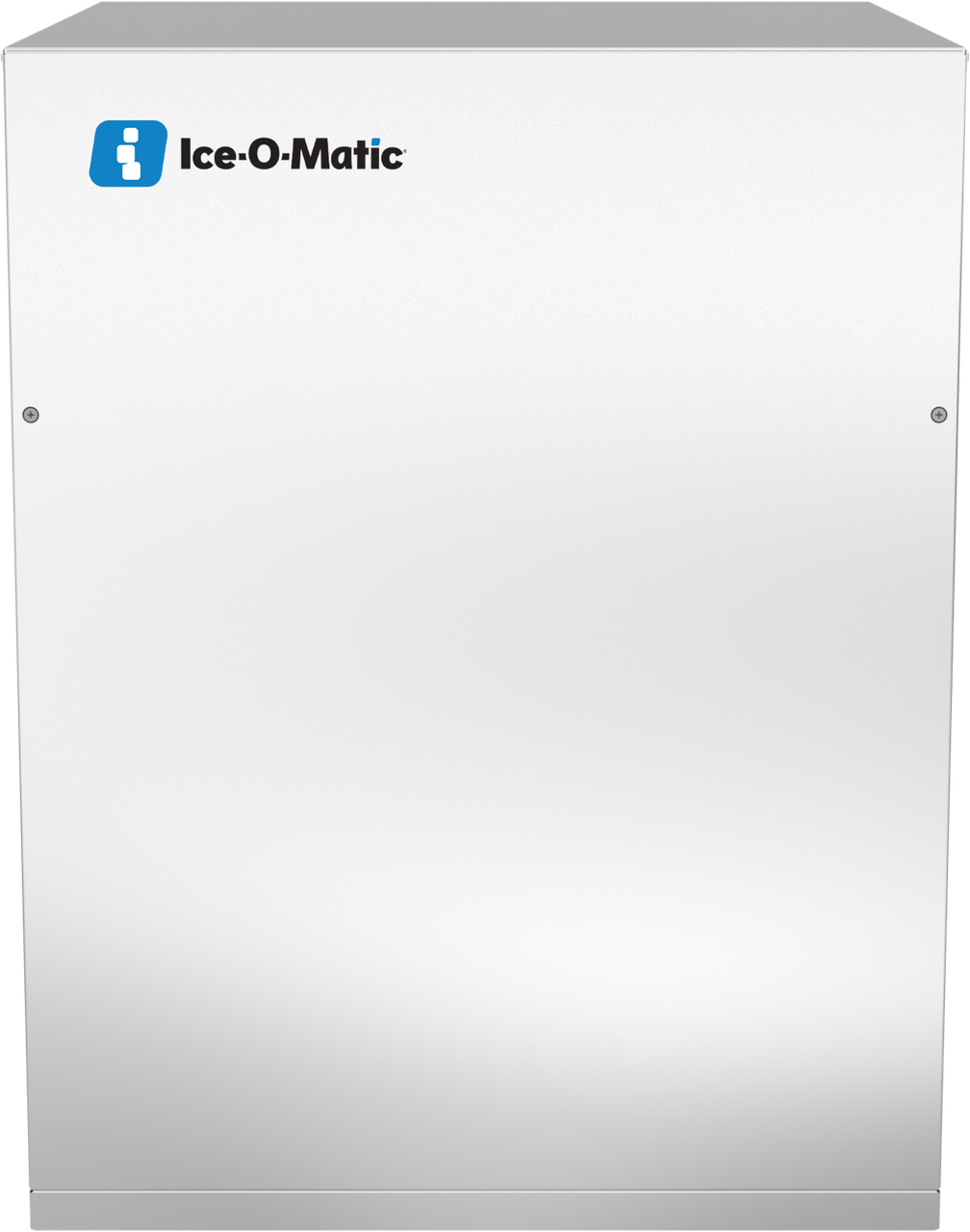

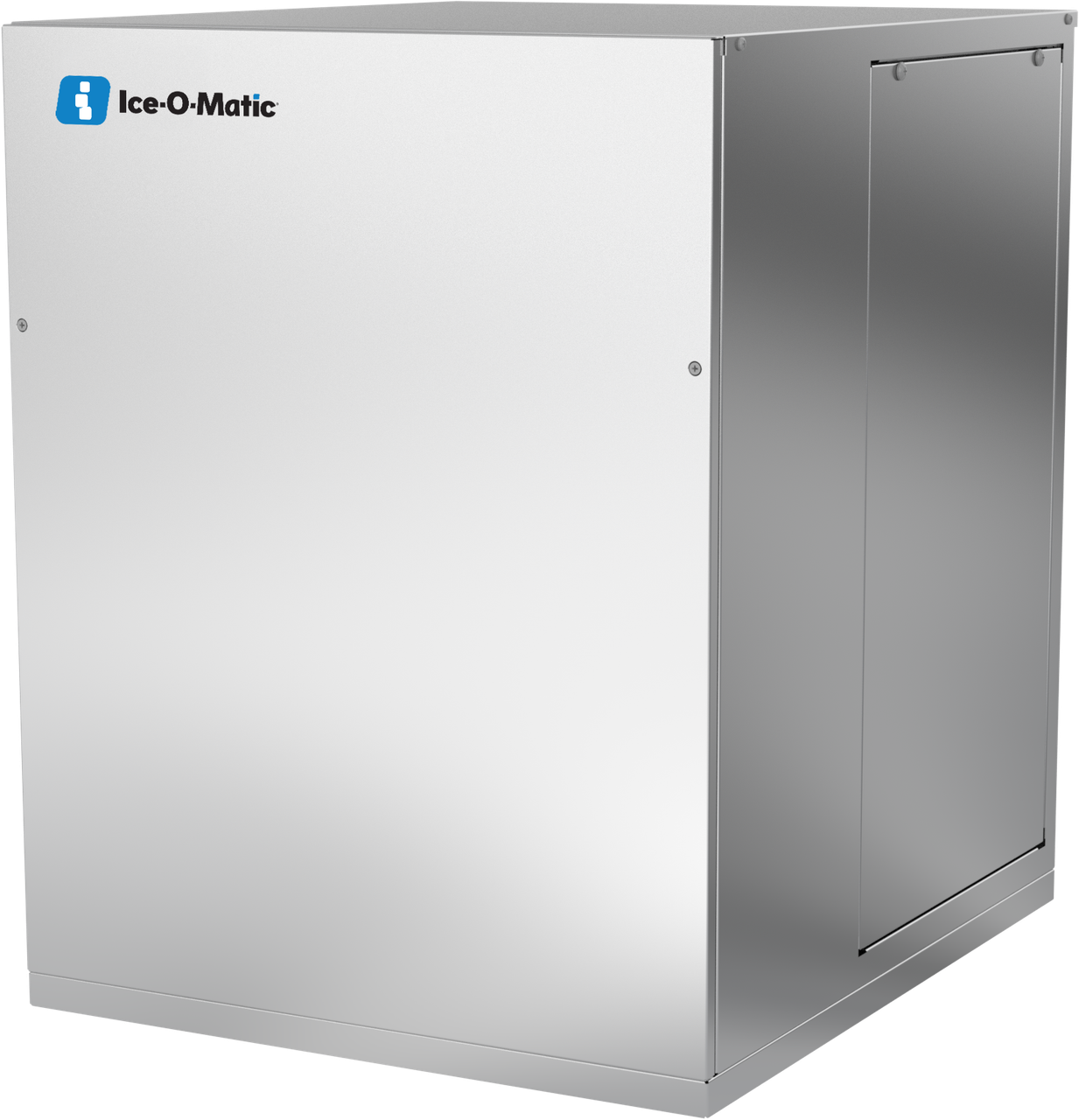

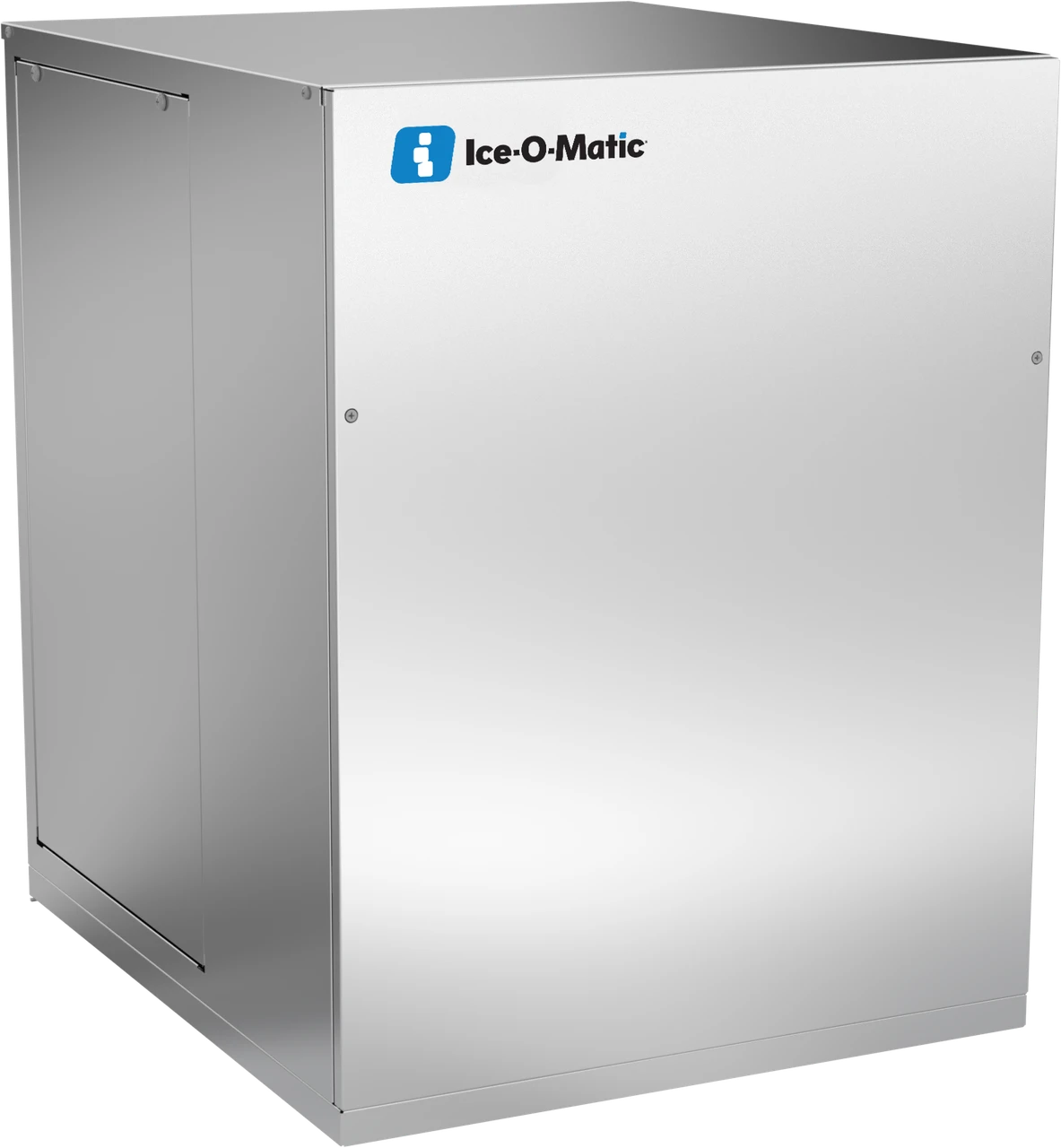

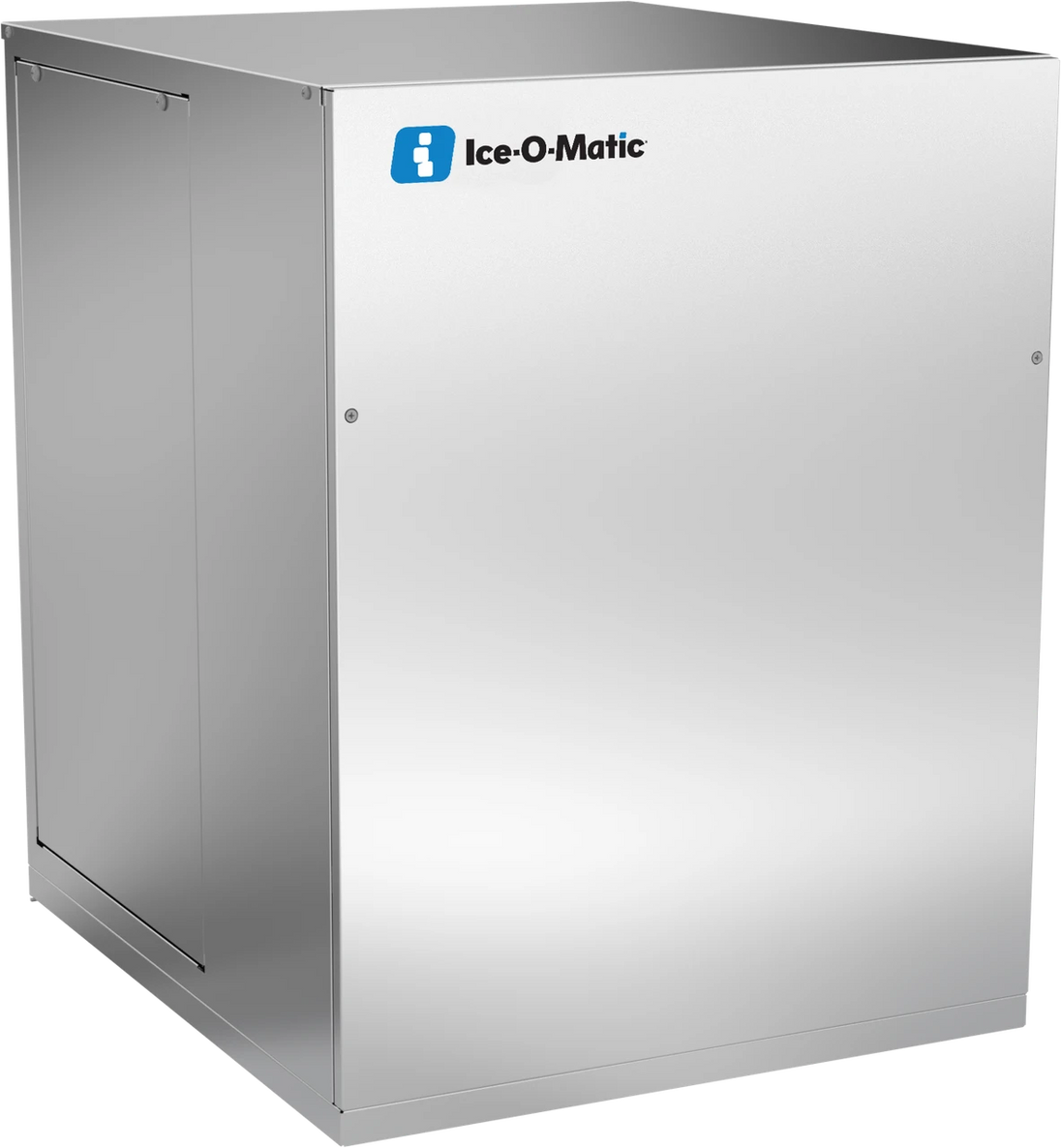

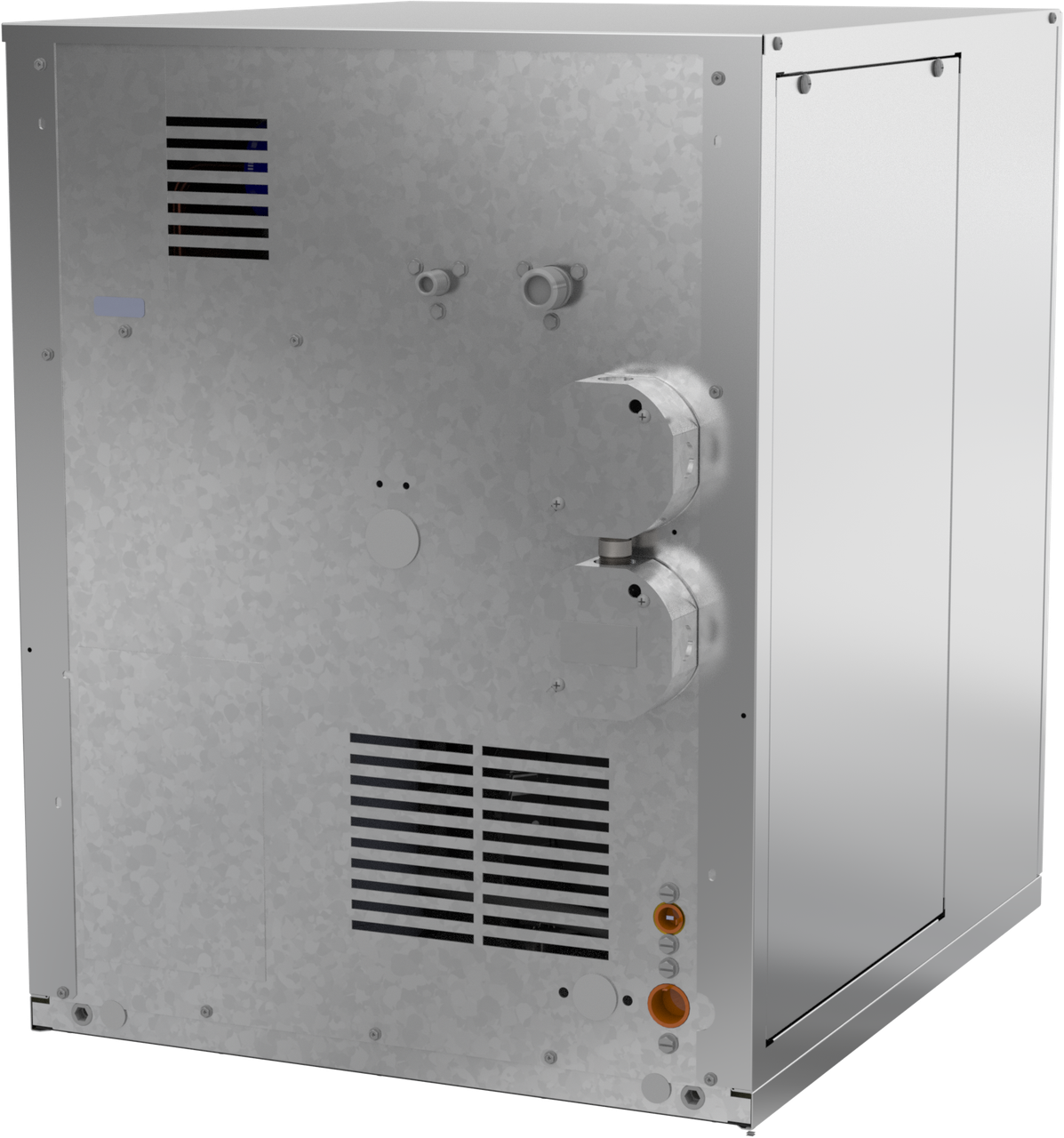

The Ice-O-Matic GEM0956W90 is a 21 inch water-cooled modular Pearl ice machine head that produces 1,000 to 1,100 lb of soft, chewable nugget-style ice per 24 hours.

The Highest Output in the 0956 Tier

Water cooling gives the GEM0956W90 the highest daily output of the three 0956 variants, 1,000 to 1,100 lb versus 900 to 1,000 lb for the air-cooled GEM0956A90 and remote-cooled GEM0956R49. Rejecting heat into condenser water rather than kitchen air lets the same compressor run at a higher sustained capacity.

A Water Line In Place of the Air-Cooled Heat Load

The GEM0956W90 needs a condenser water supply and drain that the air-cooled GEM0956A90 does not, and unlike the remote-cooled GEM0956R49 it needs no outdoor line-set run. It suits kitchens already plumbed for water-cooled equipment where floor space near an exterior wall is limited.

R290 Refrigerant on a 208-230V Circuit

The GEM0956W90 runs on R290A on a 208-230V/60Hz/1-phase circuit, the same electrical requirement as its air- and remote-cooled 0956 siblings. It shares the 21 in W x 24 in D x 27 in H cabinet used across the entire 0956 tier.

Specifications

Model GEM0956W90
Ice Type Pearl Ice (soft, chewable nugget-style)
Capacity 1000-1100 lb/24hr
Exterior Dimensions 21 in W x 24 in D x 27 in H
Electrical 208-230V/60Hz/1-phase
Refrigerant R290A
Condenser Water Cooled
Shipping Weight 211 lb

Warranty

Ice-O-Matic publishes 3 years parts and labor on the GEM series, with 5 years parts coverage on the compressor.
