Product Description

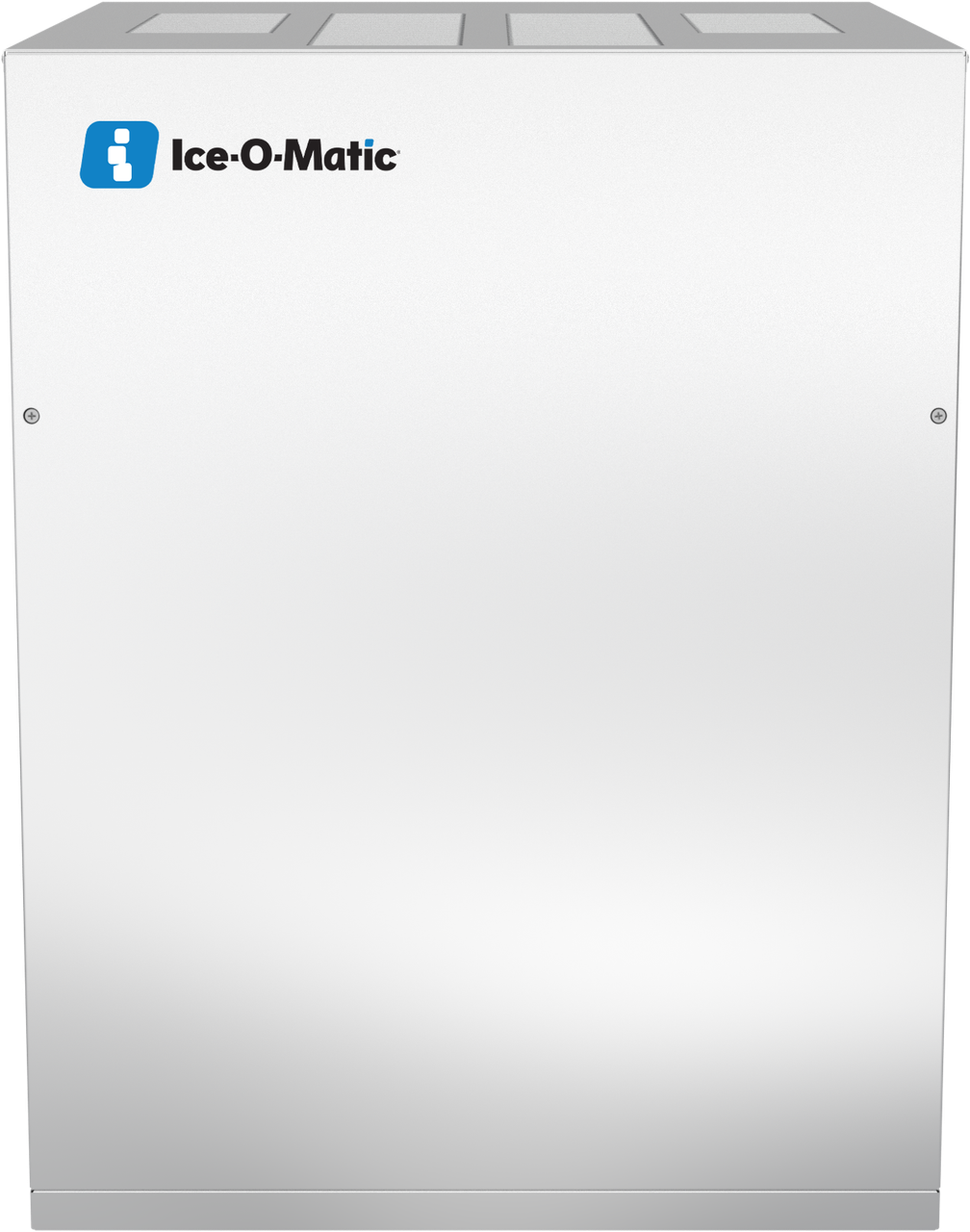

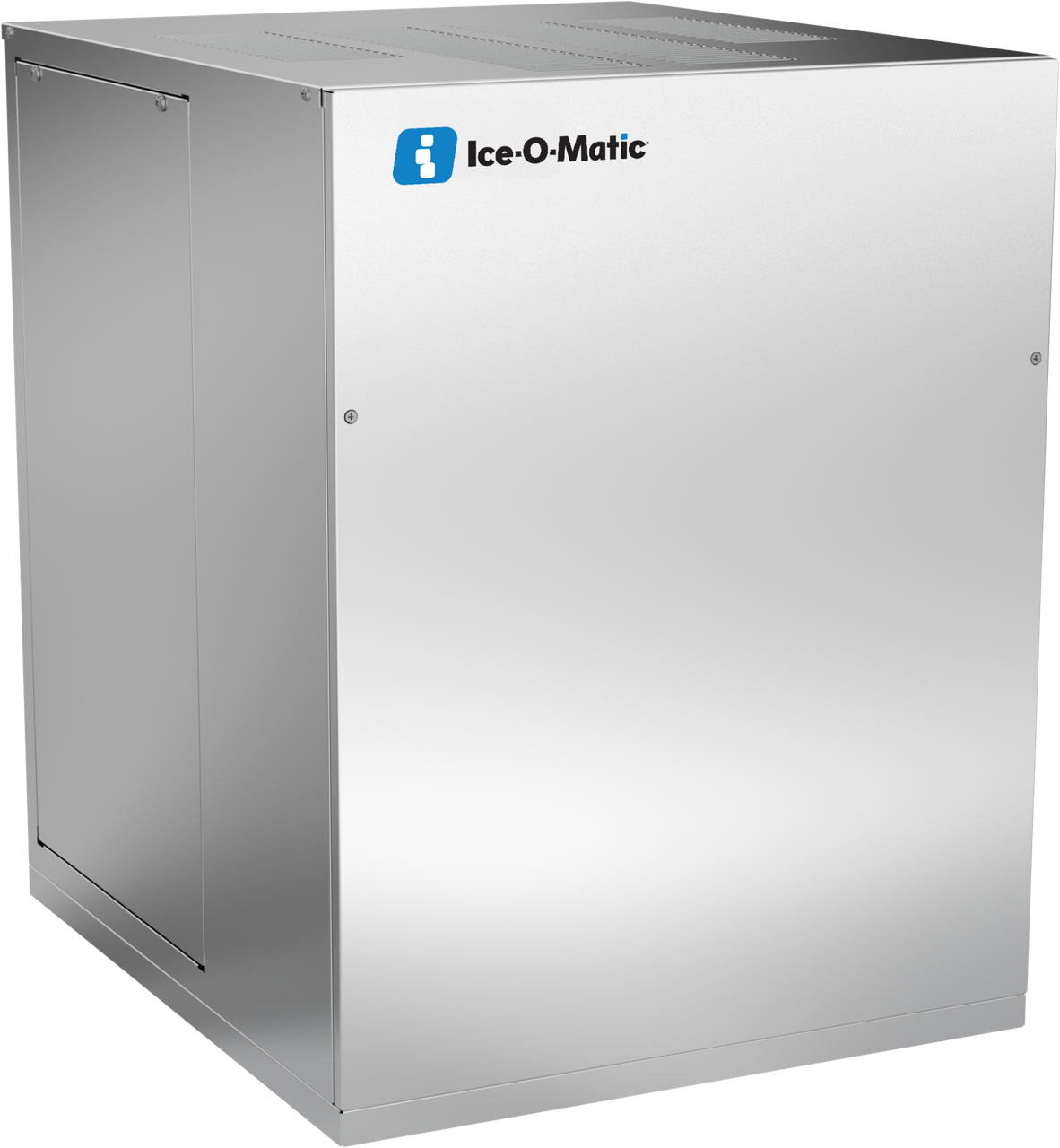

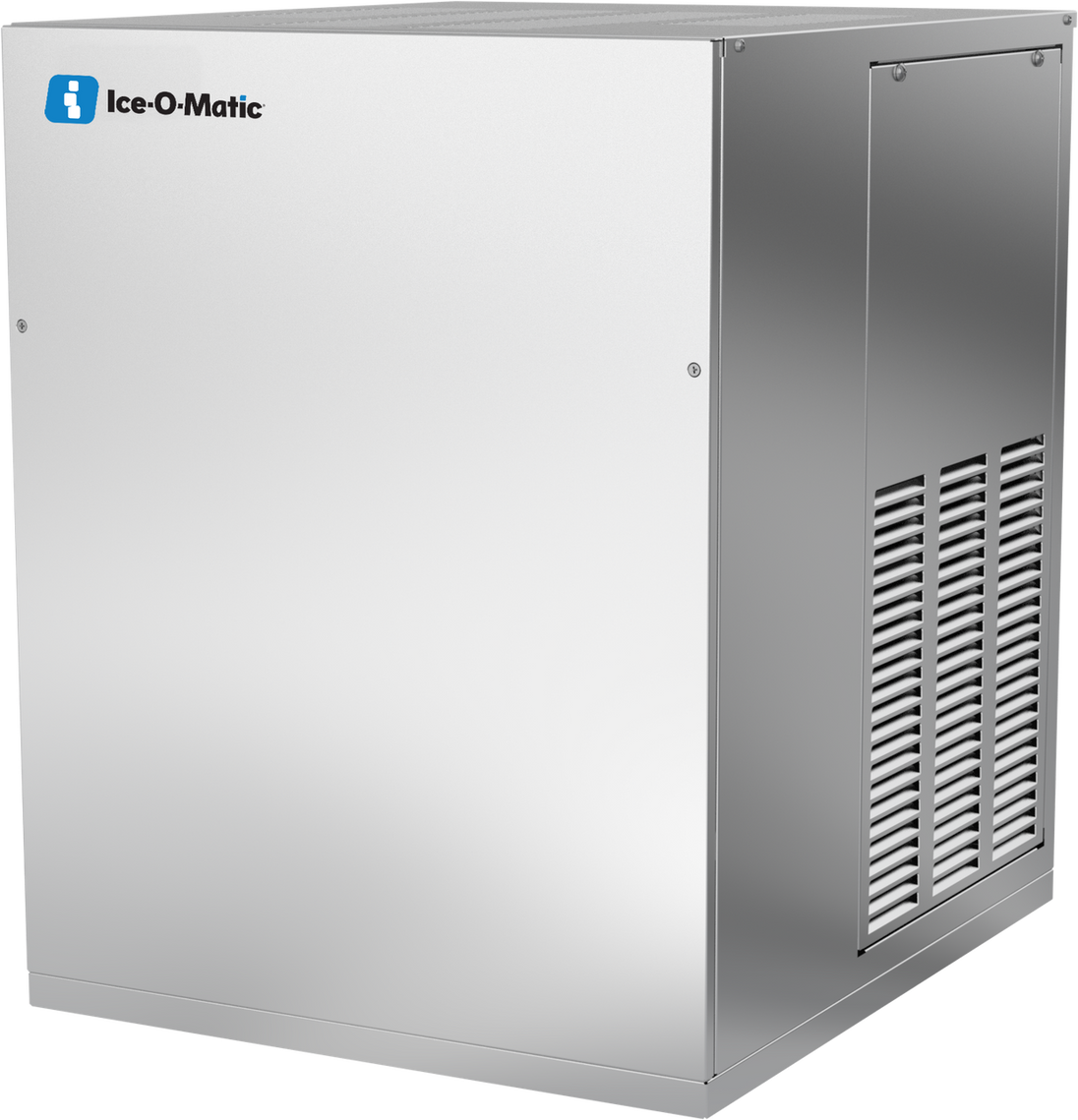

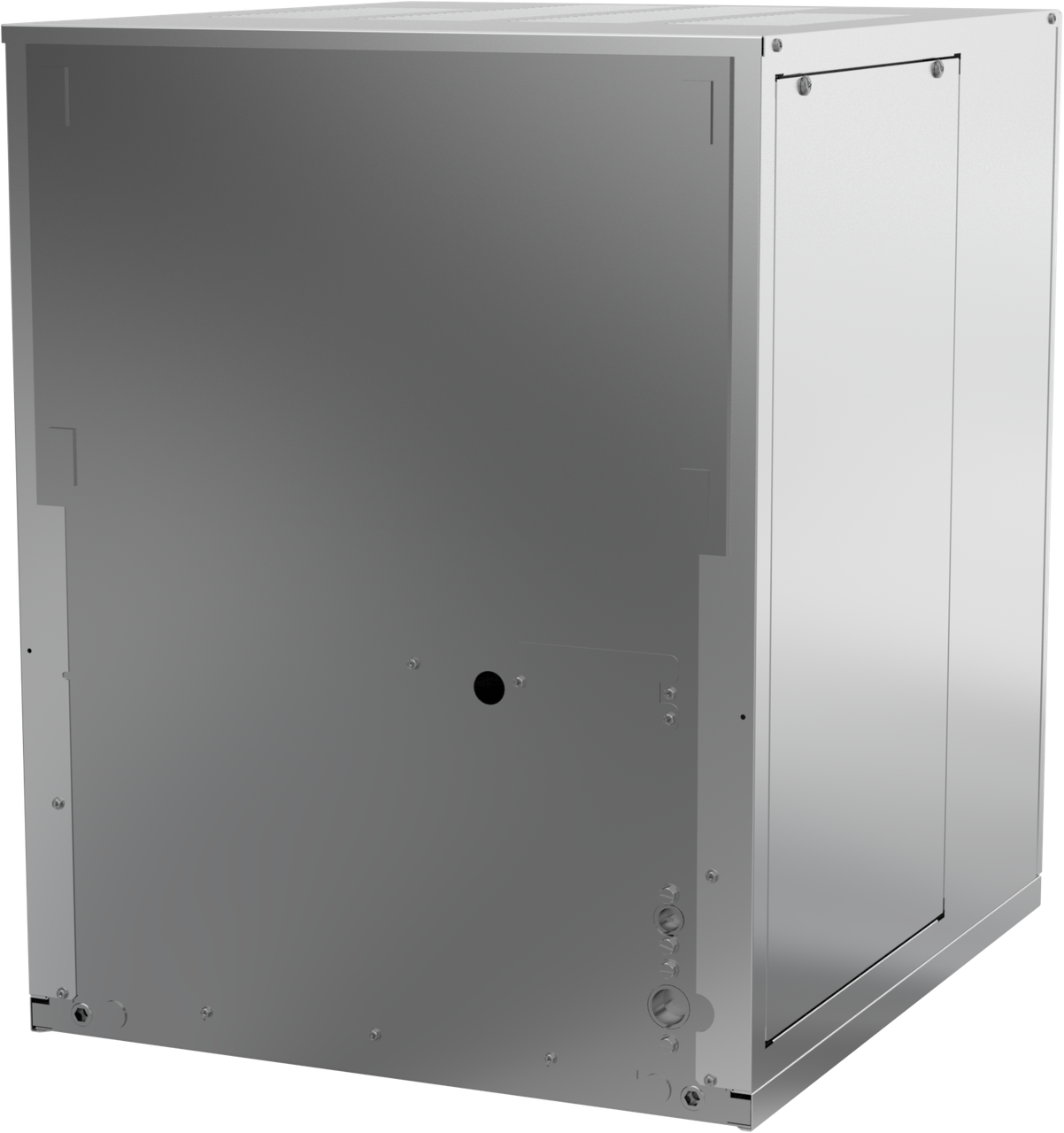

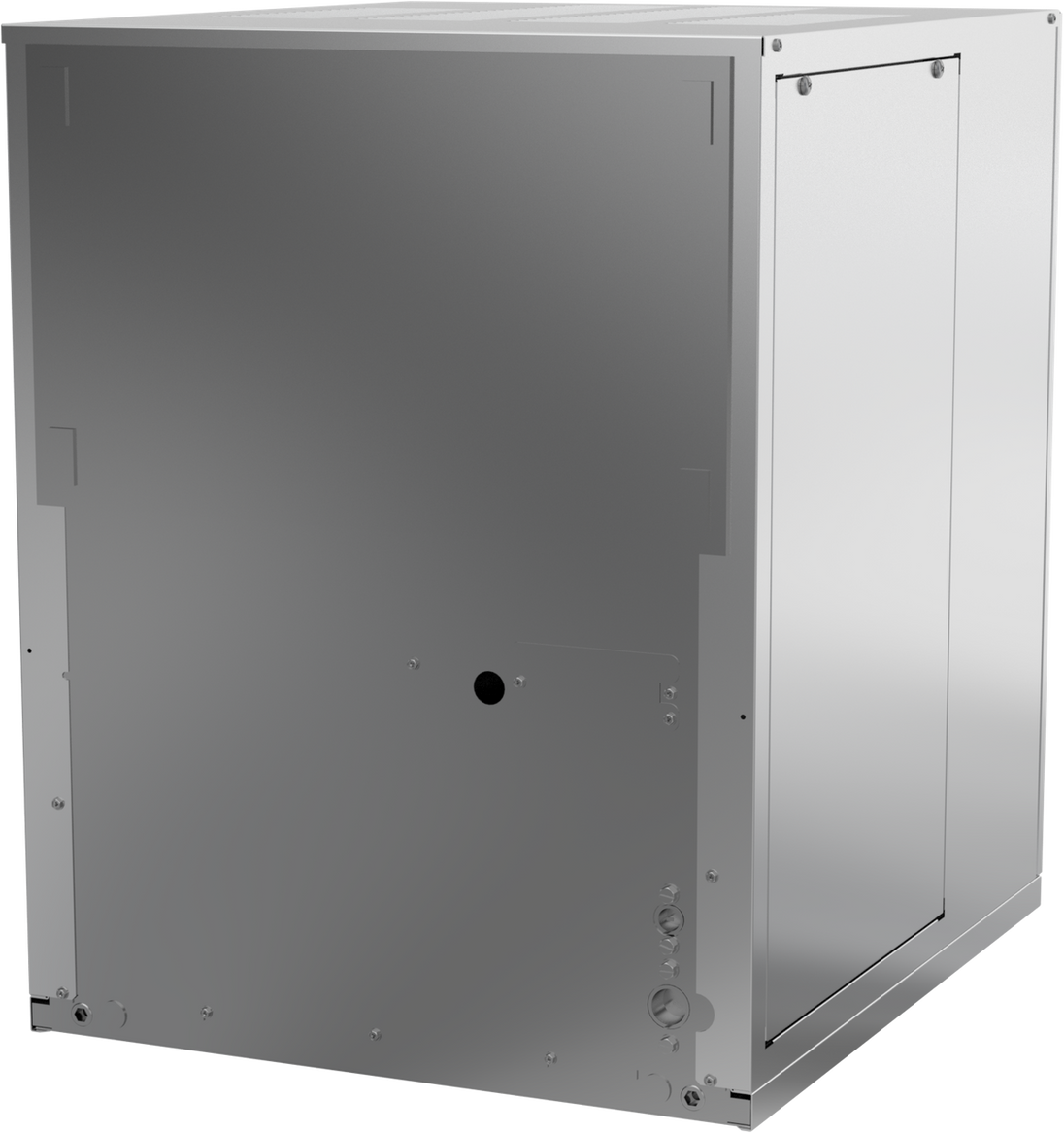

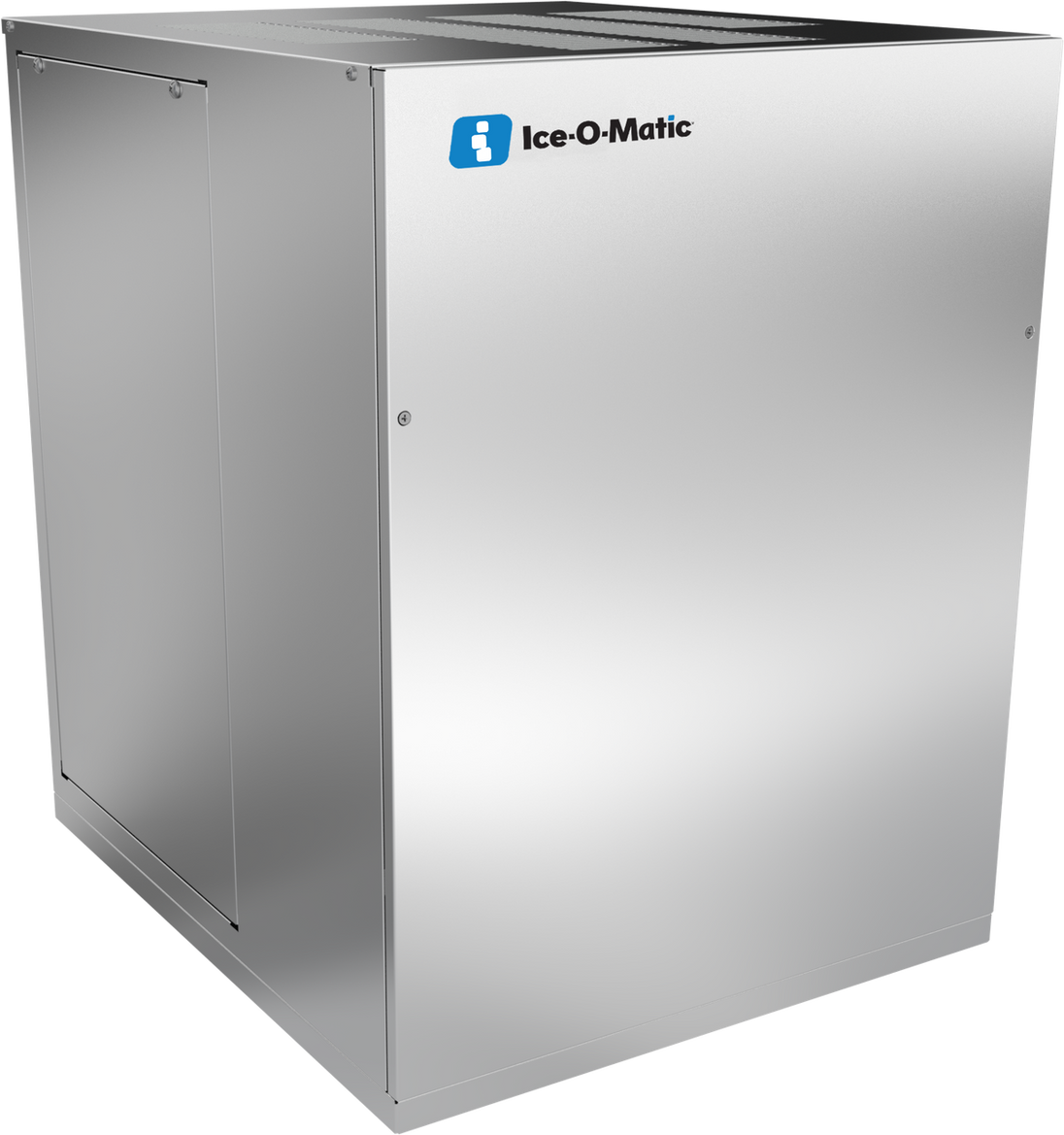

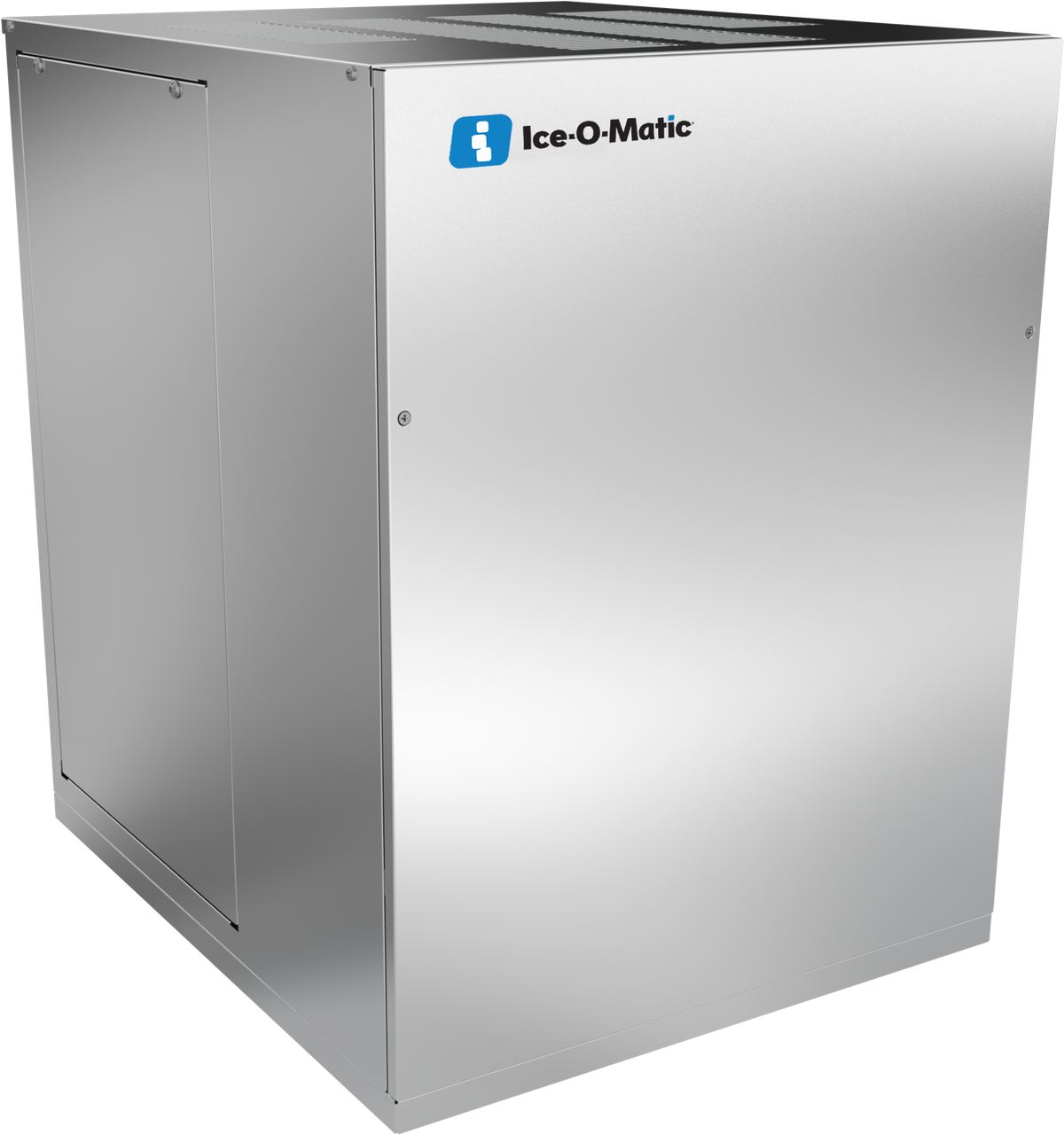

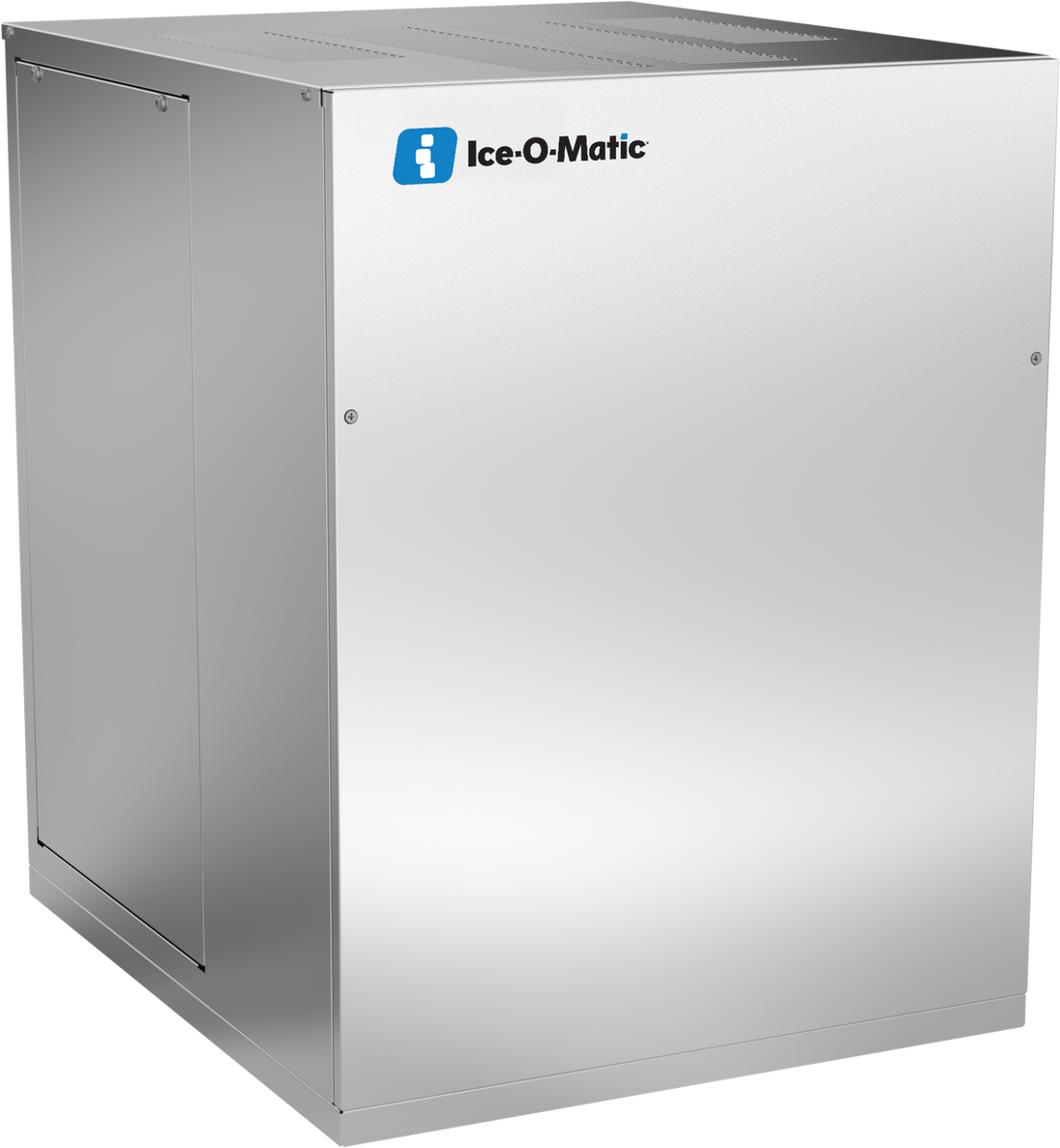

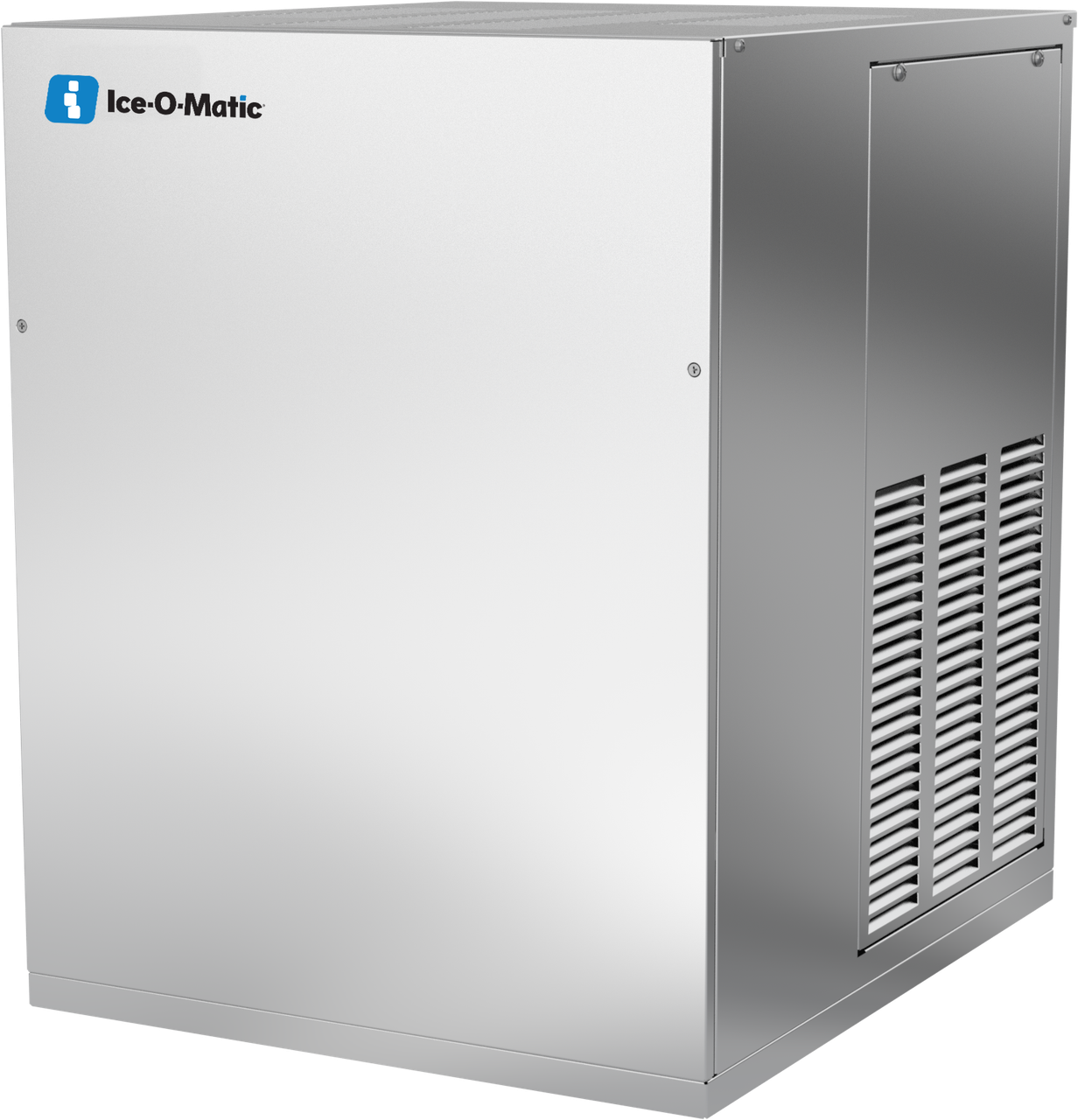

The Ice-O-Matic GEM0956A90 is a 21 inch air-cooled modular Pearl ice machine head that produces 900 to 1,000 lb of soft, chewable nugget-style ice per 24 hours.

Mid-Tier Output in the Same 21 Inch Footprint

The GEM0956A90 pushes 900 to 1,000 lb per day out of the same 21 in W x 24 in D x 27 in H cabinet as the smaller GEM0450A90 and GEM0650A90, so the jump in output does not cost any additional floor space. Operators sizing up from the 700-800 lb tier gain roughly 200 lb of daily capacity for the same footprint.

Air Cooling Steps Up to 208-230V

Unlike the 115V GEM0450A90 and GEM0650A90 below it, the GEM0956A90 requires a 208-230V/60Hz/1-phase circuit, reflecting the larger compressor needed at this output. It still rejects heat directly into the kitchen air with no condenser water hookup, unlike the water-cooled GEM0956W90 or remote-cooled GEM0956R49 in the same tier.

IFQ1-XL Filtration for the Higher Water Flow

The GEM0956A90 steps up from the IFQ1 filter used on the smaller GEM0450A90 to the IFQ1-XL, sized for the higher water flow this output tier demands. It runs on the same R290A refrigerant as the smaller air-cooled models in the line.

Specifications

Model GEM0956A90
Ice Type Pearl Ice (soft, chewable nugget-style)
Capacity 900-1000 lb/24hr
Exterior Dimensions 21 in W x 24 in D x 27 in H
Electrical 208-230V/60Hz/1-phase
Refrigerant R290A
Condenser Air Cooled
Filter System IFQ1-XL
Shipping Weight 189 lb

Warranty

Ice-O-Matic publishes 3 years parts and labor on the GEM series, with 5 years parts coverage on the compressor.
