Product Description

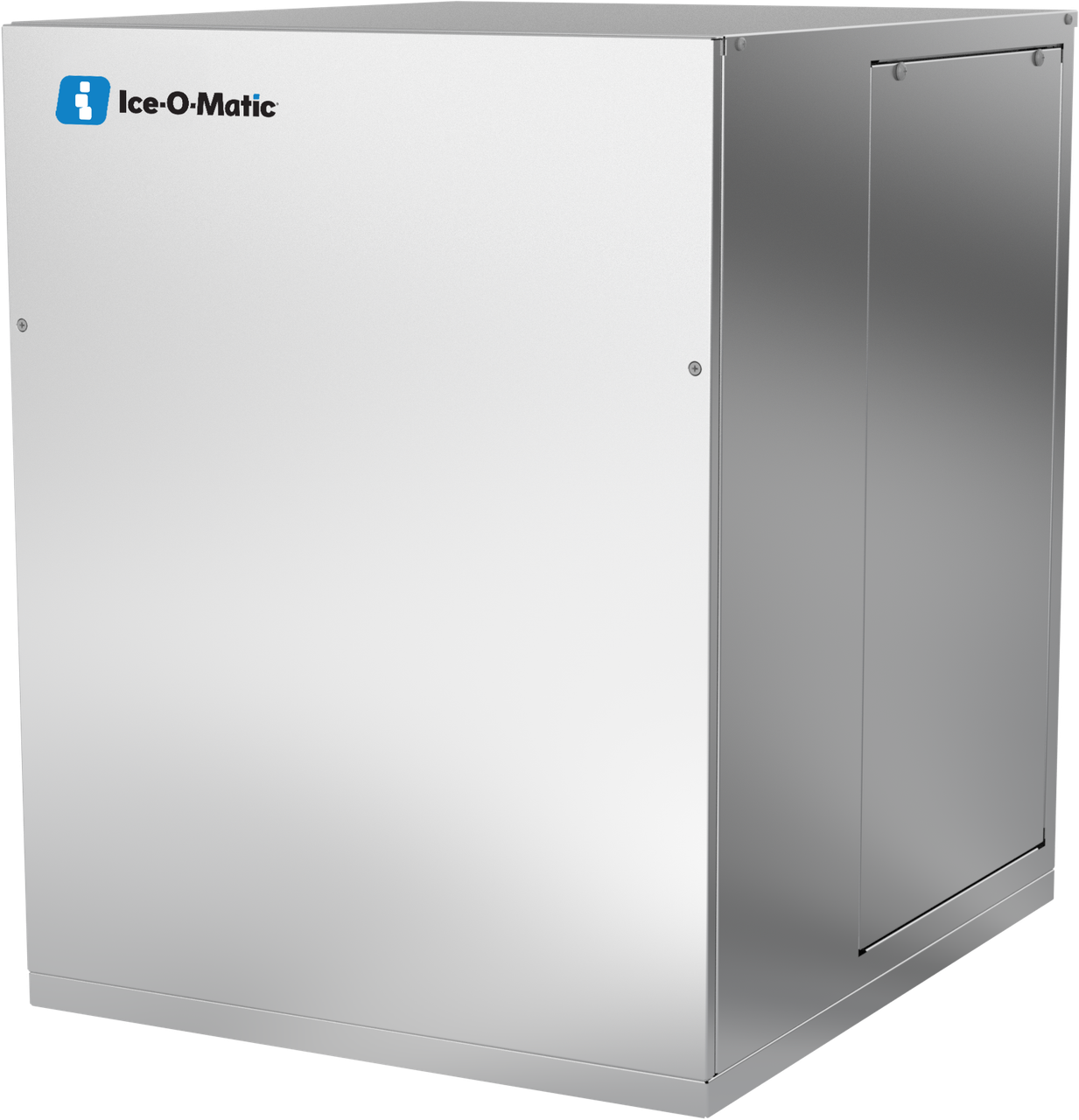

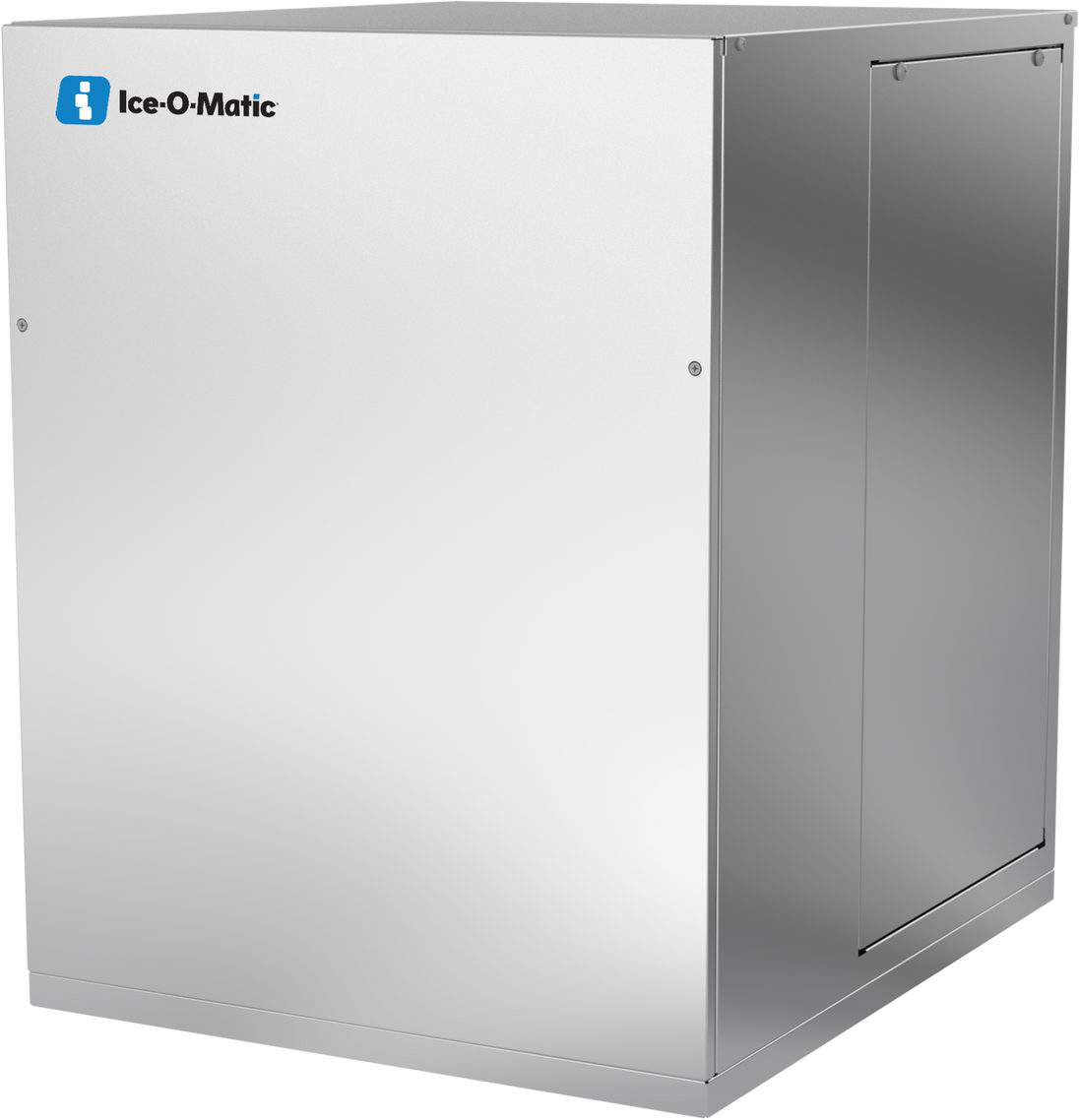

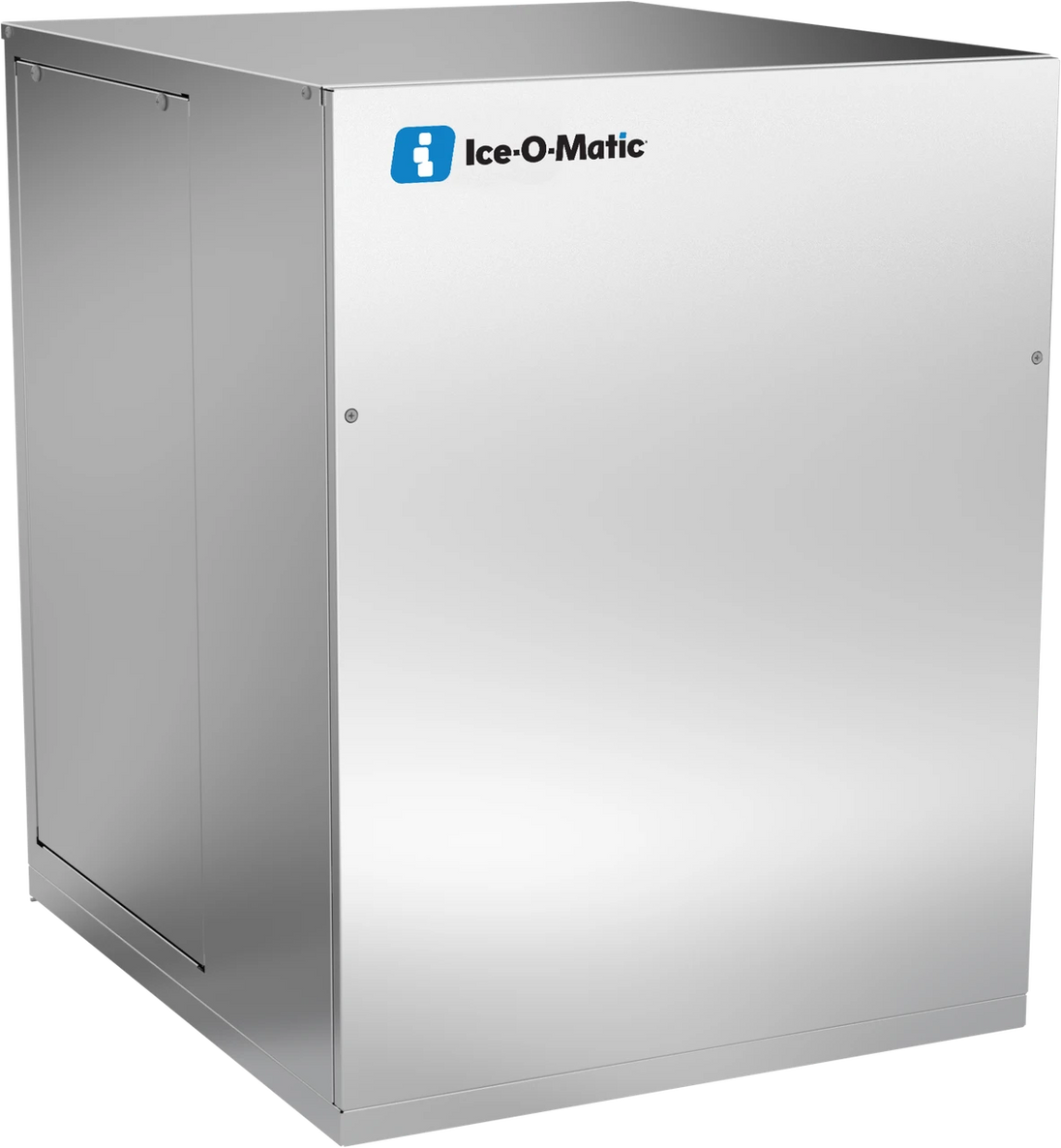

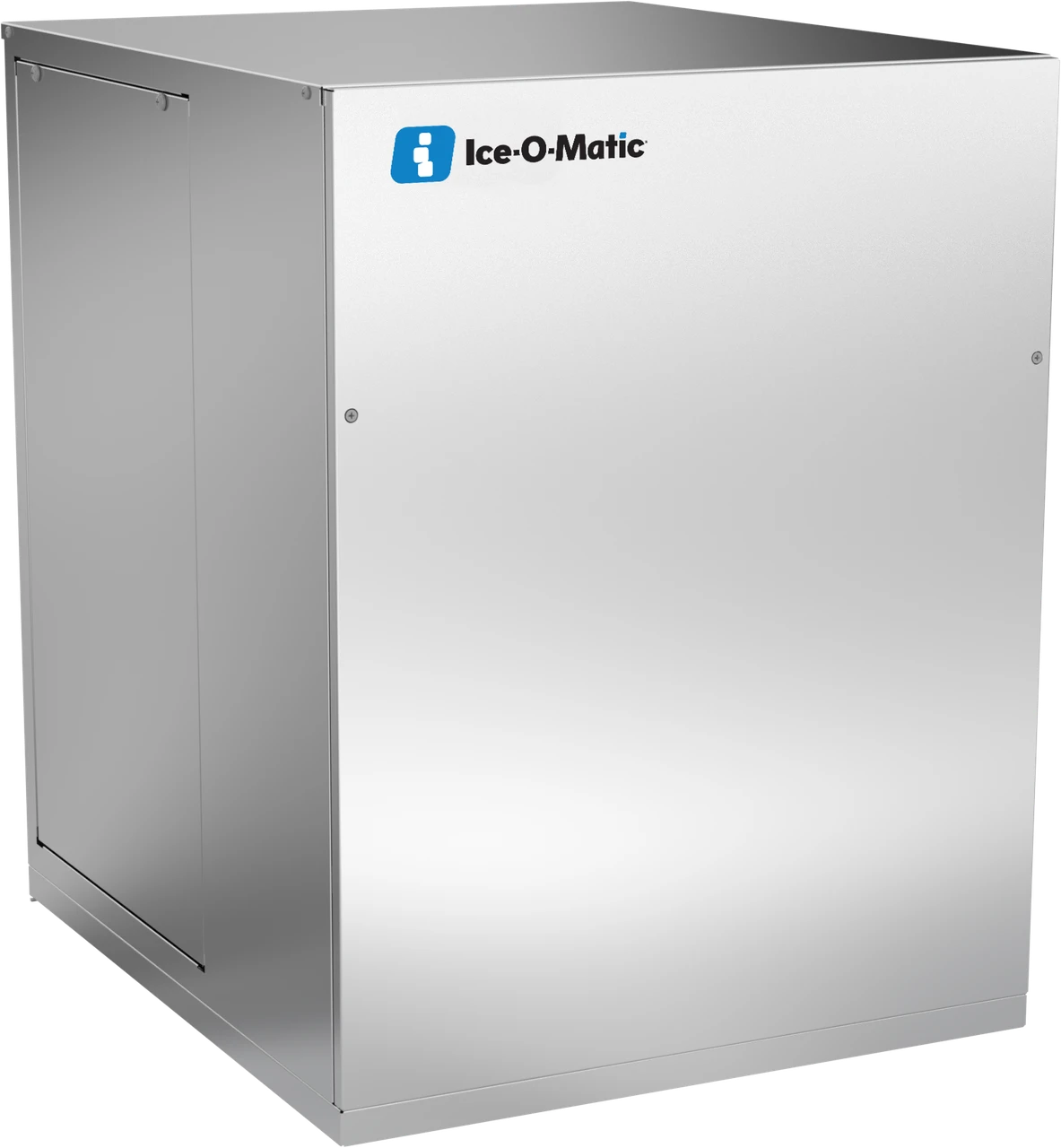

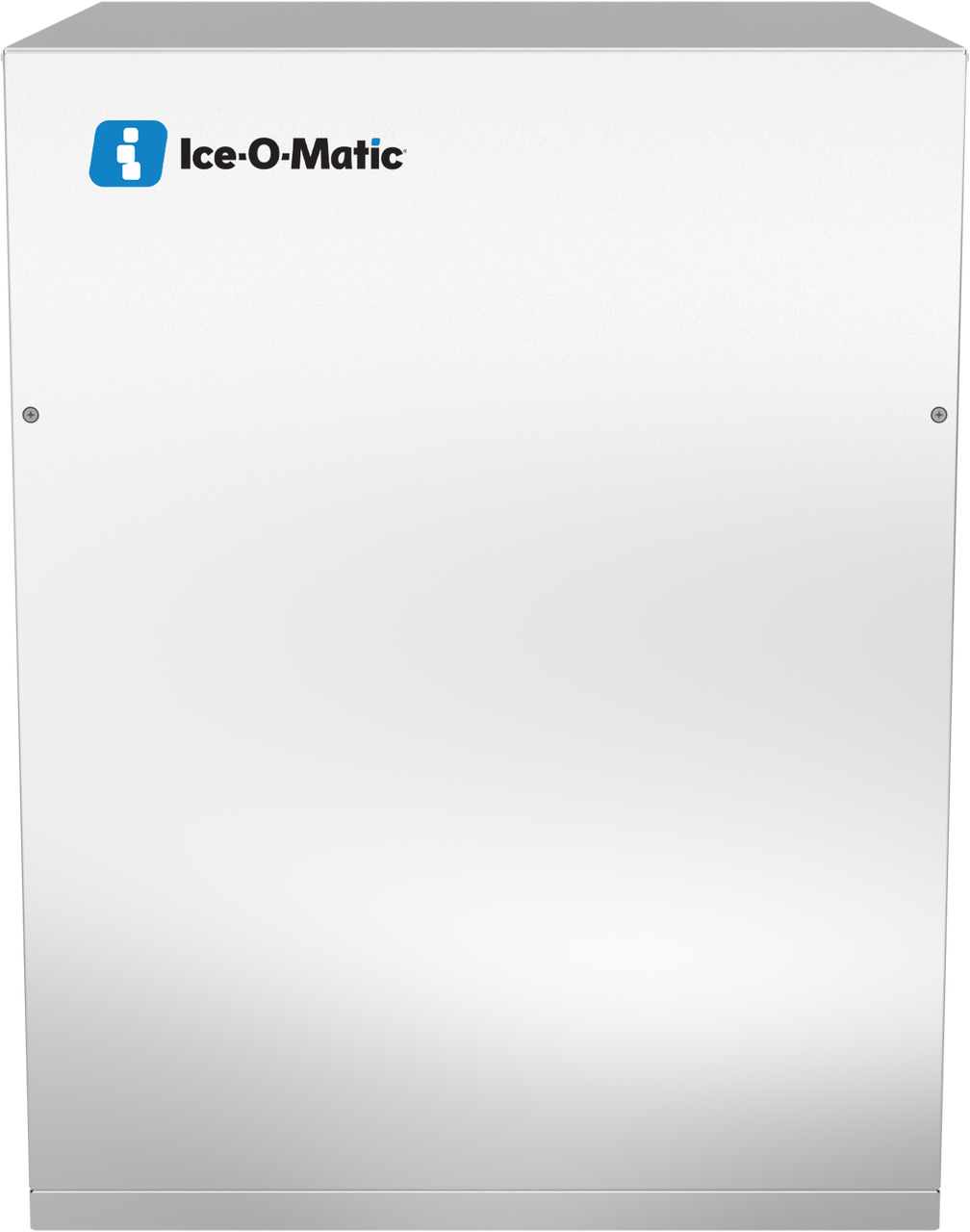

The Ice-O-Matic GEM0650W90 is a 21 inch water-cooled modular Pearl ice machine head that produces 600 to 700 lb of soft, chewable nugget-style ice per 24 hours.

Water Cooling Trades Output for Heat Rejection Away From the Kitchen

The GEM0650W90 is rated at 600 to 700 lb per day, slightly below the 700 to 800 lb of its air-cooled and remote-cooled 0650 siblings, because water cooling changes how the unit sheds heat rather than adding to it. In exchange, it holds that output reliably in hot mechanical rooms where an air-cooled unit's performance can drop.

A Condenser Water Line In Place of Ductwork or Line Sets

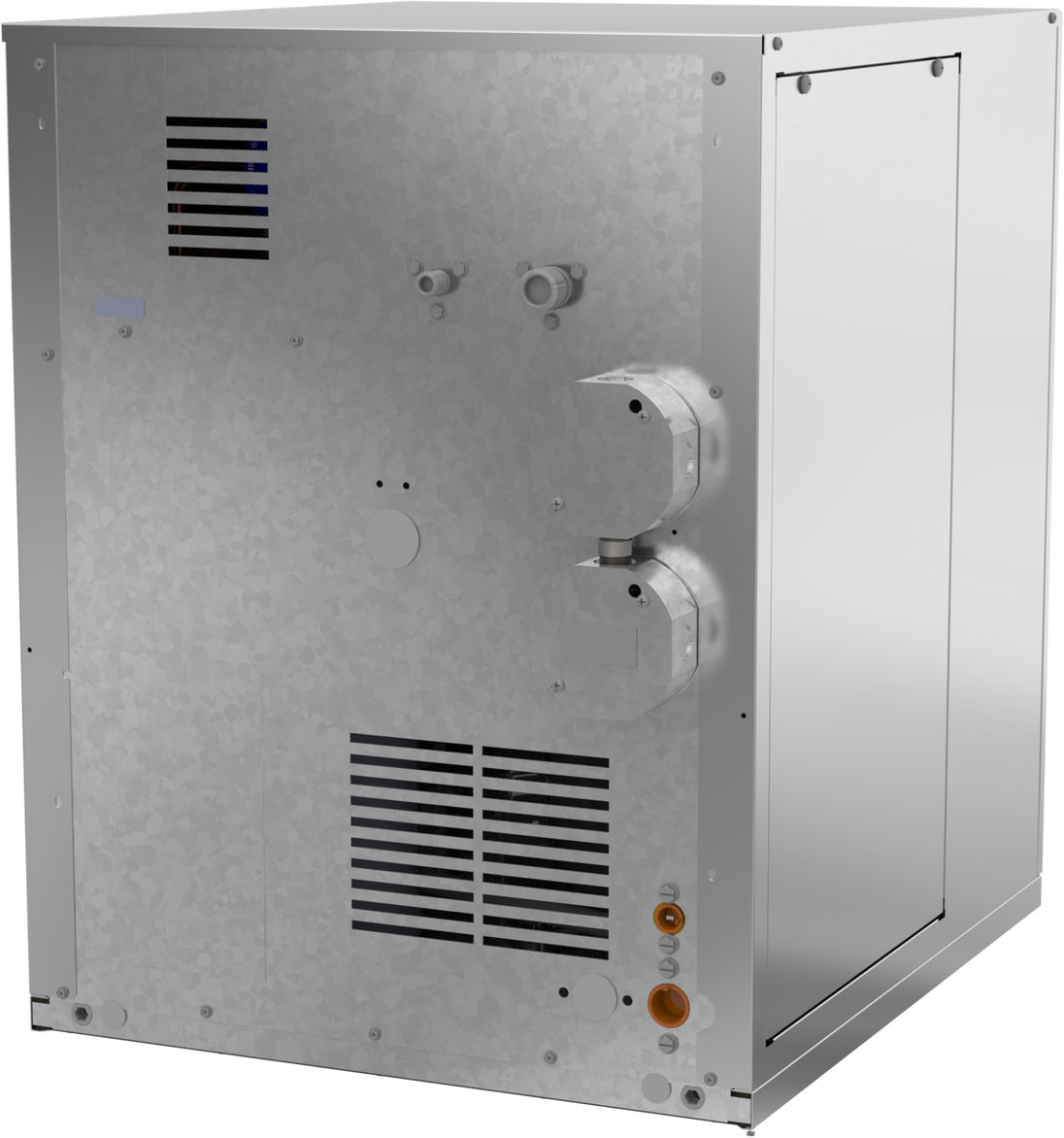

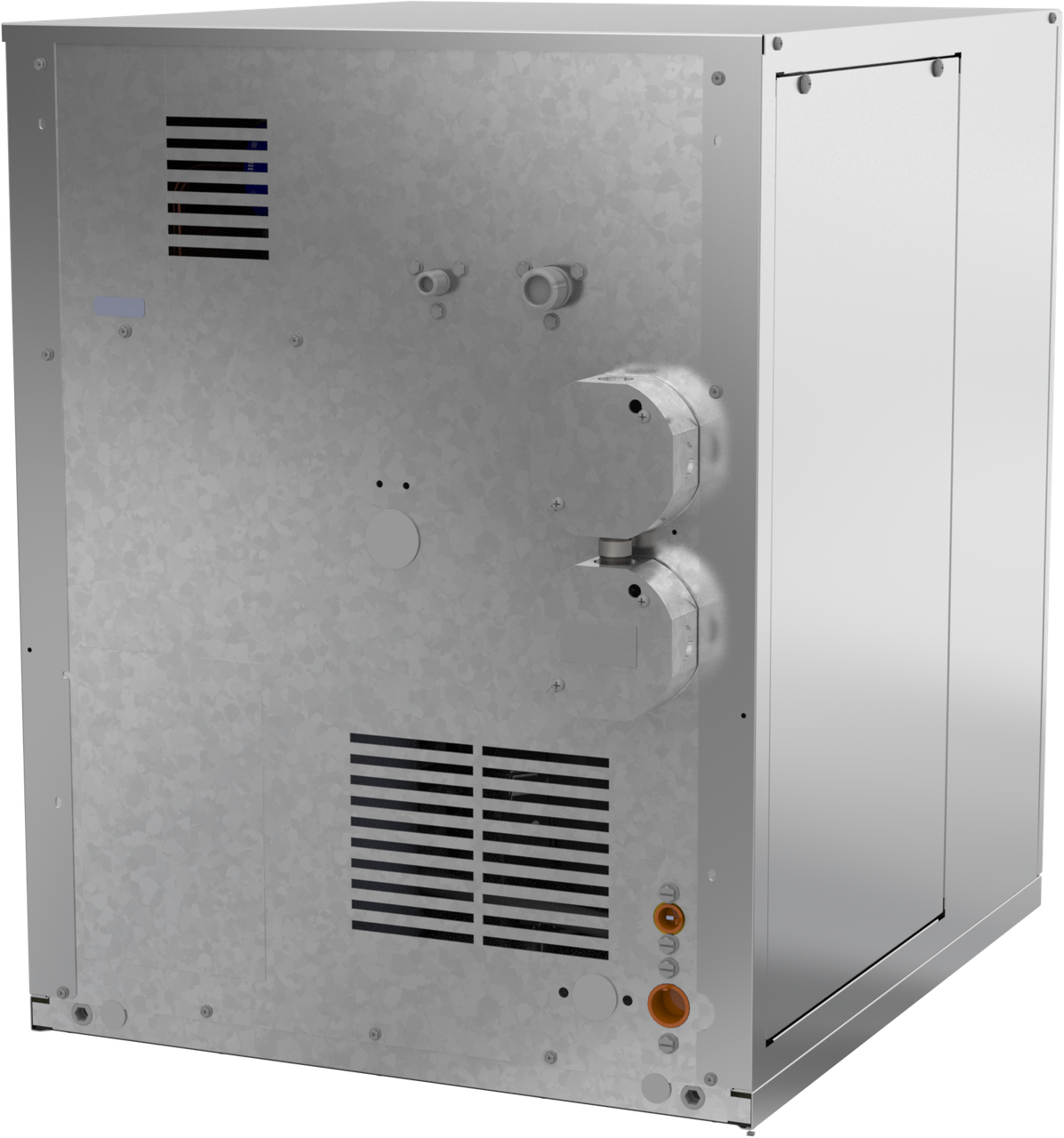

Unlike the GEM0650A90, which needs no water hookup, or the GEM0650R49, which needs a refrigerant line run to an outdoor condenser, the GEM0650W90 needs only a condenser water supply and drain. That makes it a straightforward retrofit in spaces already plumbed for water-cooled equipment.

R290 Refrigerant in the Same 21 Inch Cabinet

Like the air-cooled GEM0650A90, the GEM0650W90 runs on R290A and shares the 21 in W x 24 in D x 27 in H footprint, load-monitored gearbox, and water-sensor shutoff common across the GEM line.

Specifications

Model GEM0650W90
Ice Type Pearl Ice (soft, chewable nugget-style)
Capacity 600-700 lb/24hr
Exterior Dimensions 21 in W x 24 in D x 27 in H
Electrical 115V/60Hz/1-phase
Refrigerant R290A
Condenser Water Cooled
Shipping Weight 199 lb

Warranty

Ice-O-Matic publishes 3 years parts and labor on the GEM series, with 5 years parts coverage on the compressor.
