Product Description

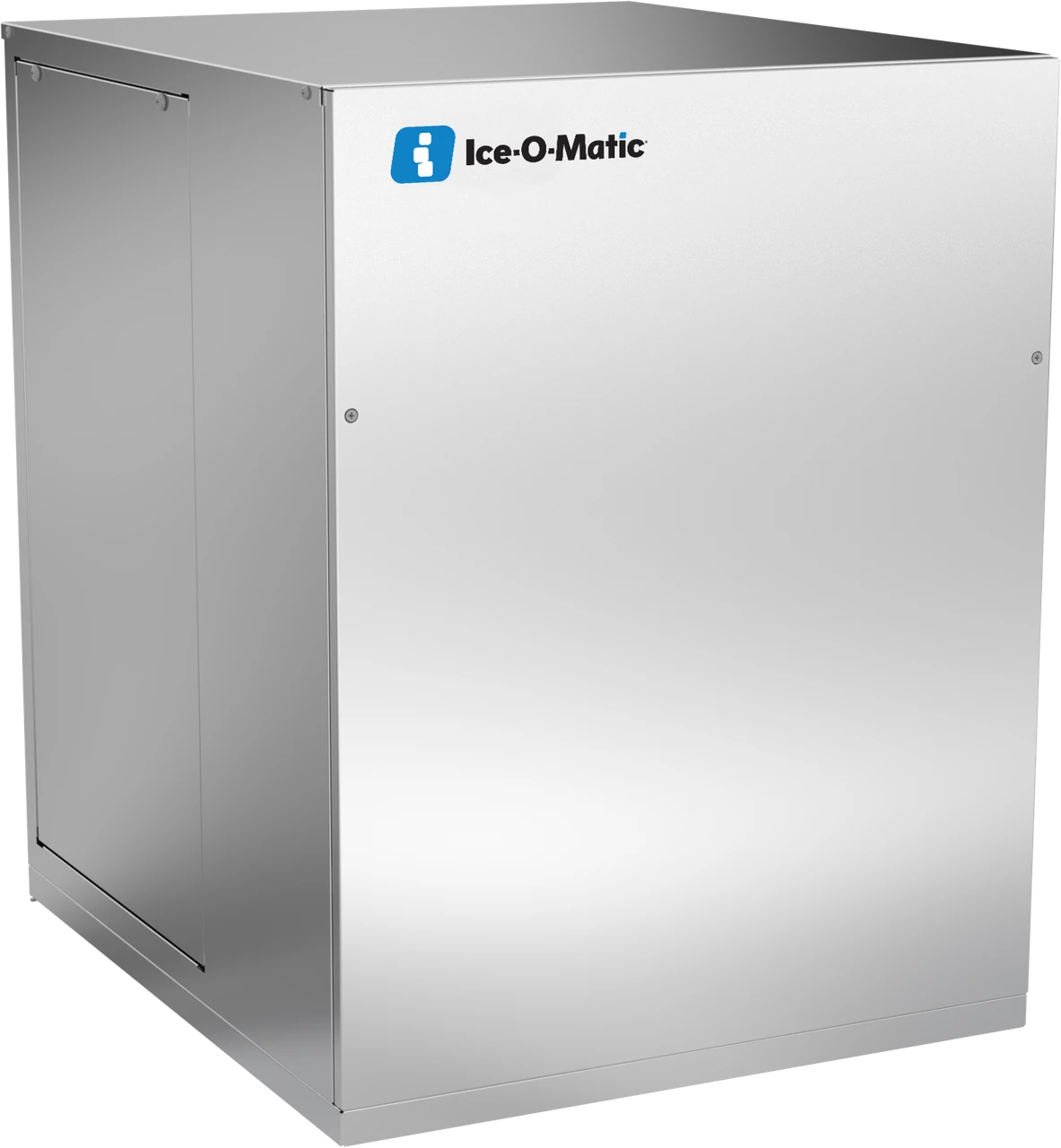

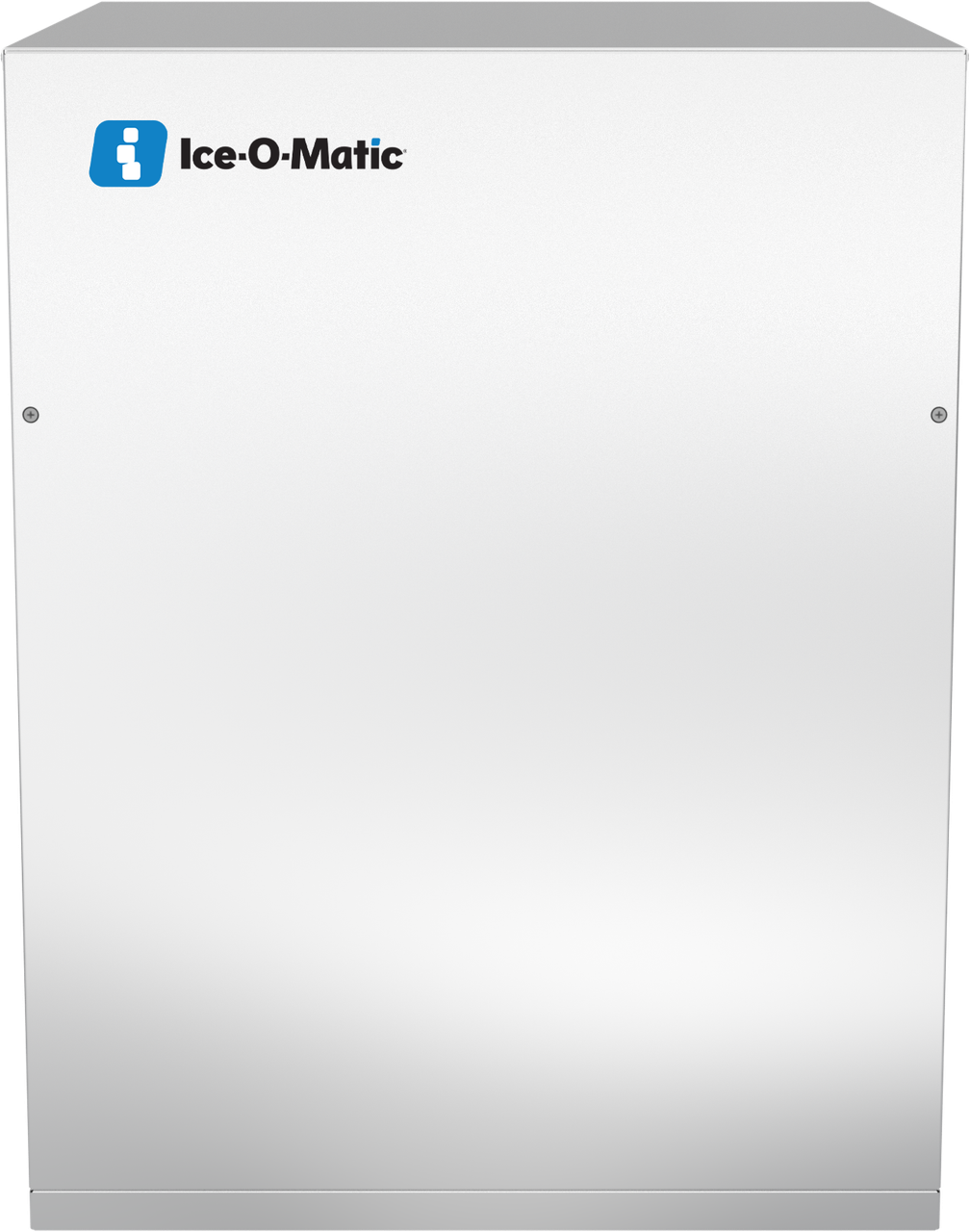

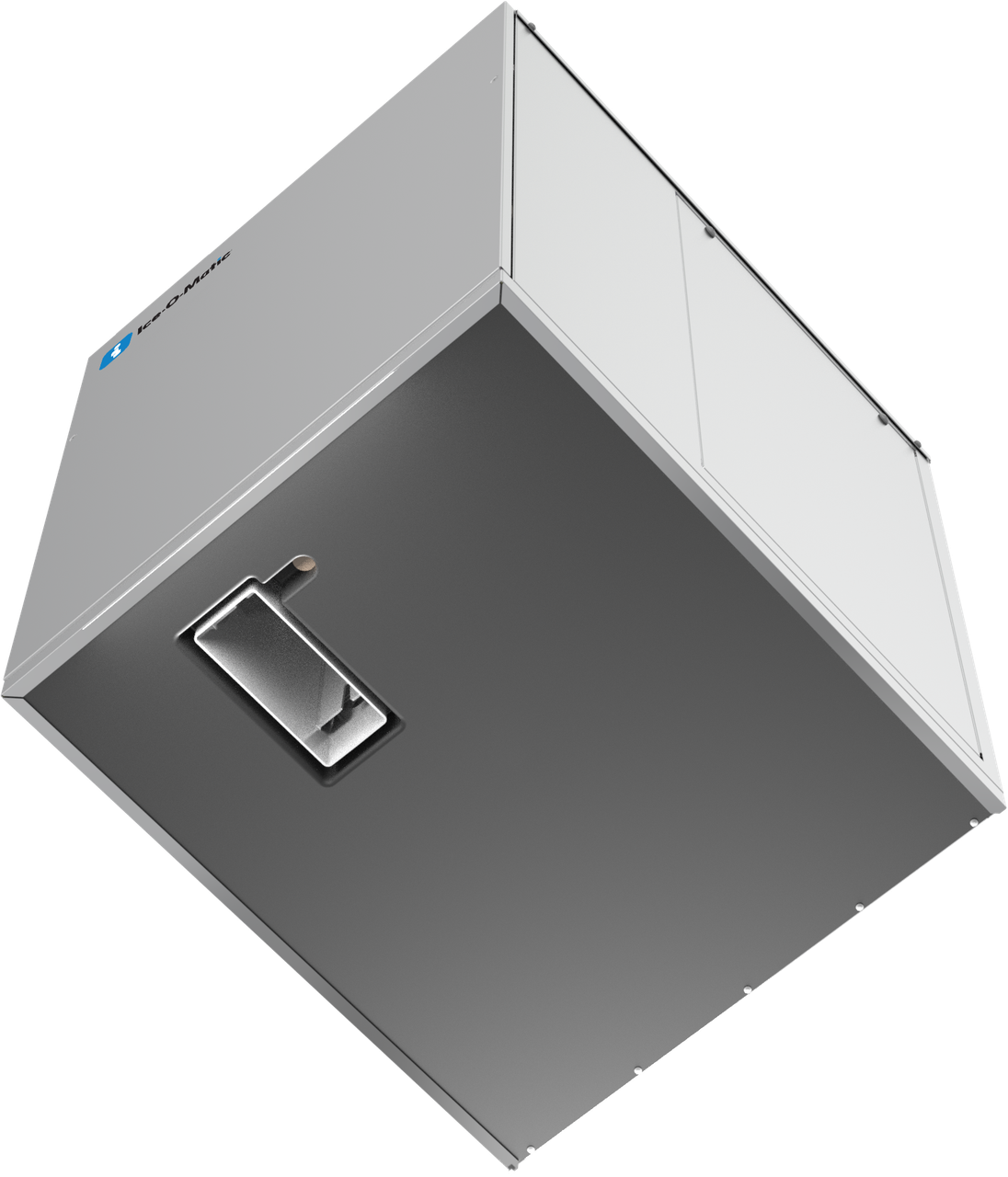

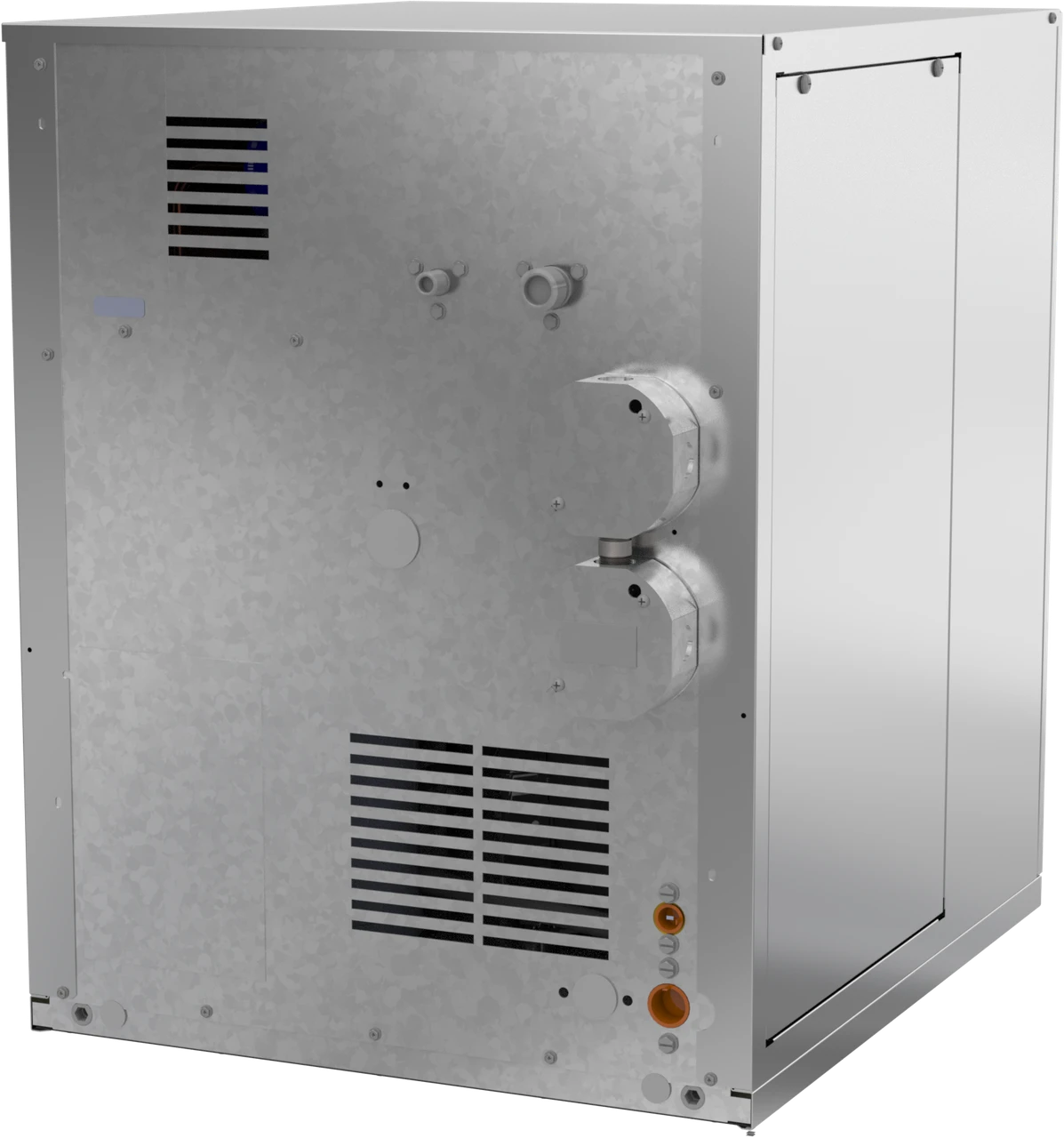

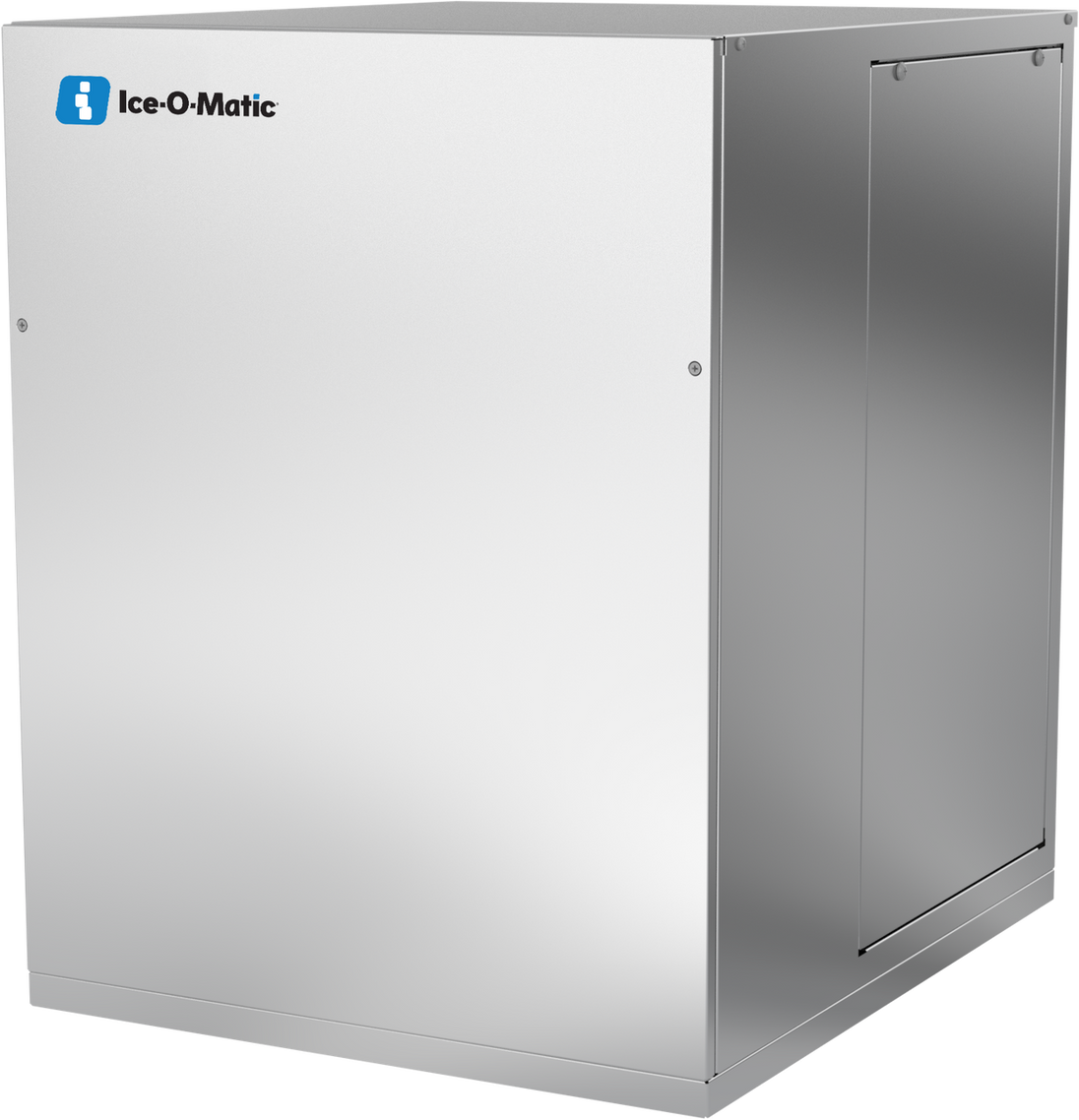

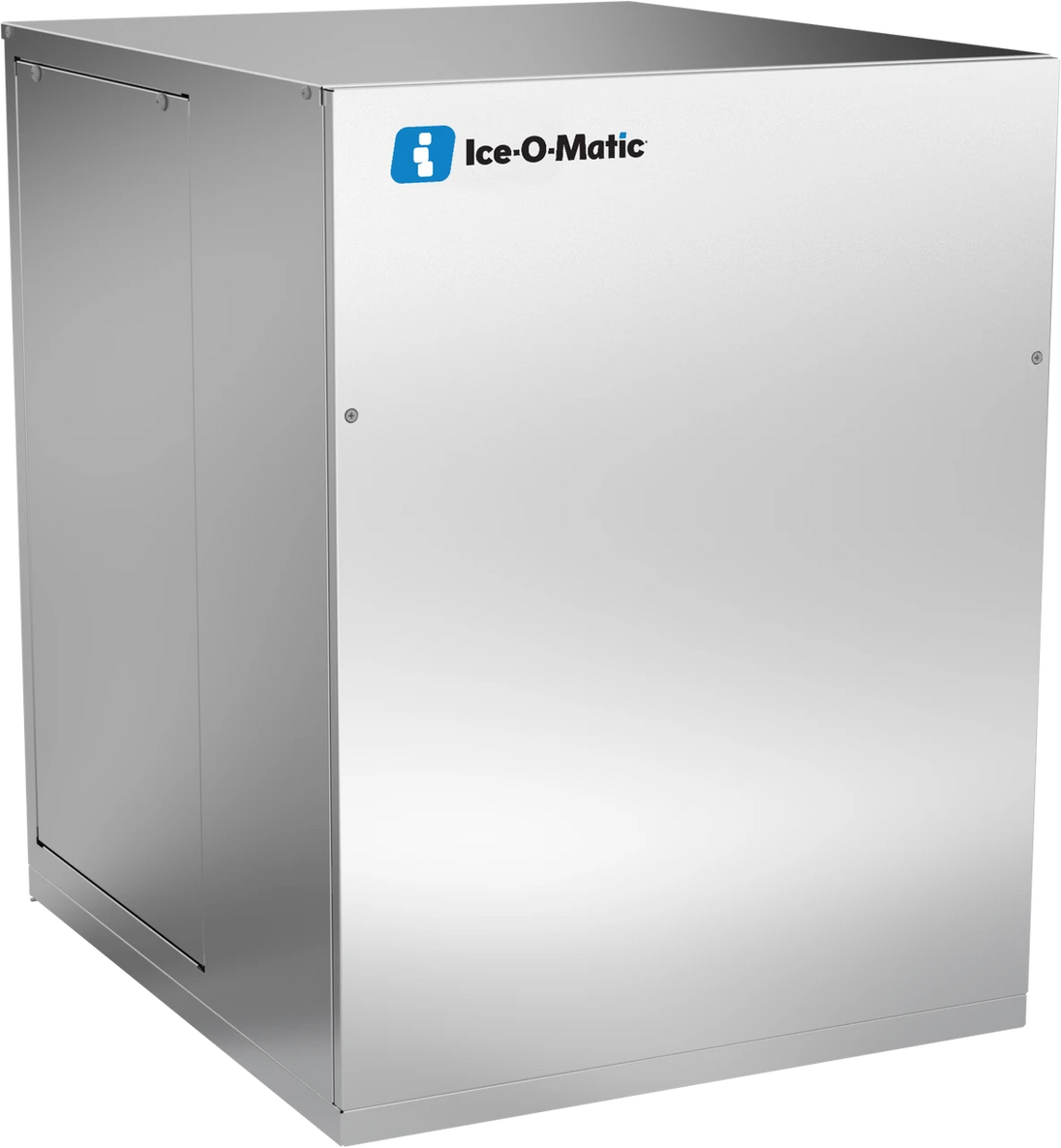

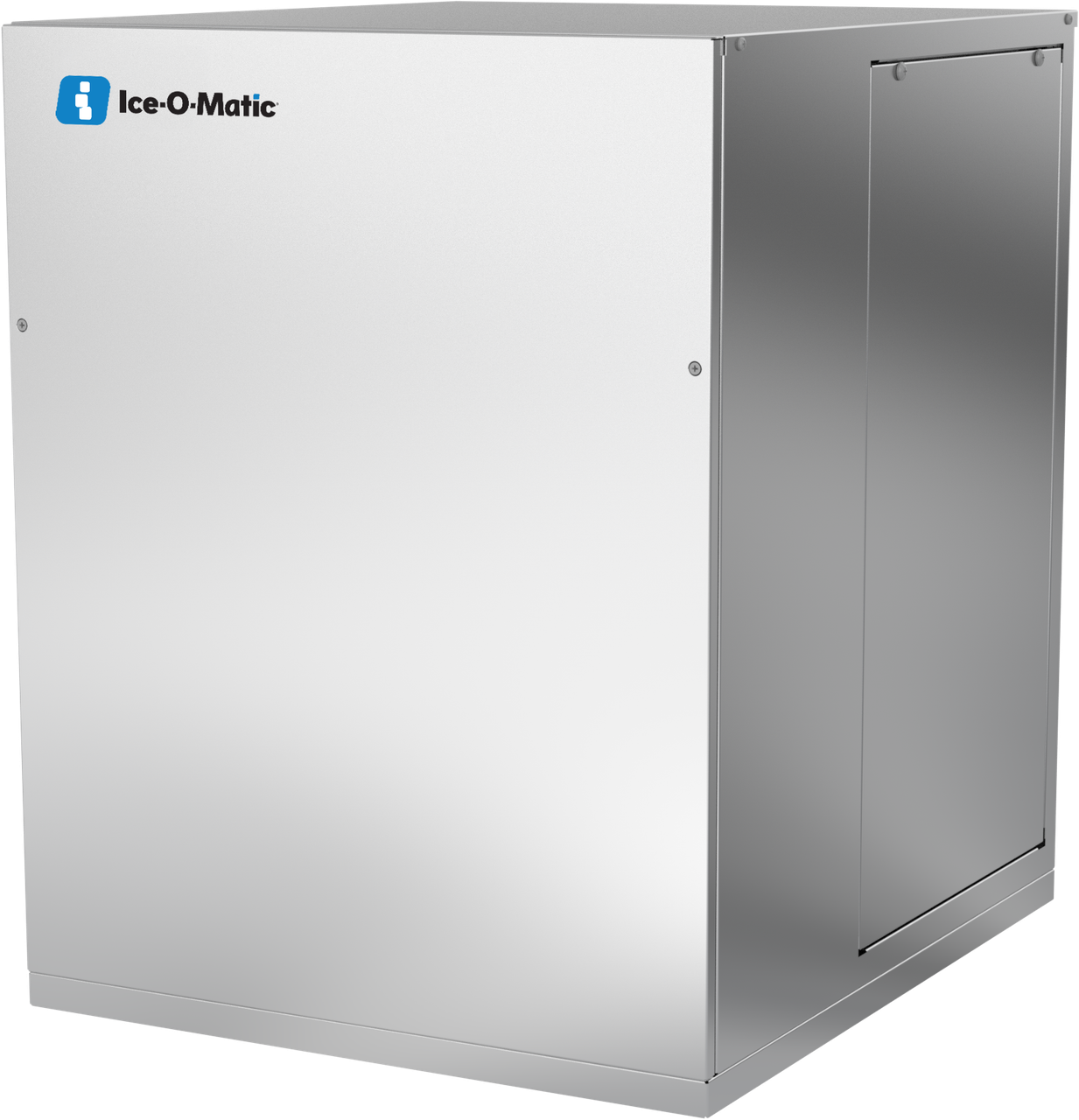

The Ice-O-Matic GEM0650R49 is a 21 inch remote-cooled modular Pearl ice machine head that produces 700 to 800 lb of soft, chewable nugget-style ice per 24 hours, pairing with the RC100G49 remote condenser.

Remote Condensing Moves Heat Out of the Kitchen

The GEM0650R49 pairs with the RC100G49 outdoor remote condenser, moving both the heat rejection and the compressor noise out of the kitchen entirely. That trades a refrigerant line-set run at install for a quieter, cooler space than the air-cooled GEM0650A90 delivers in the same footprint.

Same Cabinet, Same Output, Different Heat Rejection

The GEM0650R49 shares its 700 to 800 lb output and 21 in W x 24 in D x 27 in H cabinet with the air-cooled GEM0650A90 and water-cooled GEM0650W90. Only the condensing method and the matching remote condenser differ between the three.

R449A for the Remote Line Run

The GEM0650R49 runs on R449A rather than the R290A used in the air- and water-cooled 0650 variants, a refrigerant suited to the longer line set between the ice machine head and an outdoor condenser. It carries the same gearbox load monitoring and water sensor shutoff found across the GEM line.

Specifications

Model GEM0650R49
Ice Type Pearl Ice (soft, chewable nugget-style)
Capacity 700-800 lb/24hr
Exterior Dimensions 21 in W x 24 in D x 27 in H
Electrical 115V/60Hz/1-phase
Refrigerant R449A
Condenser Remote (pairs with RC100G49)
Shipping Weight 209 lb

Warranty

Ice-O-Matic publishes 3 years parts and labor on the GEM series, with 5 years parts coverage on the compressor.
