Product Description

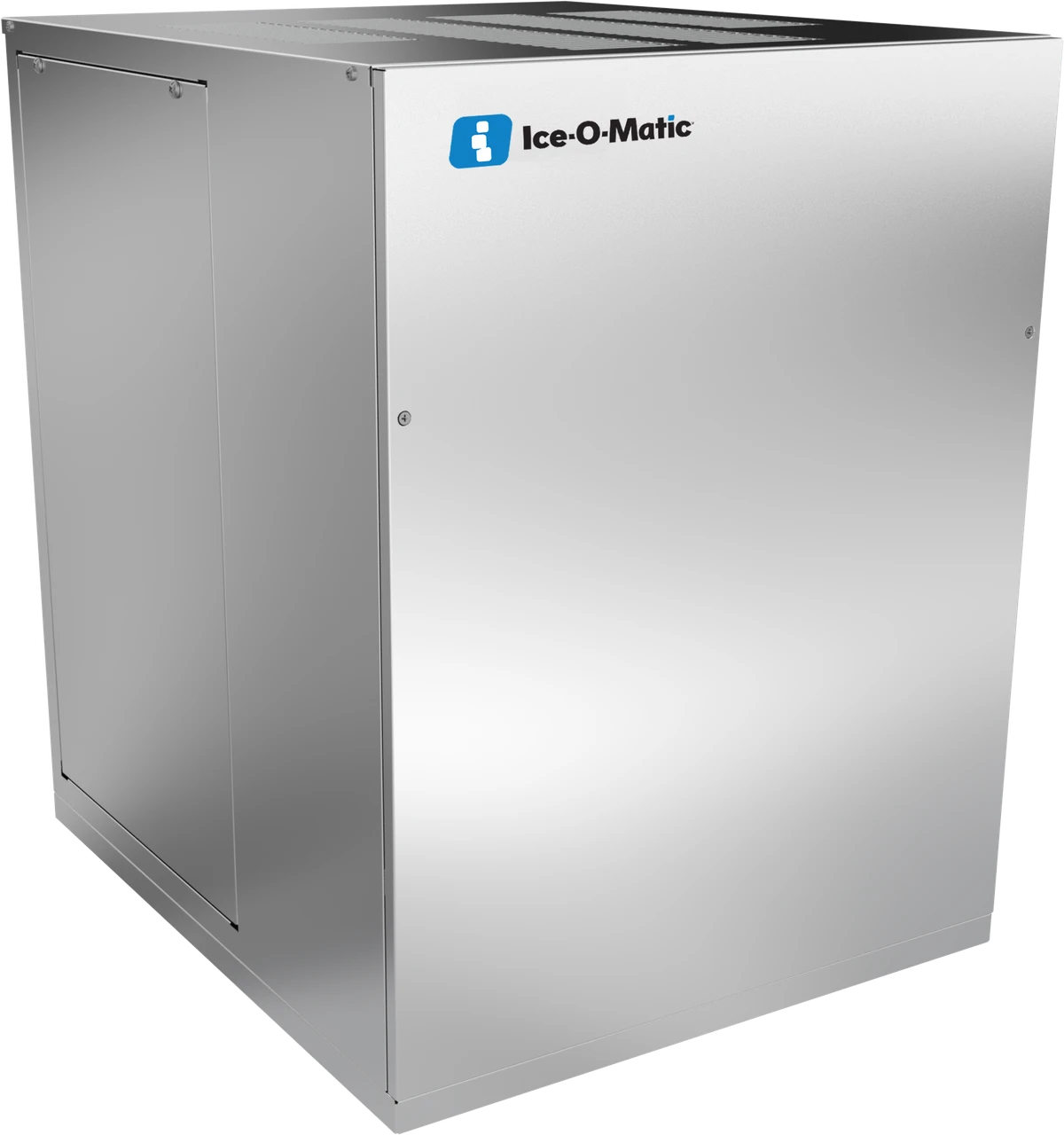

The Ice-O-Matic GEM0650A90 is a 21 inch air-cooled modular Pearl ice machine head that produces 700 to 800 lb of soft, chewable nugget-style ice per 24 hours.

Air Cooling Without a Water Hookup

The GEM0650A90 rejects condenser heat into the kitchen air, avoiding the condenser water and drain lines the GEM0650W90 and remote-condenser GEM0650R49 need. That keeps the install simple on a standard 115V/60Hz/1-phase circuit, at the cost of adding heat and noise directly into the kitchen space.

Three Ways to Cool the Same 700-800 lb Head

This capacity tier is the first in the GEM line offered in all three cooling configurations: air (this unit), water (GEM0650W90), and remote (GEM0650R49). All three share the 21 in W x 24 in D x 27 in H cabinet, so the choice is about ambient heat load and utility access at the install site rather than output.

R290 Refrigerant and Load Monitoring

The GEM0650A90 runs on R290A, a low-GWP hydrocarbon refrigerant, and includes gearbox load monitoring and a water sensor that shuts the unit down under adverse water conditions. The remote-condenser GEM0650R49 in the same tier instead runs R449A to suit its longer refrigerant line run to an outdoor condenser.

Specifications

Model GEM0650A90
Ice Type Pearl Ice (soft, chewable nugget-style)
Capacity 700-800 lb/24hr
Exterior Dimensions 21 in W x 24 in D x 27 in H
Electrical 115V/60Hz/1-phase
Refrigerant R290A
Condenser Air Cooled
Shipping Weight 176 lb

Warranty

Ice-O-Matic publishes 3 years parts and labor on the GEM series, with 5 years parts coverage on the compressor.
