Product Description

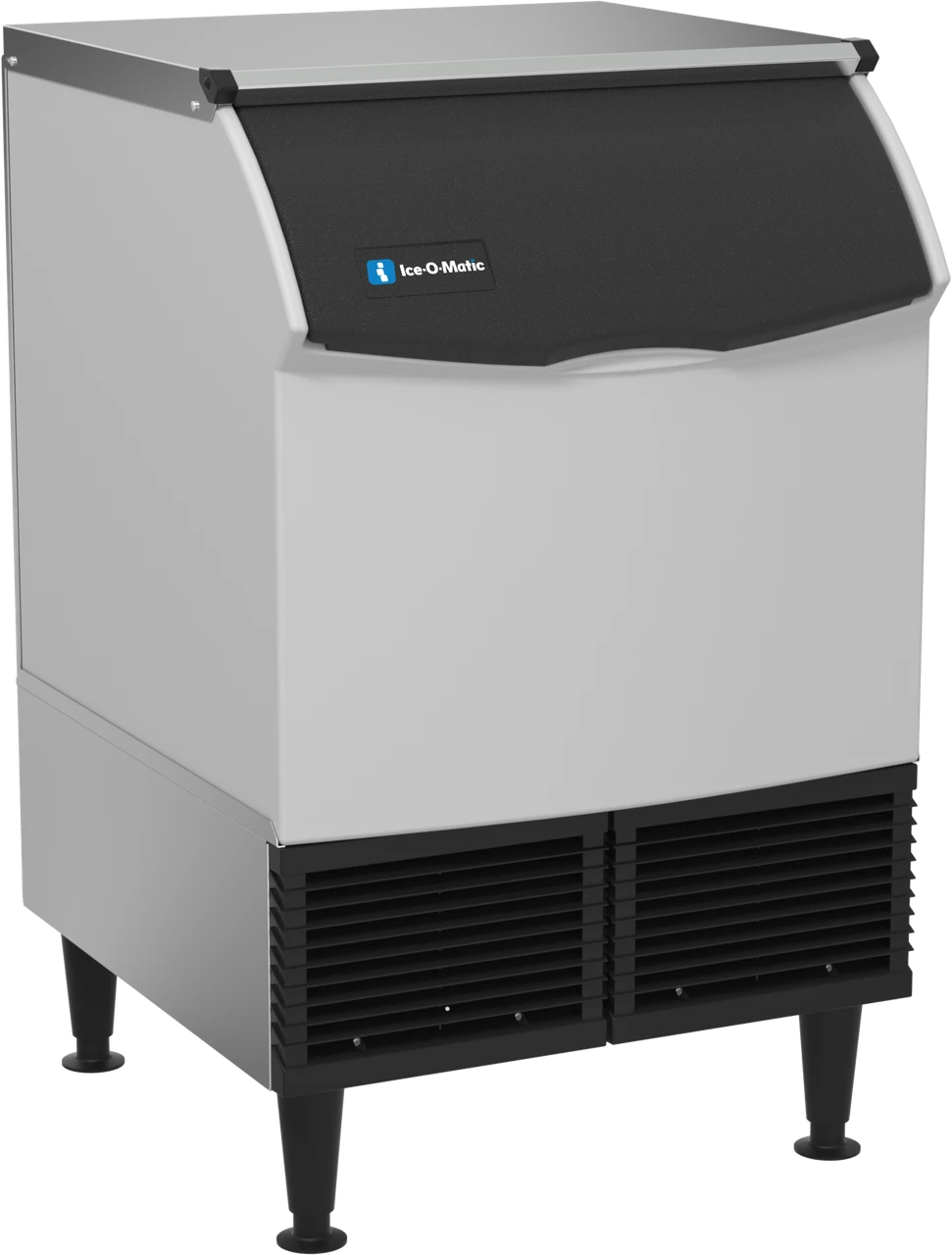

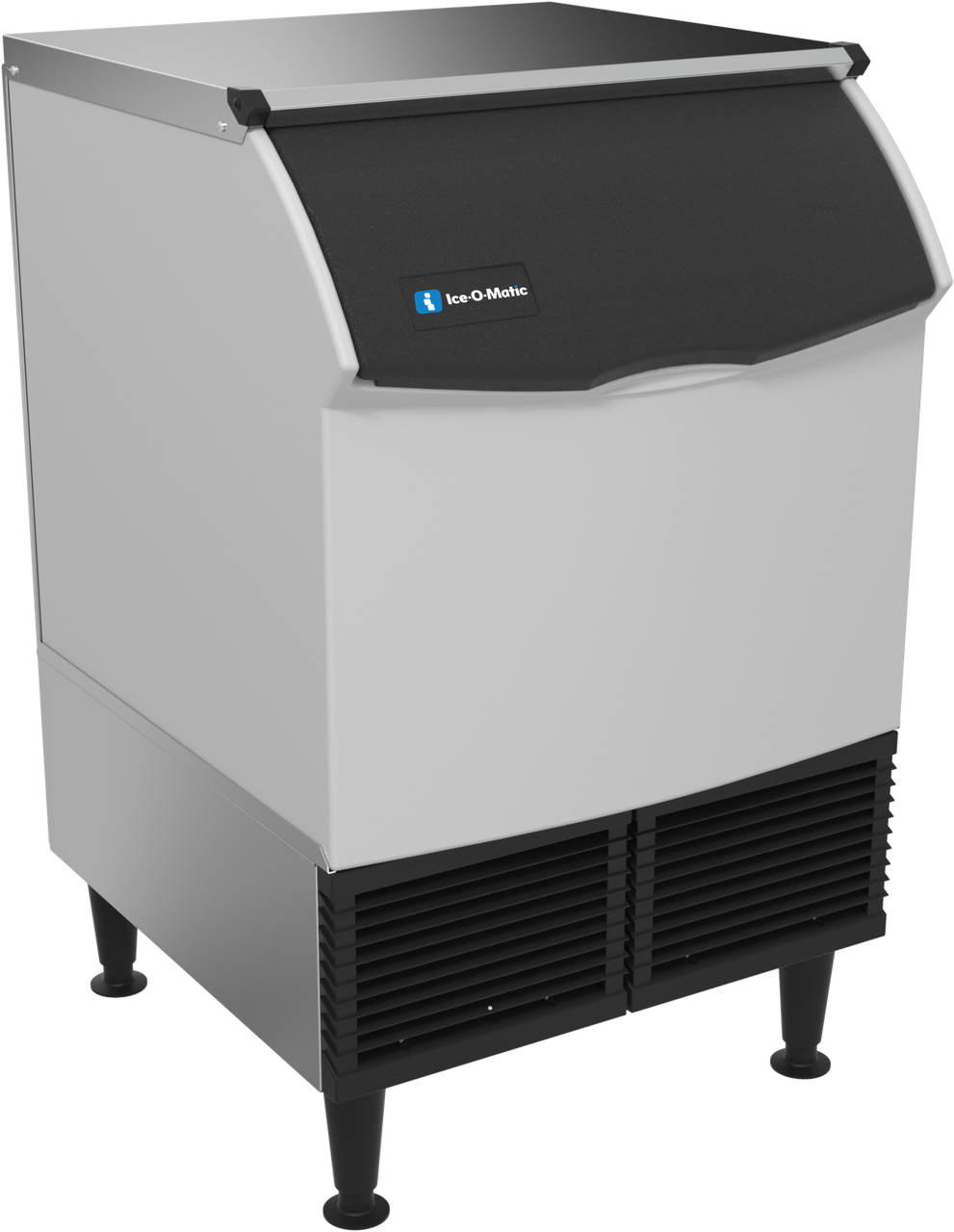

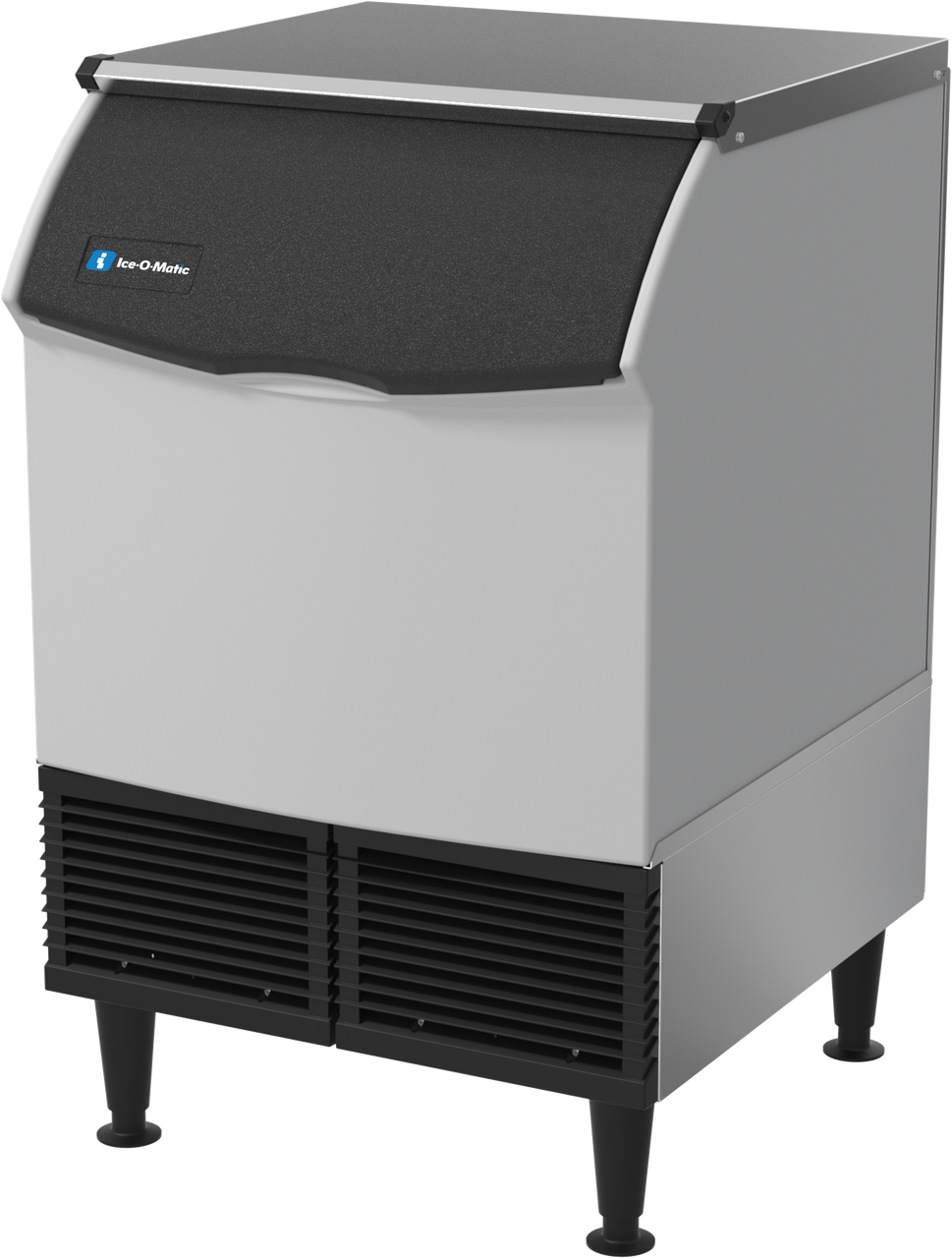

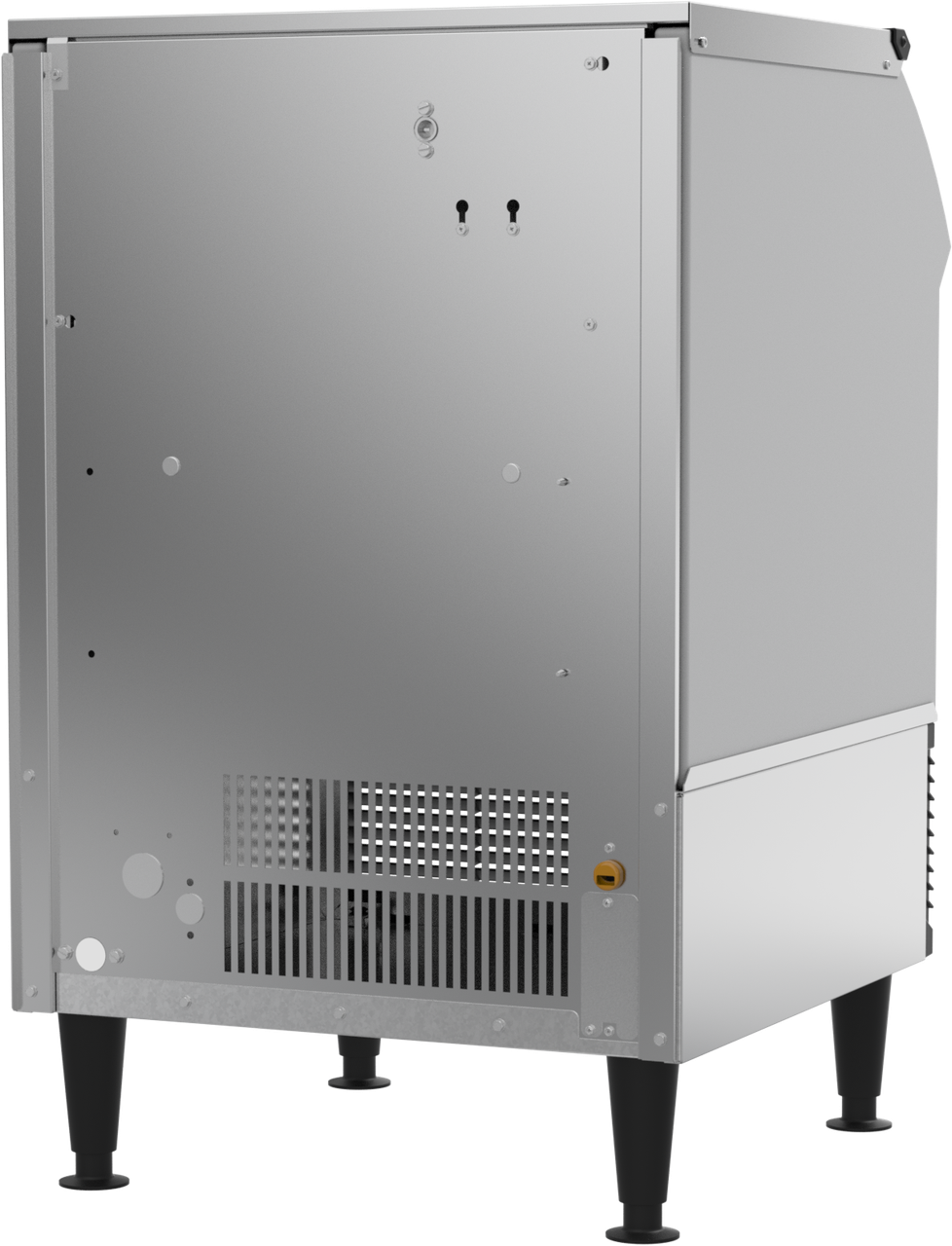

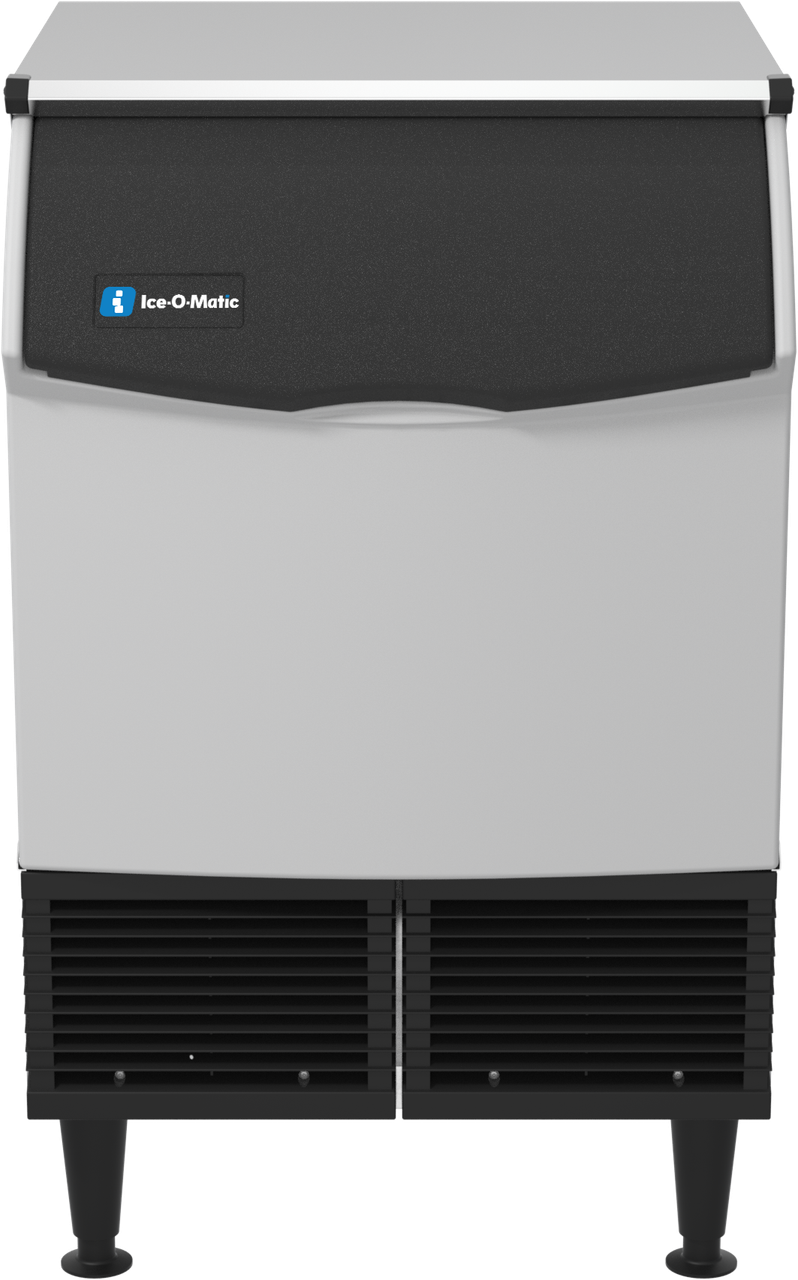

The Ice-O-Matic CIMU220FA90 is a 24 inch self-contained undercounter cube ice maker that produces full cube ice at 200 to 300 pounds per 24 hours, air cooled, and built as a complete unit rather than a modular head requiring a separate bin.

Self-Contained Design Fits Where a Modular Head and Bin Cannot

Unlike the CIM series modular heads that install on top of a separate ice storage bin, the CIMU220FA90 combines the ice maker and storage into one 24 inch wide undercounter cabinet. This makes it suited to bar stations and prep areas where floor space or overhead clearance rules out a two-piece modular system.

Front-Breathing Design for Tight Installations

The front-breathing design routes both air intake and condenser exhaust through the front of the cabinet, which the manufacturer states allows installation in tight or enclosed spaces where side or rear clearance is limited. This is paired with a stainless steel exterior described as corrosion-resistant and fingerprint-resistant.

Full Cube Output Matches Its Half Cube Sibling

At 200 to 300 pounds per day, the CIMU220FA90 produces the same daily volume as the half cube CIMU220HA90 in the identical 24 inch wide cabinet. Both run on 115/60/1 power, R290A refrigerant, and the IFQ1-S filter system, so the choice between them comes down to ice shape rather than capacity.

Specifications

Model CIMU220FA90
Type Self-contained undercounter cube ice maker
Ice Type Full Cube
Capacity 200 to 300 lb / 24hr
Width 24 inches
Electrical 115V / 60Hz / 1-Phase
Refrigerant R290A
Condenser Air Cooled
Filter System IFQ1-S
Shipping Weight 153 lb

Warranty

Ice-O-Matic publishes 3 years parts and labor on the CIM series, with 5 years parts coverage on the evaporator and compressor.
