Product Description

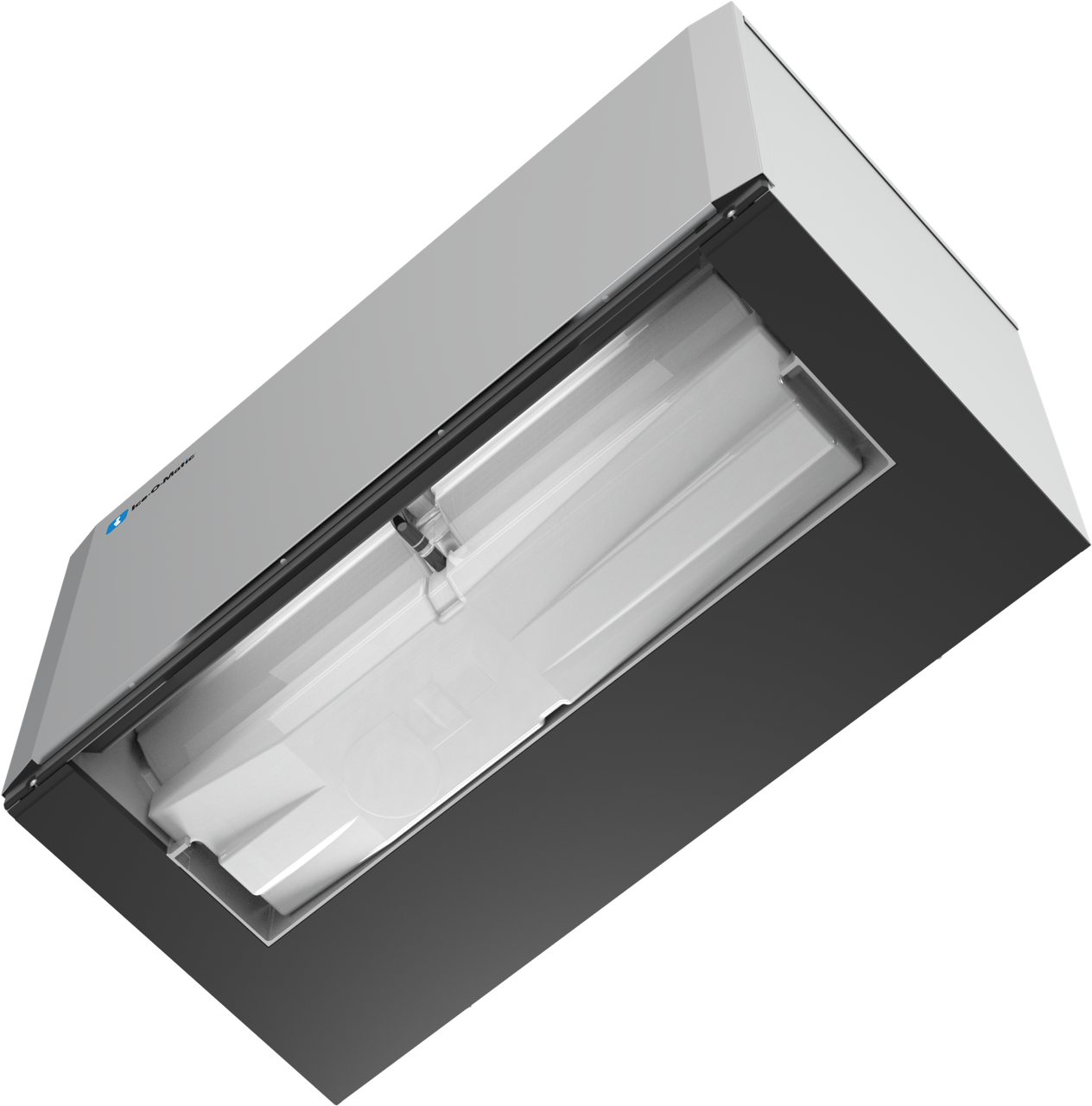

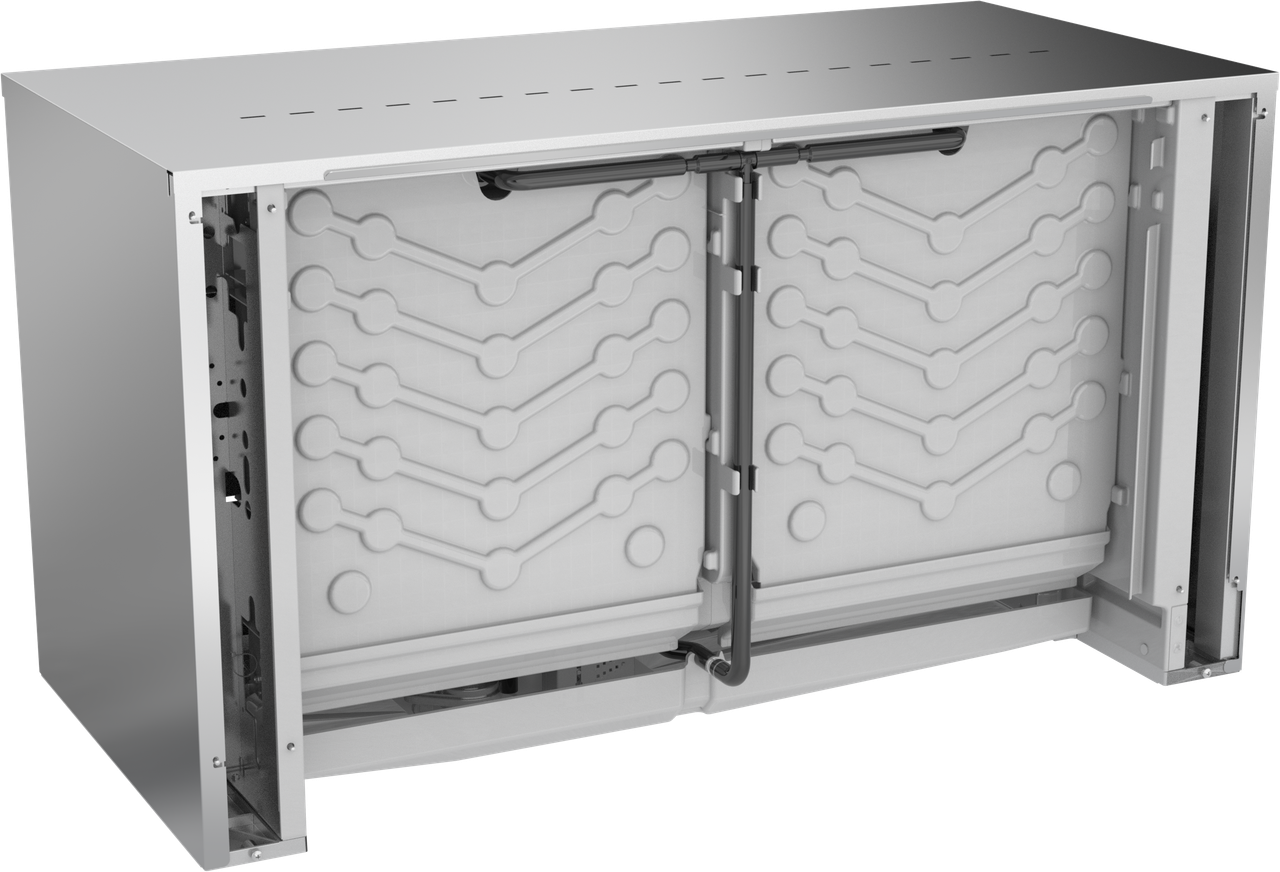

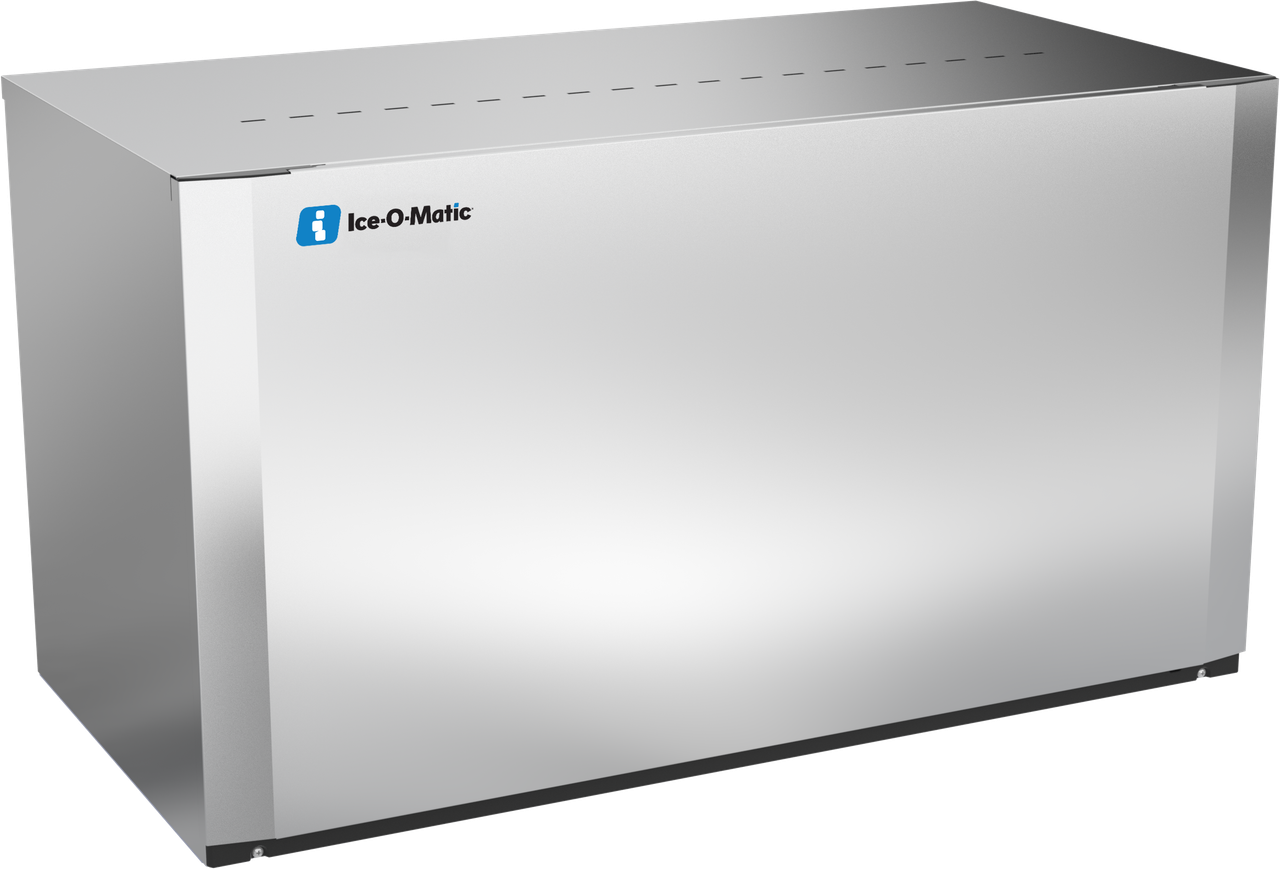

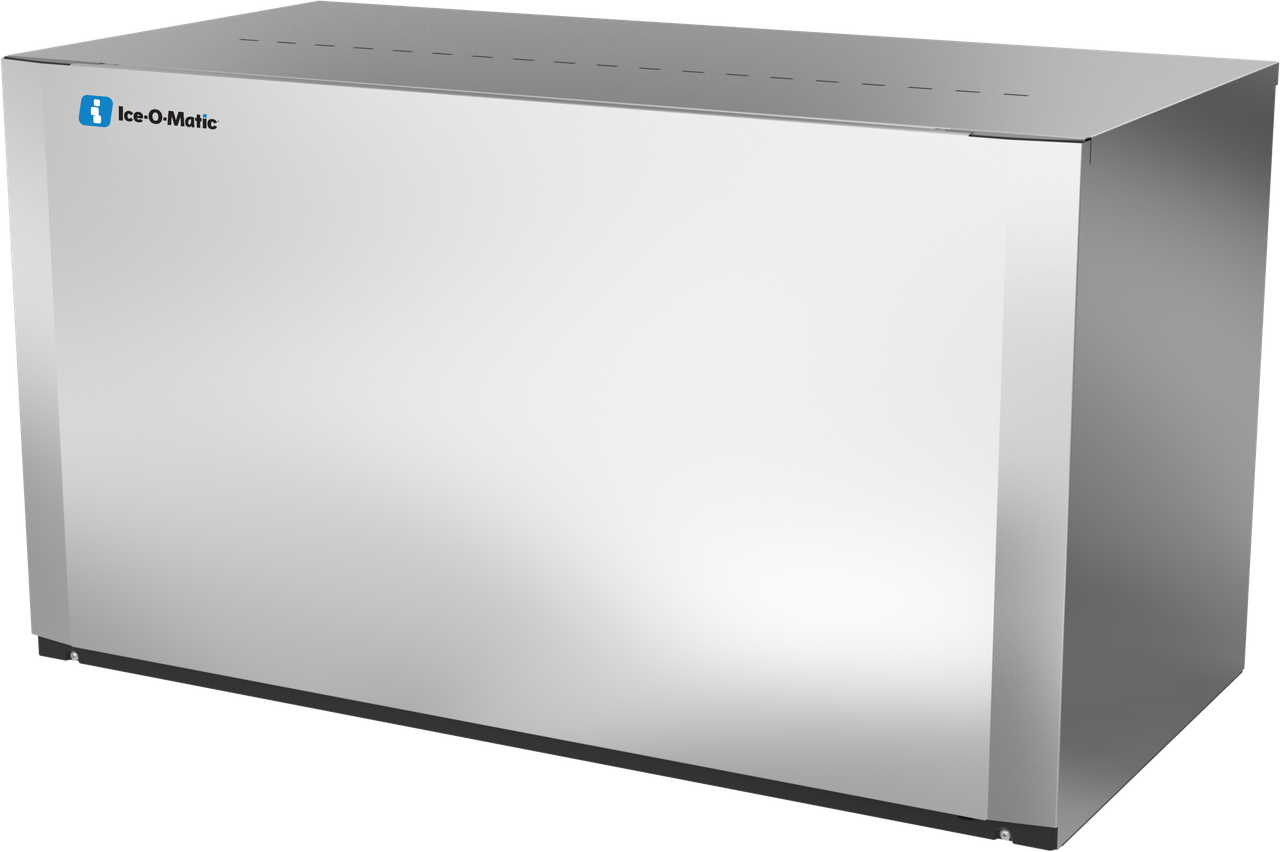

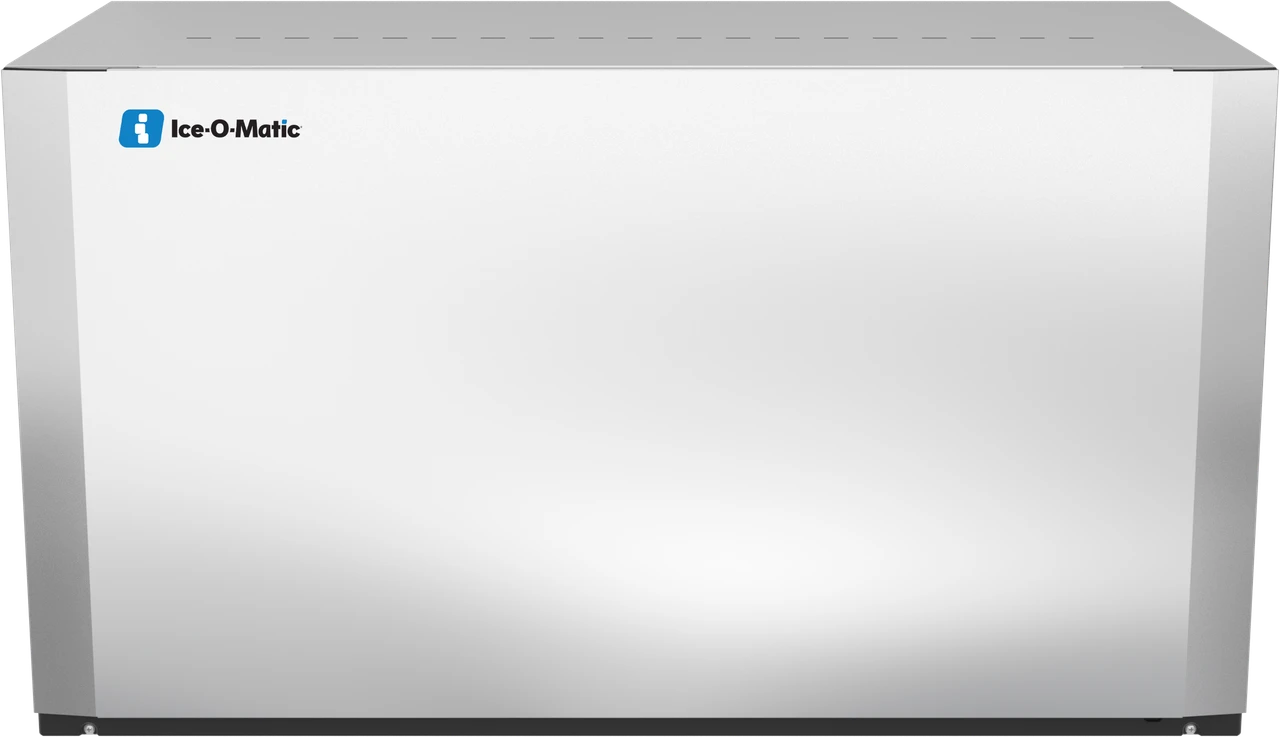

The Ice-O-Matic CIM2047HW is a 48 inch Elevation Series modular ice machine head that produces half cube ice at 1800 to 1900 pounds per 24 hours, water cooled, three-phase power, and designed to install on top of an ice storage bin or dispenser.

Water Cooled Condenser Avoids Kitchen Heat Load and Outdoor Equipment

The CIM2047HW rejects condenser heat into a water supply rather than the kitchen air or a remote outdoor condenser, giving the 2047 line a condenser option alongside the remote cooled CIM2047HR. Both share the same 1800 to 1900 pound rated output, 48.25 x 24.25 x 26.8 inch cabinet, R404A refrigerant, three-phase 208-230/60/3 power, and IFQ2-XL filter system.

No Air Cooled Option Published at This Capacity

Unlike the 1447 line, which offers air, remote, and water cooled options, Ice-O-Matic's published lineup for the higher-capacity 2047 half cube model covers remote and water cooled condensers only. Operators without floor space for an outdoor remote condenser can specify the CIM2047HW where a chilled or tower water supply is available instead.

Half Cube Output Matches Its Full Cube Sibling

At 1800 to 1900 pounds per day, the CIM2047HW produces the same daily volume as the full cube CIM2047FW in the identical footprint, condenser type, refrigerant, and filter system. The decision between the two comes down to ice shape rather than capacity or cabinet size.

Specifications

Model CIM2047HW
Series Elevation Series
Type Modular ice machine head (bin sold separately)
Ice Type Half Cube
Capacity 1800 to 1900 lb / 24hr
Exterior Dimensions 48.25 x 24.25 x 26.8 inches (W x D x H)
Electrical 208-230V / 60Hz / 3-Phase
Refrigerant R404A
Condenser Water Cooled
Filter System IFQ2-XL
Shipping Weight 335 lb

Warranty

Ice-O-Matic publishes 3 years parts and labor on the CIM series, with 5 years parts coverage on the evaporator and compressor.
