Product Description

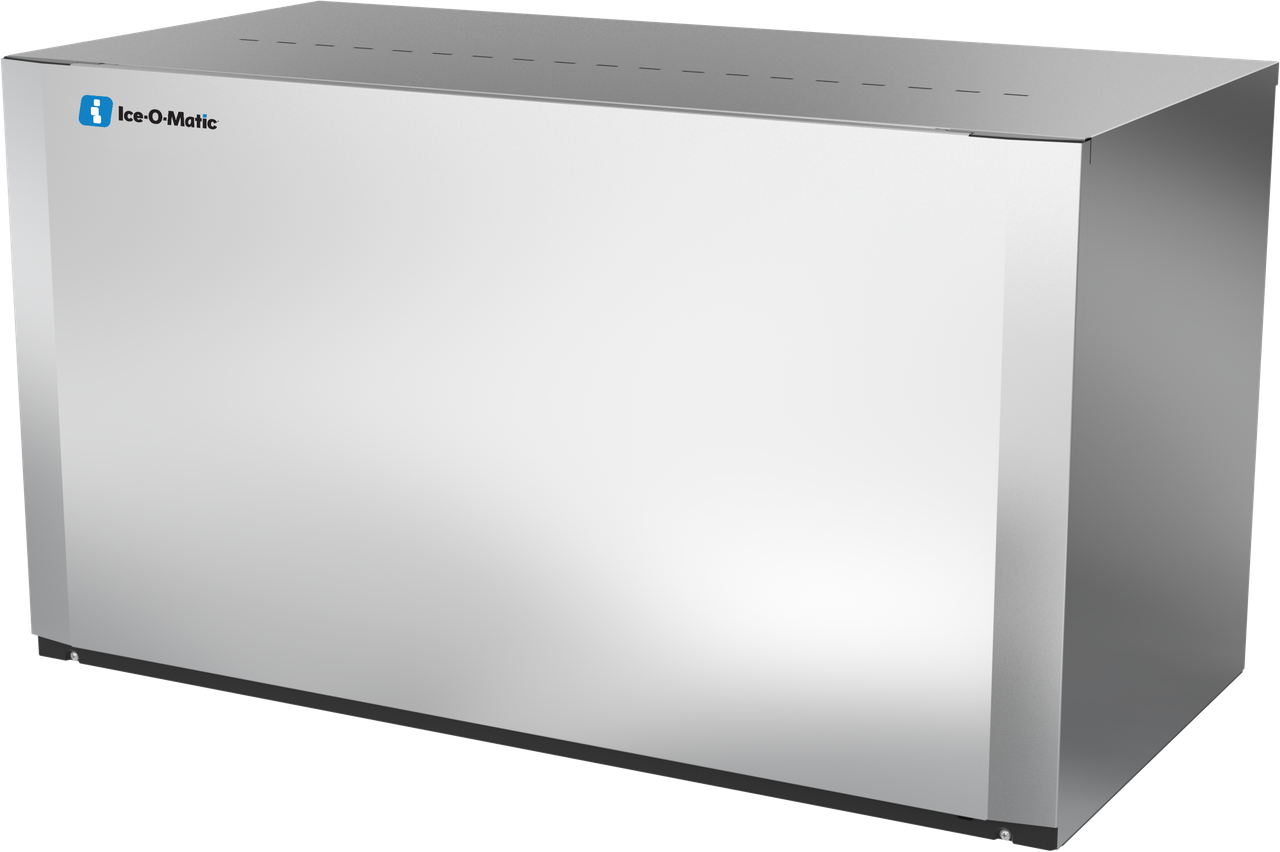

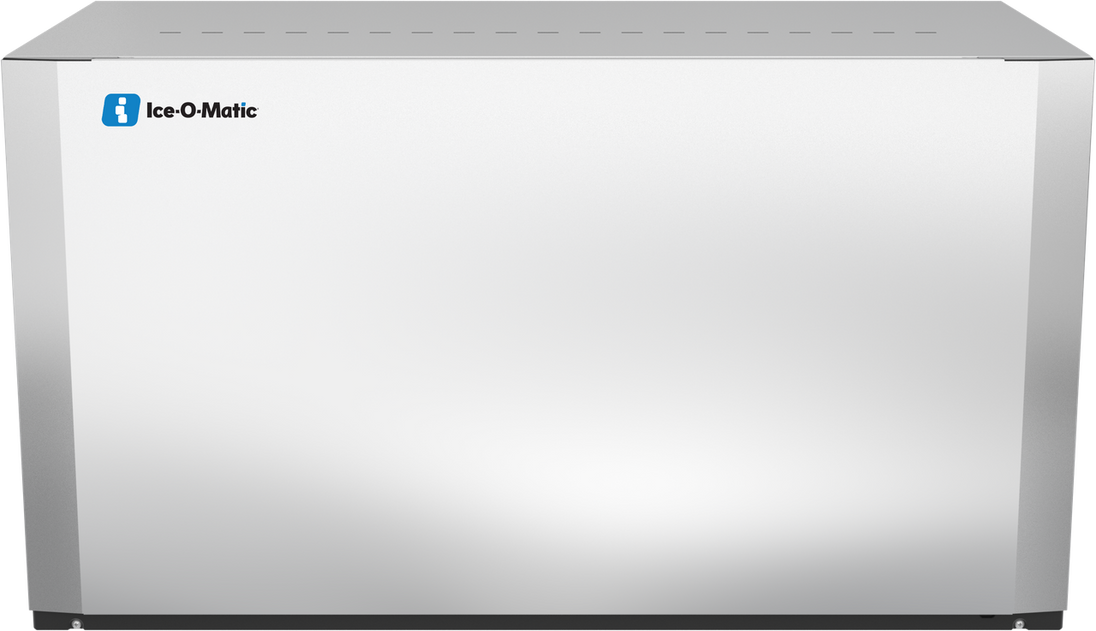

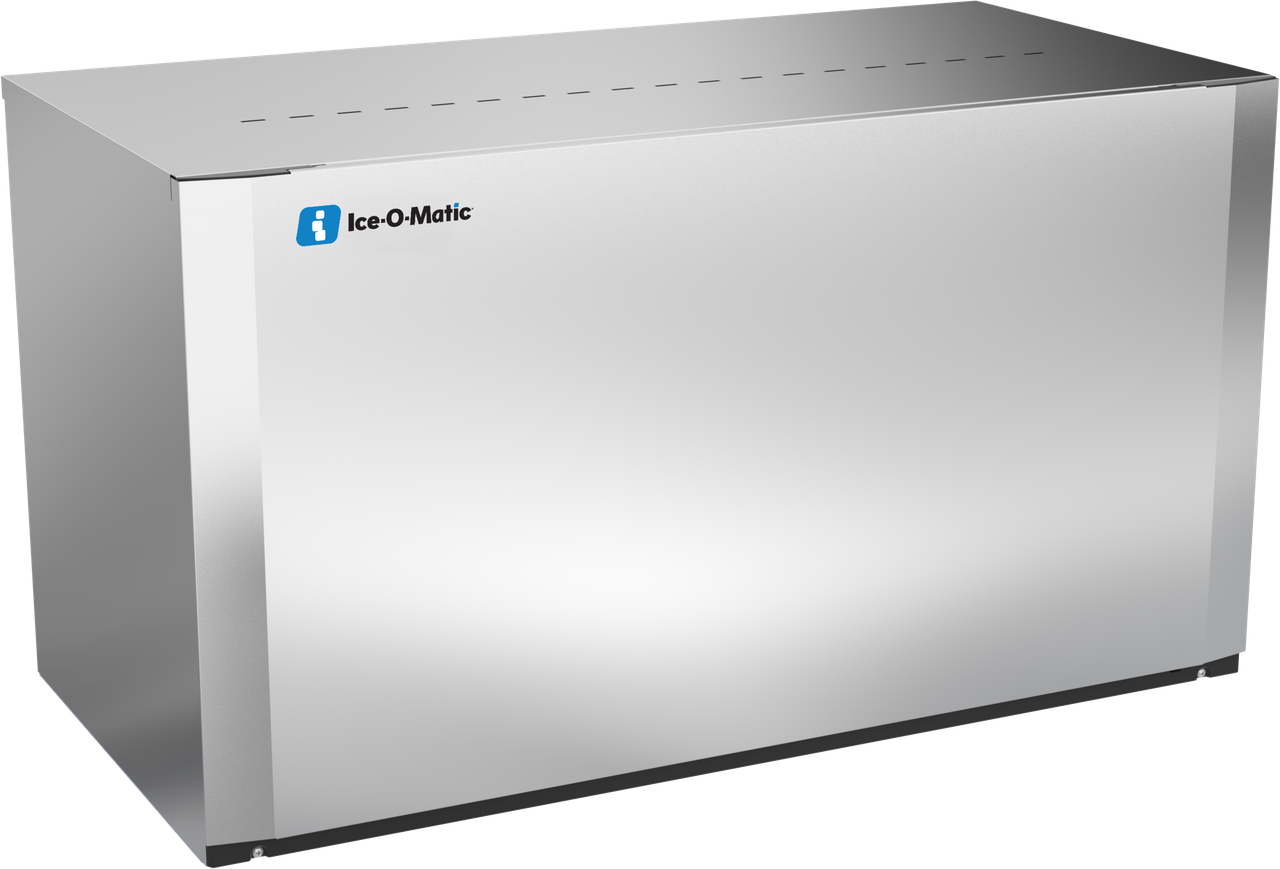

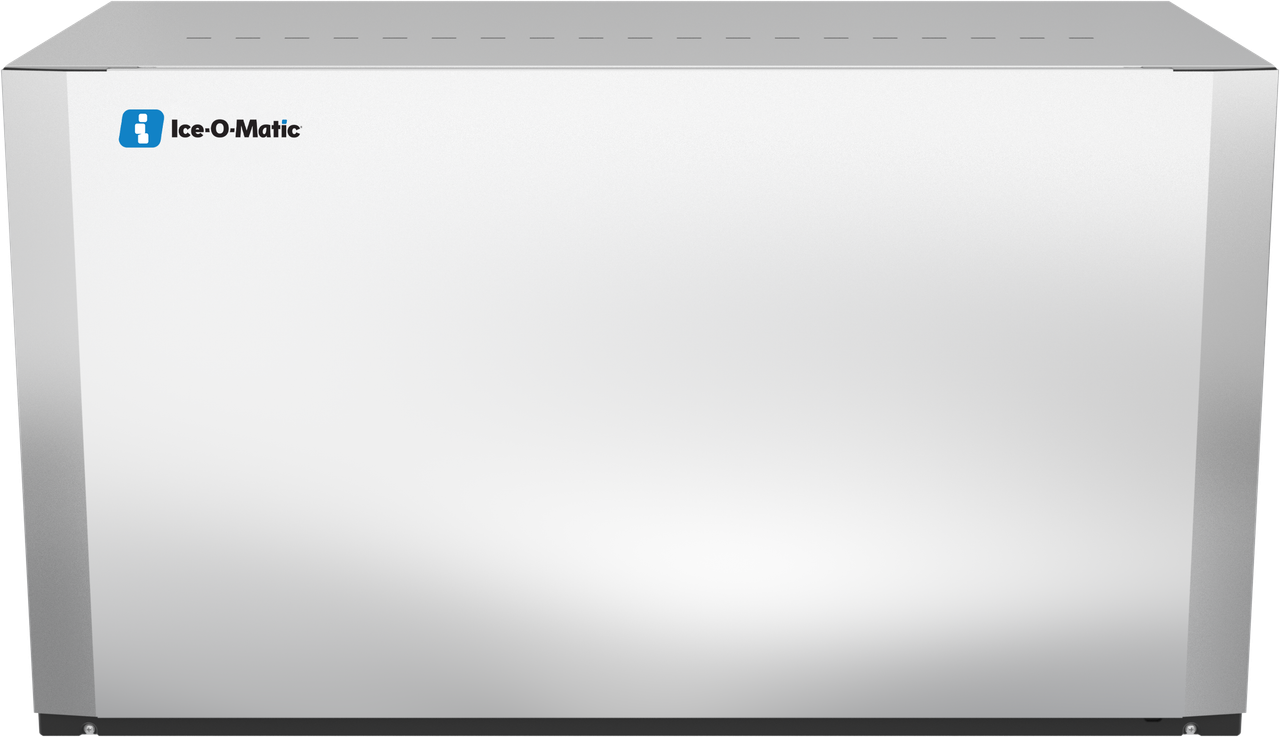

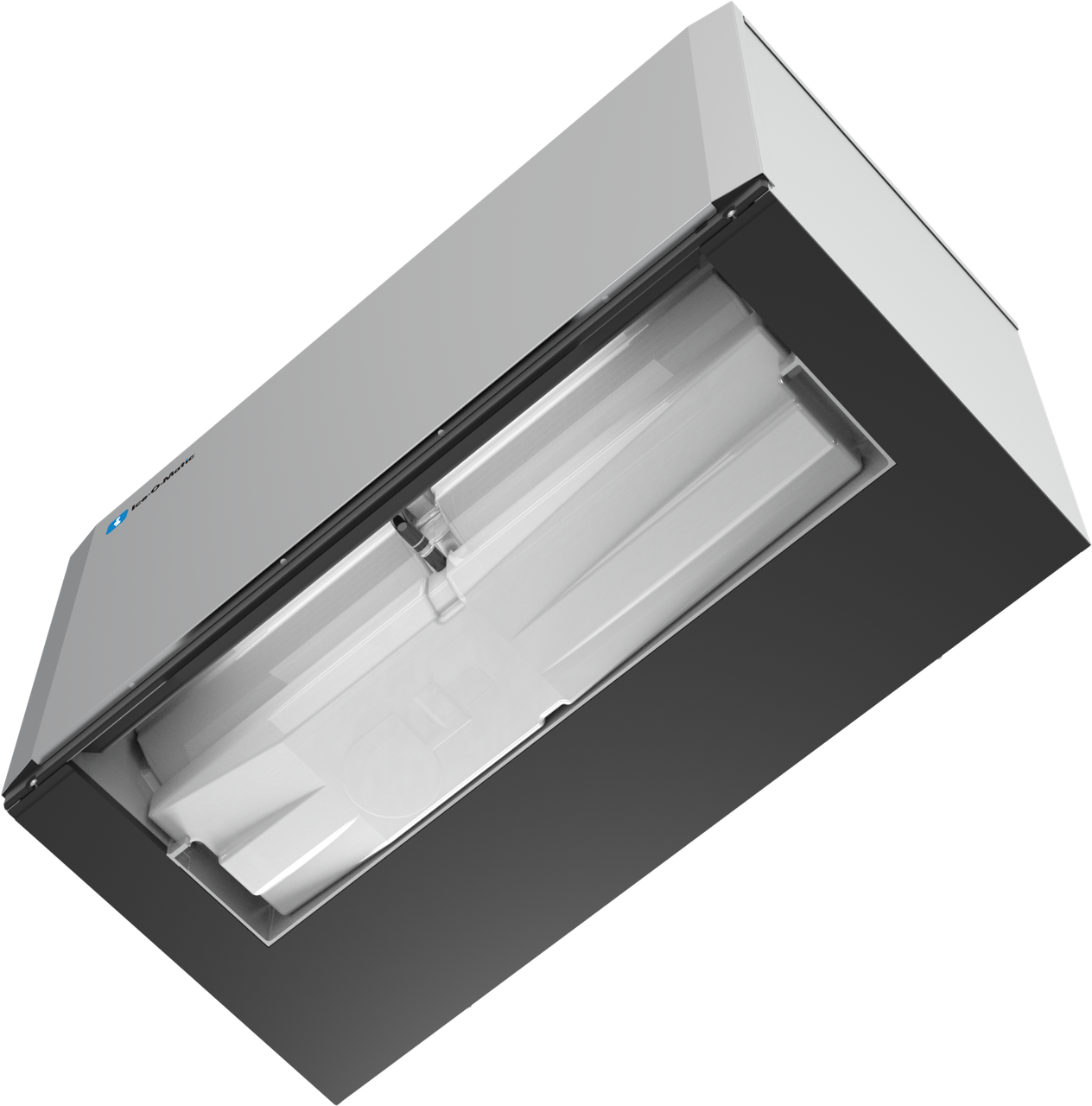

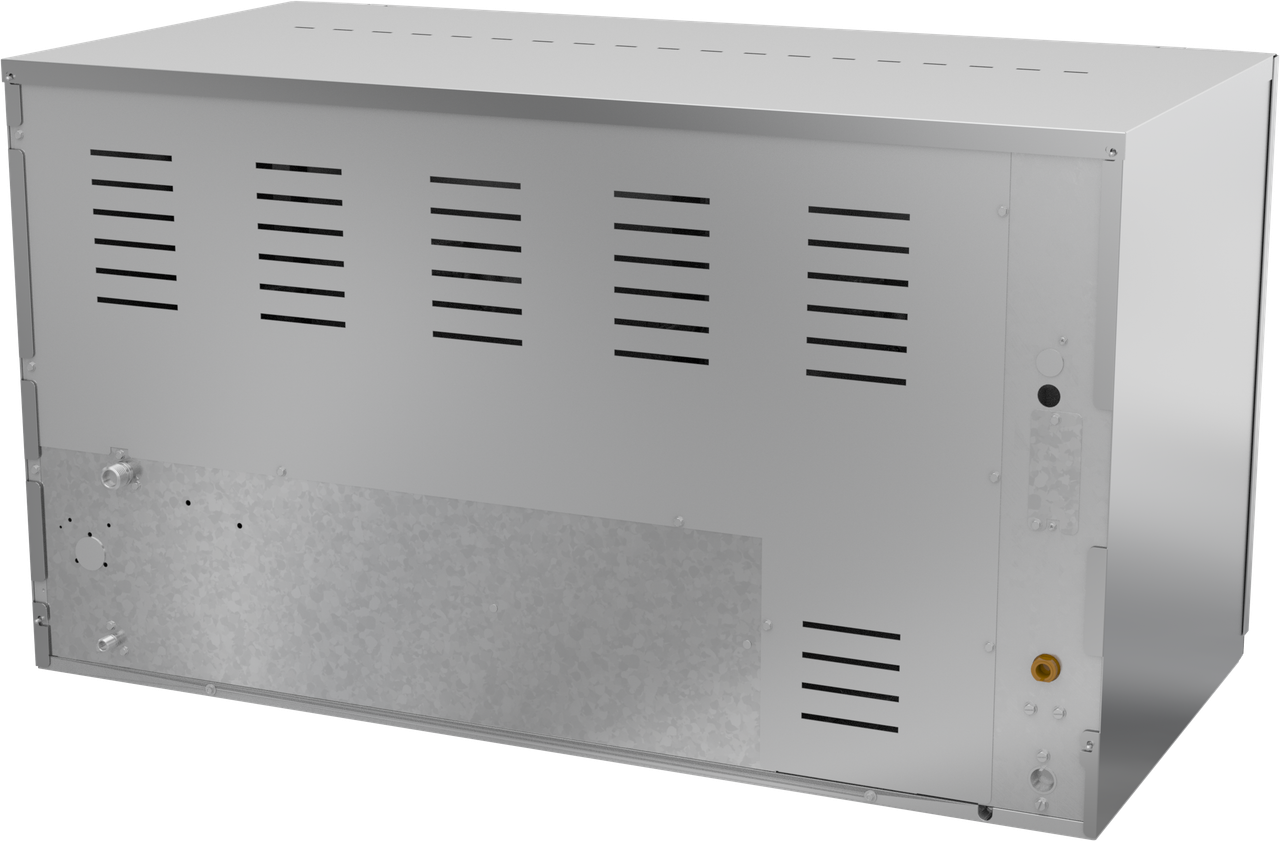

The Ice-O-Matic CIM2047FR is a 48 inch Elevation Series modular ice machine head that produces full cube ice at 1800 to 1900 pounds per 24 hours, remote cooled, three-phase power, and designed to install on top of an ice storage bin or dispenser.

Three-Phase Power Distinguishes the 2047 Line from the 2046 Line

The CIM2047FR runs on 208-230/60/3 three-phase power and R404A refrigerant, while the single-phase CIM2046FR49 runs R449A refrigerant on 208-230/60/1 power. Both share the same 1800 to 1900 pound rated output, 48.25 x 24.25 x 26.8 inch cabinet, and IFQ2-XL filter system, so the choice between the two lines comes down to available electrical service.

Remote Condenser Pairs with RC406C40

The CIM2047FR rejects condenser heat through a separately mounted RC406C40 remote condenser rather than into the kitchen air. This is the largest remote condenser pairing in the CIM lineup, matched to the 2047 line's 1800 to 1900 pound rated output.

Front Facing Evaporator for Field Service

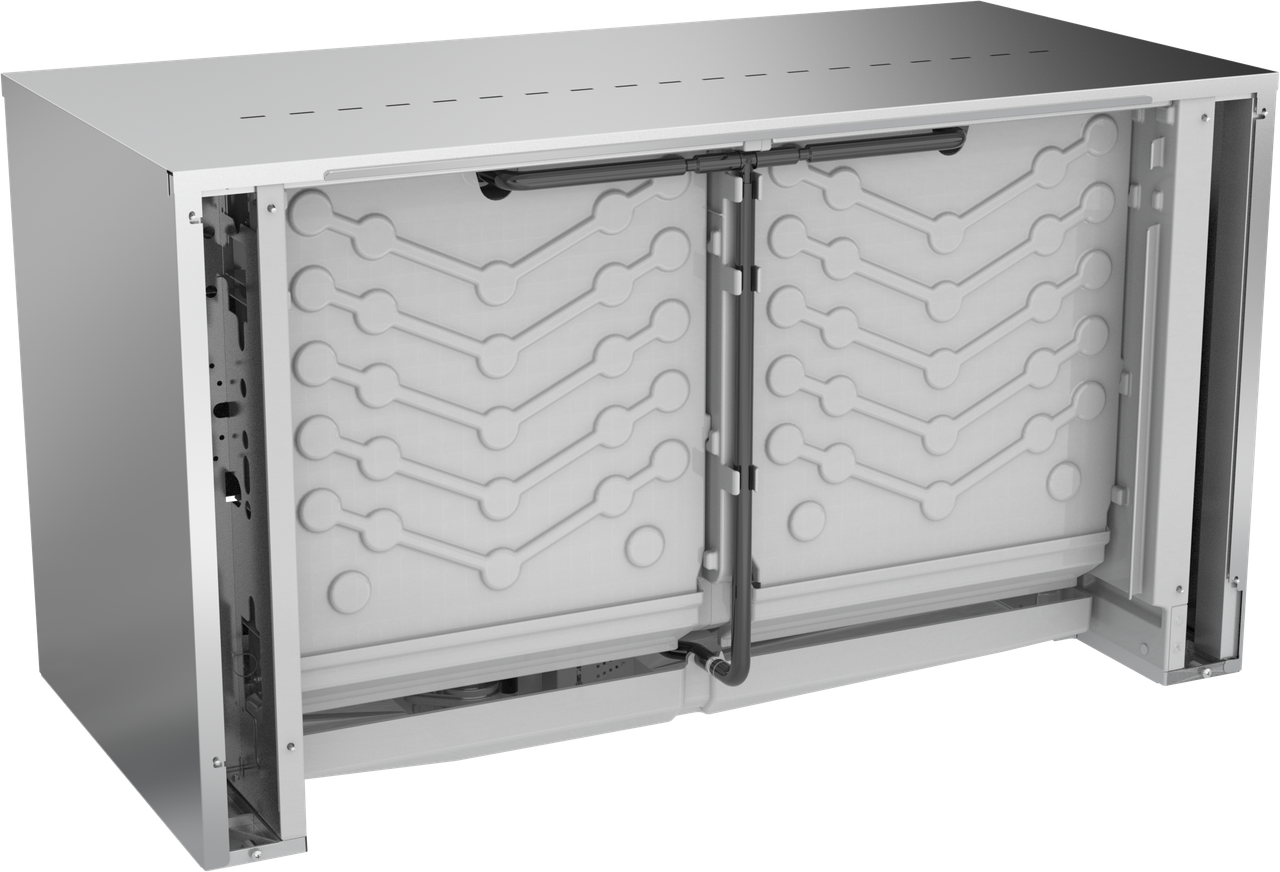

Modular design with dual exhaust and a front facing evaporator give technicians easy access for cleaning, aided by dishwasher safe plastic components rated to 180 degrees F. Electroless nickel plating on the evaporator plates and corrosion-resistant aluminum construction carry across the CIM series.

Specifications

Model CIM2047FR
Series Elevation Series
Type Modular ice machine head (bin sold separately)
Ice Type Full Cube
Capacity 1800 to 1900 lb / 24hr
Exterior Dimensions 48.25 x 24.25 x 26.8 inches (W x D x H)
Electrical 208-230V / 60Hz / 3-Phase
Refrigerant R404A
Condenser Remote (pairs with RC406C40)
Filter System IFQ2-XL
Shipping Weight 335 lb

Warranty

Ice-O-Matic publishes 3 years parts and labor on the CIM series, with 5 years parts coverage on the evaporator and compressor.
