Product Description

The Ice-O-Matic CIM2046HR49 is a 48 inch Elevation Series modular ice machine head that produces half cube ice at 1800 to 1900 pounds per 24 hours, remote cooled and designed to install on top of an ice storage bin or dispenser.

Full Cube Output Matches Its Half Cube Rating Exactly

The CIM2046HR49 shares the identical 1800 to 1900 pound rated output as the full cube CIM2046FR49, along with the same 48.25 x 24.25 x 26.8 inch cabinet, R449A refrigerant, RC406C49 remote condenser pairing, and IFQ2-XL filter system. Unlike the 1446 and 1447 lines, where full and half cube ratings sometimes differ, the 2046 pair is rated identically regardless of ice shape.

Highest-Capacity Remote-Cooled Single-Phase Model in the Elevation Series

At 1800 to 1900 pounds per day, the CIM2046HR49 outproduces the CIM1446HR49, which is rated 1500 to 1600 pounds per day in the same cabinet on the same single-phase 208-230/60/1 power and R449A refrigerant. The larger IFQ2-XL filter and RC406C49 remote condenser account for the higher output.

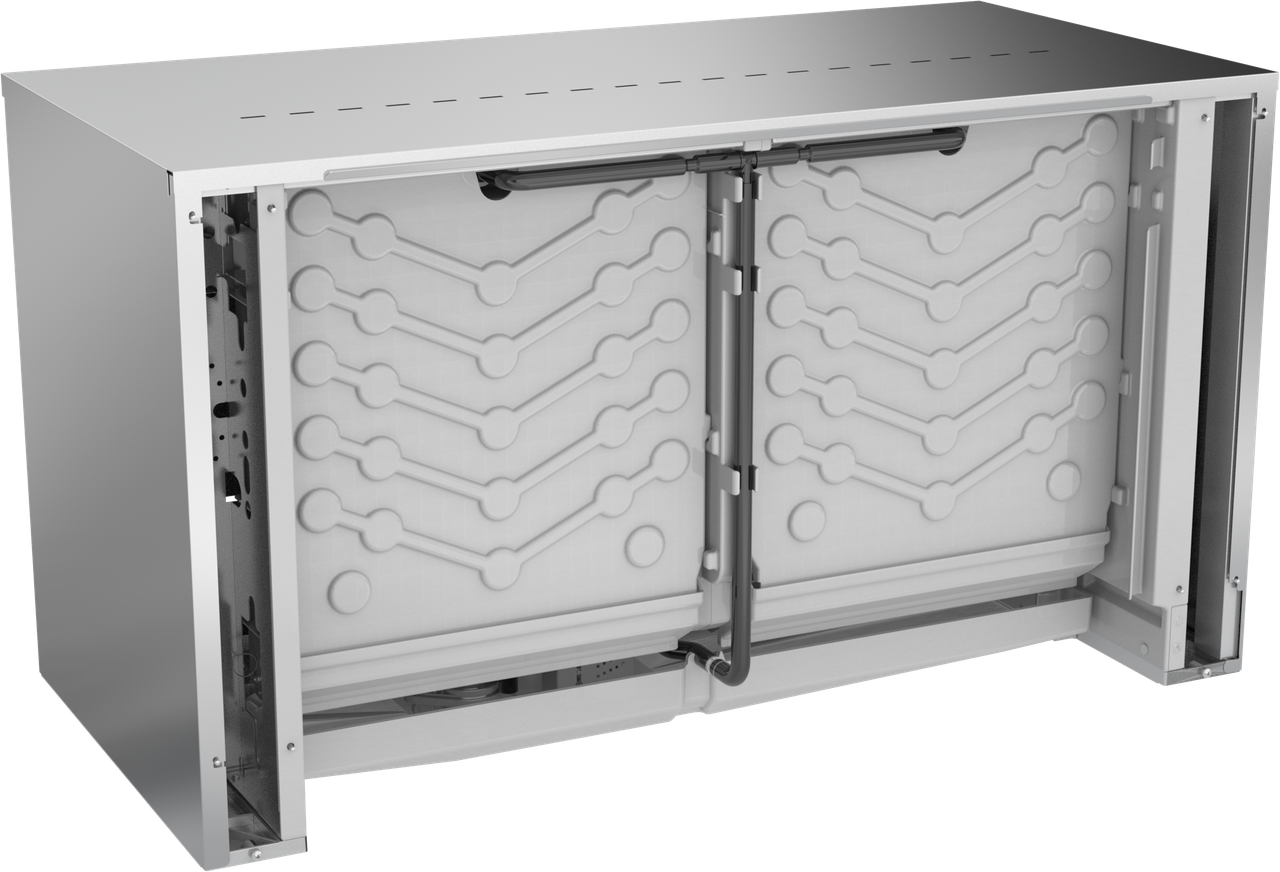

Front Facing Evaporator for Field Service

Modular design and a front facing evaporator give technicians front access without pulling the cabinet off a bin, aided by dishwasher safe plastic components rated to 180 degrees F. Electroless nickel plating on the evaporator plates and corrosion-resistant aluminum construction are shared across the CIM series.

Specifications

Model CIM2046HR49
Series Elevation Series
Type Modular ice machine head (bin sold separately)
Ice Type Half Cube
Capacity 1800 to 1900 lb / 24hr
Exterior Dimensions 48.25 x 24.25 x 26.8 inches (W x D x H)
Electrical 208-230V / 60Hz / 1-Phase
Refrigerant R449A
Condenser Remote (pairs with RC406C49)
Filter System IFQ2-XL
Certifications BABA Compliant
Shipping Weight 329 lb

Warranty

Ice-O-Matic publishes 3 years parts and labor on the CIM series, with 5 years parts coverage on the evaporator and compressor.
