Product Description

The Ice-O-Matic CIM2046FR49 is a 48 inch Elevation Series modular ice machine head that produces full cube ice at 1800 to 1900 pounds per 24 hours, remote cooled and designed to install on top of an ice storage bin or dispenser.

Highest-Capacity Remote-Cooled Single-Phase Model in the Elevation Series

At 1800 to 1900 pounds per day, the CIM2046FR49 outproduces the CIM1446FR49, which is rated 1600 to 1700 pounds per day in the same 48.25 x 24.25 x 26.8 inch cabinet on the same 208-230/60/1 single-phase power and R449A refrigerant. The higher output comes from an IFQ2-XL filter system rather than the IFQ2 used on the 1446 line, and the unit pairs with the larger RC406C49 remote condenser instead of the RC306C49.

Remote Condenser Keeps Heat Rejection Out of the Kitchen

The CIM2046FR49 rejects condenser heat through a separately mounted RC406C49 remote condenser and precharged linesets rather than into the kitchen air. This is the only condenser type Ice-O-Matic publishes for the 2046 line on single-phase power.

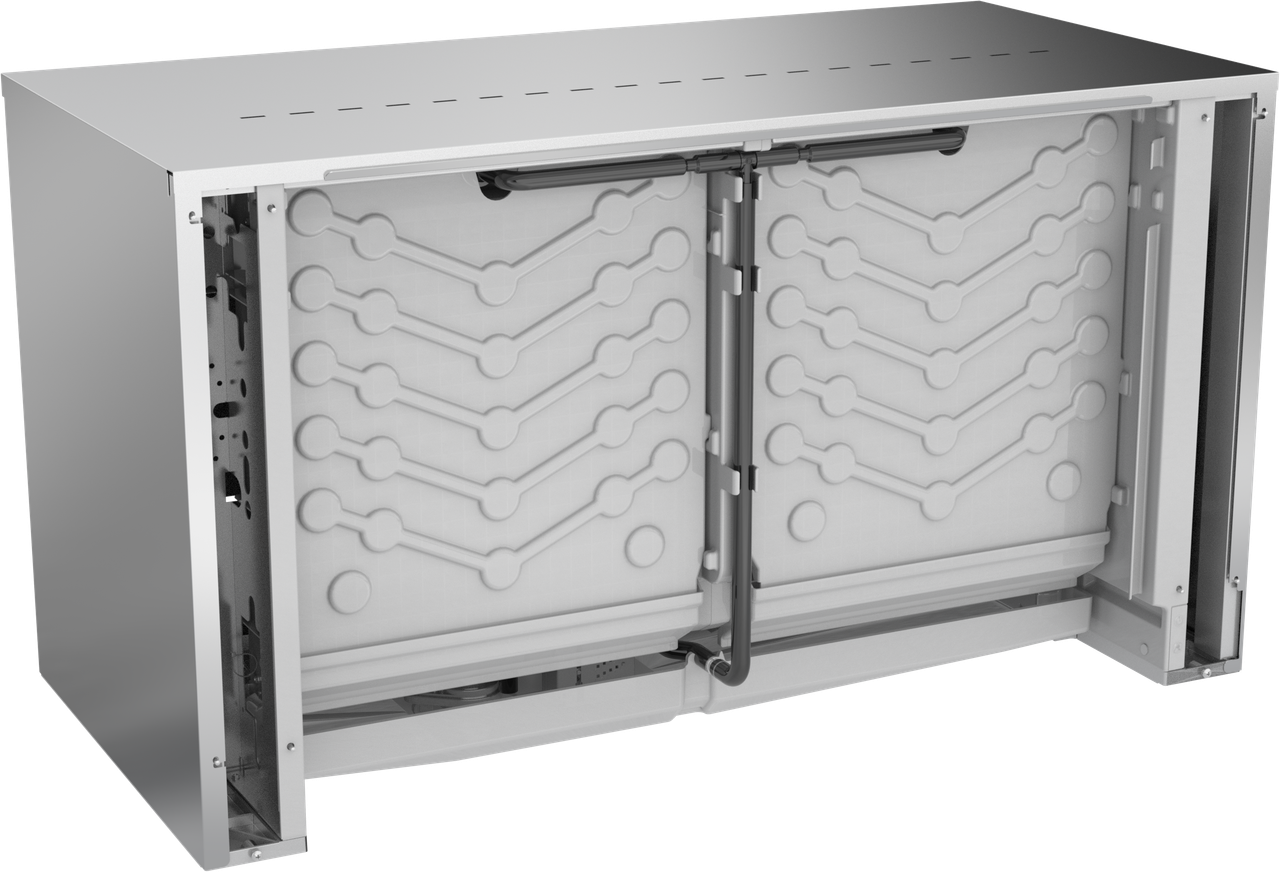

Front Facing Evaporator for Field Service

Modular design and a front facing evaporator give technicians front access without pulling the cabinet off a bin, aided by dishwasher safe plastic components rated to 180 degrees F. Electroless nickel plating on the evaporator plates and corrosion-resistant aluminum construction are shared across the CIM series.

Specifications

Model CIM2046FR49
Series Elevation Series
Type Modular ice machine head (bin sold separately)
Ice Type Full Cube
Capacity 1800 to 1900 lb / 24hr
Exterior Dimensions 48.25 x 24.25 x 26.8 inches (W x D x H)
Electrical 208-230V / 60Hz / 1-Phase
Refrigerant R449A
Condenser Remote (pairs with RC406C49)
Filter System IFQ2-XL
Certifications BABA Compliant
Shipping Weight 329 lb

Warranty

Ice-O-Matic publishes 3 years parts and labor on the CIM series, with 5 years parts coverage on the evaporator and compressor.
