Product Description

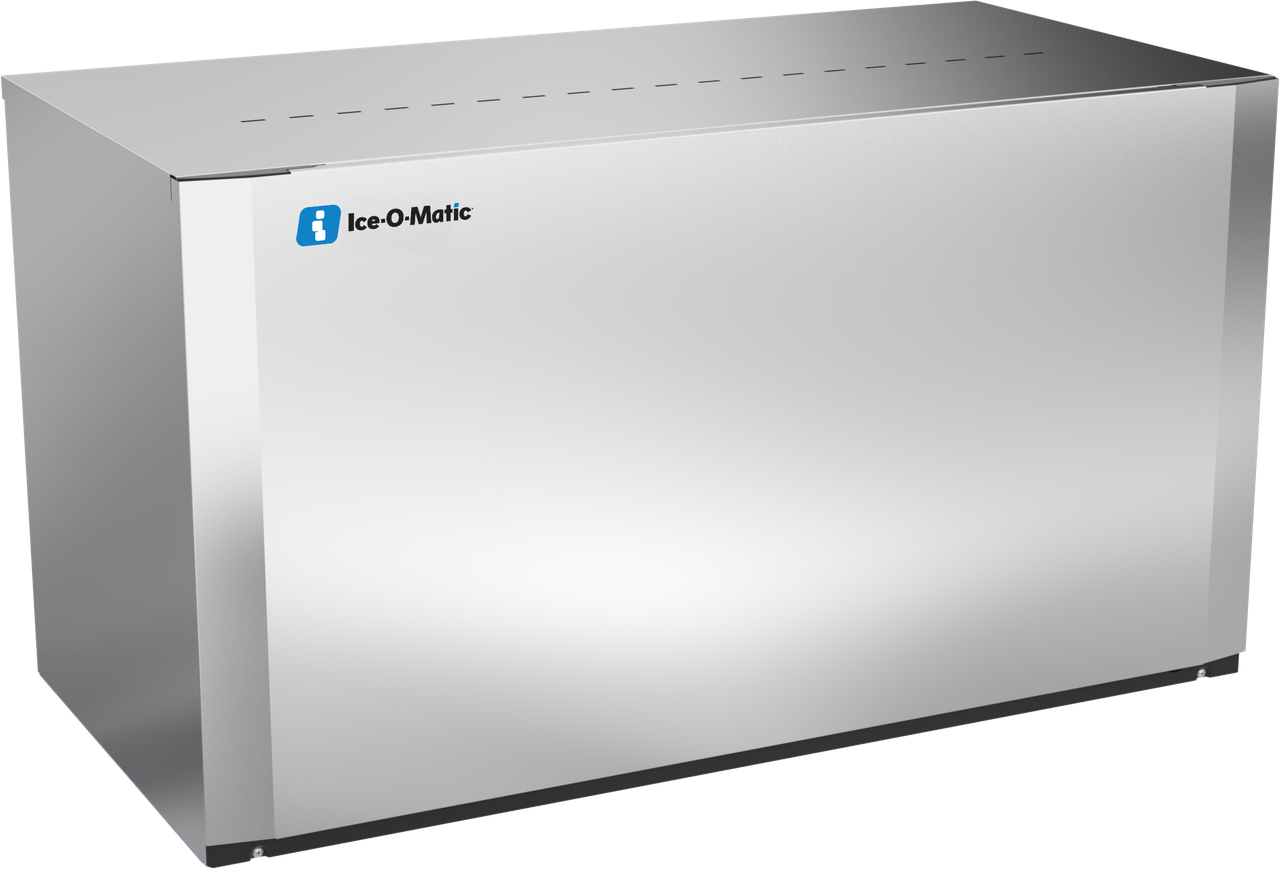

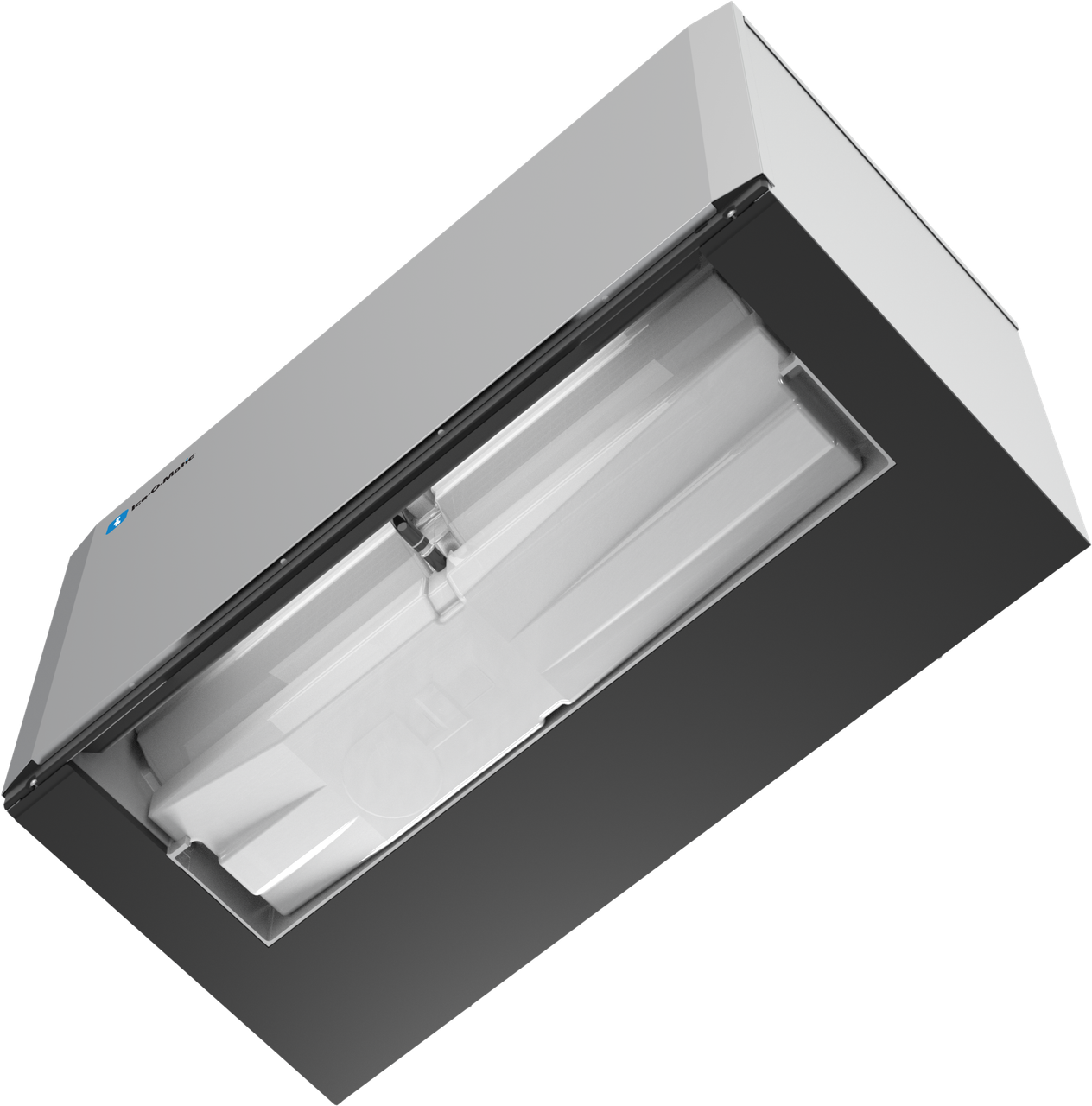

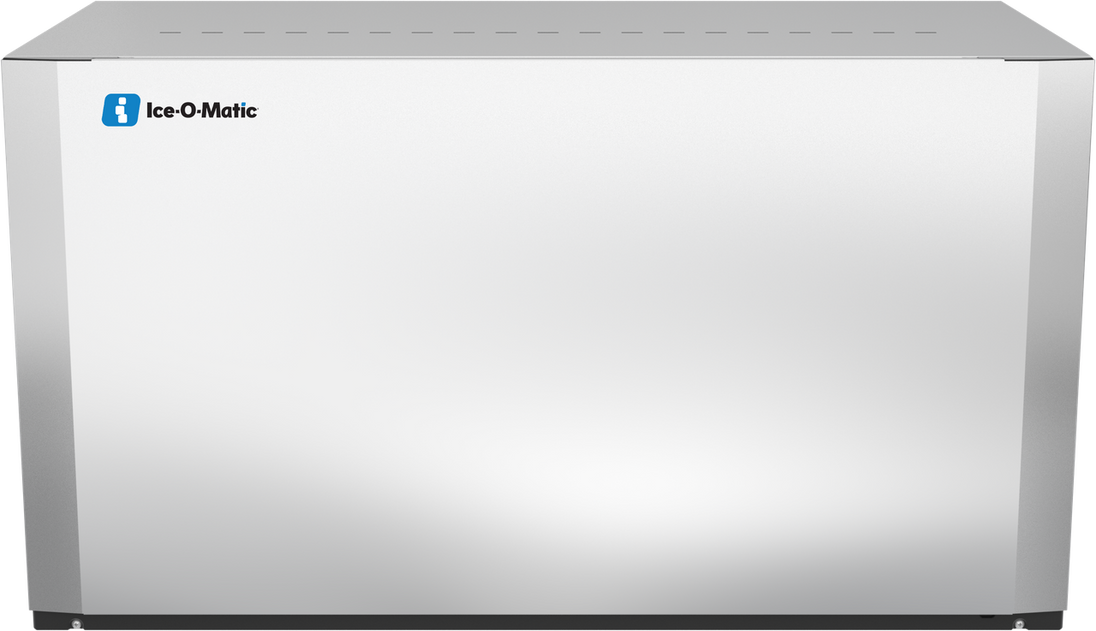

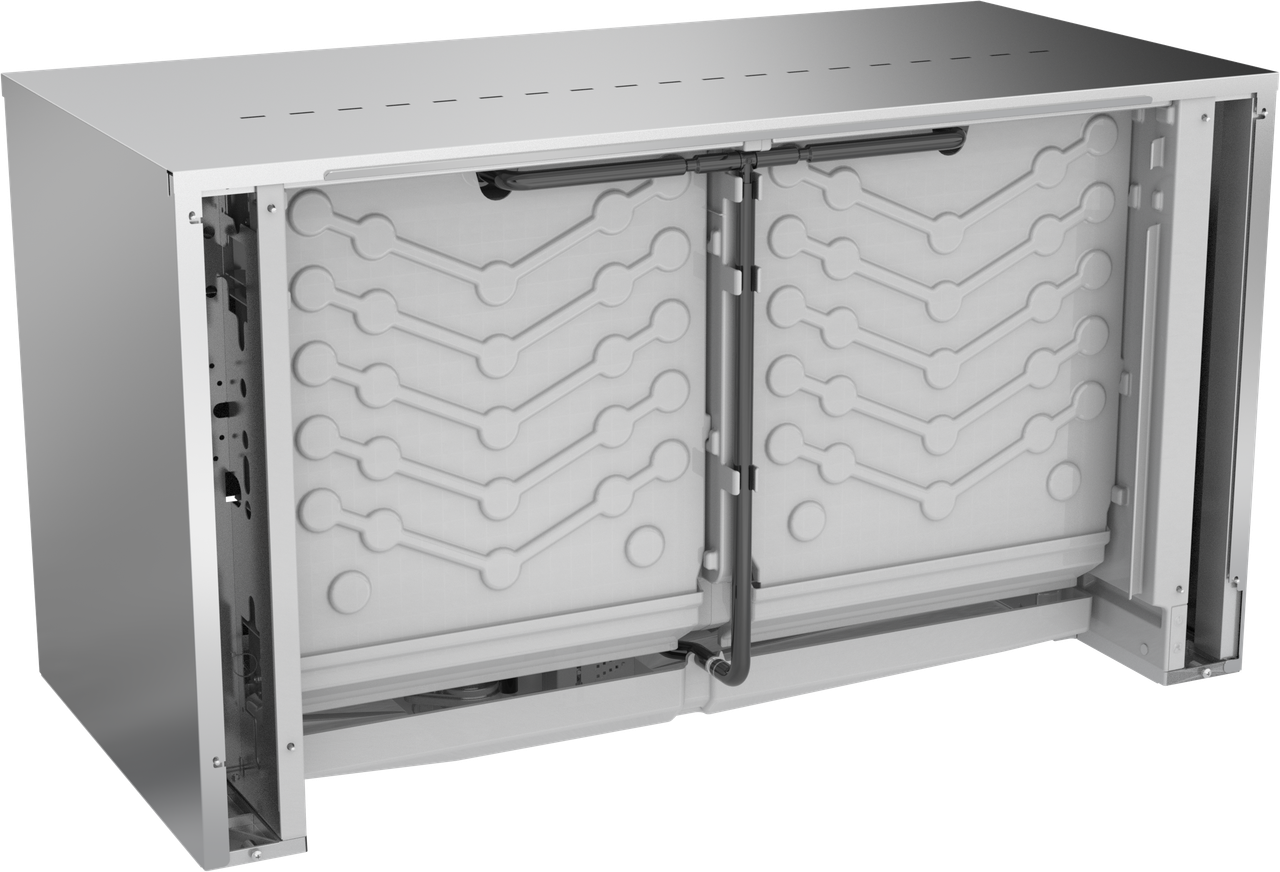

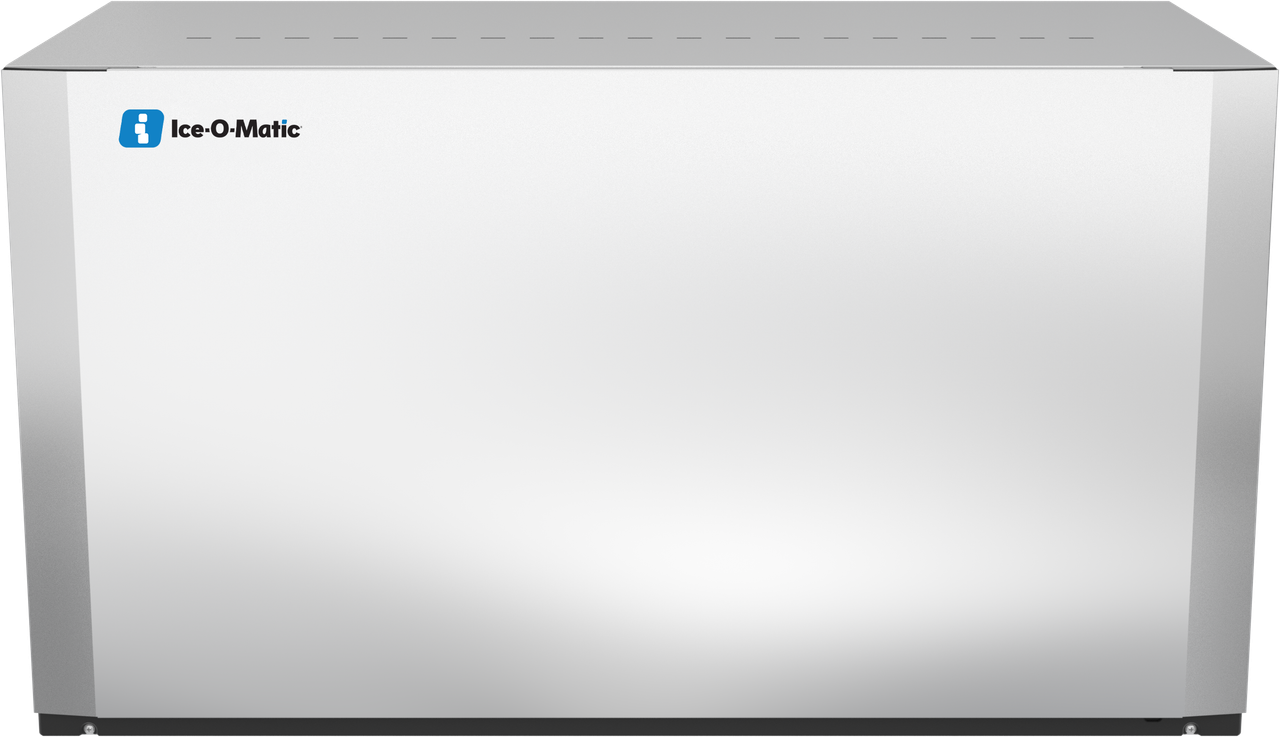

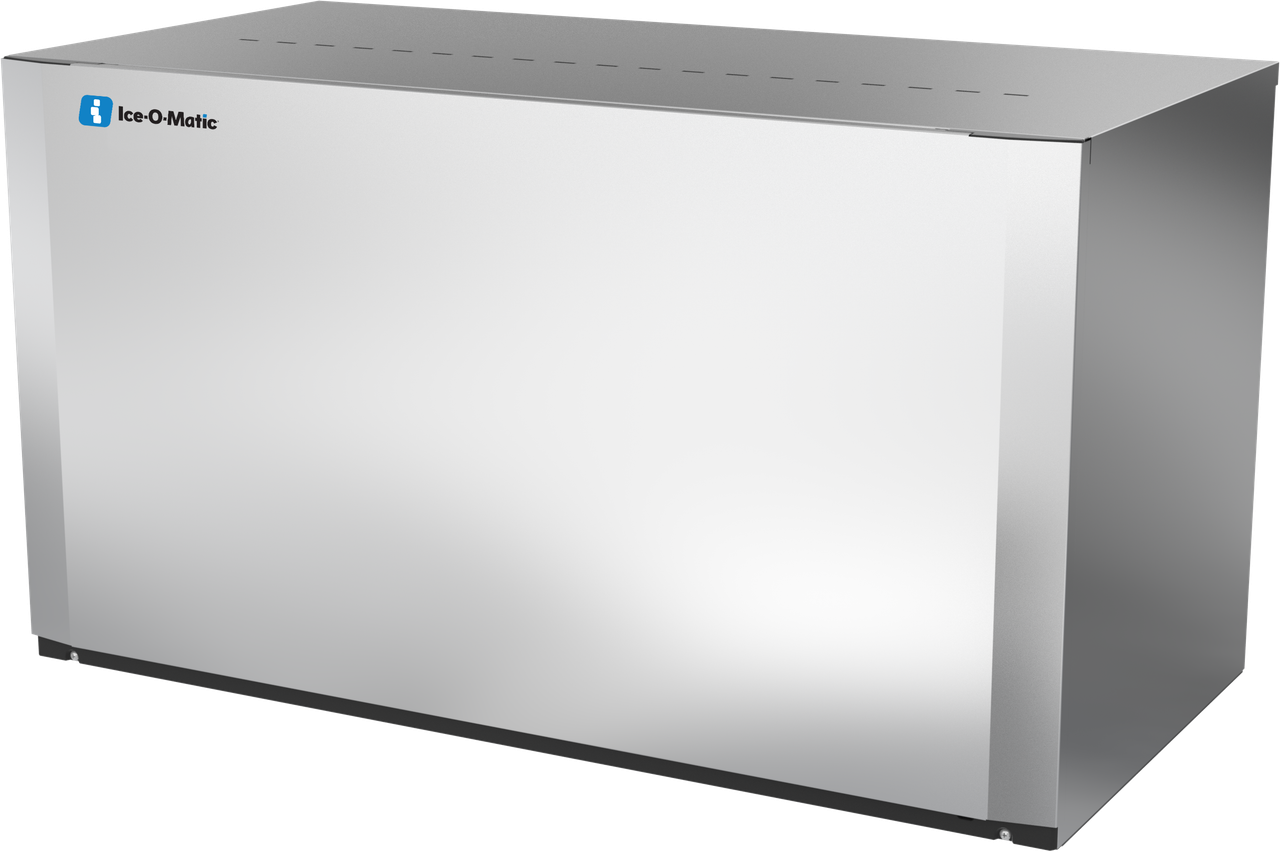

The Ice-O-Matic CIM1447HW is a 48 inch Elevation Series modular ice machine head that produces half cube ice at 1500 to 1600 pounds per 24 hours, water cooled, three-phase power, and designed to install on top of an ice storage bin or dispenser.

Water Cooled Condenser is a Third Option Alongside Air and Remote

The CIM1447HW rejects condenser heat into a water supply rather than kitchen air or a remote unit, giving the 1447 line a third condenser option alongside the air cooled CIM1447HA and remote cooled CIM1447HR. All three share the same 1500 to 1600 pound rated output, 48.25 x 24.25 x 26.8 inch cabinet, R404A refrigerant, and three-phase 208-230/60/3 electrical service.

No Outdoor Condenser or Extra Kitchen Heat Load

Because heat rejection happens through the water circuit rather than into the room or an outdoor unit, the CIM1447HW avoids both the added kitchen heat load of the air cooled variant and the remote linesets and outdoor mounting the CIM1447HR requires. This makes it a fit for kitchens where floor space near an exterior wall for remote equipment is not available.

Half Cube Output Matches Its Full Cube Sibling

At 1500 to 1600 pounds per day, the CIM1447HW produces the same daily volume as the full cube CIM1447FW in the identical footprint, condenser type, refrigerant, and filter system. The decision between the two comes down to ice shape rather than capacity or cabinet size.

Specifications

Model CIM1447HW
Series Elevation Series
Type Modular ice machine head (bin sold separately)
Ice Type Half Cube
Capacity 1500 to 1600 lb / 24hr
Exterior Dimensions 48.25 x 24.25 x 26.8 inches (W x D x H)
Electrical 208-230V / 60Hz / 3-Phase
Refrigerant R404A
Condenser Water Cooled
Filter System IFQ2
Shipping Weight 300 lb

Warranty

Ice-O-Matic publishes 3 years parts and labor on the CIM series, with 5 years parts coverage on the evaporator and compressor.
