Product Description

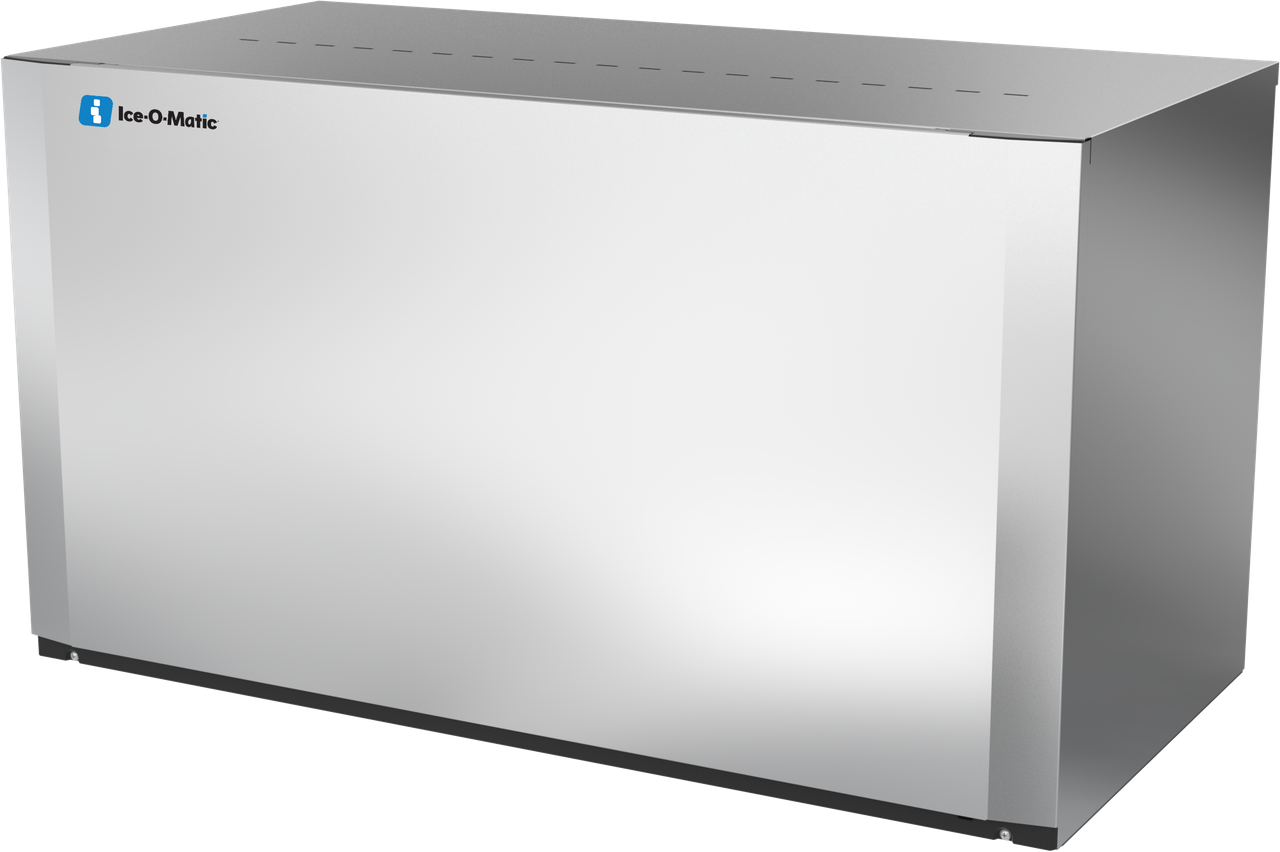

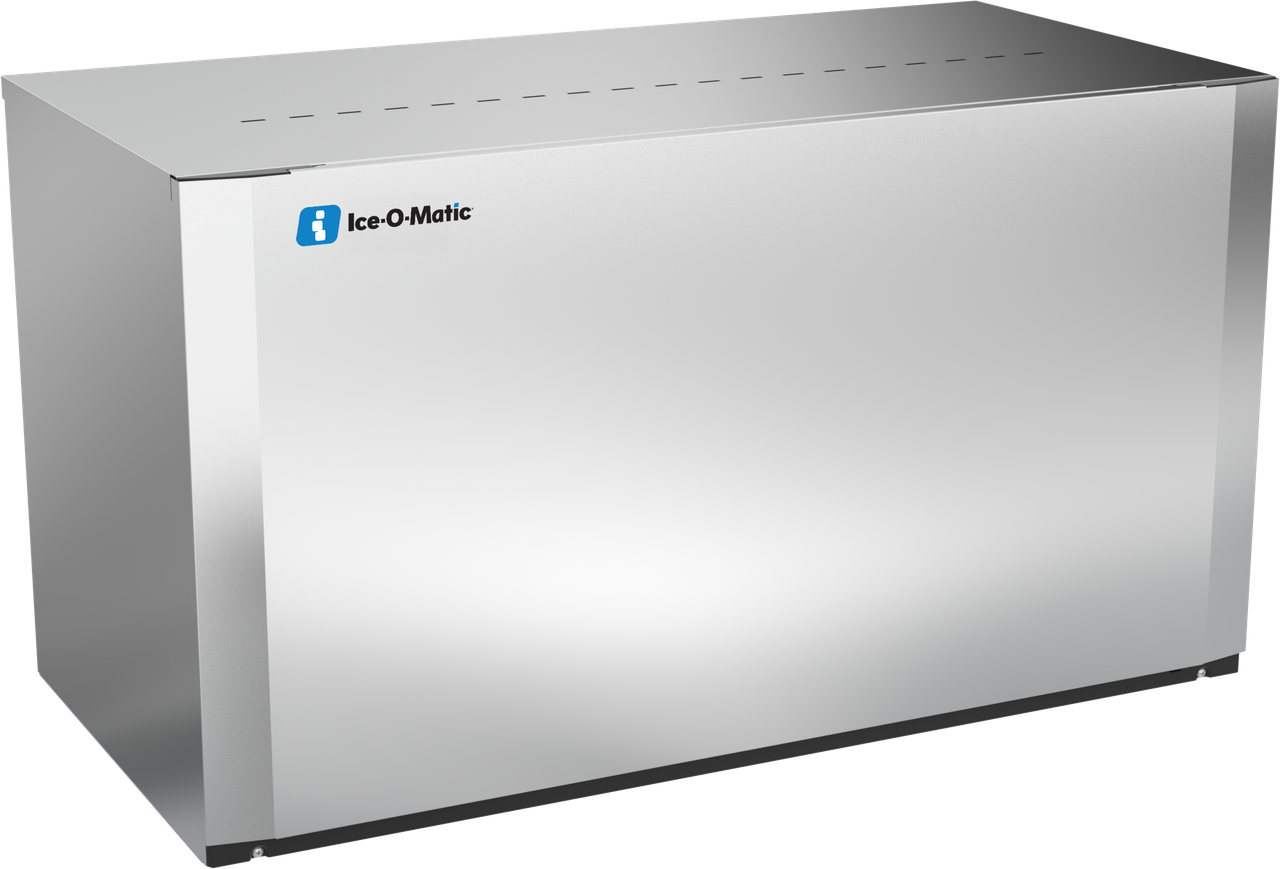

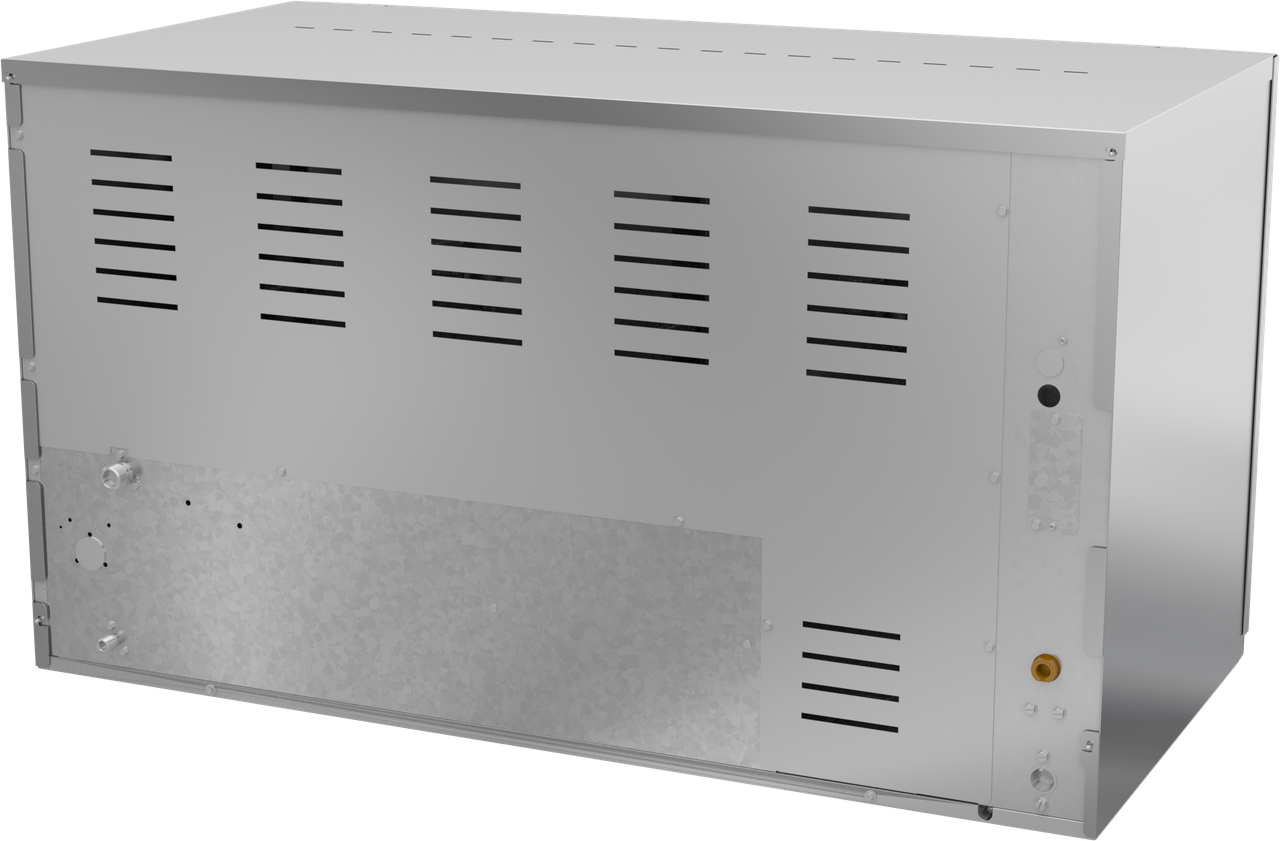

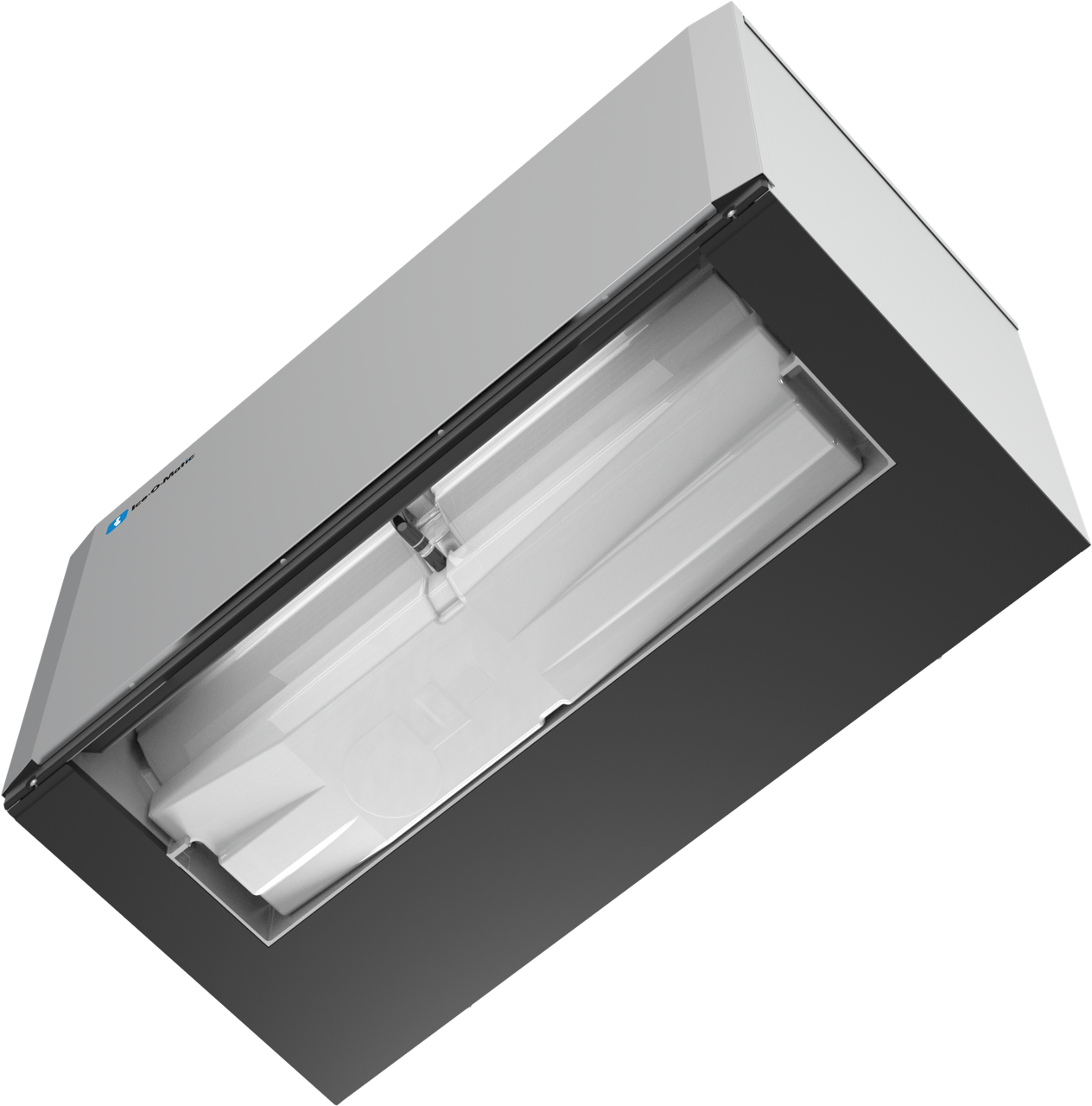

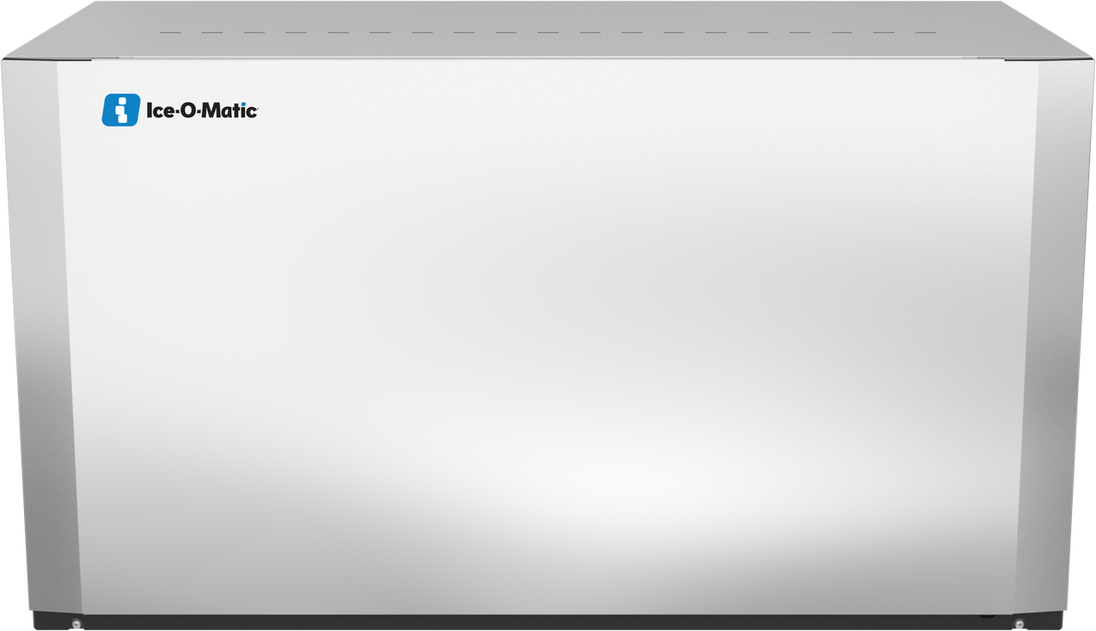

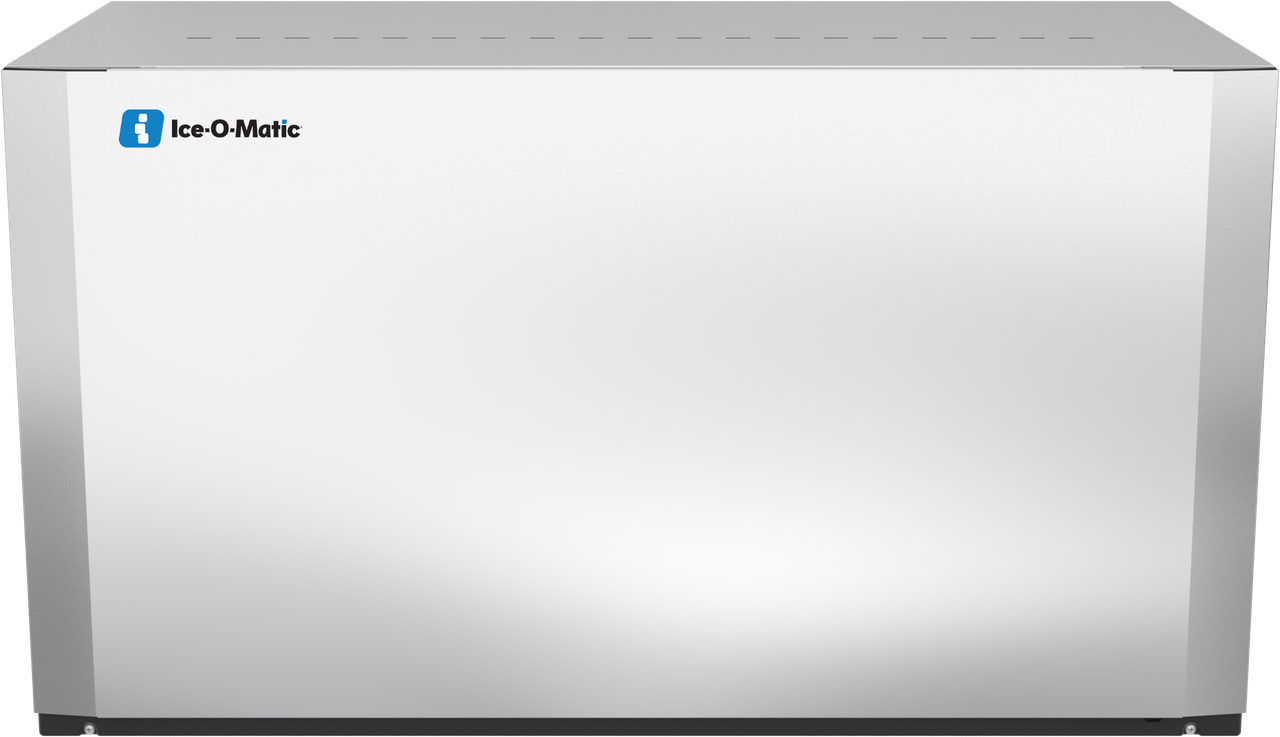

The Ice-O-Matic CIM1447HR is a 48 inch Elevation Series modular ice machine head that produces half cube ice at 1500 to 1600 pounds per 24 hours, remote cooled, three-phase power, and designed to install on top of an ice storage bin or dispenser.

Remote Condenser Pairs with RC306C40

The CIM1447HR rejects condenser heat through a separately mounted RC306C40 remote condenser rather than into the kitchen air, matching the same 1500 to 1600 pound rated output as the air cooled CIM1447HA. Because both share the same three-phase 208-230/60/3 electrical service, an operator choosing between them is deciding where the condenser heat should go rather than trading off capacity.

Three-Phase Power Distinguishes the 1447 Line from the 1446 Line

The CIM1447HR runs on R404A refrigerant and 208-230/60/3 three-phase power, while the single-phase CIM1446HR49 runs R449A refrigerant on 208-230/60/1 power and shares the same 1500 to 1600 pound rated range in the same cabinet. Facilities without three-phase service would look to the 1446 line instead.

Front Facing Evaporator for Field Service

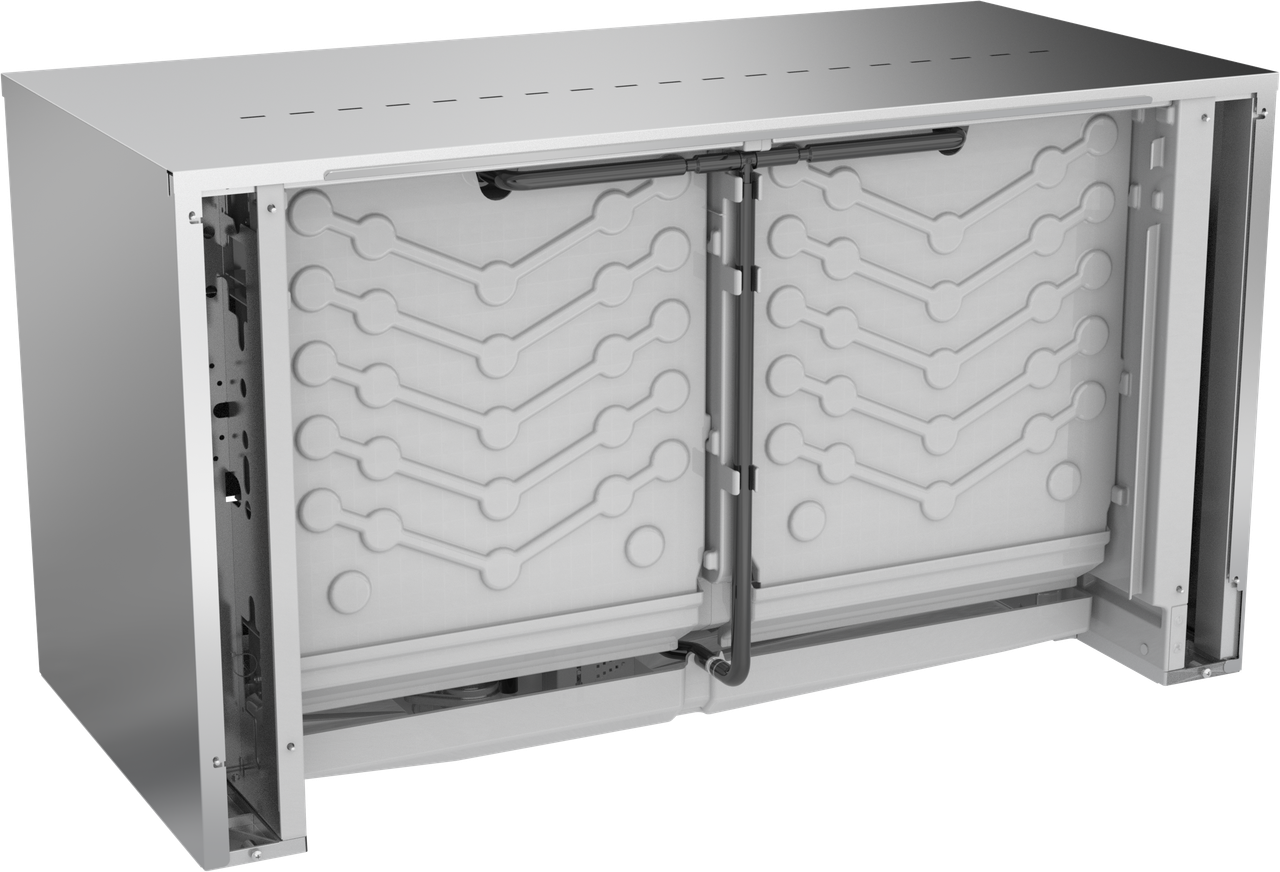

Modular design with dual exhaust and a front facing evaporator give technicians easy access for cleaning, aided by dishwasher safe plastic components rated to 180 degrees F. Electroless nickel plating on the evaporator plates and corrosion-resistant aluminum construction carry across the CIM series.

Specifications

Model CIM1447HR
Series Elevation Series
Type Modular ice machine head (bin sold separately)
Ice Type Half Cube
Capacity 1500 to 1600 lb / 24hr
Exterior Dimensions 48.25 x 24.25 x 26.8 inches (W x D x H)
Electrical 208-230V / 60Hz / 3-Phase
Refrigerant R404A
Condenser Remote (pairs with RC306C40)
Filter System IFQ2
Shipping Weight 280 lb

Warranty

Ice-O-Matic publishes 3 years parts and labor on the CIM series, with 5 years parts coverage on the evaporator and compressor.
