Product Description

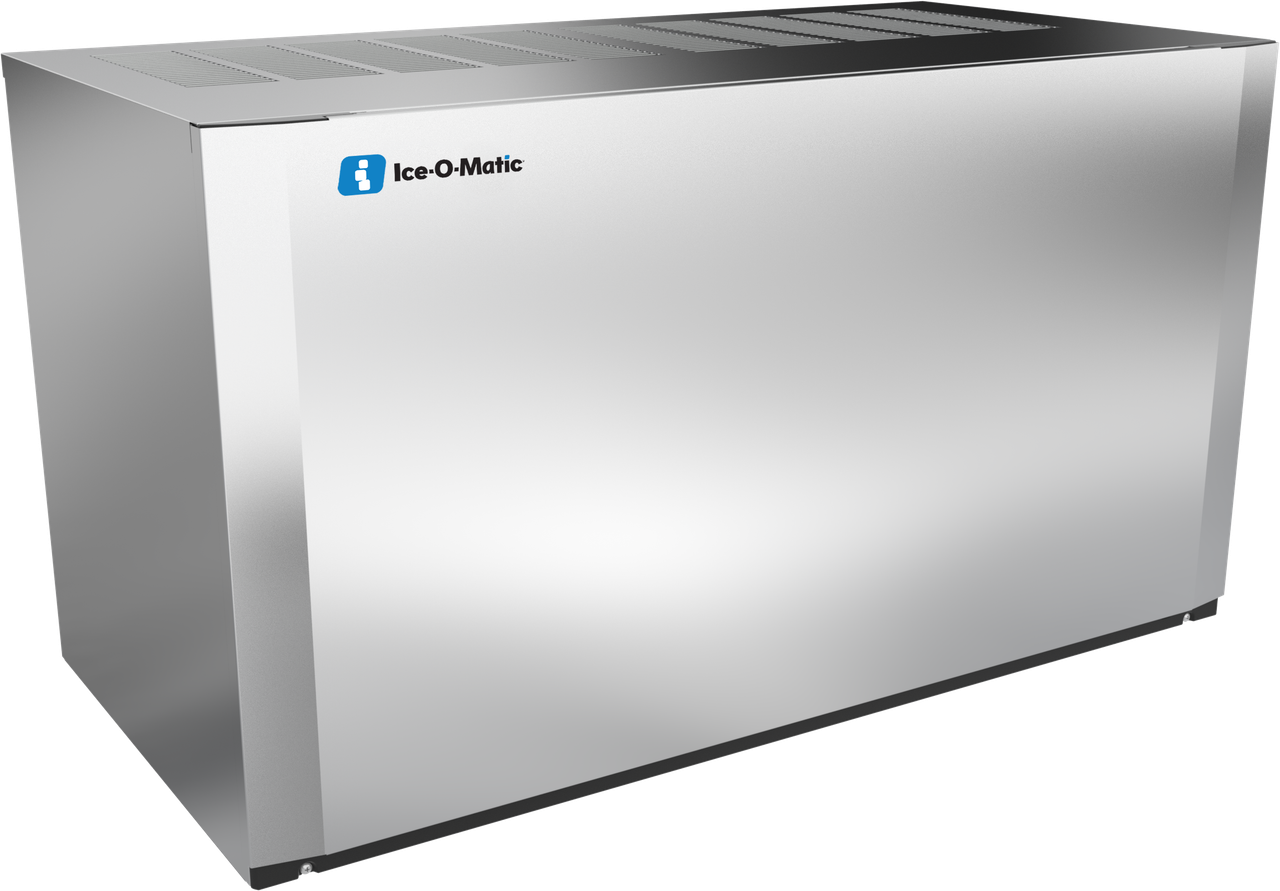

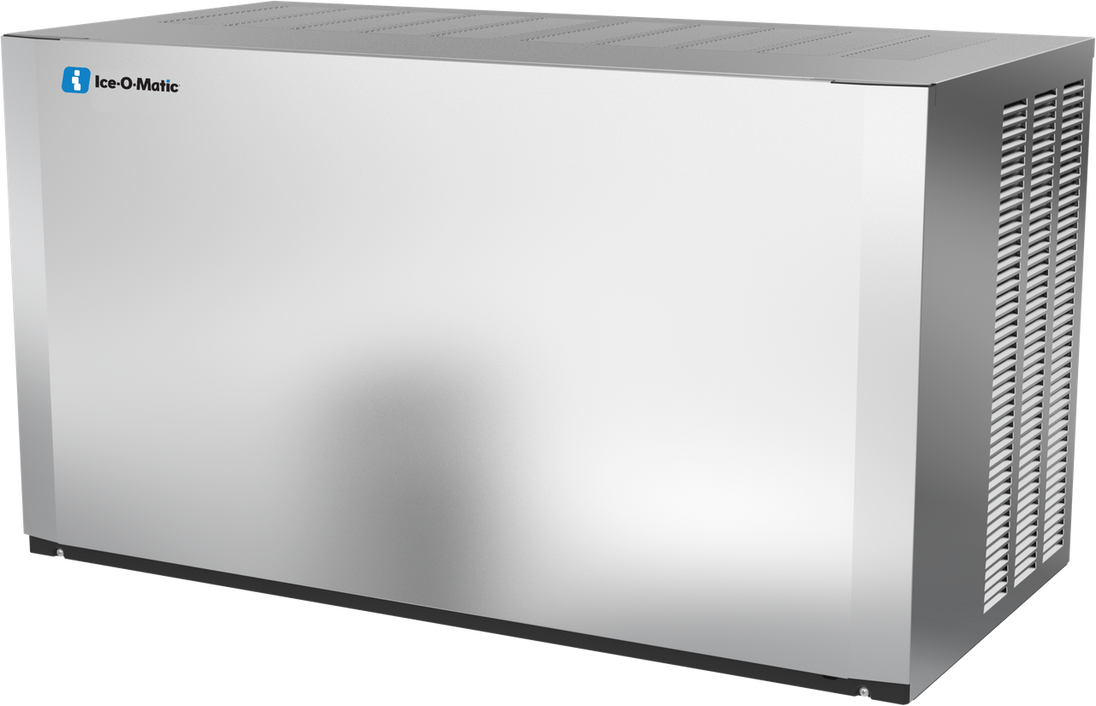

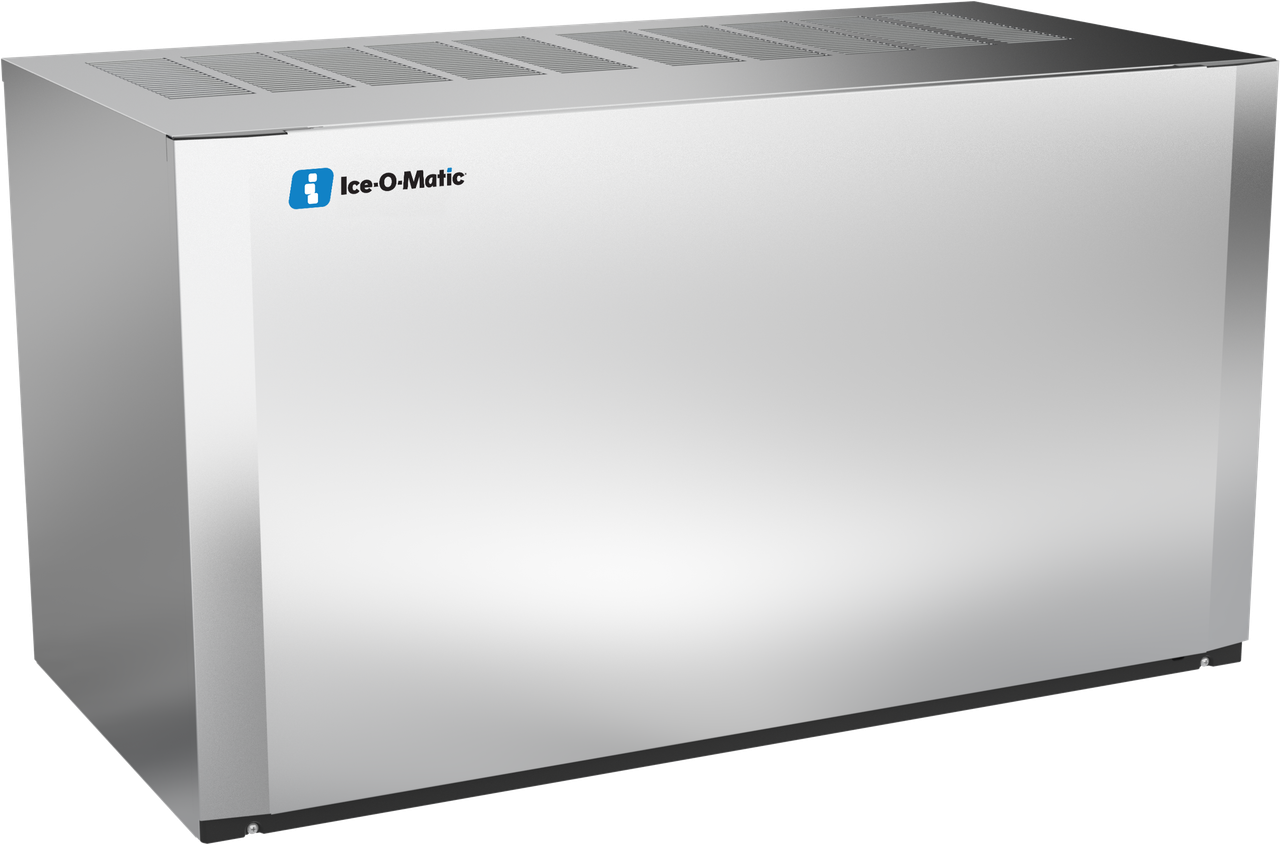

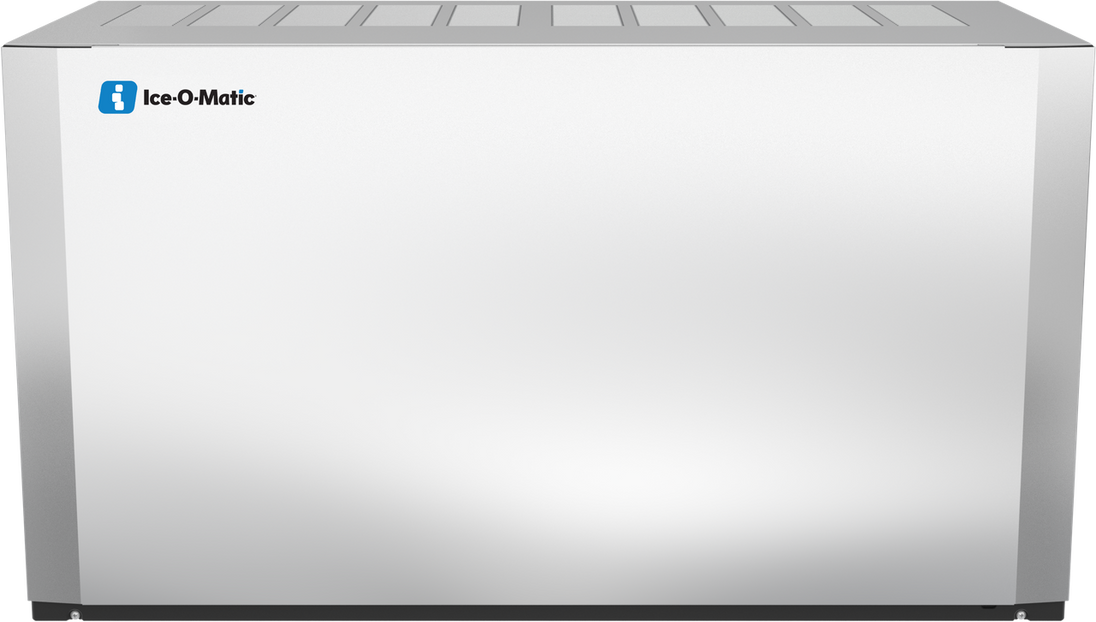

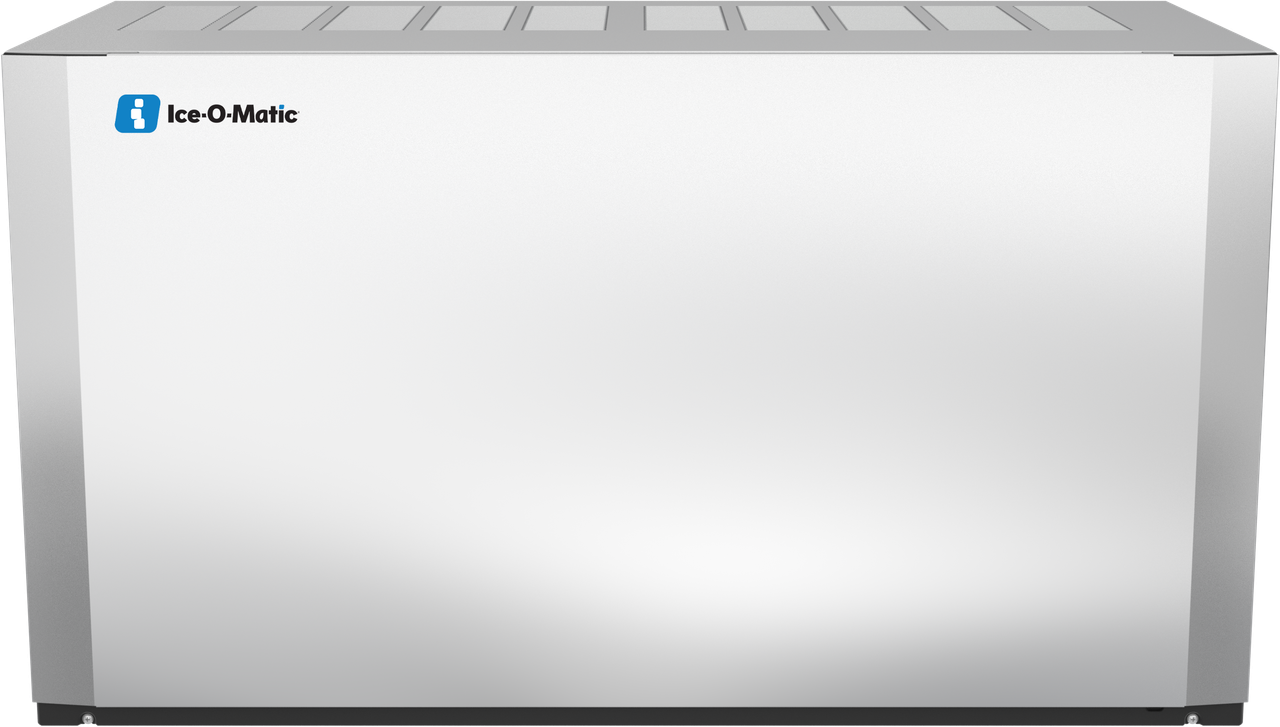

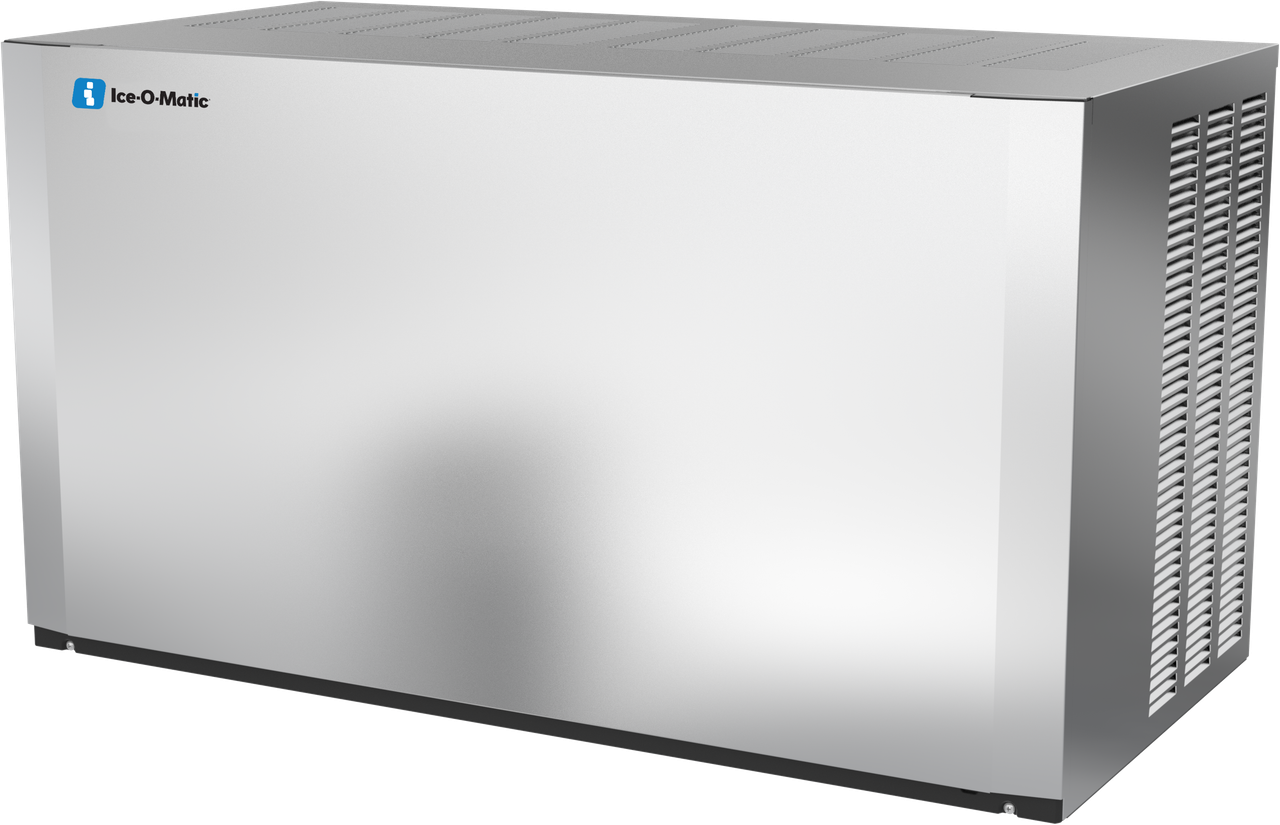

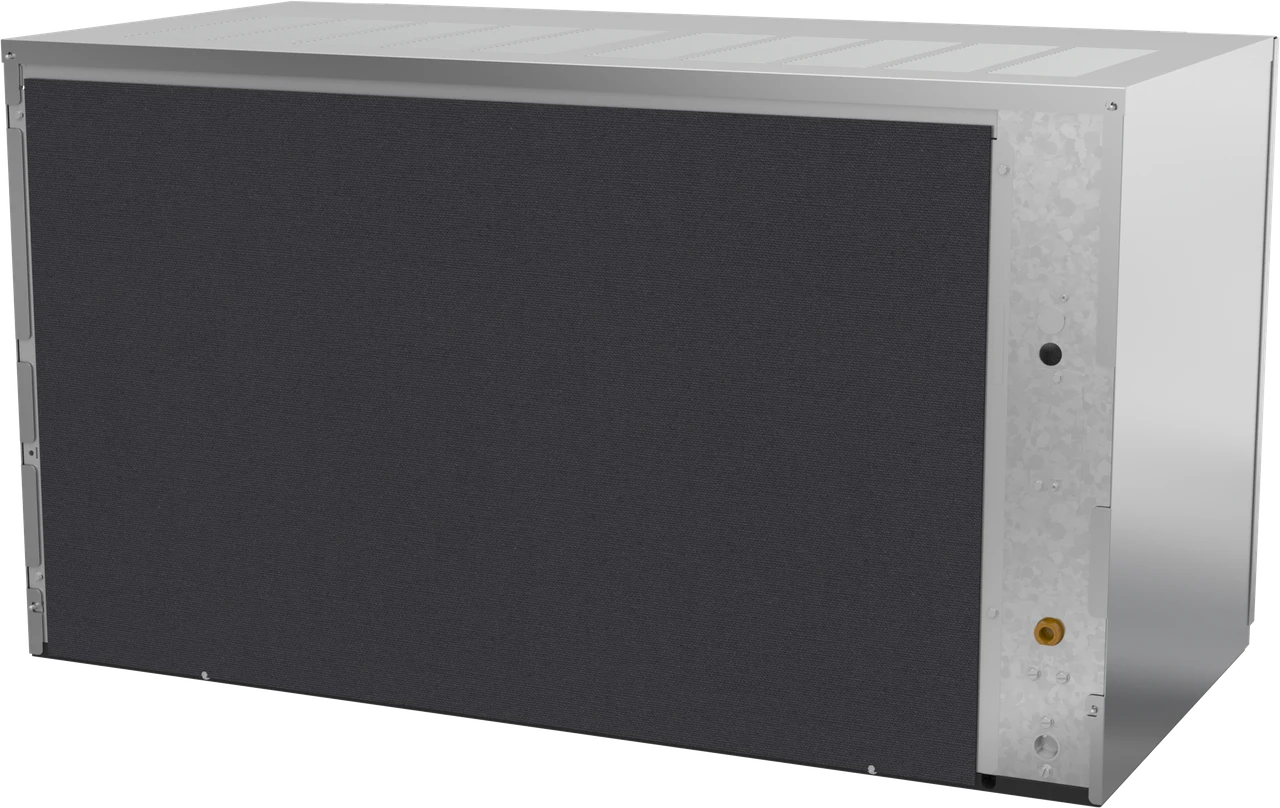

The Ice-O-Matic CIM1447FA is a 48 inch Elevation Series modular ice machine head that produces full cube ice at 1500 to 1600 pounds per 24 hours, air cooled, three-phase power, and designed to install on top of an ice storage bin or dispenser.

Three-Phase Power Distinguishes the 1447 Line from the 1446 Line

The CIM1447FA runs on 208-230/60/3 three-phase power and R404A refrigerant, while the outwardly similar CIM1446FA49 runs single-phase 208-230/60/1 power on R449A refrigerant. Both share the same 48.25 x 24.25 x 26.8 inch cabinet and 1500 to 1600 pound rated output, so the choice between the two lines comes down to what electrical service and refrigerant the operator's location supports.

Dual Exhaust and Front Facing Evaporator for Serviceability

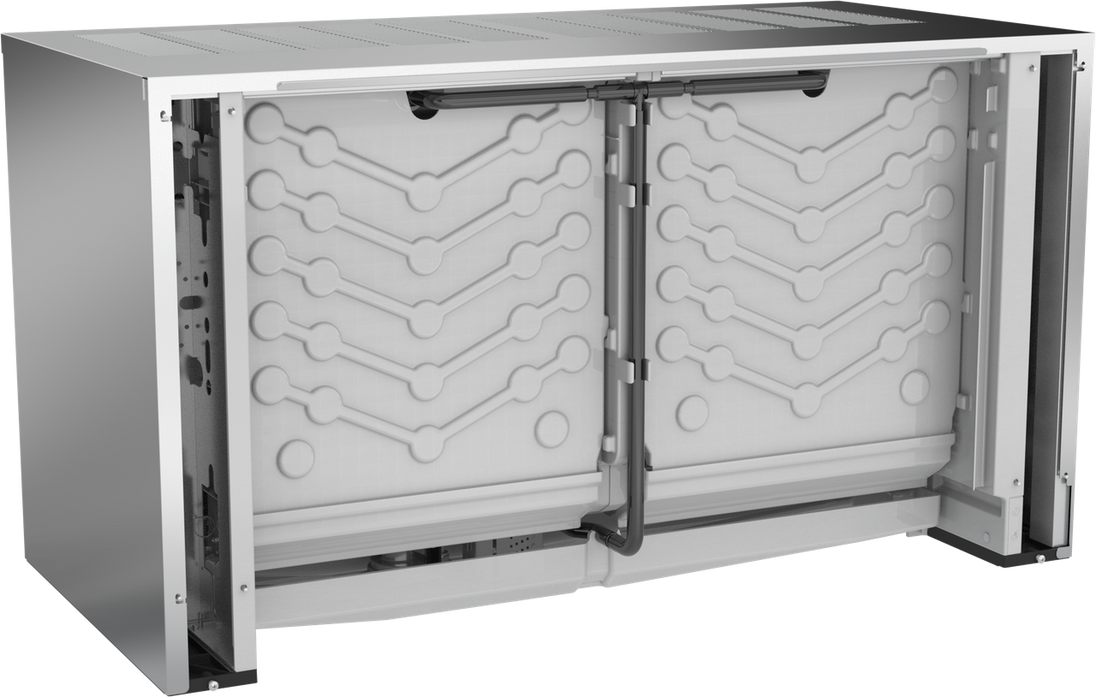

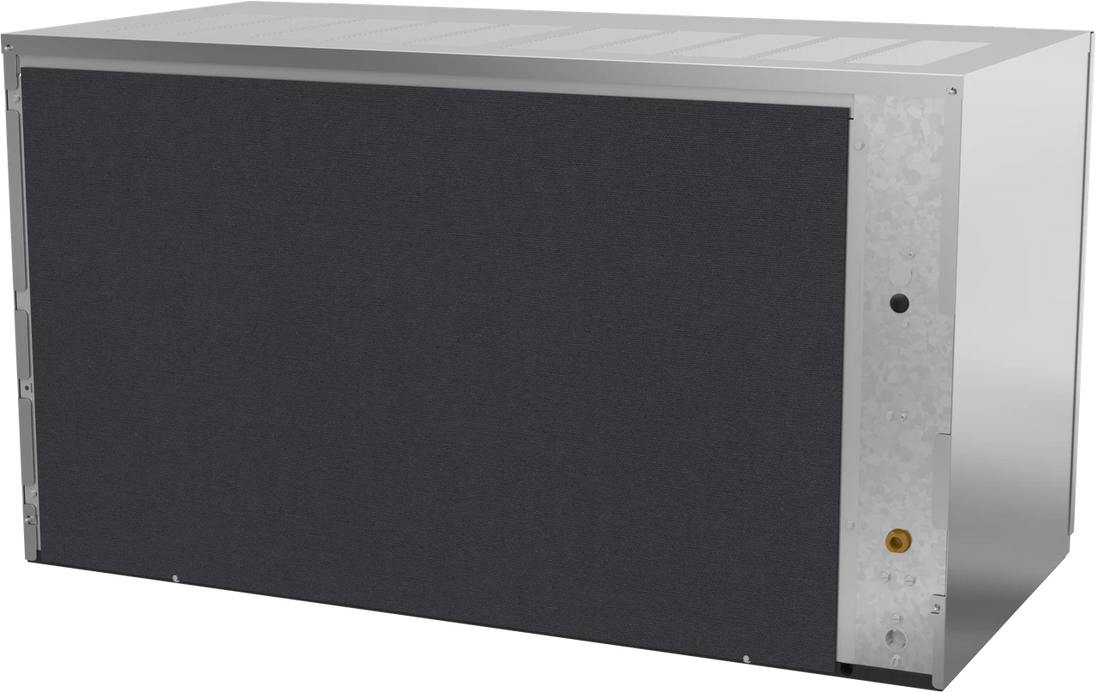

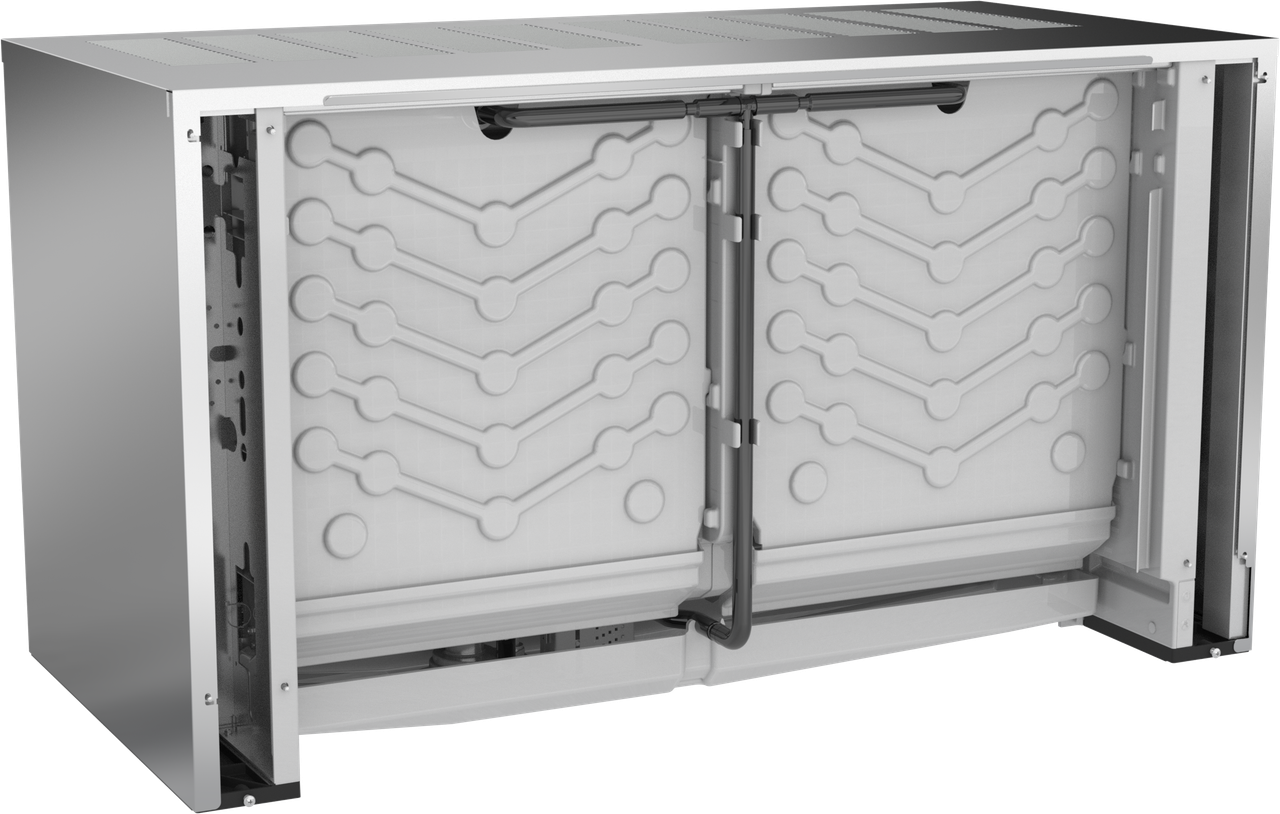

Modular design with dual exhaust lets installers route condenser heat rejection to fit the space around the unit, and common parts are shared across CIM models to simplify stocking spares. A front facing evaporator and dishwasher safe plastic components rated to 180 degrees F keep routine cleaning quick without removing the head from its bin.

Full Cube Output Matches Its Half Cube Sibling

At 1500 to 1600 pounds per day, the CIM1447FA produces the same daily volume as the half cube CIM1447HA in the identical footprint, condenser type, refrigerant, and filter system. The decision between the two comes down to ice shape rather than capacity or cabinet size.

Specifications

Model CIM1447FA
Series Elevation Series
Type Modular ice machine head (bin sold separately)
Ice Type Full Cube
Capacity 1500 to 1600 lb / 24hr
Exterior Dimensions 48.25 x 24.25 x 26.8 inches (W x D x H)
Electrical 208-230V / 60Hz / 3-Phase
Refrigerant R404A
Condenser Air Cooled
Filter System IFQ2
Shipping Weight 310 lb

Warranty

Ice-O-Matic publishes 3 years parts and labor on the CIM series, with 5 years parts coverage on the evaporator and compressor.
