Product Description

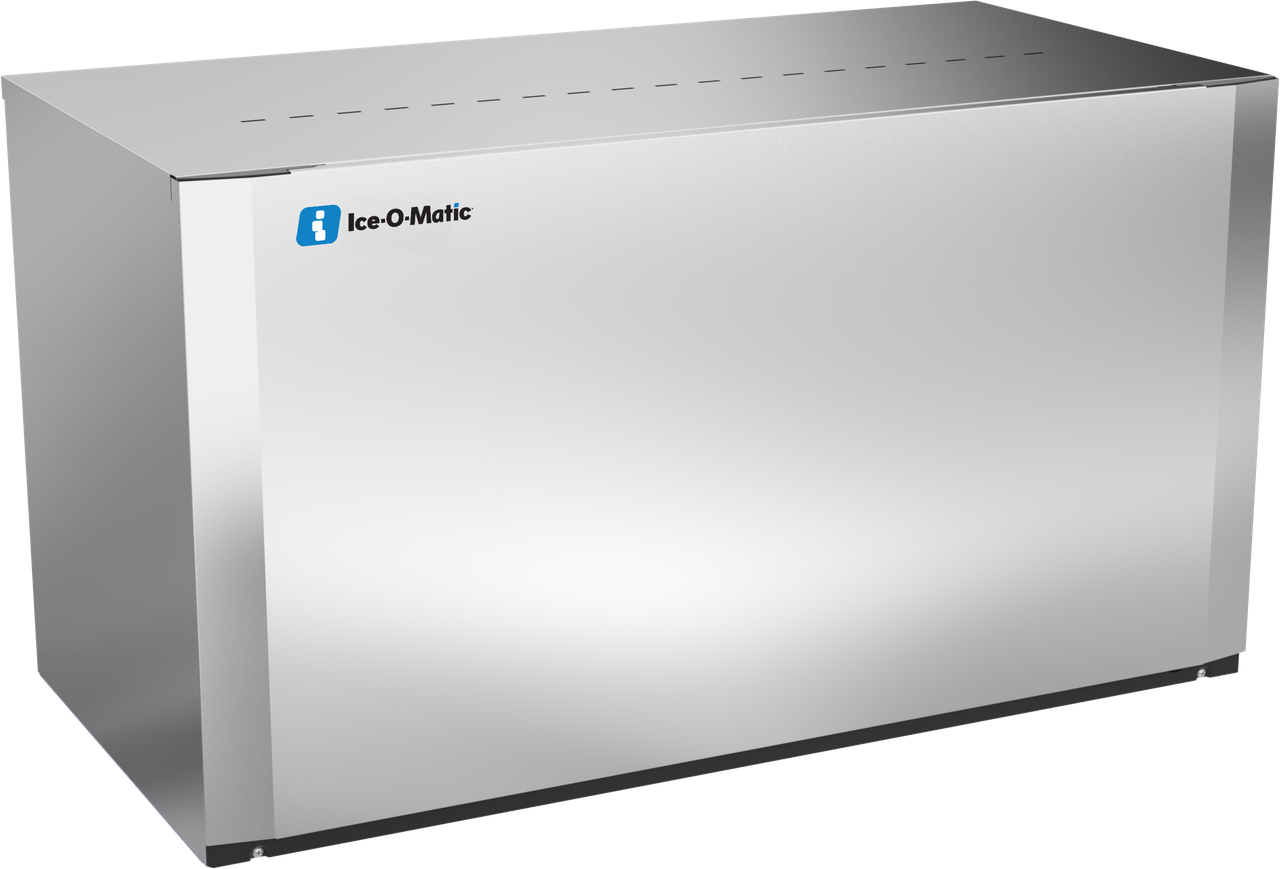

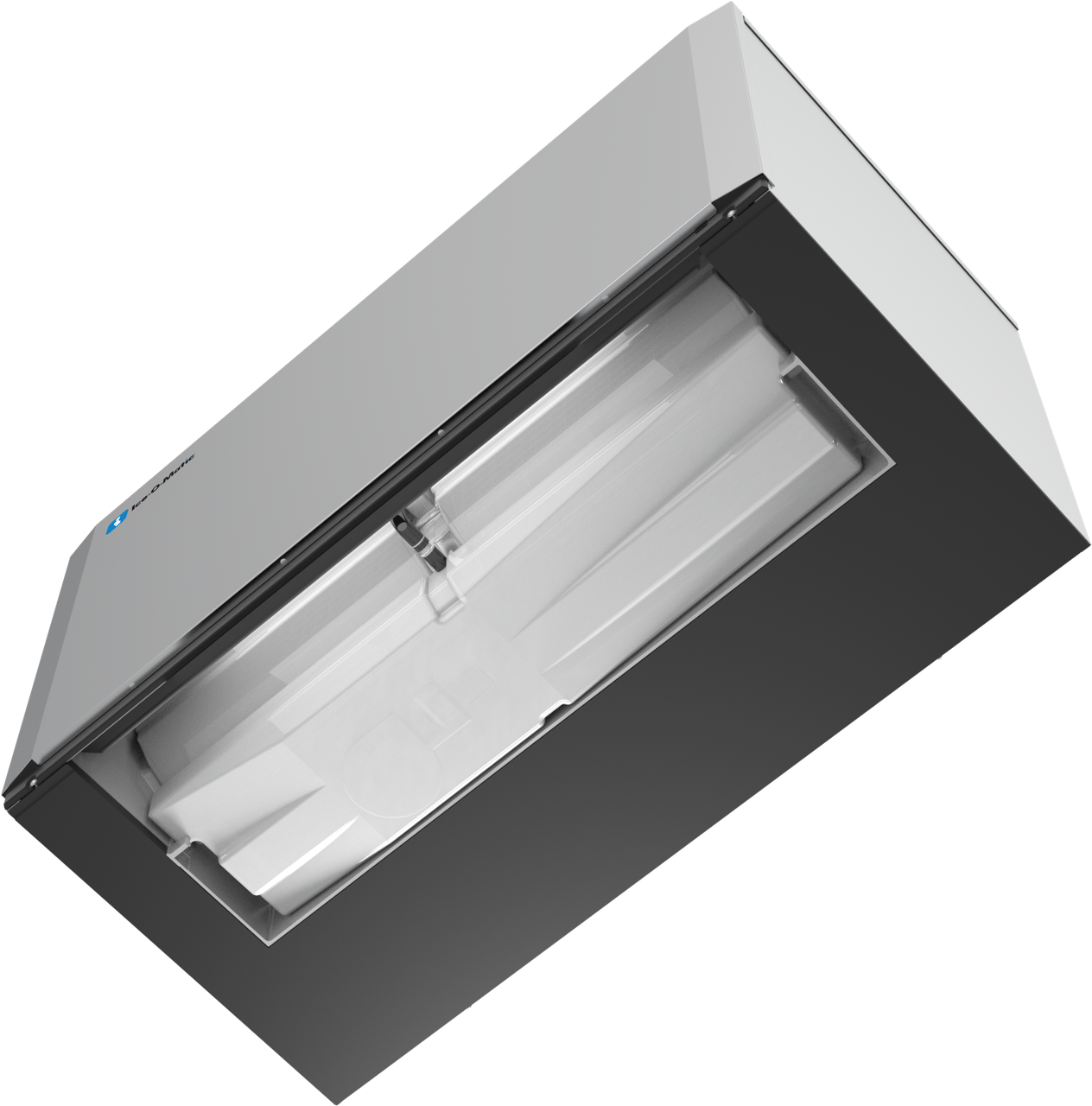

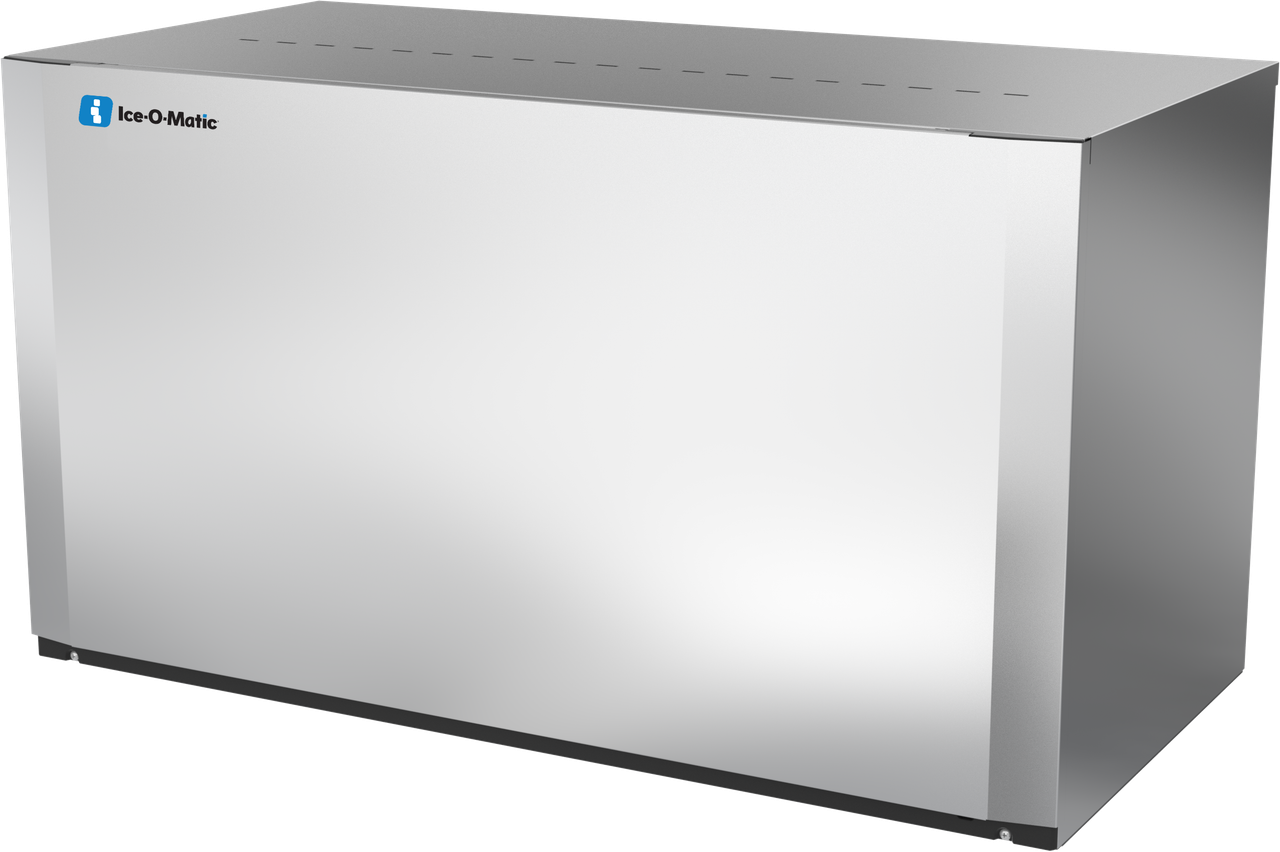

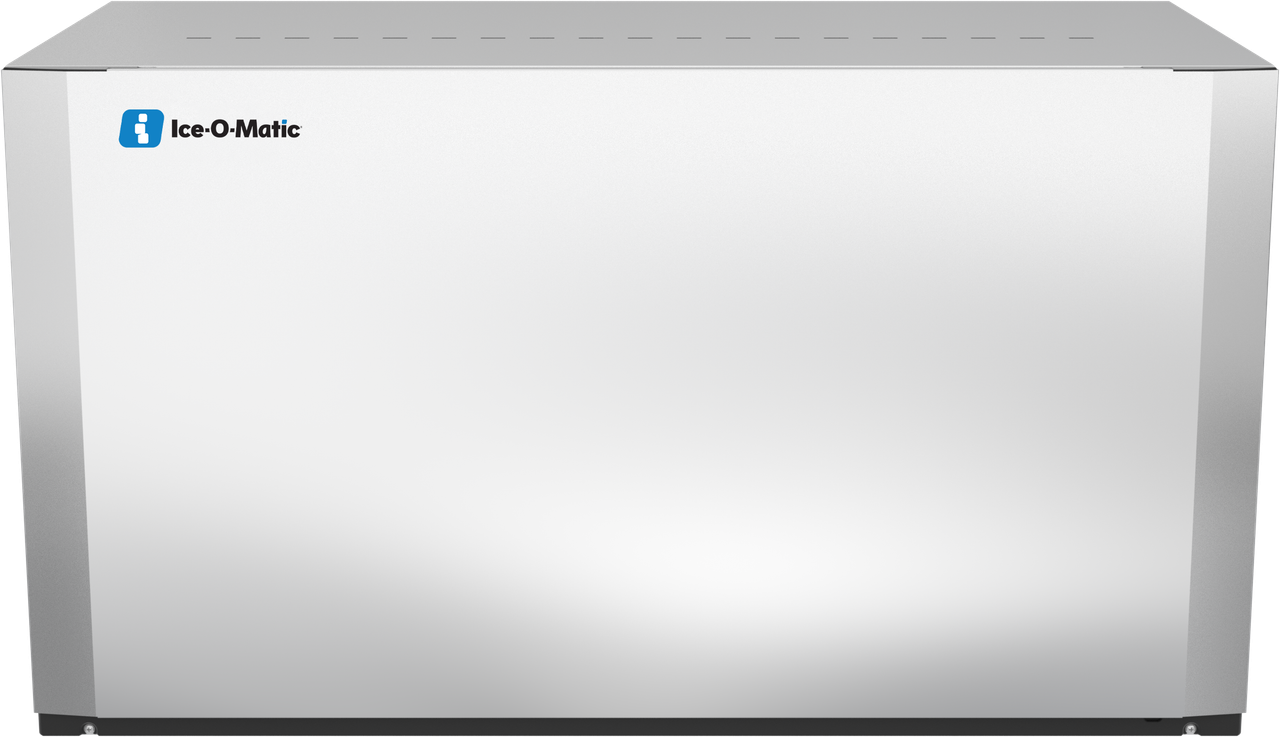

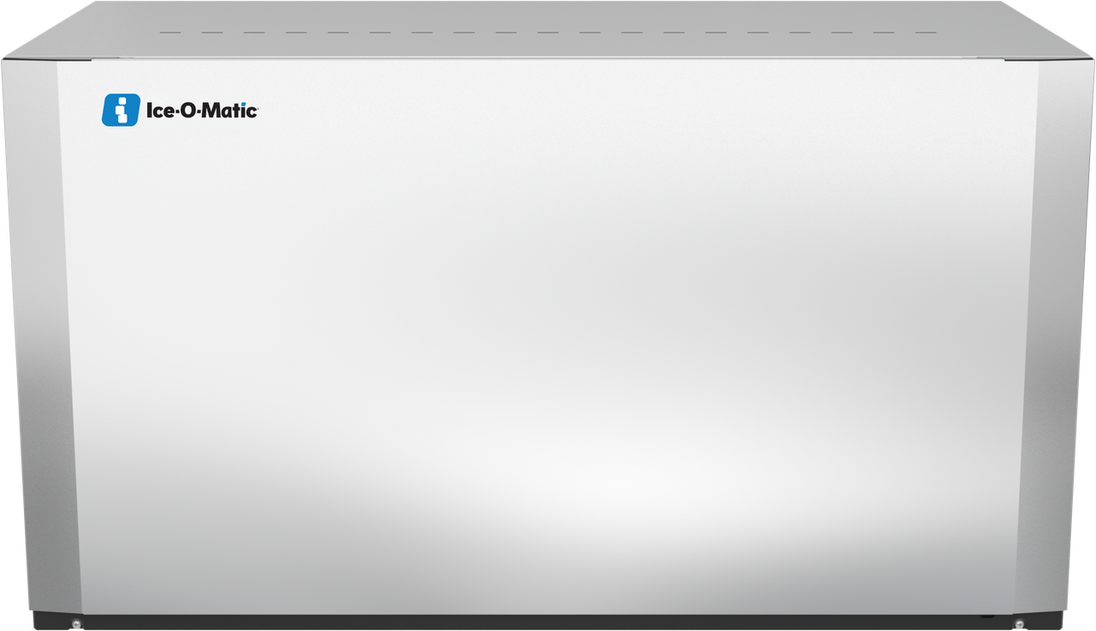

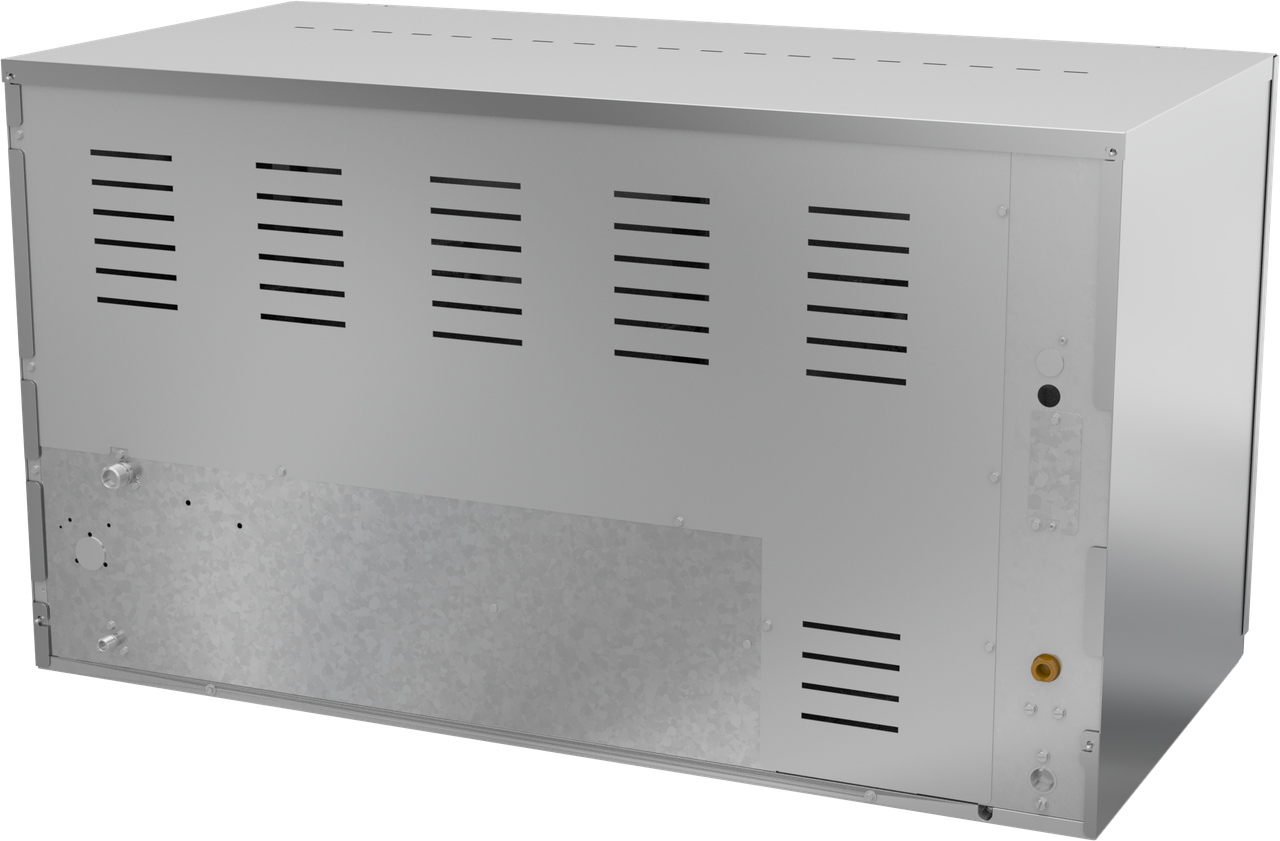

The Ice-O-Matic CIM1446HR49 is a 48 inch Elevation Series modular ice machine head that produces half cube ice at 1500 to 1600 pounds per 24 hours, remote cooled and designed to install on top of an ice storage bin or dispenser.

Remote Condenser Keeps Heat Rejection Out of the Kitchen

The CIM1446HR49 rejects condenser heat through a separately mounted remote condenser rather than into the kitchen air, pairing with the RC306C49 remote condenser. This differs from the air cooled CIM1446HA49, which shares the same 1500 to 1600 pound rated range but dissipates heat directly at the unit.

Front Facing Evaporator for Field Service

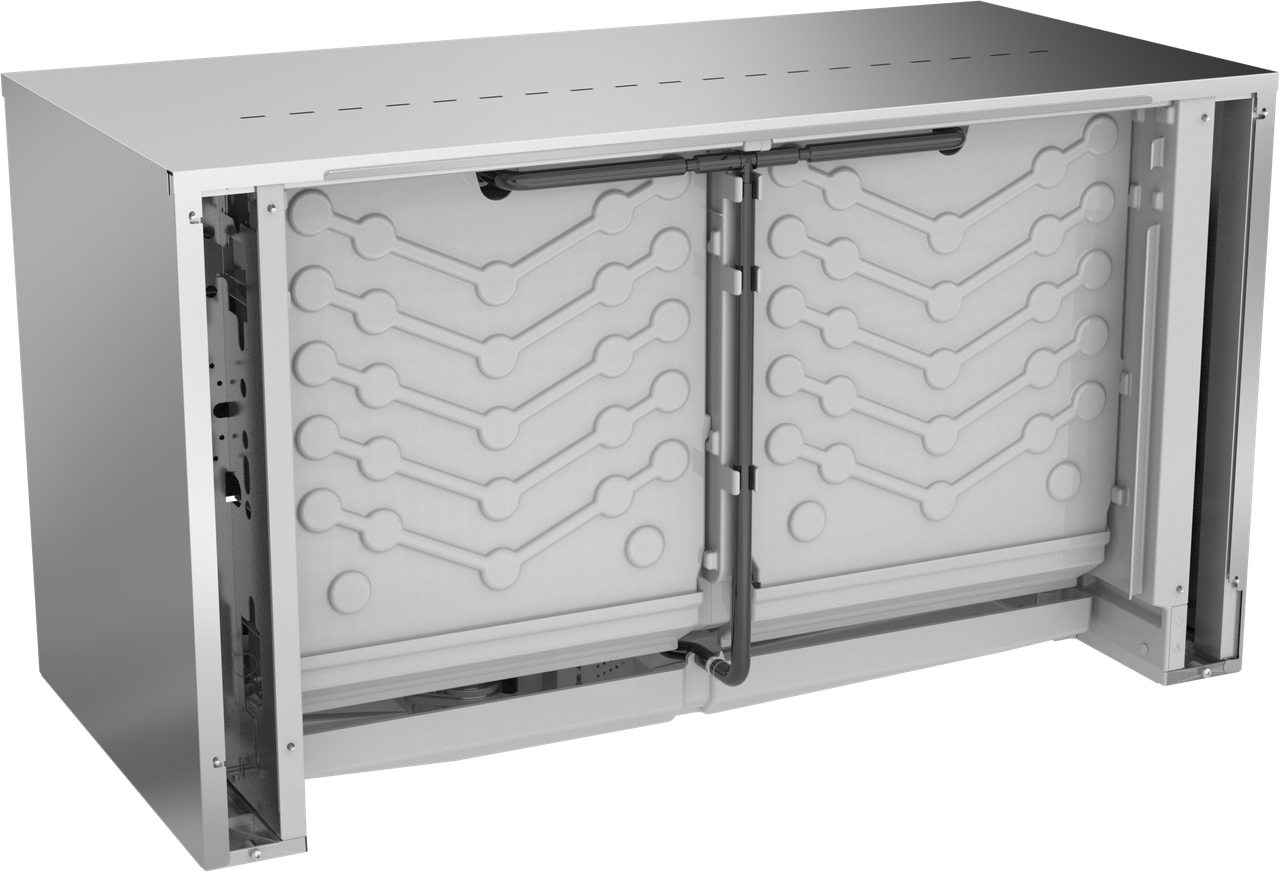

Modular design and dishwasher safe plastic components rated to 180 degrees F give technicians front access to the evaporator without pulling the cabinet off a bin. Electroless nickel plating on the evaporator plates and corrosion-resistant aluminum construction are shared across the CIM series regardless of condenser type.

Half Cube Runs a Narrower Production Range Than Its Full Cube Sibling

The remote cooled full cube CIM1446FR49 shares the same 48.25 x 24.25 x 26.8 inch cabinet, R449A refrigerant, and RC306C49 remote condenser pairing, but is rated 1600 to 1700 pounds per day versus the CIM1446HR49's 1500 to 1600 pounds, since Ice-O-Matic publishes different production ranges for full versus half cube on the remote-cooled 1446 variants.

Specifications

Model CIM1446HR49
Series Elevation Series
Type Modular ice machine head (bin sold separately)
Ice Type Half Cube
Capacity 1500 to 1600 lb / 24hr
Exterior Dimensions 48.25 x 24.25 x 26.8 inches (W x D x H)
Electrical 208-230V / 60Hz / 1-Phase
Refrigerant R449A
Condenser Remote (pairs with RC306C49)
Filter System IFQ2
Certifications BABA Compliant
Shipping Weight 318 lb

Warranty

Ice-O-Matic publishes 3 years parts and labor on the CIM series, with 5 years parts coverage on the evaporator and compressor.
