Product Description

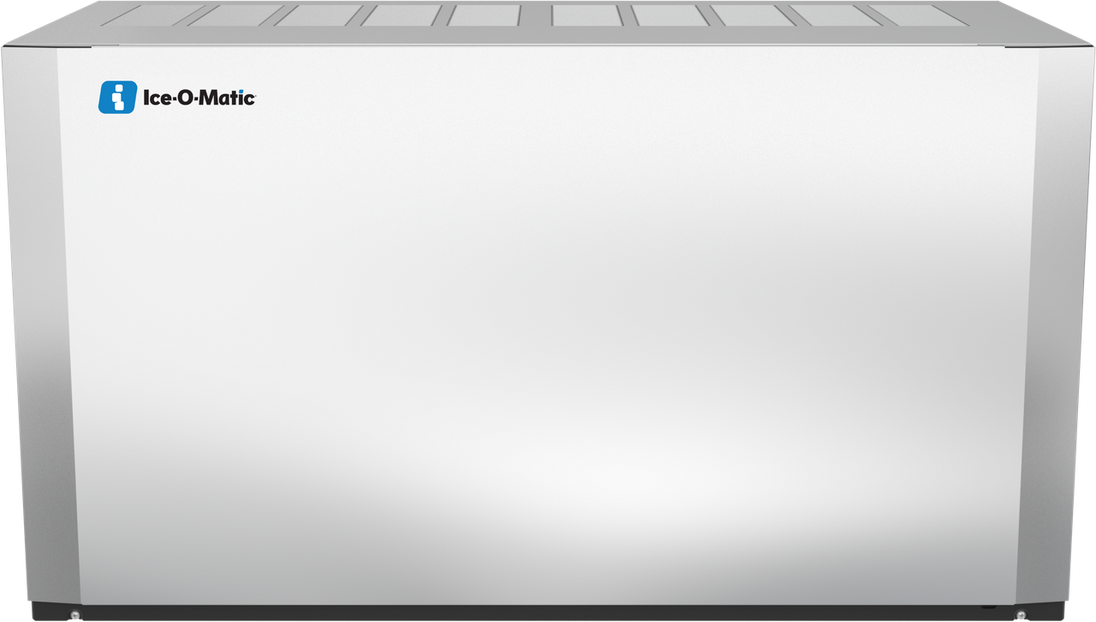

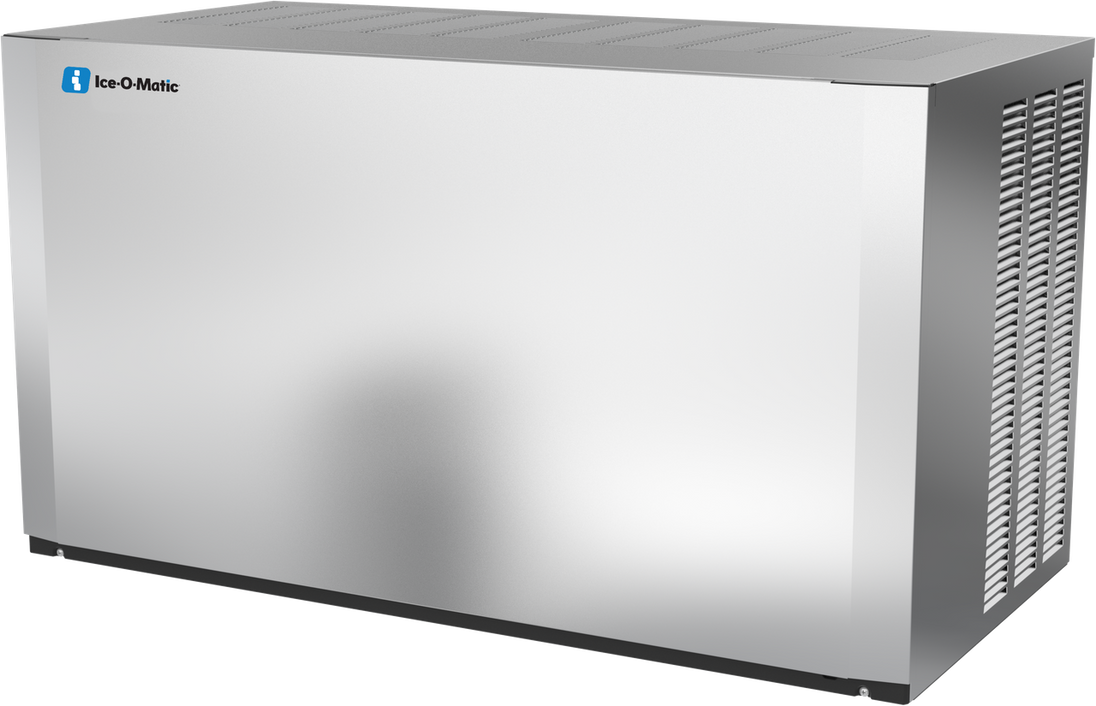

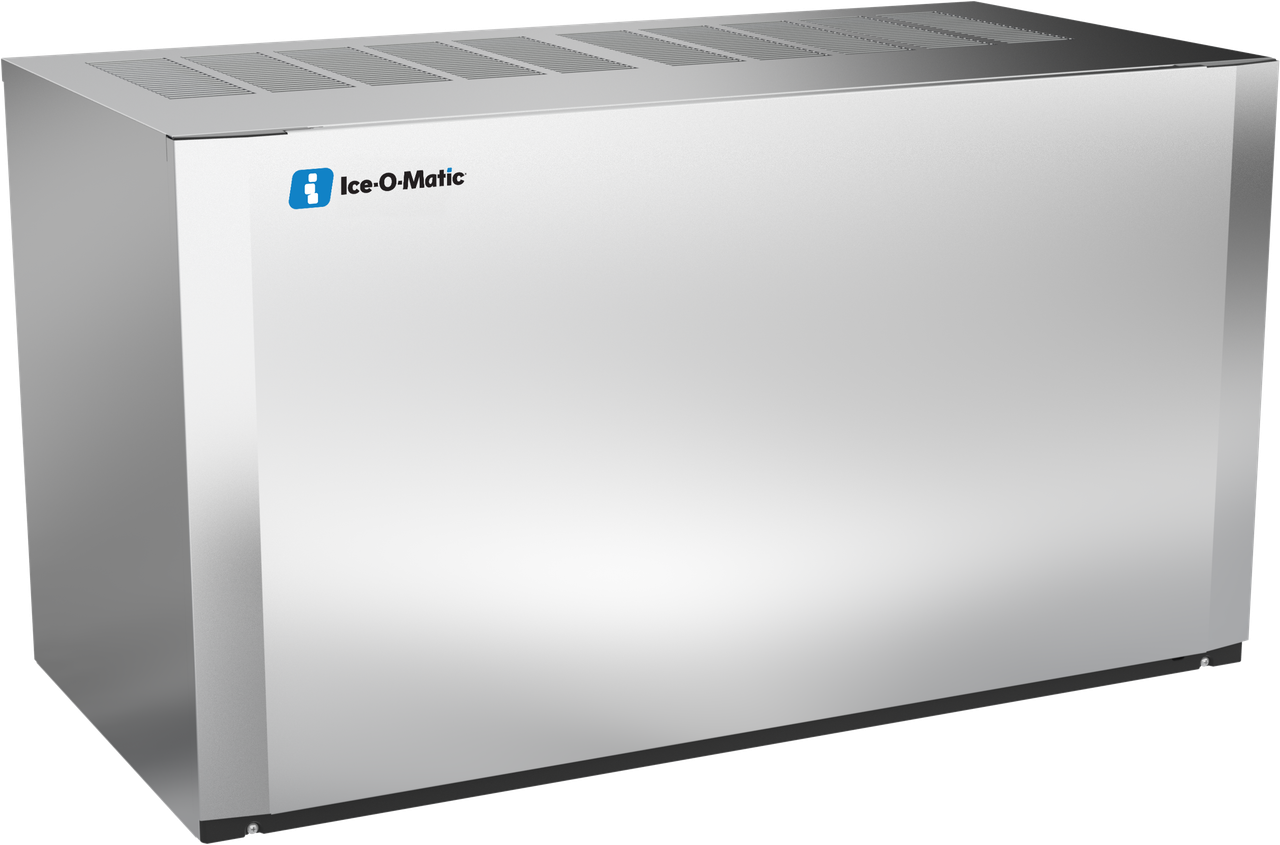

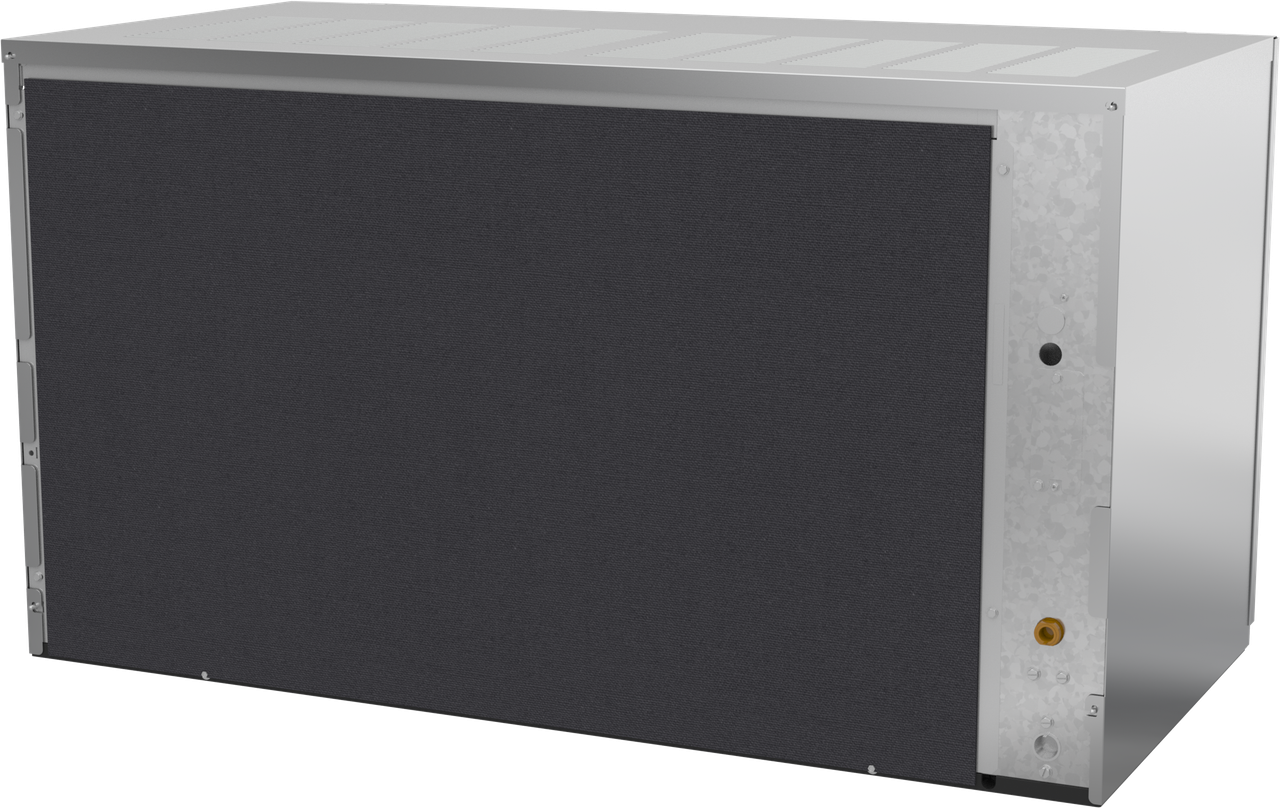

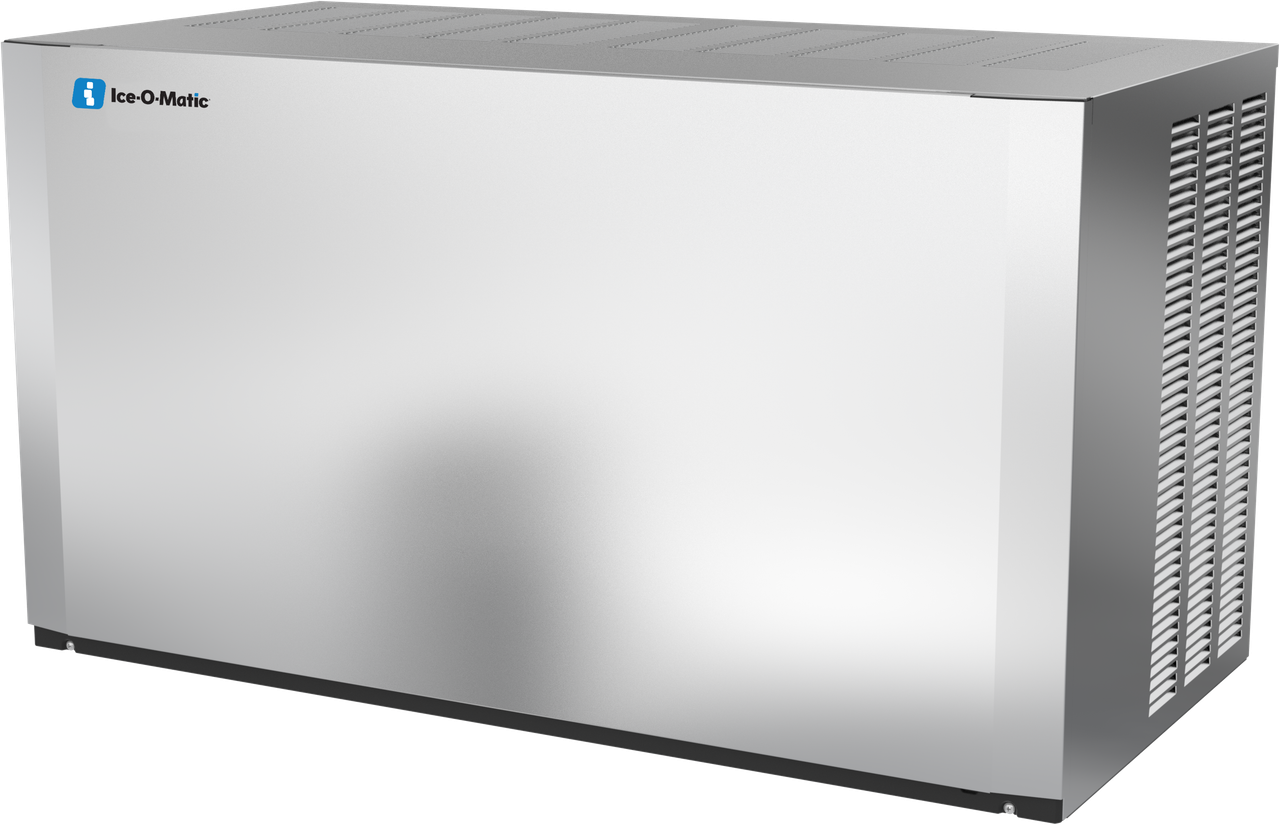

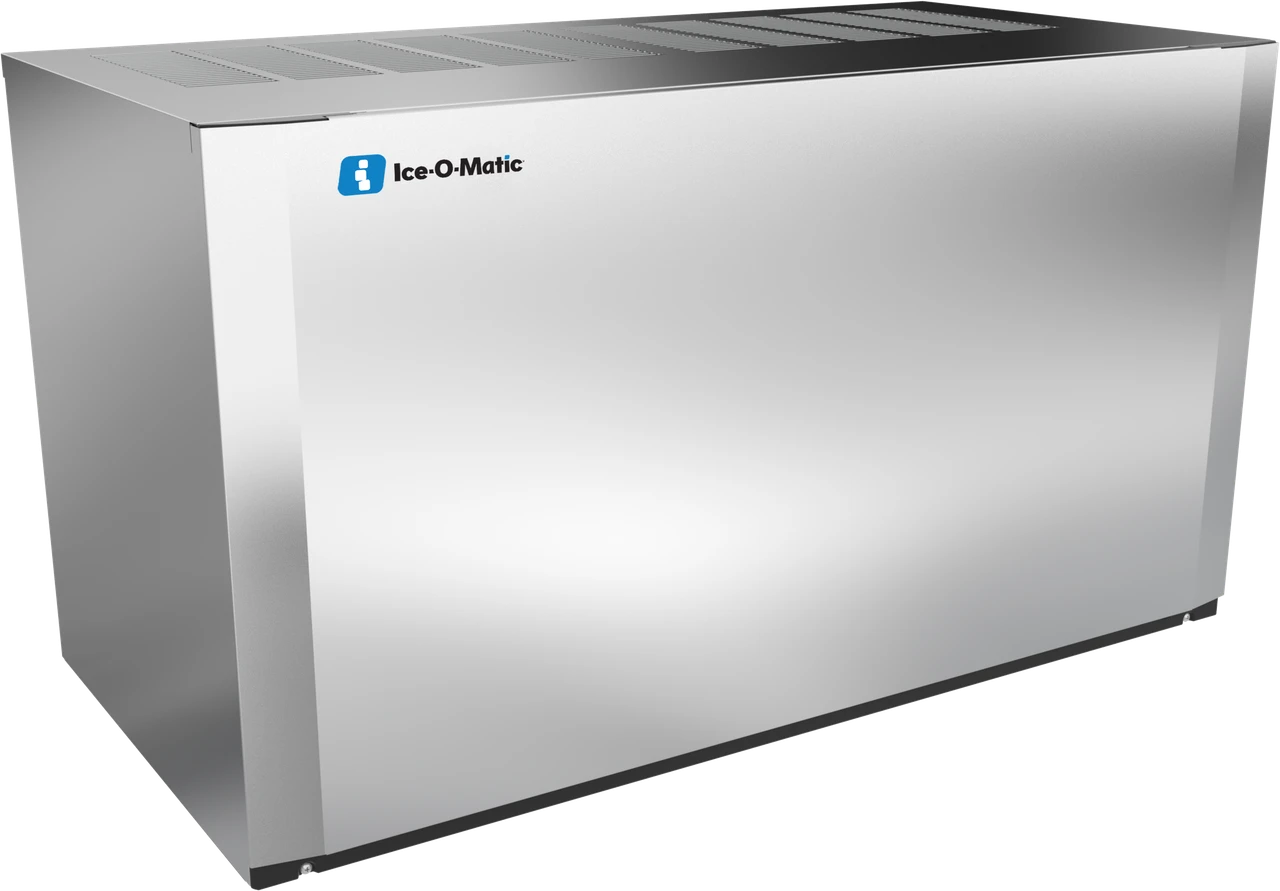

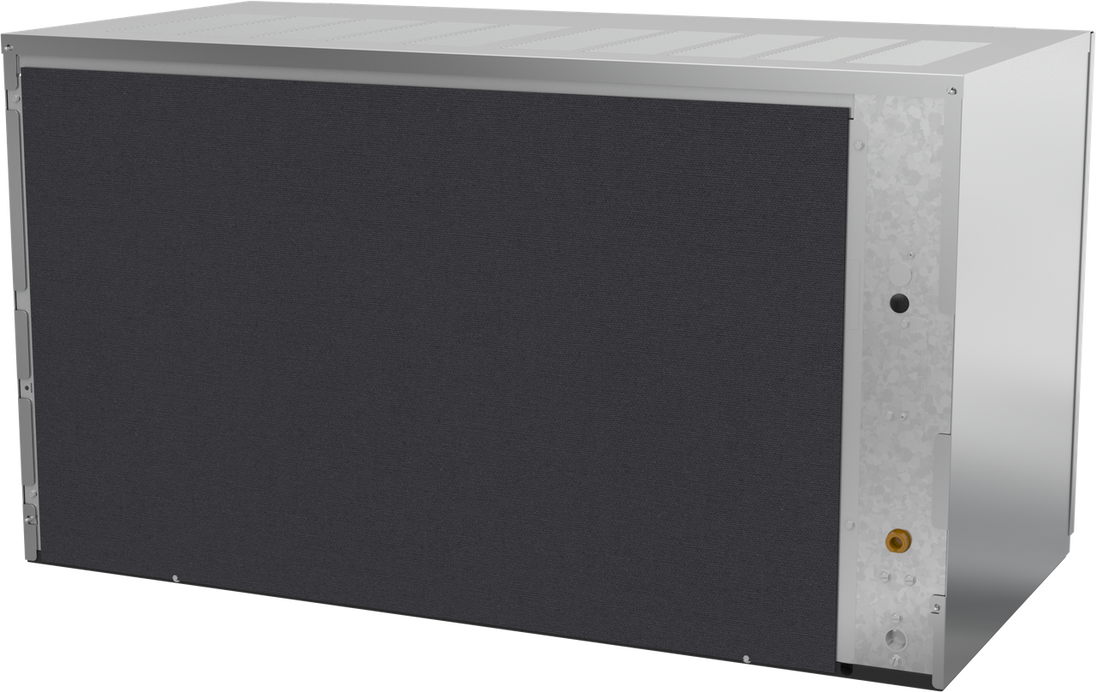

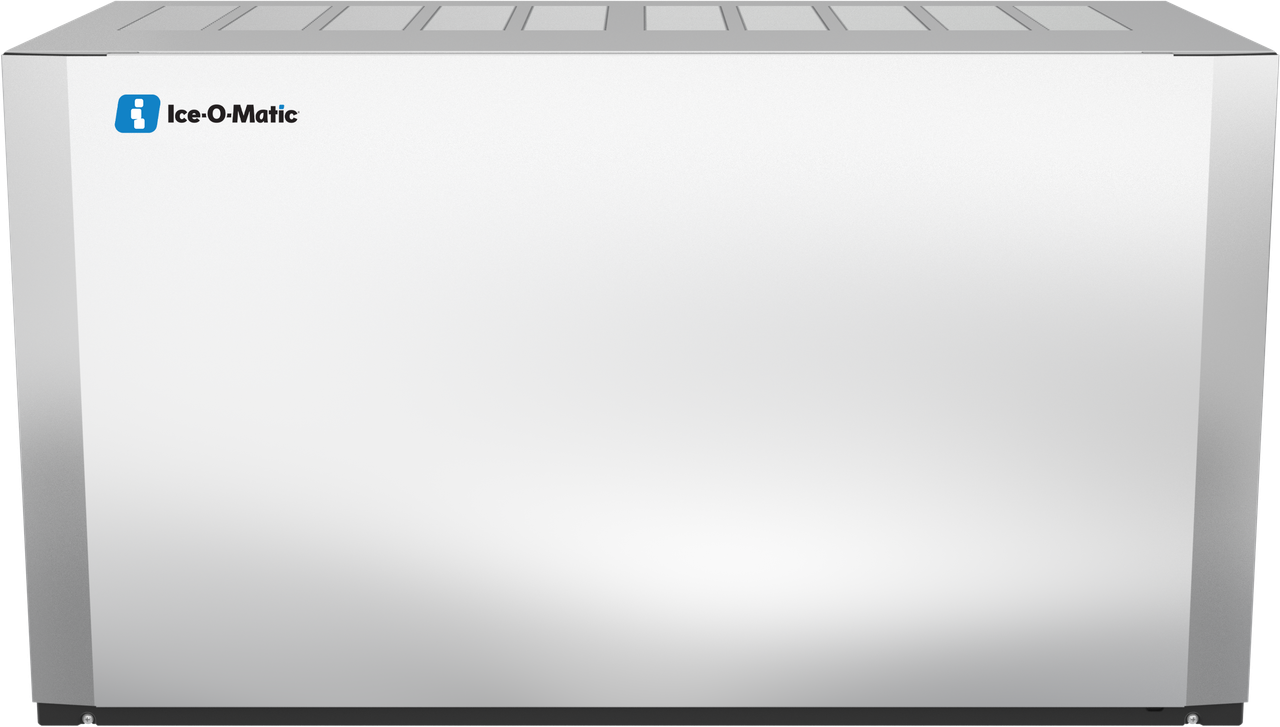

The Ice-O-Matic CIM1446HA49 is a 48 inch Elevation Series modular ice machine head that produces half cube ice at 1500 to 1600 pounds per 24 hours, air cooled and designed to install on top of an ice storage bin or dispenser.

Dual Exhaust for Air Cooled Installation Flexibility

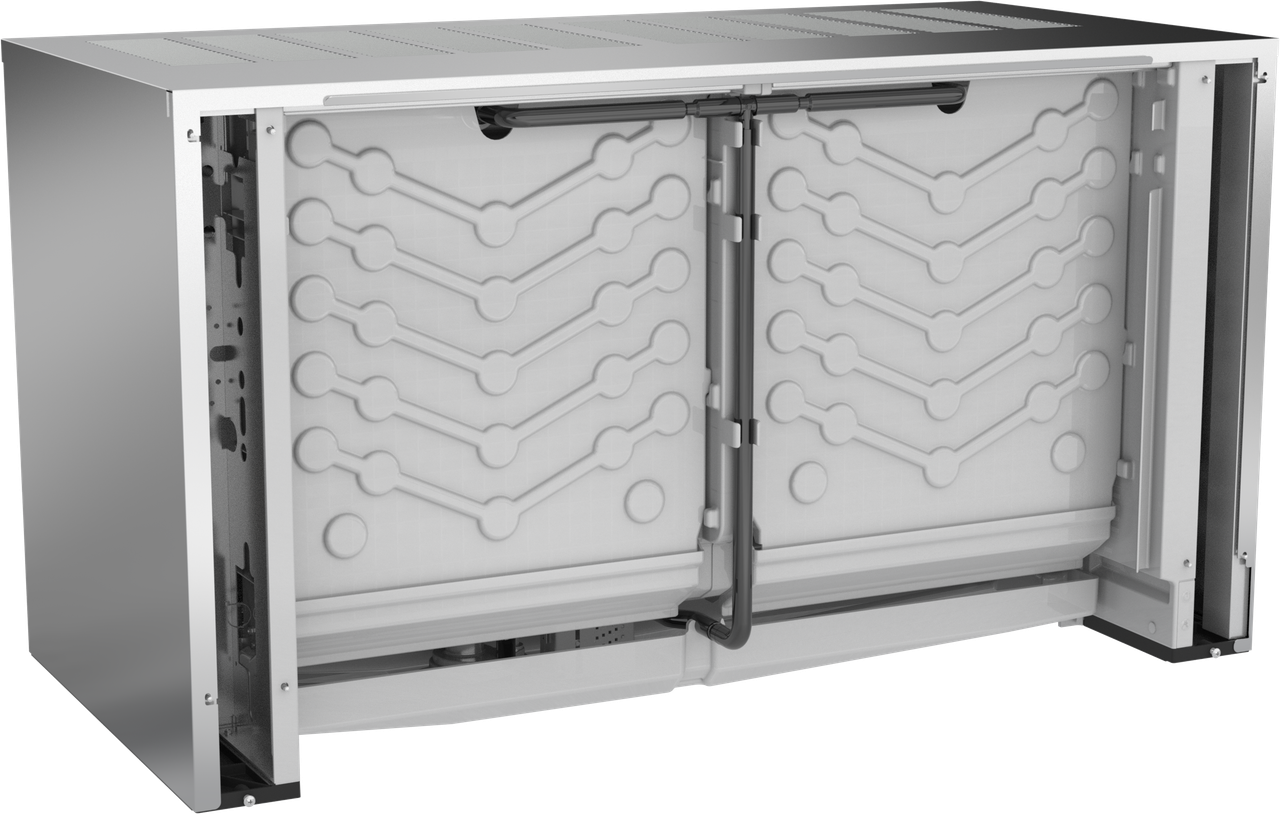

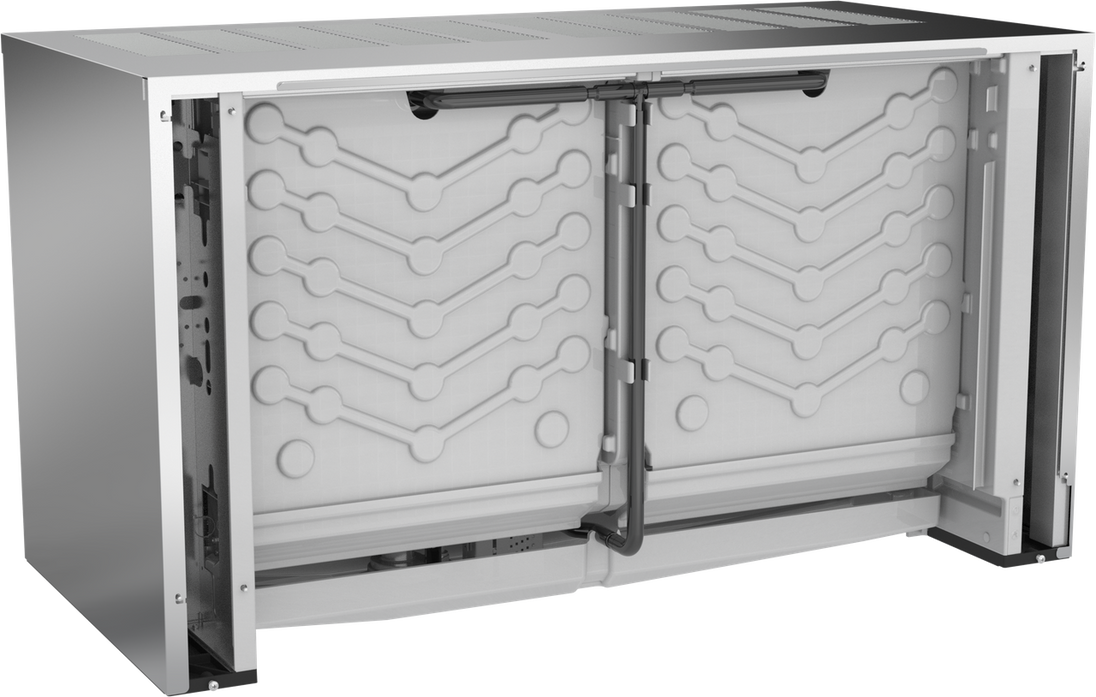

The CIM1446HA49 uses a modular design with dual exhaust for flexible application, letting installers route condenser heat rejection to suit the space around the unit. A front facing evaporator and dishwasher safe plastic components rated to 180 degrees F keep routine cleaning quick without pulling the head off the bin.

Half Cube Output Matches Its Full Cube Sibling

At 1500 to 1600 pounds per day, the CIM1446HA49 produces the same daily volume as the full cube CIM1446FA49 in the identical 48.25 x 24.25 x 26.8 inch footprint. Both share the same air cooled condenser, R449A refrigerant charge, and IFQ2 filter system, so the decision between the two comes down to ice shape rather than capacity or cabinet size.

Air Cooled Condenser Trades Some Output for Kitchen Simplicity

The air cooled CIM1446HA49 dissipates condenser heat directly into the kitchen and is rated 1500 to 1600 pounds per day, while the remote cooled CIM1446HR49 shares the same rated range but moves that heat out of the kitchen via an RC306C49 remote condenser. Operators who want to avoid running remote condenser linesets can install the CIM1446HA49 without additional outdoor equipment.

Specifications

Model CIM1446HA49
Series Elevation Series
Type Modular ice machine head (bin sold separately)
Ice Type Half Cube
Capacity 1500 to 1600 lb / 24hr
Exterior Dimensions 48.25 x 24.25 x 26.8 inches (W x D x H)
Electrical 208-230V / 60Hz / 1-Phase
Refrigerant R449A
Condenser Air Cooled
Filter System IFQ2
Certifications BABA Compliant
Shipping Weight 318 lb

Warranty

Ice-O-Matic publishes 3 years parts and labor on the CIM series, with 5 years parts coverage on the evaporator and compressor.
