Product Description

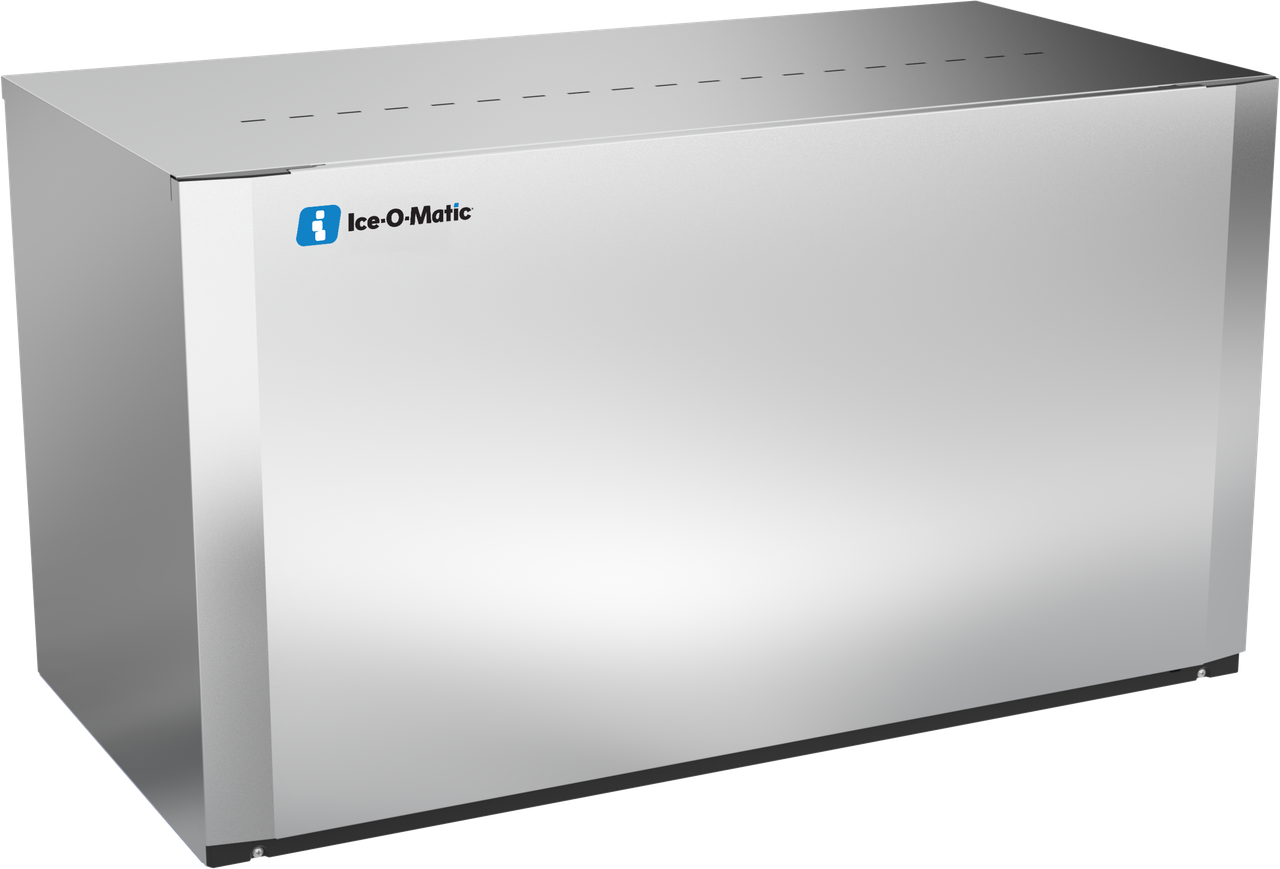

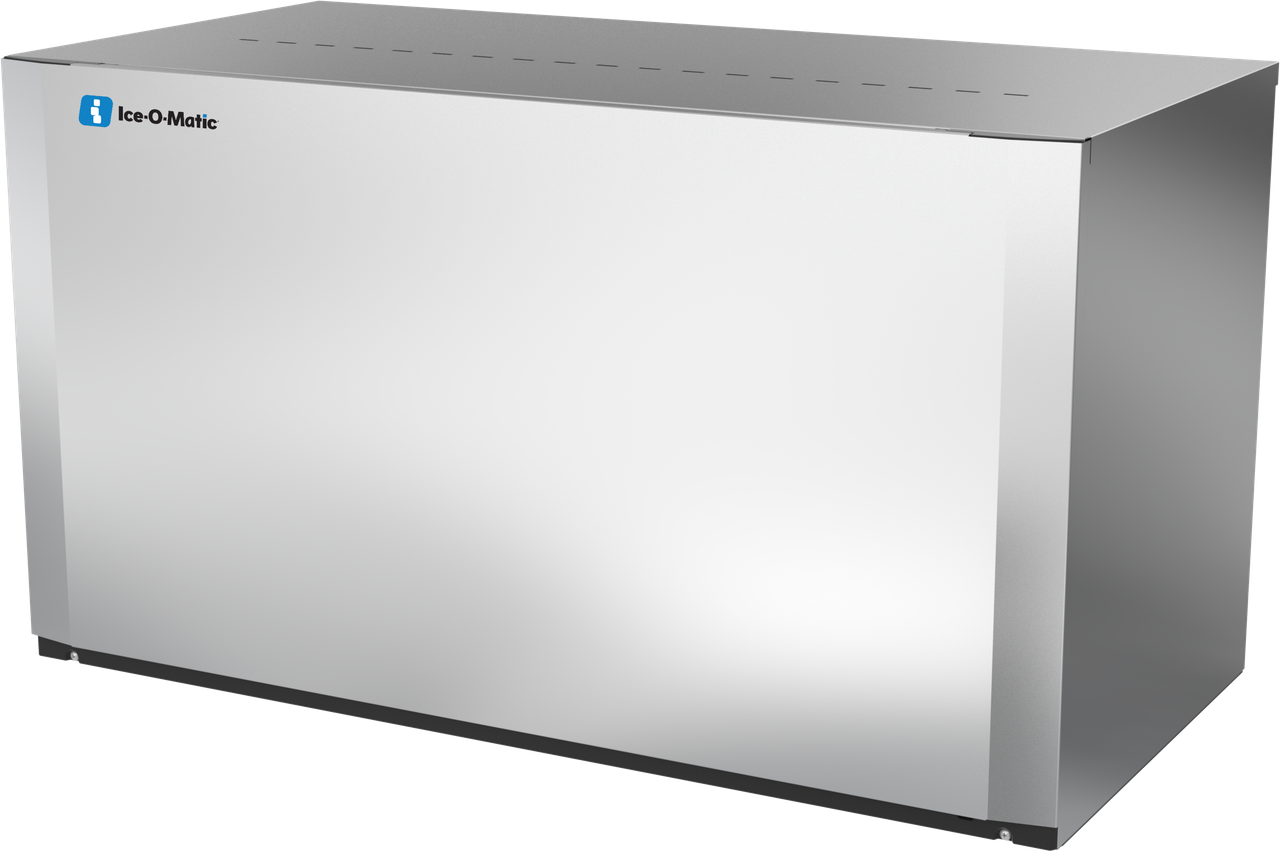

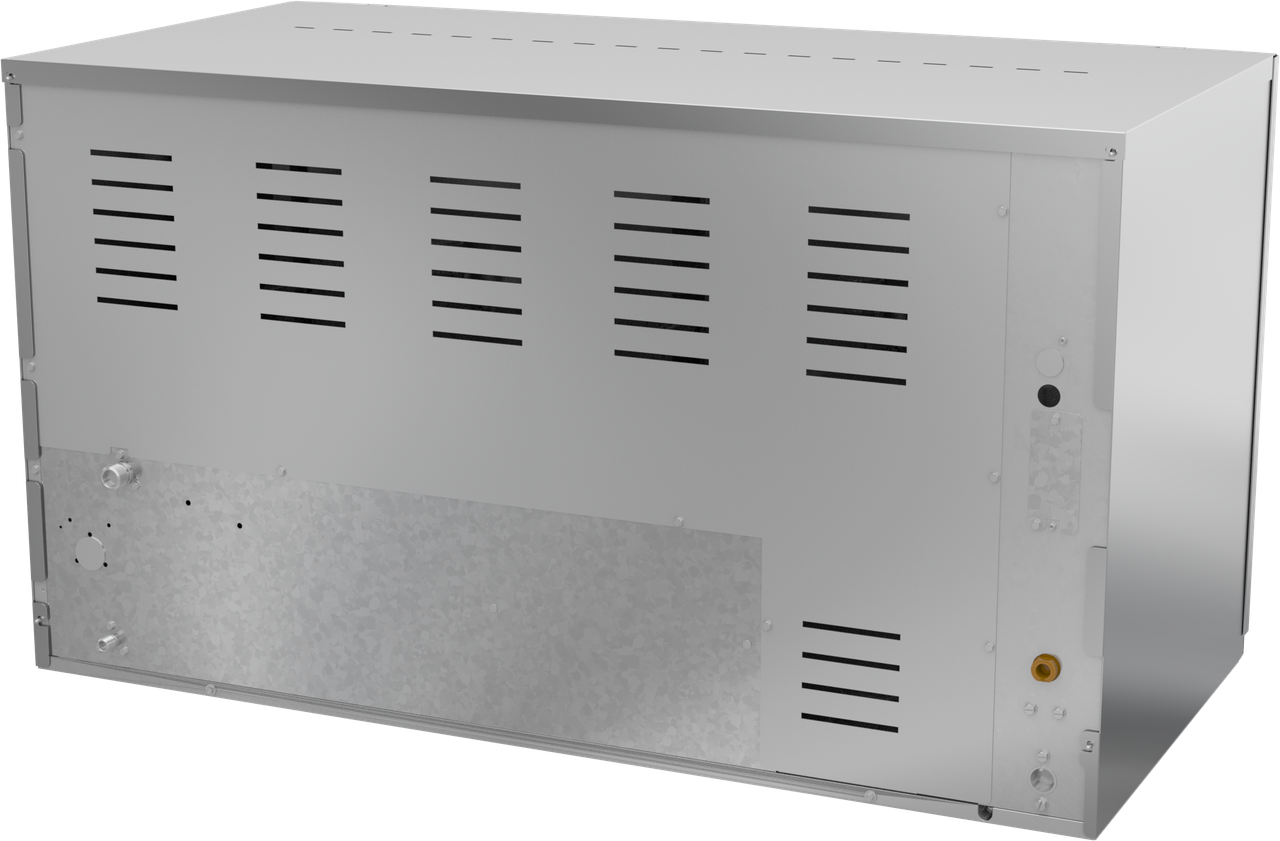

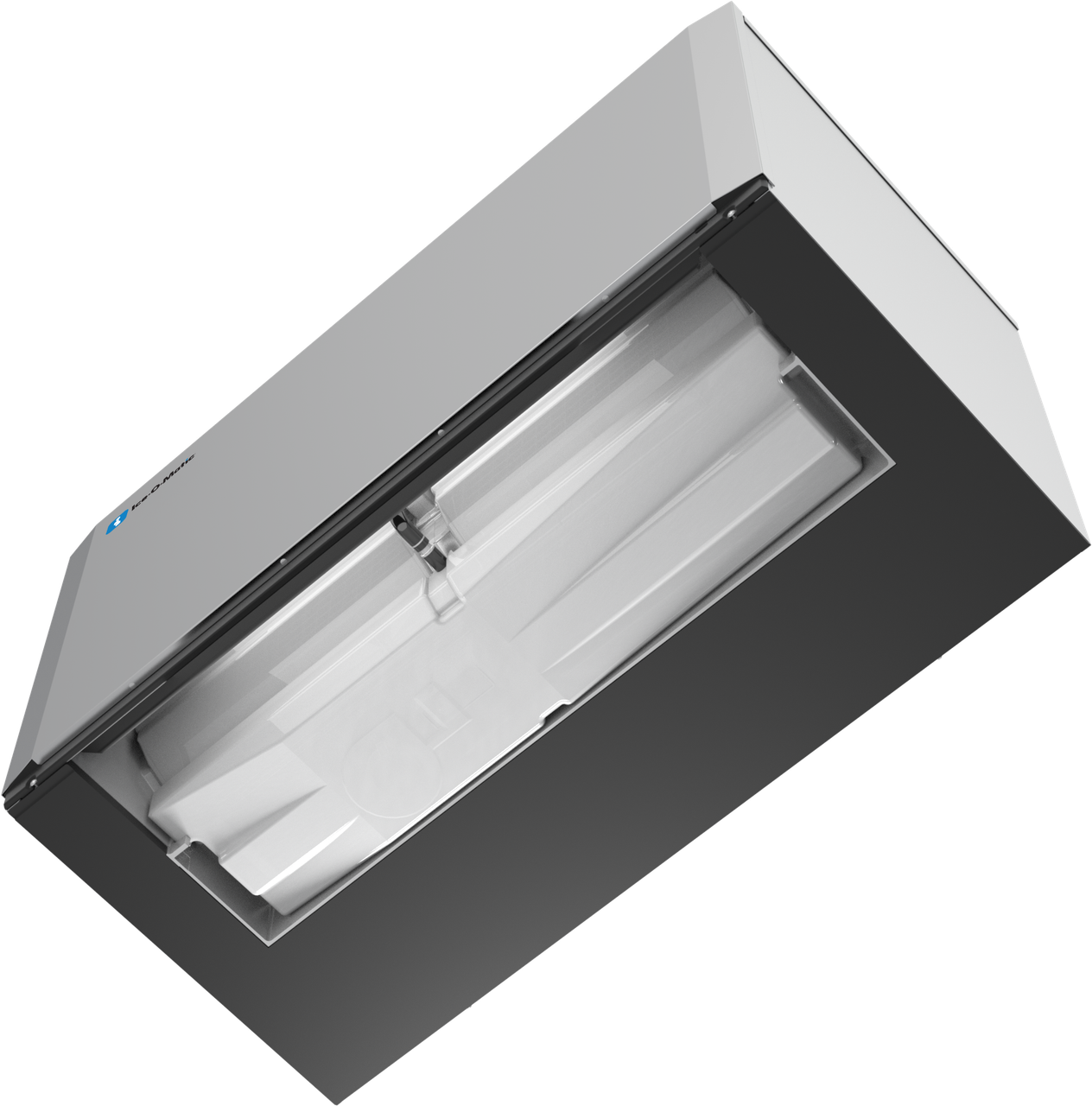

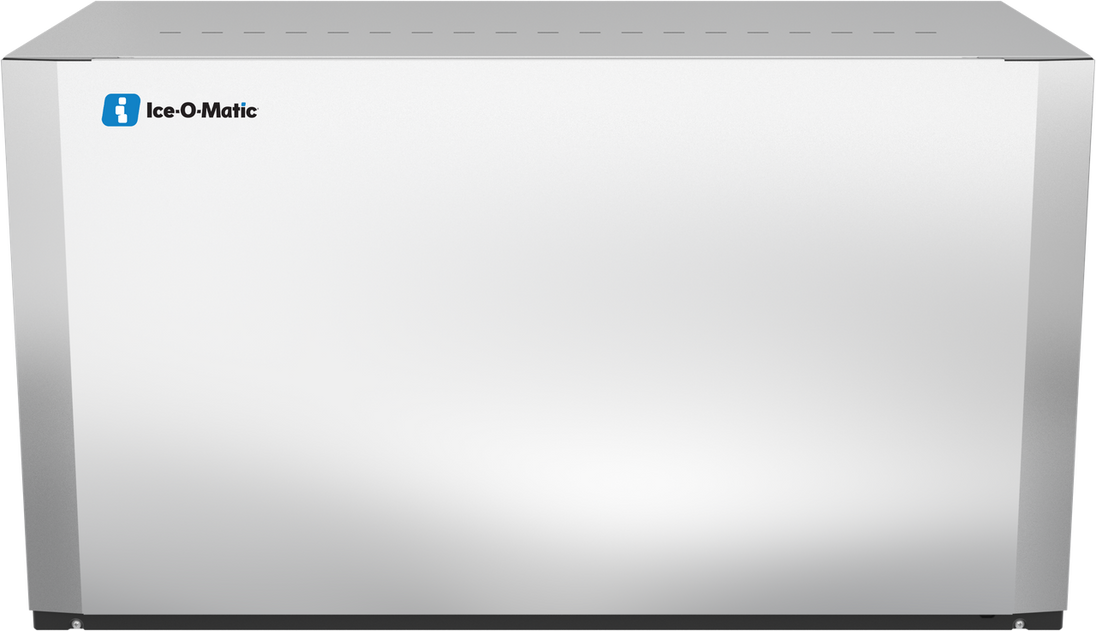

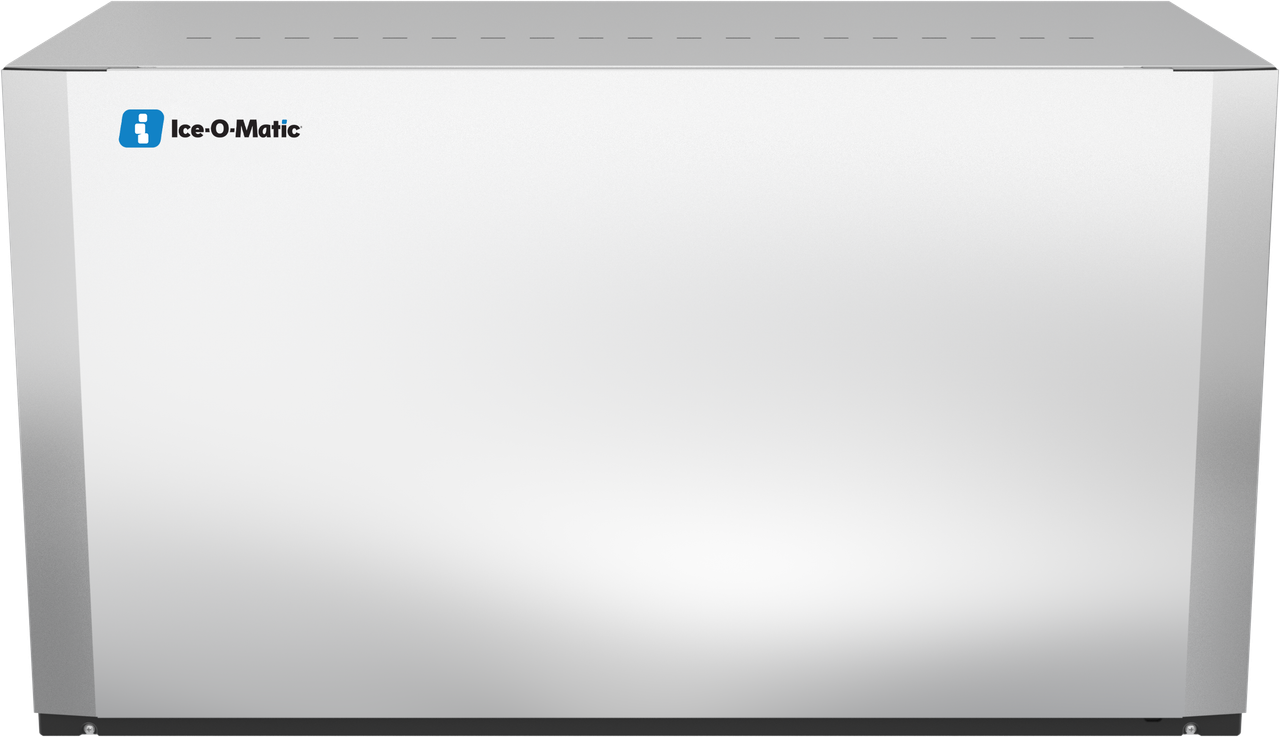

The Ice-O-Matic CIM1446FR49 is a 48 inch Elevation Series modular ice machine head that produces full cube ice at 1600 to 1700 pounds per 24 hours, remote cooled and designed to install on top of an ice storage bin or dispenser.

Remote Condenser Lifts Output Above the Air Cooled Variant

The CIM1446FR49 rejects condenser heat through a separately mounted remote condenser rather than into the kitchen air, and it is rated 1600 to 1700 pounds per day versus 1500 to 1600 pounds for the air cooled CIM1446FA49 in the same footprint. The unit pairs with the RC306C49 remote condenser and precharged linesets (RL49-25, RL49-40, RL49-75), keeping the compressor's heat rejection out of the kitchen entirely.

Front Facing Evaporator for Field Service

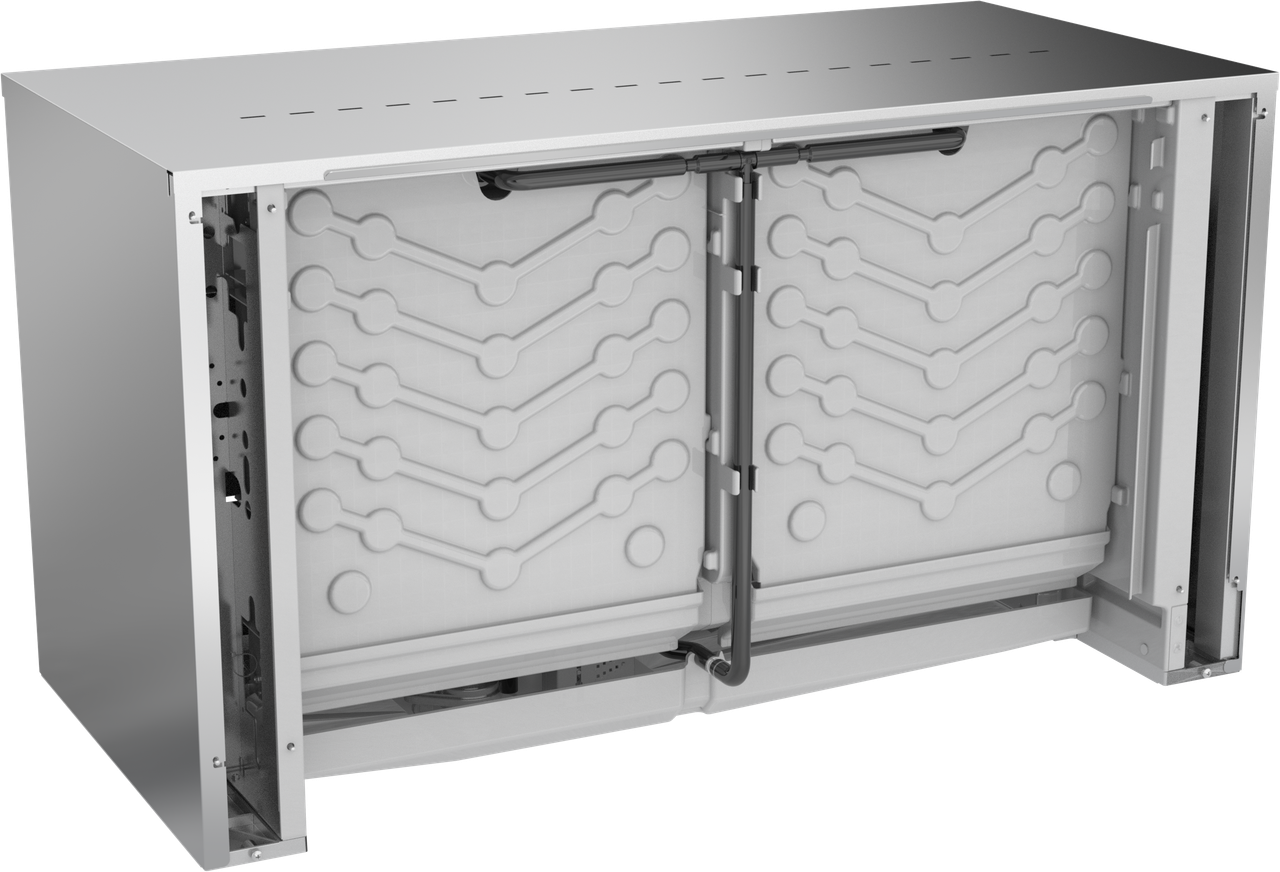

Modular design and dishwasher safe plastic components rated to 180 degrees F give technicians front access to the evaporator without pulling the cabinet off a bin. Electroless nickel plating on the evaporator plates and corrosion-resistant aluminum construction are shared across the CIM series regardless of condenser type.

Full Cube Output Matches Its Half Cube Sibling in Rated Range

The remote cooled half cube CIM1446HR49 shares the same 48.25 x 24.25 x 26.8 inch cabinet, R449A refrigerant, and RC306C49 remote condenser pairing, but is rated 1500 to 1600 pounds per day rather than the CIM1446FR49's 1600 to 1700 pounds, since Ice-O-Matic publishes different production ranges for full versus half cube on the remote-cooled 1446 variants.

Specifications

Model CIM1446FR49
Series Elevation Series
Type Modular ice machine head (bin sold separately)
Ice Type Full Cube
Capacity 1600 to 1700 lb / 24hr
Exterior Dimensions 48.25 x 24.25 x 26.8 inches (W x D x H)
Electrical 208-230V / 60Hz / 1-Phase
Refrigerant R449A
Condenser Remote (pairs with RC306C49)
Filter System IFQ2
Certifications BABA Compliant
Shipping Weight 310 lb

Warranty

Ice-O-Matic publishes 3 years parts and labor on the CIM series, with 5 years parts coverage on the evaporator and compressor.
