Product Description

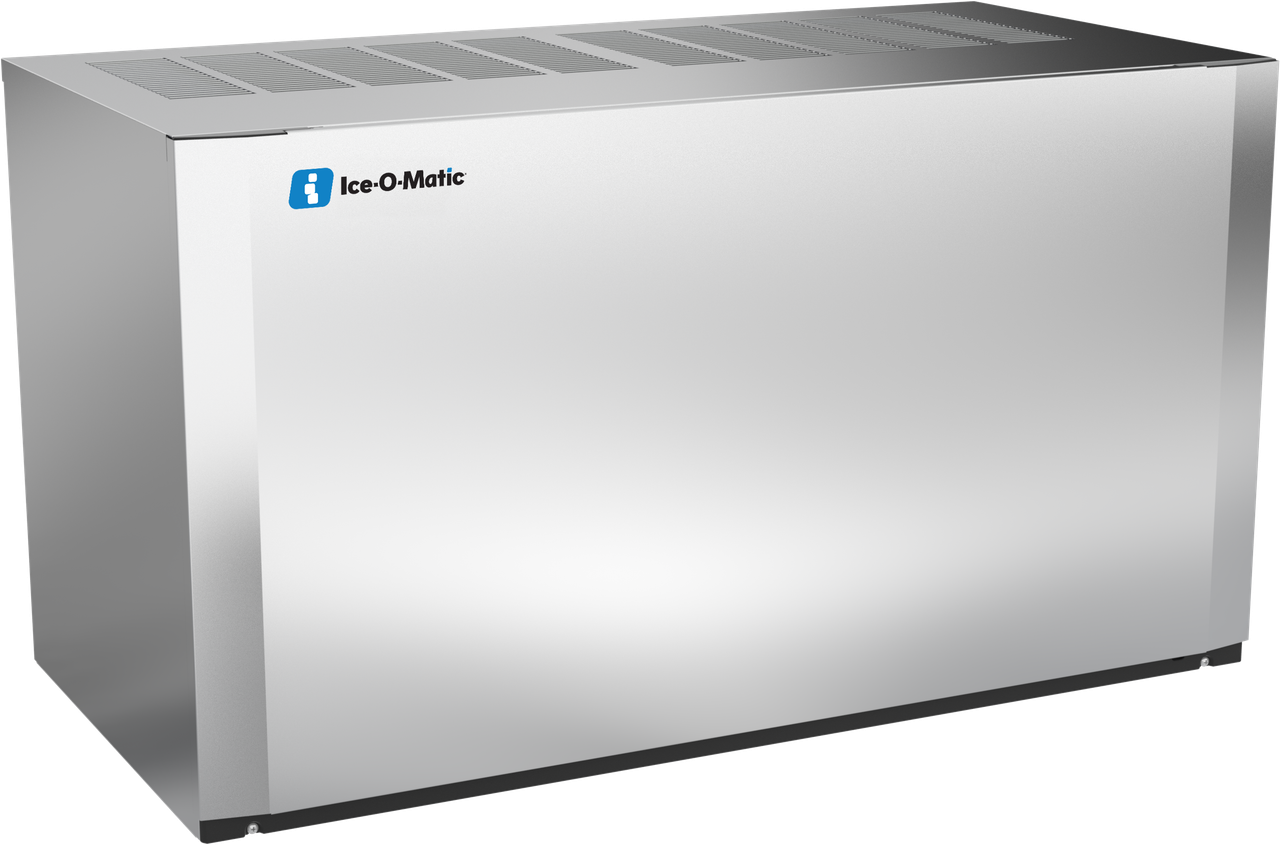

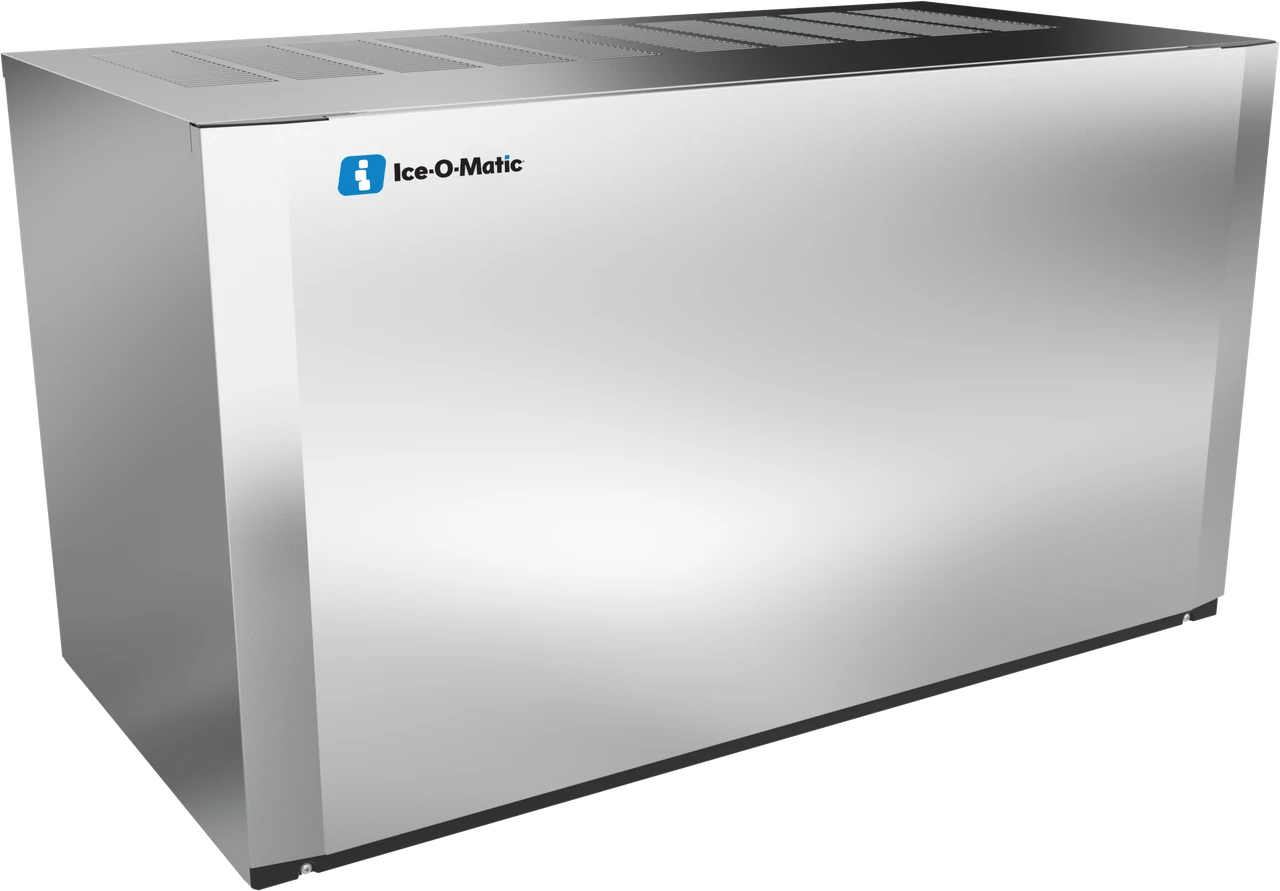

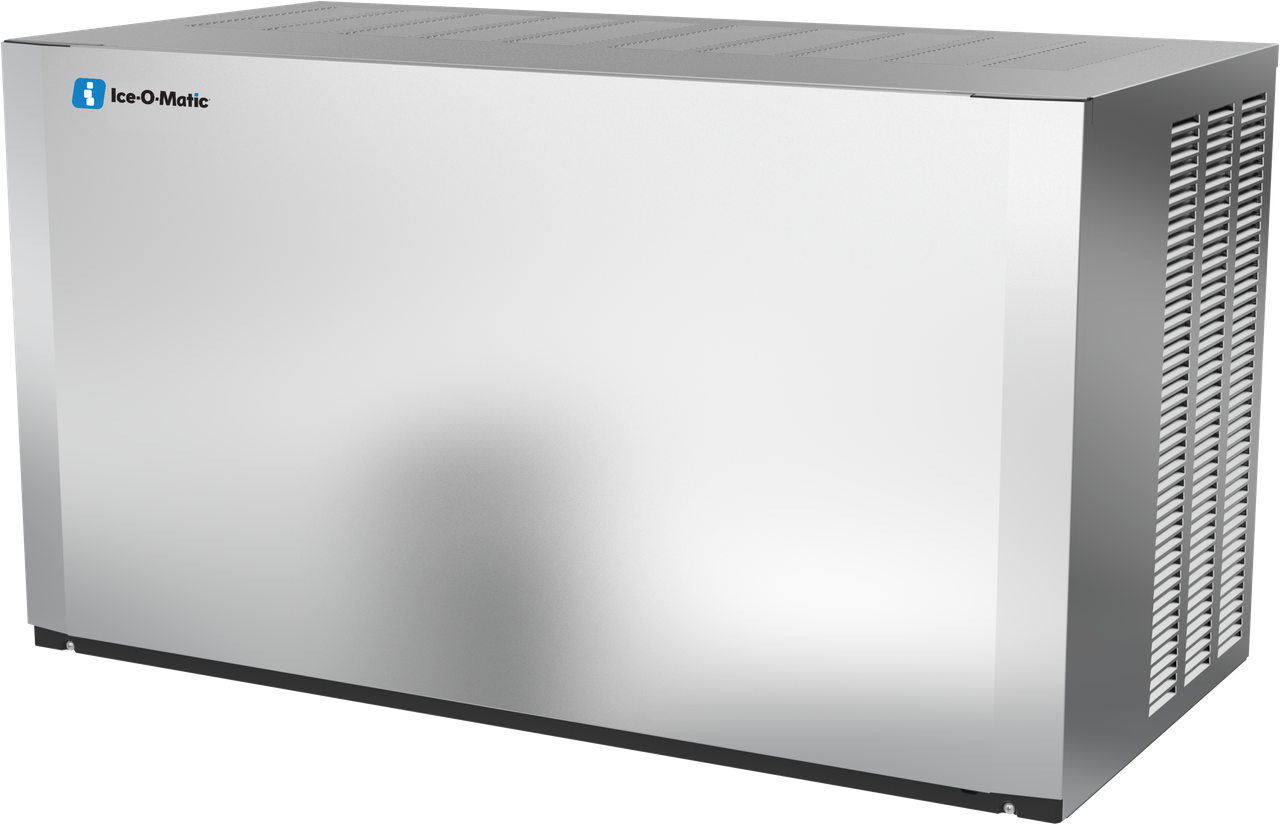

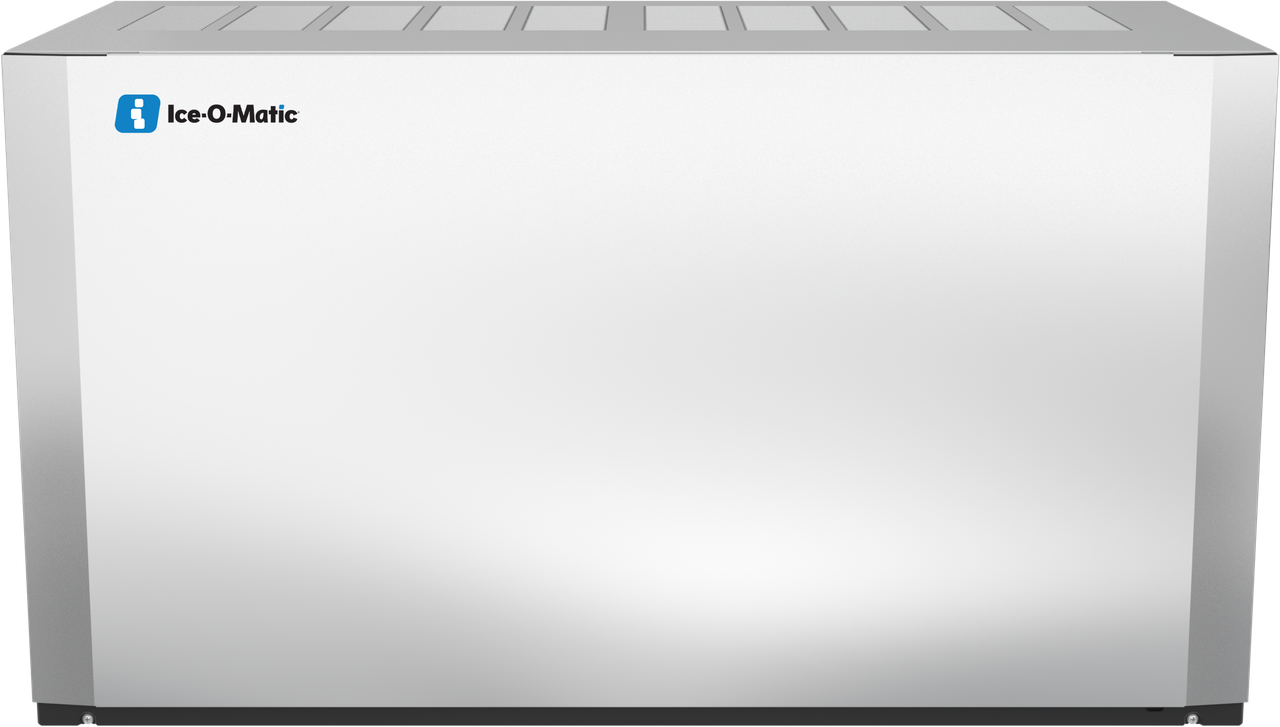

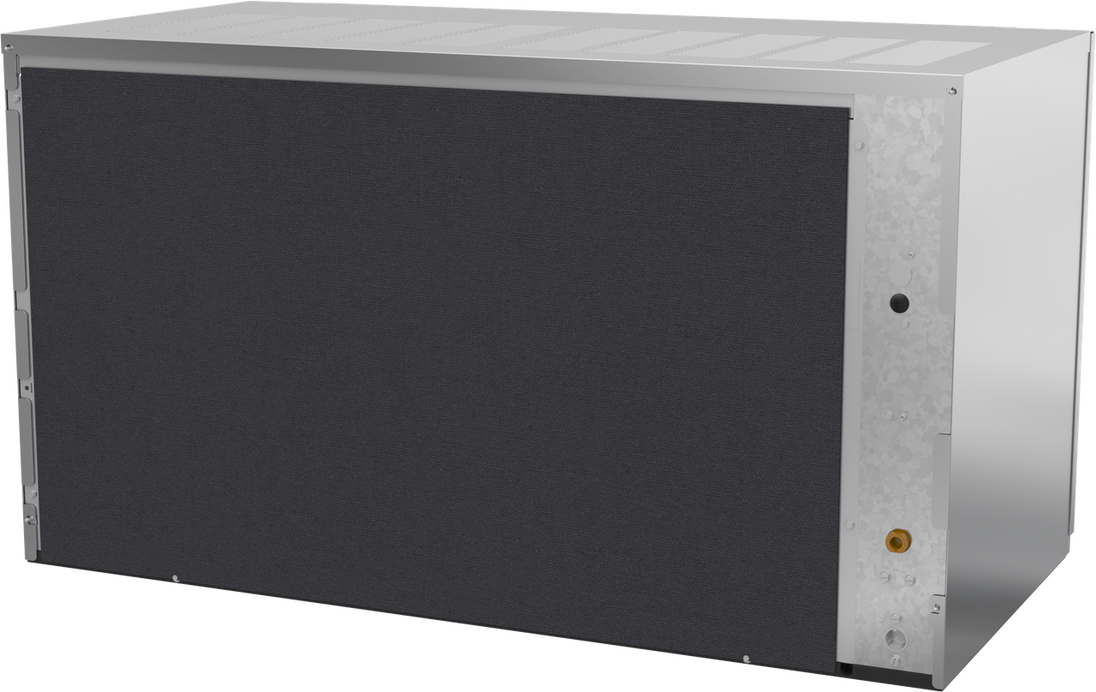

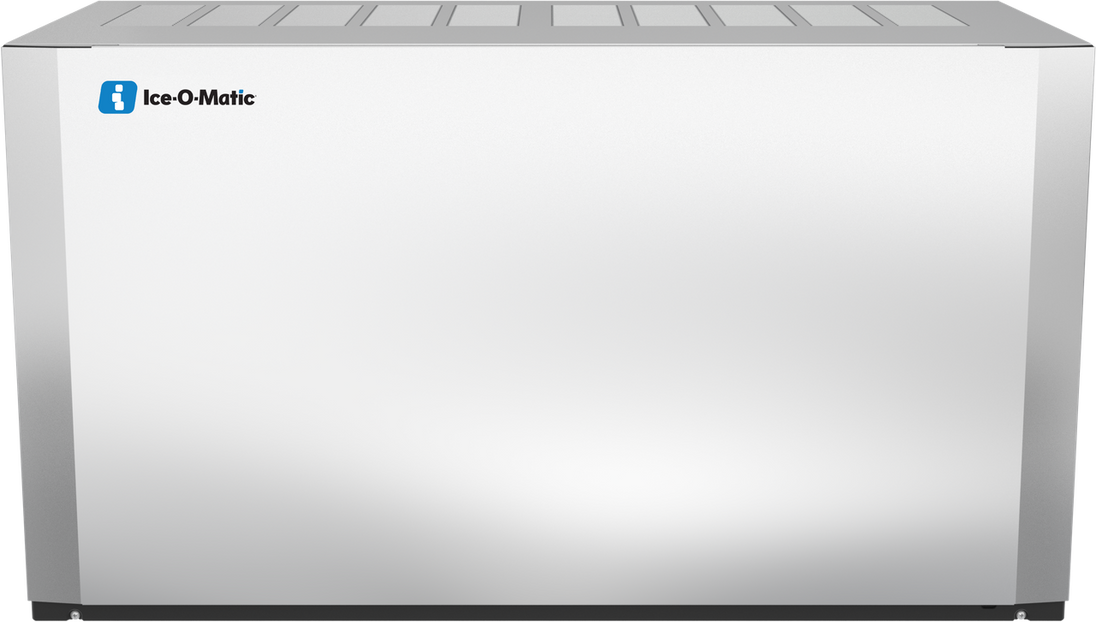

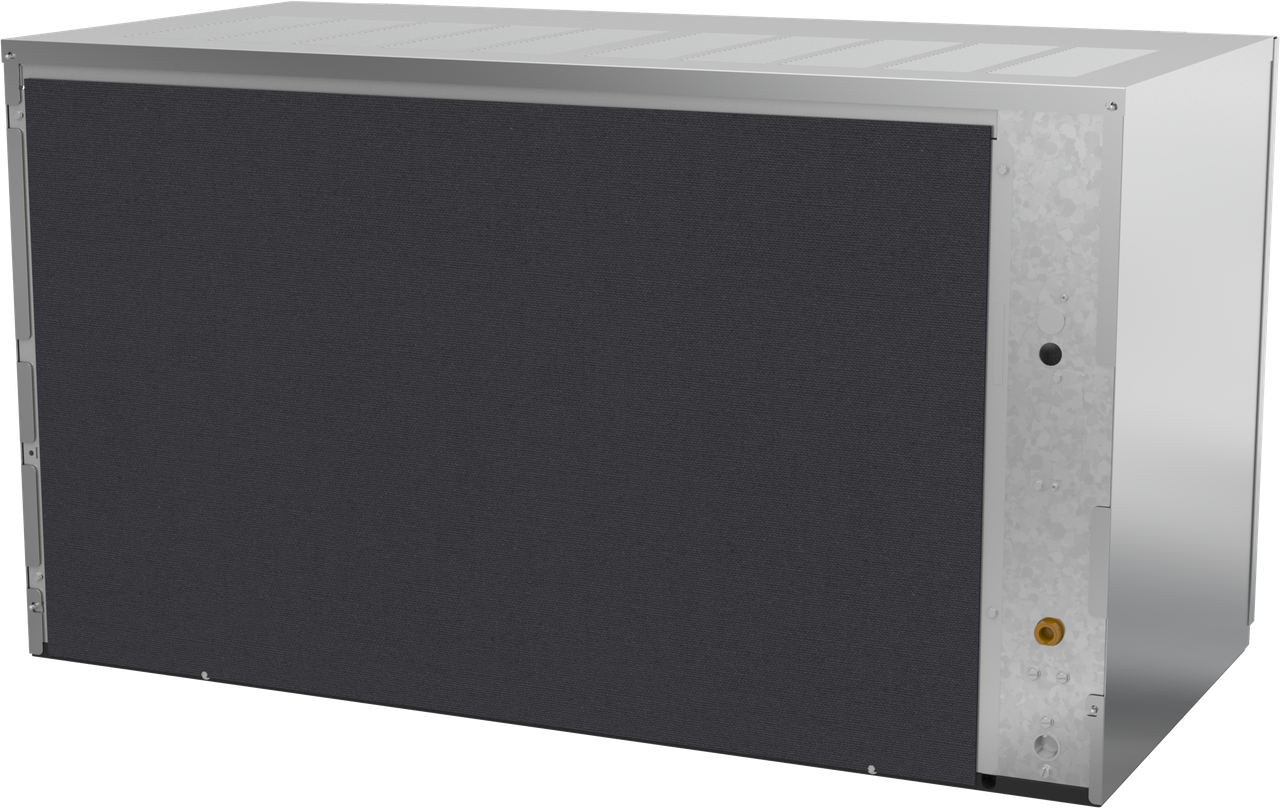

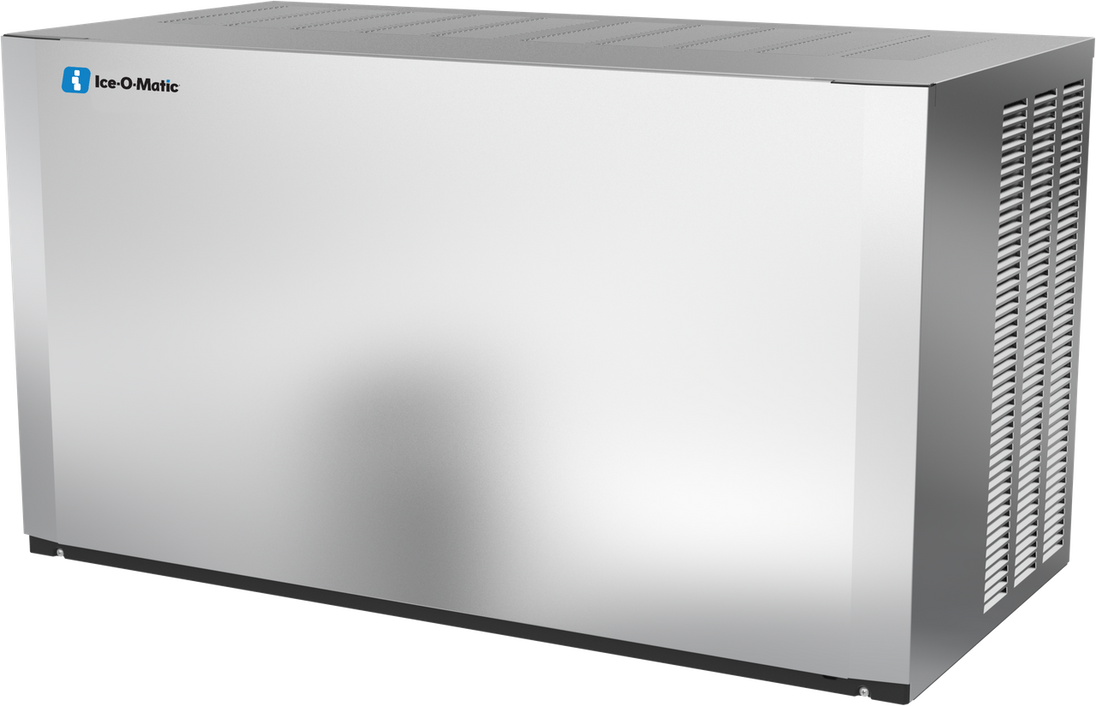

The Ice-O-Matic CIM1446FA49 is a 48 inch Elevation Series modular ice machine head that produces full cube ice at 1500 to 1600 pounds per 24 hours, air cooled and designed to install on top of an ice storage bin or dispenser.

Dual Exhaust for Air Cooled Installation Flexibility

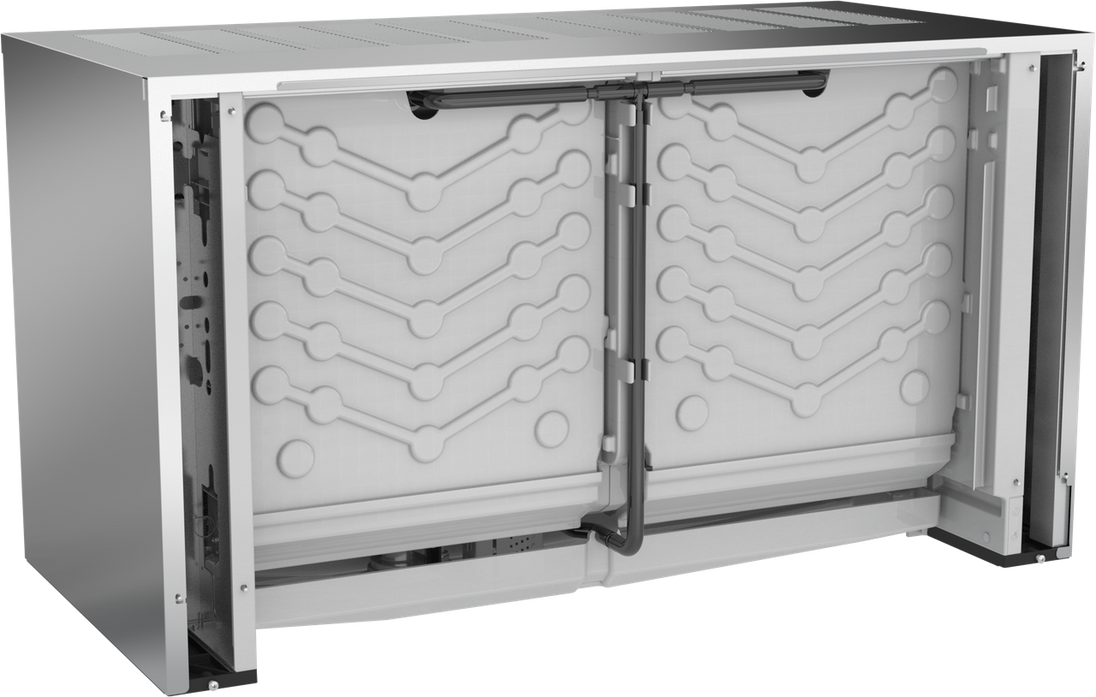

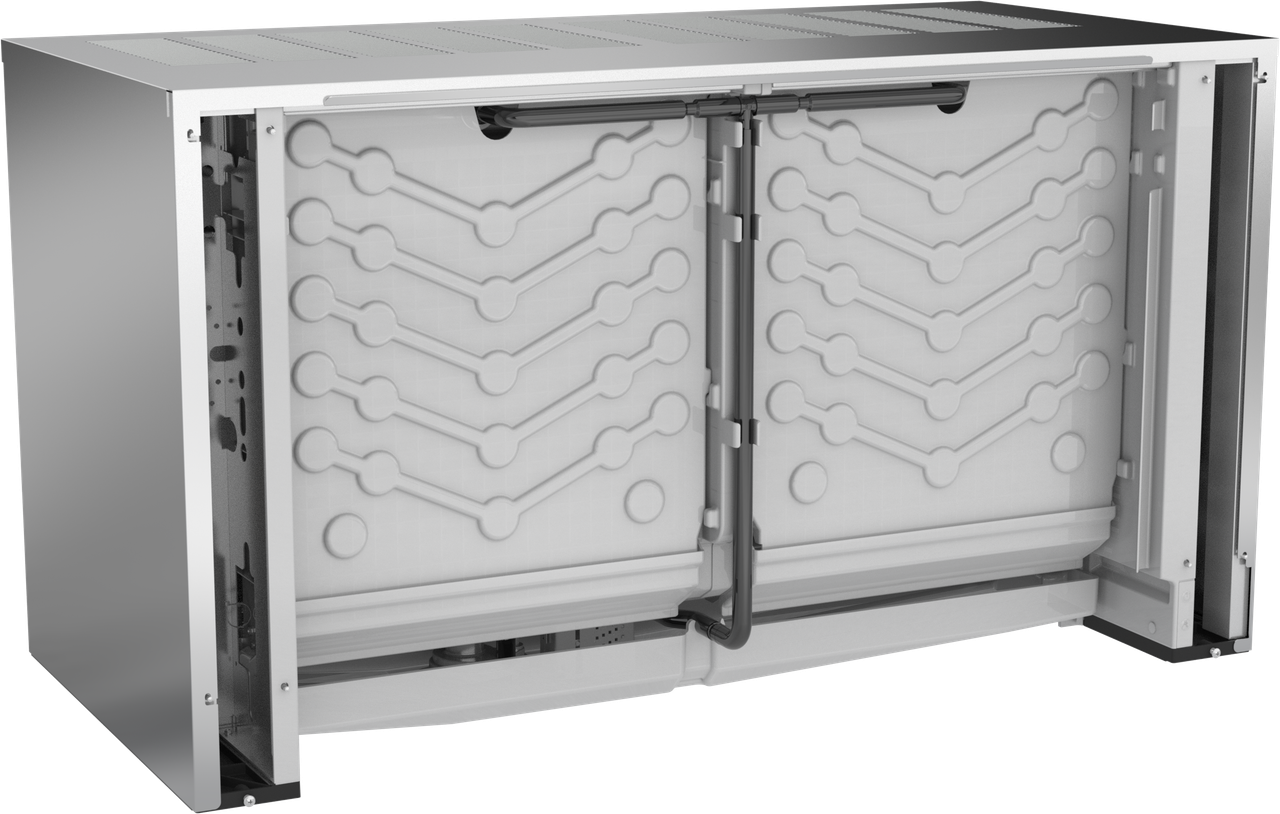

The CIM1446FA49 uses a modular design with dual exhaust for flexible application, letting installers route condenser heat rejection to suit the space around the unit. Combined with a front facing evaporator and dishwasher safe plastic components rated to 180 degrees F, the cabinet is built for easy service access in a working kitchen.

Full Cube Output Matches Its Half Cube Sibling

At 1500 to 1600 pounds per day, the CIM1446FA49 produces the same daily volume as the half cube CIM1446HA49 in the identical 48.25 x 24.25 x 26.8 inch footprint. The choice between the two comes down to ice shape rather than capacity or cabinet size, since both share the same air cooled condenser, R449A refrigerant charge, and IFQ2 filter system.

Air Cooled Condenser Runs a Lower Production Rate Than the Remote Variant

Where the remote condenser CIM1446FR49 reaches 1600 to 1700 pounds per day, the air cooled CIM1446FA49 tops out at 1500 to 1600 pounds because the condenser dissipates heat directly into the kitchen air instead of a remote location. Operators who need the higher output, or who want condenser heat kept out of the kitchen, would look to the CIM1446FR49 paired with an RC306C49 remote condenser instead.

Specifications

Model CIM1446FA49
Series Elevation Series
Type Modular ice machine head (bin sold separately)
Ice Type Full Cube
Capacity 1500 to 1600 lb / 24hr
Exterior Dimensions 48.25 x 24.25 x 26.8 inches (W x D x H)
Electrical 208-230V / 60Hz / 1-Phase
Refrigerant R449A
Condenser Air Cooled
Filter System IFQ2
Certifications BABA Compliant
Shipping Weight 310 lb

Warranty

Ice-O-Matic publishes 3 years parts and labor on the CIM series, with 5 years parts coverage on the evaporator and compressor.
