Product Description

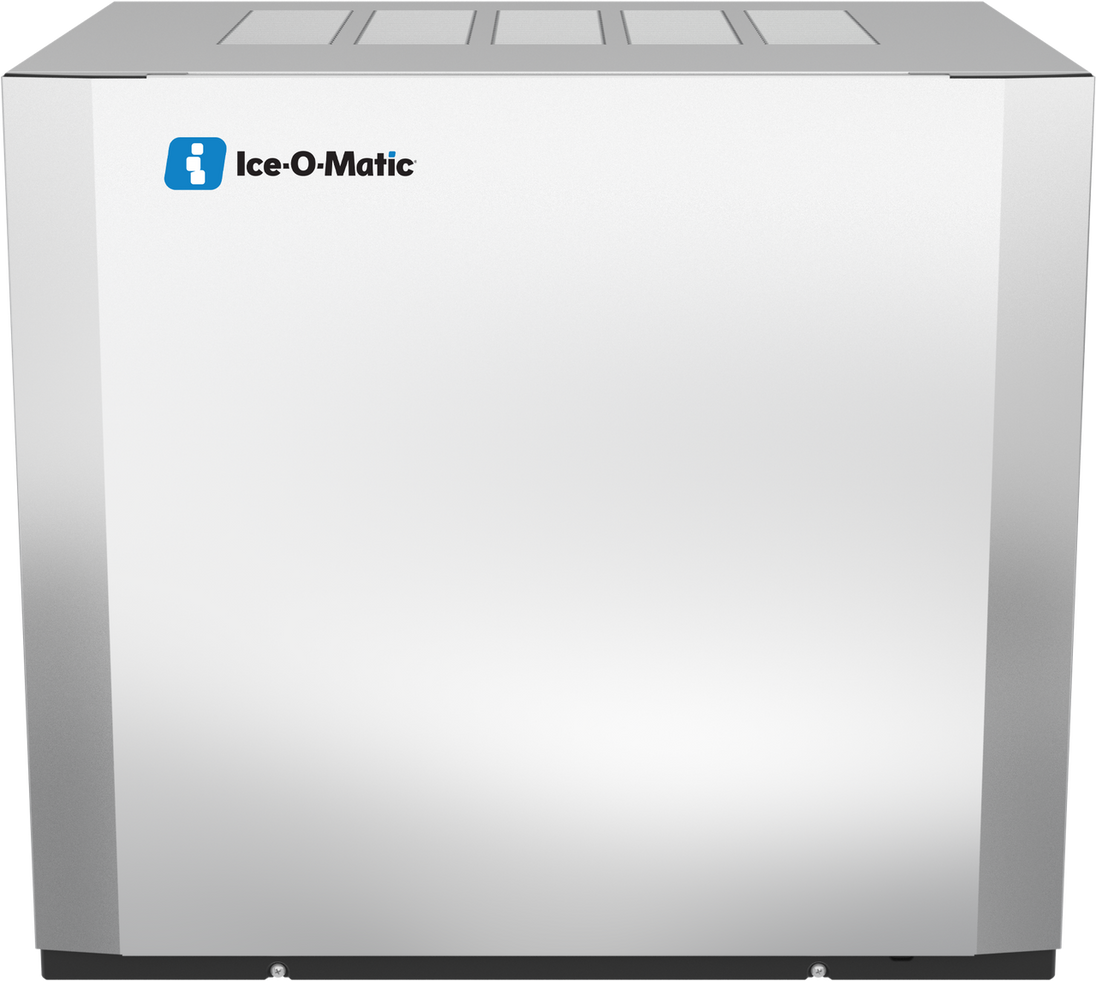

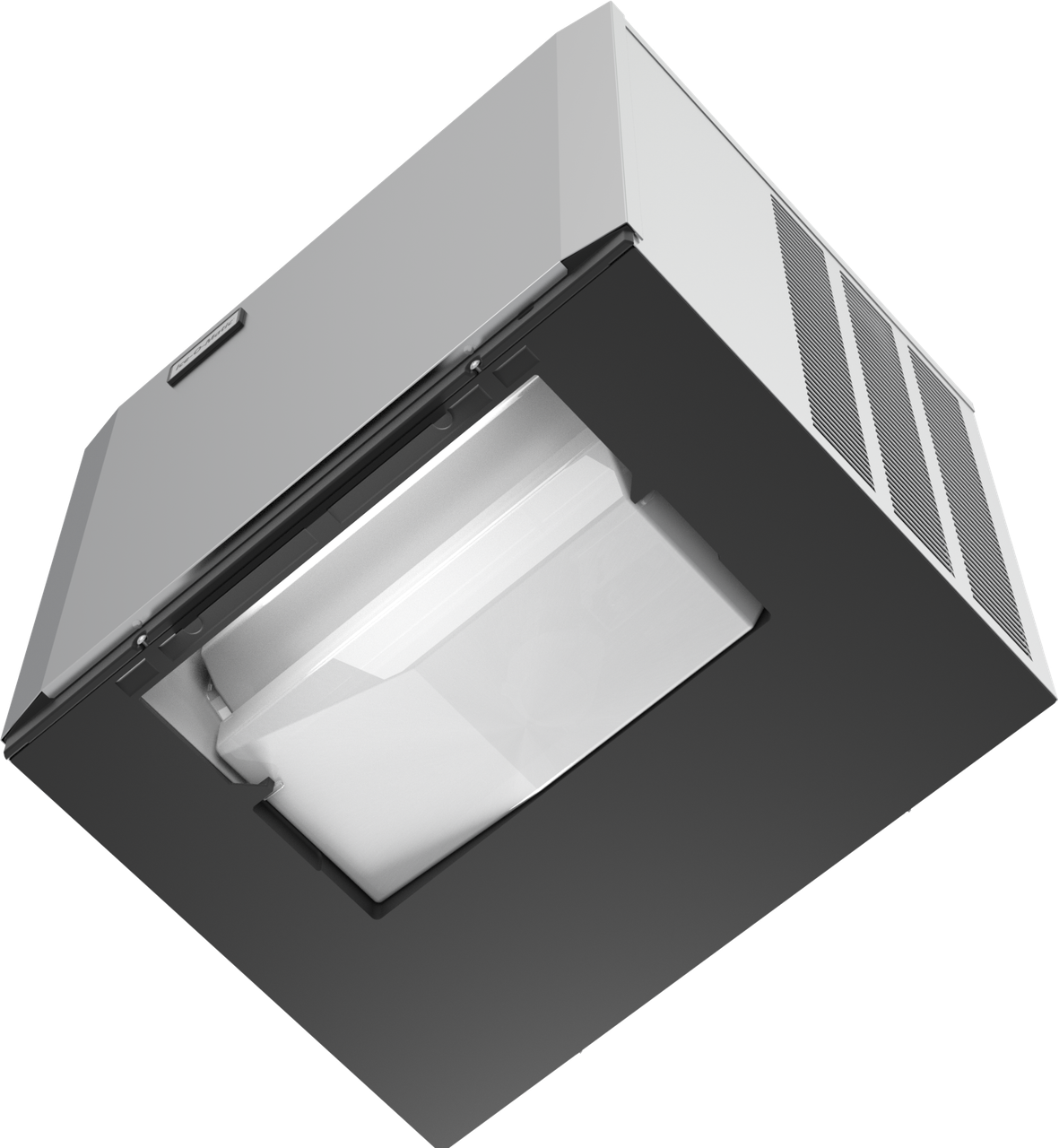

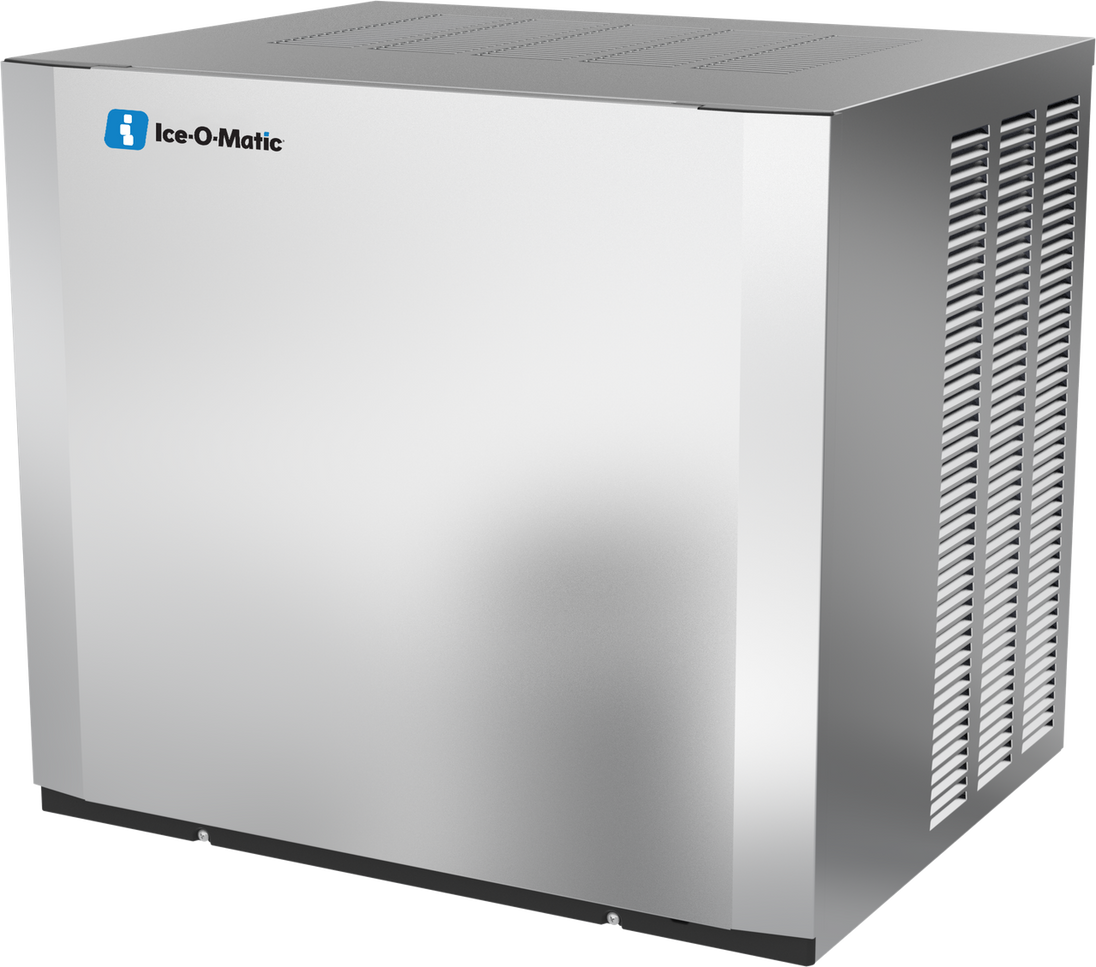

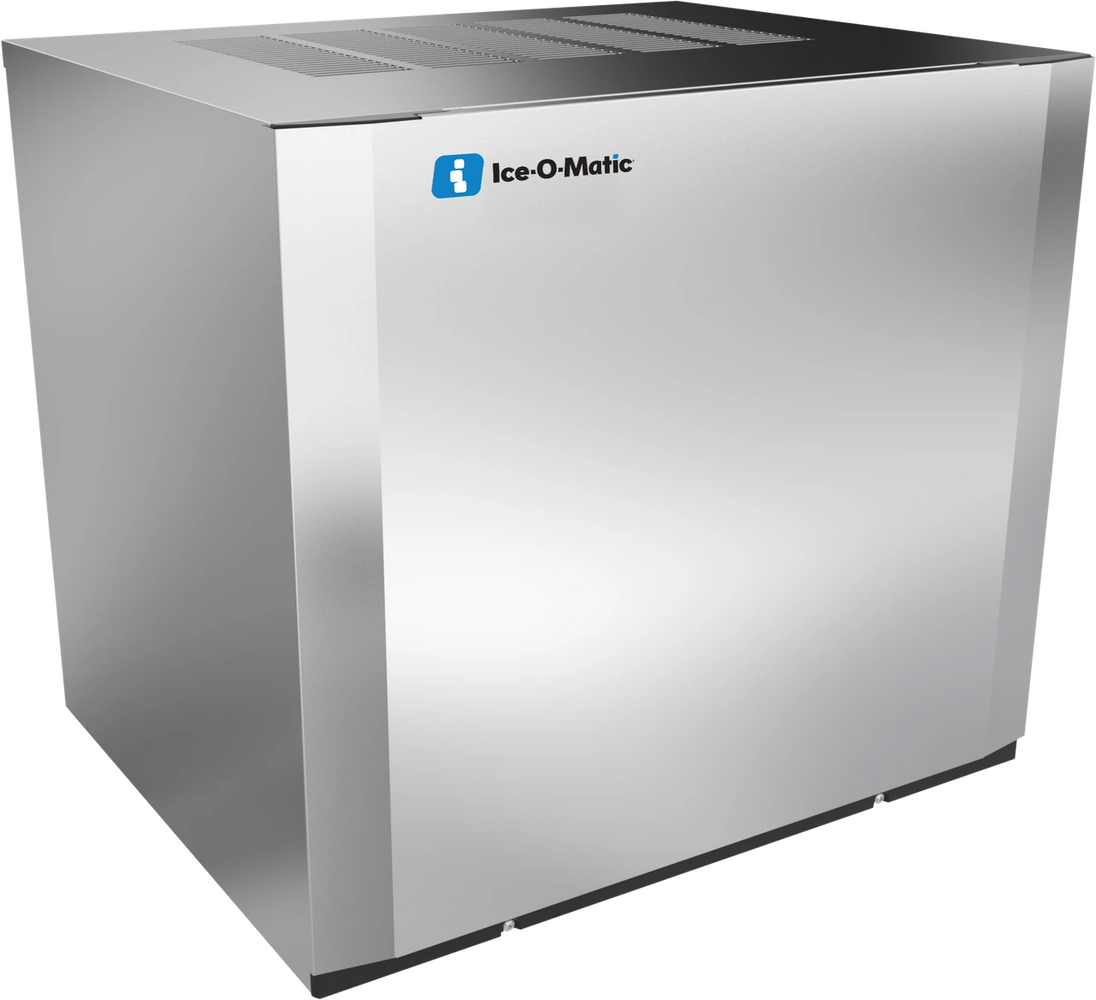

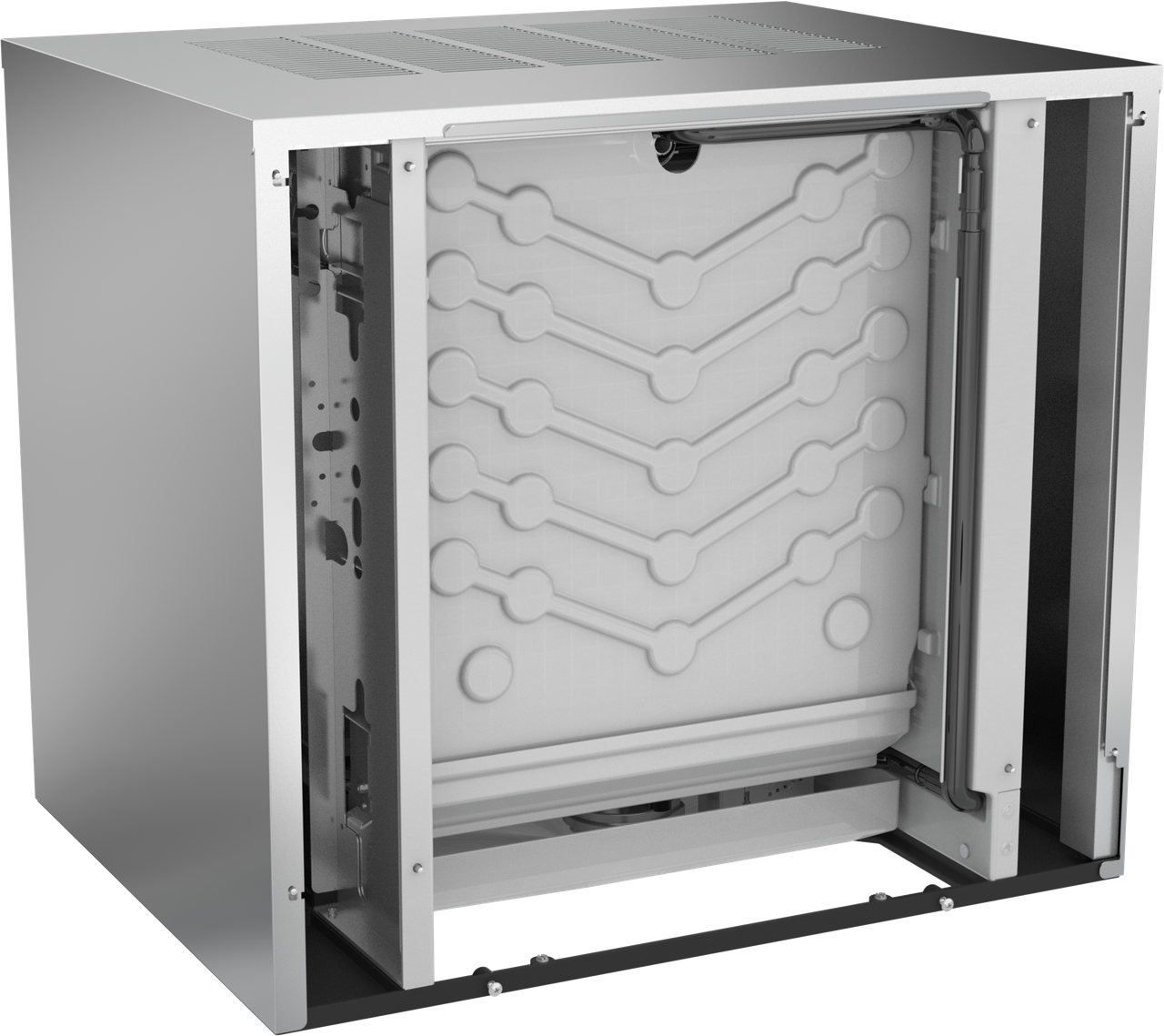

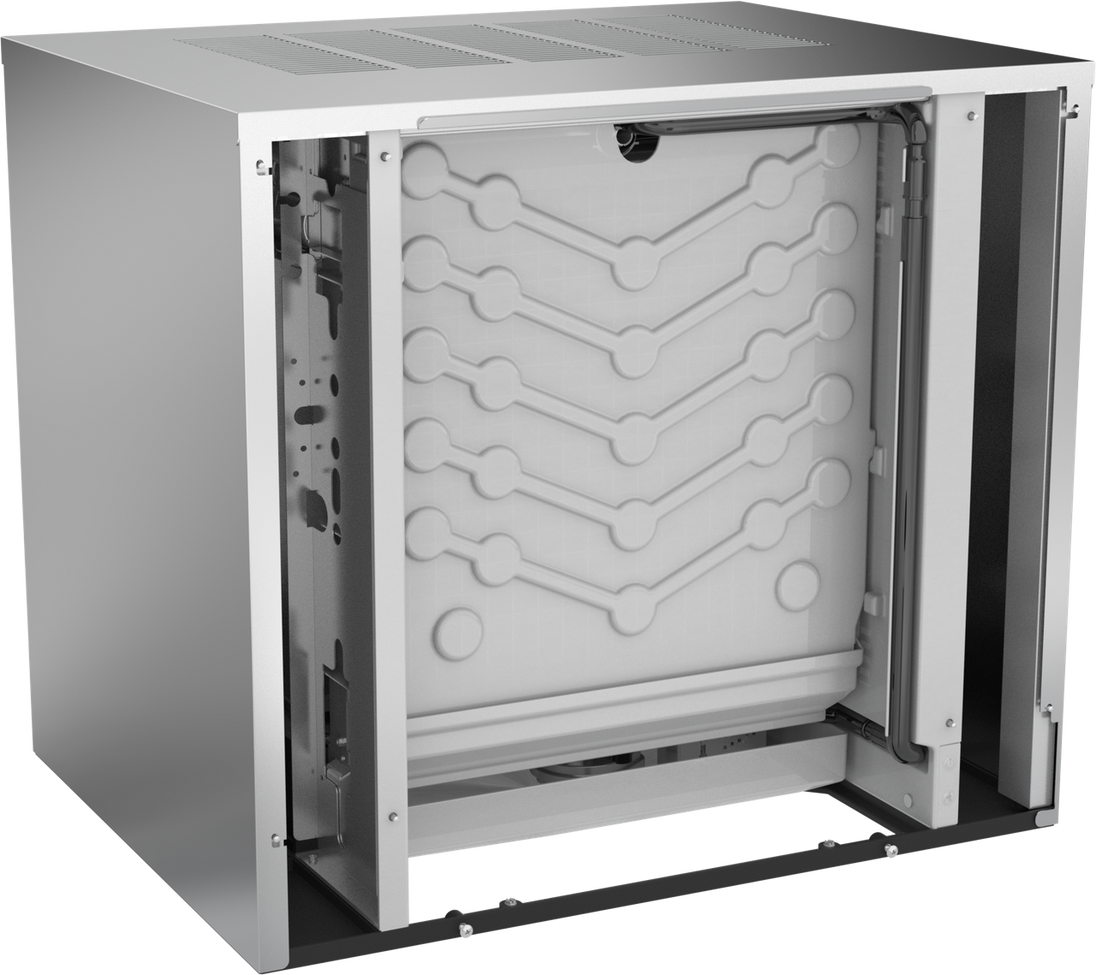

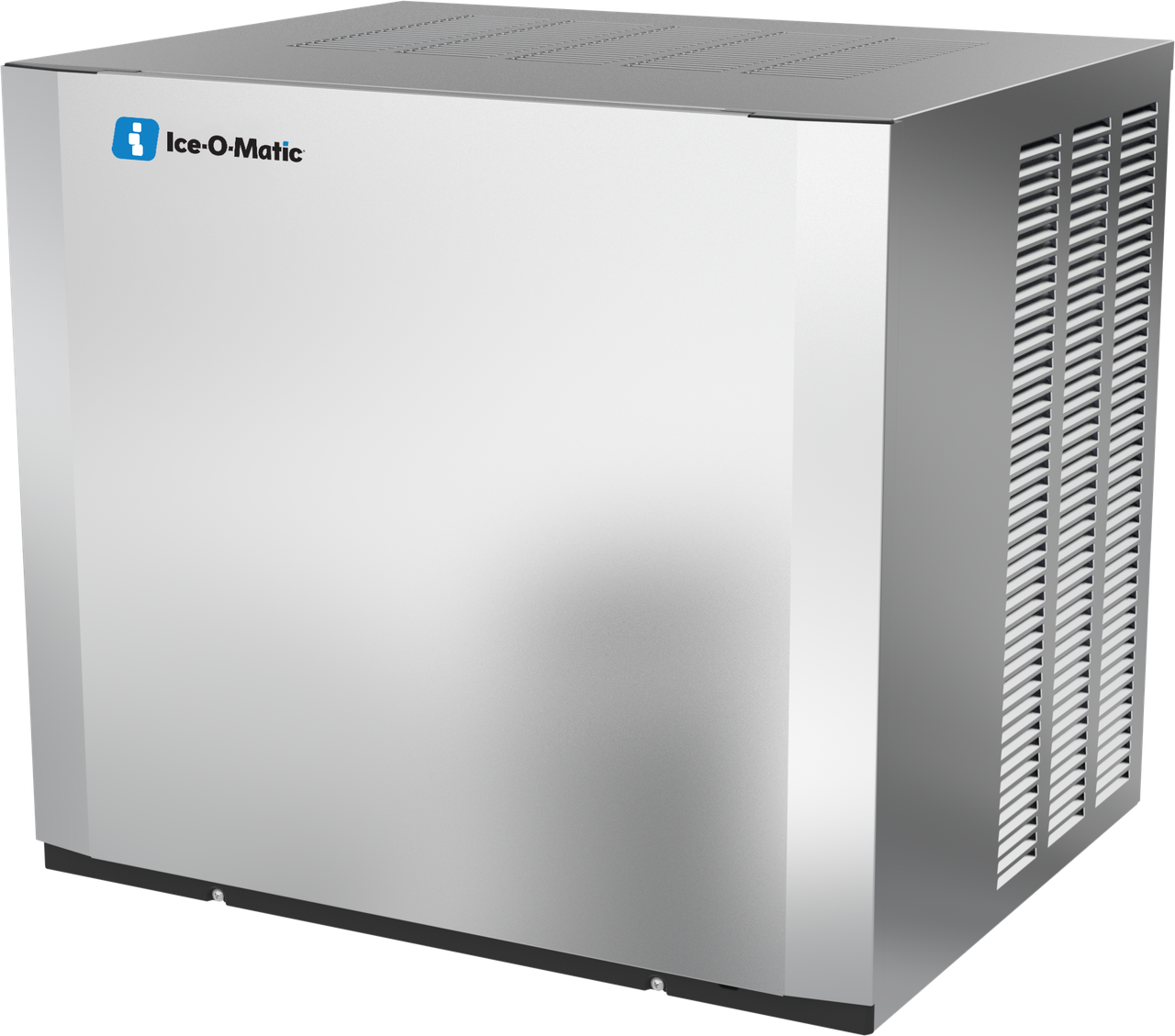

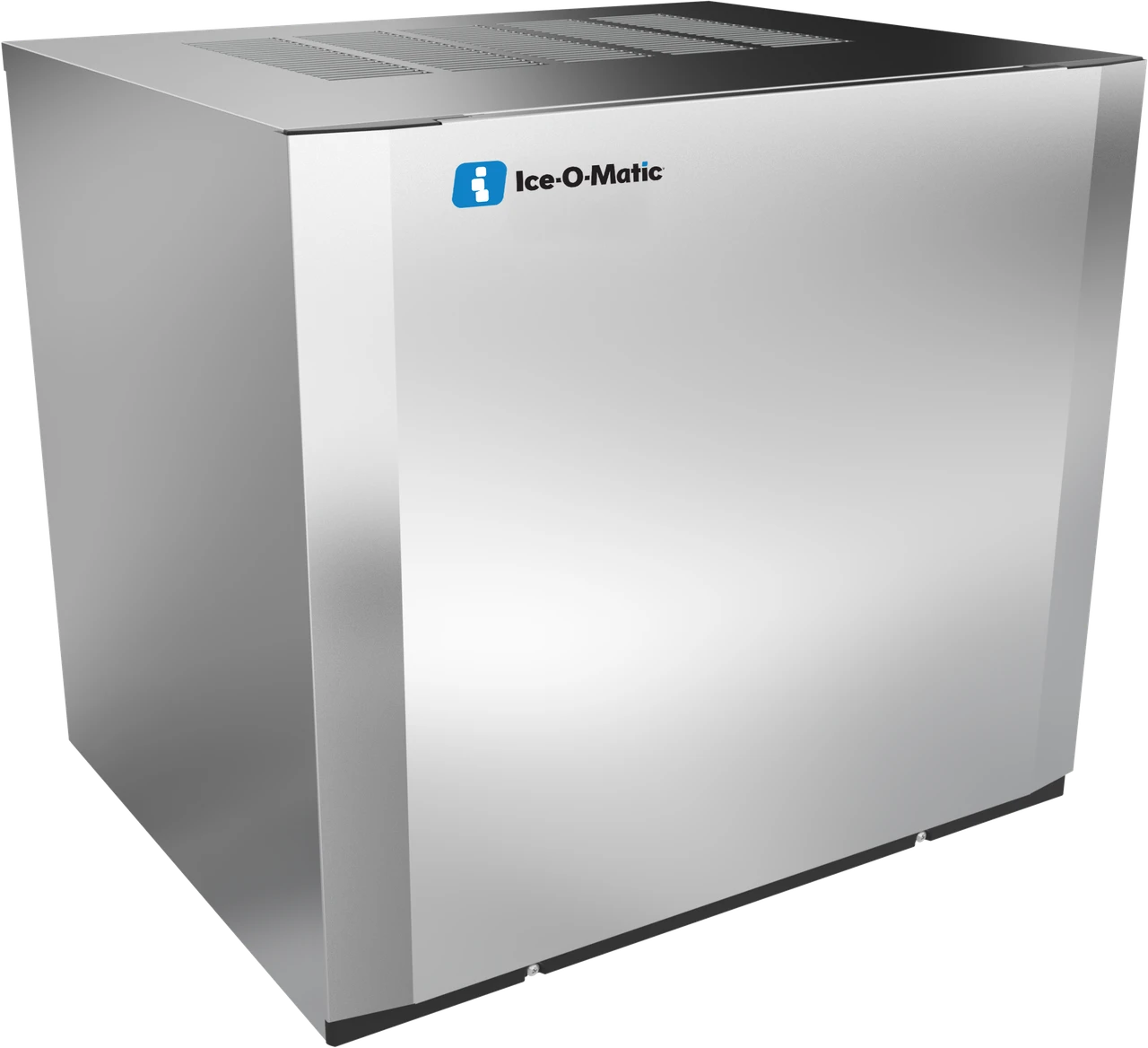

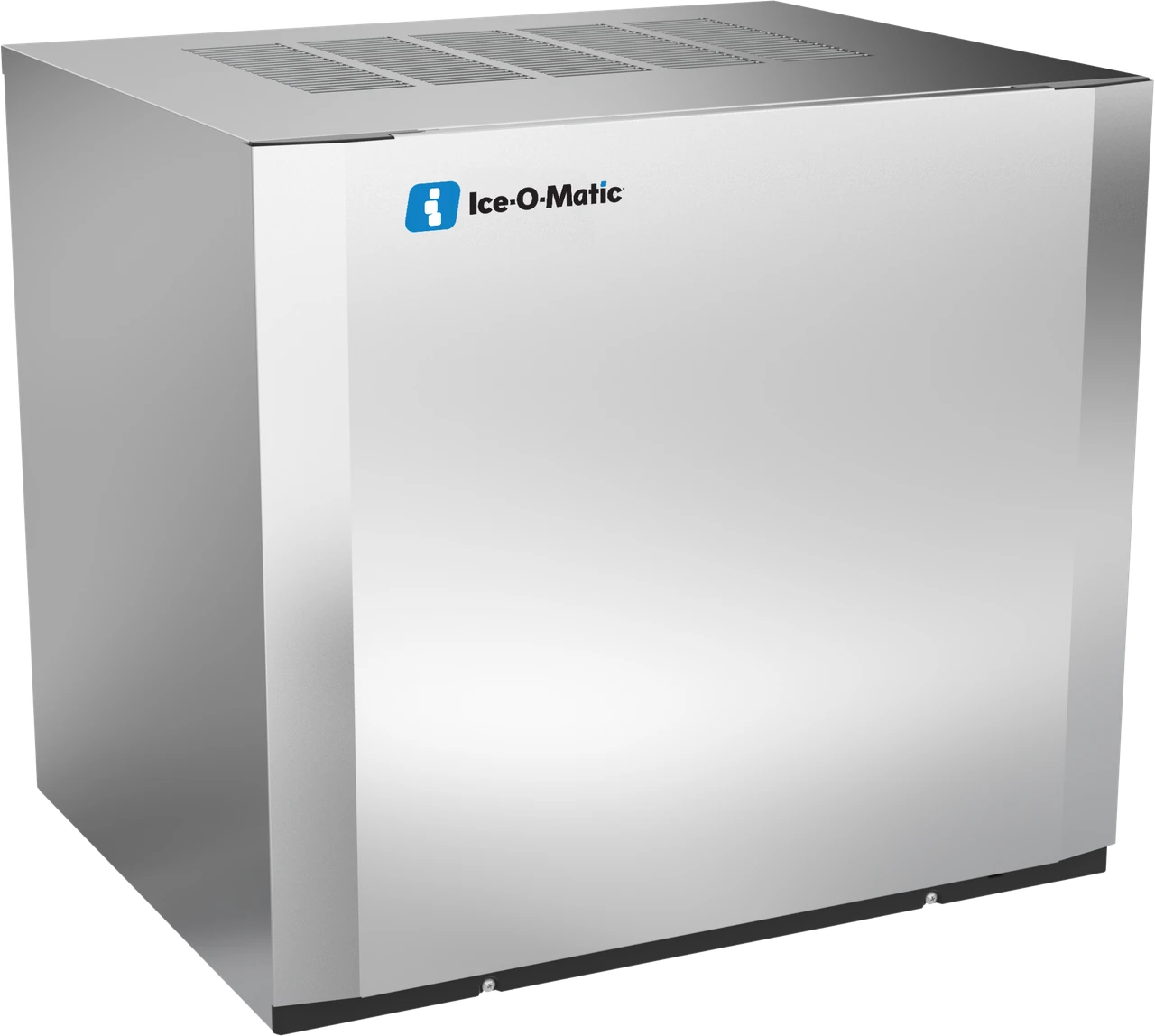

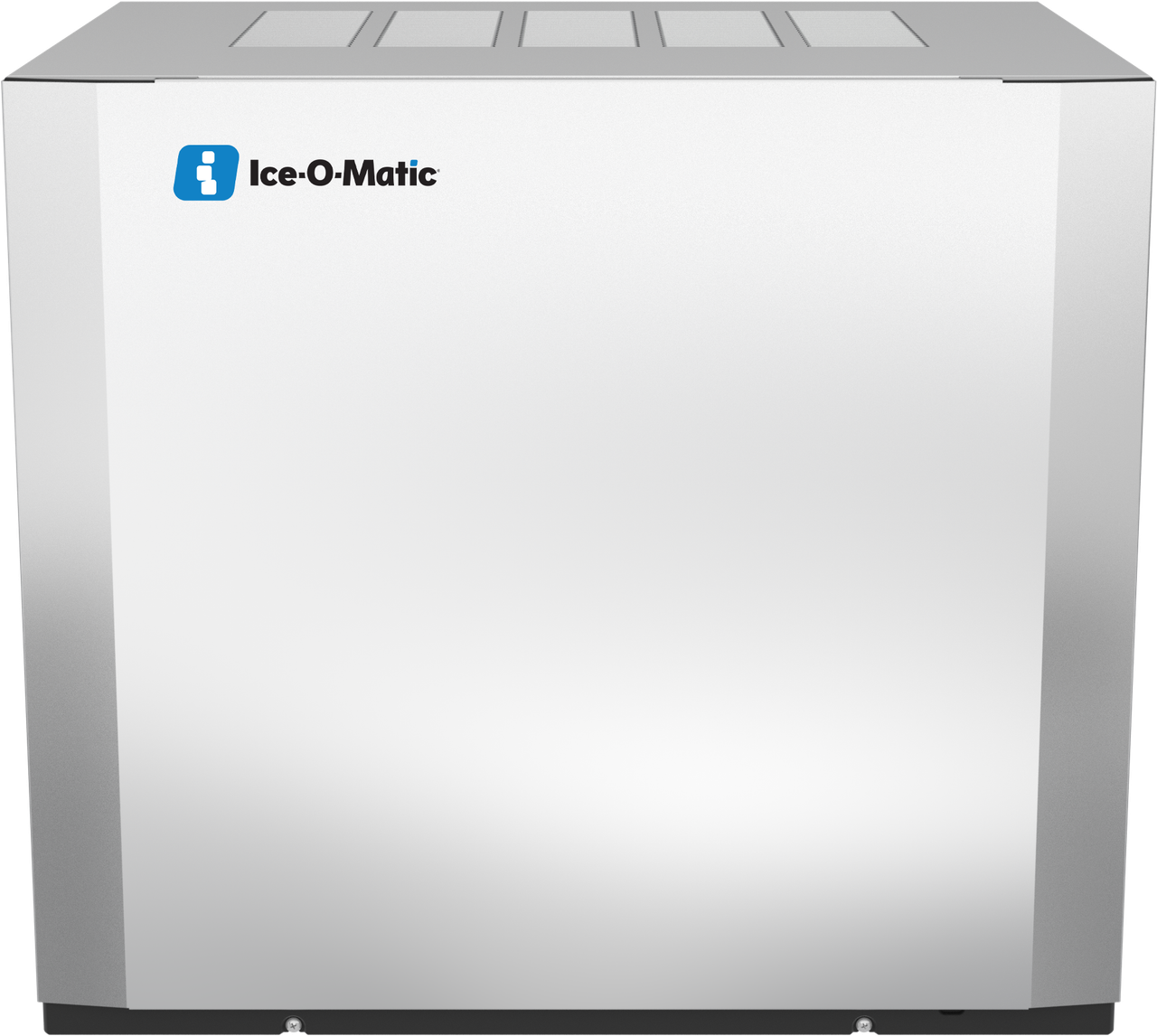

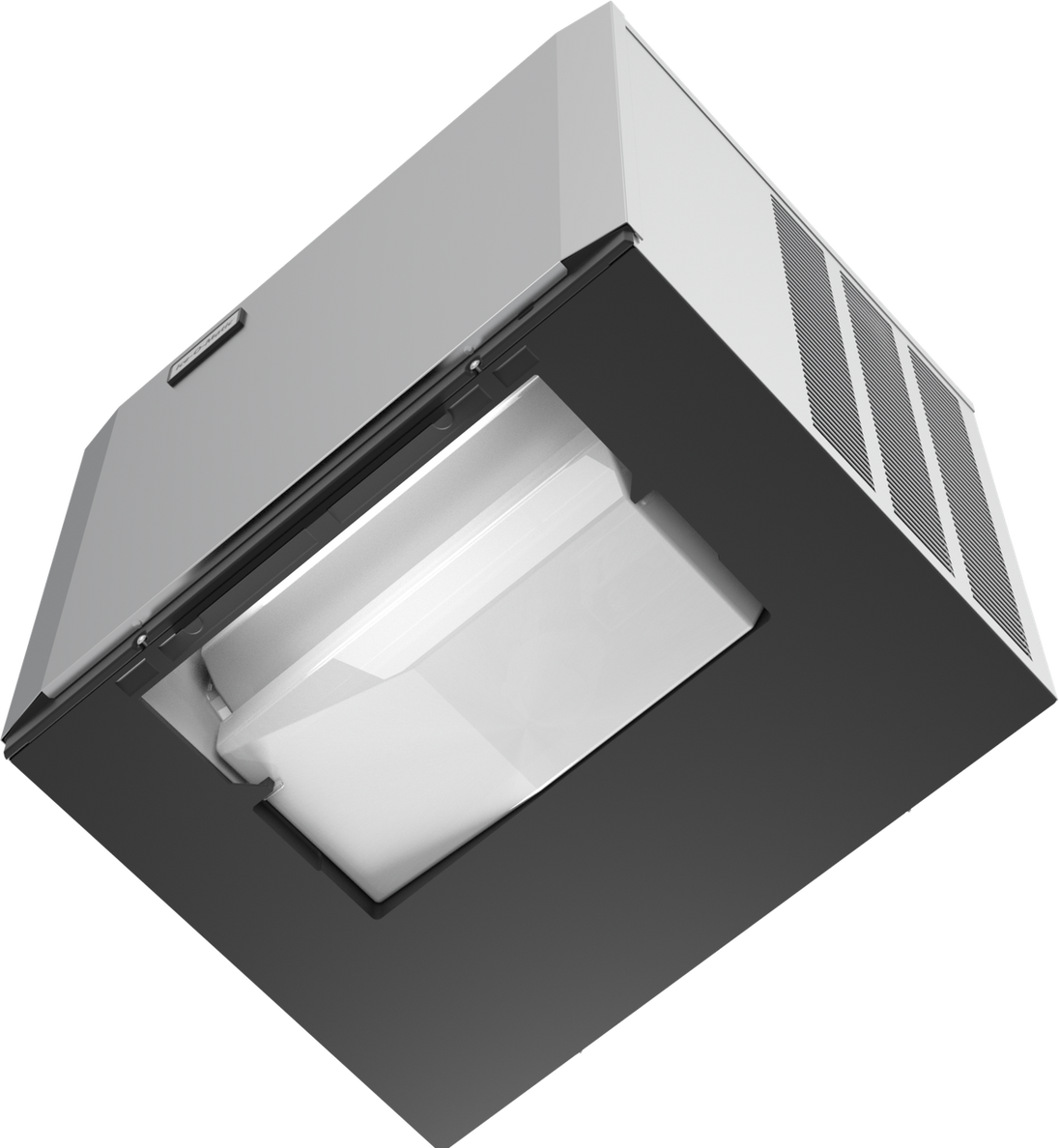

The Ice-O-Matic CIM1136FA90 is a 30.25-inch modular ice machine head in the Elevation Series, producing full cube ice at a rate of 900 to 1000 pounds per 24 hours with air cooling.

A 30.25-Inch Cabinet in the 1136 Class

The CIM1136FA90 carries a 30.25 inch wide by 24.25 inch deep by 26.9 inch tall cabinet, the footprint of Ice-O-Matic's 1136-series Elevation head. The sibling 1126-series cabinet is 22.25 inches wide but is rated for the same 900 to 1000 pound production range, so the width difference between the two series is a footprint and fit choice rather than a capacity upgrade.

Full Cube Output

This head produces full cube ice. Ice-O-Matic also builds the same 30.25-inch, air-cooled cabinet in a half cube configuration at the same 900 to 1000 pound rated production, so the choice between this unit and its half-cube counterpart comes down to ice type rather than output or footprint.

Air Cooled Condenser and R290A

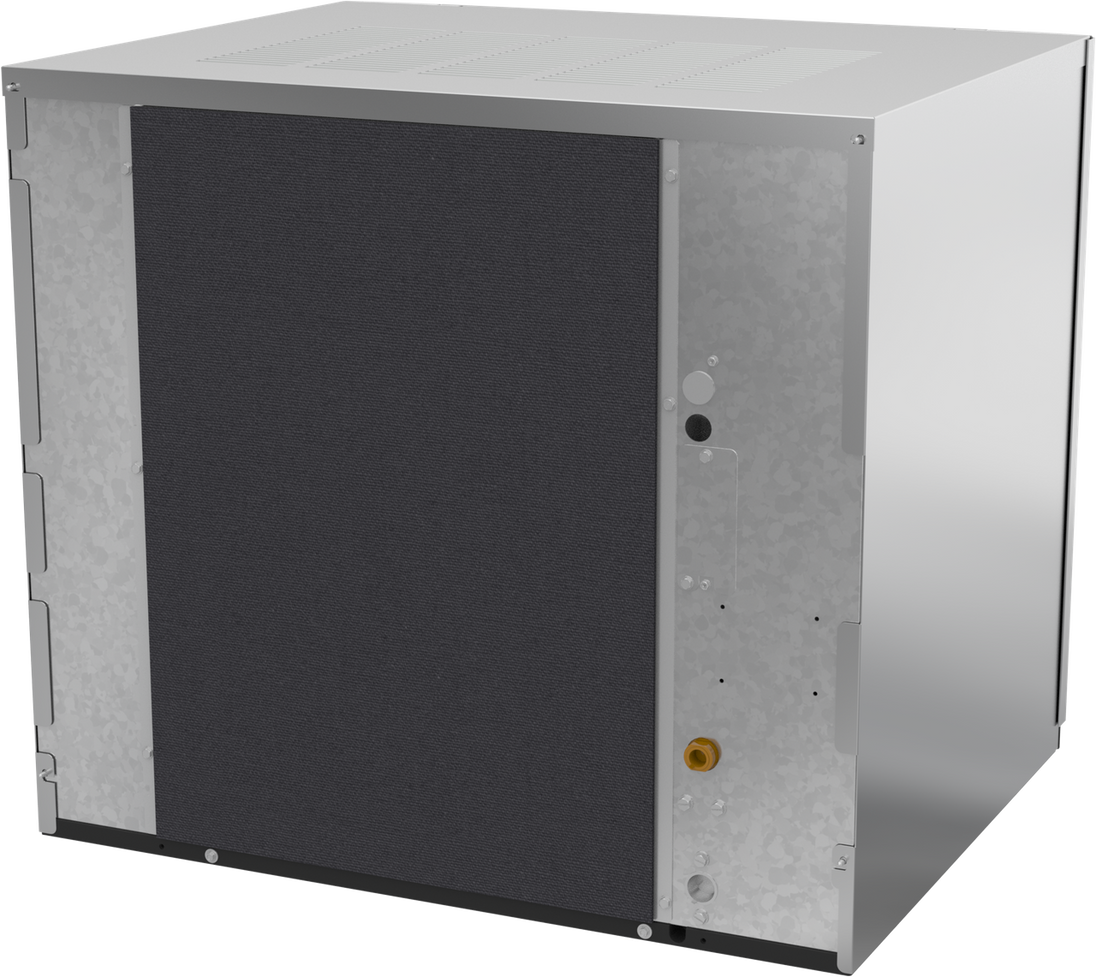

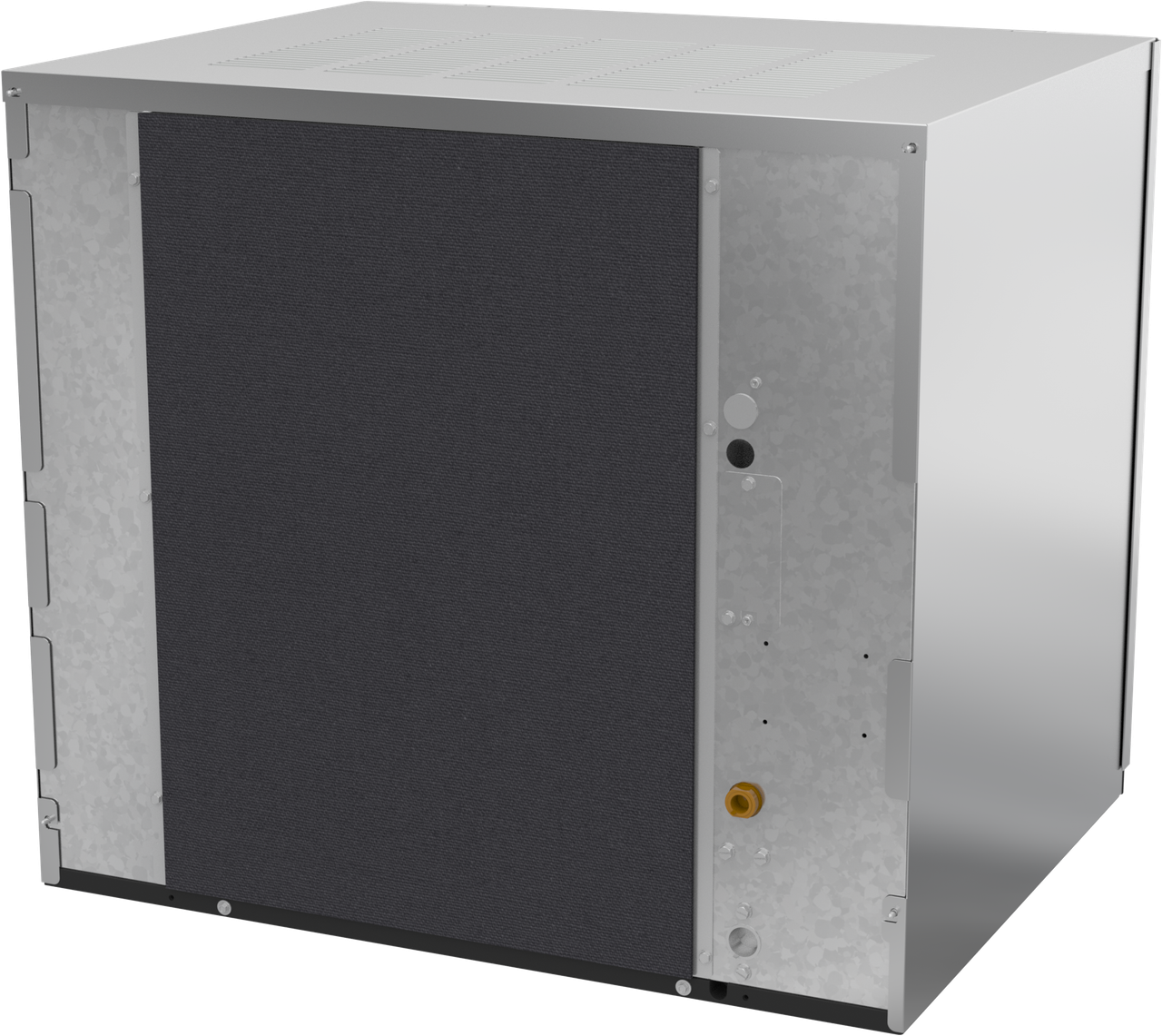

The CIM1136FA90 uses an integrated air-cooled condenser that rejects heat into the surrounding kitchen air, running on R290A refrigerant. This is a modular head only; the ice storage bin is sold separately.

Specifications

Model CIM1136FA90
Series Elevation
Type Full Cube, modular head (bin sold separately)
Capacity 900 - 1000 lb ice per 24 hours
Exterior Dimensions 30.25 x 24.25 x 26.9 inches (W x D x H)
Electrical 208-230/60/1
Refrigerant R290A
Condenser Air
Filter System IFQ2
Shipping Weight 211 lb

Warranty

Ice-O-Matic publishes 3 years parts and labor on the CIM series, with 5 years parts coverage on the evaporator and compressor.
