Product Description

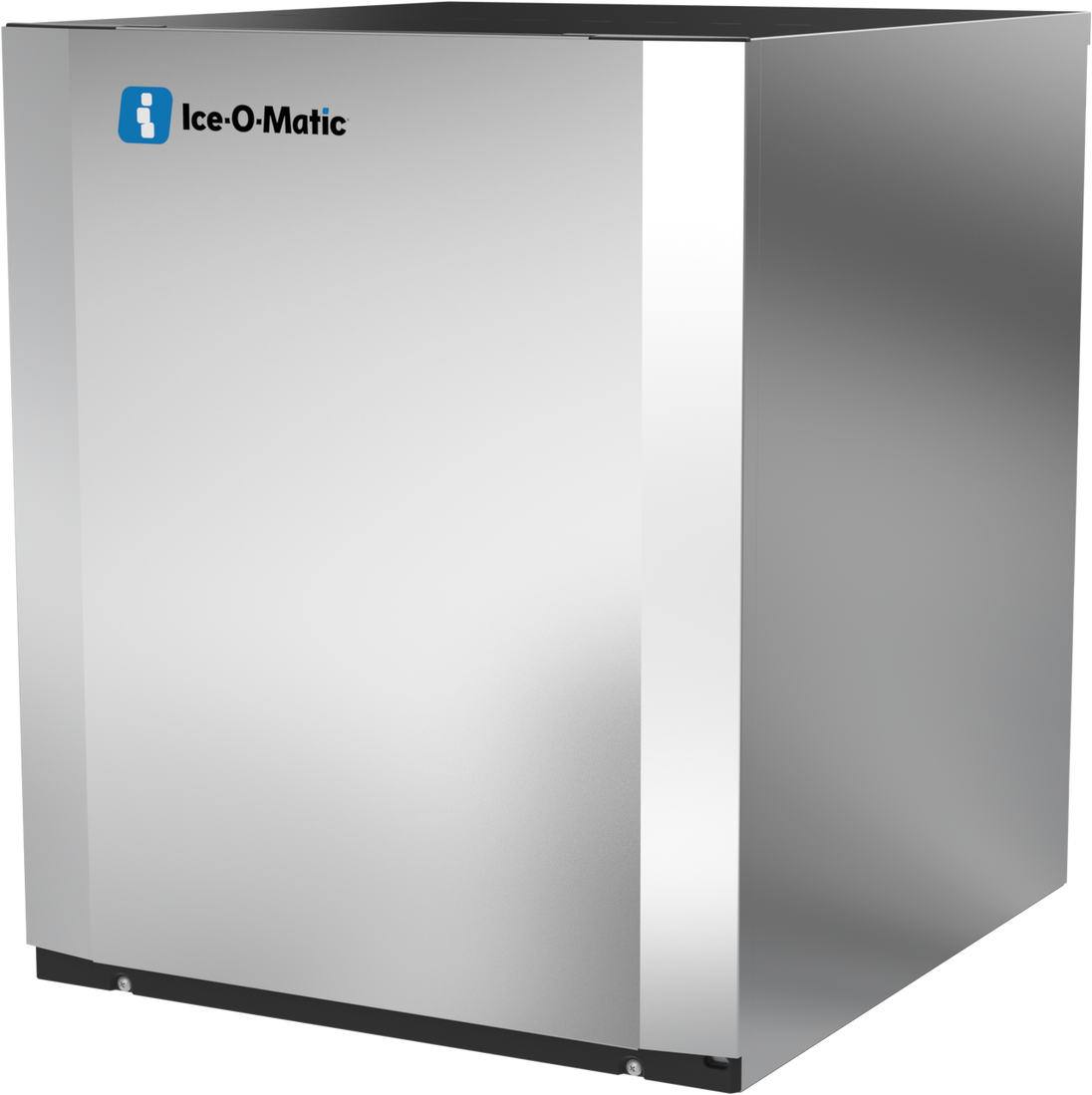

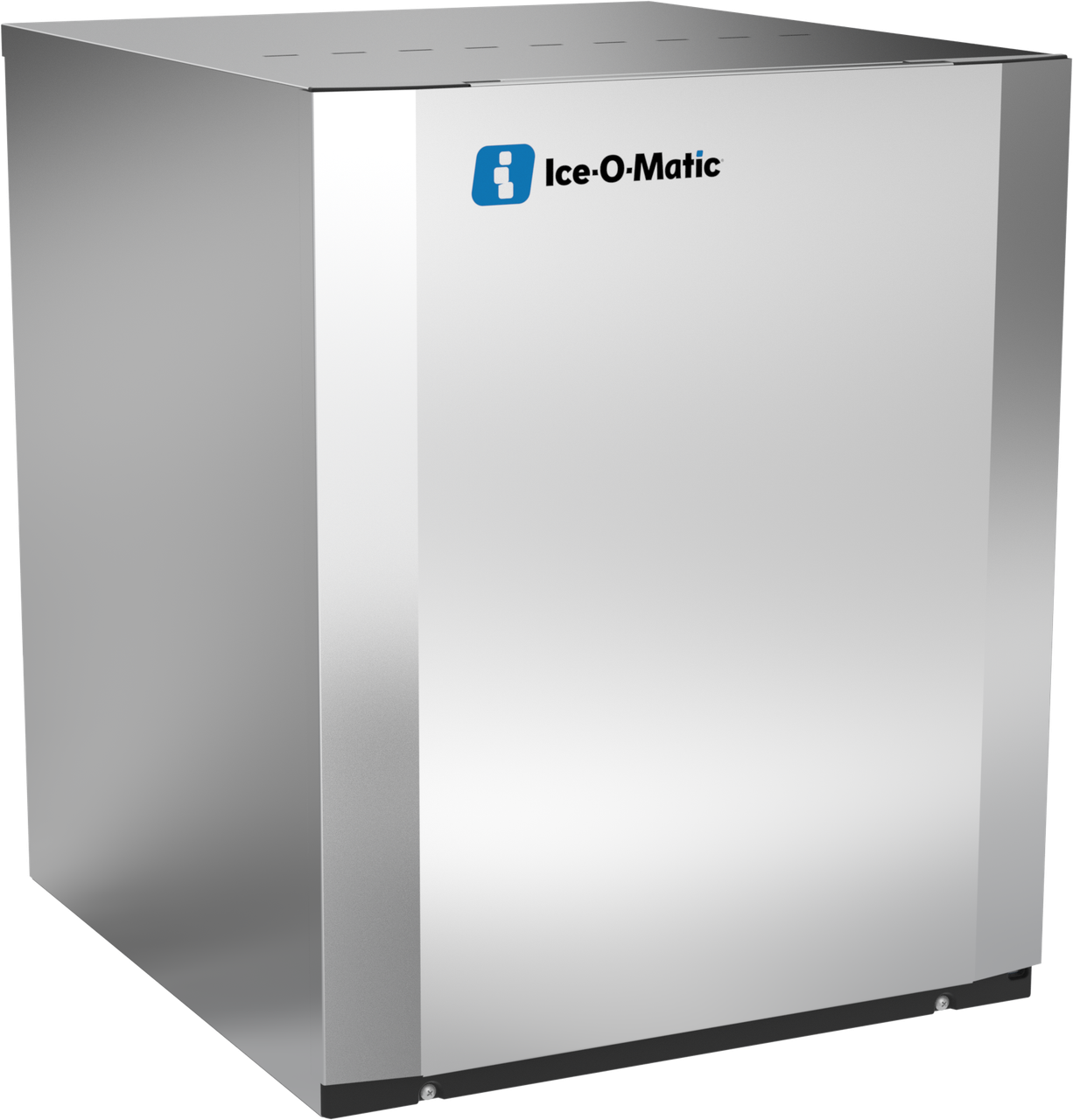

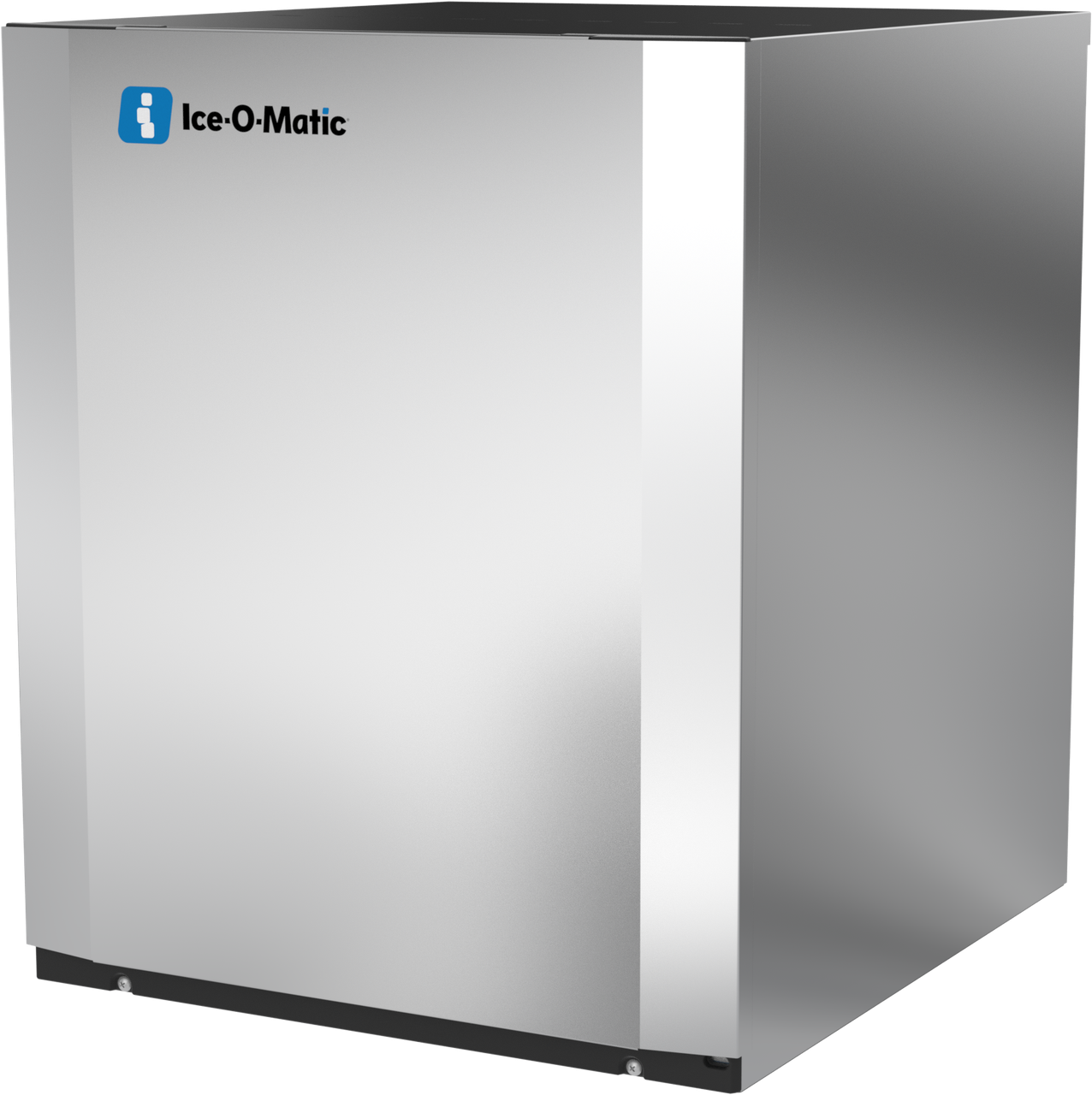

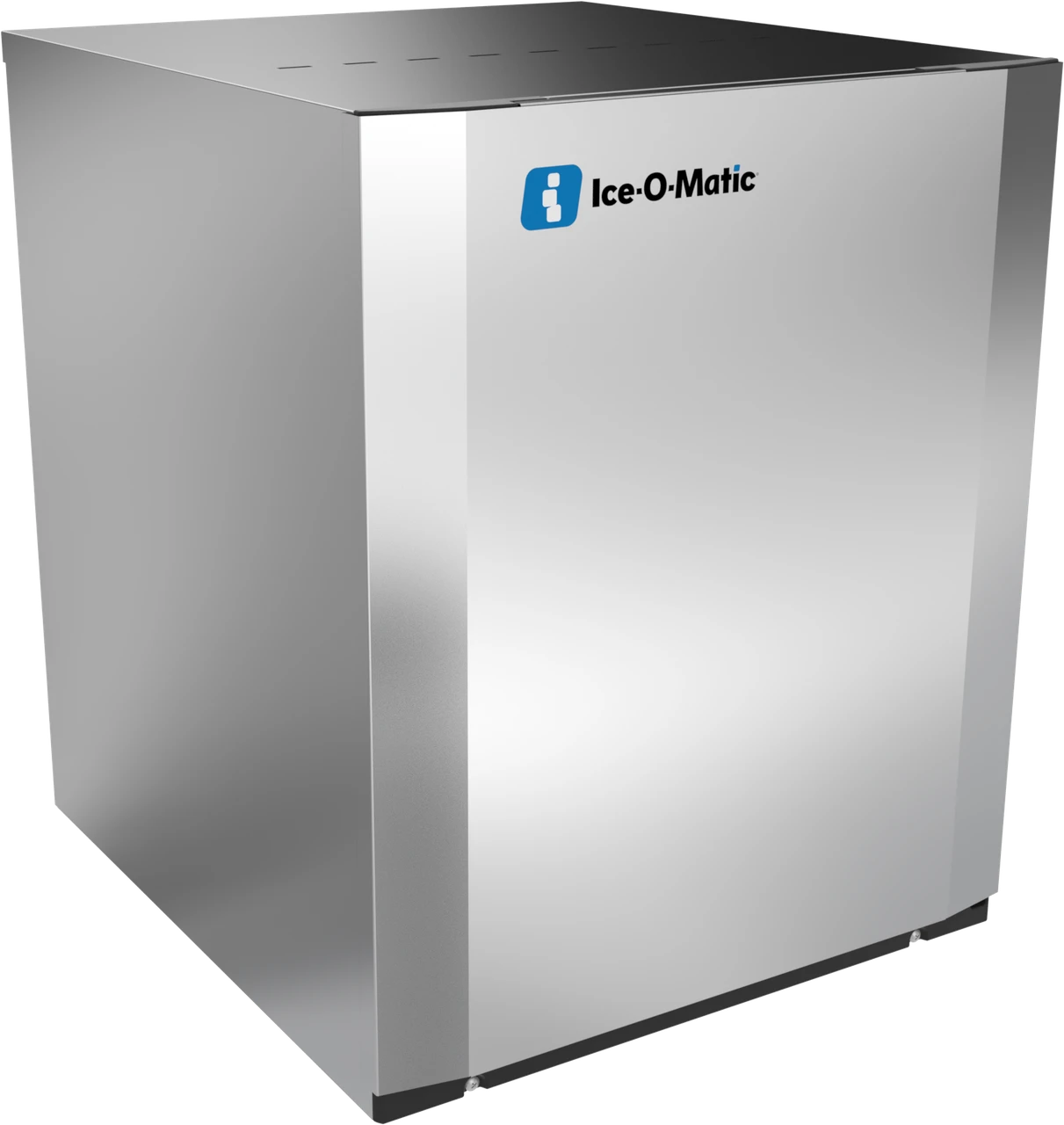

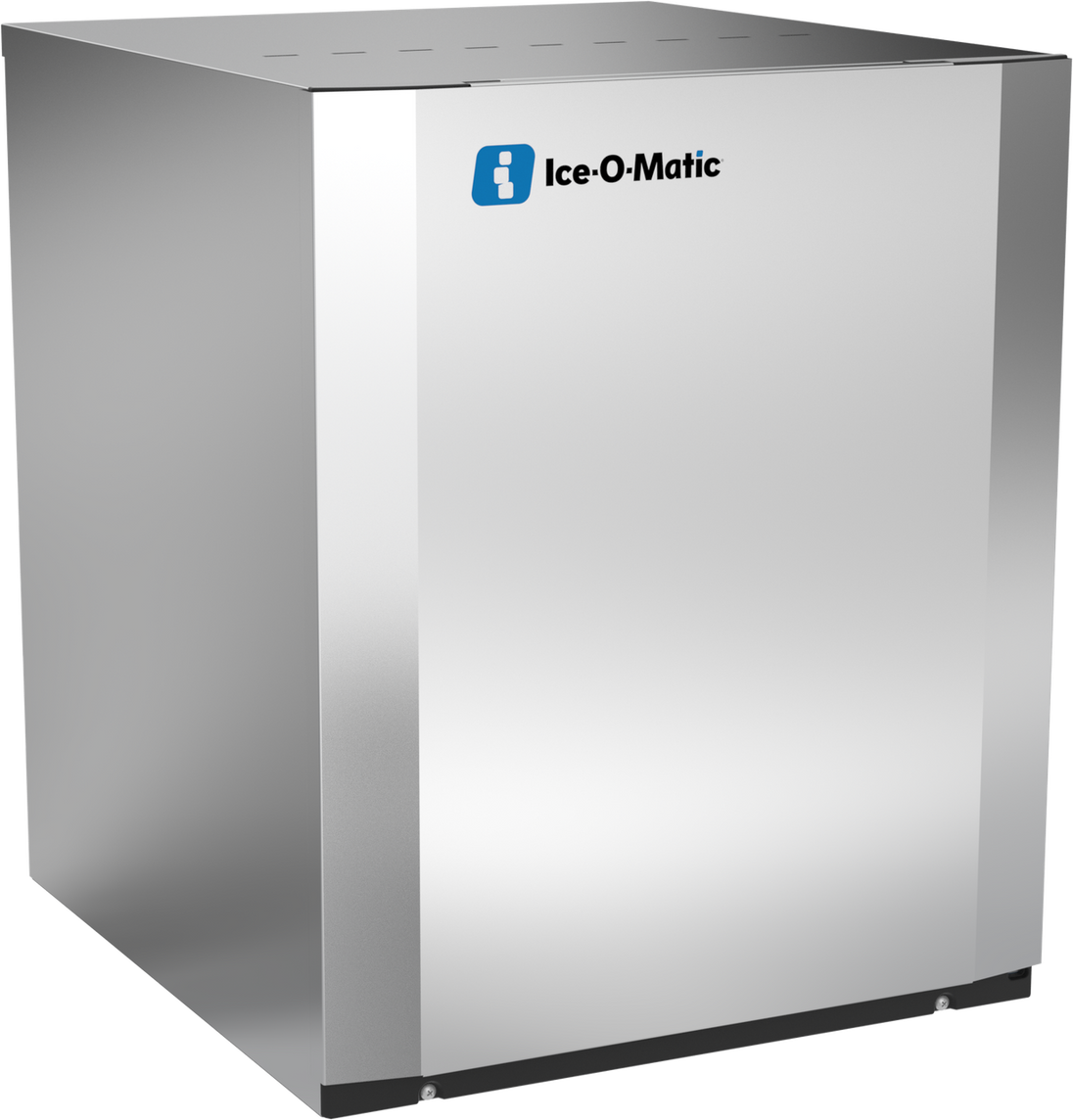

The Ice-O-Matic CIM1126HW90 is a 22.25-inch modular ice machine head in the Elevation Series, producing half cube ice at a rate of 900 to 1000 pounds per 24 hours with water cooling.

A 22.25-Inch Cabinet in the 1126 Class

The CIM1126HW90 carries a 22.25 inch wide by 24.25 inch deep by 26.9 inch tall cabinet, the footprint of Ice-O-Matic's 1126-series Elevation head. The sibling 1136-series cabinet is 30.25 inches wide but is rated for the same 900 to 1000 pound production range, so the width difference between the two series is a footprint and fit choice rather than a capacity upgrade.

Half Cube Output

This head produces half cube ice. Ice-O-Matic also builds the same 22.25-inch, water-cooled cabinet in a full cube configuration at the same 900 to 1000 pound rated production, so the choice between this unit and its full-cube counterpart comes down to ice type rather than output or footprint.

Water Cooled Condenser and R290A

The CIM1126HW90 uses a water-cooled condenser that rejects heat into a water supply rather than the surrounding air, running on R290A refrigerant. This is a modular head only; the ice storage bin is sold separately.

Specifications

Model CIM1126HW90
Series Elevation
Type Half Cube, modular head (bin sold separately)
Capacity 900 - 1000 lb ice per 24 hours
Exterior Dimensions 22.25 x 24.25 x 26.9 inches (W x D x H)
Electrical 208-230/60/1
Refrigerant R290A
Condenser Water
Filter System IFQ2
Shipping Weight 197 lb

Warranty

Ice-O-Matic publishes 3 years parts and labor on the CIM series, with 5 years parts coverage on the evaporator and compressor.
