Product Description

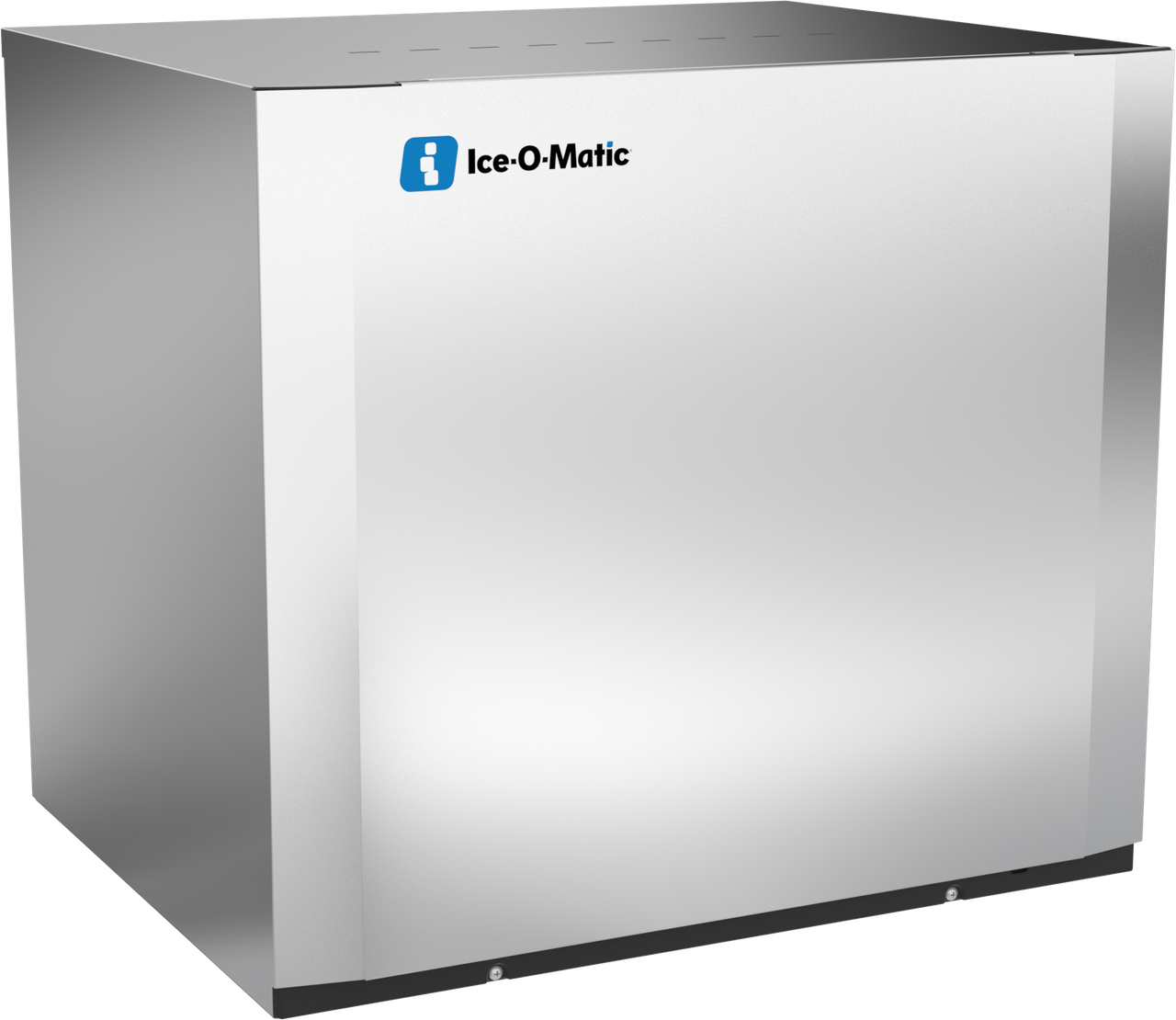

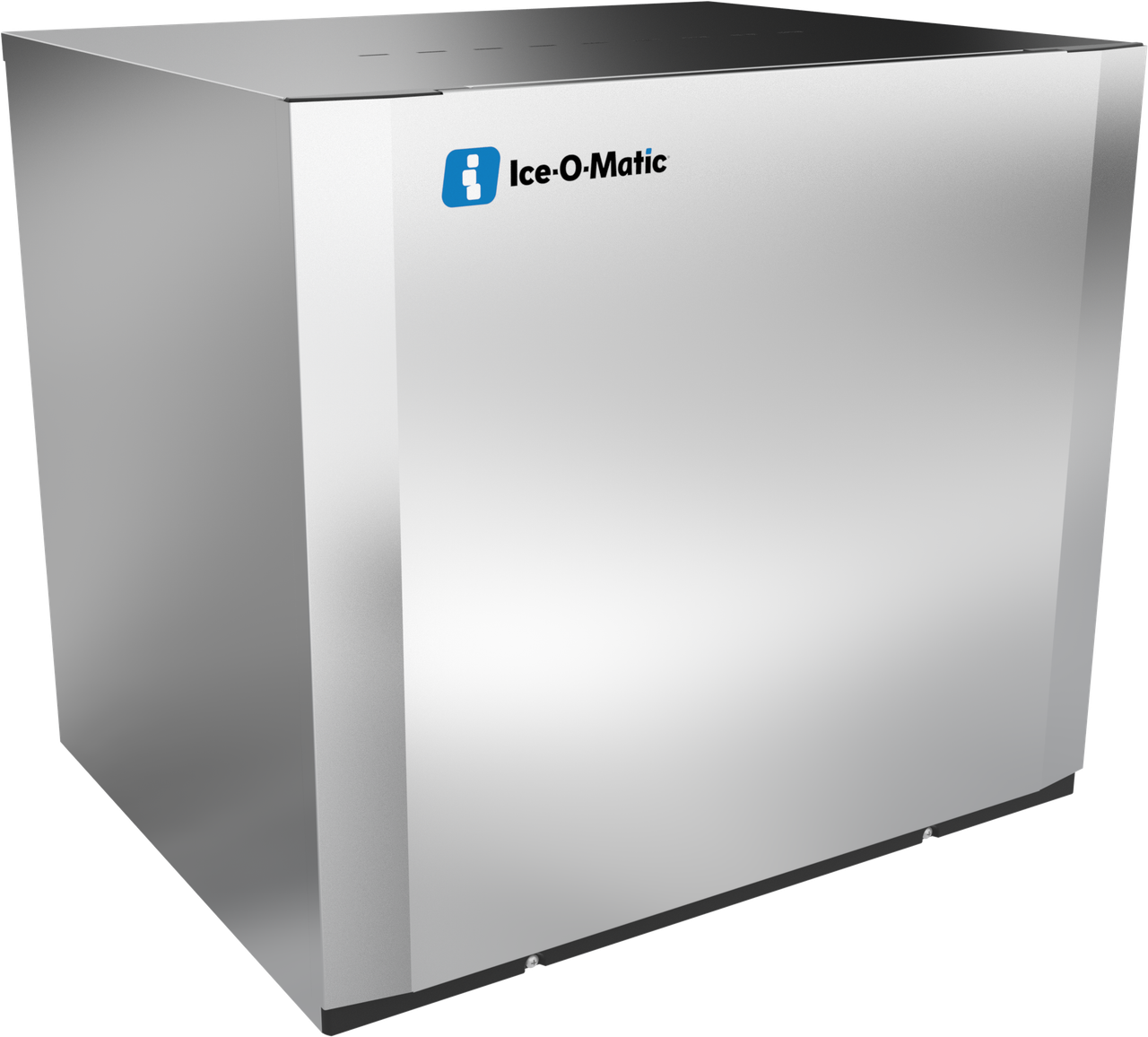

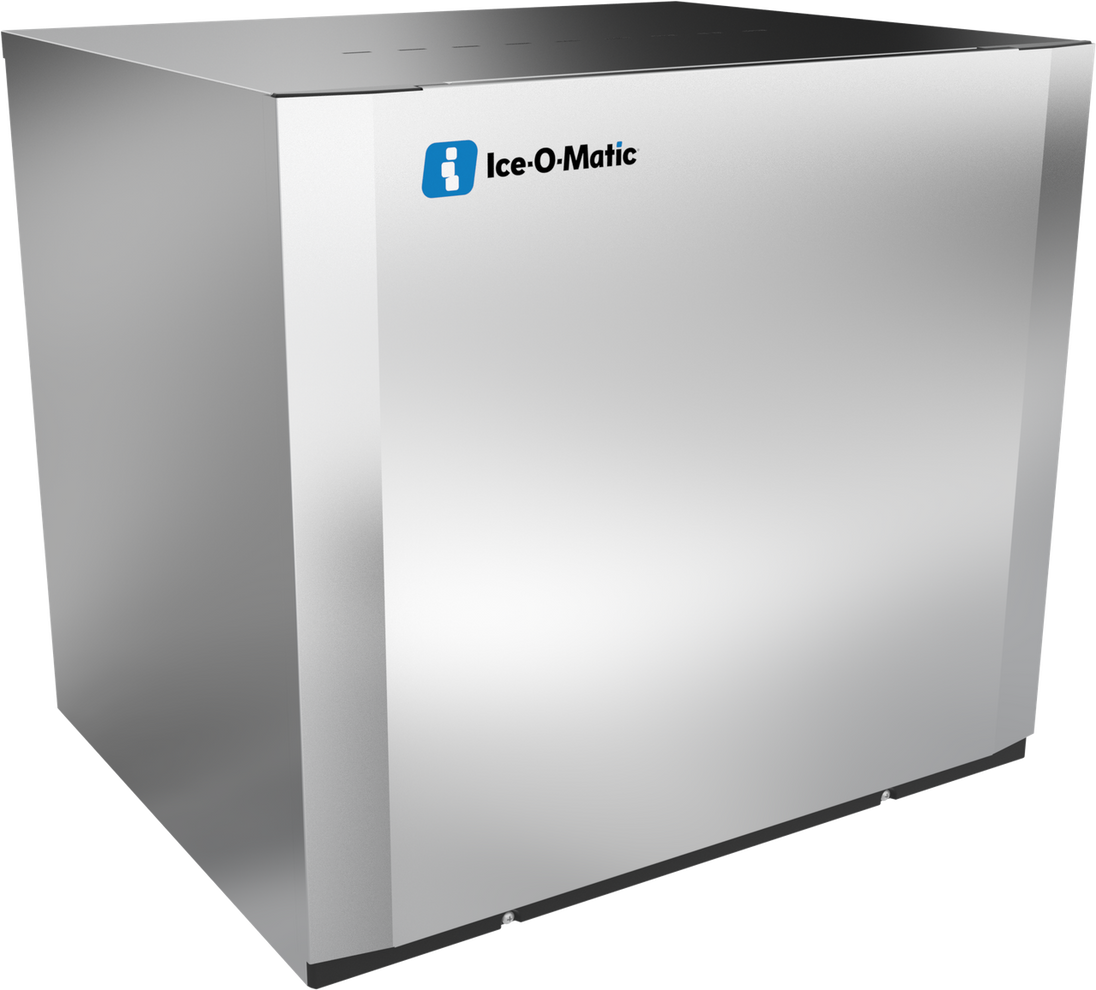

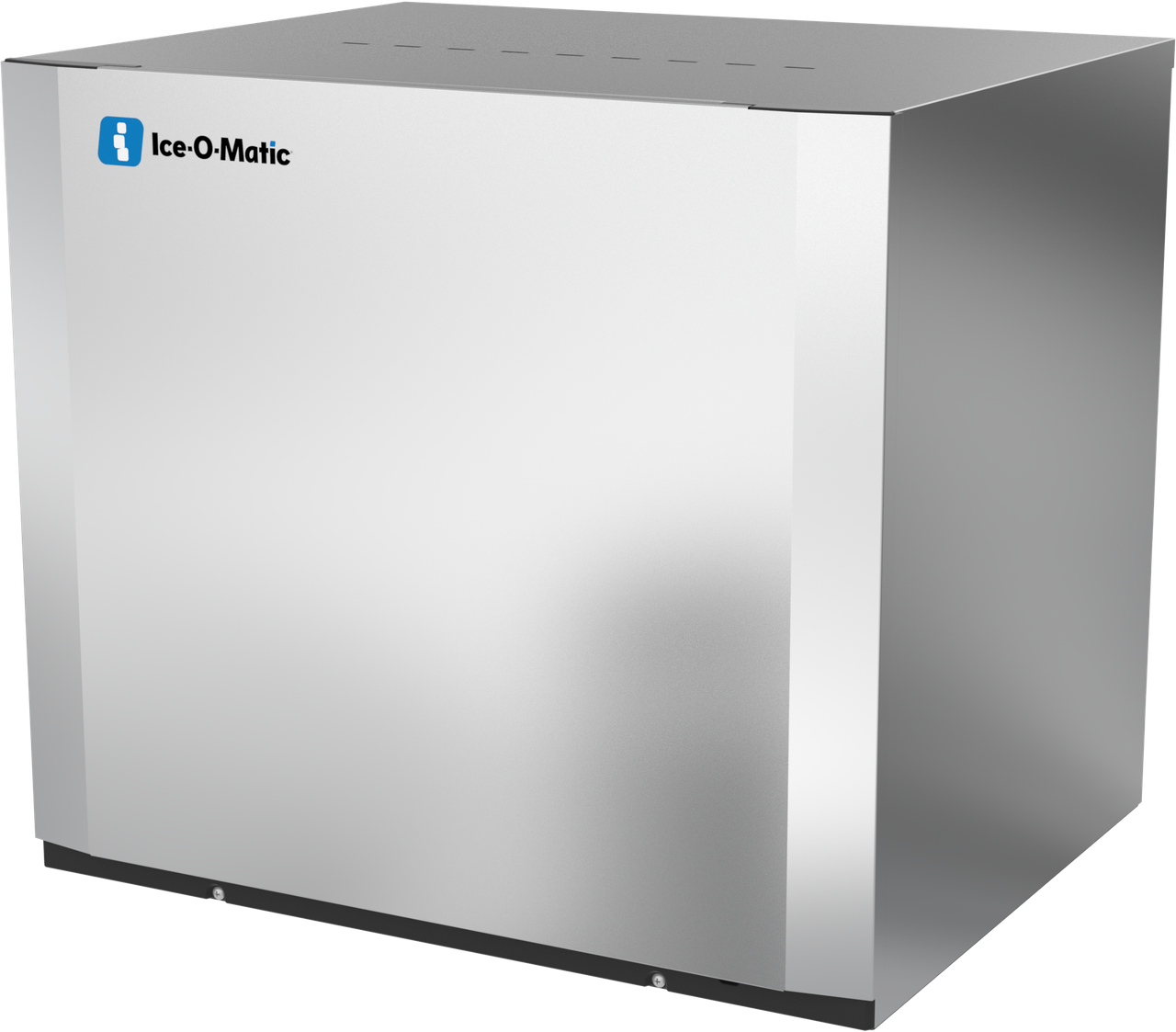

The Ice-O-Matic CIM0836HW90 is a 30-inch wide Elevation Series half cube ice machine head, producing 800 to 900 lb of ice per 24 hours on a water-cooled condenser.

Water-Cooled Condenser for Hot Ambient Kitchens

The CIM0836HW90 uses a water-cooled condenser and R290A refrigerant, trading a water supply and drain connection for condenser output that holds steady regardless of kitchen ambient temperature.

Half Cube Ice Versus the Full Cube CIM0836FW90

The CIM0836HW90 produces half cube ice, chilling drinks faster and packing more densely than the full cube ice made by its water-cooled sibling, the CIM0836FW90, at the cost of a faster melt rate. Both are rated at 800 to 900 lb per 24 hours.

Same Cabinet as the Air- and Remote-Cooled Half Cube Variants

The CIM0836HW90 shares its 30.25 x 24.25 x 26.9 inch cabinet and IFQ2 filter system with the air-cooled CIM0836HA90 and remote-cooled CIM0836HR49, differing only in condenser type.

Specifications

Model CIM0836HW90
Series Elevation
Type Half Cube, modular head (bin sold separately)
Capacity 800-900 lb per 24 hours
Exterior Dimensions 30.25 x 24.25 x 26.9 inches (W x D x H)
Electrical 208-230V / 60Hz / 1 Phase
Refrigerant R290A
Condenser Water-Cooled
Filter System IFQ2
Shipping Weight 212 lb

Warranty

Ice-O-Matic publishes 3 years parts and labor on the CIM series, with 5 years parts coverage on the evaporator and compressor.
