Product Description

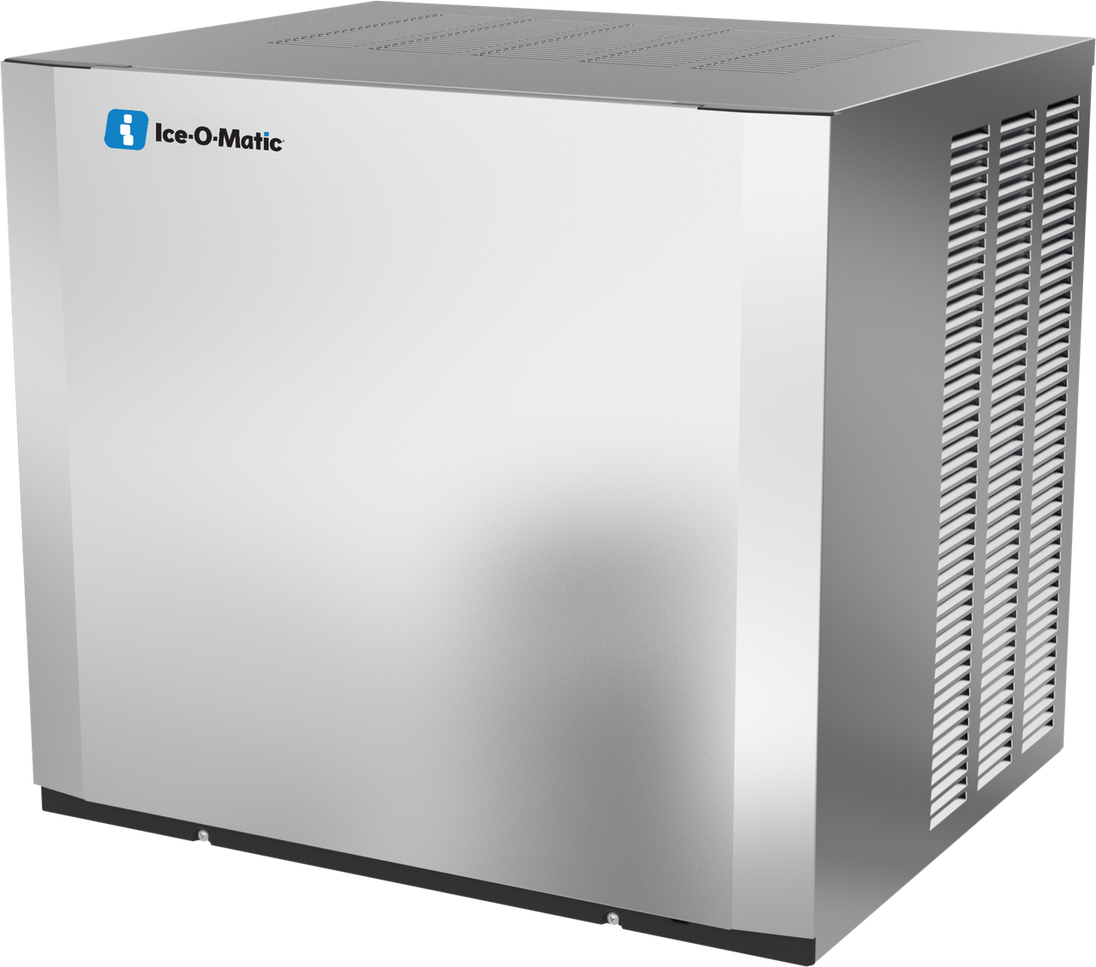

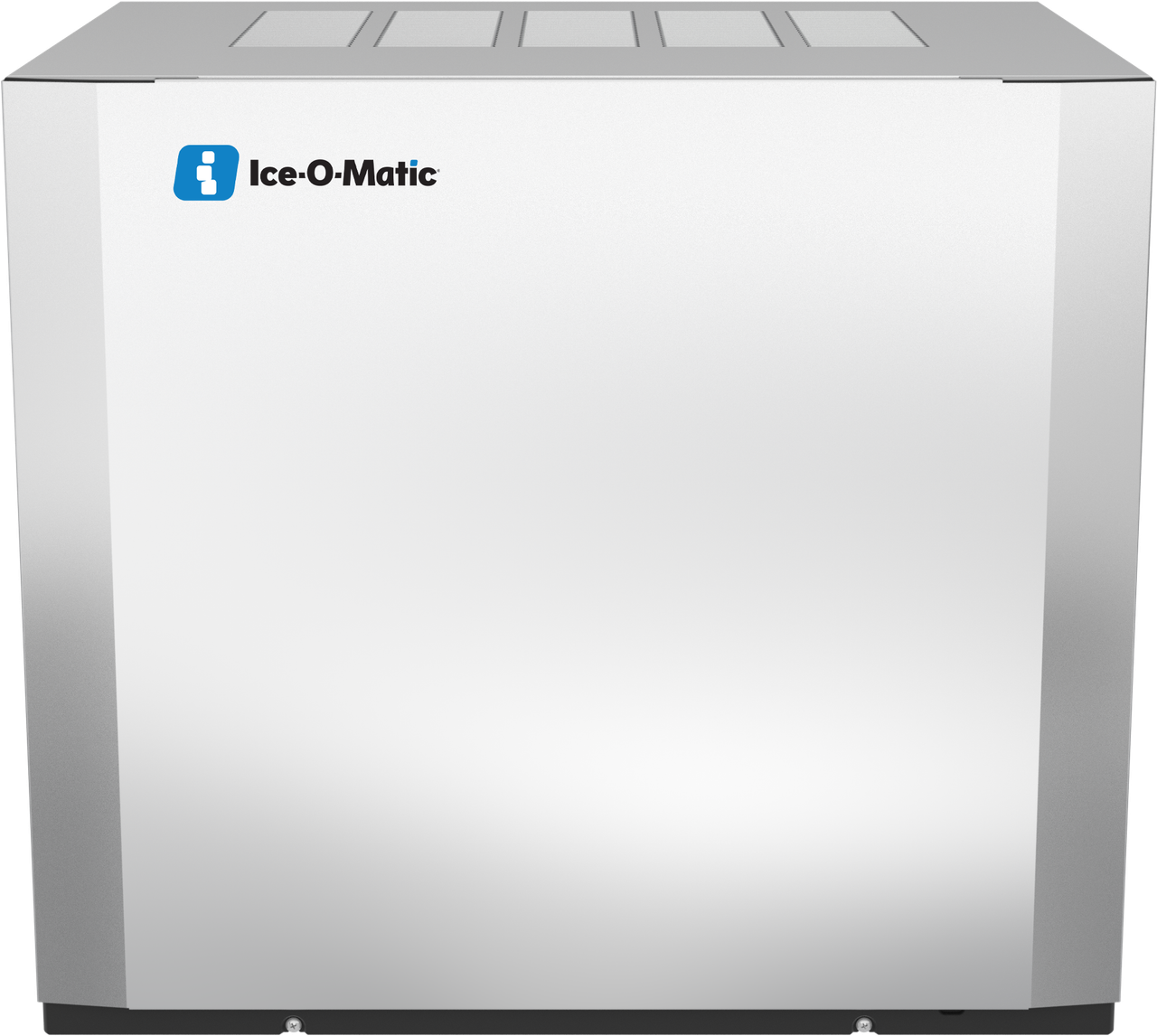

The Ice-O-Matic CIM0836HA90 is a 30-inch wide Elevation Series half cube ice machine head, producing 800 to 900 lb of ice per 24 hours on an air-cooled condenser.

Air-Cooled Condenser Keeps Installation Simple

The CIM0836HA90 uses an air-cooled condenser and R290A refrigerant, requiring only an electrical connection, water inlet, and drain. It is the simplest hookup of the condenser options Ice-O-Matic builds on this 30-inch width, though it rejects heat directly into the kitchen air.

Half Cube Ice Versus the Full Cube CIM0836FA90 and Grande Cube CIM0836GA90

The CIM0836HA90 produces half cube ice, which has more surface area than the full cube ice made by its air-cooled sibling CIM0836FA90 and differs from the Grande cube ice made by the CIM0836GA90, all three sharing the same 30.25 x 24.25 x 26.9 inch cabinet. The full cube variant carries a higher 900 to 1000 lb production rating versus 800 to 900 lb here.

Same Rated Output as the Remote and Water-Cooled Half Cube Variants

At 800 to 900 lb per 24 hours, the CIM0836HA90 matches the production rating of its remote-cooled sibling CIM0836HR49 and water-cooled sibling CIM0836HW90, with the choice between them coming down to condenser type and refrigerant.

Specifications

Model CIM0836HA90
Series Elevation
Type Half Cube, modular head (bin sold separately)
Capacity 800-900 lb per 24 hours
Exterior Dimensions 30.25 x 24.25 x 26.9 inches (W x D x H)
Electrical 208-230V / 60Hz / 1 Phase
Refrigerant R290A
Condenser Air-Cooled
Filter System IFQ2
Shipping Weight 212 lb

Warranty

Ice-O-Matic publishes 3 years parts and labor on the CIM series, with 5 years parts coverage on the evaporator and compressor.
