Product Description

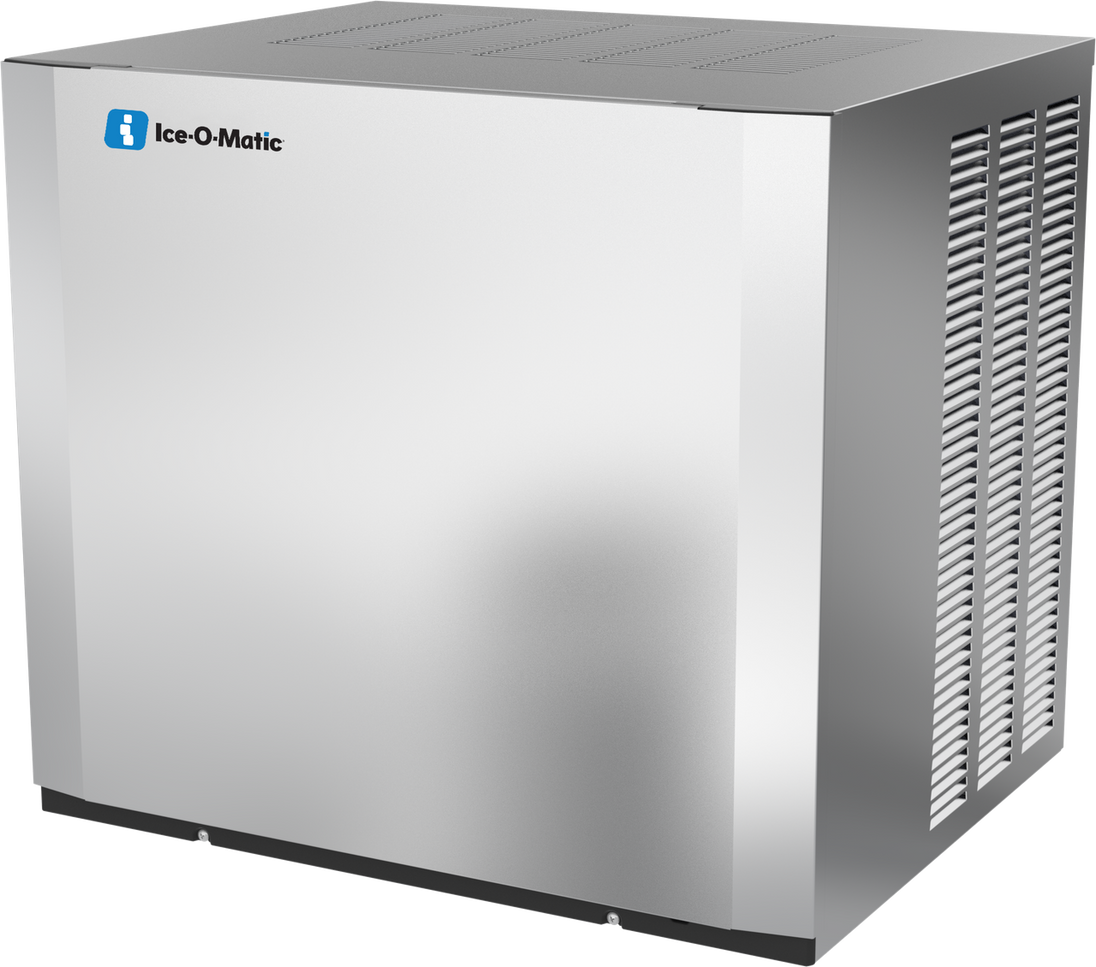

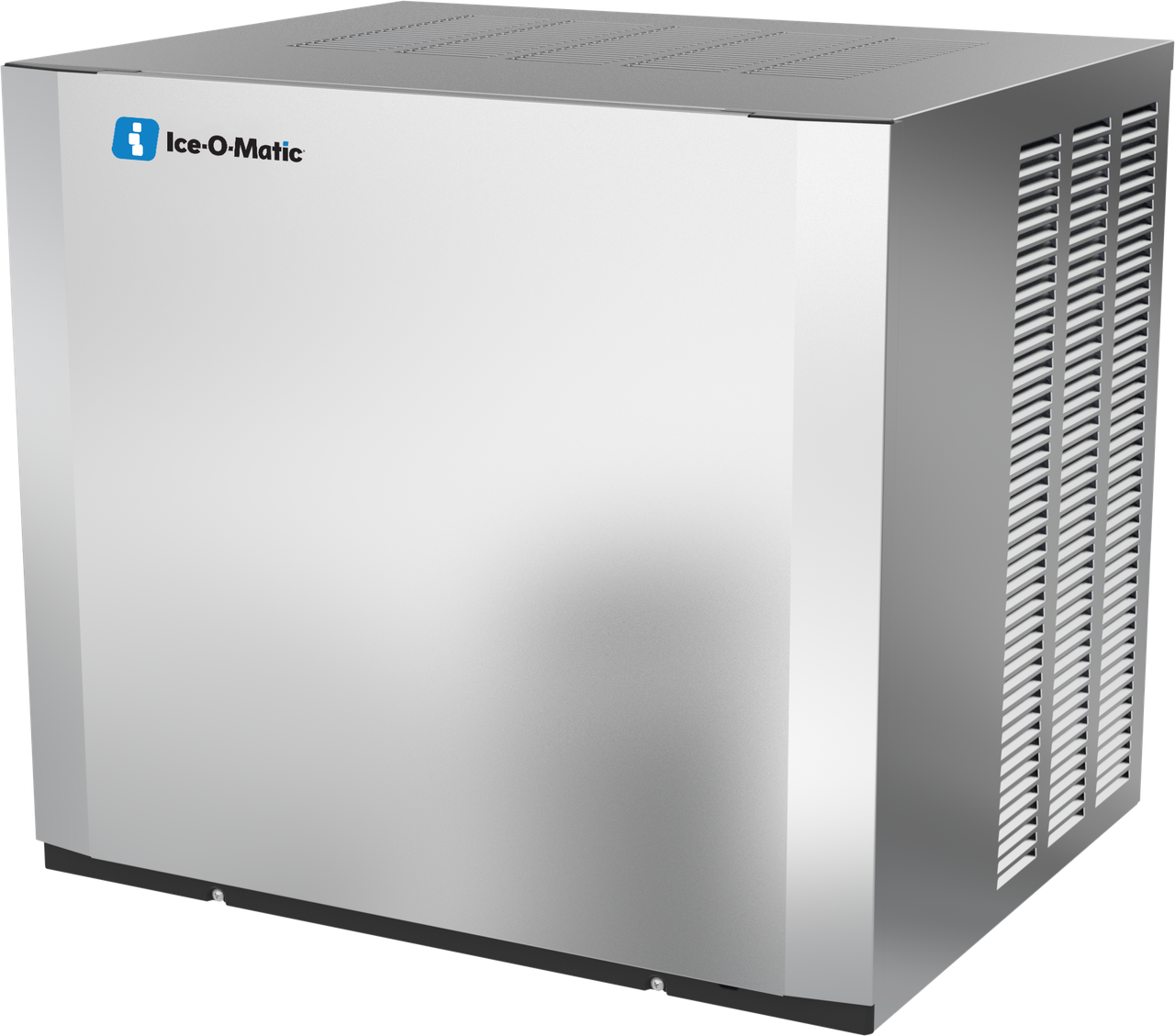

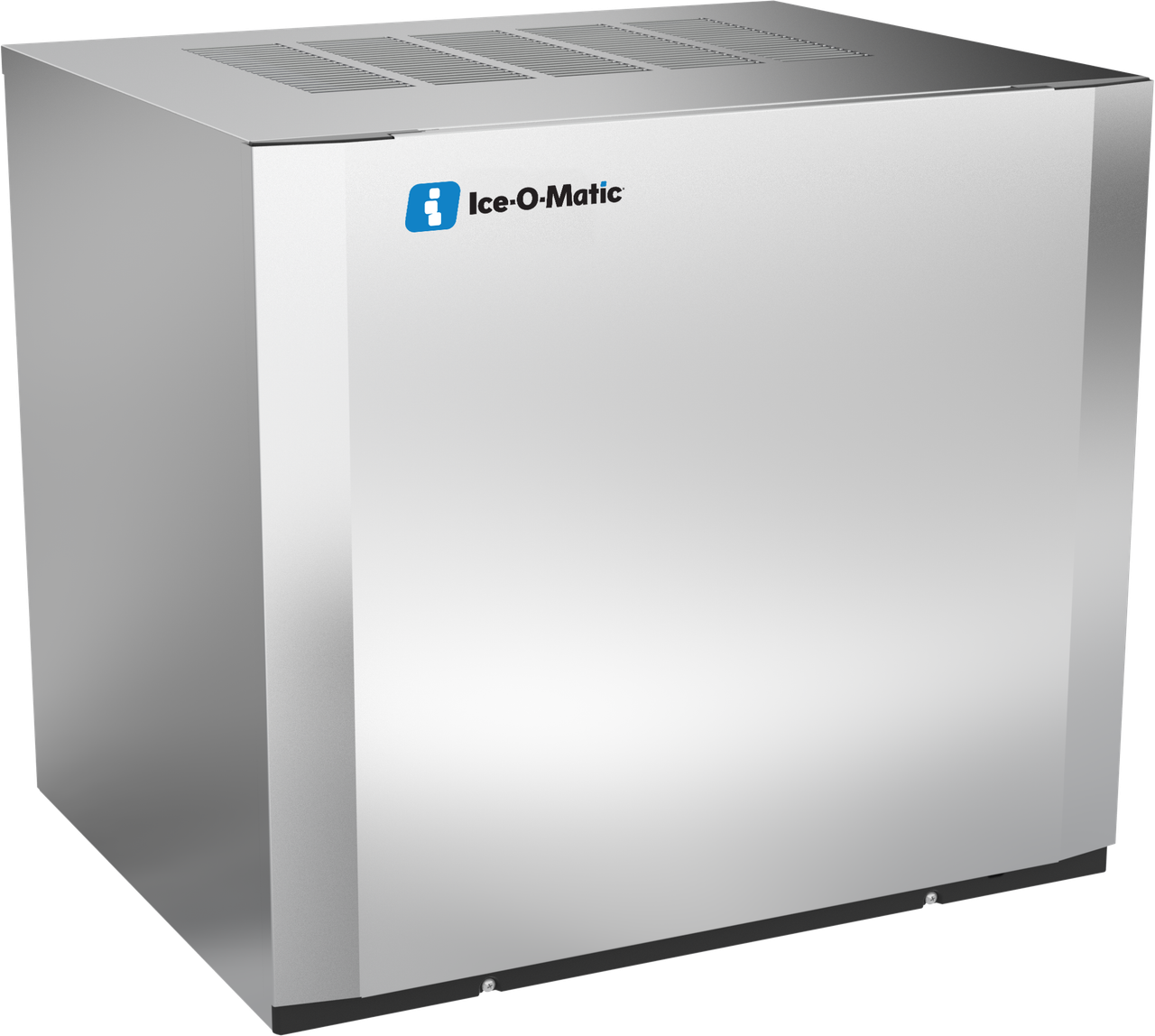

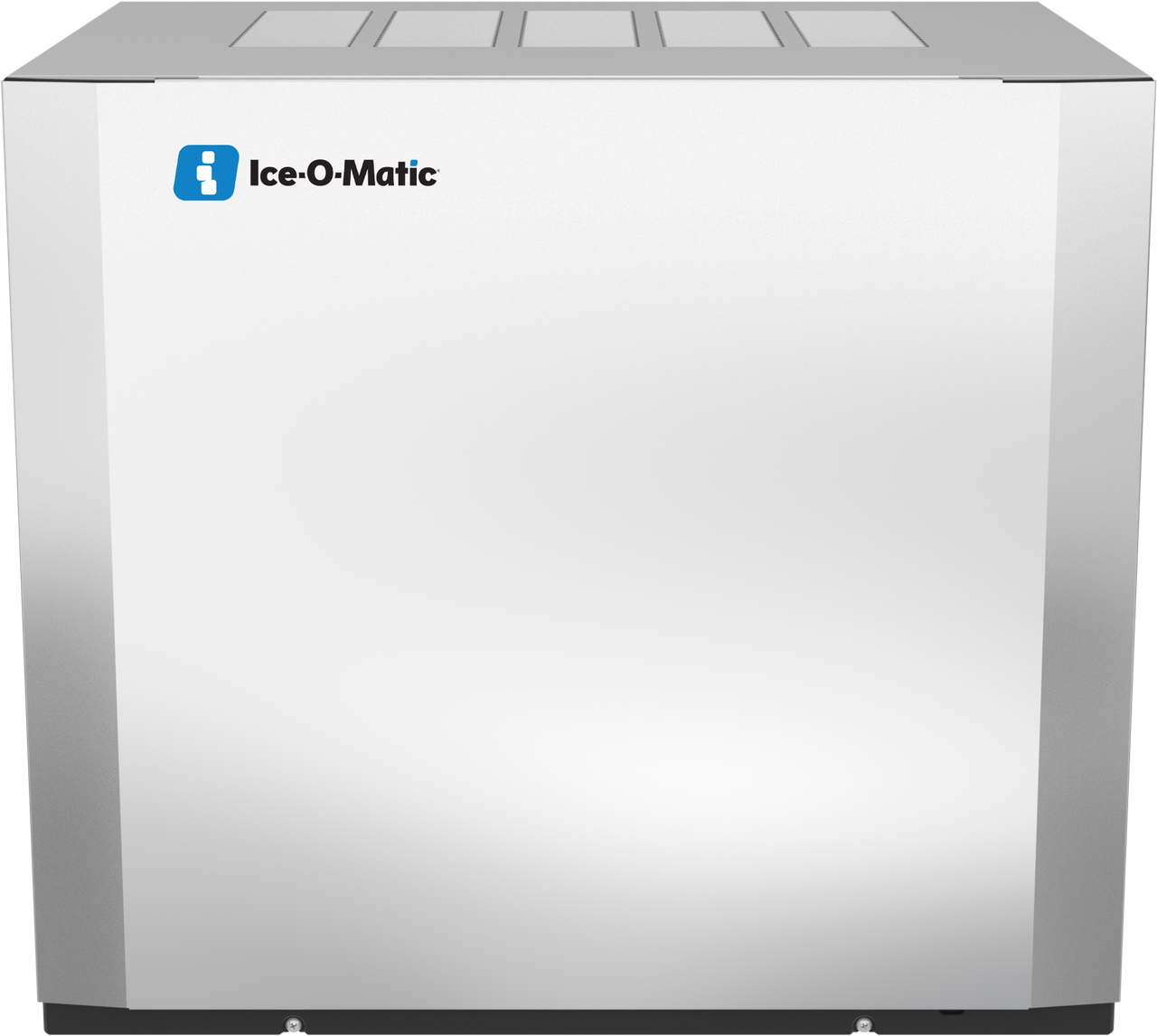

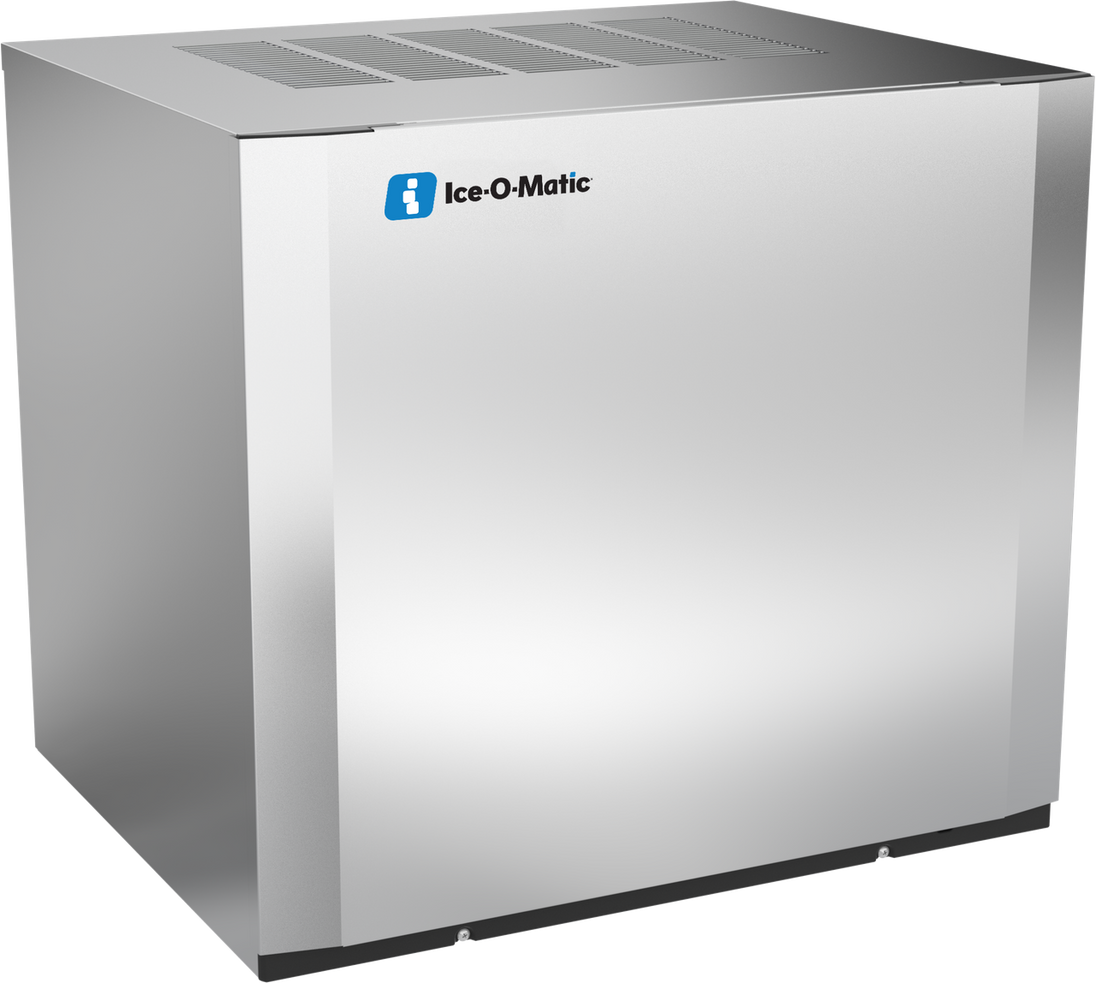

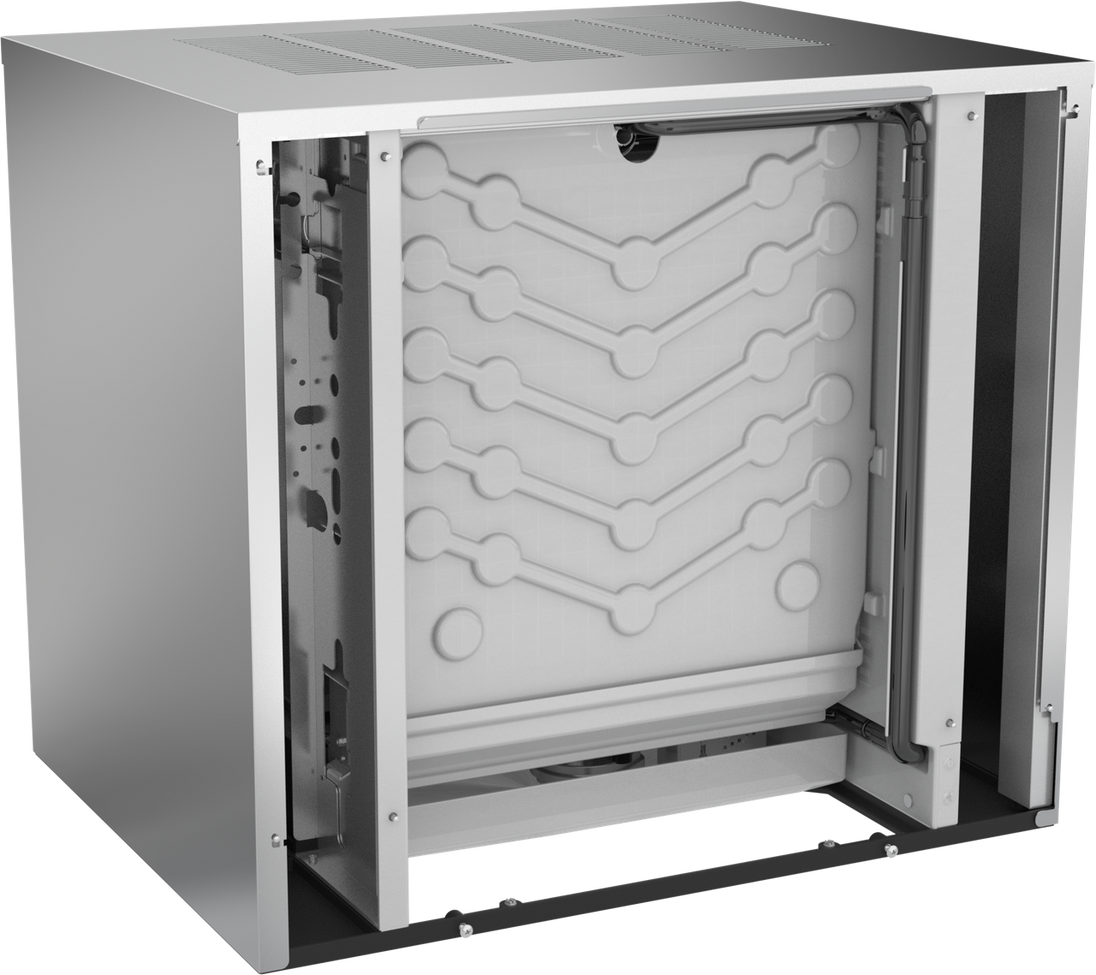

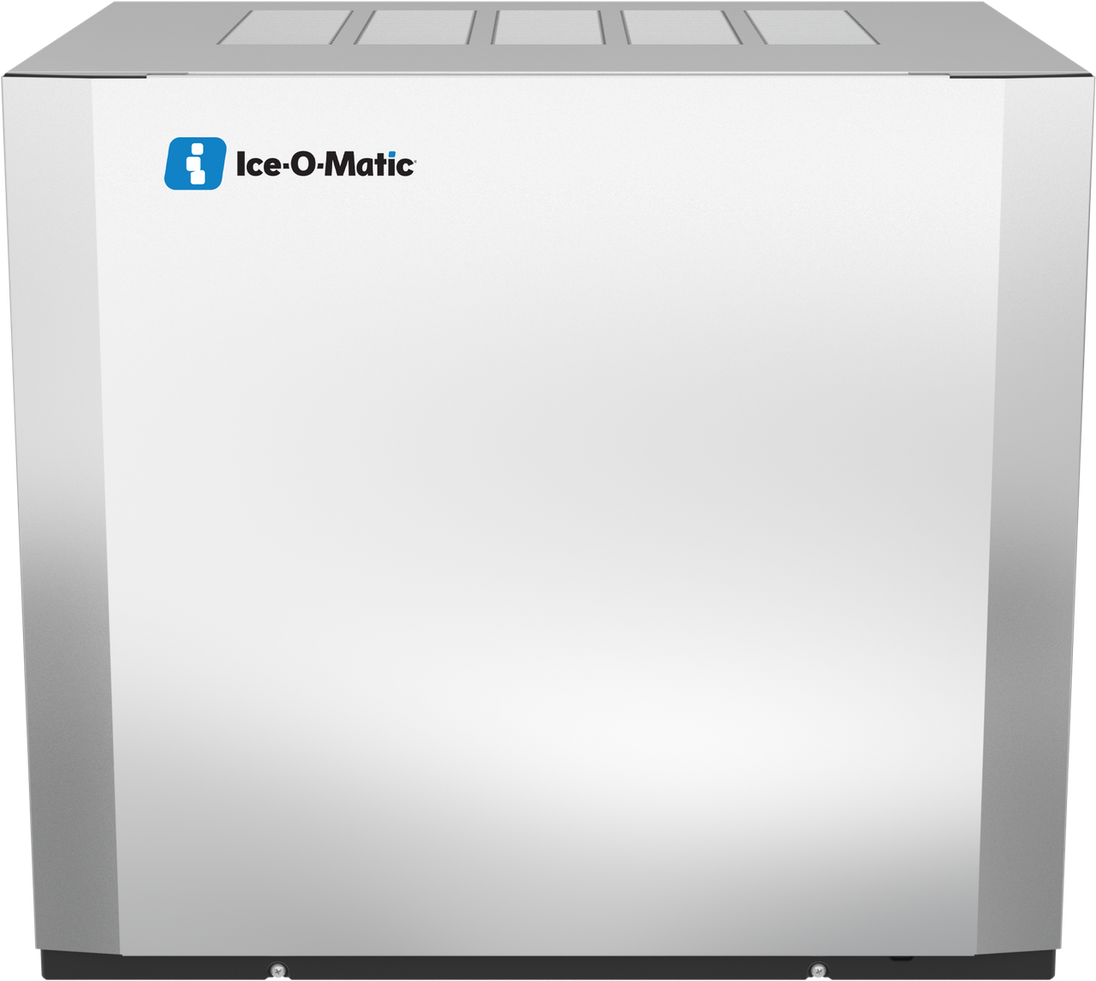

The Ice-O-Matic CIM0836GA90 is a 30-inch wide Elevation Series Grande cube ice machine head, producing 800 to 900 lb of ice per 24 hours on an air-cooled condenser.

Grande Cube Ice as a Third Ice Type on the 30-Inch Platform

The CIM0836GA90 produces Grande cube ice, a distinct ice type from the full cube and half cube ice Ice-O-Matic offers on the same 30-inch air-cooled cabinet via the CIM0836FA90 and CIM0836HA90. Ice-O-Matic's own product page lists Grande cube as its own ice type on this model rather than a variant of full or half cube.

Air-Cooled Condenser Keeps Installation Simple

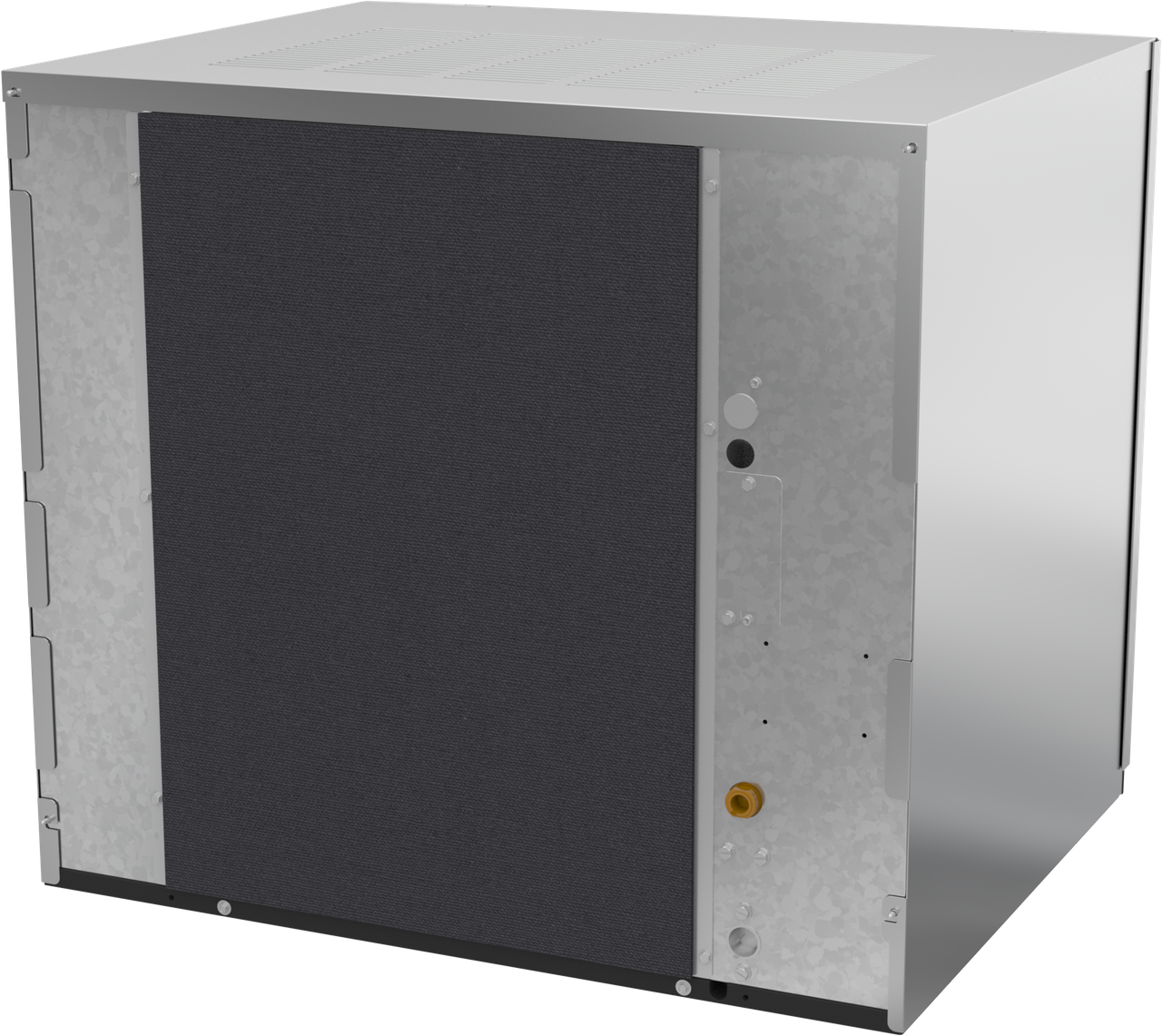

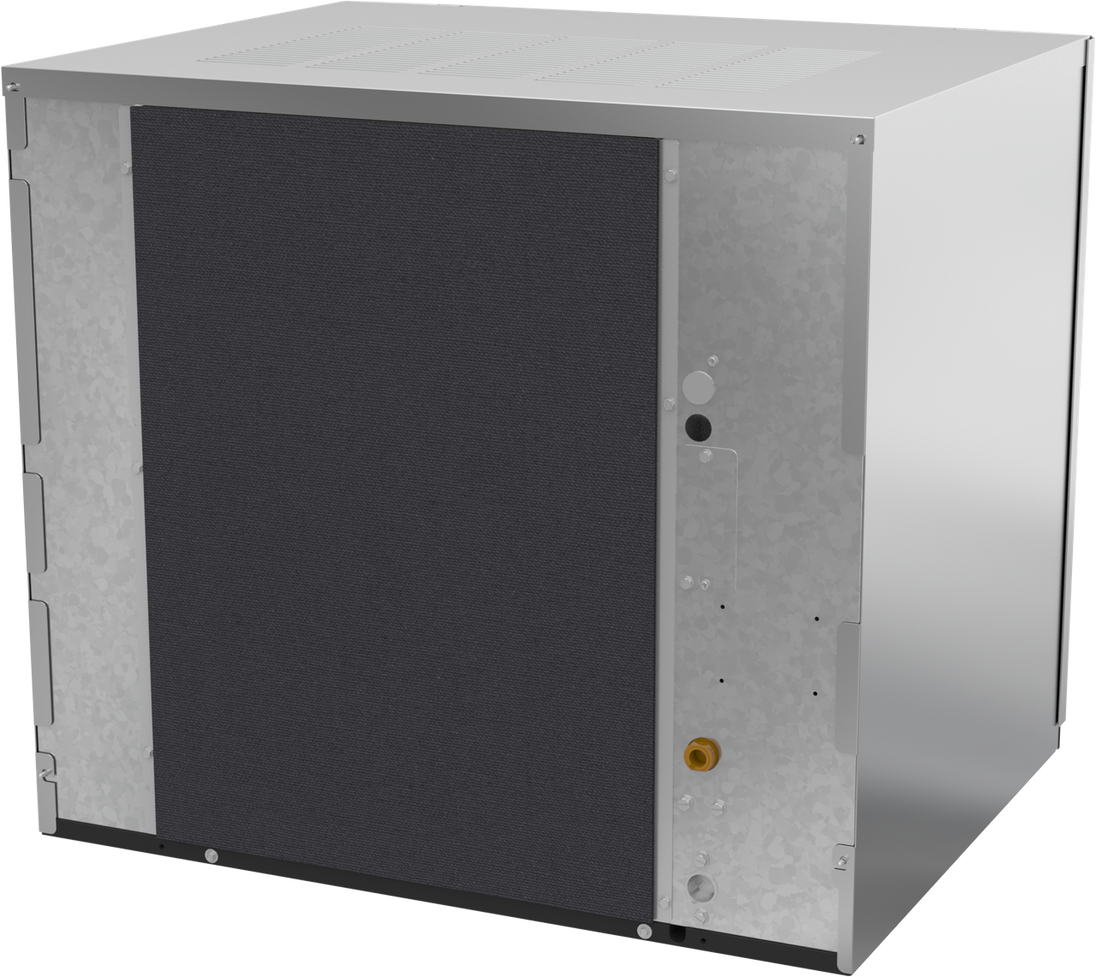

The CIM0836GA90 uses an air-cooled condenser and R290A refrigerant, needing only an electrical connection, water inlet, and drain rather than a water line or outdoor remote unit. It rejects heat directly into the kitchen air, so surrounding ventilation should be sized for it.

Rated Below the Full Cube CIM0836FA90's Air-Cooled Output

At 800 to 900 lb per 24 hours, the CIM0836GA90's published production sits below the 900 to 1000 lb range of the full cube CIM0836FA90, while sharing the same 30.25 x 24.25 x 26.9 inch cabinet, IFQ2 filter system, and R290A refrigerant.

Specifications

Model CIM0836GA90
Series Elevation
Type Grande Cube, modular head (bin sold separately)
Capacity 800-900 lb per 24 hours
Exterior Dimensions 30.25 x 24.25 x 26.9 inches (W x D x H)
Electrical 208-230V / 60Hz / 1 Phase
Refrigerant R290A
Condenser Air-Cooled
Filter System IFQ2
Shipping Weight 212 lb

Warranty

Ice-O-Matic publishes 3 years parts and labor on the CIM series, with 5 years parts coverage on the evaporator and compressor.
