Product Description

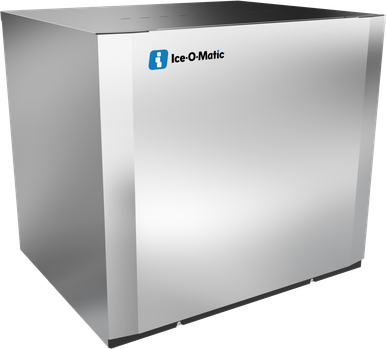

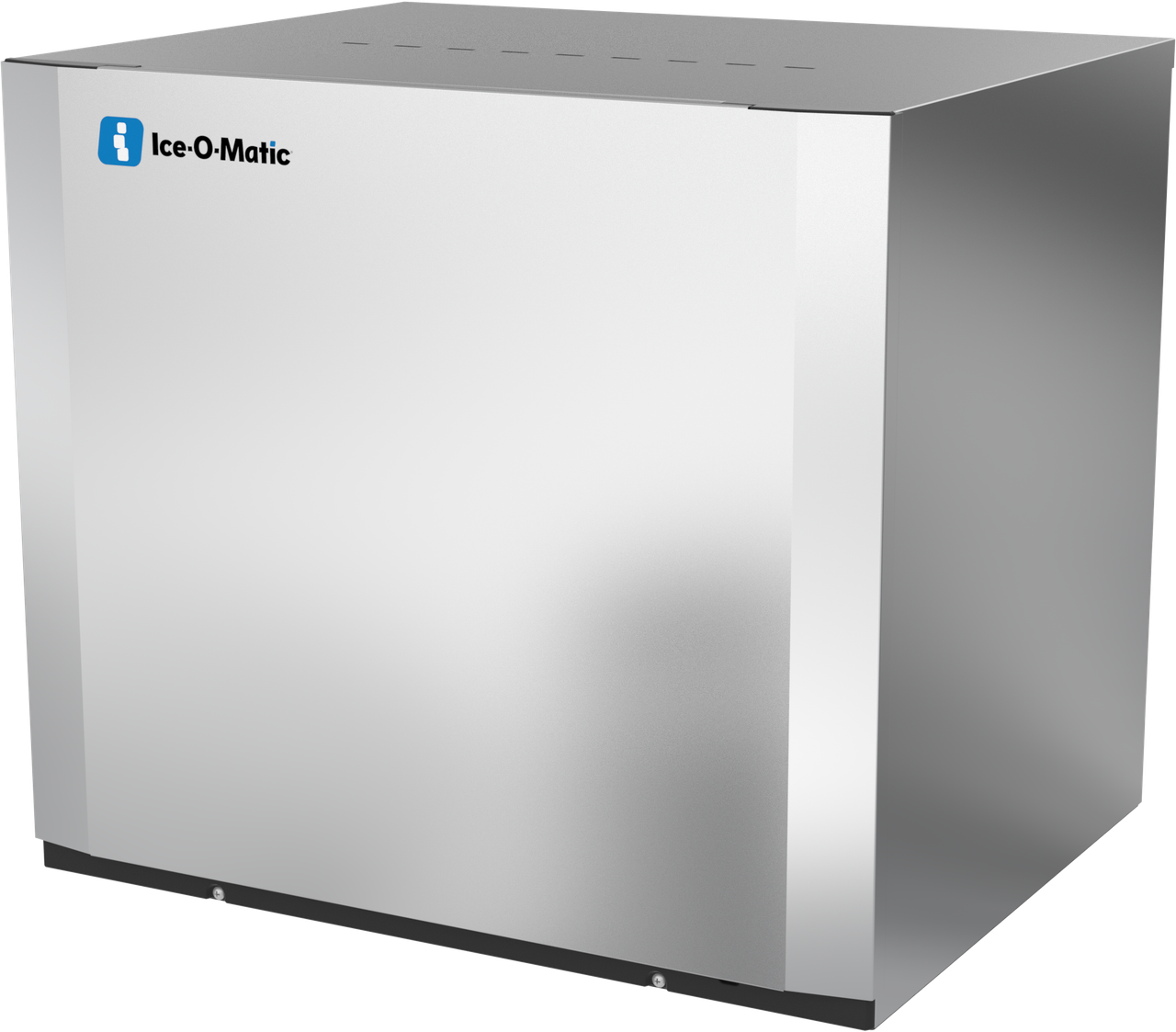

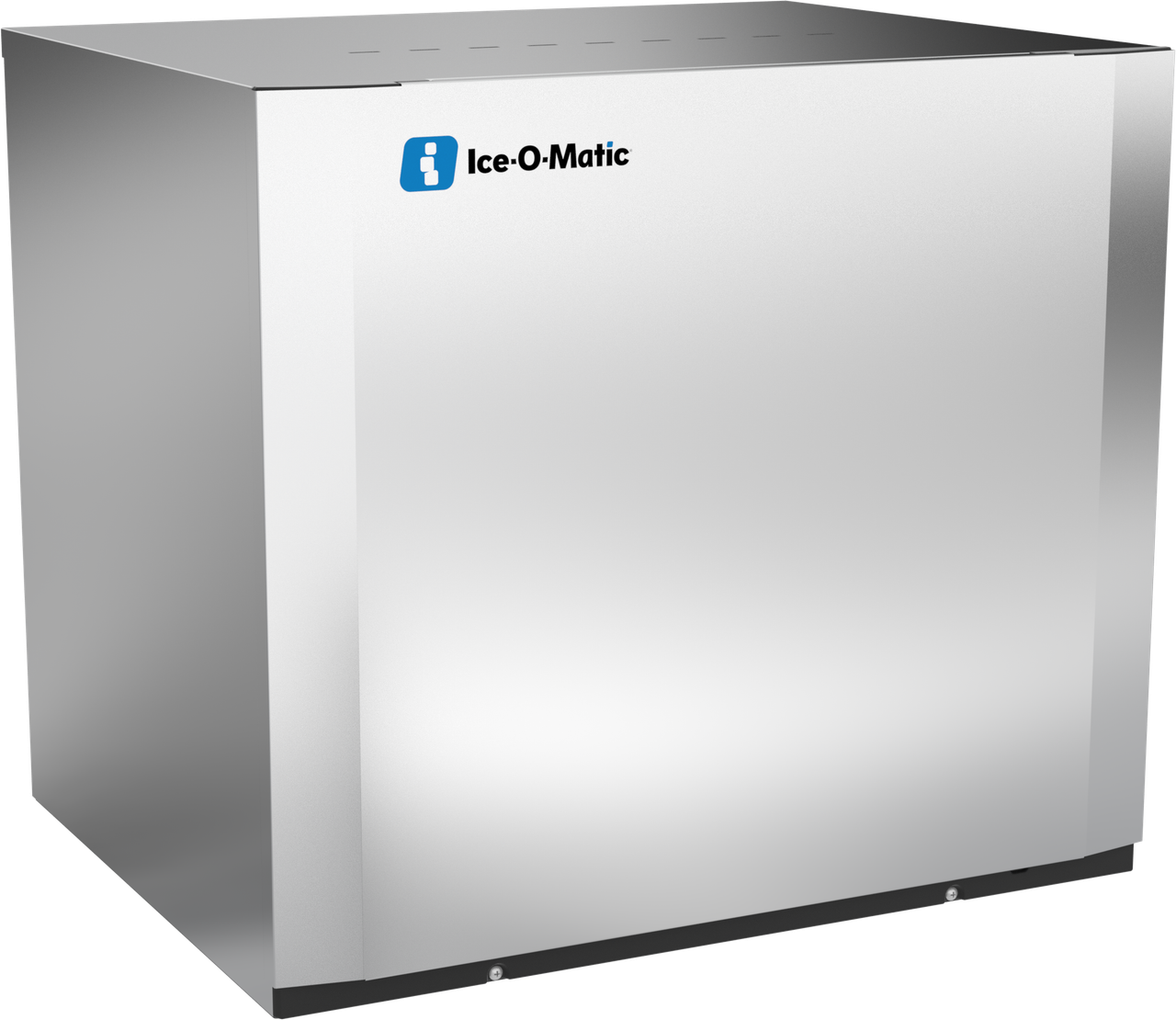

The Ice-O-Matic CIM0836FW90 is a 30-inch wide Elevation Series full cube ice machine head, producing 800 to 900 lb of ice per 24 hours on a water-cooled condenser.

Water-Cooled Condenser for Hot Ambient Kitchens

The CIM0836FW90 uses a water-cooled condenser and R290A refrigerant, trading a water supply and drain connection for condenser output that holds steady regardless of kitchen ambient temperature.

Same Production Range as the Remote-Cooled CIM0836FR49

The CIM0836FW90 is rated at 800 to 900 lb per 24 hours, matching the remote-cooled CIM0836FR49 on the same 30-inch full cube cabinet, but uses R290A refrigerant rather than R449A and needs no outdoor condenser.

Full Cube Ice Versus the Half Cube CIM0836HW90

The CIM0836FW90 produces full cube ice, melting more slowly than the half cube ice made by its water-cooled sibling, the CIM0836HW90. Both share the same 30.25 x 24.25 x 26.9 inch cabinet and IFQ2 filter system.

Specifications

Model CIM0836FW90
Series Elevation
Type Full Cube, modular head (bin sold separately)
Capacity 800-900 lb per 24 hours
Exterior Dimensions 30.25 x 24.25 x 26.9 inches (W x D x H)
Electrical 208-230V / 60Hz / 1 Phase
Refrigerant R290A
Condenser Water-Cooled
Filter System IFQ2

Warranty

Ice-O-Matic publishes 3 years parts and labor on the CIM series, with 5 years parts coverage on the evaporator and compressor.
