Product Description

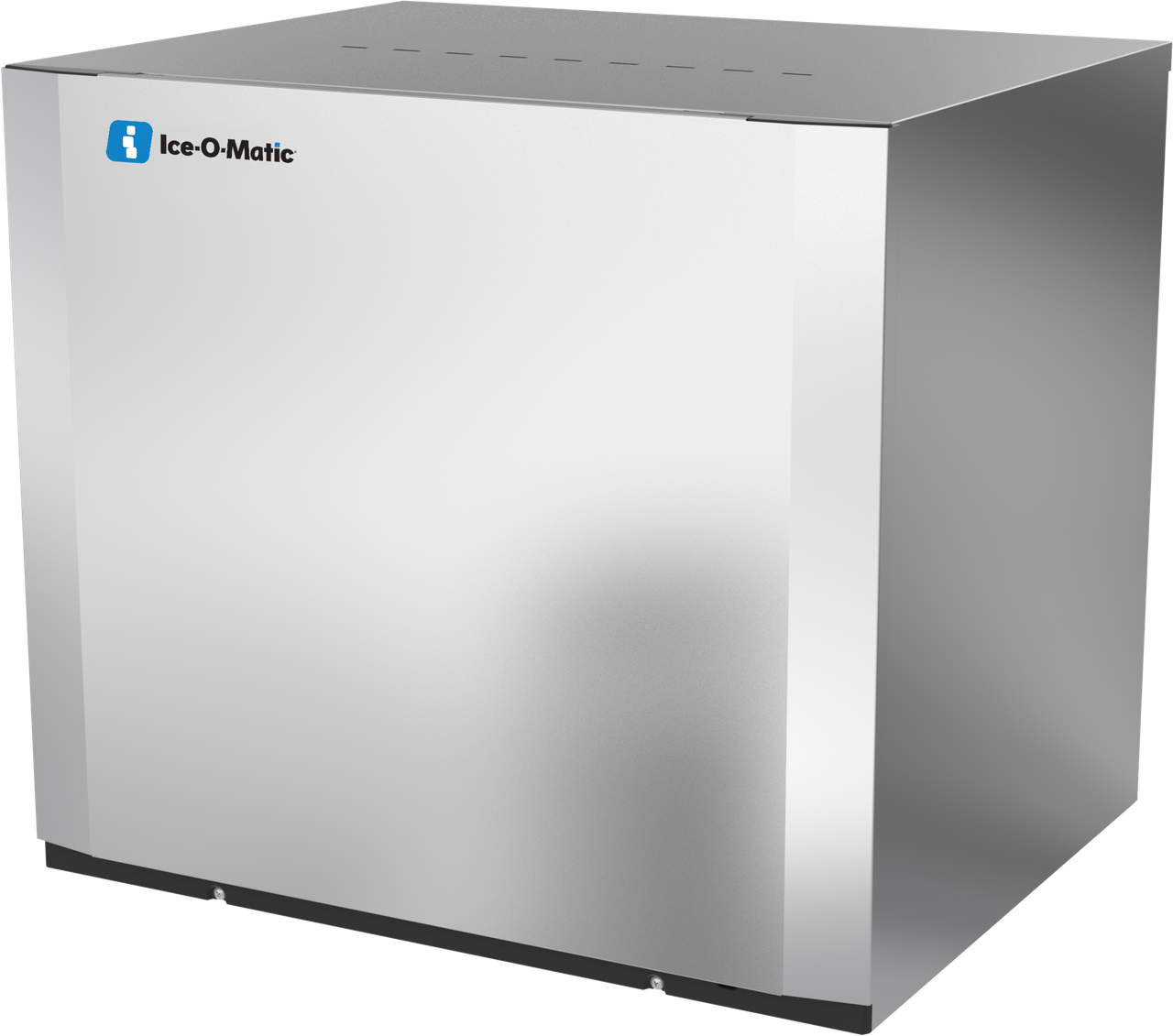

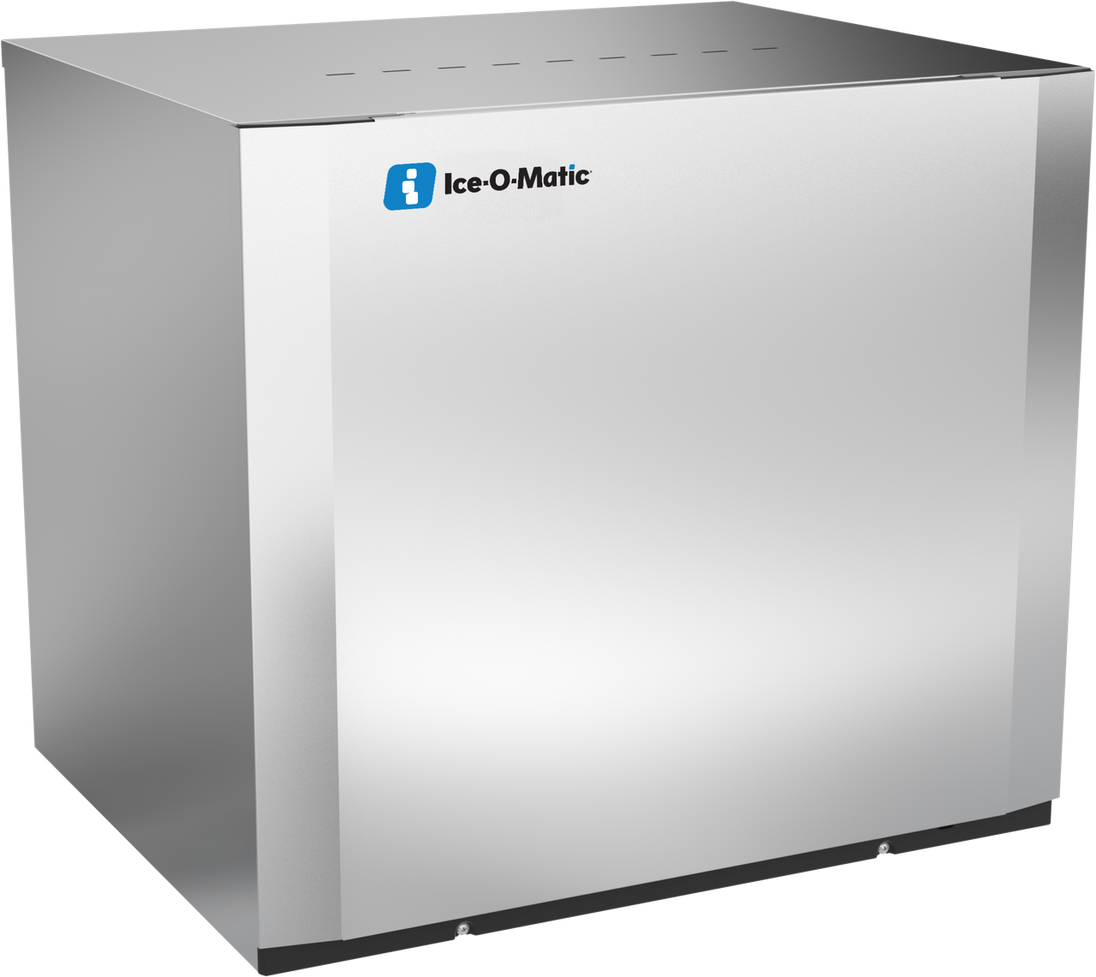

The Ice-O-Matic CIM0836FR49 is a 30-inch wide Elevation Series full cube ice machine head, producing 800 to 900 lb of ice per 24 hours on a remote-cooled condenser system.

Remote Condenser Requires a Separately-Sold Outdoor Unit

The CIM0836FR49 uses a remote condenser configuration with R449A refrigerant, so the head sold here must be paired with a separately-sold remote condensing unit rather than an integrated condenser. This keeps compressor heat and noise out of the kitchen at the cost of a line set run and outdoor mounting.

Full Cube Ice Versus the Half Cube CIM0836HR49

The CIM0836FR49 produces full cube ice, melting more slowly than the half cube ice made by its remote-cooled sibling, the CIM0836HR49. Both are rated at the same 800 to 900 lb per 24 hours on the same 30-inch cabinet.

Lower Rated Output Than the Air-Cooled CIM0836FA90

At 800 to 900 lb per 24 hours, the CIM0836FR49 is rated below the 900 to 1000 lb range of its air-cooled sibling, the CIM0836FA90, though both share the same 30.25 x 24.25 x 26.9 inch cabinet and IFQ2 filter system.

Specifications

Model CIM0836FR49
Series Elevation
Type Full Cube, modular head (bin sold separately)
Capacity 800-900 lb per 24 hours
Exterior Dimensions 30.25 x 24.25 x 26.9 inches (W x D x H)
Electrical 208-230V / 60Hz / 1 Phase
Refrigerant R449A
Condenser Remote
Filter System IFQ2
Shipping Weight 215 lb

Warranty

Ice-O-Matic publishes 3 years parts and labor on the CIM series, with 5 years parts coverage on the evaporator and compressor. The remote condenser carries the same warranty terms.
