Product Description

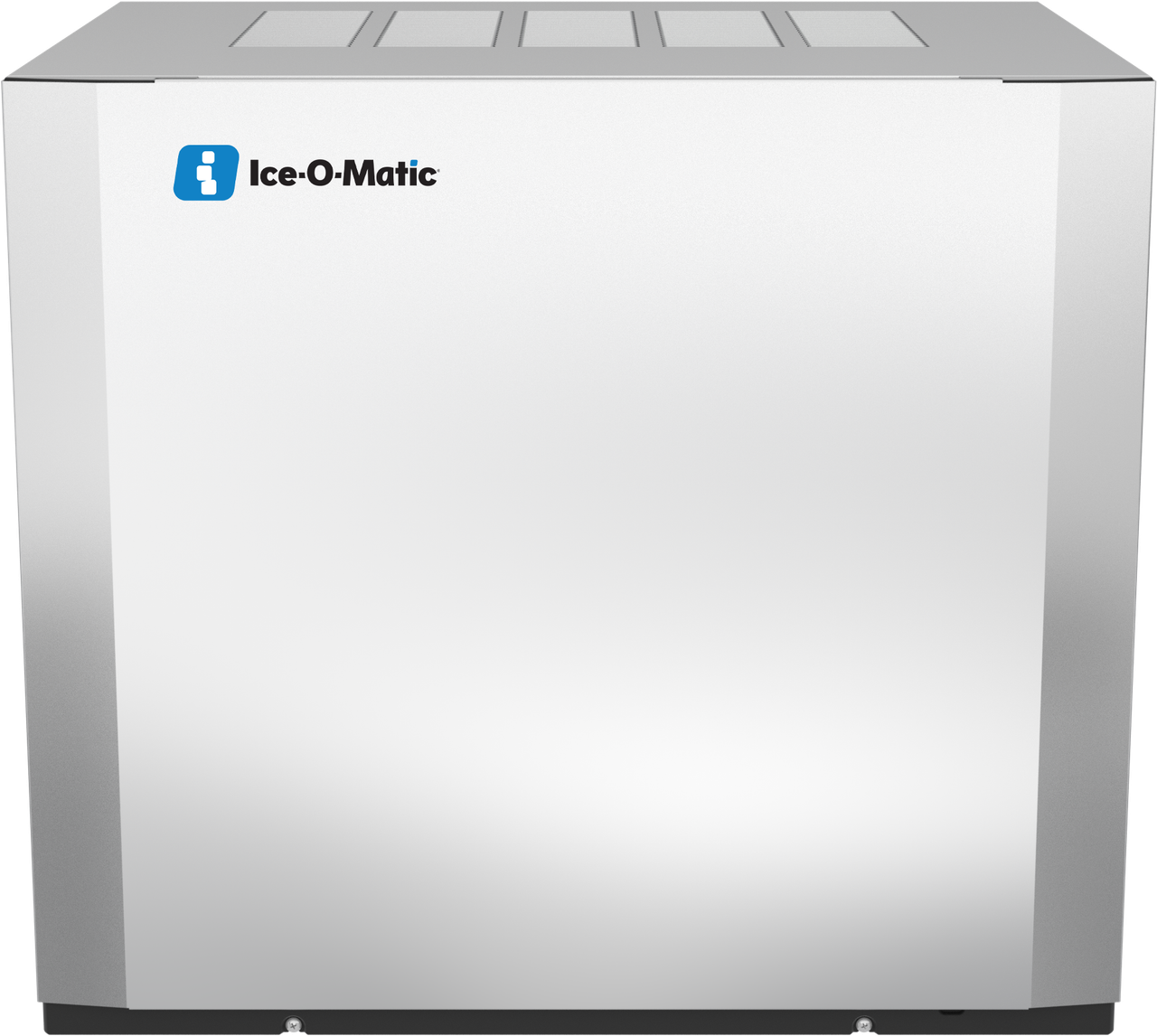

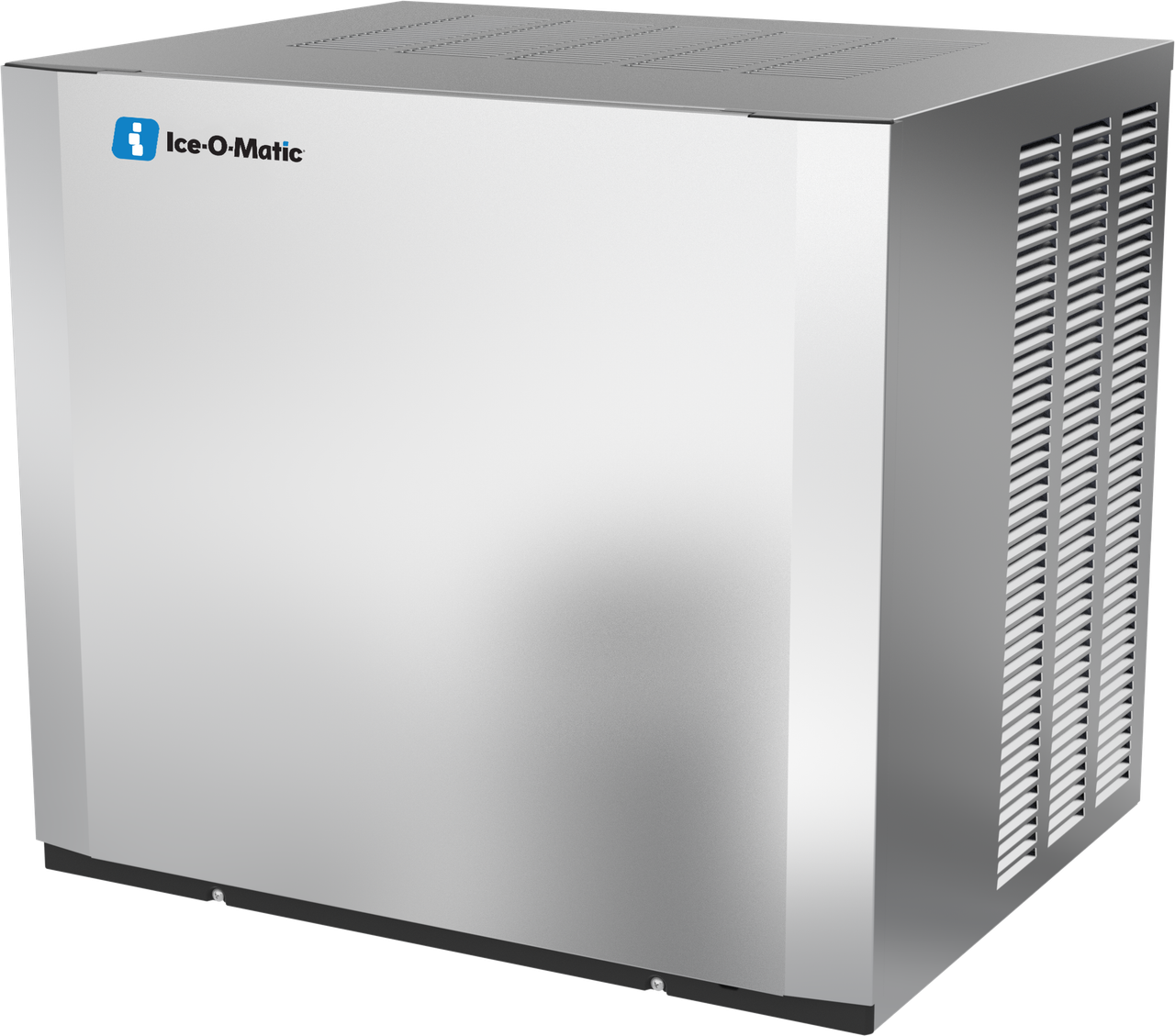

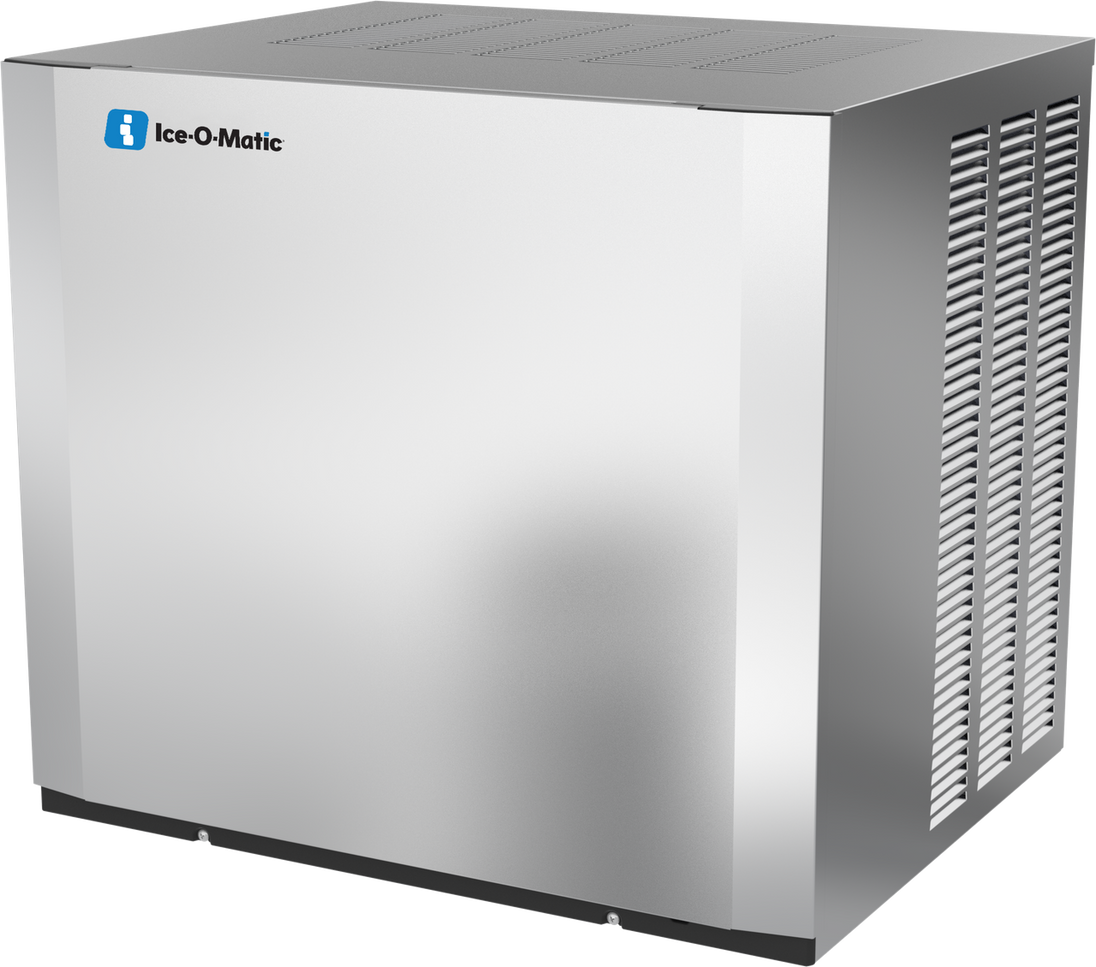

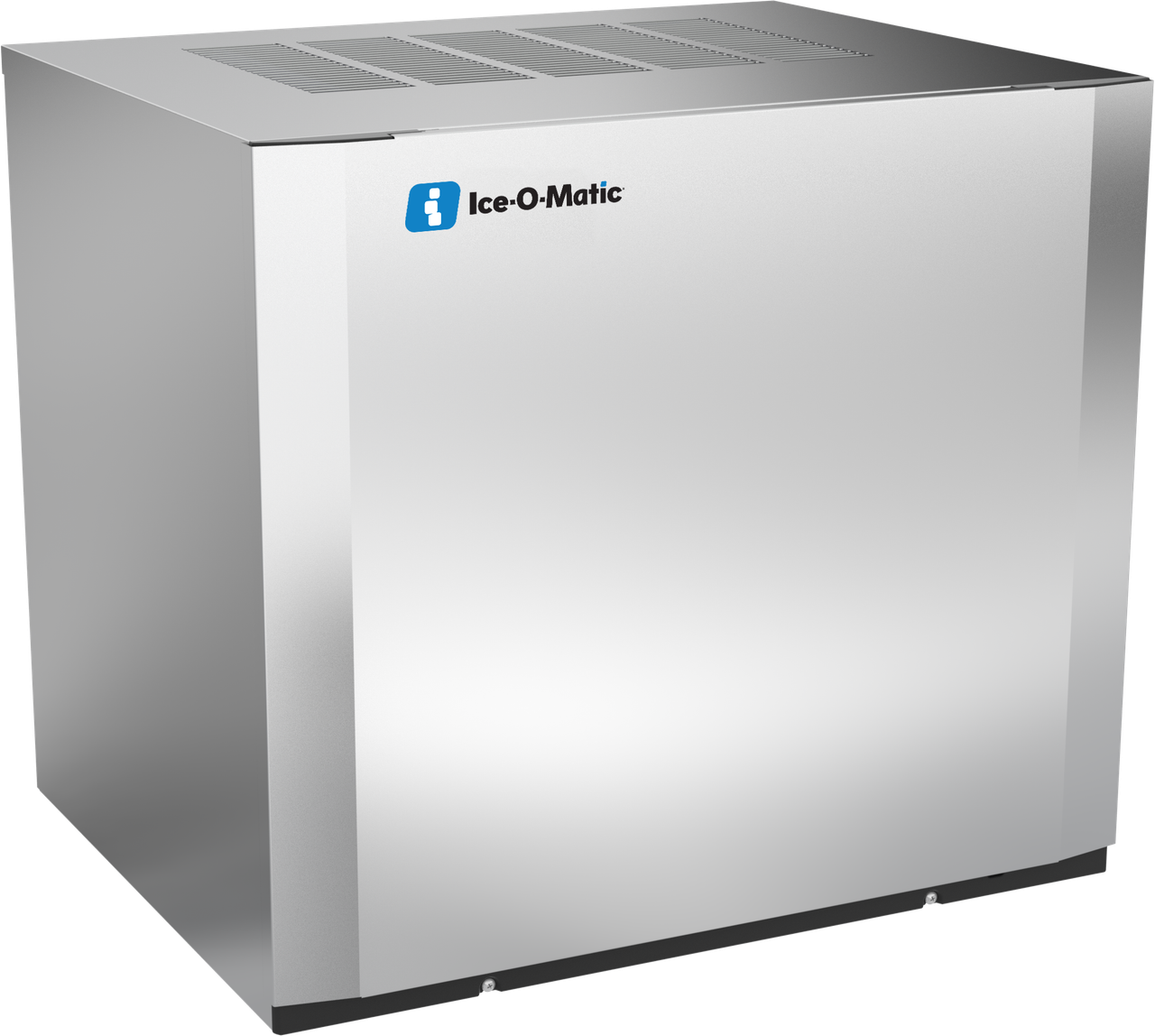

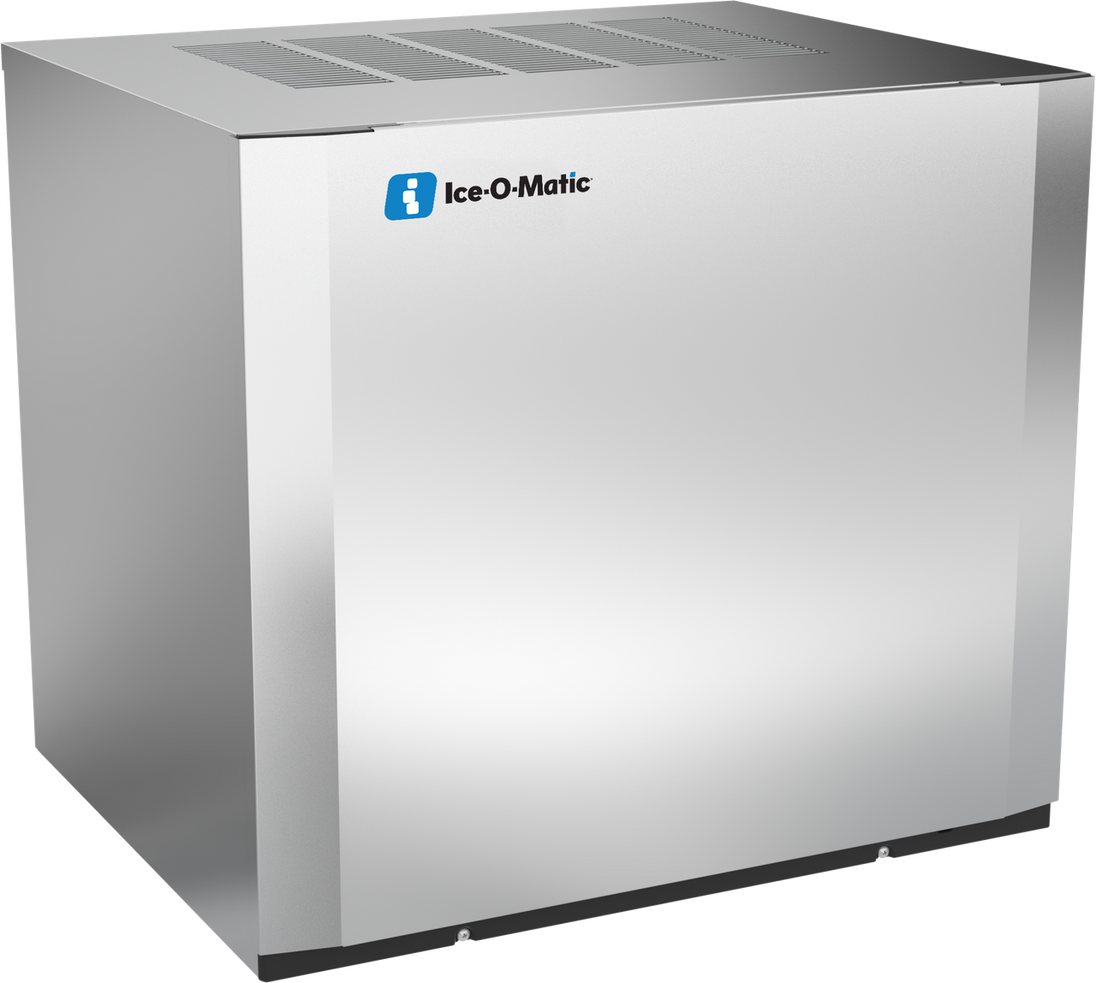

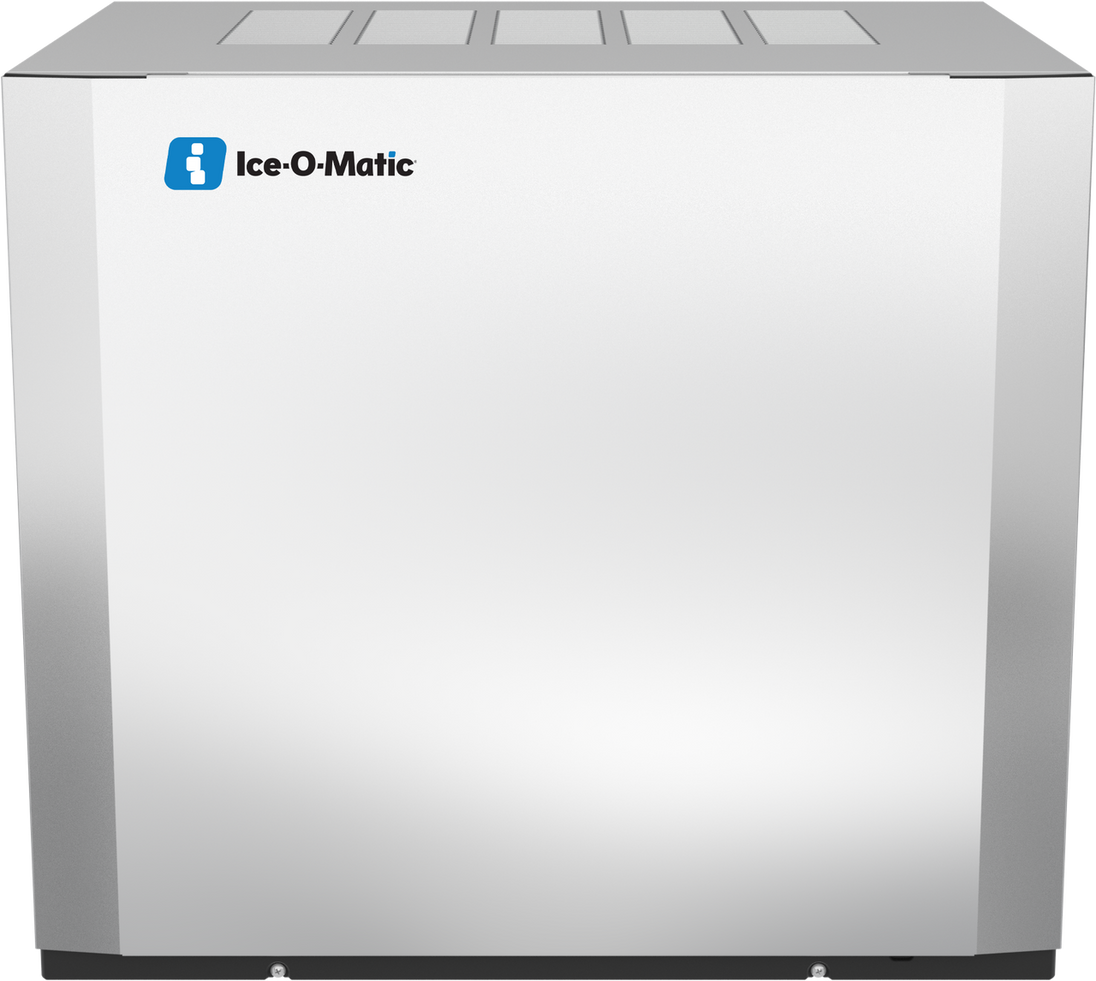

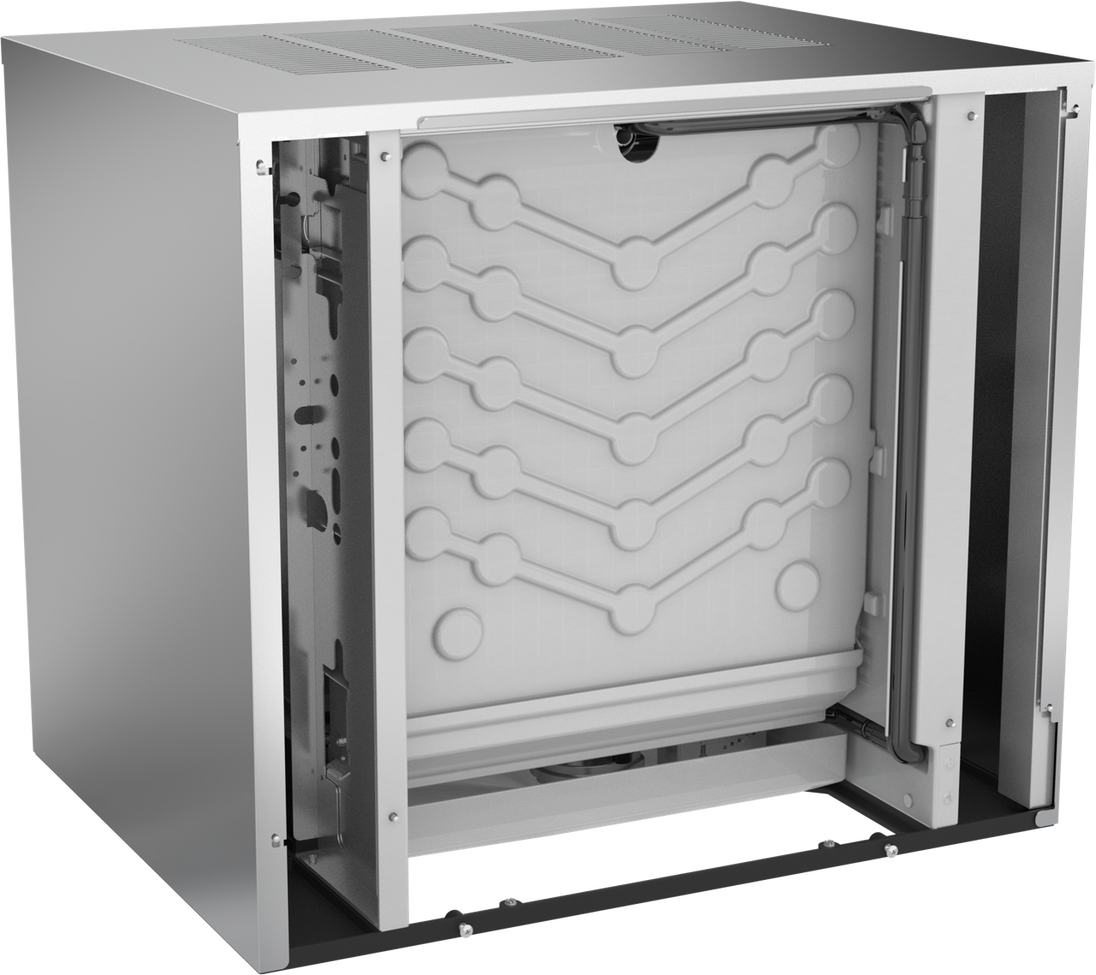

The Ice-O-Matic CIM0836FA90 is a 30-inch wide Elevation Series full cube ice machine head, producing 900 to 1000 lb of ice per 24 hours on an air-cooled condenser.

Air-Cooled Condenser Keeps Installation Simple

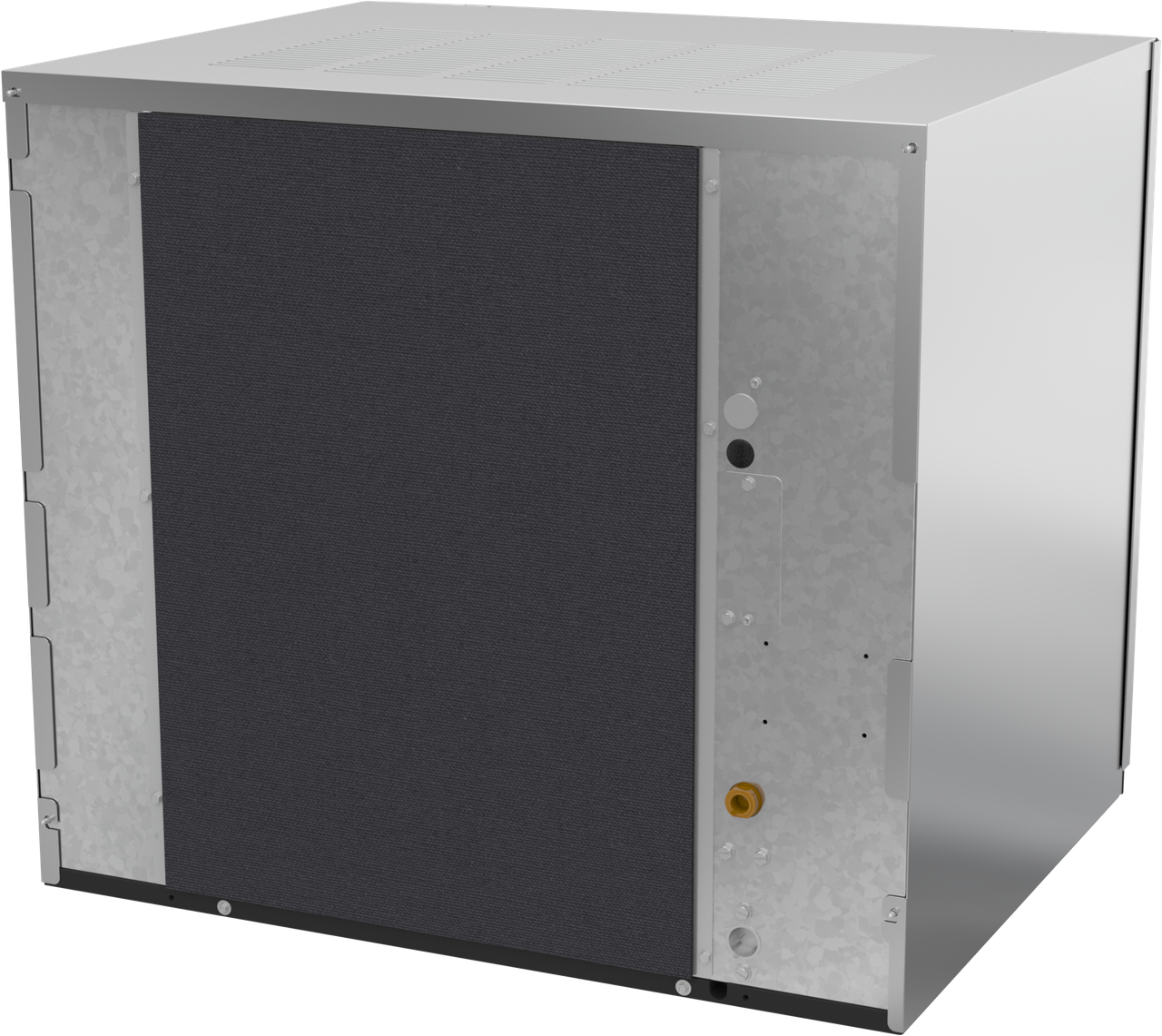

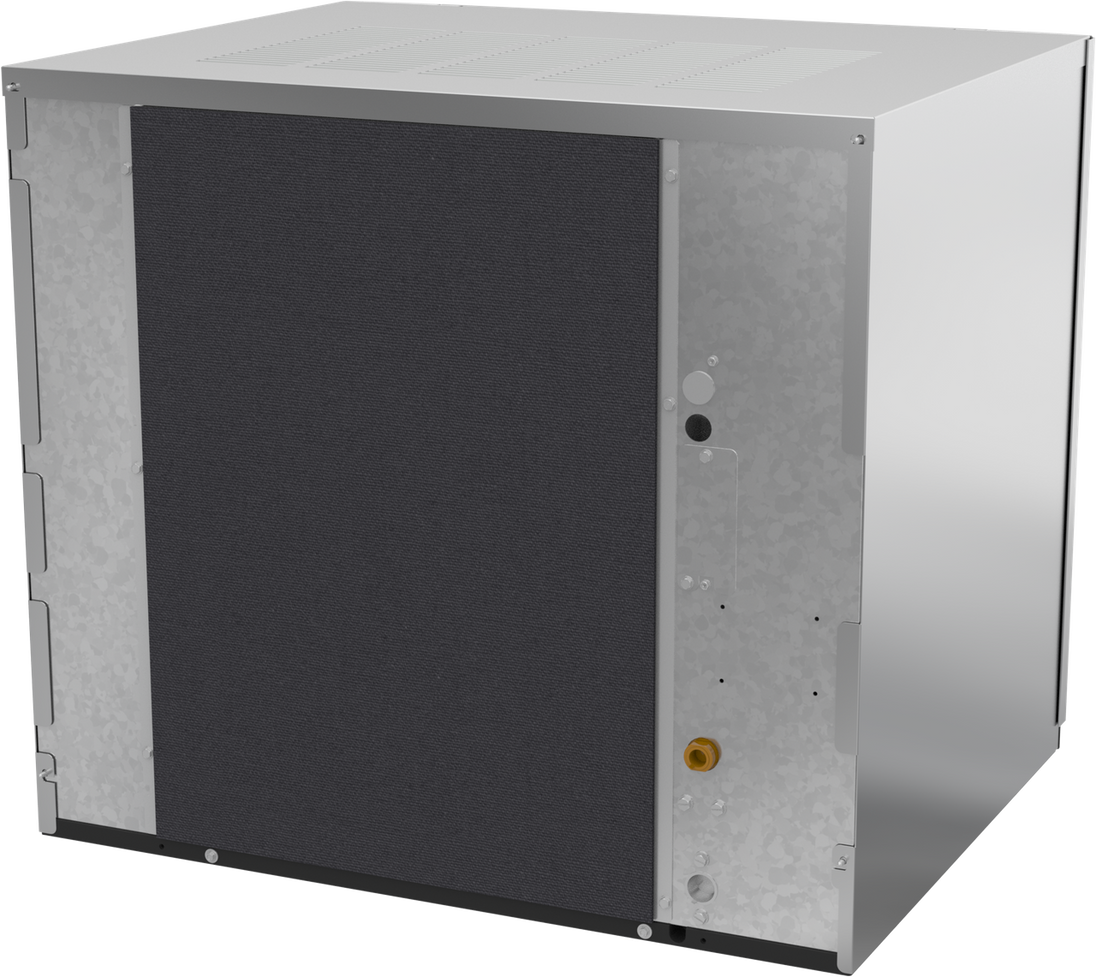

The CIM0836FA90 uses an air-cooled condenser and R290A refrigerant, needing only an electrical connection, water inlet, and drain rather than a water line or outdoor remote unit. It rejects heat directly into the kitchen air, so surrounding ventilation should be sized for it.

The Highest Production Rating on the 30-Inch Full Cube Platform

At 900 to 1000 lb per 24 hours, the CIM0836FA90 is rated higher than its remote-cooled sibling CIM0836FR49 and water-cooled sibling CIM0836FW90, both rated 800 to 900 lb on the same 30-inch full cube cabinet.

Full Cube Ice Versus the Half Cube CIM0836HA90 and Grande Cube CIM0836GA90

The CIM0836FA90 produces full cube ice, distinct from the half cube ice made by the air-cooled CIM0836HA90 and the Grande cube ice made by the air-cooled CIM0836GA90, both of which share this same 30.25 x 24.25 x 26.9 inch cabinet. Ice-O-Matic offers three cube shapes on this 30-inch air-cooled platform.

Specifications

Model CIM0836FA90
Series Elevation
Type Full Cube, modular head (bin sold separately)
Capacity 900-1000 lb per 24 hours
Exterior Dimensions 30.25 x 24.25 x 26.9 inches (W x D x H)
Electrical 208-230V / 60Hz / 1 Phase
Refrigerant R290A
Condenser Air-Cooled
Filter System IFQ2
Shipping Weight 212 lb

Warranty

Ice-O-Matic publishes 3 years parts and labor on the CIM series, with 5 years parts coverage on the evaporator and compressor.
