Product Description

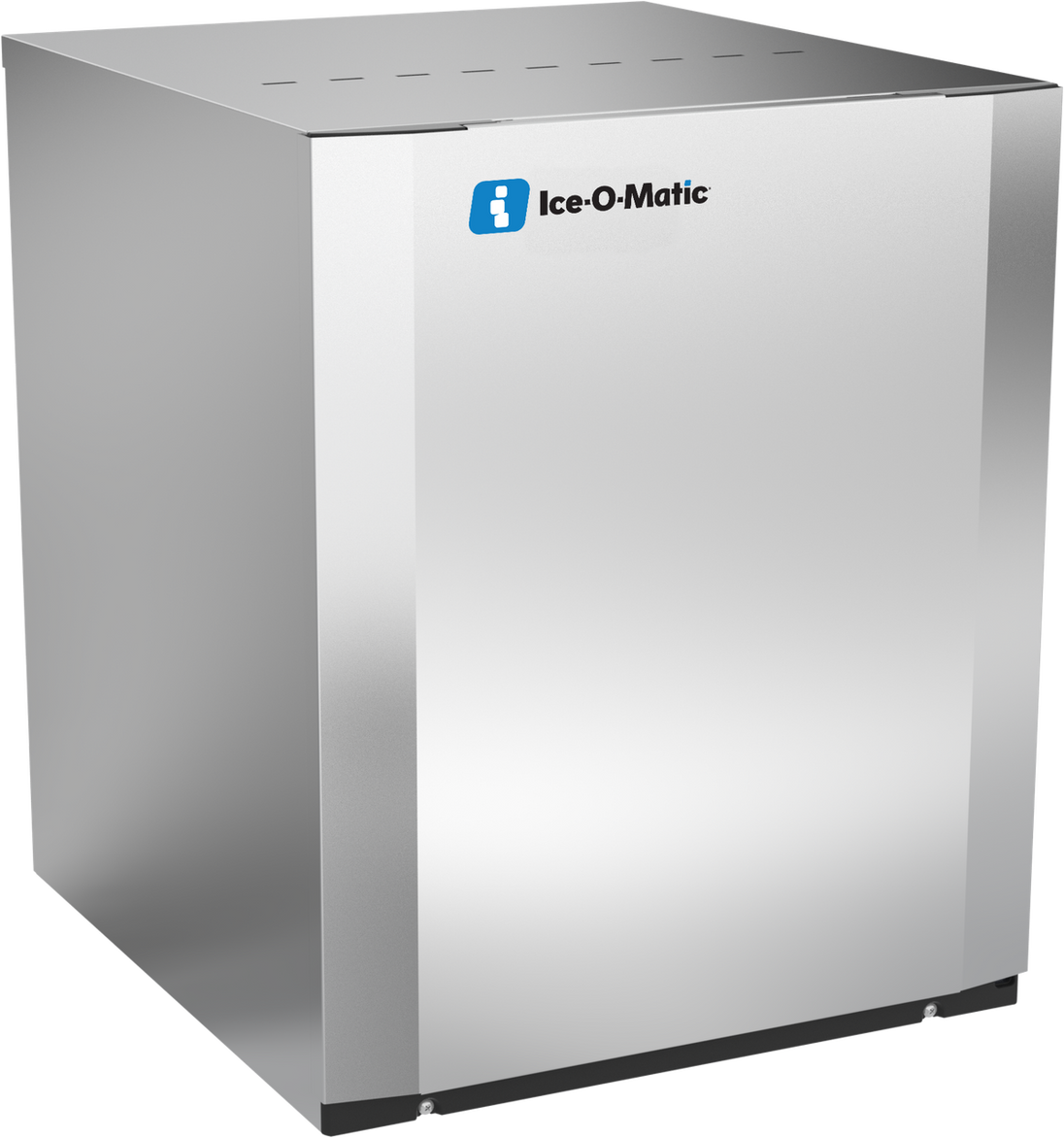

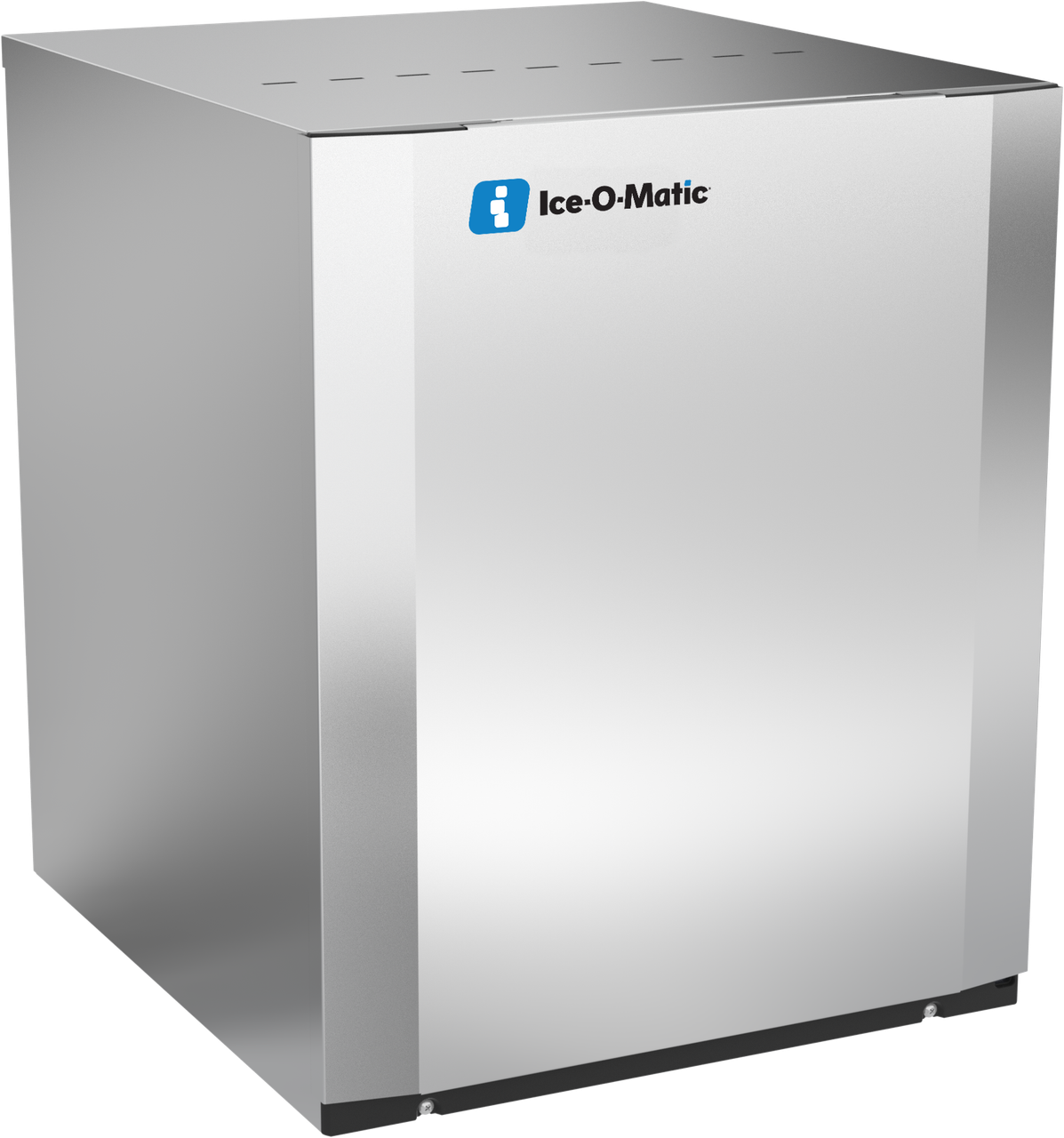

The Ice-O-Matic CIM0826HR49 is a 22-inch wide Elevation Series half cube ice machine head, producing 800 to 900 lb of ice per 24 hours on a remote-cooled condenser system.

Remote Condenser Requires a Separately-Sold Outdoor Unit

The CIM0826HR49 uses a remote condenser configuration with R449A refrigerant, so the ice-making head sold here must be paired with a separately-sold remote condensing unit. This keeps compressor heat and noise out of the kitchen at the cost of a refrigerant line run and outdoor mounting for the condenser.

Half Cube Ice Versus the Full Cube CIM0826FR49

The CIM0826HR49 produces half cube ice, which has more surface area and chills drinks faster than the full cube ice made by its remote-cooled sibling, the CIM0826FR49, though it melts faster. Both are rated at the same 800 to 900 lb per 24 hours.

Same Cabinet as the Air- and Water-Cooled Half Cube Variants

The CIM0826HR49 shares its 22.25 x 24.25 x 26.9 inch cabinet and IFQ2 filter system with the air-cooled CIM0826HA90 and water-cooled CIM0826HW90, differing only in condenser type and R449A refrigerant.

Specifications

Model CIM0826HR49
Series Elevation
Type Half Cube, modular head (bin sold separately)
Capacity 800-900 lb per 24 hours
Exterior Dimensions 22.25 x 24.25 x 26.9 inches (W x D x H)
Electrical 208-230V / 60Hz / 1 Phase
Refrigerant R449A
Condenser Remote
Filter System IFQ2
Shipping Weight 218 lb

Warranty

Ice-O-Matic publishes 3 years parts and labor on the CIM series, with 5 years parts coverage on the evaporator and compressor. The remote condenser carries the same warranty terms.
