Product Description

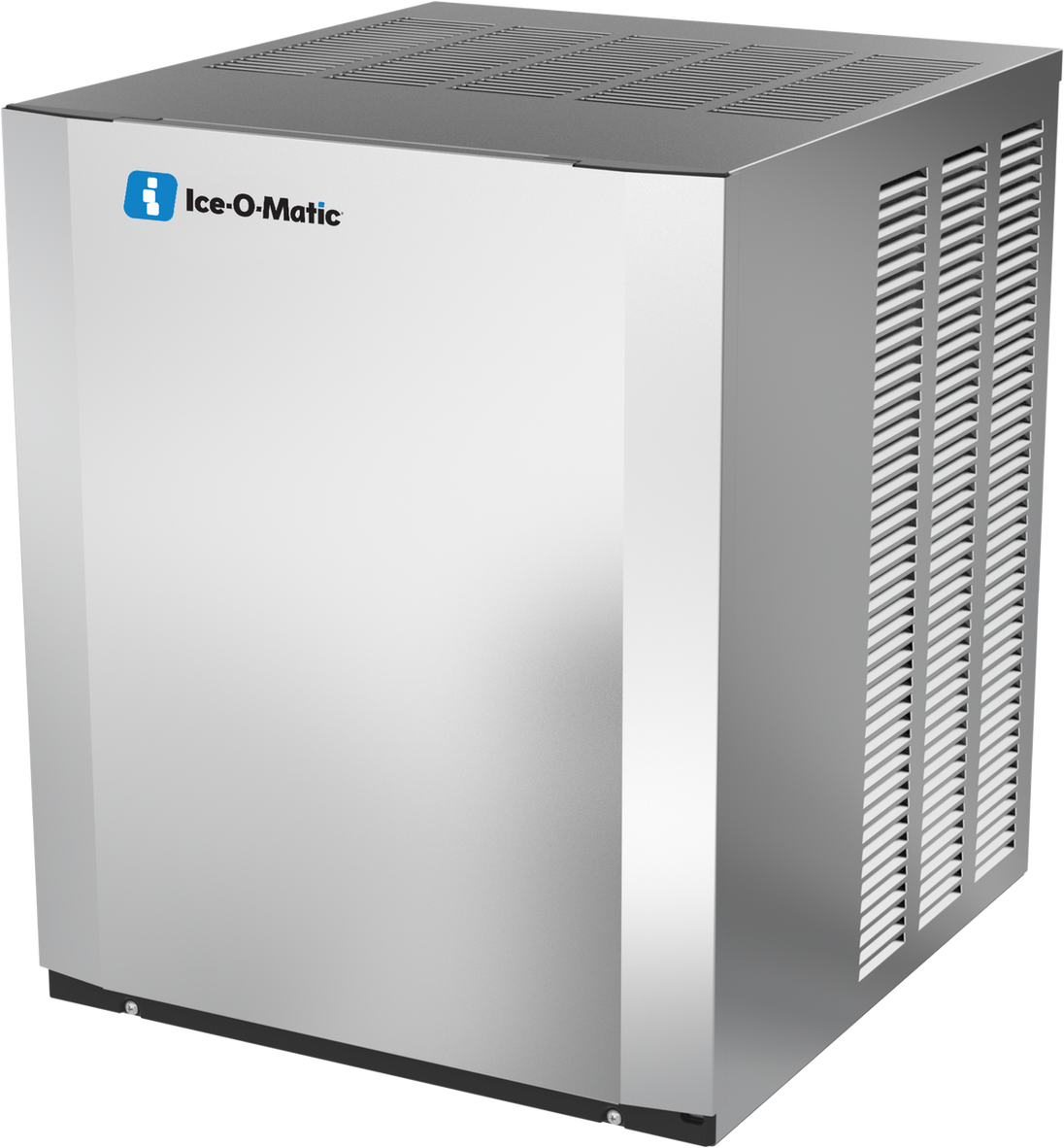

The Ice-O-Matic CIM0826HA90 is a 22-inch wide Elevation Series half cube ice machine head, producing 800 to 900 lb of ice per 24 hours on an air-cooled condenser.

Air-Cooled Condenser Keeps Installation Simple

The CIM0826HA90 uses an air-cooled condenser and R290A refrigerant, requiring only an electrical connection, water inlet, and drain rather than a water line or outdoor remote unit. It is the simplest hookup of the three condenser options Ice-O-Matic builds on this 22-inch width, though it rejects heat directly into the kitchen air.

Half Cube Ice Versus the Full Cube CIM0826FA90

The CIM0826HA90 produces half cube ice, which has more surface area than the full cube ice made by its air-cooled sibling, the CIM0826FA90, so it chills drinks faster and packs more densely into bins and glasses at the cost of a faster melt rate. The full cube CIM0826FA90 carries a higher production rating of 900 to 1000 lb versus 800 to 900 lb for this half cube head.

Same Rated Output as the Remote and Water-Cooled Half Cube Variants

At 800 to 900 lb per 24 hours, the CIM0826HA90 matches the production rating of its remote-cooled sibling CIM0826HR49 and water-cooled sibling CIM0826HW90 on the same half cube 22-inch cabinet, with the choice between them coming down to condenser type and refrigerant rather than output.

Specifications

Model CIM0826HA90
Series Elevation
Type Half Cube, modular head (bin sold separately)
Capacity 800-900 lb per 24 hours
Exterior Dimensions 22.25 x 24.25 x 26.9 inches (W x D x H)
Electrical 208-230V / 60Hz / 1 Phase
Refrigerant R290A
Condenser Air-Cooled
Filter System IFQ2
Shipping Weight 197 lb

Warranty

Ice-O-Matic publishes 3 years parts and labor on the CIM series, with 5 years parts coverage on the evaporator and compressor.
