Product Description

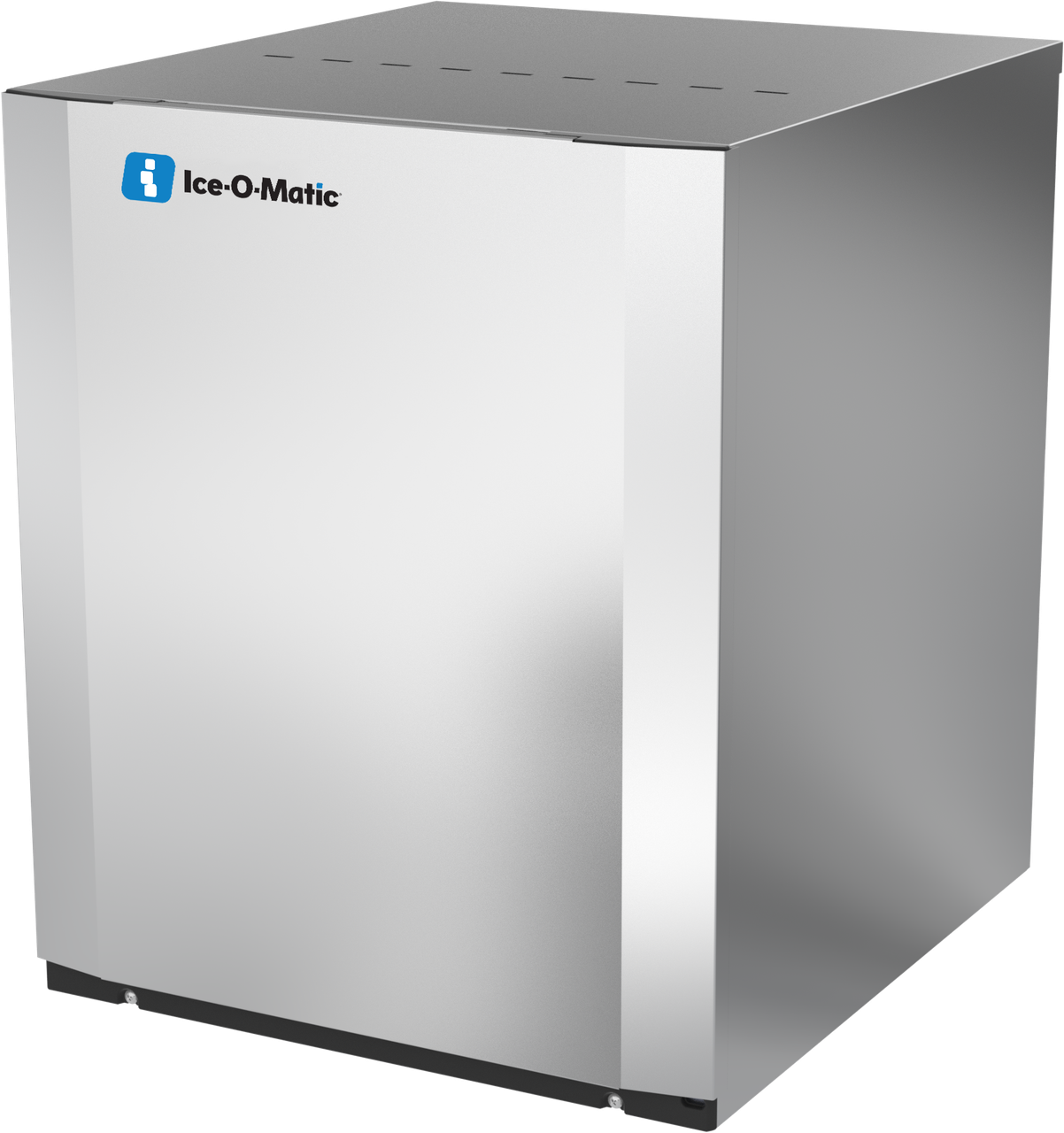

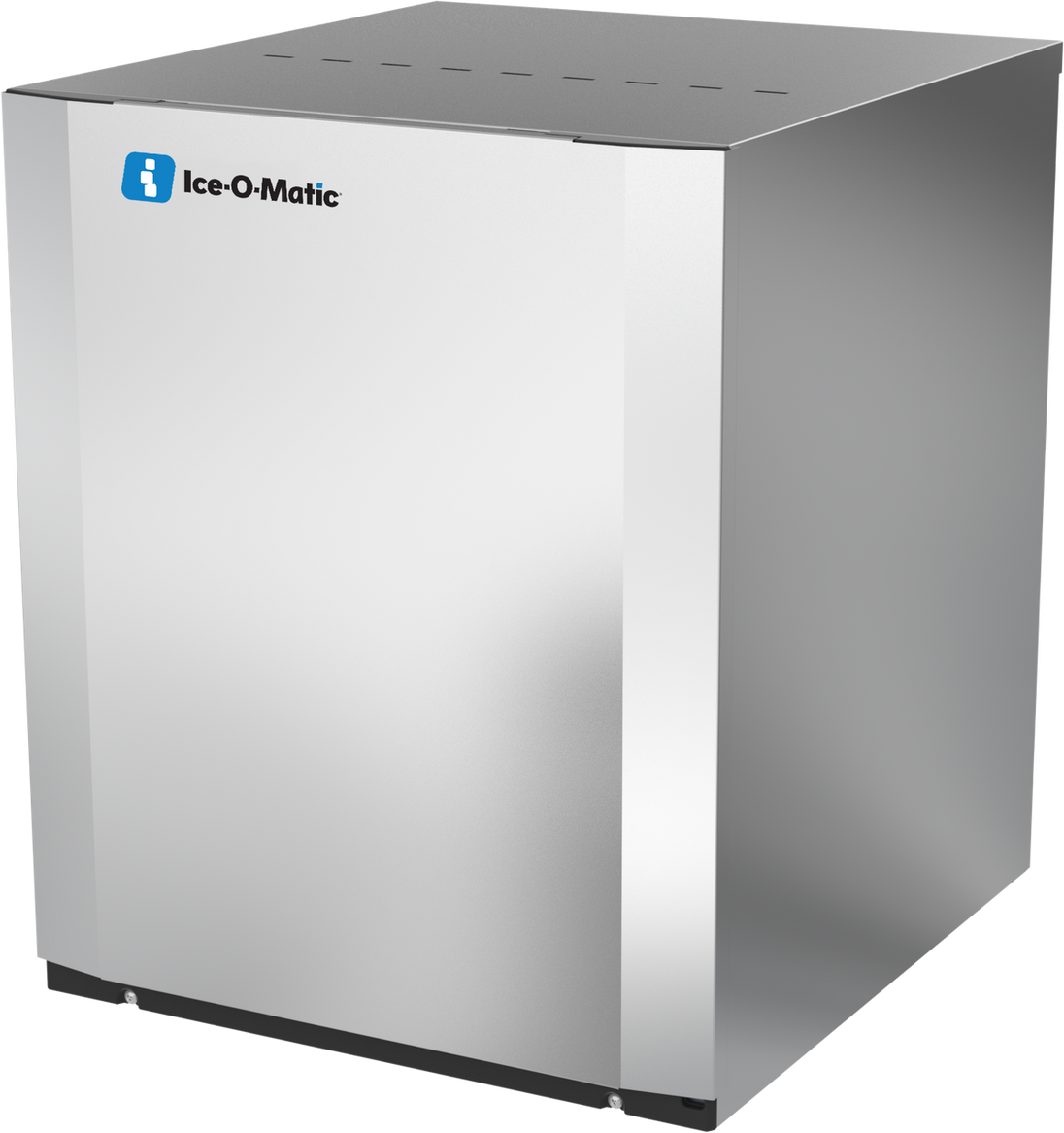

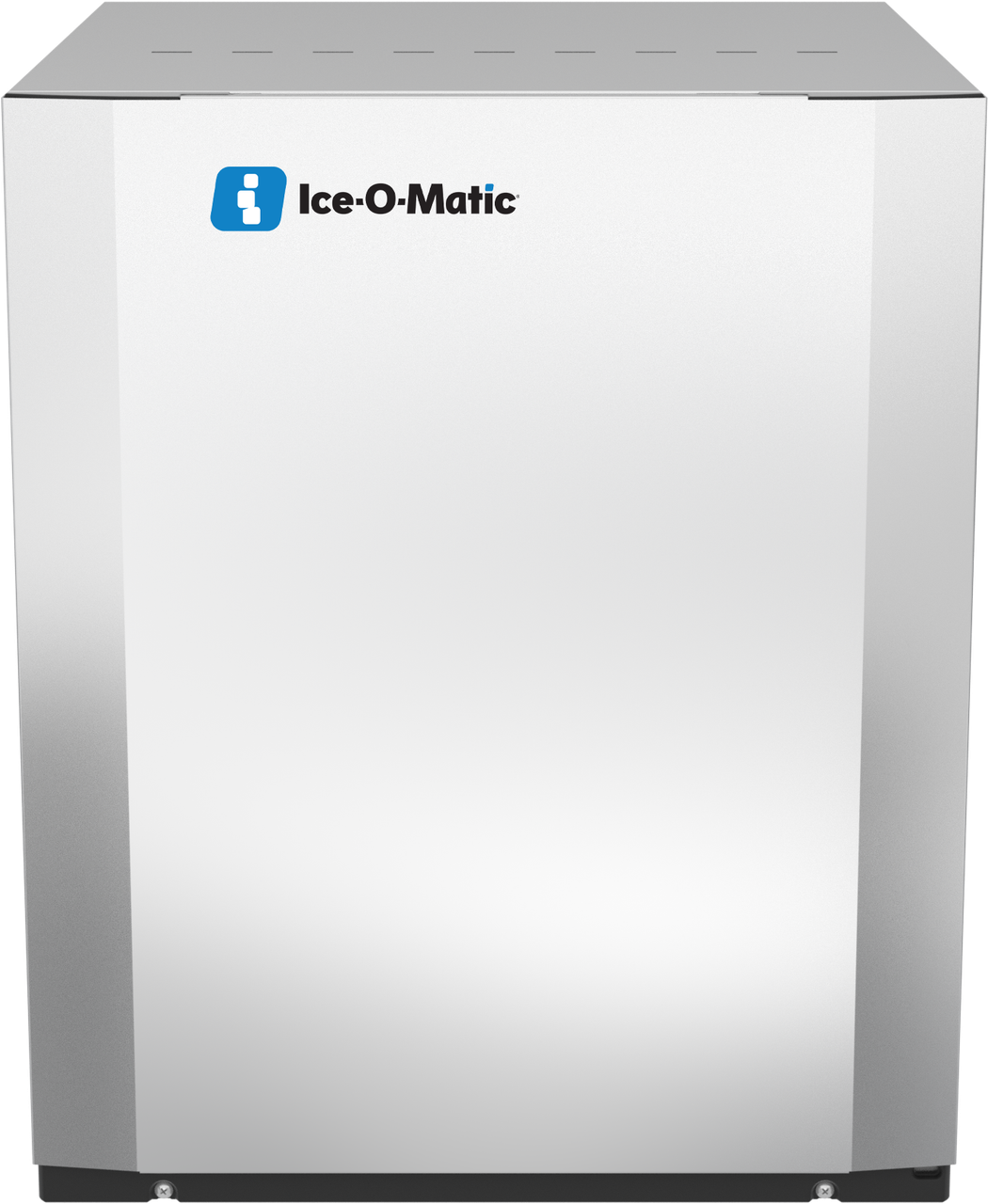

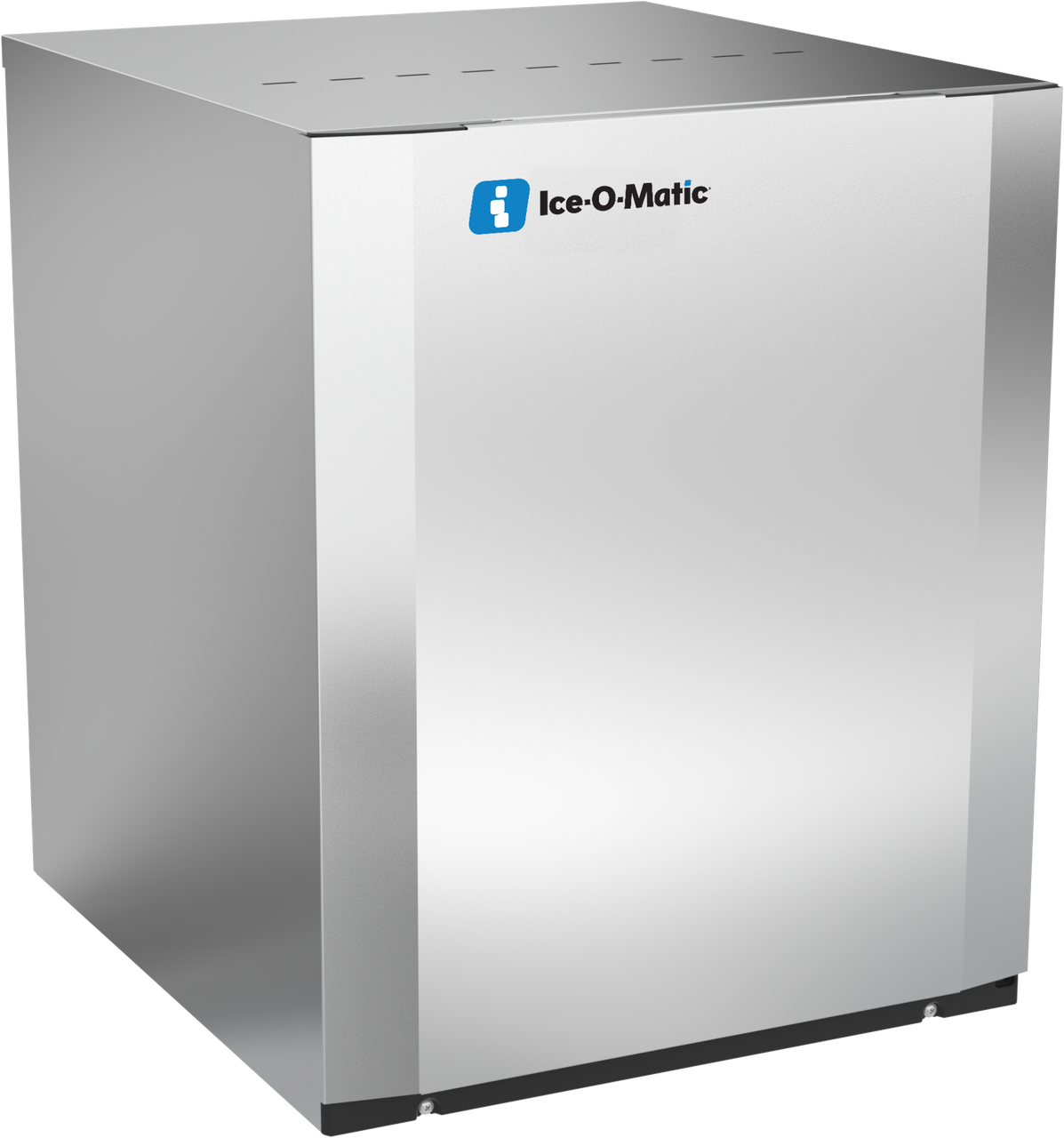

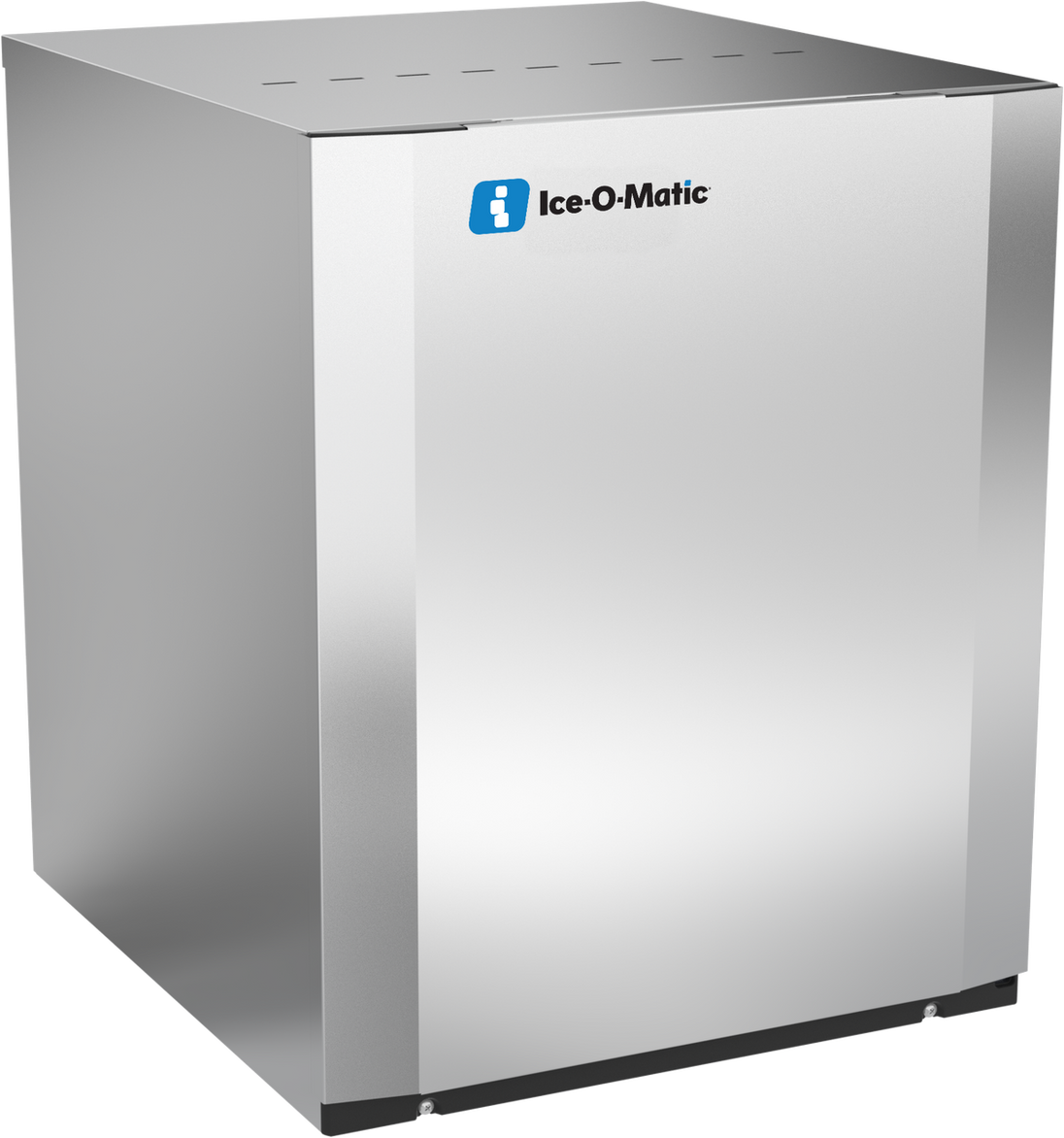

The Ice-O-Matic CIM0826FR49 is a 22-inch wide Elevation Series full cube ice machine head, producing 800 to 900 lb of ice per 24 hours on a remote-cooled condenser system.

Remote Condenser Requires a Separately-Sold Outdoor Unit

The CIM0826FR49 uses a remote condenser configuration with R449A refrigerant, meaning the ice-making head sold here must be paired with a separately-sold remote condensing unit rather than an integrated air- or water-cooled condenser. This keeps compressor heat and noise out of the kitchen at the cost of a refrigerant line run and an outdoor or rooftop mounting location. It also uses R449A refrigerant rather than the R290A used in the air- and water-cooled variants on this same 22-inch width.

Full Cube Ice Versus the Half Cube CIM0826HR49

The CIM0826FR49 produces full cube ice, which melts more slowly than the half cube ice made by its remote-cooled sibling, the CIM0826HR49. Both are rated at the same 800 to 900 lb per 24 hours and share the same 22.25 x 24.25 x 26.9 inch cabinet, so the decision comes down to cube shape.

Lower Rated Output Than the Air-Cooled CIM0826FA90

At 800 to 900 lb per 24 hours, the CIM0826FR49's published production sits below the 900 to 1000 lb range of its air-cooled sibling, the CIM0826FA90, on the same full cube 22-inch cabinet. Both share the IFQ2 filter system.

Specifications

Model CIM0826FR49
Series Elevation
Type Full Cube, modular head (bin sold separately)
Capacity 800-900 lb per 24 hours
Exterior Dimensions 22.25 x 24.25 x 26.9 inches (W x D x H)
Electrical 208-230V / 60Hz / 1 Phase
Refrigerant R449A
Condenser Remote
Filter System IFQ2
Shipping Weight 193 lb

Warranty

Ice-O-Matic publishes 3 years parts and labor on the CIM series, with 5 years parts coverage on the evaporator and compressor. The remote condenser carries the same warranty terms.
