Product Description

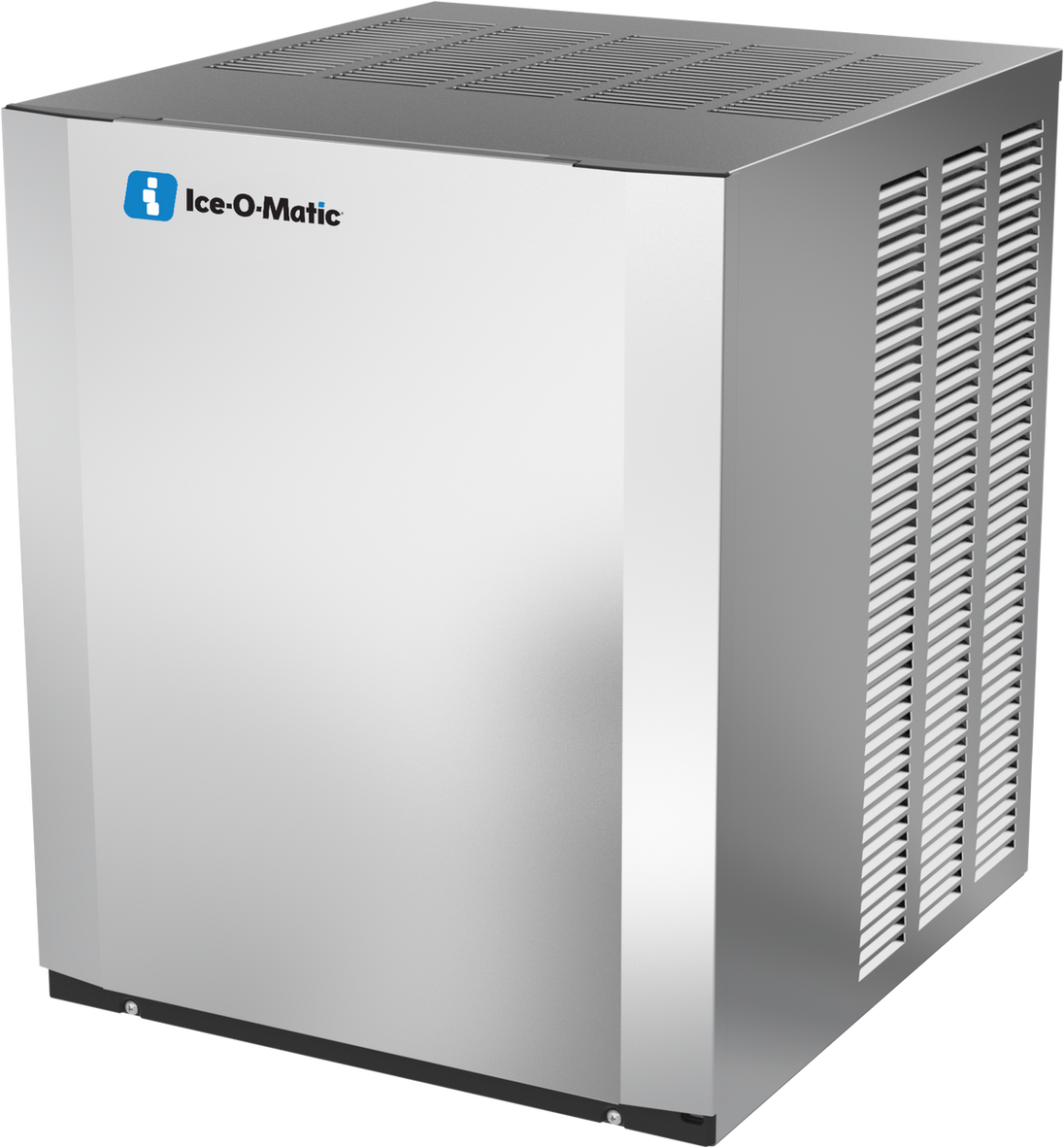

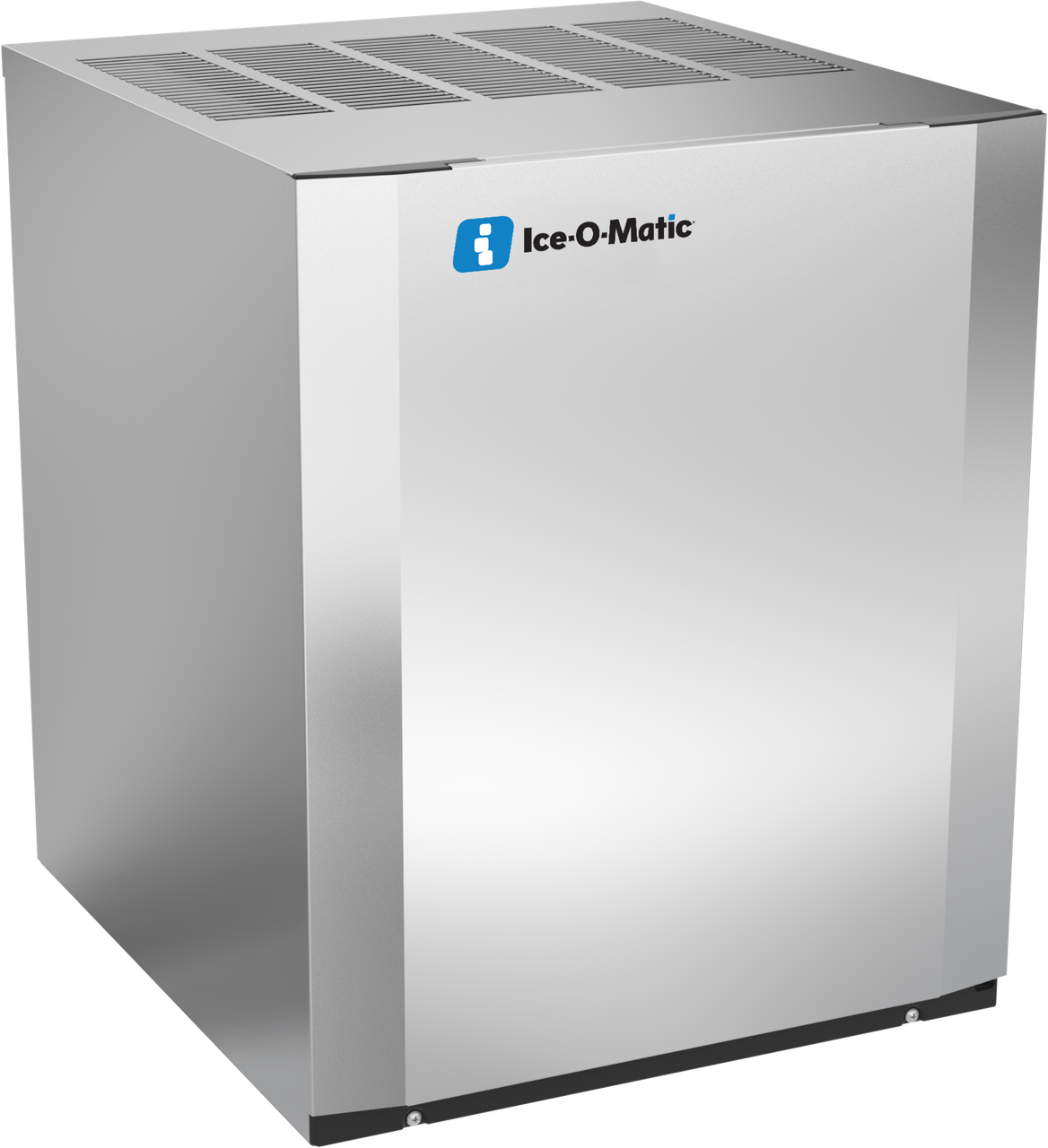

The Ice-O-Matic CIM0826FA90 is a 22-inch wide Elevation Series full cube ice machine head, producing 900 to 1000 lb of ice per 24 hours on an air-cooled condenser.

Air-Cooled Condenser Keeps Installation Simple

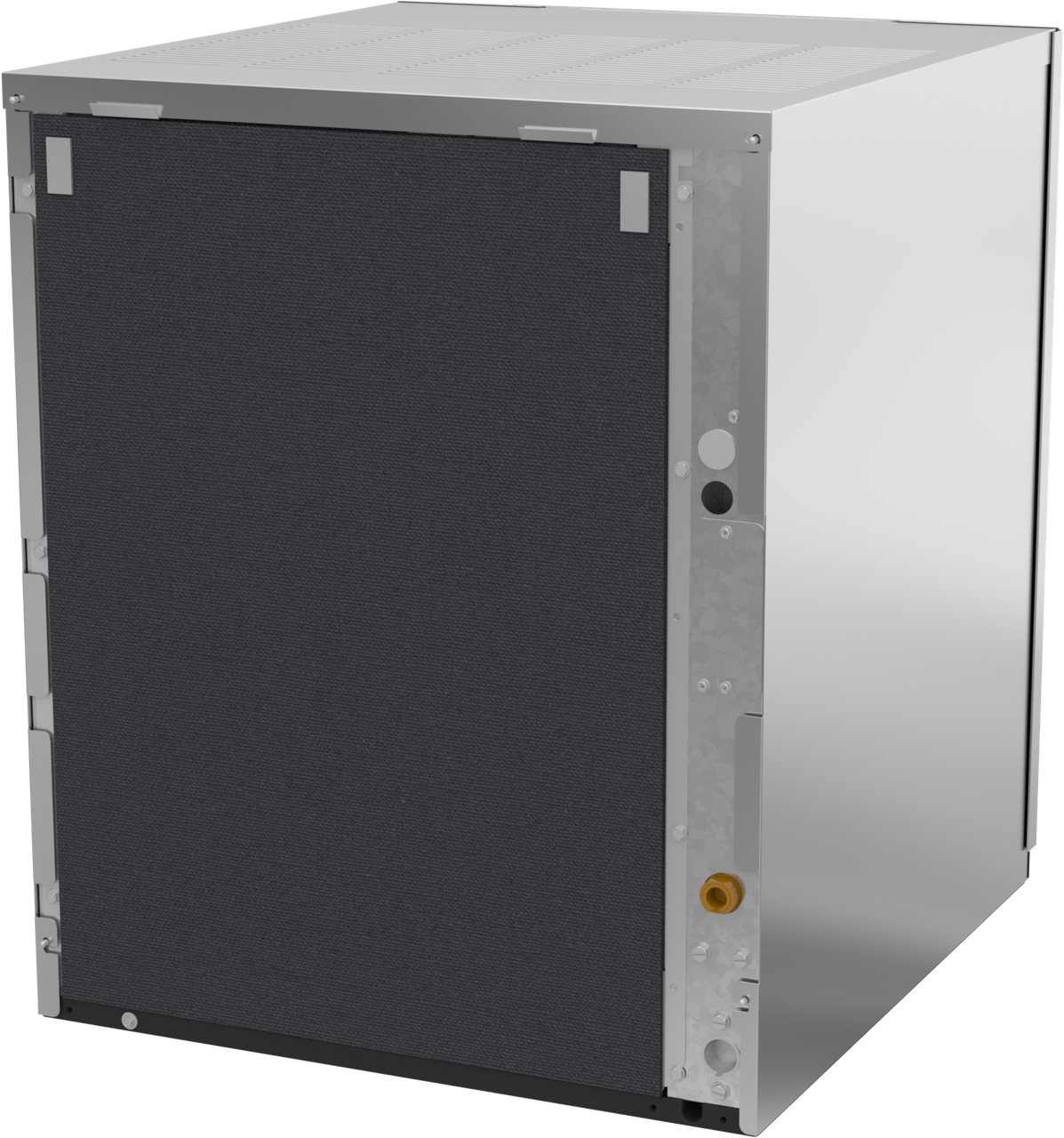

The CIM0826FA90 uses an air-cooled condenser and R290A refrigerant, pulling ambient kitchen air across the coil instead of requiring a water line or an outdoor remote unit. That keeps the installation to a single electrical connection, a water inlet, and a drain, the simplest of the three condenser options Ice-O-Matic builds on this 22-inch width. Because it rejects heat directly into the kitchen air, the space around the unit should have adequate ventilation.

The Highest Production Rating on the 22-Inch Full Cube Platform

At 900 to 1000 lb per 24 hours, the CIM0826FA90 is rated higher than the CIM0826FR49 (remote-cooled) and CIM0826FW90 (water-cooled), both of which are rated 800 to 900 lb on the same 22-inch full cube cabinet.

Full Cube Ice Versus the Half Cube CIM0826HA90

The CIM0826FA90 produces full cube ice, which melts more slowly and dilutes drinks less than the half cube ice made by its sibling, the air-cooled CIM0826HA90. Both share the same 22.25 x 24.25 x 26.9 inch cabinet and IFQ2 filter system, so the choice between them comes down to ice shape rather than footprint.

Specifications

Model CIM0826FA90
Series Elevation
Type Full Cube, modular head (bin sold separately)
Capacity 900-1000 lb per 24 hours
Exterior Dimensions 22.25 x 24.25 x 26.9 inches (W x D x H)
Electrical 208-230V / 60Hz / 1 Phase
Refrigerant R290A
Condenser Air-Cooled
Filter System IFQ2
Shipping Weight 197 lb

Warranty

Ice-O-Matic publishes 3 years parts and labor on the CIM series, with 5 years parts coverage on the evaporator and compressor.
