Product Description

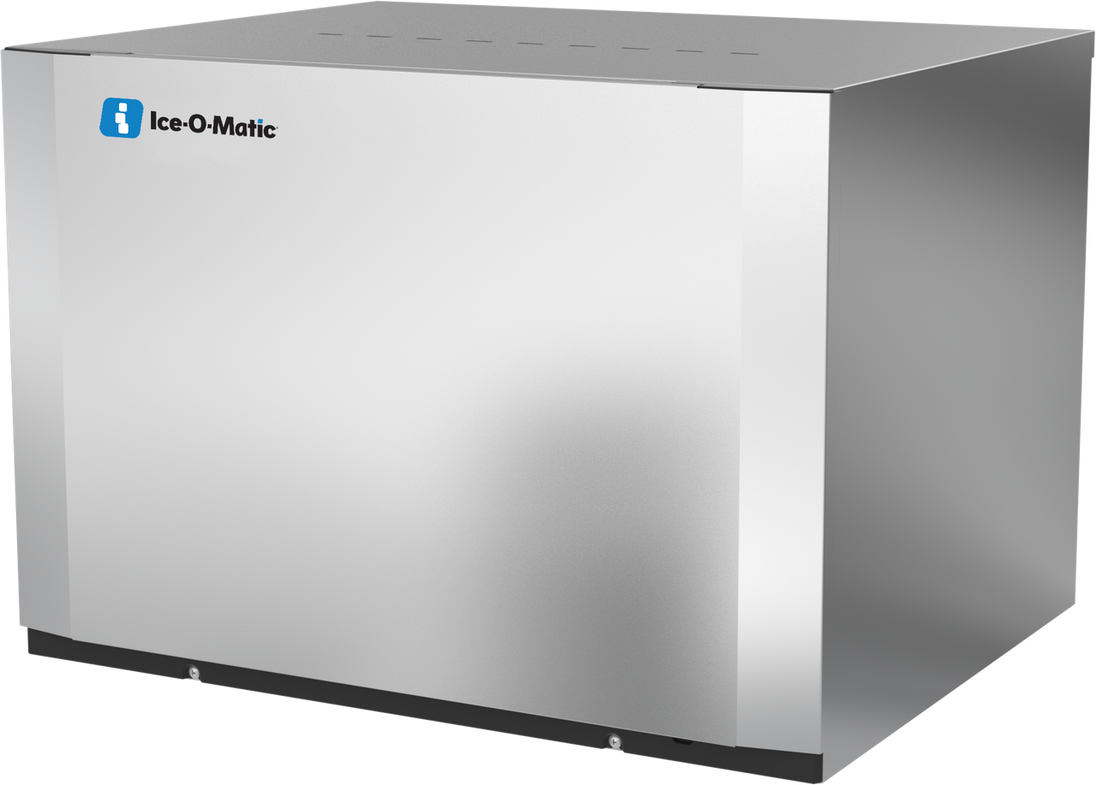

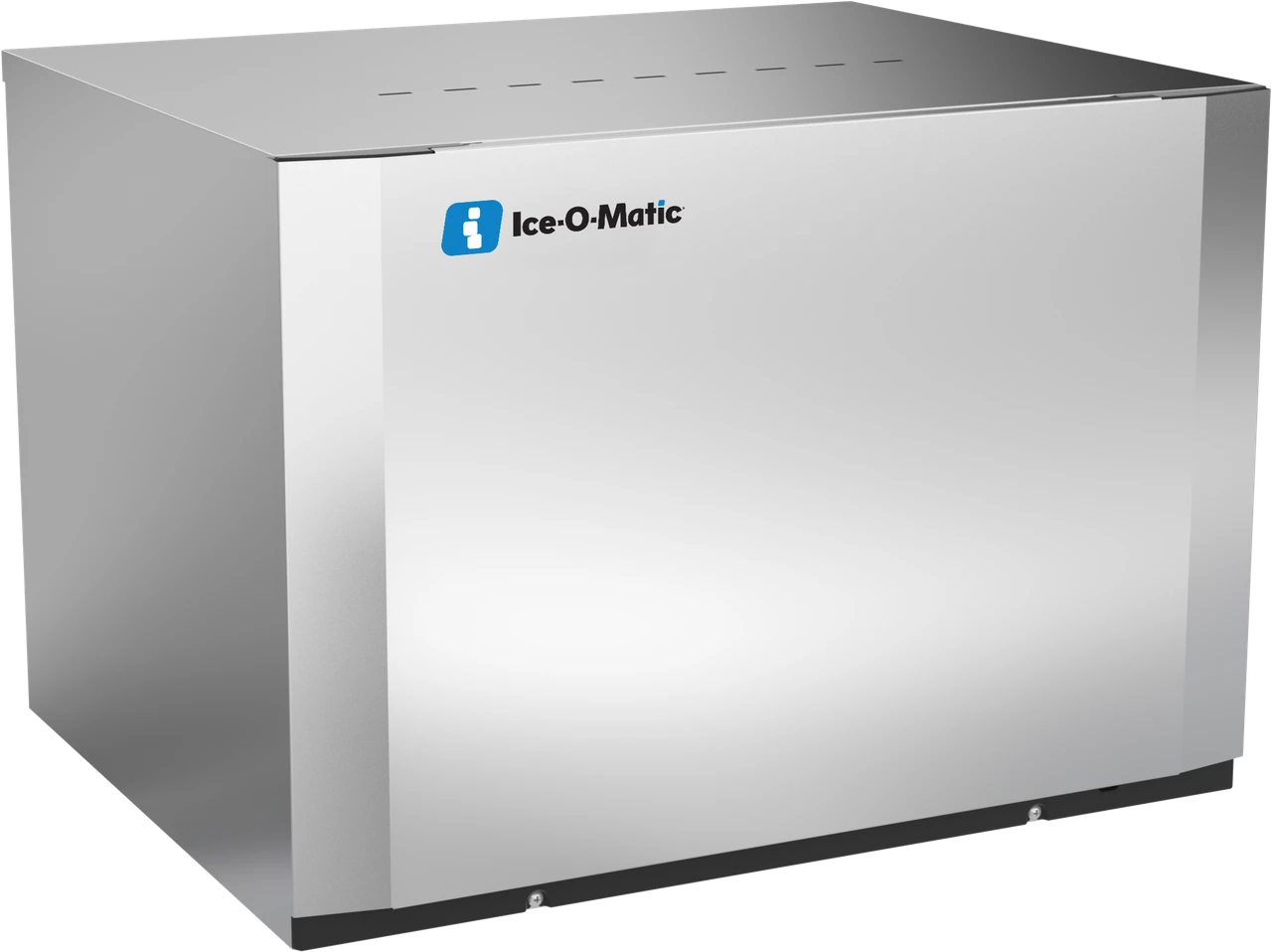

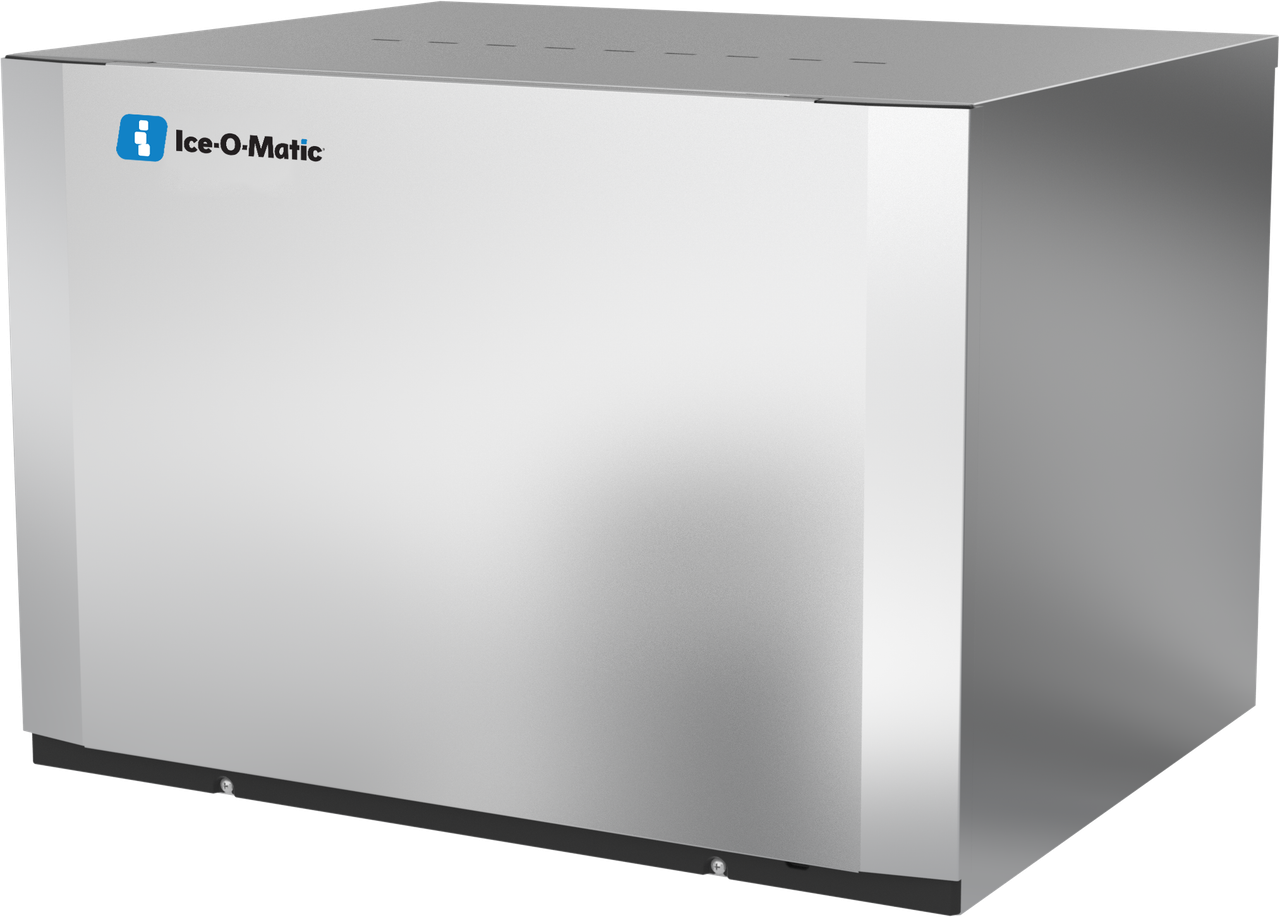

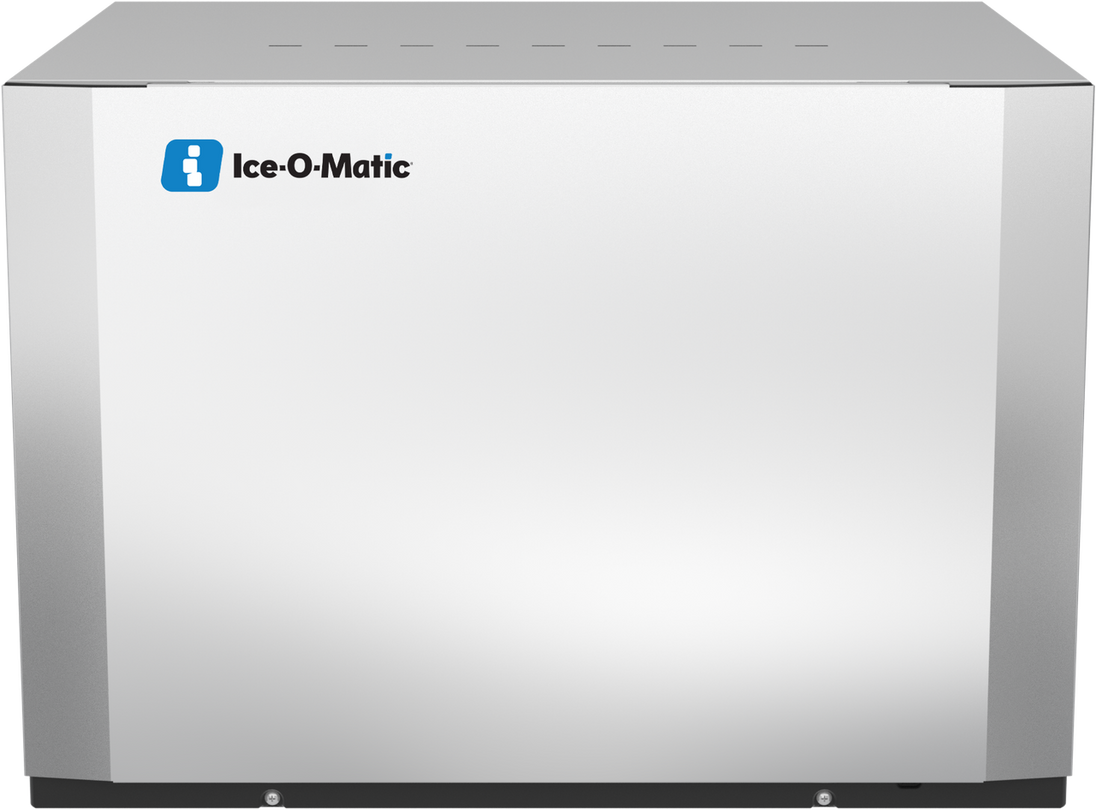

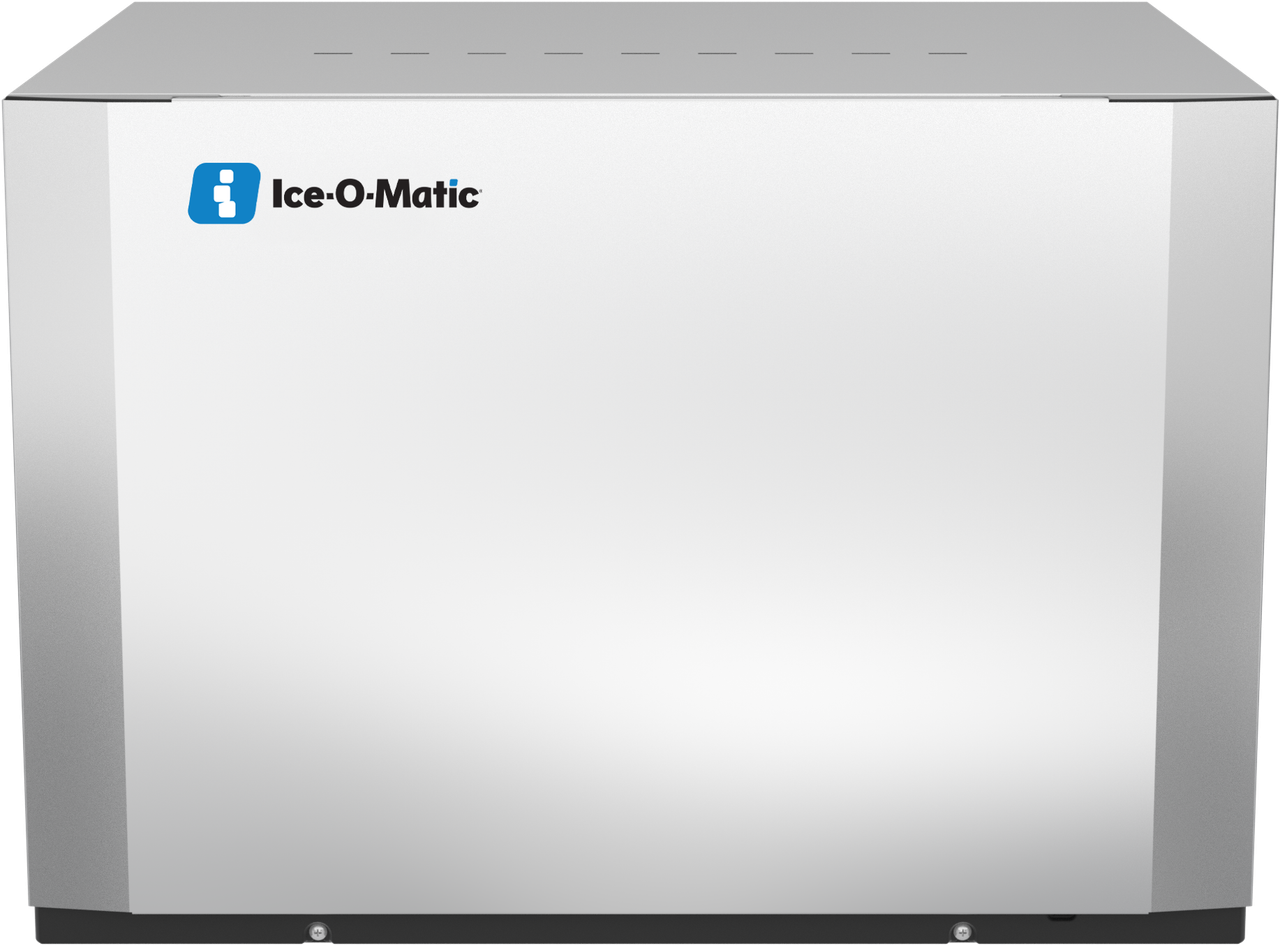

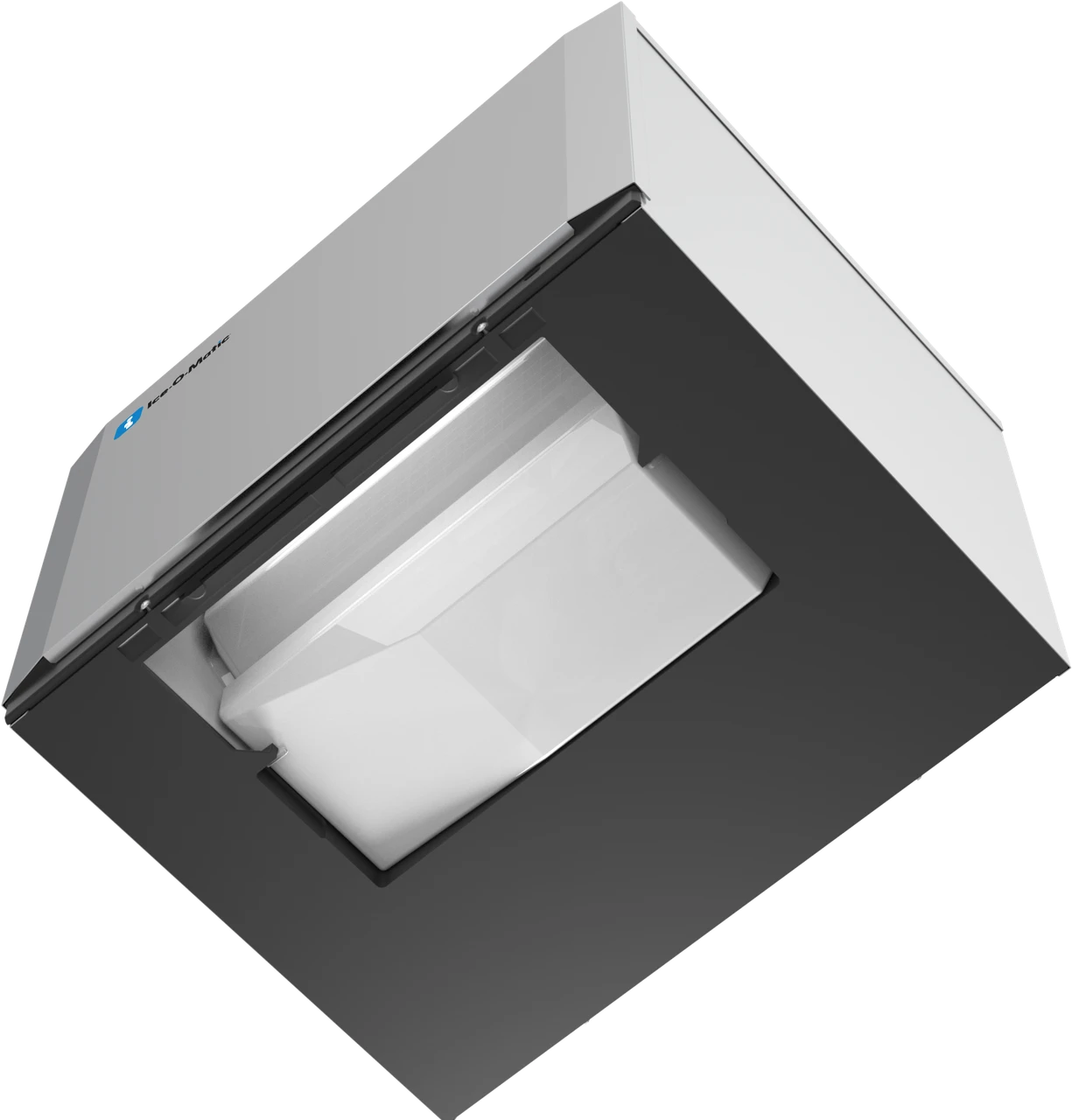

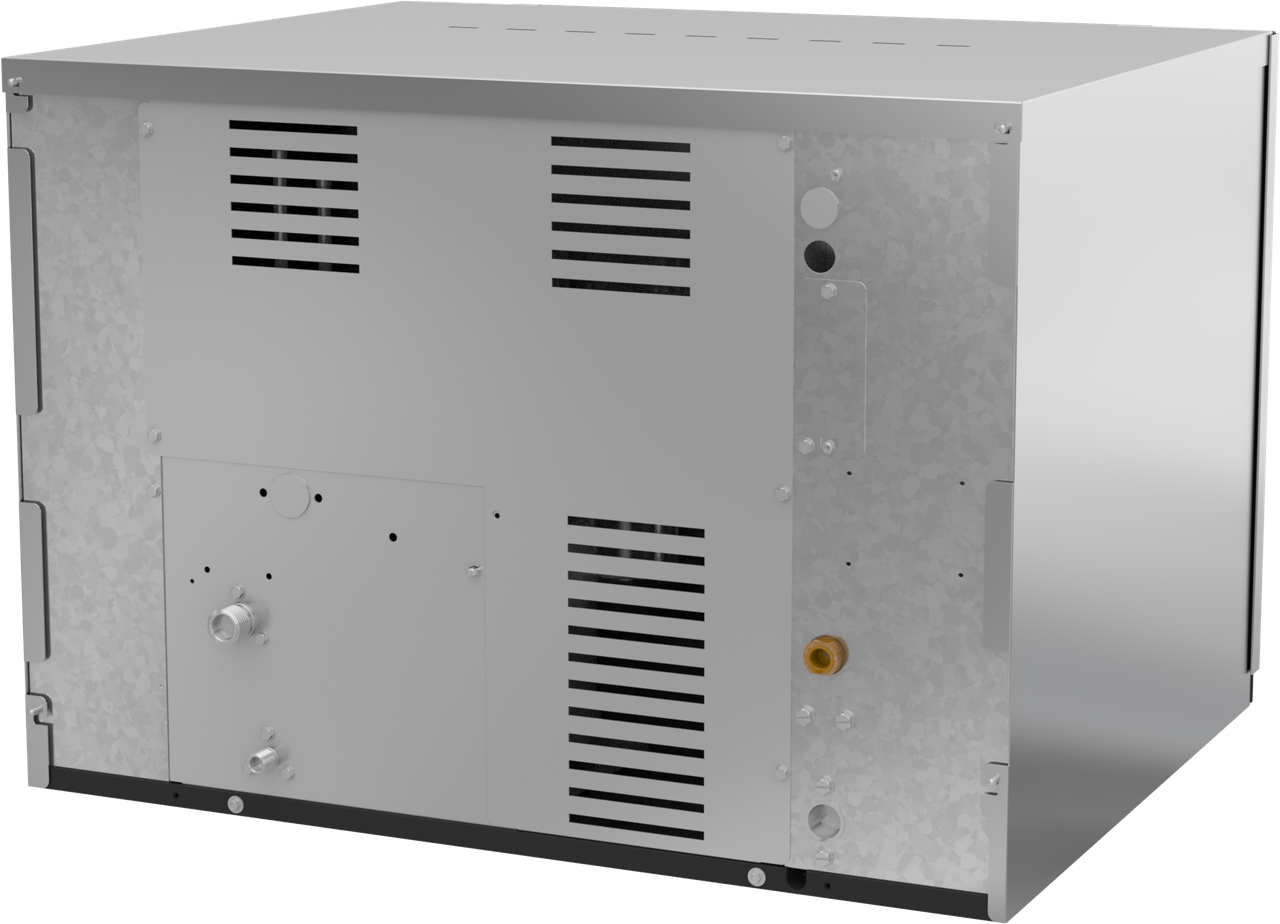

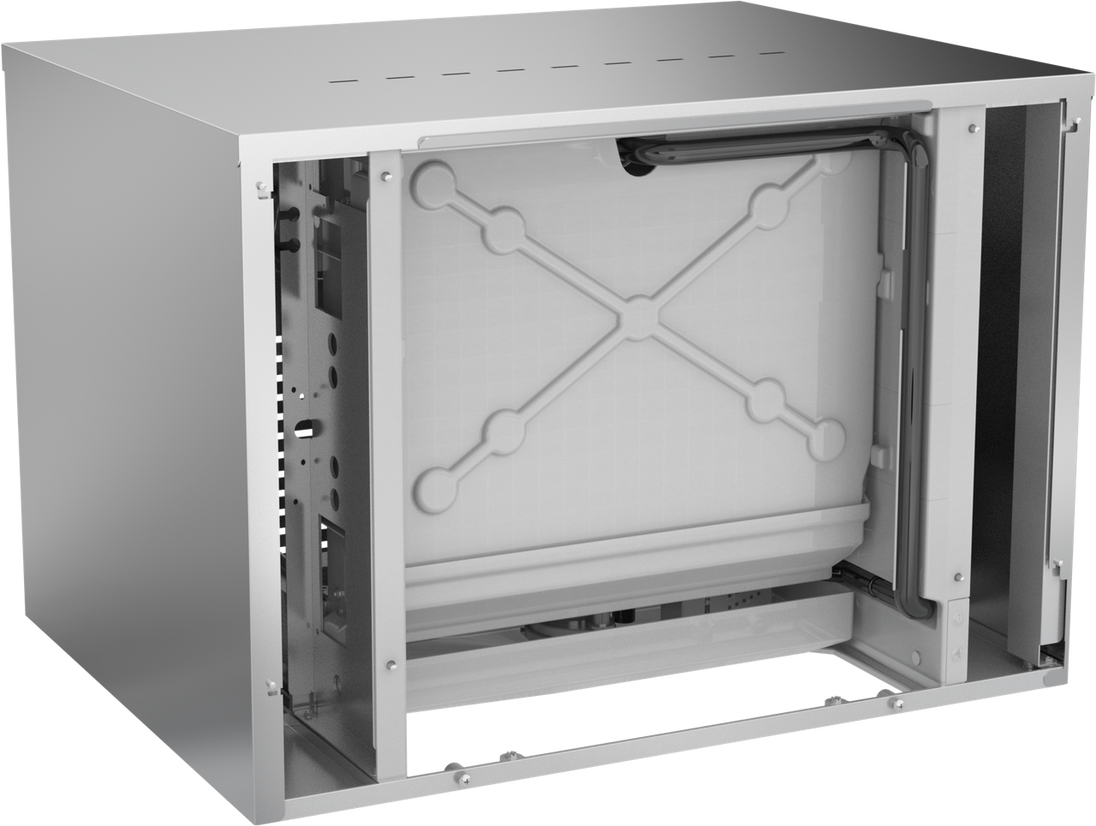

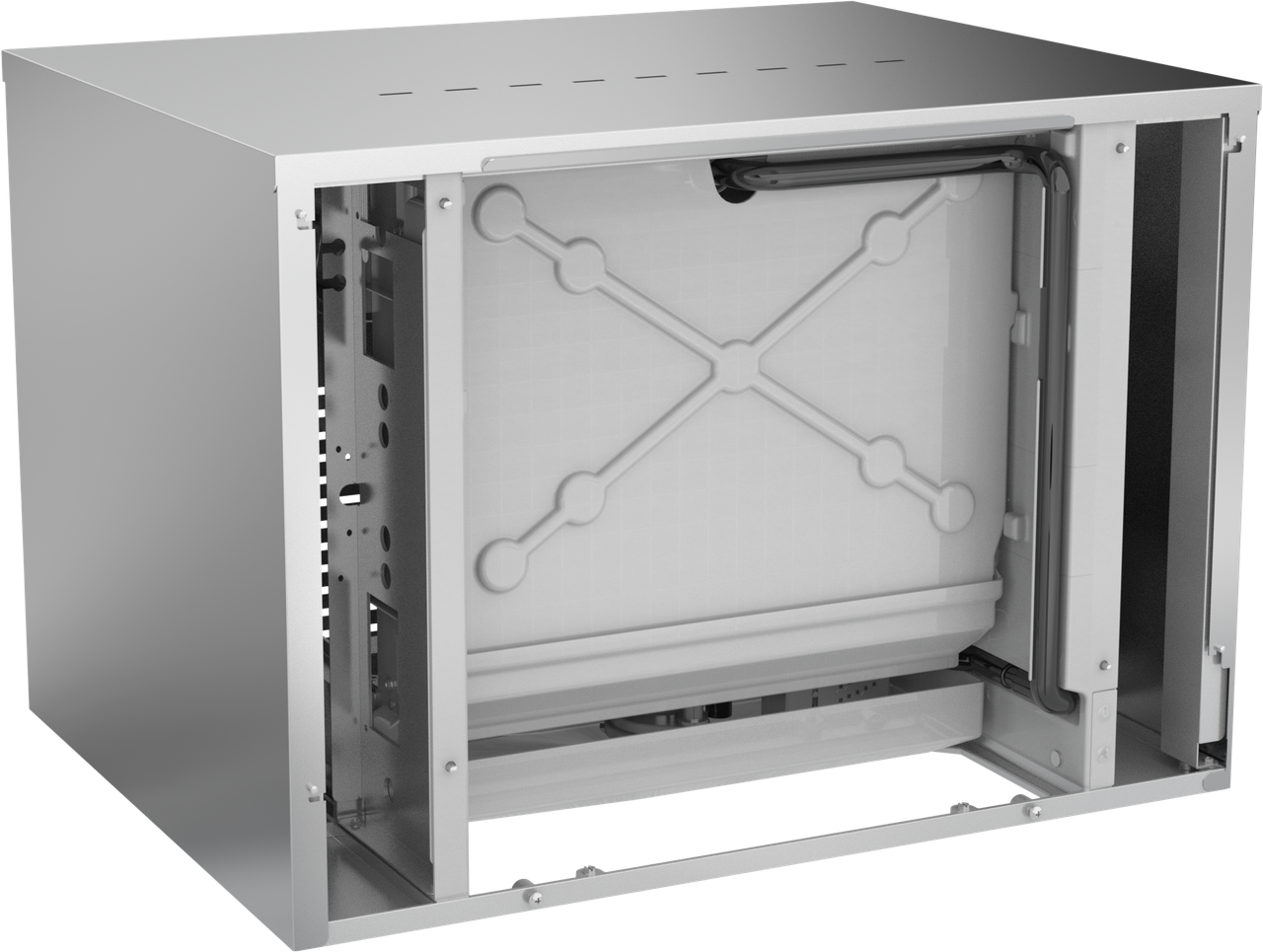

The Ice-O-Matic CIM0636HR49 is a 30 1/4 inch modular ice machine head from the Elevation Series, producing 600 to 700 lb of half cube ice per 24 hours, remote cooled.

Half Cube Ice at the Top of the 30-Inch Elevation Line

The CIM0636HR49 uses the same 30 1/4 by 24 1/4 by 21 1/4 inch cabinet as the CIM0530 series but produces a higher 600 to 700 lb of half cube ice per day, ahead of the CIM0530HR49's 500 to 600 lb. It is the top-output half cube model in the 30-inch cabinet.

Remote Condenser at 208-230V

Like the CIM0530HR49, this model is designed for a separate remote condenser rather than a head-mounted one, but Ice-O-Matic's product page specifies it pairs with the larger RC106C49 remote condenser rather than the RC100C49 used on the CIM0530 remote models, and precharged linesets in RL49-25, RL49-40, or RL49-75 lengths. It also runs on 208-230/60/1 electrical service rather than the 115/60/1 used by the CIM0430 and CIM0530 series in the same cabinet.

R449A Refrigerant and IFQ1-XL Filtration

The CIM0636HR49 runs on R449A refrigerant, unlike the R290A used in the air- and water-cooled CIM0636 variants, and ships with Ice-O-Matic's IFQ1-XL filter system. It is BABA compliant per the manufacturer's published specifications.

Specifications

Model CIM0636HR49
Series Elevation
Type Half Cube, modular head, bin sold separately
Capacity 600-700 lb per 24 hours
Exterior Dimensions 30.25 in W x 24.25 in D x 21.25 in H
Electrical 208-230/60/1
Refrigerant R449A
Condenser Remote (pairs with RC106C49 remote condenser, sold separately)
Filter System IFQ1-XL
Certifications BABA Compliant
Shipping Weight 165 lb

Warranty

Ice-O-Matic publishes 3 years parts and labor on the CIM series, with 5 years parts coverage on the evaporator and compressor. The RC106C49 remote condenser is sold separately and carries its own warranty terms.
