Product Description

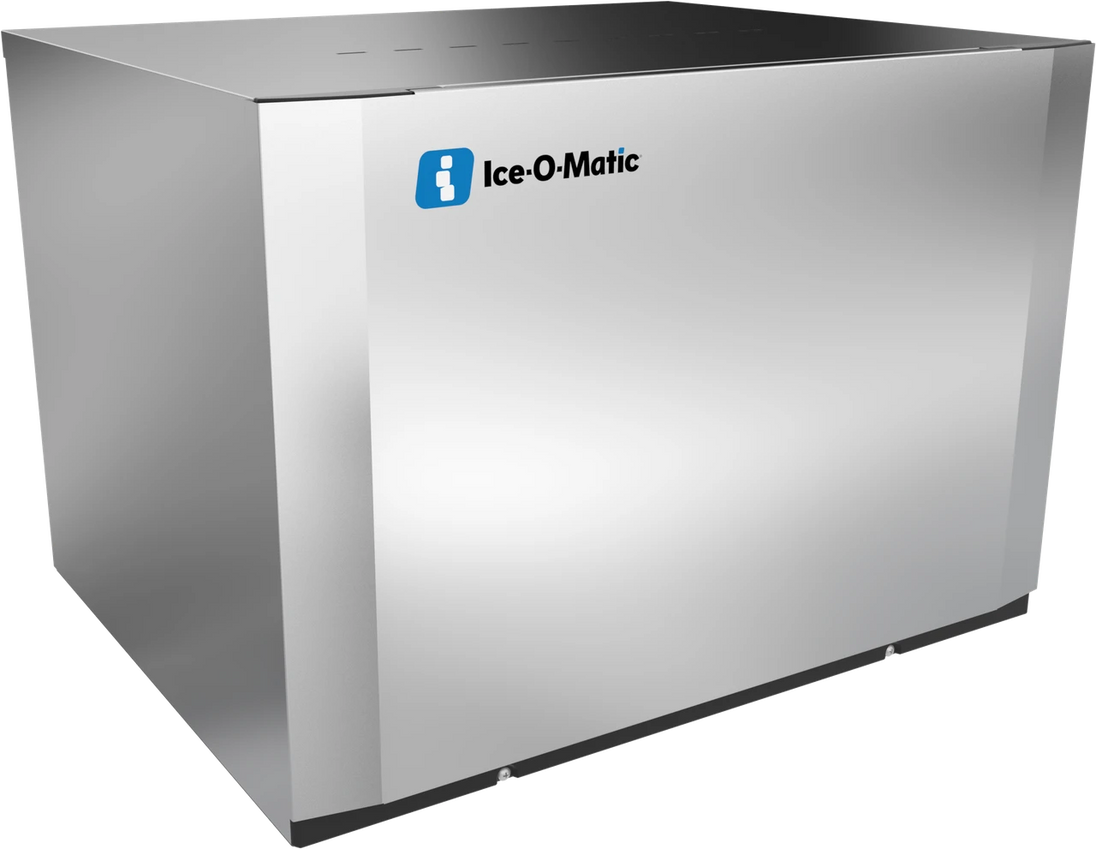

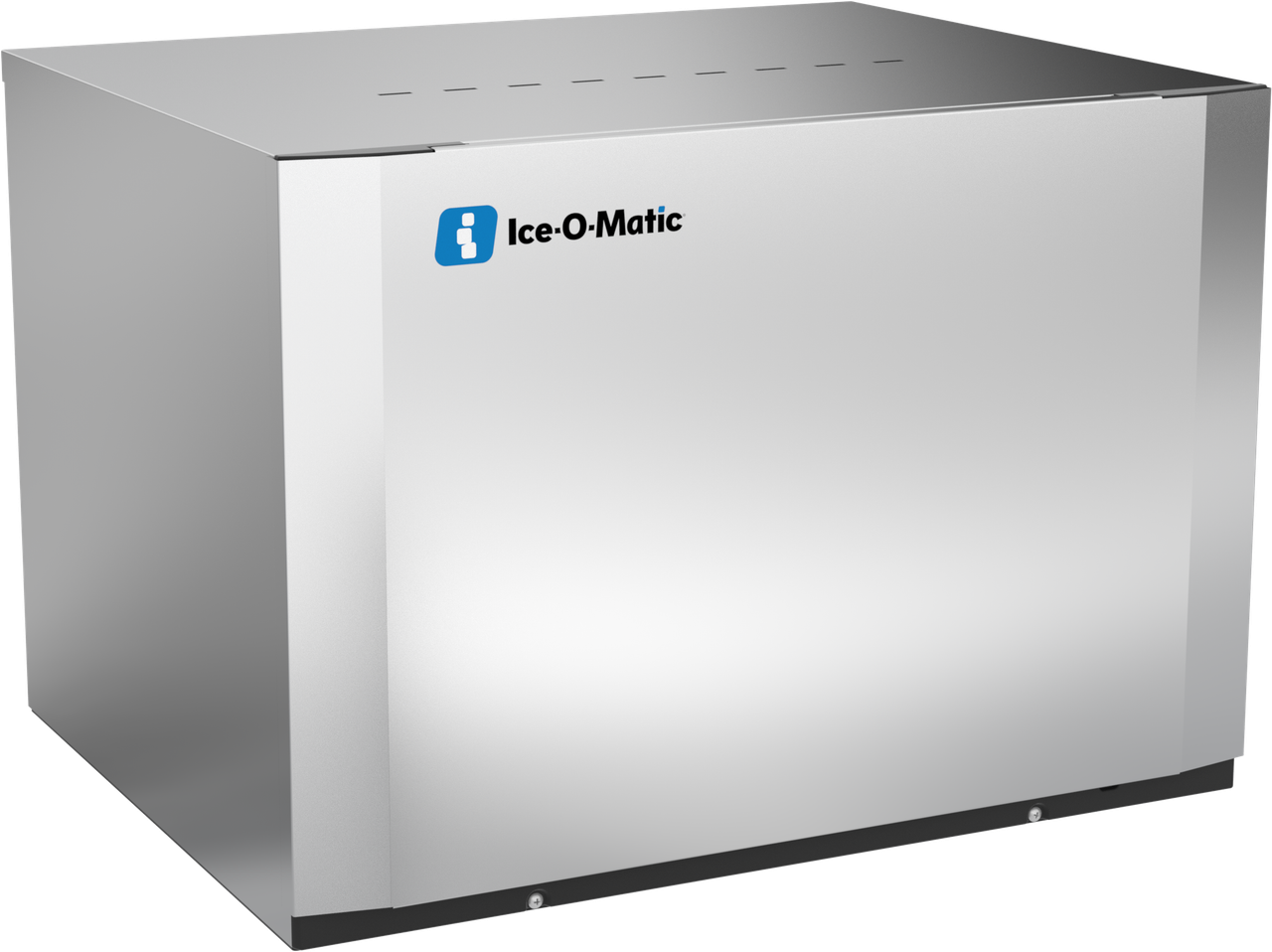

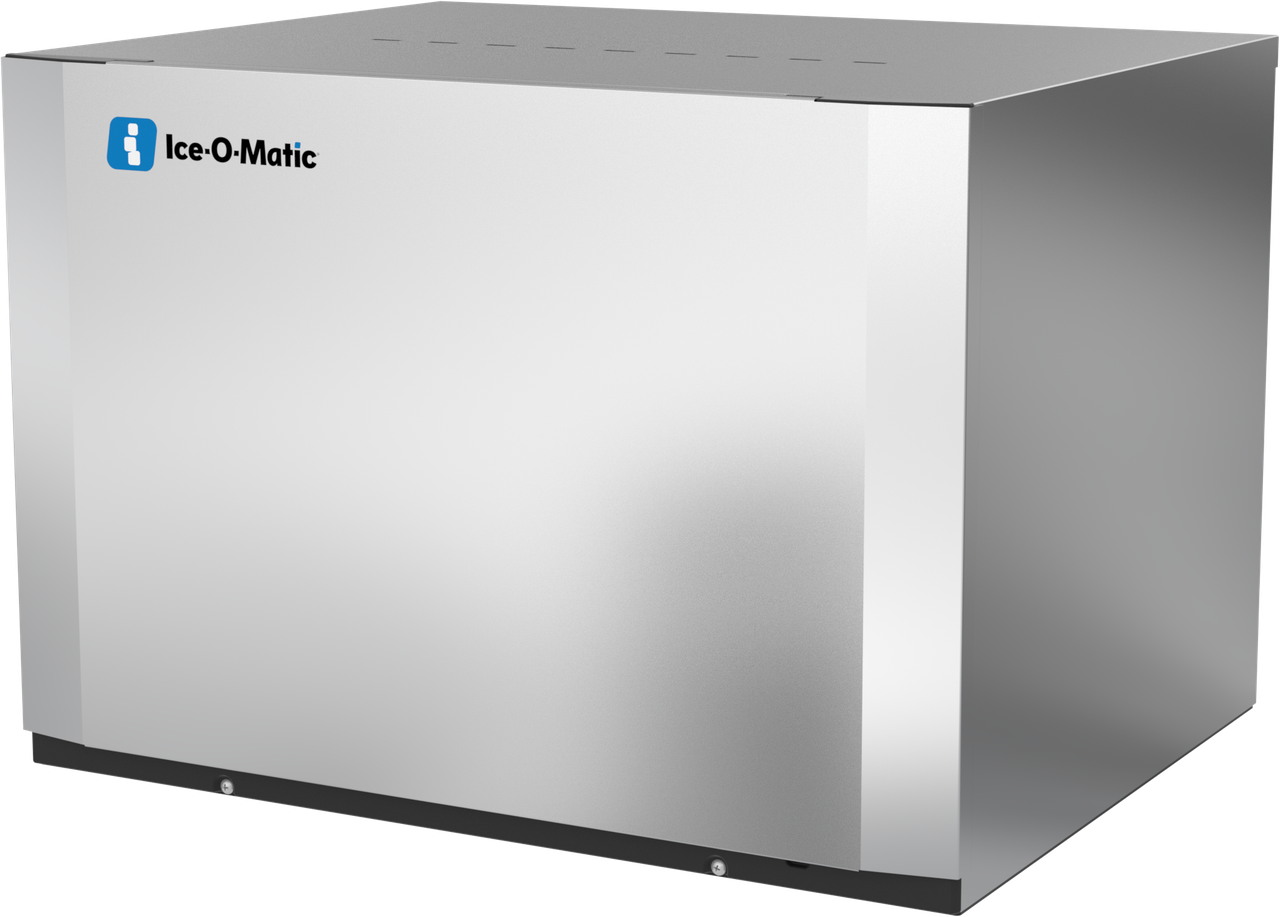

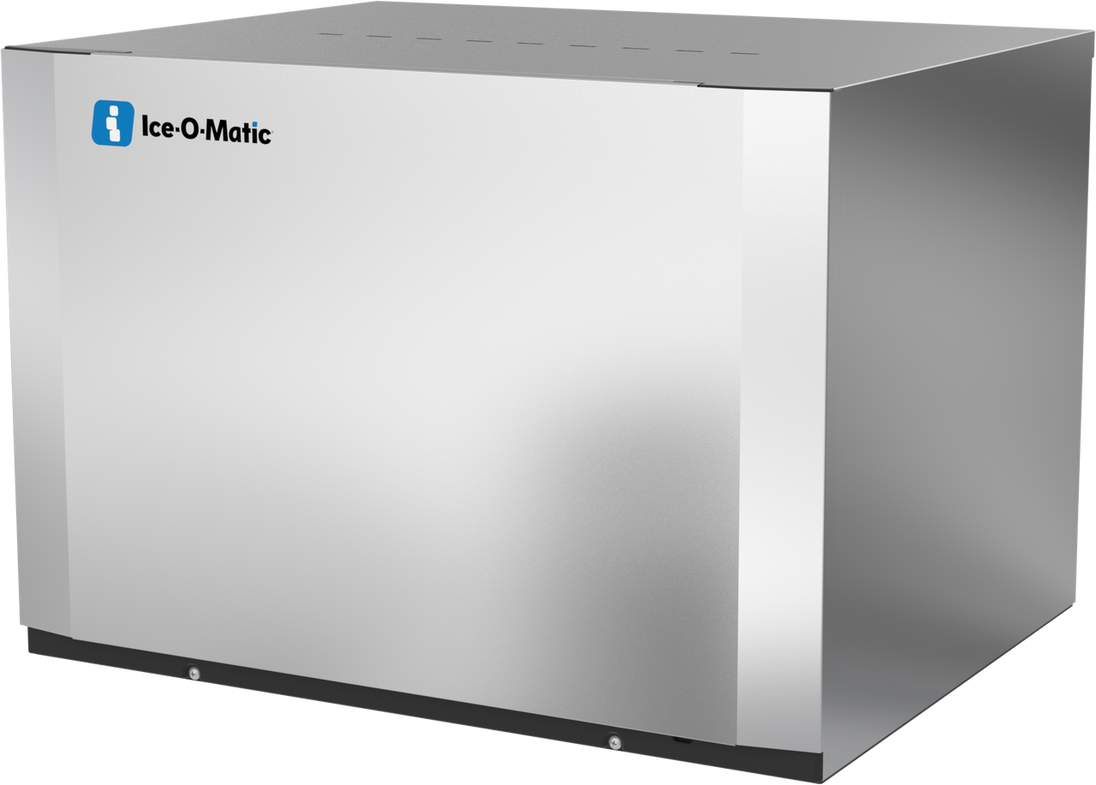

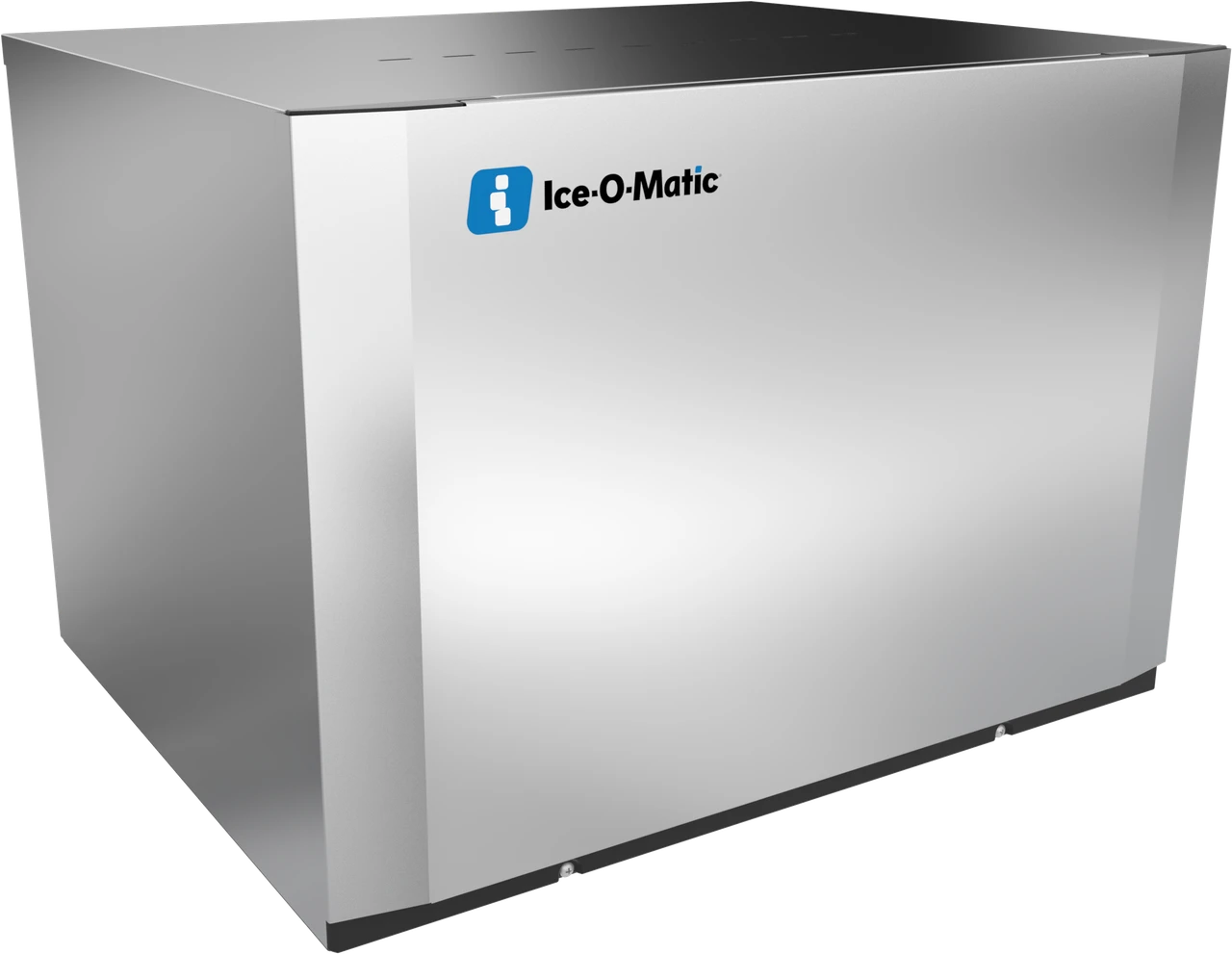

The Ice-O-Matic CIM0636FW90 is a 30 1/4 inch modular ice machine head from the Elevation Series, producing 600 to 700 lb of full cube ice per 24 hours, water cooled.

Full Cube Ice at the Top of the 30-Inch Elevation Line

The CIM0636FW90 uses the same 30 1/4 by 24 1/4 by 21 1/4 inch cabinet as the CIM0530 series but produces a higher 600 to 700 lb of full cube ice per day, ahead of the CIM0530FW90's 500 to 600 lb. It is the top-output full cube model in the 30-inch cabinet.

Water Cooled at 208-230V

The CIM0636FW90 rejects heat through a water-cooled condenser rather than ambient air, which keeps performance more consistent in hot or poorly ventilated machine rooms. It runs on 208-230/60/1 electrical service rather than the 115/60/1 used by the CIM0430 and CIM0530 series in the same cabinet, and operators should confirm that higher-voltage single-phase service is available before installing it.

IFQ1-XL Filtration and R290A Refrigerant

The unit ships with Ice-O-Matic's IFQ1-XL filter system and runs on R290A refrigerant. It is BABA compliant per the manufacturer's published specifications.

Specifications

Model CIM0636FW90
Series Elevation
Type Full Cube, modular head, bin sold separately
Capacity 600-700 lb per 24 hours
Exterior Dimensions 30.25 in W x 24.25 in D x 21.25 in H
Electrical 208-230/60/1
Refrigerant R290A
Condenser Water Cooled
Filter System IFQ1-XL
Certifications BABA Compliant
Shipping Weight 164 lb

Warranty

Ice-O-Matic publishes 3 years parts and labor on the CIM series, with 5 years parts coverage on the evaporator and compressor.
