Product Description

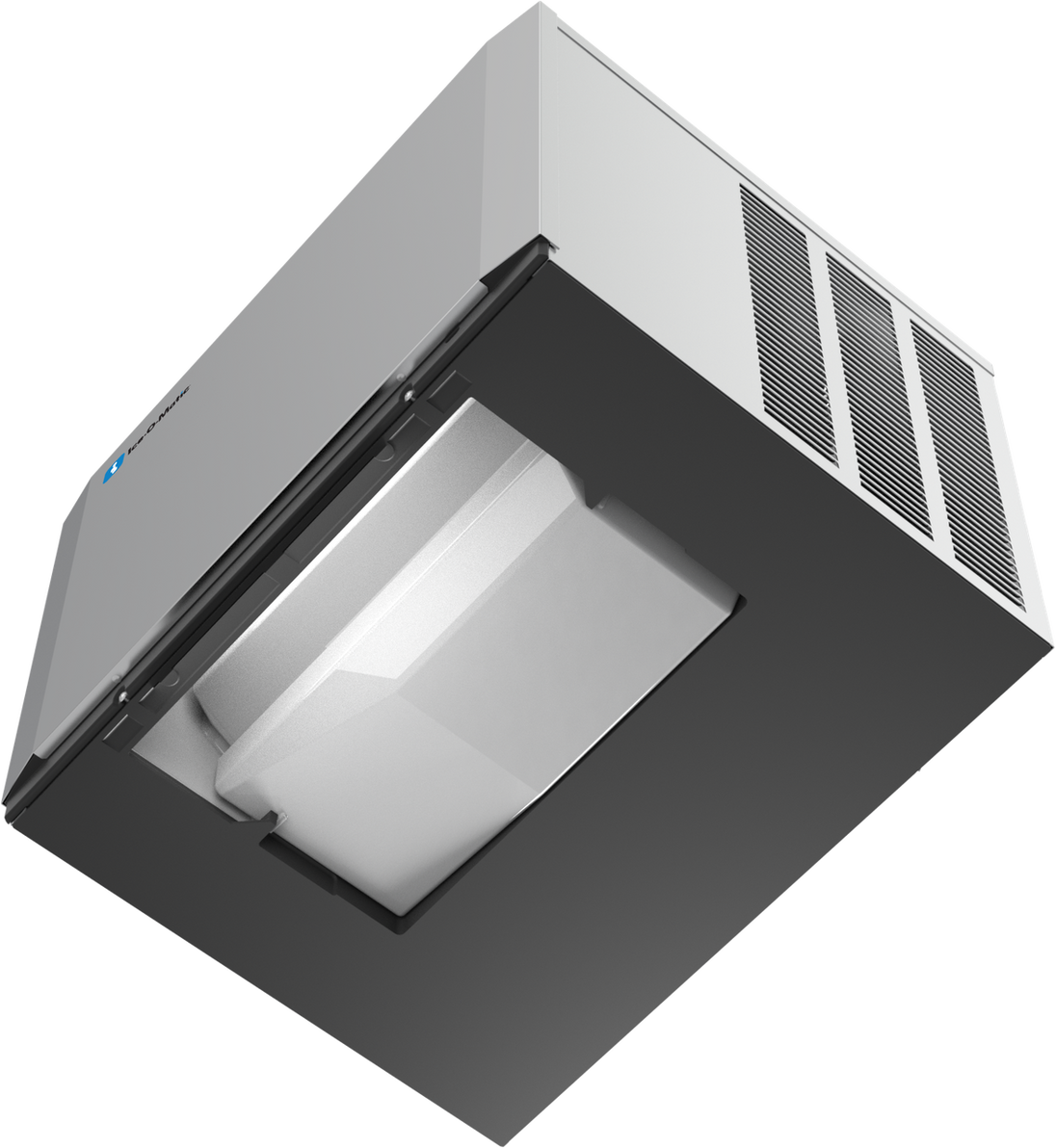

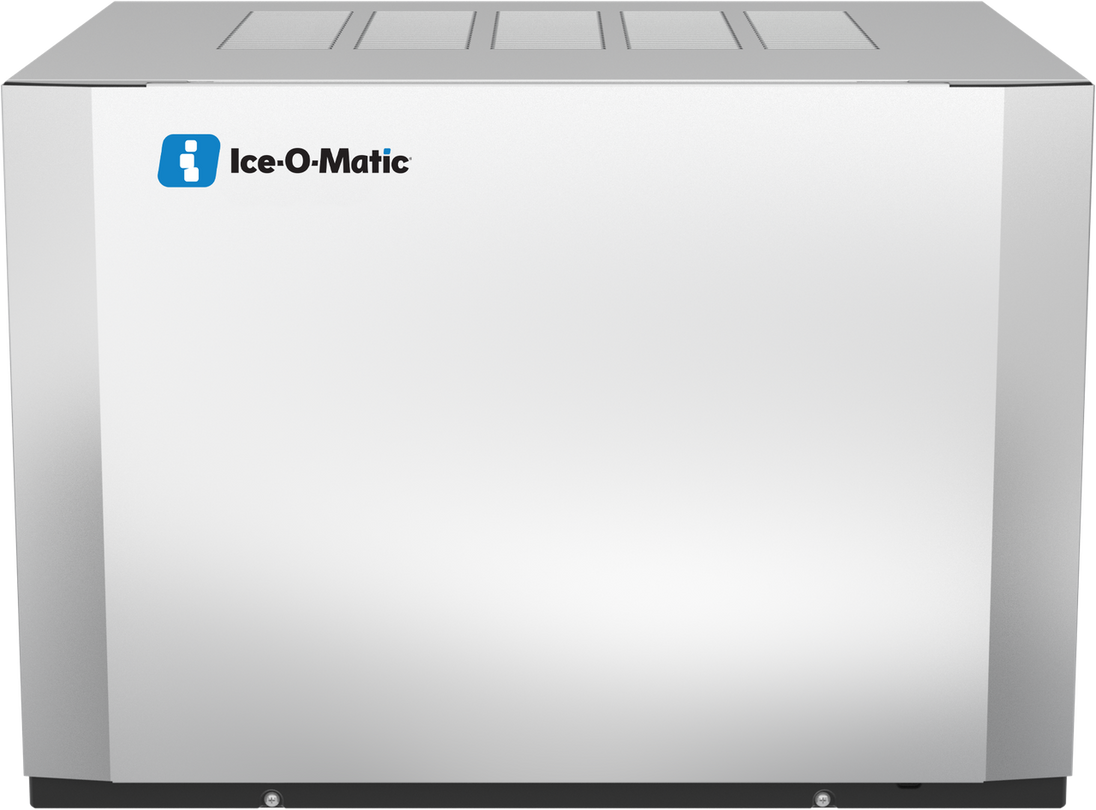

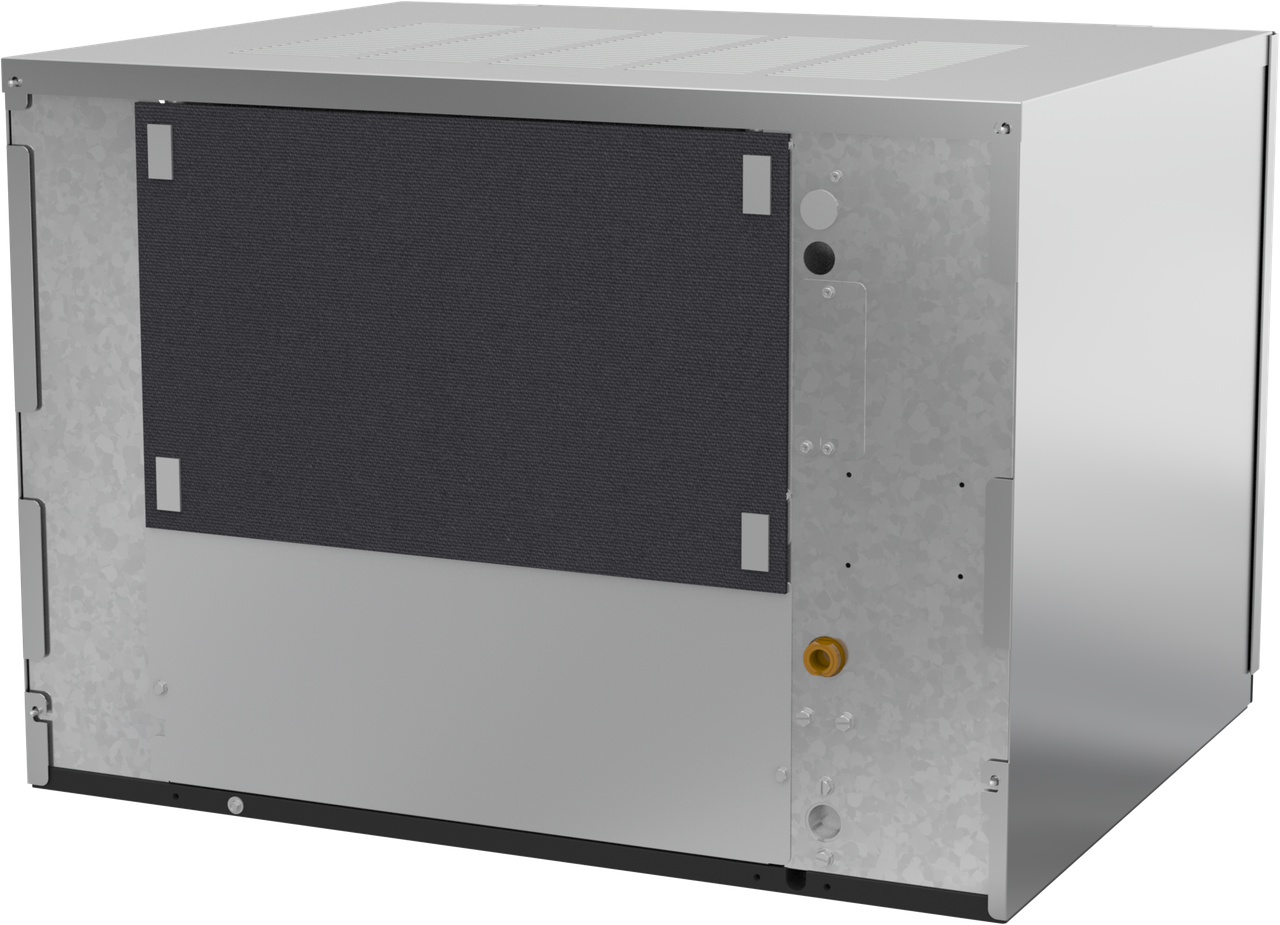

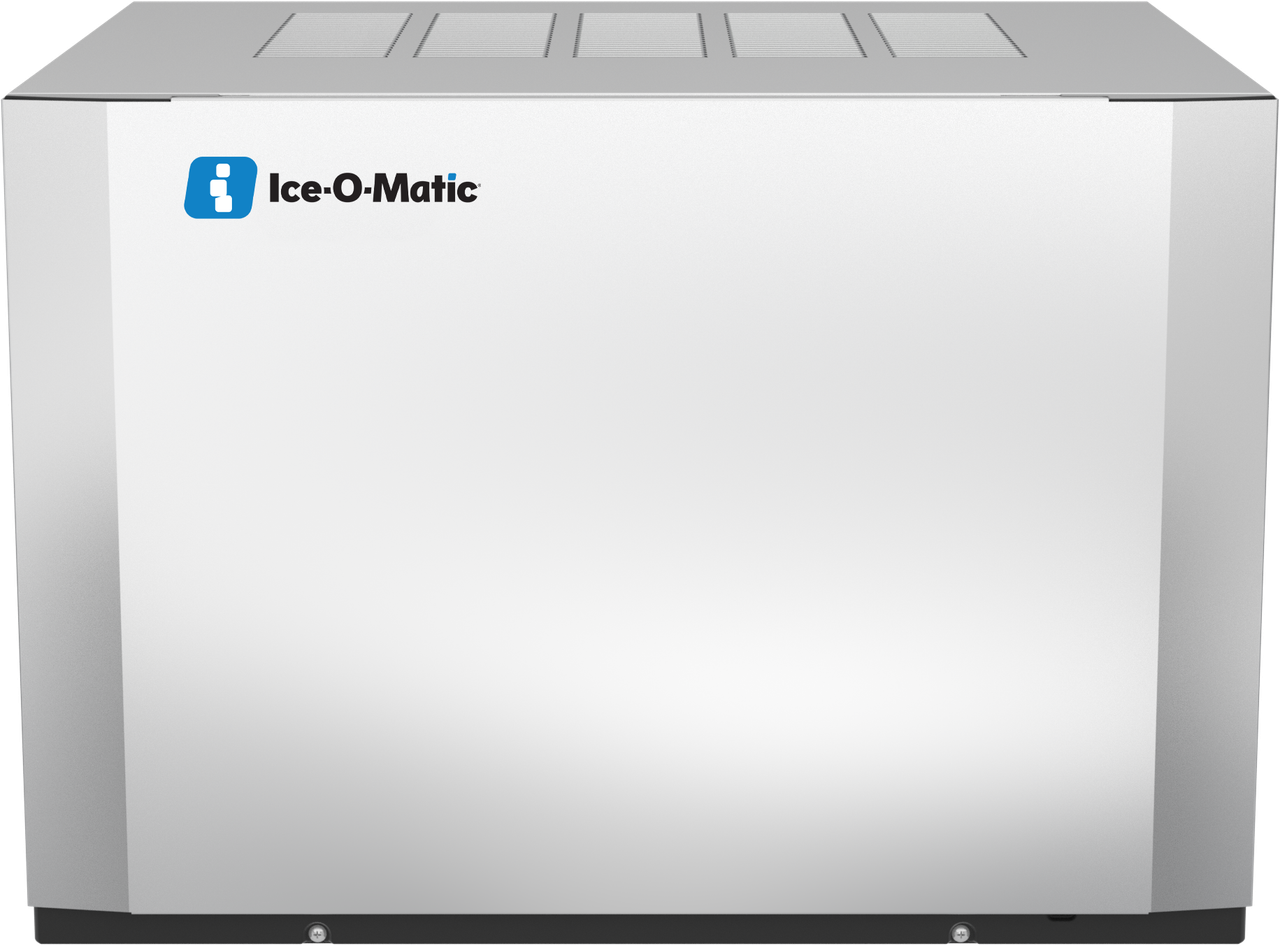

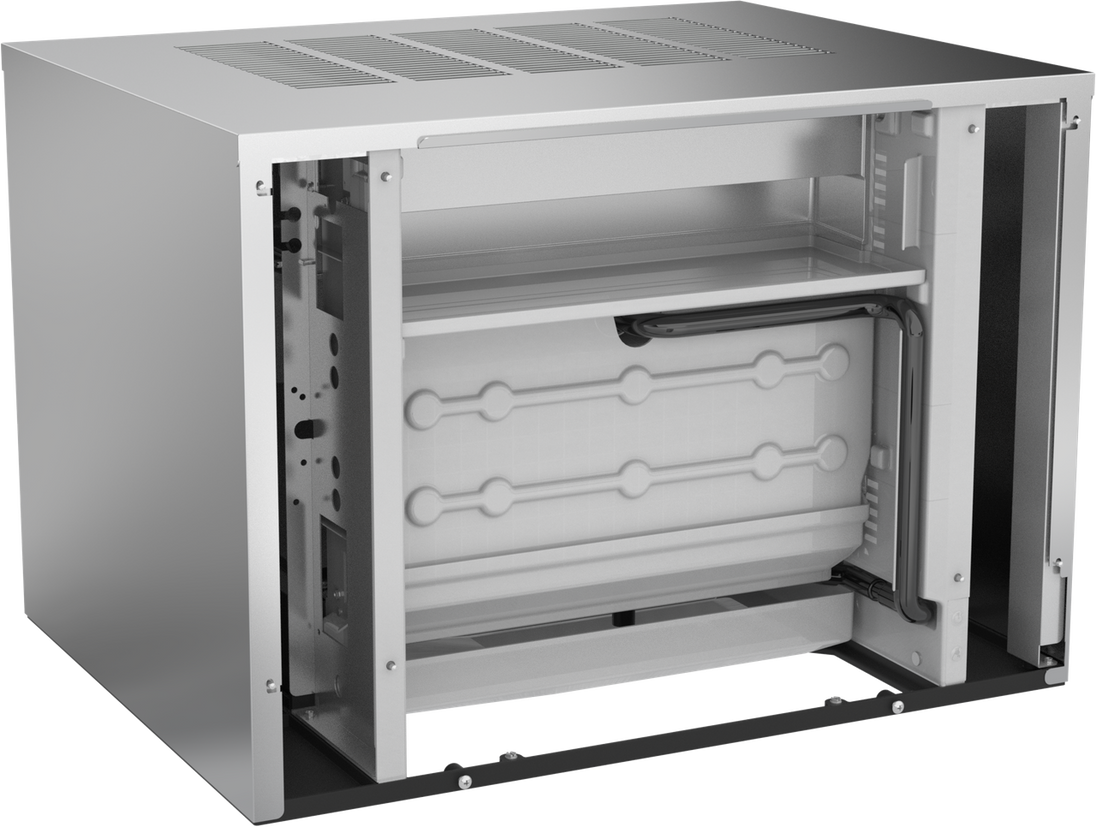

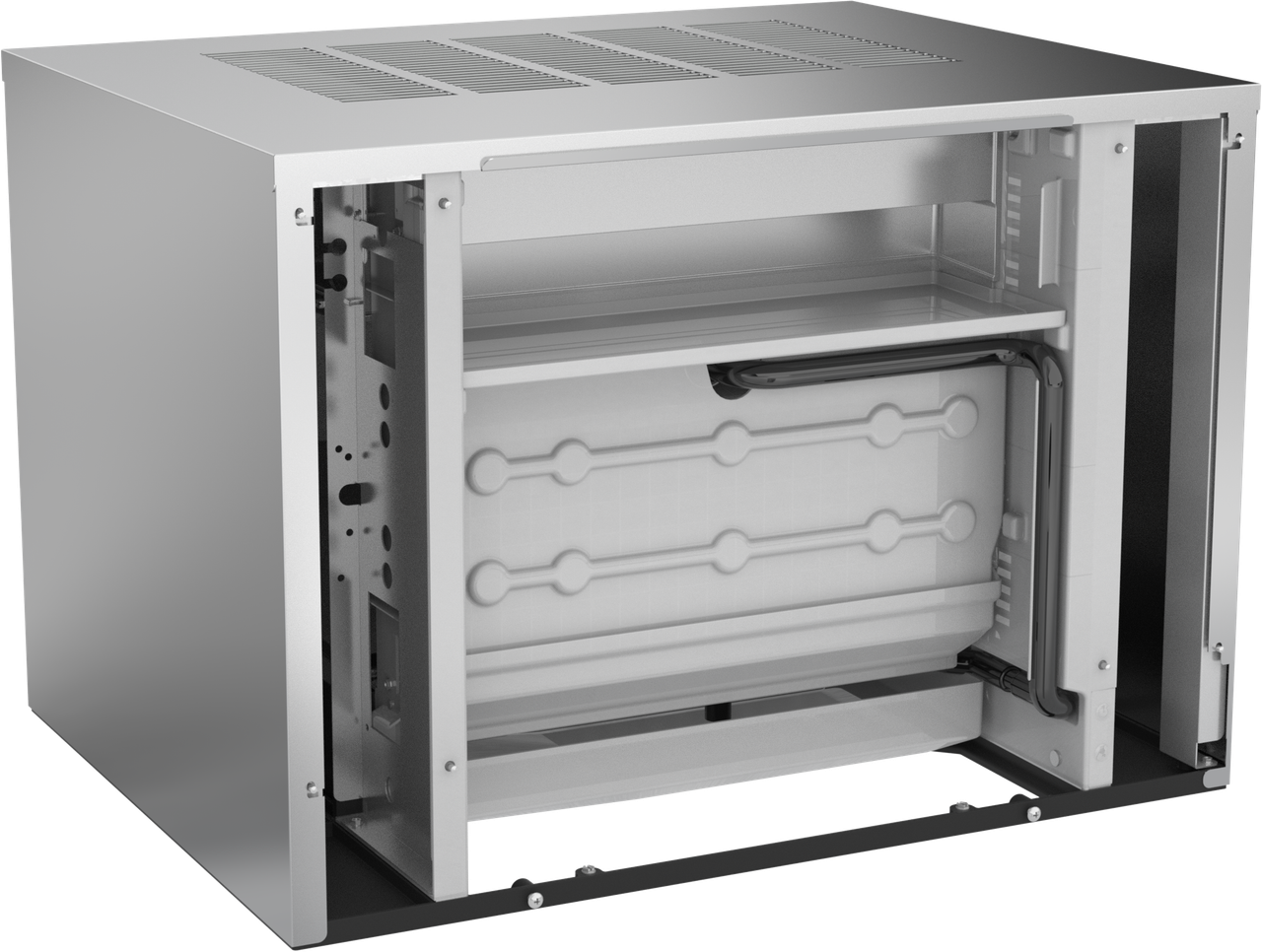

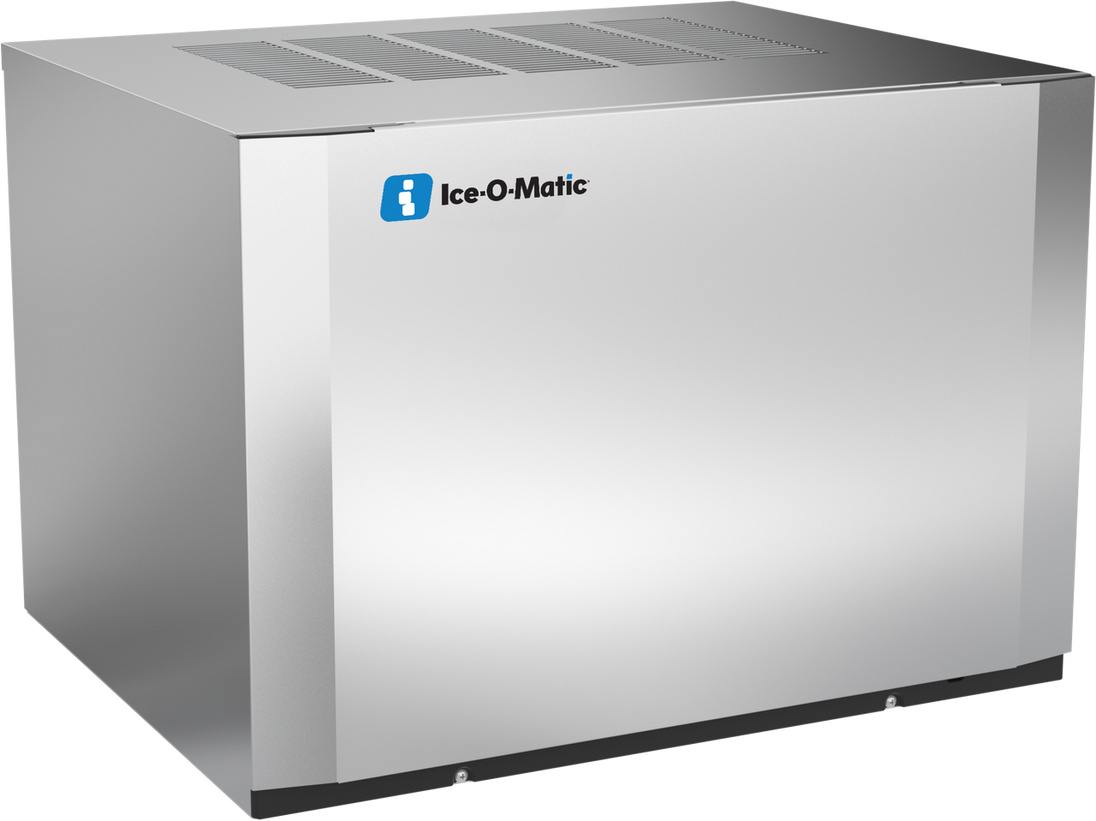

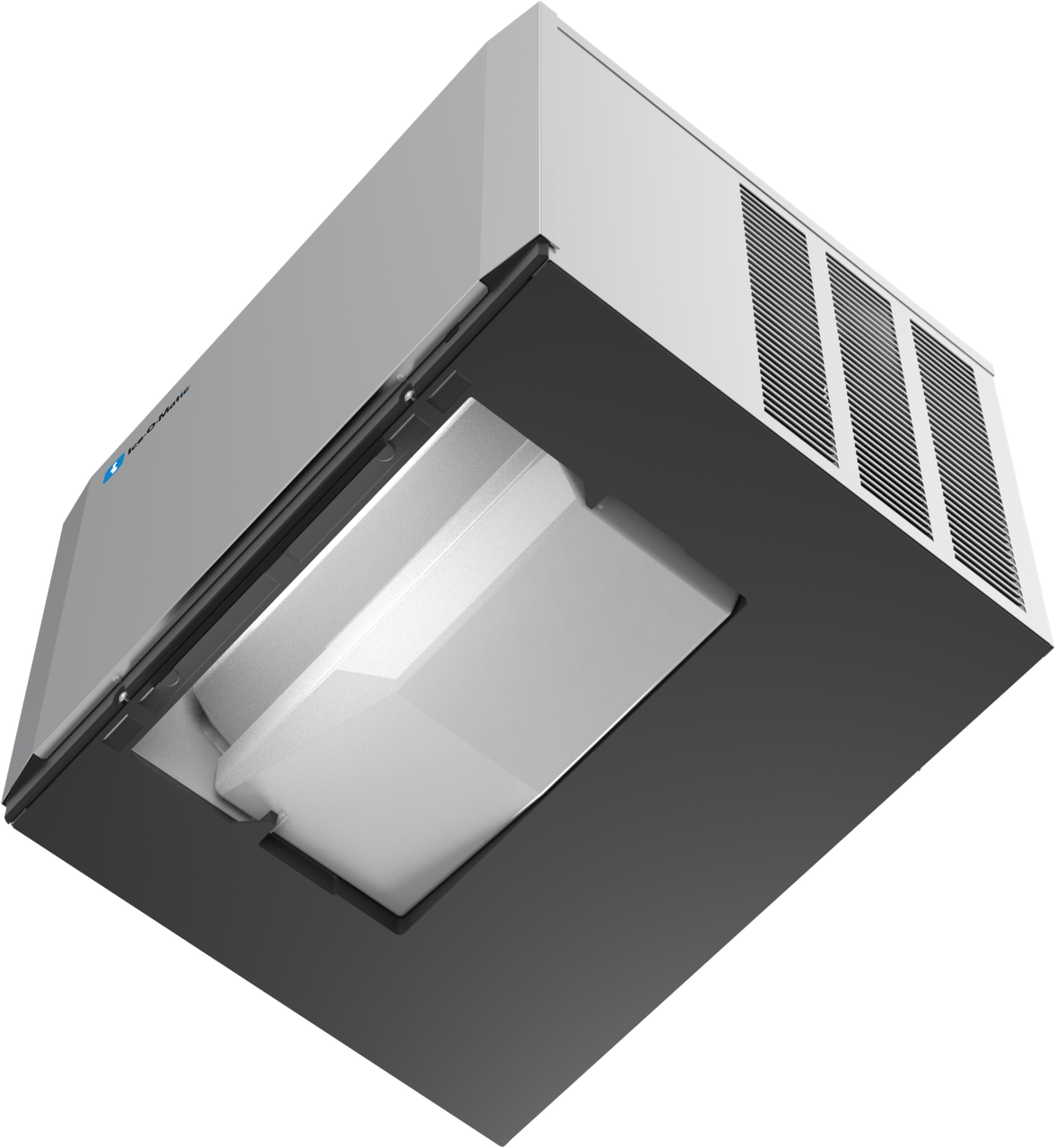

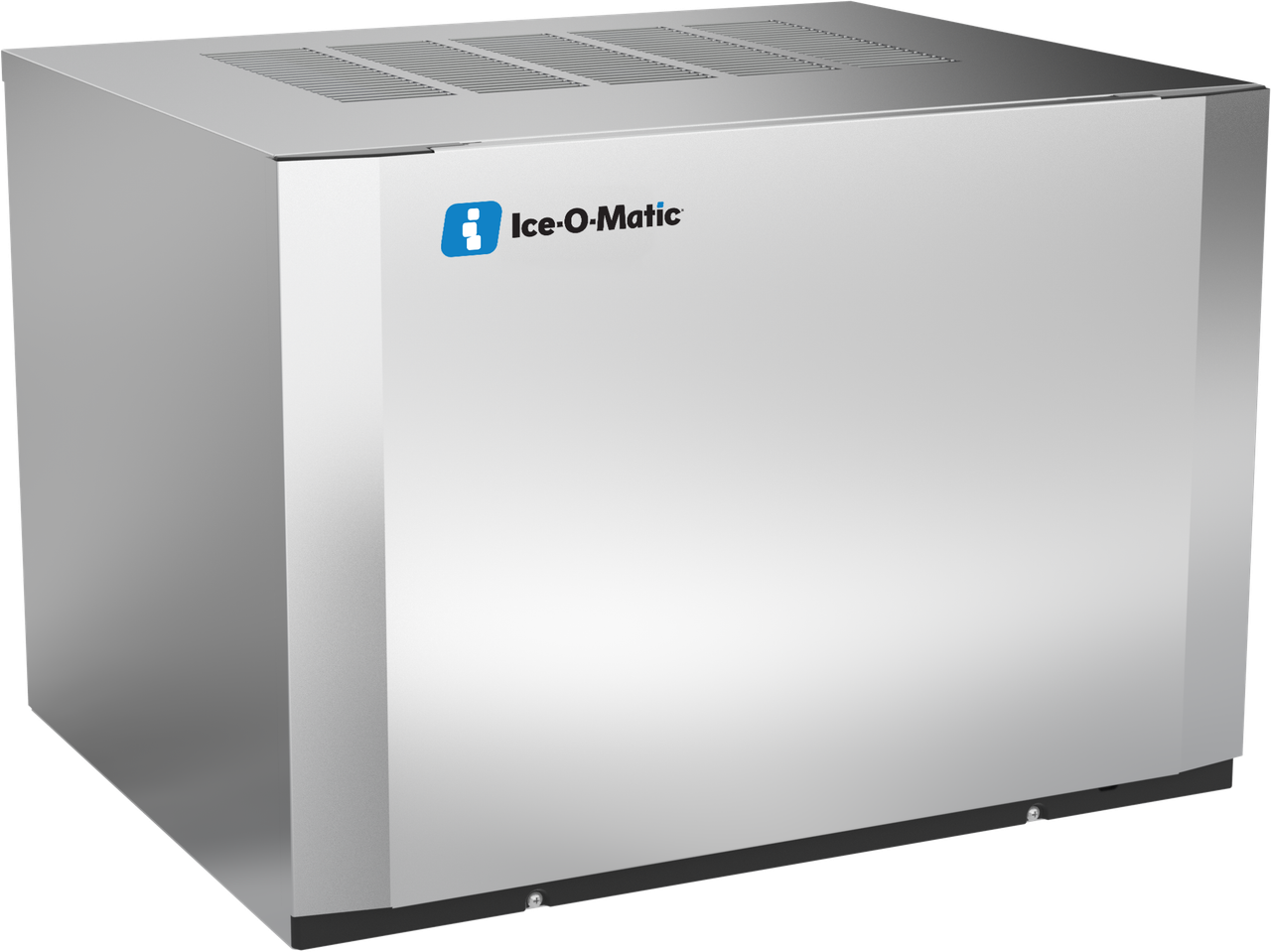

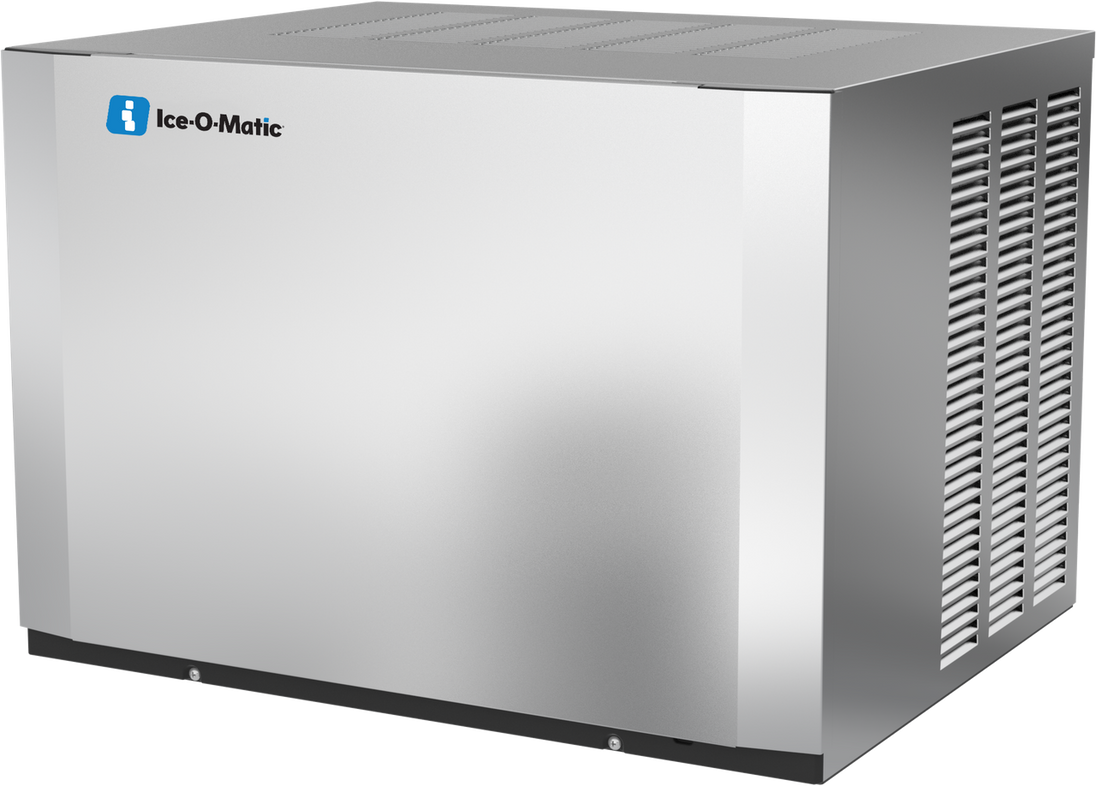

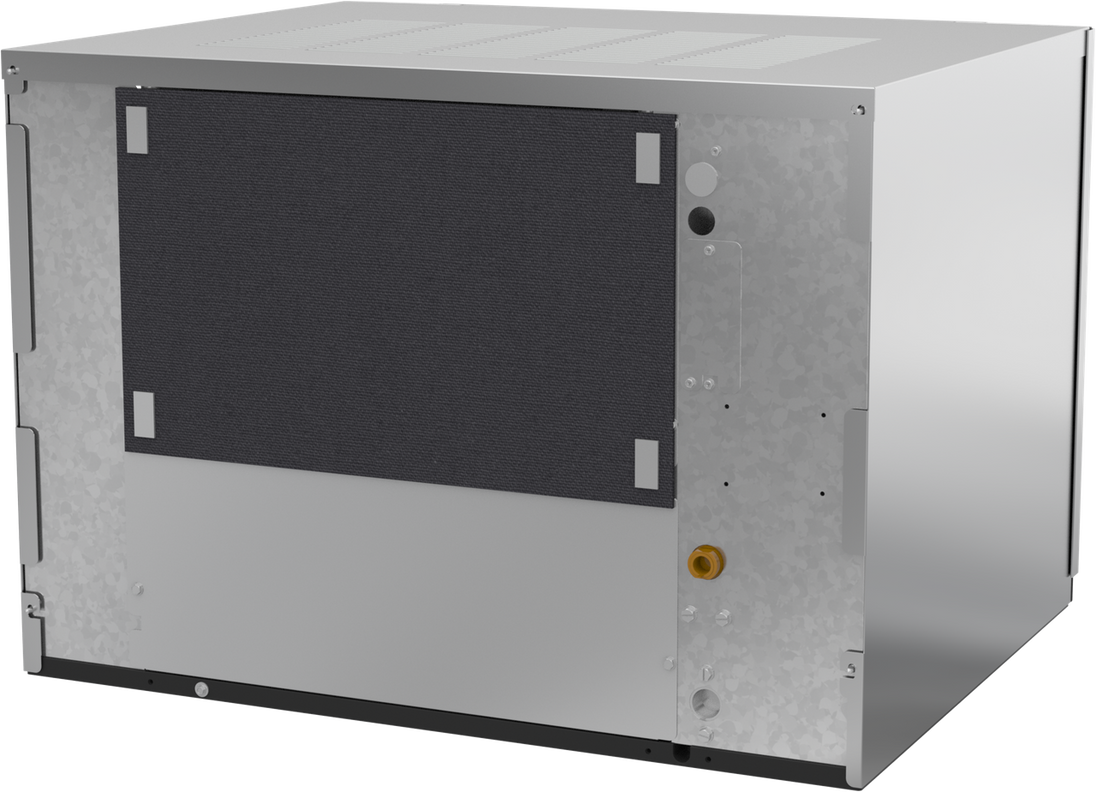

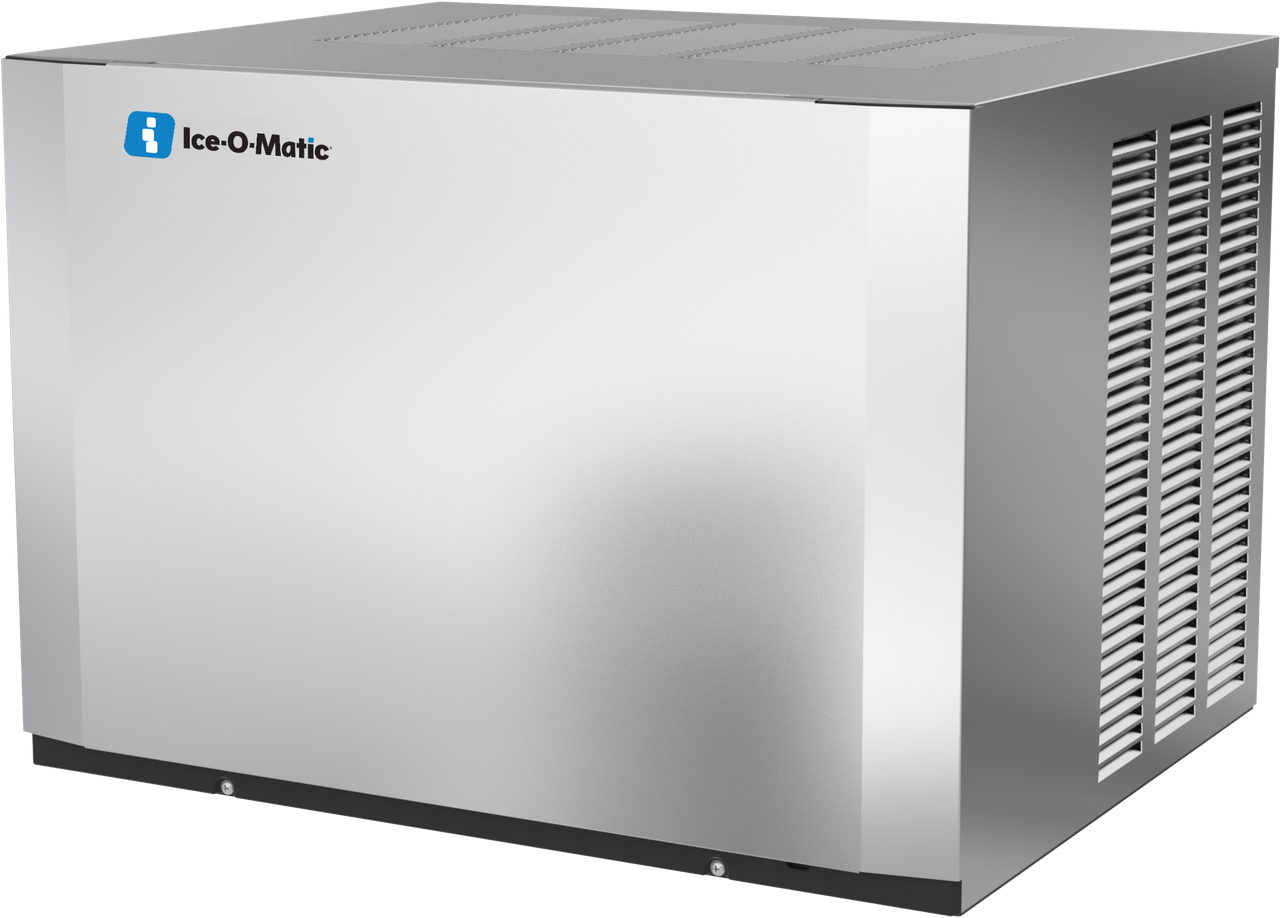

The Ice-O-Matic CIM0636FA90 is a 30 1/4 inch modular ice machine head from the Elevation Series, producing 600 to 700 lb of full cube ice per 24 hours, air cooled.

Full Cube Ice at the Top of the 30-Inch Elevation Line

The CIM0636FA90 uses the same 30 1/4 by 24 1/4 by 21 1/4 inch cabinet as the CIM0530 series but produces a higher 600 to 700 lb of full cube ice per day, ahead of the CIM0530FA90's 500 to 600 lb. It is the top-output full cube model in the 30-inch cabinet.

208-230V for 600 to 700 lb Output

To support that higher output, the CIM0636FA90 runs on 208-230/60/1 electrical service rather than the 115/60/1 service used by the CIM0430 and CIM0530 series in the same cabinet. Operators need to confirm 208-230V single-phase power is available before swapping into this model from a 115V unit.

IFQ1-XL Filtration and R290A Refrigerant

The unit ships with Ice-O-Matic's IFQ1-XL filter system and runs on R290A refrigerant. It is Energy Star certified and BABA compliant per the manufacturer's published specifications.

Specifications

Model CIM0636FA90
Series Elevation
Type Full Cube, modular head, bin sold separately
Capacity 600-700 lb per 24 hours
Exterior Dimensions 30.25 in W x 24.25 in D x 21.25 in H
Electrical 208-230/60/1
Refrigerant R290A
Condenser Air Cooled
Filter System IFQ1-XL
Certifications Energy Star Certified, BABA Compliant
Shipping Weight 163 lb

Warranty

Ice-O-Matic publishes 3 years parts and labor on the CIM series, with 5 years parts coverage on the evaporator and compressor.
