Product Description

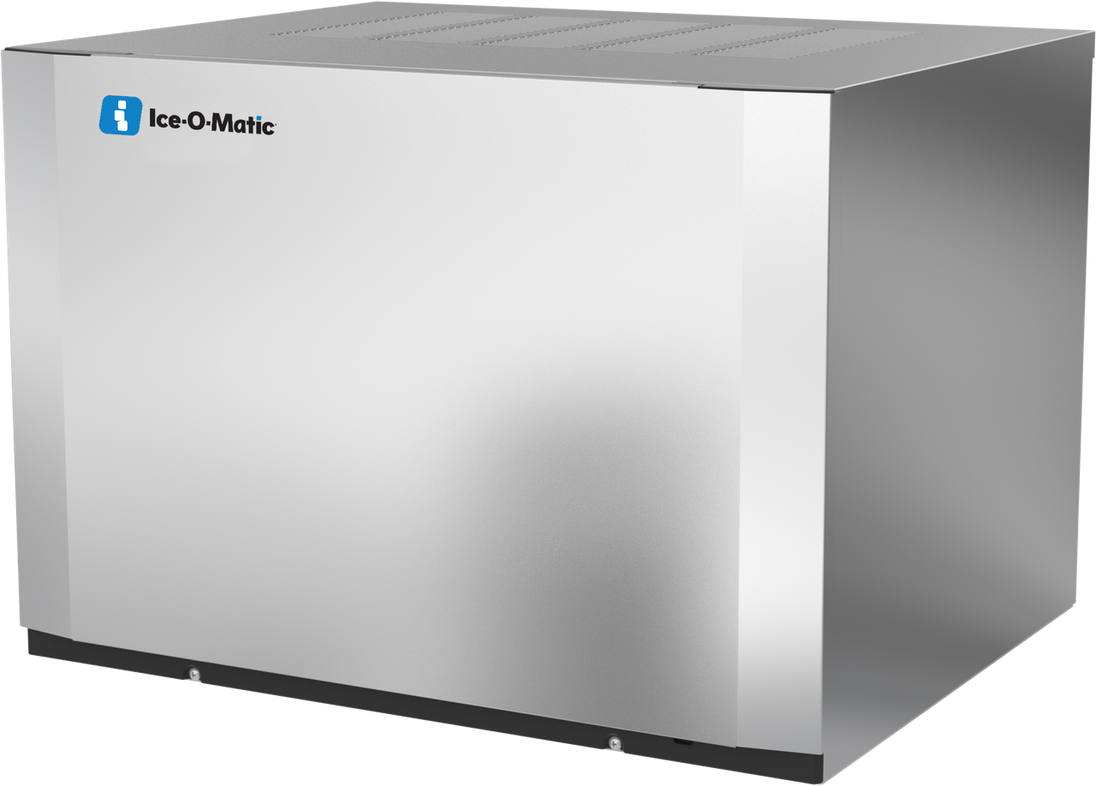

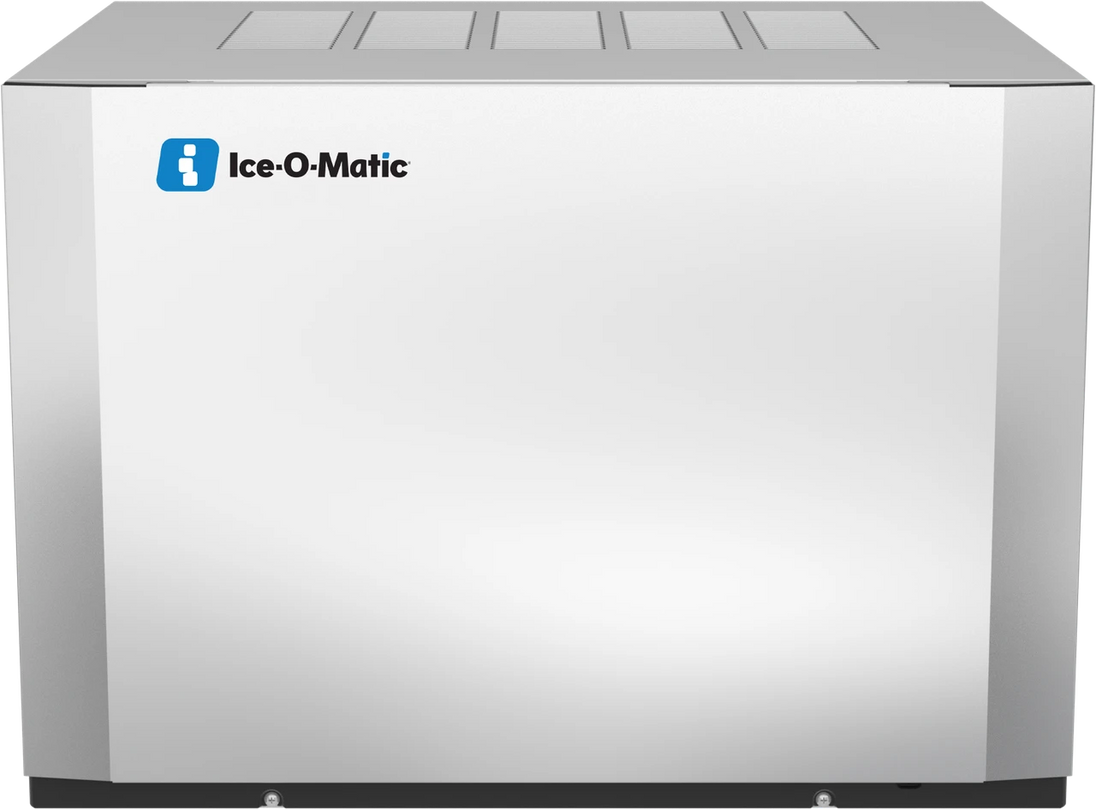

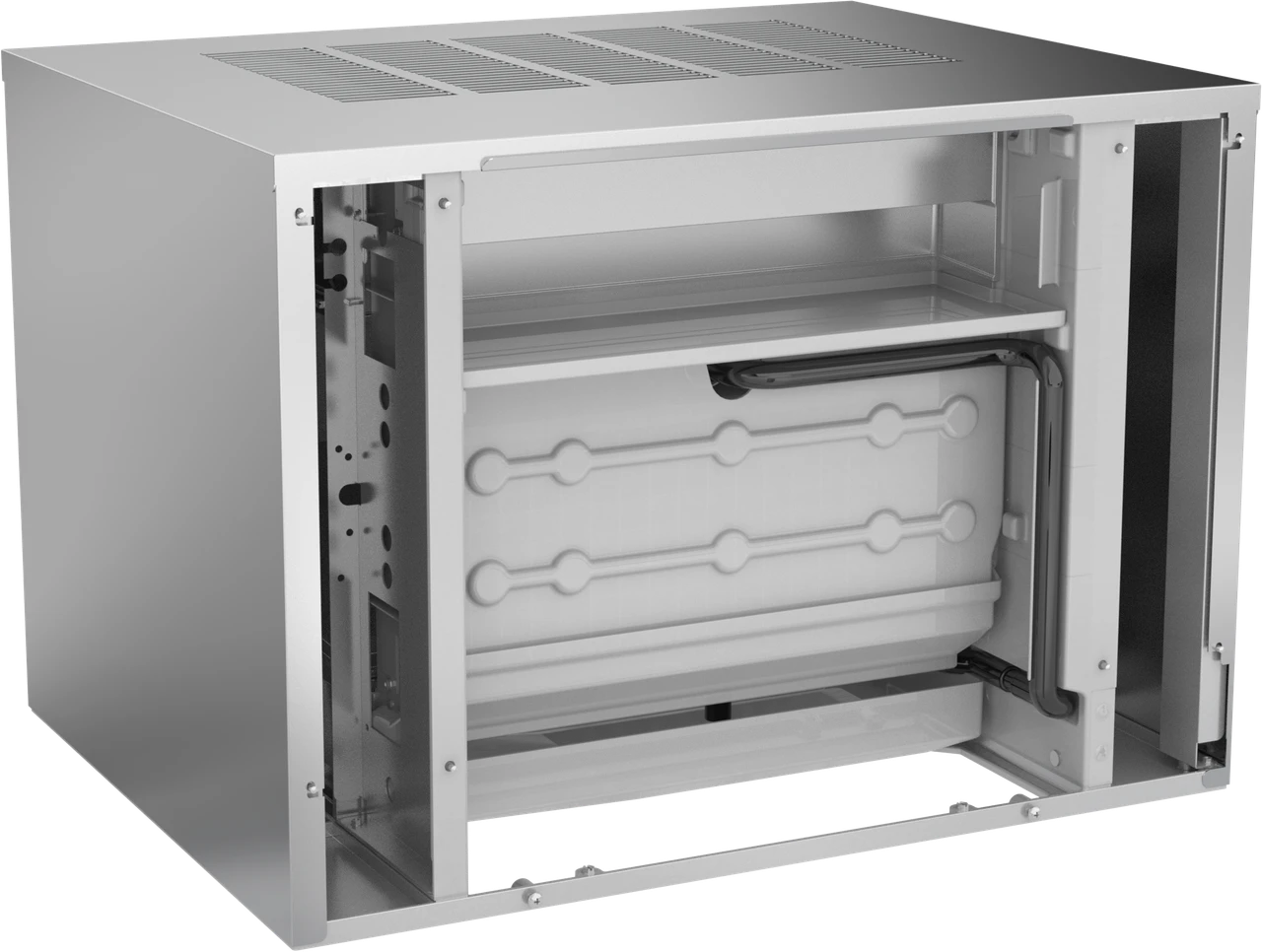

The Ice-O-Matic CIM0530HT90 is a 30 1/4 inch modular ice machine head from the Elevation Series, producing 500 to 600 lb of half cube ice per 24 hours, air cooled.

Half Cube Ice on the 30-Inch Elevation Cabinet

The CIM0530HT90 shares its 30 1/4 by 24 1/4 by 21 1/4 inch cabinet with the CIM0430 series while producing a higher 500 to 600 lb range of half cube ice per day, versus 400 to 500 lb for the CIM0430HA90. It is the full-output step up within the same footprint.

Air Cooled at 115V

Ice-O-Matic's own specifications list the CIM0530HT90's condenser as air cooled, the same as the CIM0530HA90, and it runs on the same 115/60/1 electrical service. The manufacturer markets the two under separate model numbers, so a configuration difference between them is likely, but the published spec sheet does not state what it is.

IFQ1-XL Filtration and R290A Refrigerant

The CIM0530HT90 ships with Ice-O-Matic's IFQ1-XL filter system and runs on R290A refrigerant. It is Energy Star certified and BABA compliant per the manufacturer's published specifications.

Specifications

Model CIM0530HT90
Series Elevation
Type Half Cube, modular head, bin sold separately
Capacity 500-600 lb per 24 hours
Exterior Dimensions 30.25 in W x 24.25 in D x 21.25 in H
Electrical 115/60/1
Refrigerant R290A
Condenser Air Cooled
Filter System IFQ1-XL
Certifications Energy Star Certified, BABA Compliant
Shipping Weight 151 lb

Warranty

Ice-O-Matic publishes 3 years parts and labor on the CIM series, with 5 years parts coverage on the evaporator and compressor.
