Product Description

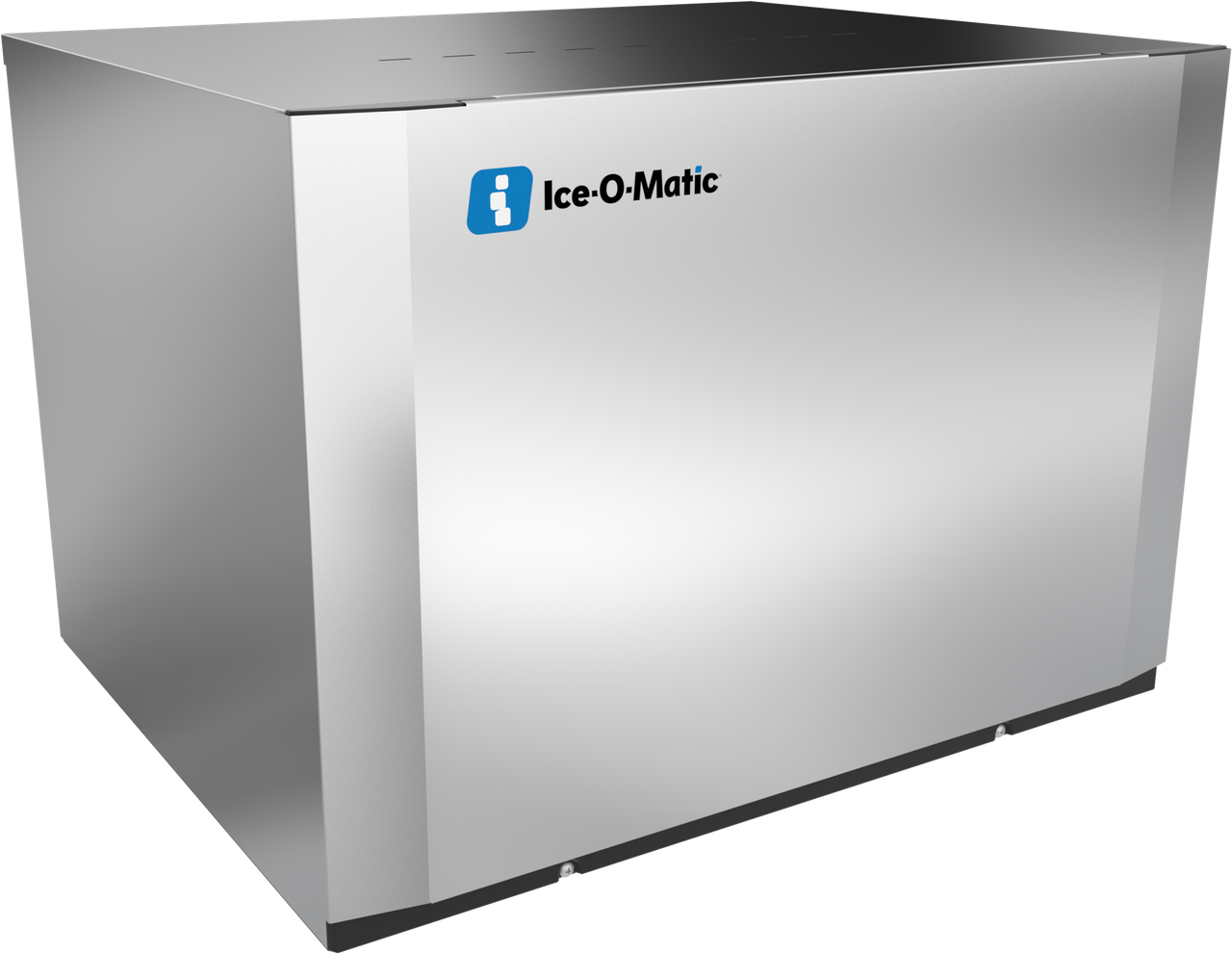

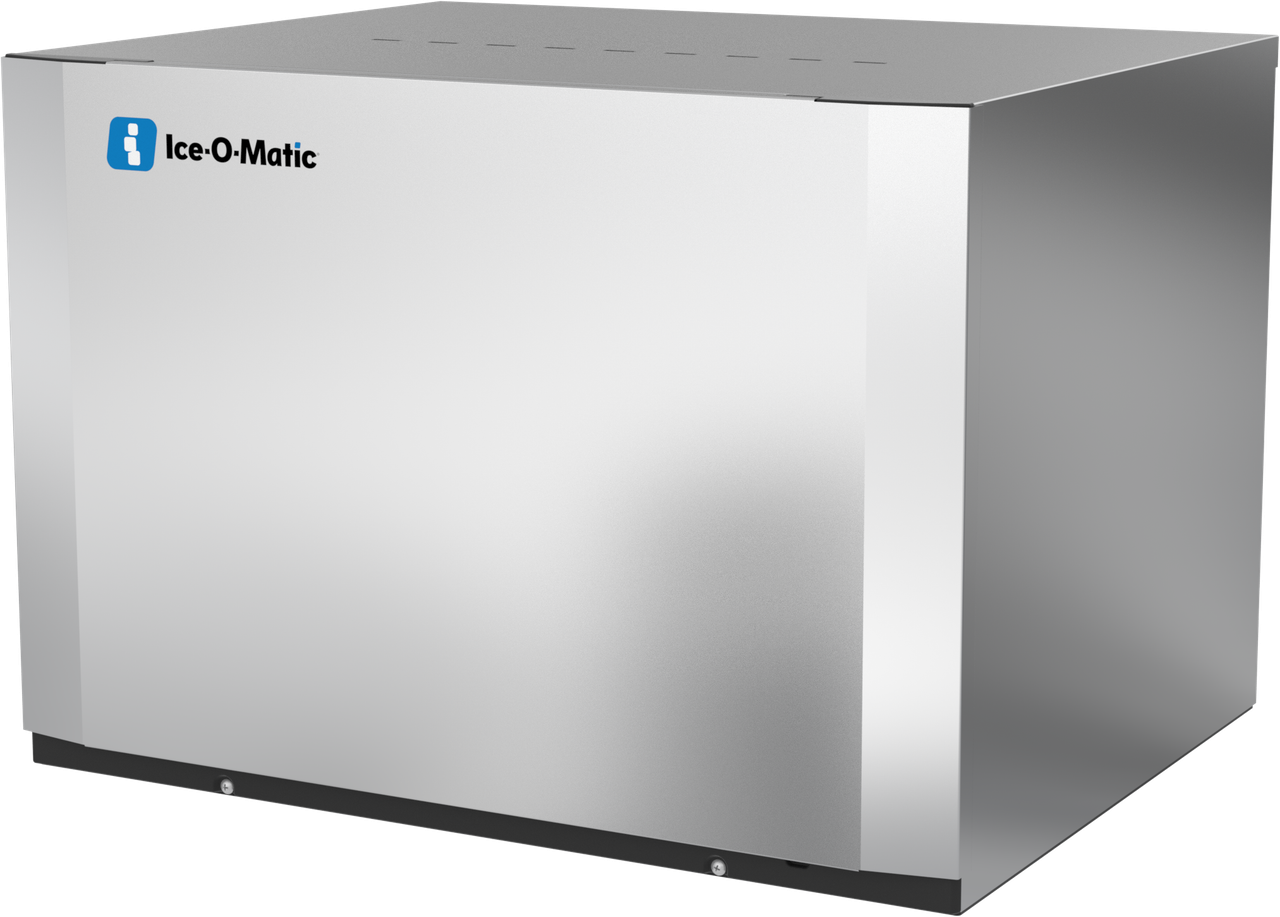

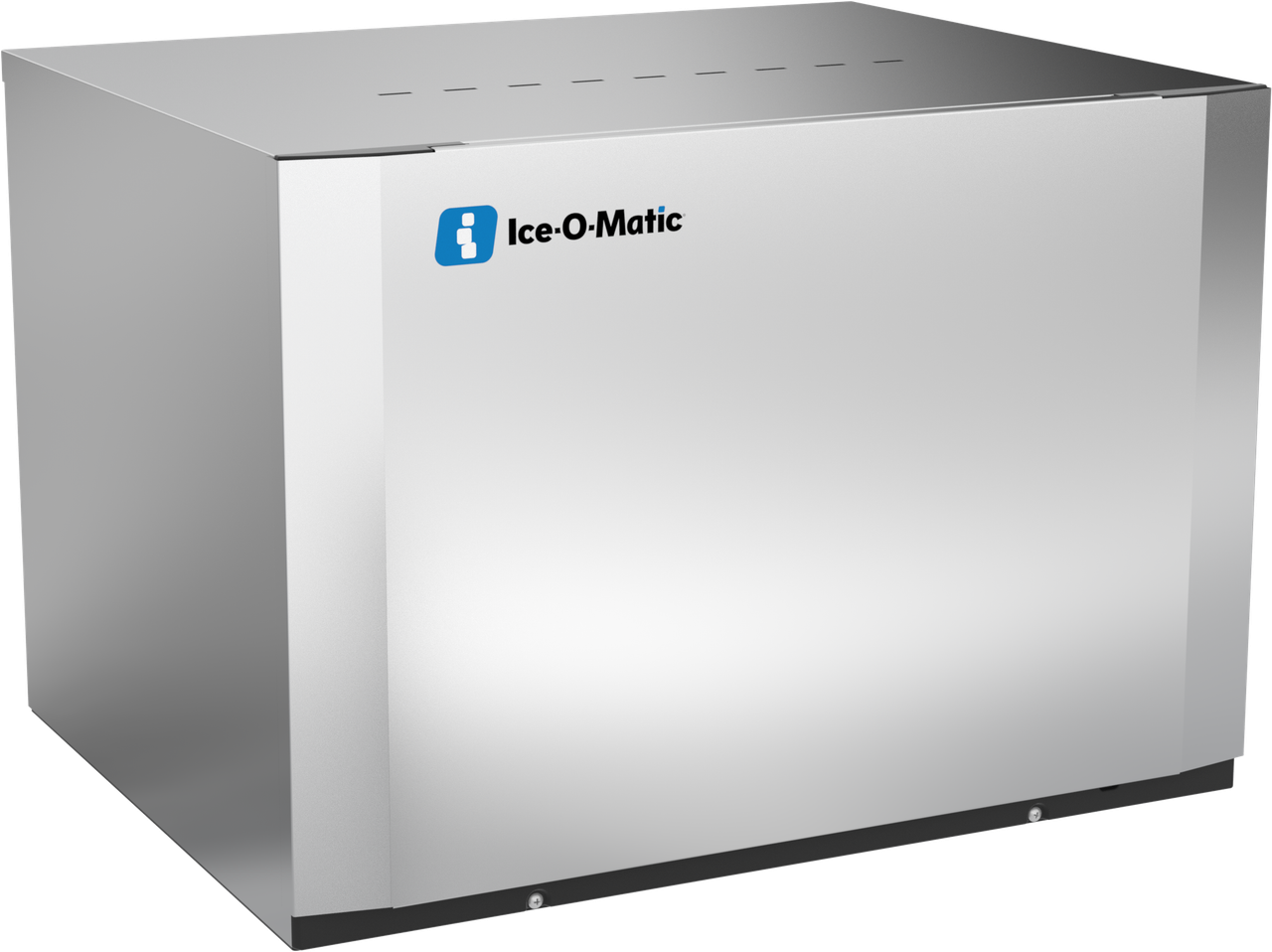

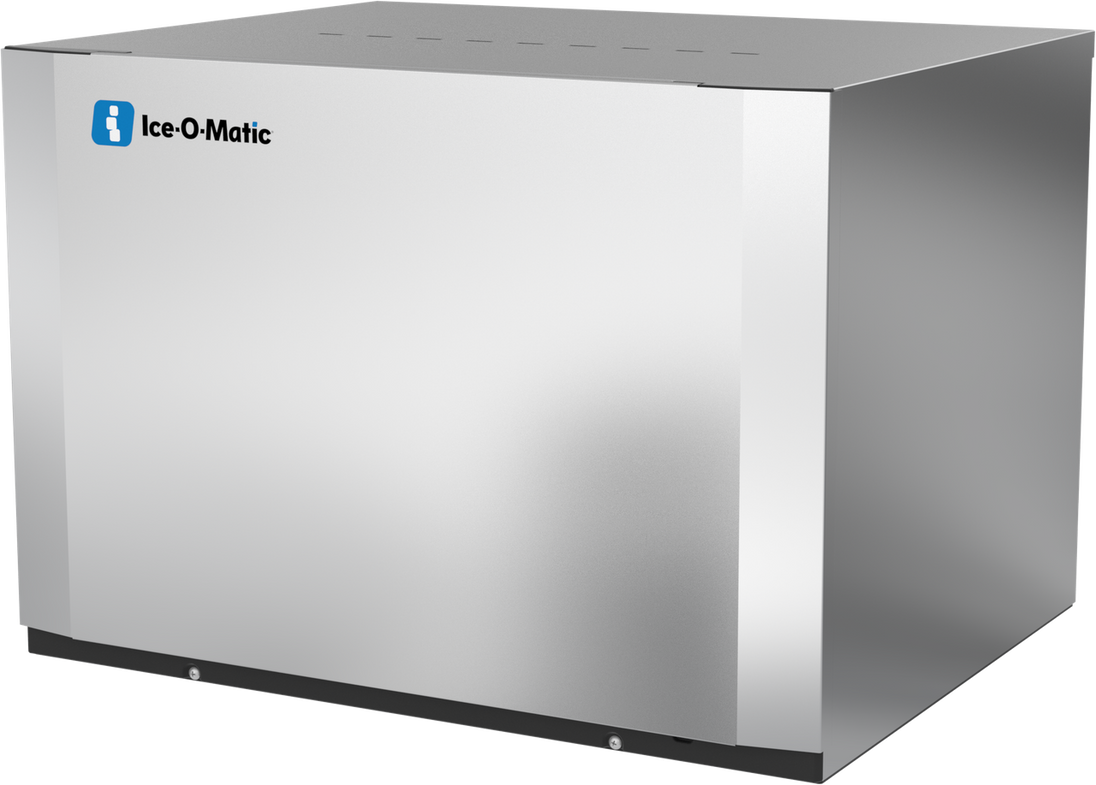

The Ice-O-Matic CIM0530FW90 is a 30 1/4 inch modular ice machine head from the Elevation Series, producing 500 to 600 lb of full cube ice per 24 hours, water cooled.

Full Cube Ice on the 30-Inch Elevation Cabinet

The CIM0530FW90 shares its 30 1/4 by 24 1/4 by 21 1/4 inch cabinet with the CIM0430 series while producing a higher 500 to 600 lb range of full cube ice per day, versus 400 to 500 lb for the CIM0430FA90. It is the full-output step up within the same footprint.

Water Cooled at 115V

The unit runs on standard 115/60/1 electrical service and rejects heat through a water-cooled condenser rather than ambient air, which keeps performance more consistent in hot or poorly ventilated machine rooms. Ice-O-Matic also sells this cabinet as the air-cooled CIM0530FA90 for kitchens without a water line and drain to spare.

IFQ1-XL Filtration and R290A Refrigerant

The CIM0530FW90 ships with Ice-O-Matic's IFQ1-XL filter system and runs on R290A refrigerant. It is BABA compliant per the manufacturer's published specifications.

Specifications

Model CIM0530FW90
Series Elevation
Type Full Cube, modular head, bin sold separately
Capacity 500-600 lb per 24 hours
Exterior Dimensions 30.25 in W x 24.25 in D x 21.25 in H
Electrical 115/60/1
Refrigerant R290A
Condenser Water Cooled
Filter System IFQ1-XL
Certifications BABA Compliant
Shipping Weight 156 lb

Warranty

Ice-O-Matic publishes 3 years parts and labor on the CIM series, with 5 years parts coverage on the evaporator and compressor.
