Product Description

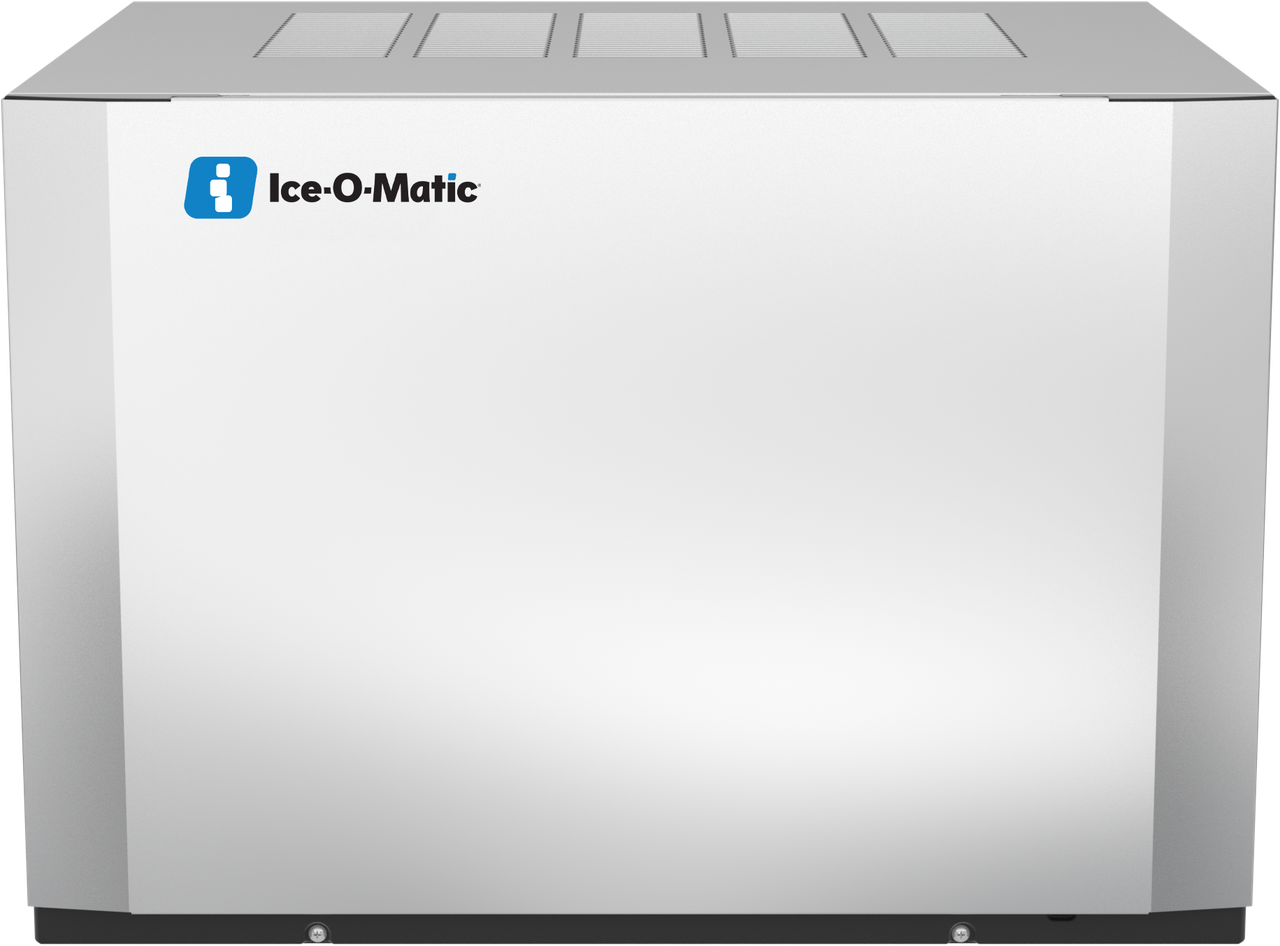

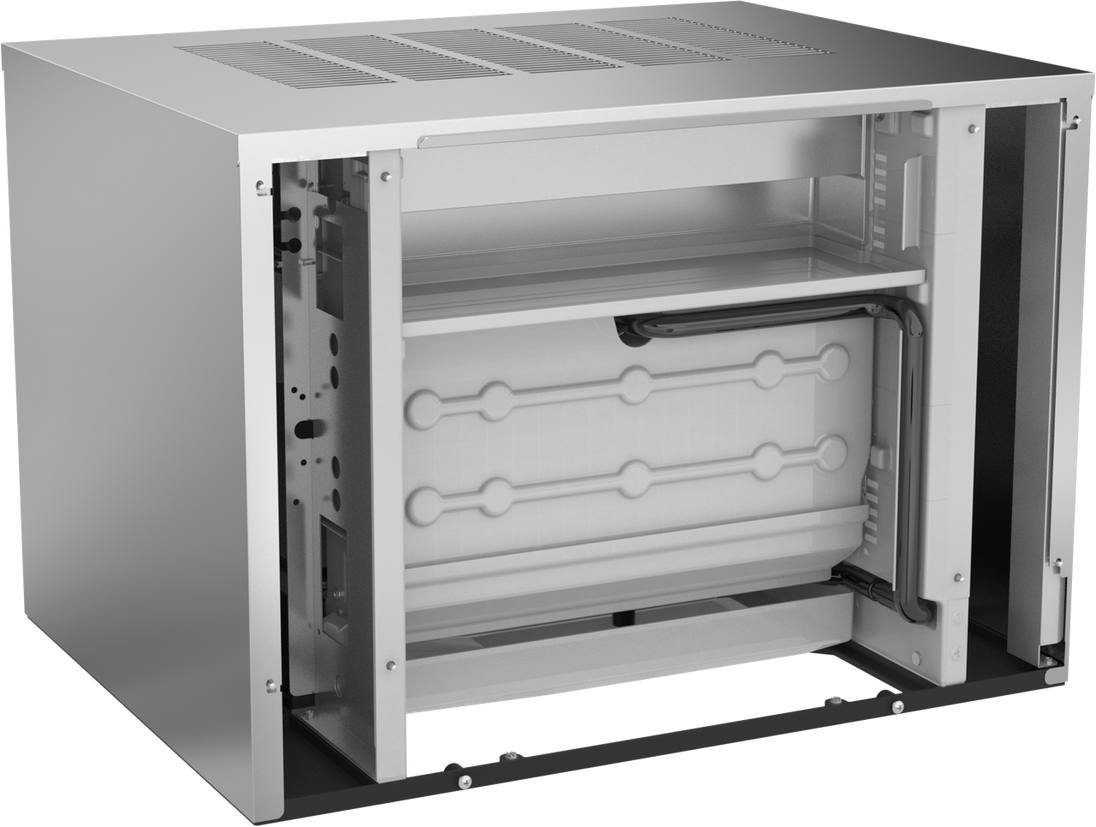

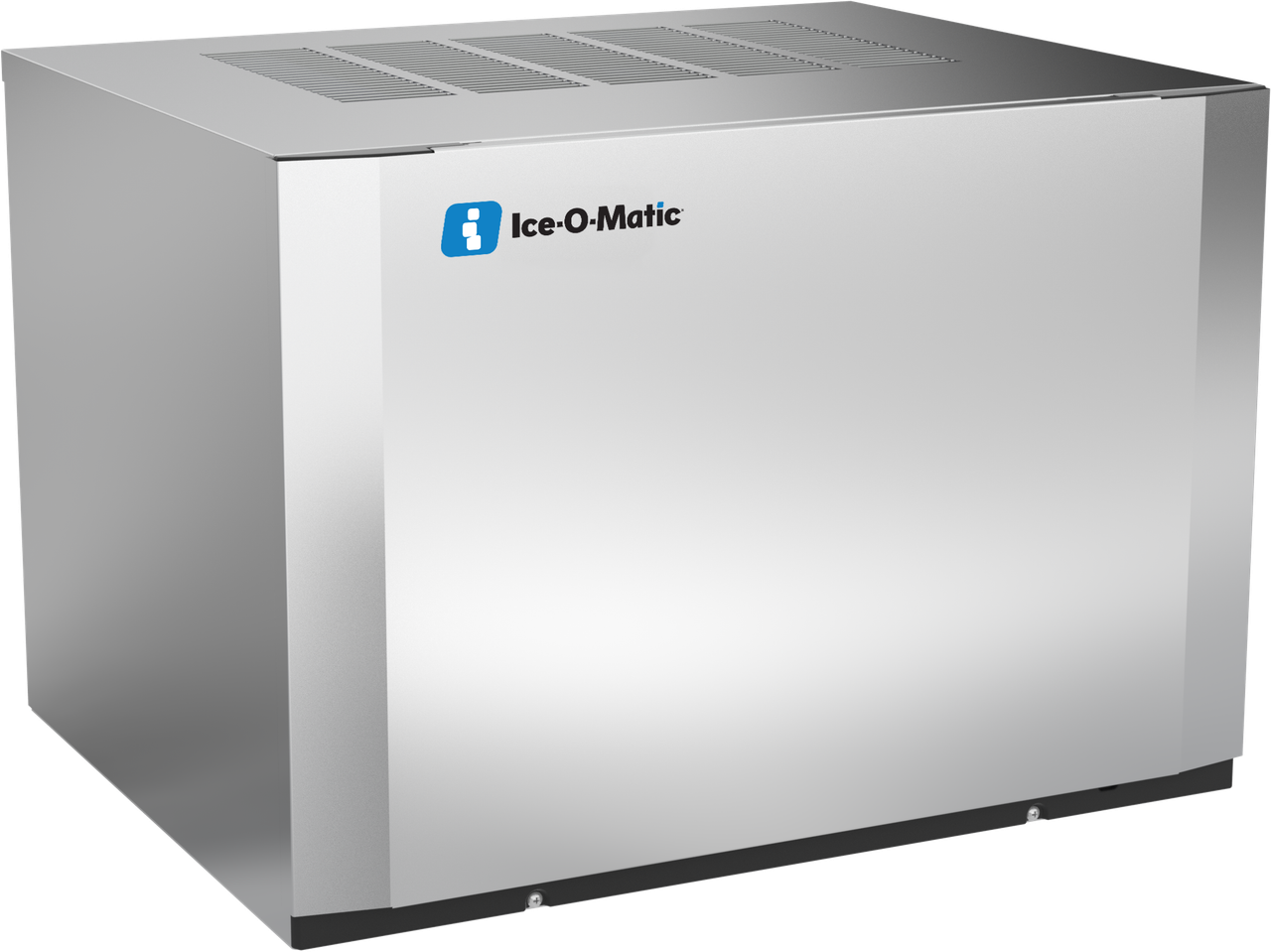

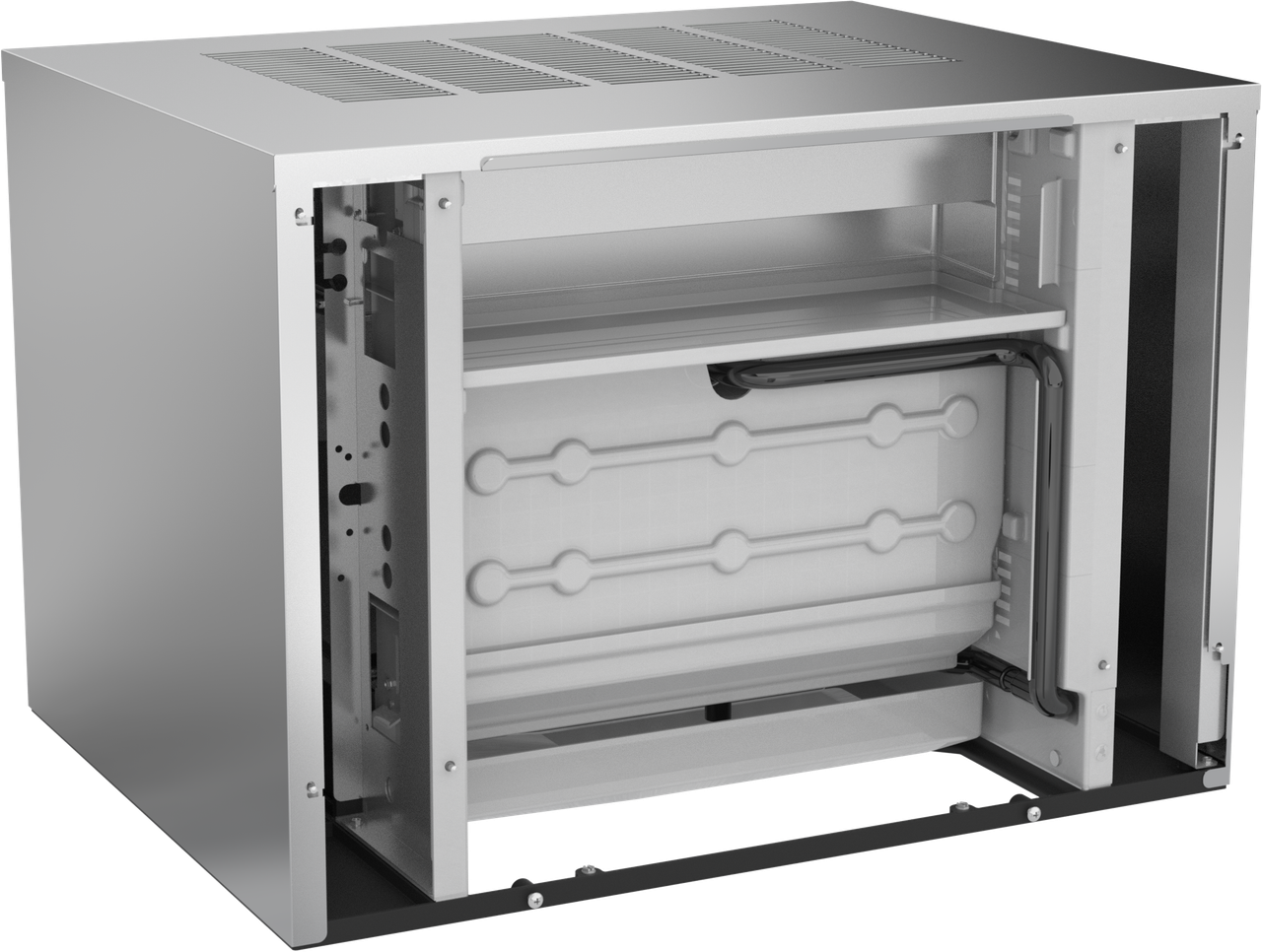

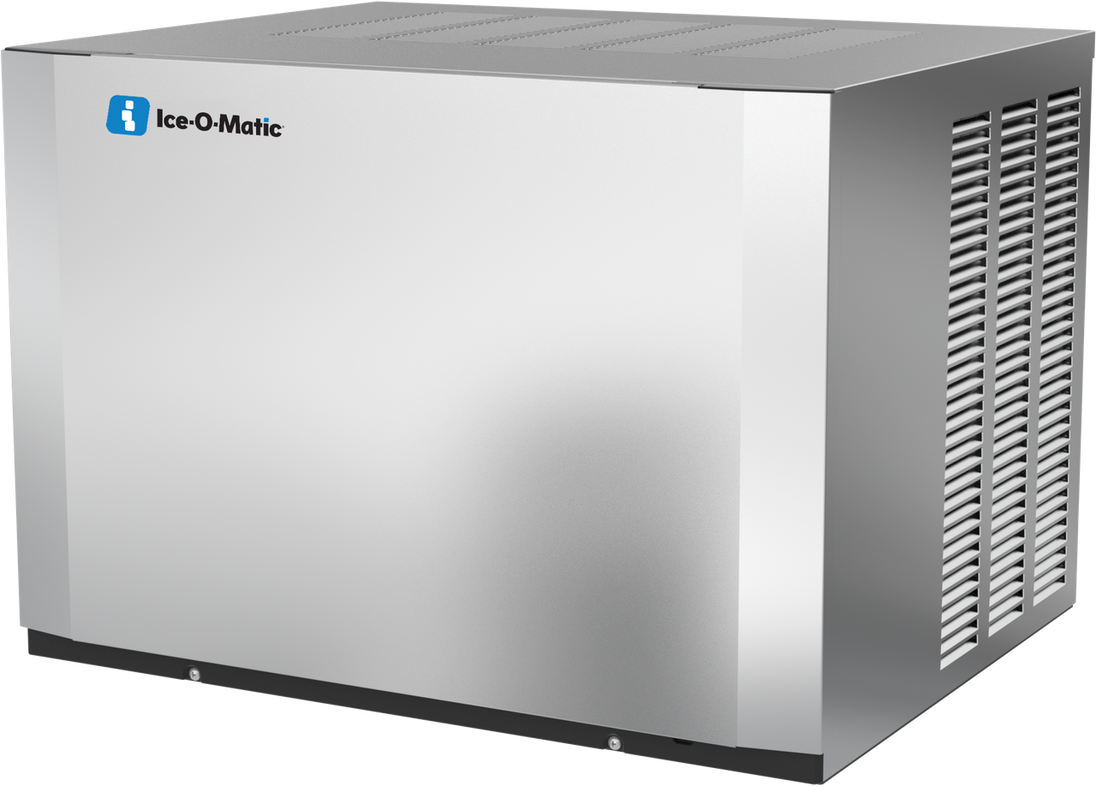

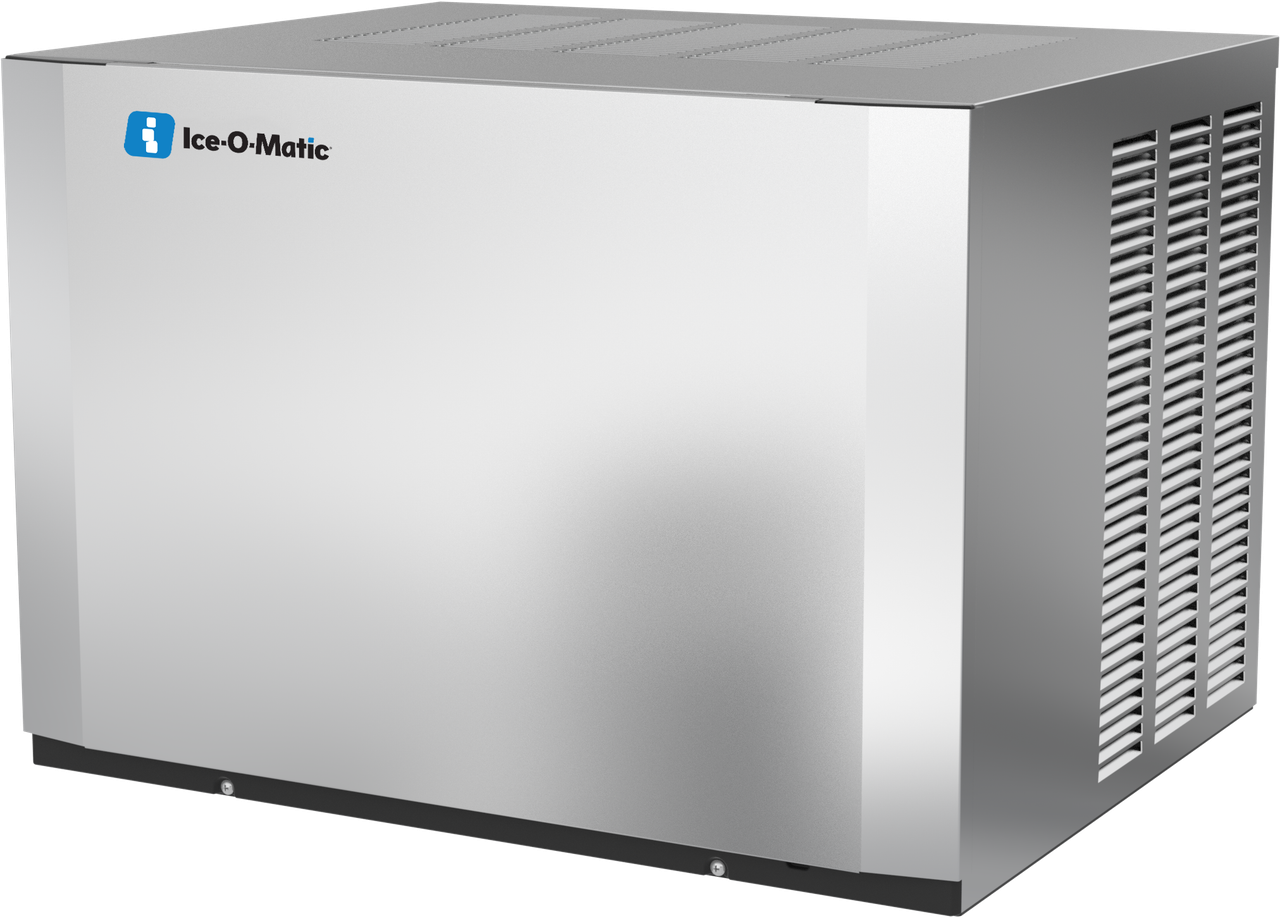

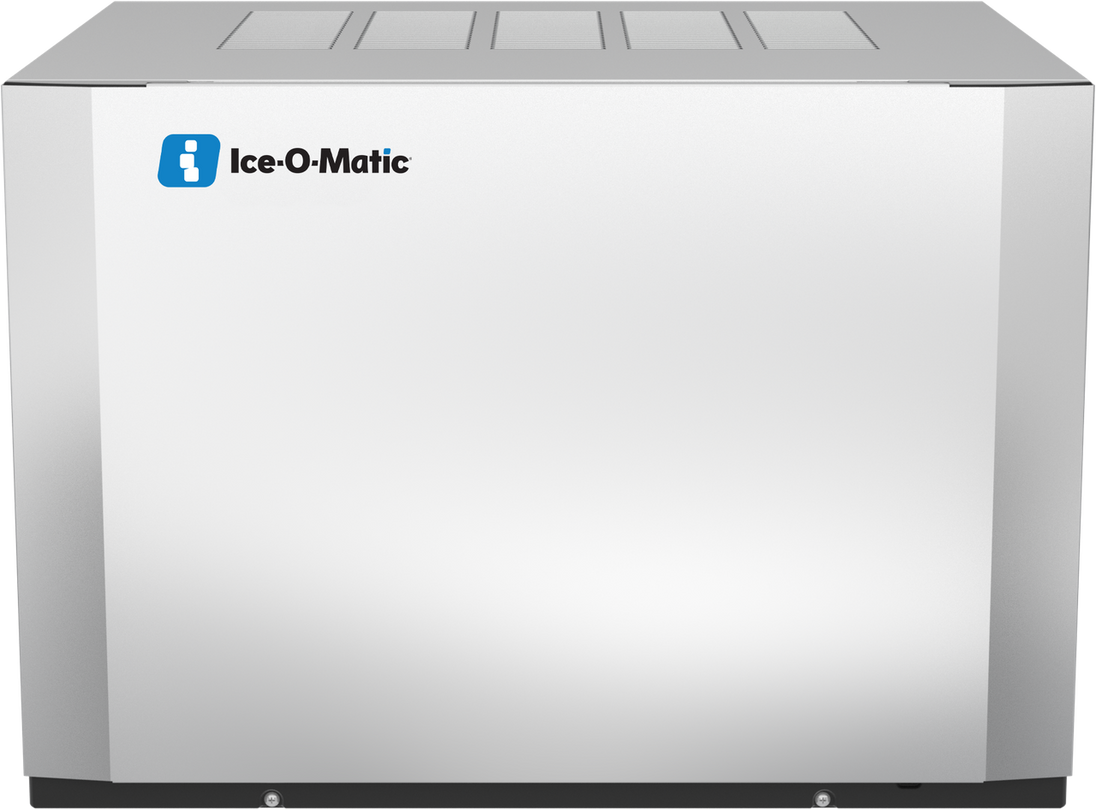

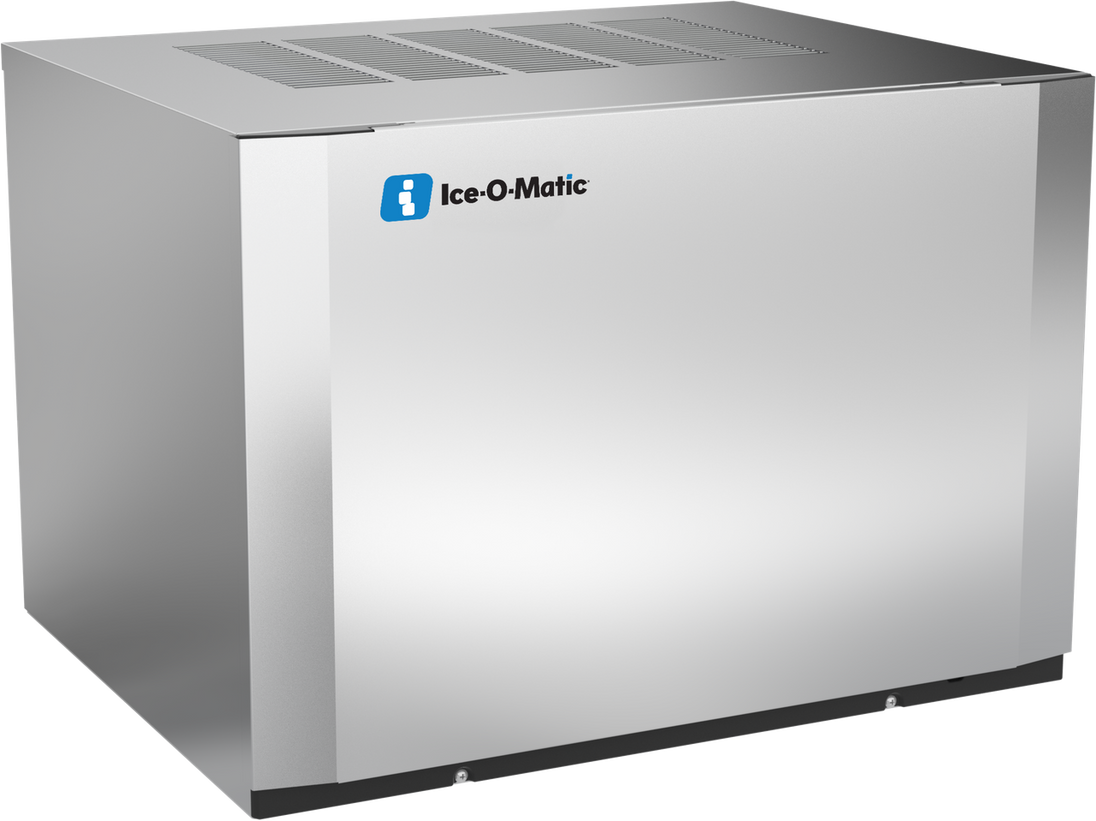

The Ice-O-Matic CIM0530FA90 is a 30 1/4 inch modular ice machine head from the Elevation Series, producing 500 to 600 lb of full cube ice per 24 hours. It is a head only, air cooled, and sold without a storage bin.

500 to 600 Pounds in a 30-Inch Footprint

The CIM0530FA90 sits in the middle of Ice-O-Matic's Elevation cube lineup, giving operators a full day's ice for a mid-volume bar or kitchen without stepping up to a wider 36 or 44 inch head. Because it is a head unit, the storage capacity actually available on site depends on which bin it is mounted on.

R290A Refrigerant with ENERGY STAR Certification

This model runs on R290A, a low-GWP hydrocarbon refrigerant, and is ENERGY STAR certified. Operators replacing an older R404A or R448A machine with this head should confirm with their installer that R290A's charge limits and ventilation requirements are met for the install location.

Matched to the IFQ1-XL Filter System

Ice-O-Matic pairs the CIM0530FA90 with its IFQ1-XL water filter system. Running the specified filter is what keeps scale out of the evaporator, which matters for a head this size where descaling downtime directly affects ice output.

Specifications

Model CIM0530FA90
Series Elevation
Type Full Cube, modular head (bin sold separately)
Capacity 500-600 lb/24hr
Exterior Dimensions 30.25 x 24.25 x 21.25 Inch (W x D x H)
Shipping Weight 151 lb
Electrical 115V/60Hz/1-Phase
Refrigerant R290A
Condenser Air Cooled
Filter System IFQ1-XL
Certifications ENERGY STAR

Warranty

Ice-O-Matic publishes 3 years parts and labor on the CIM series, with 5 years parts coverage on the evaporator and compressor.
