Product Description

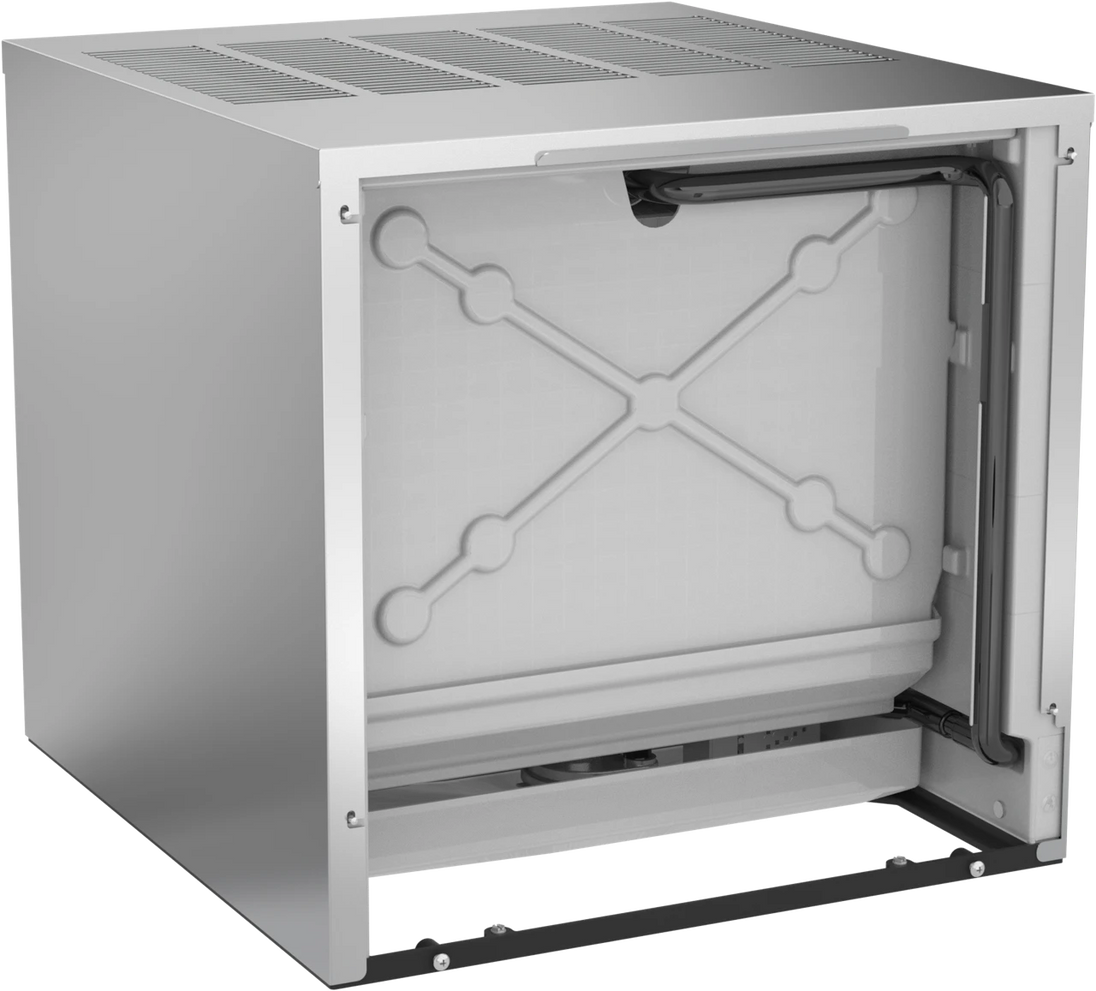

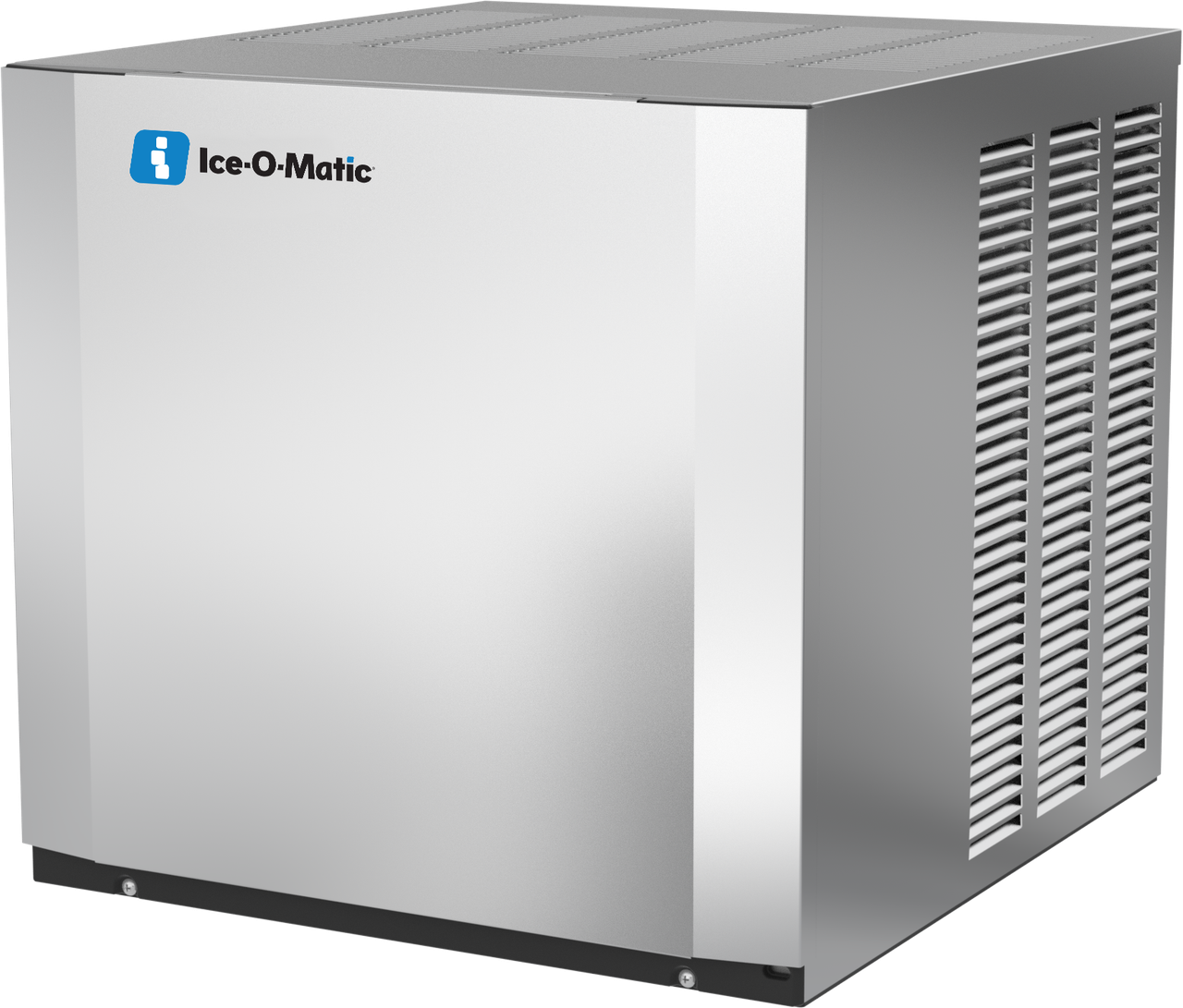

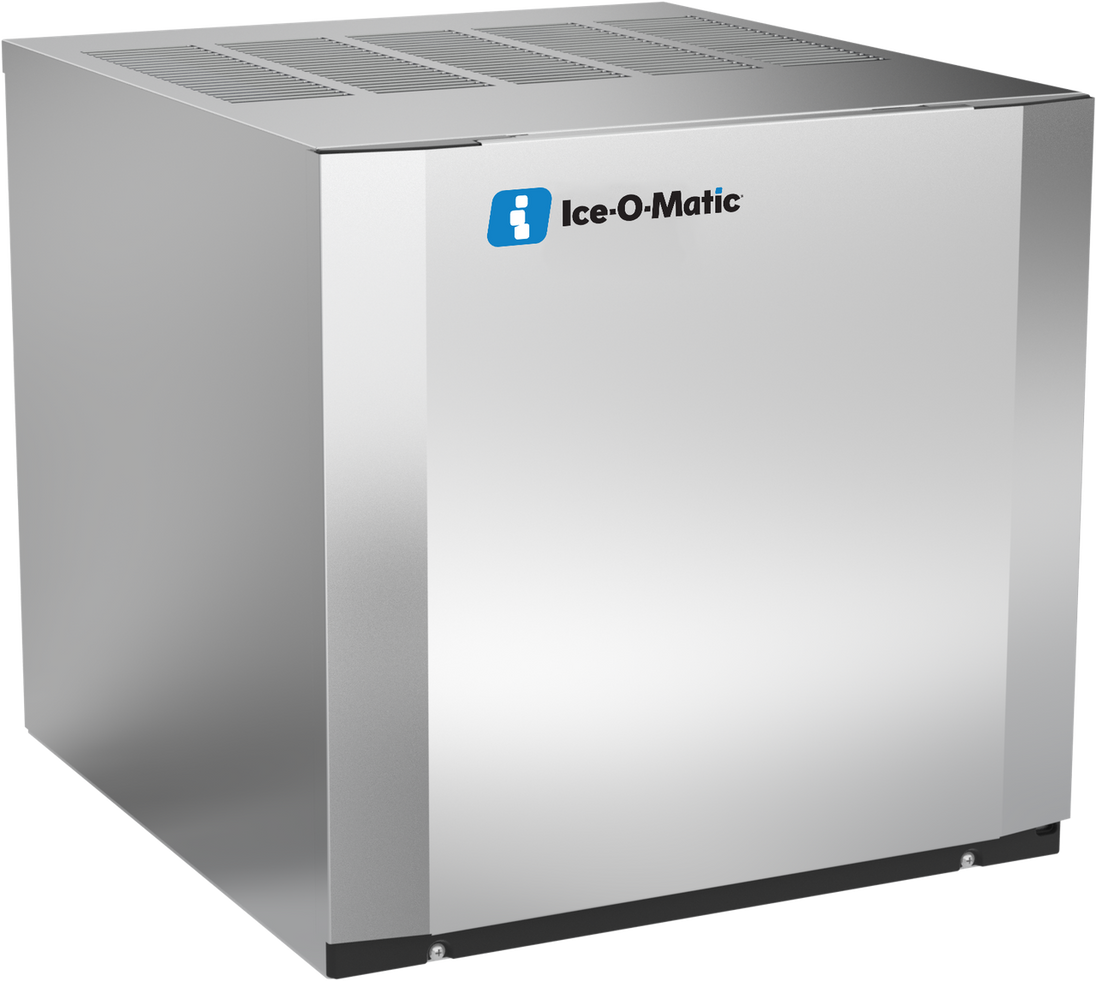

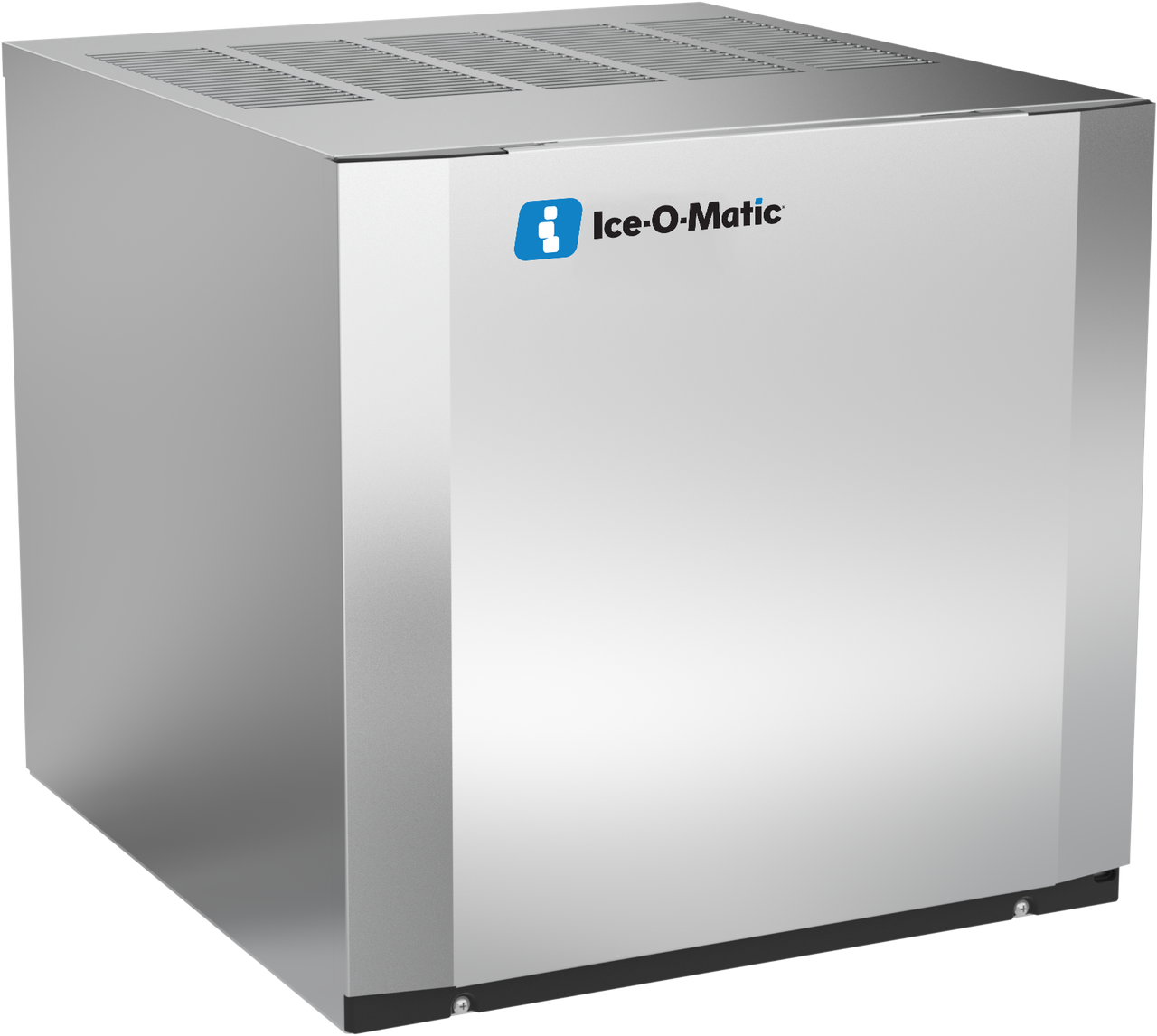

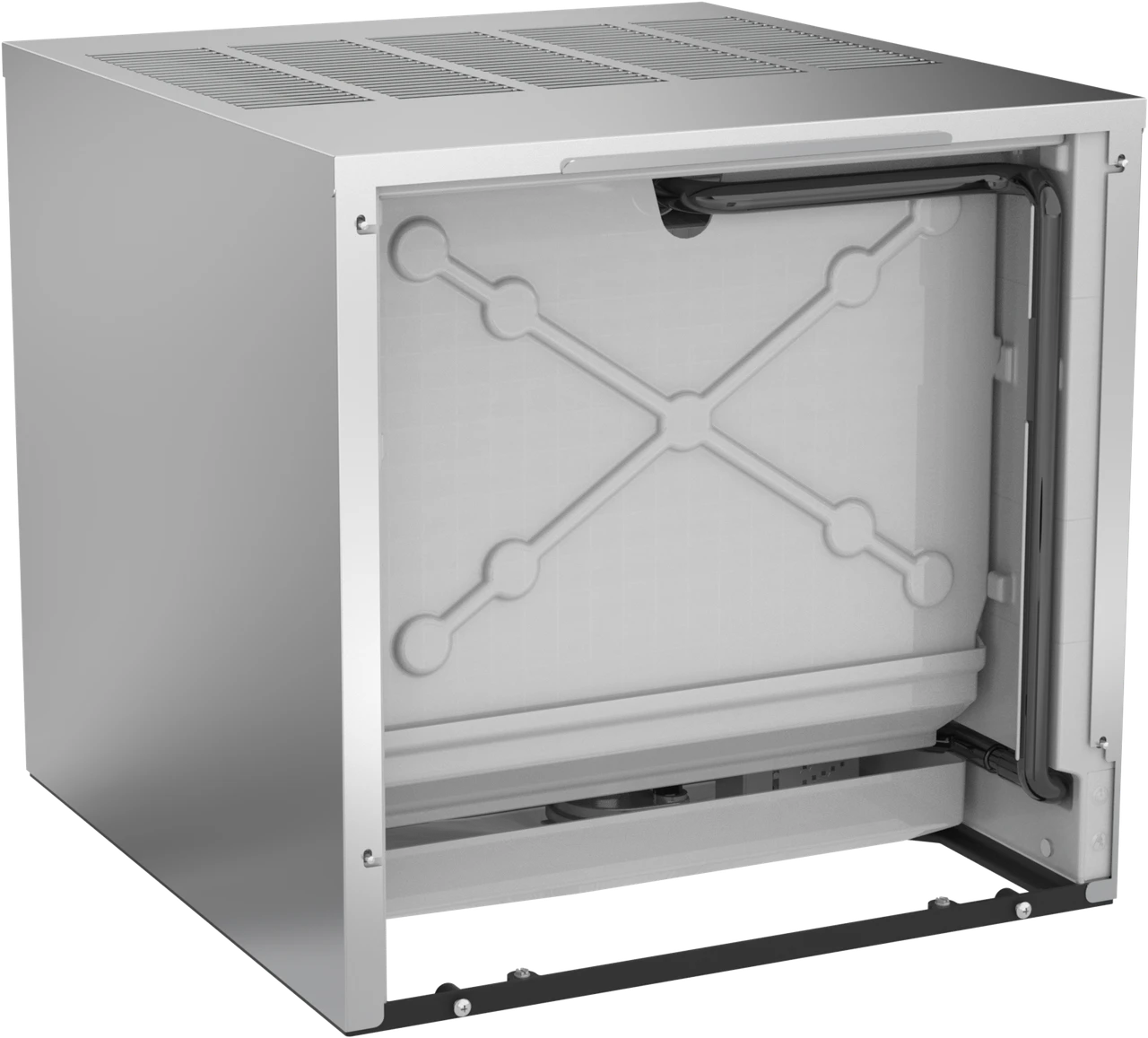

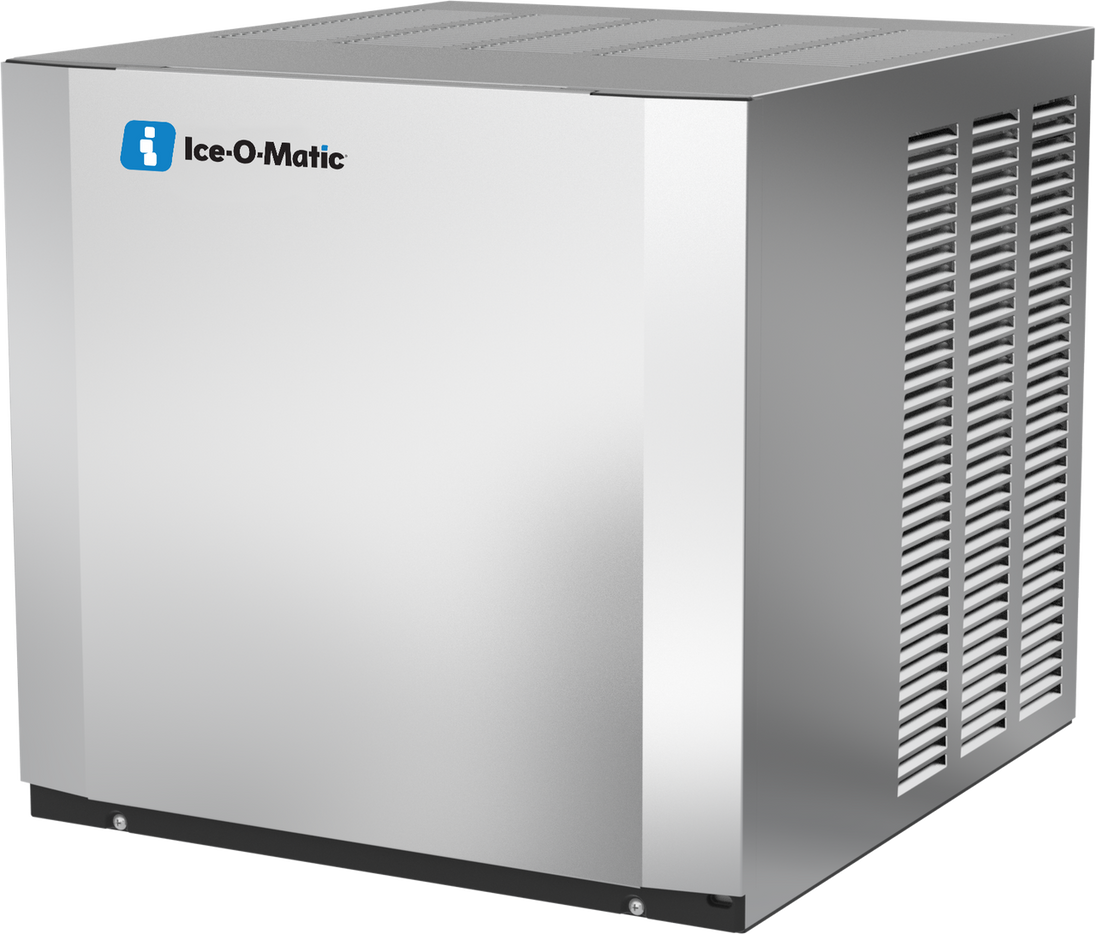

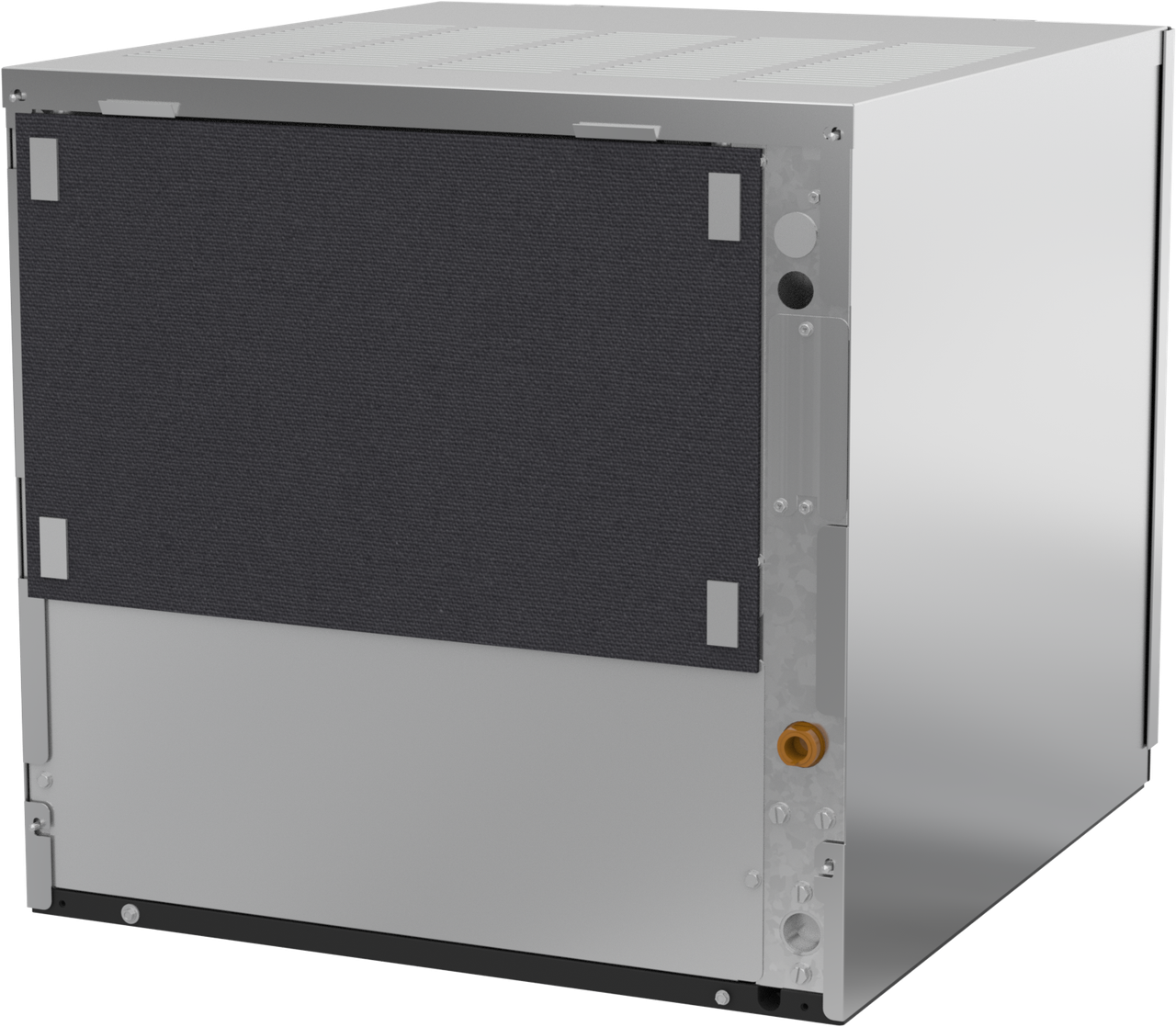

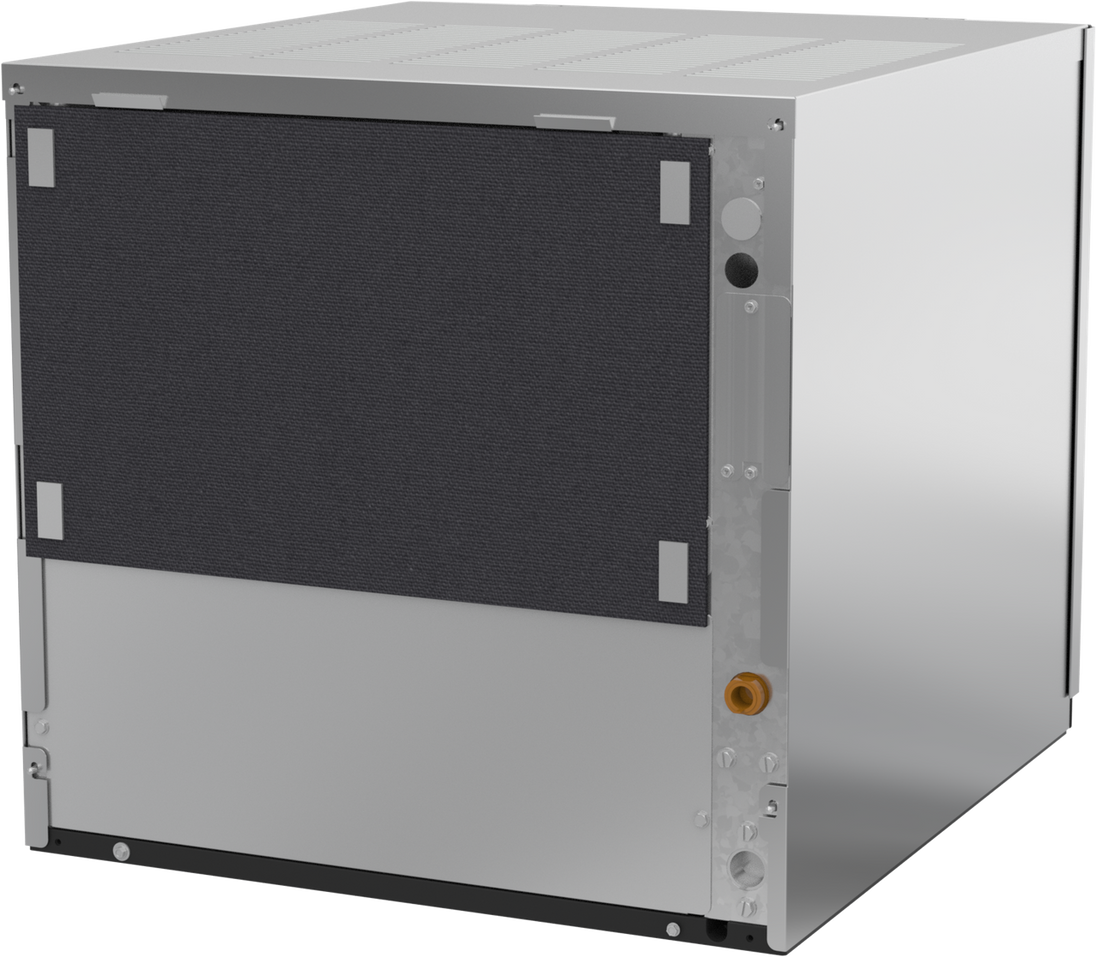

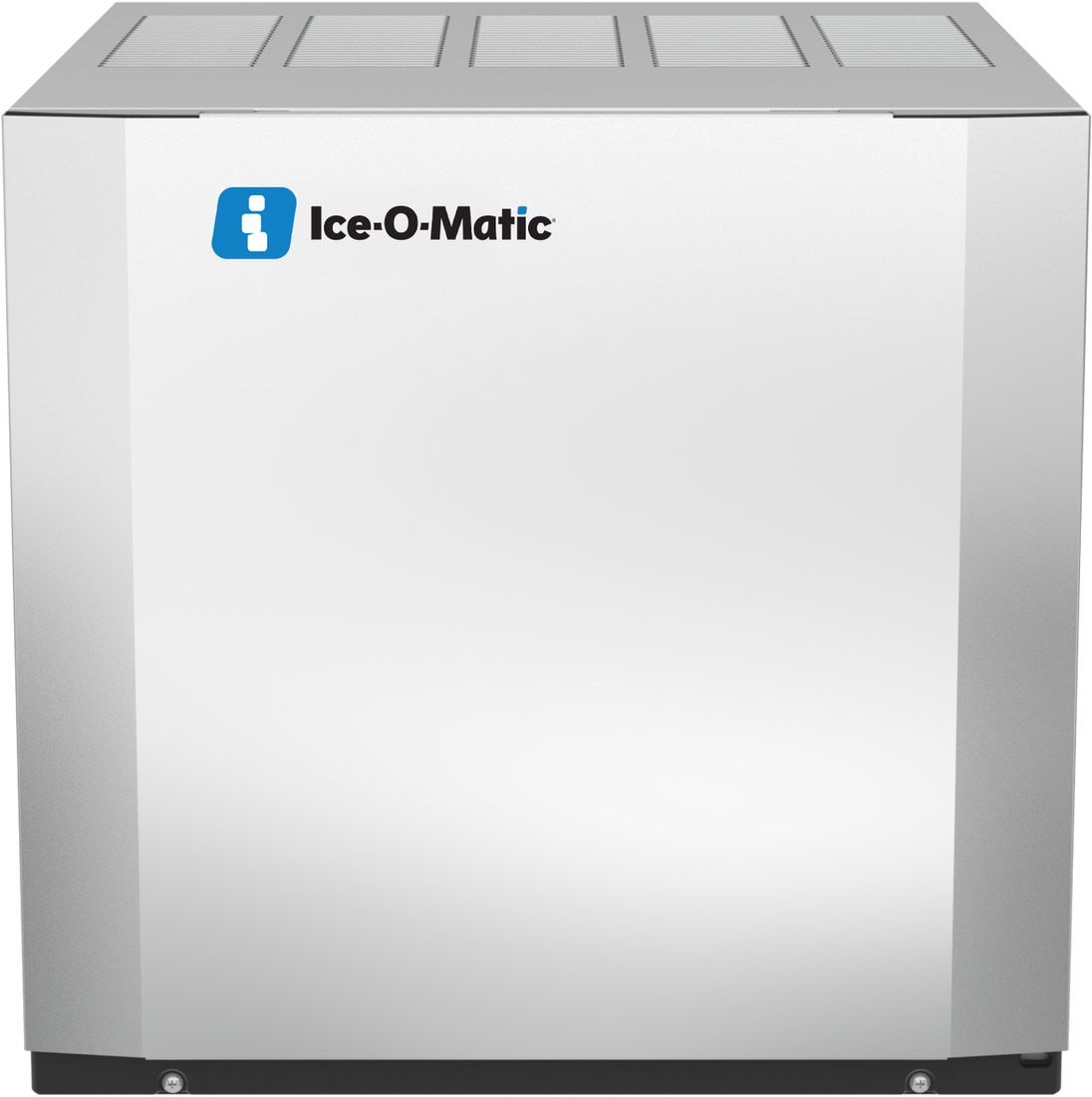

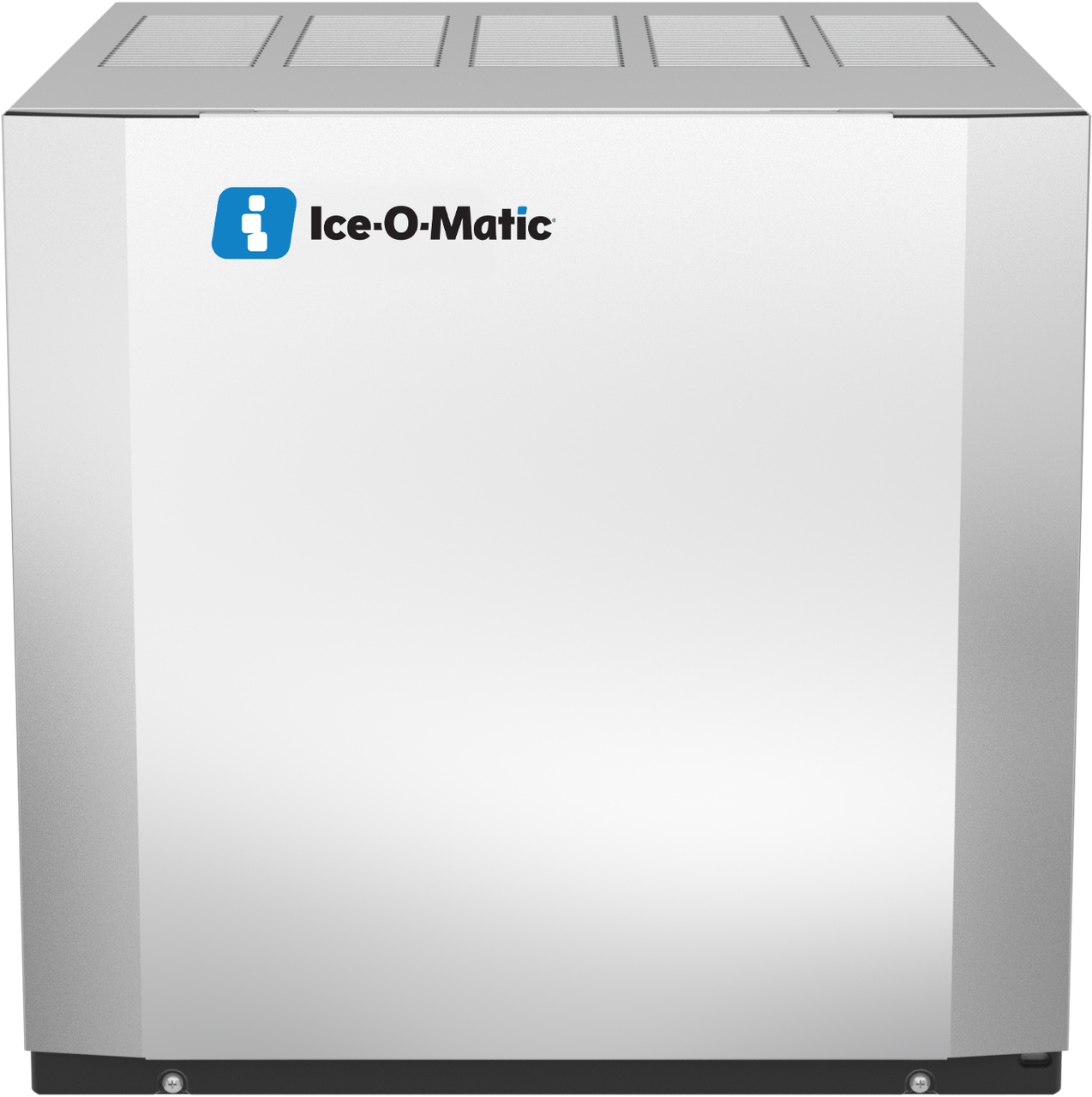

The Ice-O-Matic CIM0520FA90 is a 22 1/4 inch modular ice machine head from the Elevation Series, producing 500 to 600 lb of full cube ice per 24 hours, air cooled.

Full Cube Output in a 22-Inch Footprint

The CIM0520FA90 fits a 22 1/4 by 24 1/4 by 21 1/4 inch cabinet, narrower than the 30-inch CIM0530FA90 while producing the same 500 to 600 lb range of full cube ice per day. It is the choice for kitchens that need that production volume but cannot spare the extra 8 inches of width.

Air Cooled at 115V

The unit runs on standard 115/60/1 electrical service and rejects heat through an air-cooled condenser, so no water line or drain is needed for cooling. Ice-O-Matic also sells this cabinet as the water-cooled CIM0520FW90 for kitchens where ambient heat or airflow is a constraint.

IFQ1-XL Filtration and R290A Refrigerant

The CIM0520FA90 ships with Ice-O-Matic's IFQ1-XL filter system and runs on R290A refrigerant. It is Energy Star certified and BABA compliant per the manufacturer's published specifications.

Specifications

Model CIM0520FA90
Series Elevation
Type Full Cube, modular head, bin sold separately
Capacity 500-600 lb per 24 hours
Exterior Dimensions 22.25 in W x 24.25 in D x 21.25 in H
Electrical 115/60/1
Refrigerant R290A
Condenser Air Cooled
Filter System IFQ1-XL
Certifications Energy Star Certified, BABA Compliant
Shipping Weight 132 lb

Warranty

Ice-O-Matic publishes 3 years parts and labor on the CIM series, with 5 years parts coverage on the evaporator and compressor.
